I-8014W User Manual
250 KS/s, 16-bit, 8-channel differential/16-channel
single-ended analog input module
Version 1.0.1/ September 2011

I-8014W API User Manual, v 1.0.1, September 2011 E-mail: [email protected]
Copyright © 2011 ICP DAS Co., Ltd. All Rights Reserved.
2
Warranty
All products manufactured by ICP DAS are under warranty
regarding defective materials for a period of one year, beginning
from the date of delivery to the original purchaser.
Warning
ICP DAS assumes no liability for any damage resulting from the
use of this product. ICP DAS reserves the right to change this
manual at any time without notice. The information furnished by
ICP DAS is believed to be accurate and reliable. However, no
responsibility is assumed by ICP DAS for its use, not for any
infringements of patents or other rights of third parties resulting
from its use.
Copyright
Copyright @ 2011 by ICP DAS Co., Ltd. All rights are reserved.
Trademark
The names used for identification only may be registered
trademarks of their respective companies.
Contact US
If you have any problem, please feel free to contact us.
You can count on us for quick response.
Email: [email protected]

I-8014W API User Manual, v 1.0.1, September 2011 E-mail: [email protected]
Copyright © 2011 ICP DAS Co., Ltd. All Rights Reserved.
3
Table of Contents
Table of Contents .......................................................................3
Preface.........................................................................................5
Hardware.....................................................................................6
Specifications 6
Pin Assignments 7
Jumper setting 8
Wire Connection 10
Block Diagram 11
Demo Programs Location 12
Quick Start ................................................................................14
On MiniOS7 platform controller............................................................14
Getting Started Guide 14
Calibration 17
On Windows platform controller ..........................................................26
Getting Started Guide 26
Calibration 28
Magic Scan................................................................................35
Magic Scan Mode...................................................................................36
Standard mode 37
Virtual Sample and hold mode 38
Trigger method.......................................................................................39
Software trigger method 39
Internal hardware trigger method 40
External hardware trigger method 41
FIFO.........................................................................................................42
Magic Scan Procedure ..........................................................................43
Magic Scan Example .............................................................................44

I-8014W API User Manual, v 1.0.1, September 2011 E-mail: [email protected]
Copyright © 2011 ICP DAS Co., Ltd. All Rights Reserved.
4
Magic.exe 44
Mag_ISR.exe 50
Case Example 51
API..............................................................................................53
Function list 54
Error code list 55
i8014W_Init 56
i8014W_GetFirmwareVer_L1 58
i8014W_GetFirmwareVer_L2 59
i8014W_GetLibVersion 60
i8014W_GetLibDate 61
i8014W_GetSingleEndJumper 62
i8014W_ReadGainOffset 64
i8014W_ReadAI 66
i8014W_ReadAIHex 68
i8014W_ConfigMagicScan 70
i8014W_StartMagicScan 73
i8014W_StopMagicScan 74
i8014W_ReadFIFO 75
i8014W_CalibrateData 77
i8014W_CalibrateDataHex 79
i8014W_UnLockFIFO 81
i8014W_ClearFIFO 82
i8014W_InstallMagicScanISR 83
i8014W_UnInstallMagicScanISR 86
i8014W_ClearInt 87
Troubleshooting .......................................................................88
How to verify the AI function on WinCE or WES unit? 88
Service-request requirement 92
Why does the data read from I-8014W seem unstable? 92
How to solve FIFO LATCHED error (-6)? 93

I-8014W API User Manual, v 1.0.1, September 2011 E-mail: [email protected]
Copyright © 2011 ICP DAS Co., Ltd. All Rights Reserved.
5
Preface
The I-8014W is a 16-bit resolution, high speed isolated analog input module providing
16 single-ended or 8 differential analog input channels. Besides basic usage
knowledge and SDK interface, this manual intends to introduce the Magic Scan
function of I-8014W for scanning multi-channel system.
This manual contains
Chapter 1, “Hardware”–Provides hardware information such as specifications,
jumper setting note and wiring.
Chapter 2, “Quick Start”–Provides how to start an overview demo programs
location, Getting Started Guide, and calibration process.
Chapter 3, “Magic Scan”–Introduces the parameters in Magic Scan function,
programming procedure, and demo programs.
Chapter 4, “API”–Describes the diversity of naming rule for MiniOS7 and
Windows platforms and functions provided in I-8014W library.
Chapter 5, “Troubleshooting”–Provides some techniques for troubleshooting the
problems faced.

I-8014W API User Manual, v 1.0.1, September 2011 E-mail: [email protected]
Copyright © 2011 ICP DAS Co., Ltd. All Rights Reserved.
6
Hardware
Specifications
Input Range
+/- 10 V, +/- 5 V, +/- 2.5 V, +/- 1.25 V
-20 mA ~ +20 mA (Requires Optional External
125 Ohm Resistor)
Resolution
16 bits
Sampling Rate
Single Channel, Polling Mode :250K S/s
FIFO
4k sample (8 k bytes)
Accuracy
0.05 % of FSR +/- 1 LSB
Input Mode
Polling, Pacer (Magic Scan)
Magic Scan Mode
Mode1: standard mode
Mode2: virtual sample and hold
Overvoltage Protection
+60 V ~ -45 V
Input Impedance
20 k, 200 k, 20 M (Jumper Select)
Intra-module Isolation, Field
to Logic
2500 Vrms
LED Power Indicator
Yes
Power Consumption
2.5 W Max
Operating Temperature
-25 ~ +75 °C
Storage Temperature
-30 ~ +85 °C
Humidity
5 to 95 % RH, Non-condensing
Dimensions (W x L x H)
30 mm x 102 mm x 115 mm

I-8014W API User Manual, v1.0.1, June 2011
Copyright © 2011 ICP DAS Co., Ltd. All Rights Reserved. E-mail: [email protected]
7

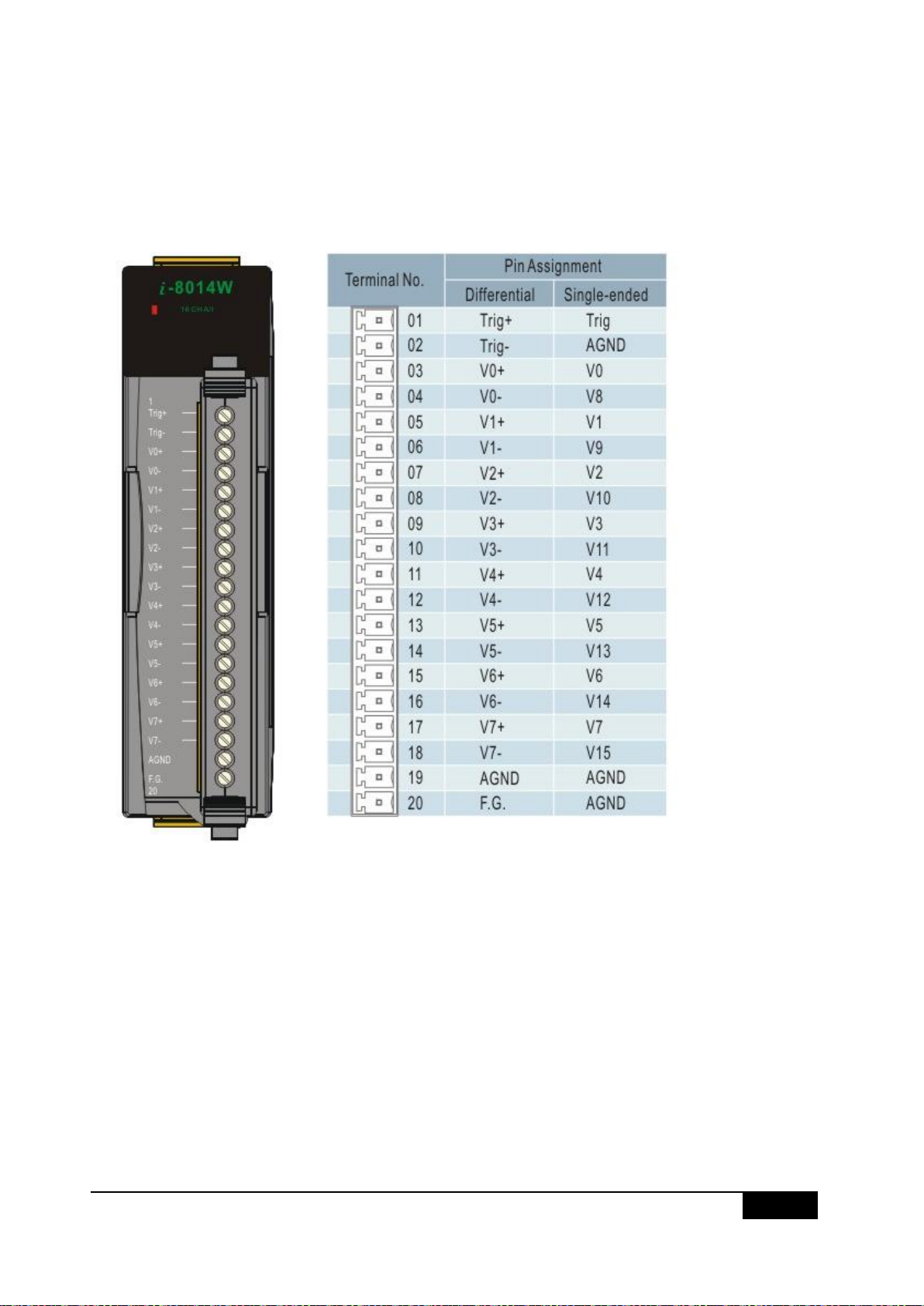

Pin Assignments

I-8014W API User Manual, v 1.0.1, September 2011 E-mail: [email protected]
Copyright © 2011 ICP DAS Co., Ltd. All Rights Reserved.
8

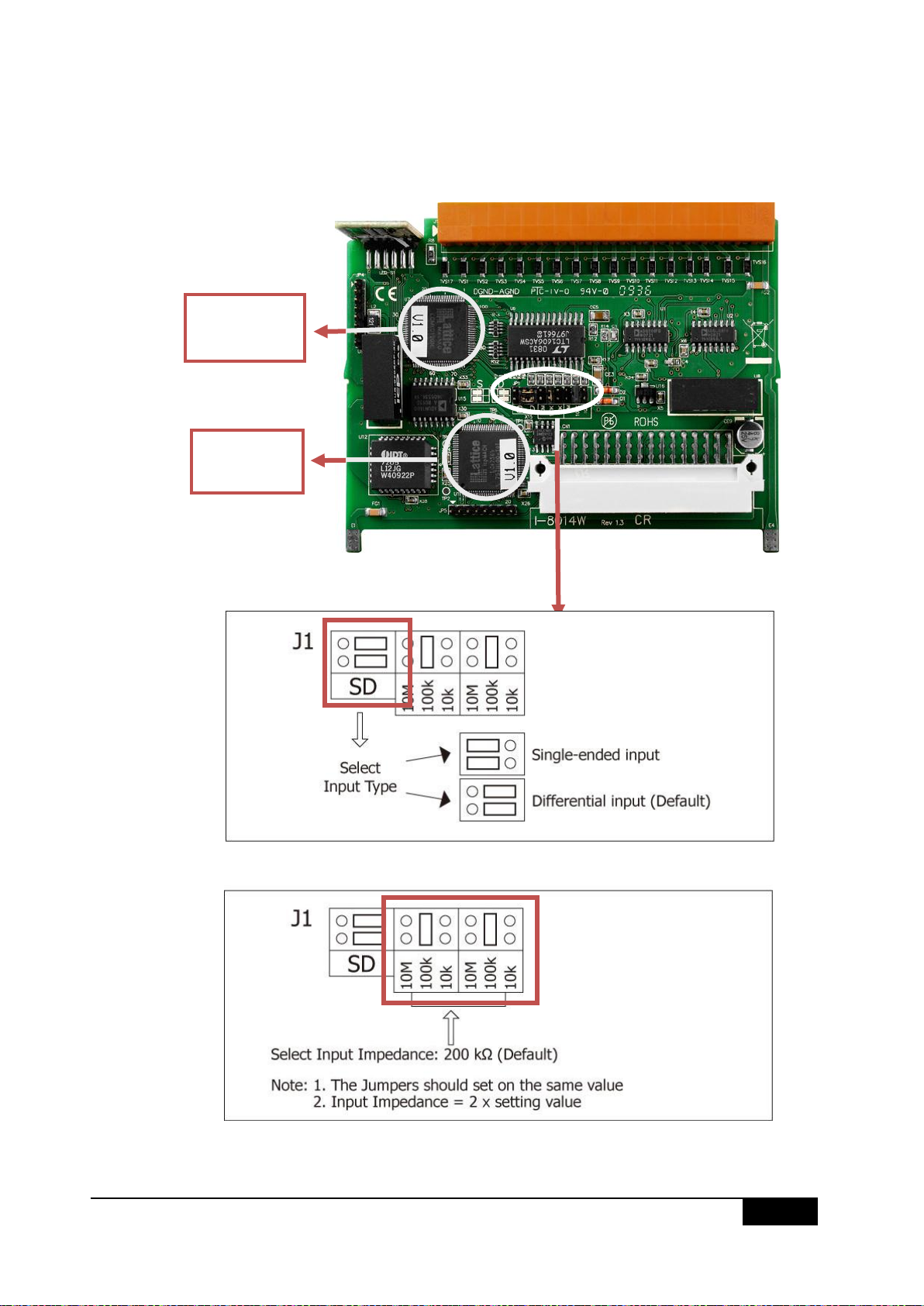

Jumper setting
Differential / Single Ended select jumper
Input impedance select jumper
Secondary
FPGA
Primary
FPGA

I-8014W API User Manual, v 1.0.1, September 2011 E-mail: [email protected]
Copyright © 2011 ICP DAS Co., Ltd. All Rights Reserved.
9
Input impedance adjustment
The I-8014W provides three input impedances such as 20k, 200k (default setting)
and 20M Ohm to meet system requirement. For most of cases, 200k is good enough.
Every time when the input impedance is changed on a calibrated module, it is
necessary to calibrate the module again, refer to Calibration, page17, if you are using
I-8000 or iPAC-8000 (MiniOS7 platform controller); if you use WinCE or WES
platform unit, refer to page 28 for the calibration process.

I-8014W API User Manual, v1.0.1, June 2011
Copyright © 2011 ICP DAS Co., Ltd. All Rights Reserved. E-mail: [email protected]
10
Wire Connection
Tips & Warnings
It is recommended to connect the V - to AGND (system ground)
when measuring differential voltage inputs as the figure shows
below:
While measuring current input, it is no use to enhance to accuracy.

I-8014W API User Manual, v 1.0.1, September 2011 E-mail: [email protected]
Copyright © 2011 ICP DAS Co., Ltd. All Rights Reserved.
11
Block Diagram

I-8014W API User Manual, v 1.0.1, September 2011 E-mail: [email protected]
Copyright © 2011 ICP DAS Co., Ltd. All Rights Reserved.
12
Demo Programs Location
The following table lists the location of I-8014W demo programs for different platform
for verifying the functions of the I-8014W and reusing the source code if needed.
Platform
Location
For I-8000 on Web
Library
ftp://ftp.icpdas.com/pub/cd/8000cd/napdos/8000/841x881x/demo/li
b/
Demo
ftp://ftp.icpdas.com/pub/cd/8000cd/napdos/8000/841x881x/demo/i
o_in_slot/
For I-8000 on CD
Library
CD:\Napdos\8000\841x881x\demo\Lib
Demo
CD:\Napdos\8000\841x881x\demo\IO_in_Slot
For iPAC-8000 on Web
Library
ftp://ftp.icpdas.com/pub/cd/8000cd/napdos/ipac8000/demo/basic/i
p-84x1_ip-88x1/lib/
Demo
ftp://ftp.icpdas.com/pub/cd/8000cd/napdos/ipac8000/demo/basic/i
p-84x1_ip-88x1/io_in_slot/
For iPAC-8000 on CD
Library
CD:\Napdos\iPAC8000\Demo\Basic\iP-84x1_iP-88x1\Lib
Demo
CD:\Napdos\iPAC8000\Demo\Basic\iP-84x1_iP-88x1\IO_in_Slot
For Windows CE5 on Web
Library
ftp://ftp.icpdas.com/pub/cd/winpac/napdos/wp-8x4x_ce50/sdk/io_
modules/
Demo
ftp://ftp.icpdas.com/pub/cd/winpac/napdos/wp-8x4x_ce50/demo/wi
npac/evc/pac_io/local/ (eVC demo)
ftp://ftp.icpdas.com/pub/cd/winpac/napdos/wp-8x4x_ce50/demo/wi
npac/dotnet/c%23.net/pac_io/local/ (C# demo)

I-8014W API User Manual, v 1.0.1, September 2011 E-mail: [email protected]
Copyright © 2011 ICP DAS Co., Ltd. All Rights Reserved.
13
Platform
Location
For Windows CE5 on CD
Library
CD:\napdos\wp-8x4x_ce50\sdk\IO_Modules
Demo
(eVC & C#)
CD:\napdos\wp-8x4x_ce50\Demo\WinPAC\eVC\PAC_IO\Local
CD:\napdos\wp-8x4x_ce50\Demo\WinPAC\DOTNET\C#.NET\PAC
_IO\Local
For Windows CE6 on Web
XP-8000
-CE6
ftp://ftp.icpdas.com/pub/cd/xp-8000-ce6/sdk/special_io/
ftp://ftp.icpdas.com/pub/cd/xp-8000-ce6/demo/xpac/vc2008/io/loca
l/
ftp://ftp.icpdas.com/pub/cd/xp-8000-ce6/demo/xpac/c%23/io/local/
XP-8000
-Atom-CE6
ftp://ftp.icpdas.com/pub/cd/xpac-atom-ce6/sdk/special_io/
ftp://ftp.icpdas.com/pub/cd/xpac-atom-ce6/demo/xpac/vc2008/io/lo
cal/
ftp://ftp.icpdas.com/pub/cd/xpac-atom-ce6/demo/xpac/c%23/io/loc
al/
For Windows CE6 on CD
XP-8000
-CE6
CD:\SDK\Special_IO
CD:\Demo\XPAC\VC2008\IO\Local
CD:\Demo\XPAC\C#\IO\Local
XP-8000
-Atom-CE6
CD:\SDK\Special_IO
CD:\Demo\XPAC\VC2008\IO\Local
CD:\Demo\XPAC\C#\IO\Local
For Windows Embedded Standard on Web
XP-8000
ftp://ftp.icpdas.com/pub/cd/xp-8000/sdk/io/
ftp://ftp.icpdas.com/pub/cd/xp-8000/demo/specialized_io/
XP-8000
-Atom
ftp://ftp.icpdas.com/pub/cd/xpac-atom/sdk/io/
ftp://ftp.icpdas.com/pub/cd/xpac-atom/demo/specialized_io/
For Windows Embedded Standard on CD
XP-8000
CD:\SDK\IO
CD:\Demo\Specialized_IO
XP-8000
-Atom
CD:\SDK\IO
CD:\Demo\Specialized_IO

I-8014W API User Manual, v 1.0.1, September 2011 E-mail: [email protected]
Copyright © 2011 ICP DAS Co., Ltd. All Rights Reserved.
14
Quick Start
This section gives the getting started guide and calibration process for using I-8014W
on MiniOS7 and Windows platforms individually.
This section contains getting started guide and calibration process for using I-8014W:
On MiniOS7 platform controller, page 14 (i-8000 and iPAC-8000 unit)
On Windows platform controller, page 26 (WinCE and WES unit)
On MiniOS7 platform controller
This section contains
Getting Started Guide, page 14
Calibration, page 17
Getting Started Guide
The executable file AI_INFO.EXE in basic_info folder of I-8014W demo could be used
to get the basic information of the I-8014W and verify the AI read function. The basic
information includes:
●Version number and published date of library.
●FPGA version
●The Single-ended/ differential jumper setting position
●The gain and offset values for every input range
●The data read on each channel
(See Demo Programs Location, page 12 , to get AI_INFO.EXE in I-8014W demo
program)

I-8014W API User Manual, v 1.0.1, September 2011 E-mail: [email protected]
Copyright © 2011 ICP DAS Co., Ltd. All Rights Reserved.
15

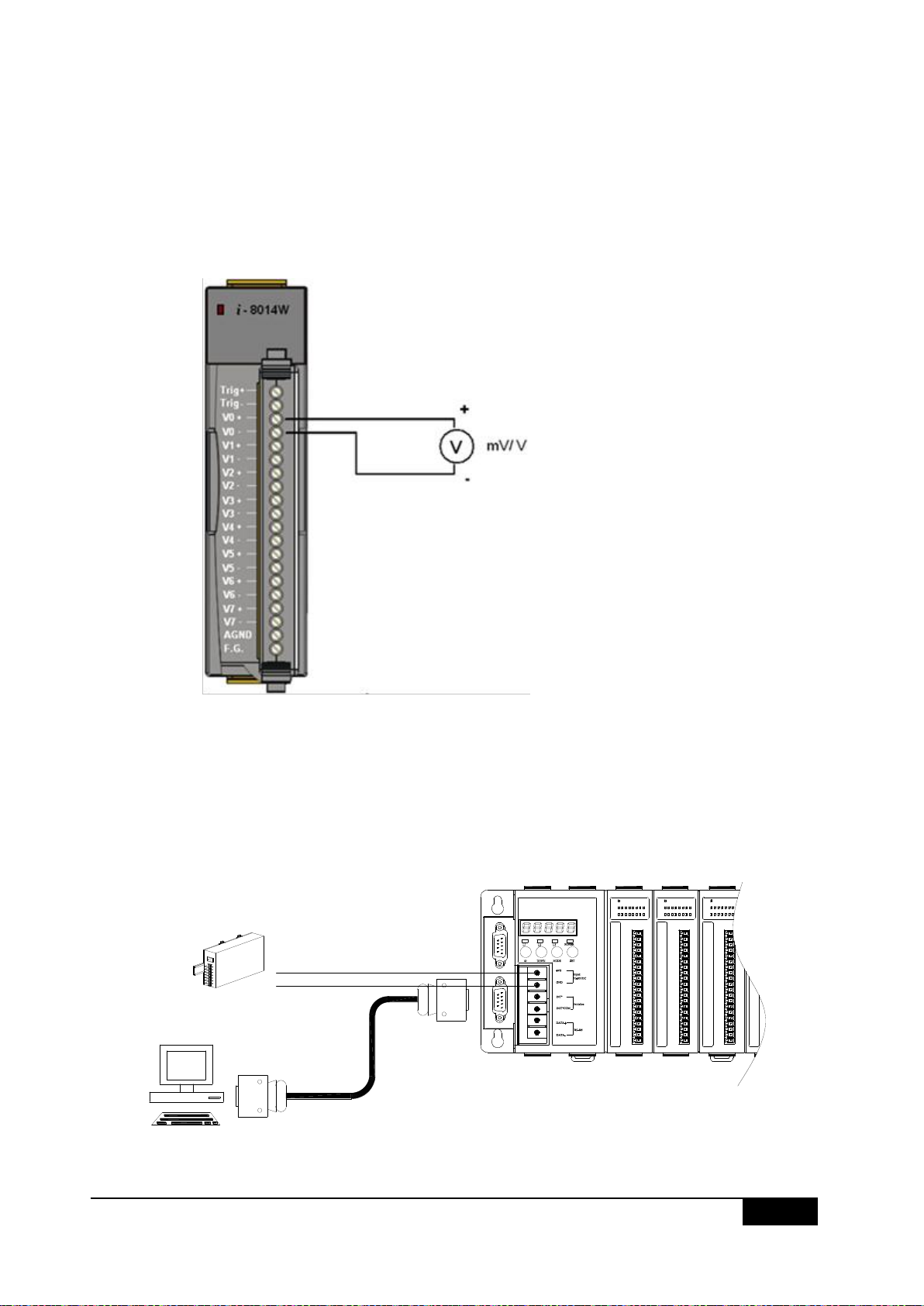

Step 1. Refer to Jumper setting, page 8, make sure the Differential / Single Ended
select jumper is in differential position.
Step 2. Connect your stable signal source (ex. a battery output) to I-8014W by
differential wiring as below.
Step 3. Connect the power supply to the unit, and connect the control unit and PC by
RS232 cable.
HOST COMPUTER
+10V~30VDC
POWER SUPPLY
CA0915
841X/881X

I-8014W API User Manual, v 1.0.1, September 2011 E-mail: [email protected]
Copyright © 2011 ICP DAS Co., Ltd. All Rights Reserved.
16
Step 4. Launch AI_INFO.EXE on PC, verify the basic information and AI read from
each channel as follows:
Tips & Warnings
Unused channel should be connected to GND to avoid floating.
Library and FPGA version information
Single-ended/ differential jumper position
Verify the AI data from each channel.
Gain value is around 33000, when it is far
from 33000 means that the value is
incorrect.

I-8014W API User Manual, v 1.0.1, September 2011 E-mail: [email protected]
Copyright © 2011 ICP DAS Co., Ltd. All Rights Reserved.
17
Calibration
Every one of I-8014W is factory calibrated and well verified. Usually, it is unnecessary
to calibrate the module, unless the input impedance is changed on a calibrated
module, or the accuracy is lost.
To calibrate the I-8014W, in addition to plugging the I-8014W in the slot of controller,
the following items are needed:
●One stable calibration source such as 3 1/2 digit power supplier (or better) or a
battery output.
●One 4 1/2 digit voltage meter (15-bit resolution or better)
●Calibration Program: see page 12 to get the demo program located in I-8014W
demo program.
Tips & Warnings
1. An unstable calibration source will cause the calibration fault and
affect the data acquisition accuracy.
2. If you would like to calibrate ± 20 mA, select ± 2.5V instead, the
two types use the same gain and offset values.
3. The calibration program use channel 0 to accept calibration
source only.
This section contains:
To calibrate the I-8014W on i-8000 and iPAC-8000 unit, page 18
To verify the calibration, page 24
To recover default calibration settings, page25

I-8014W API User Manual, v 1.0.1, September 2011 E-mail: [email protected]
Copyright © 2011 ICP DAS Co., Ltd. All Rights Reserved.
18
To calibrate the I-8014W on i-8000 and iPAC-8000 unit
Step 1. Repeat from step1 to step3 in Quick Start (See page 14)
a. Wire the power to control unit and control unit to PC.
b. Set the Differential / Single Ended jumper in differential position and
wire the calibration source to channel 0 by differential wiring.
c. Connect the meter as the following figure shows.
d. Turn on the control unit.
Calibration Source

I-8014W API User Manual, v 1.0.1, September 2011 E-mail: [email protected]
Copyright © 2011 ICP DAS Co., Ltd. All Rights Reserved.
19
Step 2. Launch MiniOS7 Utility on PC, download the calibration program to the
control unit and run it.
The MiniOS7 Utility could be downloaded from the following web site. Select the
proper calibration program for your controller.
●MiniOS7 Utility: http://www.icpdas.com/download/minios7.htm
●8014cal.exe: the calibration program for I-8000 unit, located at the same folder
as I-8014W demo programs. (See Demo Programs Location, page 12)
●iP_8014cal.exe: the calibration program for iP-8000 unit, located at the same
folder as I-8014W demo programs. (See Demo Programs Location, page 12)
a. Launch MiniOS7 Utility on
PC, choose connection →
New connection.
b. Select the COM port on PC connected to the control unit from the drop-down
list, configure the communication parameters as follows, and click OK.

I-8014W API User Manual, v 1.0.1, September 2011 E-mail: [email protected]
Copyright © 2011 ICP DAS Co., Ltd. All Rights Reserved.
20
c. Highlight the calibration program and click Upload.
d. Right-click the updated calibration file and choose Run
