DALI-08B-DT8-SL
Article no. 80027162
DALI module slim-line for controlling DALI lights
Technical Data / Instruction Manual

2
Seebacher GmbH www.seebacher.de Phone: [phone] / 77 77 6
Marktstrasse 57, 83646 Bad Tölz [e-mail] Fax: [phone] / 77 77 2
1. Notes on documentation
These instructions are intended for qualified personnel who are
familiar with the assembly, installation and operation of the ISYGLT
system. It is essential that you read these operating instructions
through before commissioning and keep them accessible for
further use.
SEEBACHER cannot accept any liability for damage or malfunc-
tions resulting from failure to observe these instructions.
1.1. Retention of documents
These instructions and all other applicable documents are part
of the product. They must be handed over to the device opera-
tor. The operator will store the documents so that they can be
made available if necessary.
1.2. Symbols used
Observe the following safety and other instructions in the
manual:
Handling instruction
The hand indicates that you should carry out an act.
Danger!
Immediate danger to life!
Attention!
General notes, useful information and special features
Directory of Content
1. Notes on documentation
1.1. Retention of documents
1.2. Symbols used
2. Safety instructions
2.1. Intended usage
2.2. Predictable mishandling
2.3. Safe handling
2.4. Qualification of staff
2.5. Changes to the product
2.6. Use of spare parts and additional equipment
2.7. Liability notes
3. Warranty
4. Declaration of Conformity
5. Service address
6. Maintenance / Care / Disposal
7. Storage
8. Assembly
9. Product description
10. Technical Data
10.1. Pin assignment
11. Wiring diagram

3
Seebacher GmbH www.seebacher.de Phone: [phone] / 77 77 6
Marktstrasse 57, 83646 Bad Tölz [e-mail] Fax: [phone] / 77 77 2
The module is designed for cabinet installation on a 35mm DIN
rail according to EN 60715 in corresponding standard housings.
Extreme environmental conditions impair the function of the pro-
duct.
• Protect module from shocks
• Use module indoors only
• Protect module from humidity
In addition to these safety instructions, you must also observe the
special safety instructions listed in the individual chapters for the
individual acts.
2.4. Qualification of staff
Assembly, commissioning, operation, maintenance, decommissio-
ning and disposal may only be carried out by qualified staff. Work
on electrical parts may only be carried out by a trained electrician
in accordance with the applicable regulations and directives. Other
activities in connection with the ISYGLT module, such as assembly
and installation of system components with tested standard plug
connections, as well as operation and configuration of the ISYGLT
module may only be carried out by trained staff.
2.5. Changes to the product
Unauthorized modifications to the ISYGLT module which are not
described in this or the other applicable instructions can lead to
malfunctions and are prohibited for safety reasons.
2.6. Use of spare parts and additional equipment
The module may be damaged if unsuitable spare parts and additio-
nal equipment are used. Only use original spare parts and additio-
nal equipment from the manufacturer.
2.7. Liability notes
SEEBACHER accepts no liability or warranty whatsoever for
damage and consequential damage caused by non-compliance
with the technical regulations, instructions and recommendations.
SEEBACHER shall not be liable for any costs or damage incurred
by the user or third parties as a result of the use of this equipment,
in particular improper use of the equipment, misuse or malfunc-
tion of the connection, malfunction of the equipment or connected
devices.
SEEBACHER accepts no liability for printing errors.
2. Safety instructions
Observe the following general safety instructions when installing
and commissioning the device:
Assembly and installation of the ISYGLT module may only be car-
ried out by a qualified electrician. Other activities in connection with
the ISYGLT module, such as assembly and installation of system
components with tested standard plug connections, as well as
operation and configuration of the ISYGLT module may only be
carried out by trained staff.
Observe the electrical installation regulations of the country in
which the device is installed and operated as well as its national
accident prevention regulations. In addition, observe internal com-
pany regulations (work, operating and safety regulations).
Before working on the ISYGLT module system, it must be
disconnected from the power supply and secured against
being switched on again. After completion of the assembly,
installation and maintenance work, an electrical check must
be carried out! Check all protective conductor connections
and the voltages at all connection plugs as well as at each
individual module slot.
2.1. Intended usage
The module is only suitable for regulation (controlling) in con-
junction with ISYGLT system components and lights with inte-
grated DALI interface. Any other use is not intended. The limit
values stated in the technical data must not be exceeded under
any circumstances. This applies in particular to the permissible
ambient temperature range and the permissible IP protection
type. For applications with a higher required IP protection type,
the ISYGLT module must be installed in a housing or a cabinet
with a higher IP protection type.
2.2. Predictable mishandling
The module must not be used in the following cases in parti-
cular:
•explosive area
When operating in explosive areas, sparking can lead to defla-
gration, fire or explosions.
2.3. Safe handling
This module corresponds to the state of the art and the recog-
nised safety regulations. Each device is tested for function and
safety before delivery.
Only operate this module in perfect condition in accordance with
the operating instructions, the applicable regulations and direc-
tives of the country in which the device is installed and operated,
and the applicable safety and accident prevention regulations.

4
Seebacher GmbH www.seebacher.de Phone: [phone] / 77 77 6
Marktstrasse 57, 83646 Bad Tölz [e-mail] Fax: [phone] / 77 77 2
7. Storage
The product must be stored in a dry place, protected from dirt
and mechanical stress. After damp or dirty storage, the product
may only be operated after a condition check by an authorised
electrician.
8. Assembly
(Only by certified electrician!)
Mount the product only when it is in a power-free state!
Switch off the power supply, check that there is no voltage, secure
against being switched on again!
The device may only be operated at voltages according to the tech-
nical data and loaded with the currents defined therein. Only use
suitable equipment (system modules).
Check that there are no loose parts in the product. If this is the case
and the presence of such parts is not explicitly described, do not
install or commission the product.
Only use suitable cables and fixing screws.
Assembly site
• The product can be installed in any position in a casing to be
determined by the electrician (distribution box, switch cabinet).
Observe maximum ambient temperature!
Assembly steps
(Read completely before assembly!)
• Mount the device in a suitable casing.
• Make the electrical connections according to the wiring diagram.
• Configure the DIP switches according to your requirements.
• Only after a complete connection and a visual test by a qualified
electrician, the system may be put under voltage.
6. Maintenance / Care / Disposal
The product is maintenance-free. It is sufficient from time to time to
remove any dust deposits. This may only be done in a power-free
state.
Disposal (European Union)
Do not dispose of product in household waste! Products with this
symbol
Seebacher GmbH
Marktstrasse 57
83646 Bad Tölz
GERMANY
Phone: [phone] / 77 77 6
Fax: [phone] / 77 77 2
www.seebacher.de
[e-mail]
5. Service address
4. Declaration of Conformity
The valid declaration of conformity for the module can be requested
from us free of charge by stating type and article no. as follows:
By phone: [phone]
By fax: [phone]
By mail: [e-mail]
3. Warranty
We provide warranty within the framework of the statutory provisi-
ons. These are limited to the intended use of the module and refer
to the repair or replacement of the ISYGLT module. Please send the
device with an attached error description to our company address
given below.
must be disposed of according to the EU directive WEEE 2012/19/
EU on waste electrical and electronic equipment at the local collec-
tion points for waste electrical and electronic equipment!

5
Seebacher GmbH www.seebacher.de Phone: [phone] / 77 77 6
Marktstrasse 57, 83646 Bad Tölz [e-mail] Fax: [phone] / 77 77 2
9. Product description
The DALI-08B-DT8-SL module (Slim-Line) is an ISYGLT DALI gateway with integrated DALI power supply and designed for space-saving installa-
tion in control cabinets. This module is especially suitable for systems with many DALI groups or single-circuit control. Up to 32 DALI ECGs (DALI
standard loads) can be operated at one DALI BUS. Each of these 32 DALI devices (ECGs or electronic transformers) must be programmed with
a unique device address (DALI short address). Each device address can be assigned one of 8 ISYGLT dimming groups in up to 3 configurations
(setups) by parameterising the DALI-08B-DT8-SL module. These dimming groups have all the properties possible in the ISYGLT system regarding
scene storage, fade time calculations, etc.
The module is equipped with its own mains supply designed for 32 DALI standard loads. This enables a freely configurable emergency function for
the corresponding DALI BUS. All DALI output devices are completely integrated into the possibilities of the ISYGLT system by our concept. Thus,
the functional scope of the ISYGLT system is available. The module assigns 4 module addresses on the BUS. The DALI devices are monitored
for lamp faults or ECG faults. The DALI Failure Level (value in the event of a DALI BUS failure) can be parameterised via the DALI-08B-DT8-SL.
Maintenance intervals can be easily calculated via operating hours counters.
According to the standard, the DALI ECGs always remain live, which then ultimately leads to unnecessary energy consumption when switched off.
A main contactor for the DALI ECGs can be controlled via a virtual output. If the mains voltage is simply switched on or off, control gears may no
longer work correctly, as protocols can already be sent during the start-up phase. This effect is avoided by our new circuit logic.
The following functions are available for commissioning and operating the devices:
• DALI broadcast for commissioning and emergency operation
• Automatic addressing of new ECGs during exchange work
• ECG addressing and checking in conjunction with the IP Master and the DALI Web Plugin
The following functions can be performed independently by the DALI module:
• Calculation of increases with time constants from 0.5 seconds to 18 hours
• Independent regulation of instantaneous analog ACTUAL values to preset analog SETPOINT values at a preset speed (optional in preset time)
• Feedback of the termination of the analog value output after the execution of time functions
• Stop function during the execution of time functions
• OVERSAMPLING error correction. With the so-called „OVERSAMPLING“, the DALI module automatically corrects the jumps in the analog values
caused by the cycle times of the BUS system. For this purpose, the analog values between the BUS cycles are transformed back into the reso-
lution of 8 bits by linearisation.
• Execution of blinking functions
Inputs / Outputs
• 1 DALI BUS
LED state Meaning
1 x LED (red) OFF No operating voltage
ON Operating voltage, no error
1 x LED (yellow)
Operating voltage / BUS
OFF BUS wiring error
ON BUS communication error (address)
Flashing Interference-free data transmission via the BUS line
1 x LED (green)
Flashing 1 Hz No parameter data in the module
ON Module works only as DALI power supply (DIP switch S1 = ON)
Flashing 2 Hz Module works in DALI broadcast operation, sending a low fixed value
for test purposes (DIP switch S1+S2 = ON)
Function displays

6
Seebacher GmbH www.seebacher.de Phone: [phone] / 77 77 6
Marktstrasse 57, 83646 Bad Tölz [e-mail] Fax: [phone] / 77 77 2
Connections
• 1 voltage connection 230V / 50Hz
• 2 outputs DALI BUS
• 1 connection for the subnet (BUS A and B, RS-485)
Design
• Plastic housing light grey, snap-on on 35mm DIN rail 3 HP
Special function DIP switch
DIP switch 8-pole
• S1 OFF = Normal operation
• S1 ON = Device works with DALI only as power supply unit (from version 1.01) i.e. no DALI commands are sent; necessary e.g. for addressing
by external Systems.
• S1+S2 ON = Module operates in DALI broadcast operation. The module sends a low dimming value to the lamps to test the DALI function if no
devices have yet been addressed.
• S2 to S8 = Module address ISYGLT
Parameterisation
In the ISYGLT ProgrammDesigner there are manifold parameterisation options:
• Grouping of the individual ECGs
• 3 configurations can be stored
• Definition of the switch-on behaviour
• Crossfade times
• Emergency operation in case of BUS failure DALI and ISYGLT
Type designation DALI-08B-DT8-SL
Article no. 80027162
Mains supply 230V / 50-60 Hz
Current consumption 15mA
Insulation voltage 3500V (ISYGLT, DALI / mains)
Subnet (RS-485) max. 5.6V limitation by Z-diodes
Dimensions WxHxD 53x90x59mm DIN rail mounting (3 HP)
Weight 86g
Connection Screw terminals 1.5mm² pluggable
Operating temperature -10°C to +50°C
Storage temperature -25°C to +70°C
Humidity 0-85% r.h. non-condensing
Protection type IP 30
Protection class I
CE mark Yes
10. Technical data

7
Seebacher GmbH www.seebacher.de Phone: [phone] / 77 77 6
Marktstrasse 57, 83646 Bad Tölz [e-mail] Fax: [phone] / 77 77 2
2-pole plug (left)
DALI+ DALI BUS +
DALI- DALI BUS -
3-pole plug (right)
PE Protective conductor
L Mains voltage 230V (50-60Hz)
N Neutral conductor

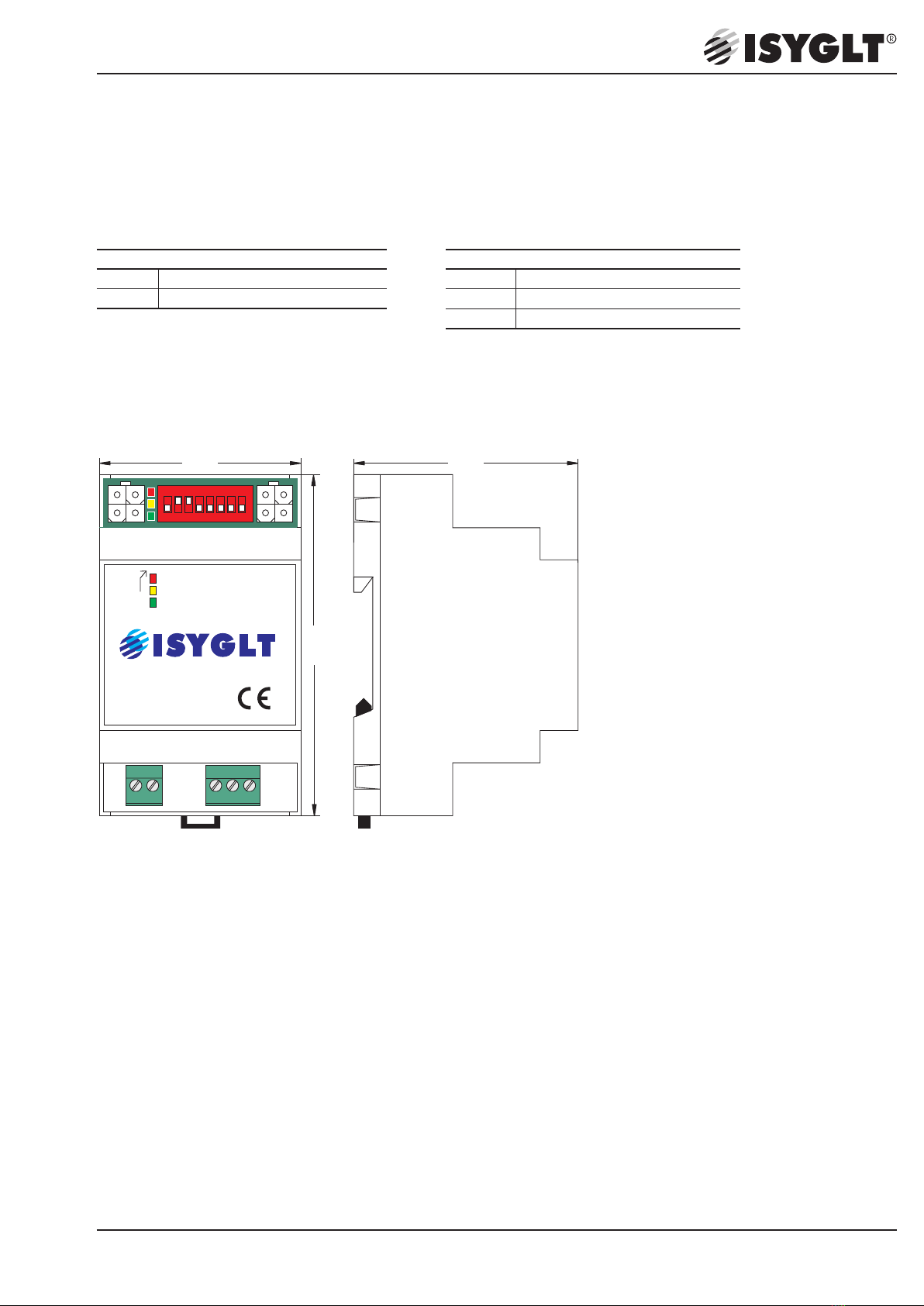

10.1. Pin assignment
View
DALI-08B-DT8-SL
80027162
DALI max. 32 Devices
Power
BUS
Status
Seebacher GmbH
Marktstraße 57
83646 Bad Tölz
www.seebacher.de
1 2 3 4 5 6 7 8
1 2 3 4 5 6 7 8
ON
P-COM P-COM
D+ D- PE LN
PE LN
D+ D-
90.00
59.00
53.00

8
Seebacher GmbH www.seebacher.de Phone: [phone] / 77 77 6
Marktstrasse 57, 83646 Bad Tölz [e-mail] Fax: [phone] / 77 77 2
11. Wiring diagram
ISYGLT-DALI-08B-DT8-SL
Article no.: 80027162
DALI maximum 32 Devices
Continuous voltage !
D+ D-
L N
PE
N L
230V !
ON
OFF
S BUS address
BUS-B
BUS-A
0V=
+24V
BUS-B
BUS-A
0V=
+24V
230V 50Hz
12345678
016
R
Mains 230V 50HzDALI BUS
DALI ECG 1...32
Ub 0V BUS A BUS B
2x
P-COM
Misprints and technical changes reserved.
