Firegear FPB-29DBS22MT-N User manual

REV. A Page 1
DO NOT DISCARD. THIS MANUAL
HAS IMPORTANT OPERATING AND
MAINTENANCE INSTRUCTIONS.
LEAVE WITH THE HOMEOWNER.
MODEL:
SERIAL #:
IF YOU CANNOT READ OR UNDERSTAND THESE INSTALLATION INSTRUCTIONS
DO NOT ATTEMPT TO INSTALL OR OPERATE THIS APPLIANCE
Warning: For Outdoor Use Only
INSTALLATION PRECAUTION:
This re pit requires a minimum 18-square inches (per side) of cross ventilation.
Failure to provide proper ventilation can void the warranty.
Natural Gas Description
FPB-29DBS22MT-N 29” Round Stainless Flat Pan with 22" Burning Spur
FPB-34DBS31MT-N 34” Round Stainless Flat Pan with 31" Burning Spur
FPB-44DBS36MT-N 44” Round Stainless Flat Pan with 36" Burning Spur
FPB-25SFBS22MT-N 25" Square Stainless Flat Pan with 22" Burning Spur
FPB-30SFBS22MT-N 30" Square Stainless Flat Pan with 22" Burning Spur
FPB-34SFBS31MT-N 34" Square Stainless Flat Pan with 31" Burning Spur
FPB-40SFBS36MT-N 40" Square Stainless Flat Pan with 36" Burning Spur
FPB-46SFBS36MT-N 46" Square Stainless Flat Pan with 36" Burning Spur
MODELS
Outdoor Round & Square Flat Pans
(Match Throw (MT) Fire Pits)
Installation and Operating Instructions
PN#90002

REV. A Page 2
Round Flat Disc Fire Pit Pans
Fuels used in gas red appliances, and the products of combustion such as fuels, contain
chemicals known to cause cancer, birth defects and/or other reproductive harm.
This warning is issued pursuant to the California Health & Safety Code Sec. 25249.1
DANGER
CARBON MONOXIDE HAZARD
This appliance can produce carbon monoxide
which has no odor.
Using it in an enclosed area can kill you.
Never use this appliance in an enclosed
space such as a camper, tent, car or home.
WARNING
Do not store or use gasoline or other
ammable vapors and liquids in the
vicinity of this or other appliance.
An LP cylinder not connected for use
shall not be stored in the vicinity of this
or any other appliance.
WARNING
Do not leave unattended during use.
Do not use for cooking.
Follow all gas leak procedures in this
manual prior to operation.
WARNING
Improper installation, adjustment,
alteration, service or maintenance
can cause injury or property damage,
personal injury of loss of life
Read the owner’s information manual
provided with this appliance.
Installation and service must be
performed by a qualied installer,
service agency, or the gas supplier.
WARNING
If the information in this manual is not
followed exactly, a re or explosion
may result causing property damage,
personal injury, or loss of life.
FOR YOUR SAFETY
Do not store or use gasoline or other
ammable vapors and liquids in the
vicinity of this or other appliances.
If you smell gas:
1. Shut off gas to the appliance
2. Extinguish any open ame.
3. If odor continues, leave the area
immediately.
4. After leaving the area, call your gas
supplier or re department.
DANGER
FIRE OR EXPLOSION
HAZARD

REV. A Page 3
Round Flat Disc Fire Pit Pans
Specications 4
Gas Pipe Sizing Chart 5
Preparation for Non-Combustible Structure 6
Hard Piping to Fire Pit 6
Cross Ventilation Requirements 6
High Elevation 6
Installation into an Approved Enclosure 7-8

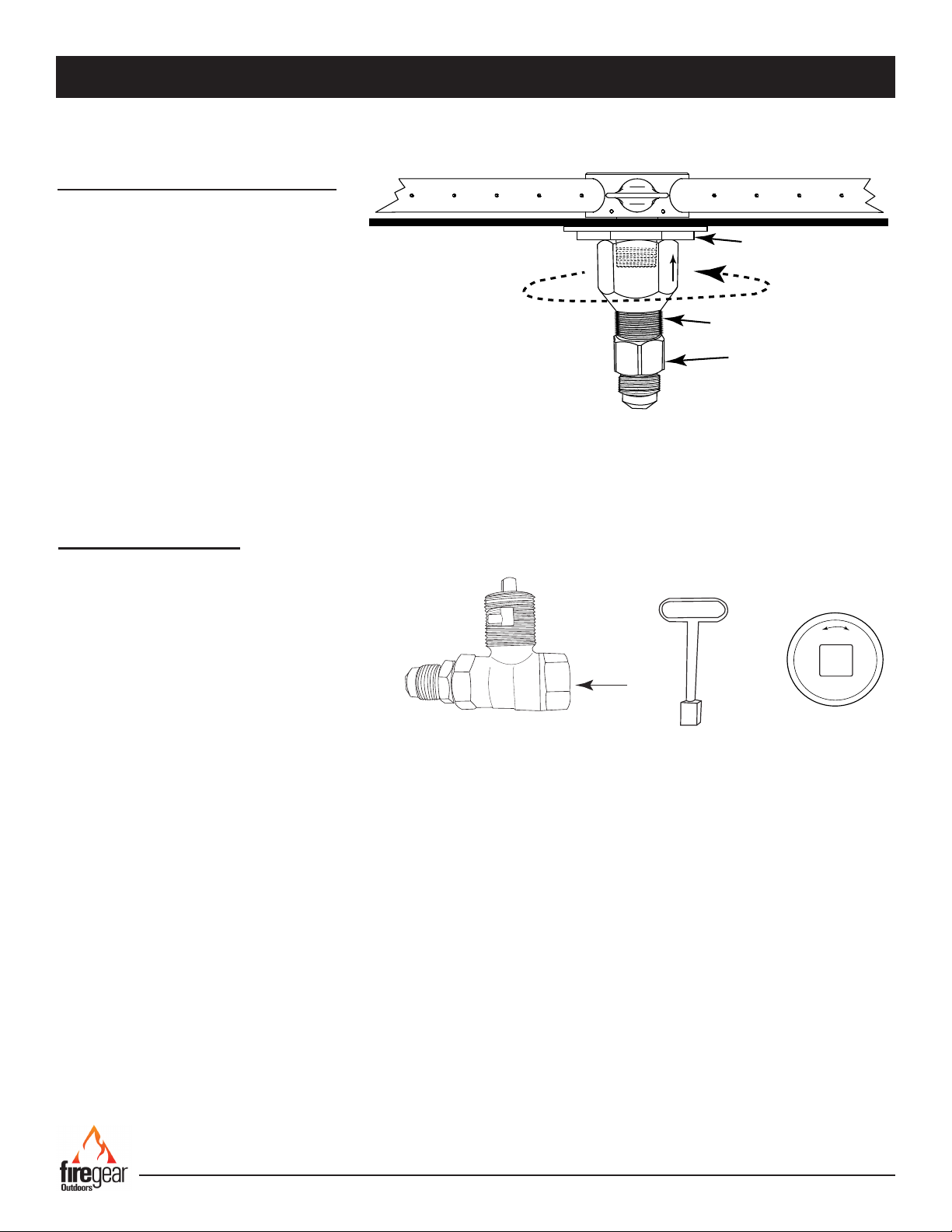

Installing Key Valve and Orice 8
Typically Installation Drawings 8
Expanded View Drawing 9
Operation & Lighting Instructions 11
Replacement Parts 12
Replacement Parts List 13
Fire Pit Maintenance 13
Trouble Shooting 14
Optional Accessories 15
TABLE OF CONTENTS
All media (i.e. lava rock, lava stones, lava boulders and re glass) has the potential of thermal
spalling. This is a process that may occur when media is wet and moisture gets trapped inside of
the material due to rapid temperature differences. When this happens the media has the potential
to crack or “pop” outside the replace.
WE HIGHLY RECOMMEND COVERING ALL FIRE FEATURES WHEN NOT IN USE
The use of a cover can lessen the impact of thermal spalling; however, heavy rains, high
humidity and the presence of moisture may still cause the media to pop.
ALWAYS USE CAUTION WHEN USING THE FIRE FEATURE
Extra caution should be taken when lighting a replace when heavy rains, high humidity and
moisture are present. Light the replace; leave the area allowing any moisture in the media to
dissipate. We strongly recommend that during this drying out time that you monitor the re feature
from a distance. This drying out period should be no less than 30 minutes. Continue monitoring
the ame from distance to ensure that all popping has ceased before fully enjoying the re.
CALIFORNIA PROPOSITION 65
WARNING
This product is designed to operate with one of the following fuel sources: Liquid Propane or Natural Gas. The fuel
used to operate this product, and the products of combustion of such fuel, can expose you to chemicals including
Benzene which is known to the State of California to cause cancer, birth defects and other reproductive harm and
Carbon Monoxide which is known to the State of California to cause birth defects or other reproductive harm.
(For more information go to: www.p65Warnings.ca.gov.)

REV. A Page 4
Round Flat Disc Fire Pit Pans
SPECIFICATIONS
Table1. Pan Dimensions
Fig. 1 Flat pan dimensions; refer to Table 1.
Model:
Match Throw NG
NG
Orice
Btu’s
Natural
Model:
Match Throw LP
LP
Orice
Btu’s
Propane
FPB-29DBS22MT-N #14 119,000 FPB-29DBS22MT-P #30 117,500
FPB-34DBS31MT-N #01 171,000 FPB-34DBS31MT-P #28 143,000
FPB-44DBS36MT-N 25/64 230,000 FPB-44DBS36MT-P #22 186,500
FPB-25SFBS22MT-N #14 119,000 FPB-25SFBS22MT-P #30 117,500
FPB-30SFBS22MT-N #14 119,000 FPB-30SFBS22MT-P #30 117,500
FPB-34SFBS31MT-N #01 171,000 FPB-34SFBS31MT-P #28 143,000
FPB-40SFBS36MT-N 25/64 230,000 FPB-40SFBS36MT-P #22 186,500
FPB-46SFBS36MT-N 25/64 230,000 FPB-46SFBS36MT-P #22 186,500
Table 2. Btu Specications
Pressure NG LP
Min. Inlet 5.0” WC (1.24kPa) 10.5” WC (2.61kPa)
Max. Inlet 10.5” WC (2.61kPa) 13.0” WC (3.23kPa)
Normal Inlet 7.0” WC (1.74kPa) 11.0” WC (2.73kPa)
Table 3. Gas Pressures
Model:
Natural Gas (NG) A
Disc
Depth
B
Pan
Diameter
C
Min.
Install Opening
D
Ground
Level
E
Side
Wall
F
Combustible
Ceiling
G
Combustible
Floor
FPB-29DBS22MT-N 1/16 29" 29 1/2” 18” 36” 96” 18”
FPB-34DBS31MT-N 1/16” 34” 34 1/2” 18” 36” 96” 18”
FPB-44DBS36MT-N 1/16” 44” 44 1/2” 18” 36” 120” 18”
FPB-25SFBS22MT-N 1/16” 25" 25 1/2” 18” 36” 96” 18”
FPB-30SFBS22MT-N 1/16” 30" 30 1/2” 18” 36” 96” 18”
FPB-34SFBS31MT-N 1/16” 34" 34 1/2” 18” 36” 96” 18”
FPB-40SFBS36MT-N 1/16” 40" 40 1/2” 18” 36” 120” 18”
FPB-46SFBS36MT-N 1/16” 46" 46 1/2” 18” 36” 120” 18”
Disclaimer: Btu listings are based on 7.0”WC for Natural
Gas and 11.0”WC for Liquid Propane (LP) at the burner
orice. Flex line size and proper gas pipe sizing will also
affect Btu’s. As a result your Btu’s may vary slightly from
Table 2 specications.
Fig. 2 Clearance to Combustibles (Not
to be used in an enclosed space)
*(Flex frame is recommended to sit pan into place, this
enables pan to be lifted out of enclosure for service)
AB
C
*
*D
Ground Level (Earth)
NOTE: These re pits are shipped as Natural gas products and
must be converted to LP gas, if applicable. See replacement parts
section or Firegear Outdoors catalog for proper parts.
F
E
G
C
L
24”
Max
Overhang

REV. A Page 5
Round Flat Disc Fire Pit Pans
REFERENCE
GAS PIPE SIZING
Length of Pipe in Feet 1/2” 3/4” 1” 1 - 1/4” 1 - 1/2” 2” 2 - 2 1/2” 3” 4”
10 275 567 1071 2205 3307 6221 10140 17990 35710
20 189 393 732 1496 2299 4331 7046 12510 25520
30 152 315 590 1212 1858 3465 5695 10110 20620
40 129 267 504 1039 1559 2992 4778 8481 17300
50 114 237 448 913 1417 2646 4343 7708 15730
60 103 217 409 834 1275 2394 3908 6936 14150
70 89 185 346 724 1086 2047 3329 5908 12050
80 78 162 307 630 976 1811 2991 5309 10830
90 69 146 275 567 866 1606 2654 4711 9613
100 63 132 252 511 787 1496 2412 4281 8736
125 54 112 209 439 665 1282 2083 3618 7382
150 48 100 185 390 590 1138 1808 3210 6549
175 43 90 168 353 534 1030 1637 2905 5927
200 40 83 155 325 491 947 1505 2671 5450
300 37 77 144 303 458 887 1404 2492 5084
NATURAL GAS : PIPE SIZING CHART
• Natural Gas (NG) flow is given in
thousands of BTU/hr. = 1cubic
foot of NG gas - 1000 BTU
• Nominal pressure at the burner
for Natural Gas is 3.5” of water
column. (Typical machine supply
5”-7”)
• Pipe length must include
additional length for all fittings.
Add approximately 5 feet of pipe
per fitting.
• Natural Gas Example: A machine
with a burner that requires
440,000 BTU would need a 1 -1/4”
pipe for a 20” long run.
LIQUID PROPANE : PIPE SIZING CHART
NOTE: The sizing charts above list the specific pipe sizes required for the amount of BTU’s for a new gas line installations. If you
are using an existing gas line you must take into consideration the existing gas line capacities to ensure you will have proper
pressure. This chart is for reference only, we recommend you consult with a Licensed Plumber/Gas Fitter or NFPA54 (National Fuel
Gas Code - current edition) for more details.
Length of Pipe in Feet 1/2” 3/4” 1” 1 - 1/4” 1 - 1/2” 2” 2 - 2 1/2” 3” 4”
10 108 230 387 793 1237 2259 3640 6434 -
20 75 160 280 569 877 1610 2613 5236 9521
30 61 129 224 471 719 1335 2165 4107 7859
40 52 110 196 401 635 1143 1867 3258 6795
50 46 98 177 364 560 1041 1680 2936 6142
60 42 89 159 336 513 957 1559 2684 5647
70 38 82 149 317 476 896 1447 2492 5250
80 36 76 140 239 443 840 1353 2315 4900
90 33 71 133 275 420 793 1288 2203 4667
100 32 68 126 266 411 775 1246 2128 4518
125 28 60 117 243 369 700 1143 1904 4065
150 25 54 105 215 327 625 1008 1689 3645
175 23 50 93 196 303 583 993 1554 3370
200 22 47 84 182 280 541 877 1437 3160
300 17 37 70 145 224 439 686 1139 2539
• Liquid Propane (LP) Gas flow is
given in thousands of BTU/hr. =
1cubic foot of LP gas - 2500 BTU.
• This chart refers to low pressure LP,
after regulation, Standard nominal
pressure at the burner for Liquid
Propane Gas is 11” of water column.
• Pipe length must include additional
length for all fittings. Add
approximately 5 feet of pipe per
fitting.
• LP Example: A machine with a
burner that requires 440,000 BTU
would need a 1” pipefor a 20’ long
run.
GAS PIPE SIZING CHART
Table 4 Gas pipe sizing chart

REV. A Page 6
Round Flat Disc Fire Pit Pans

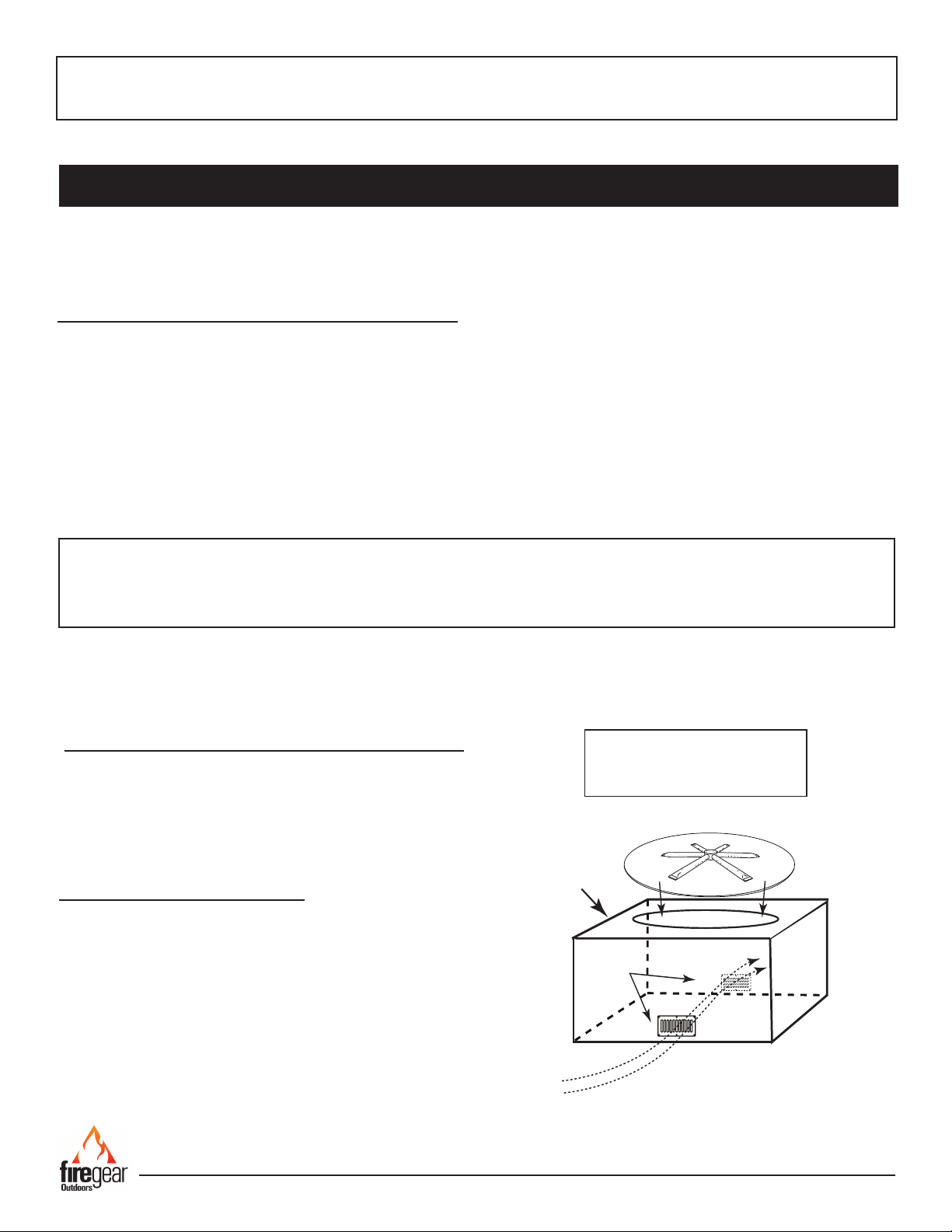

Fig 3. Cross Ventilation Example
WARNING: Proper clearances from combustible materials must be maintained from all sides, top and bottom of this
appliance. Use the specications listed on pages 4 and 5 for proper clearance to combustibles.
PREPARING A NON-COMBUSTIBLE STRUCTURE
The re pit can be installed on a at, stable surface, away from any combustible materials. Install re pit on any level,
outdoor non-combustible, at stable surface or a combustible oor according to the clearances specied in this manual.
NOTE: Do not place re pit directly on grass, dirt, or rocks as this may prevent proper ventilation (Fig. 3). Ensure proper
water drainage is also incorporated into the re pit enclosure.
HARD PIPING TO FIRE PIT WITHOUT GAS PROXIMITY
NOTE: Refer to the NFPA54 (National Fuel Gas Code) for proper pipe sizing. In the absence of NFPA54 booklet, you
can use gas pipe sizing chart on page 6.
1. Turn OFF gas supply system. NOTE: All gas connections (except for brass to brass) require the following. Clean pipe
threads using either a wire brush or steel wool. Apply pipe sealant to the ttings before making any connection.
BE CAREFUL! Ensure all gas connections are snug, but do not over tighten!
2. The primary gas shut-off (not supplied) will require a ½” male ared tting to enable connection of the stainless steel
ex gas line supplied with the re pit.
IMPORTANT
Installation of Natural or LP gas should be done by a qualied installer, service agency or gas supplier.
This appliance must be isolated from the gas supply piping system by closing its manual shutoff valve during any
pressure testing of the gas supply piping system at test pressures equal to or less than ½” psig (3.5kPa)
VENTILATION FOR NON-COMBUSTIBLE ENCLOSURE
Fire pits are subjected to many outdoor elements such as rain,
snow, wind, heat or cold. A minimum of 18 square inches of
cross ventilation (2 sides) is required to keep the
components in good working order. Use Fig. 3 as guide to
assist to incorporate proper ventilation.
Fig. 3. Cross Ventilation Example
(2) 6”x12”
Fire Pit
Examples of Cross Ventilation
2- Firegear 6 x12 vents
(Part #VENT-KIT-6x12)
Cross Flow Ventilation
(Min. 18 Sq. In. Per Side)
Fire Pit
Enclosure
HIGH ELEVATION INSTALLATION
This appliance is listed for elevations from 0- 4500 feet in
Canada and the U.S. If elevation exceeds 4500 feet it may be
necessary to decrease the input rating by changing the
existing burner orice to a smaller size. Input should be
reduced 4% for each 1000 feet beyond the 4500 feet above
sea level. Check with your local gas utility for assistance in
determining the proper orice in your location. In some cases
the heating value may already be reduced and downsizing the
orice may not be necessary. Refer to NFPA54 Table E.1.1(d)
for high altitude orice sizing.

REV. A Page 7
Round Flat Disc Fire Pit Pans
REQUIREMENTS
1. Only non-combustible materials should come in direct contact with any part of the re pit. Underneath area should
be non-combustible or a at level combustible surface according to the clearances specied in this manual..
2. Refer to the NFPA54 (National Fuel Gas Code) for proper pipe sizing. See gas pipe sizing chart on page 5.
3. Determine the size of the round re pit you are preparing to install (Refer to page 4).
4. You must provide a round opening cut-out opening to place the at disc onto the non-combustible enclosure. Do not
exceed the maximum opening from Table 1, dimension B located on page 4.
5. Follow the local code requirements for the gas type being used. This re pit should be installed in accordance with
local codes and ordinances or in the absence of local codes, with the latest National Fuel Gas Code, ANSI Z223.1
NFPA54 or CSA B149.1, Natural and Propane Installation Code in Canada.
6. Fire pits create high temperatures, it is very important to have any combustibles at a safe distance. Refer to page 4.
7. CAUTION: A minimum of 18 square inches of cross ventilation (per side) is required to keep the inside of the
enclosure dry. We recommend installation of a VENT-KIT-6x12. See accessory section.
8. These products are designed for outdoor use only. Not approved for any indoor use.
9. This re pit is designed to have lava rock completely covering the spur burner, so that the burner is not visible. Do
not cover more than 1” above the top of the burner. When purchasing lava rock use 1” to 2” diameter as a base to
cover the at disc.
10. Gas lines and ttings must be installed in to the non-combustible structure. All gas connections must be leak tested
before installation of the re pit. Soapy water leak detection is required before regular use of the re pit.
11. Do not use material that will absorb moisture over time and will not release this moisture quickly. Moisture can boil
in this material and can rapidly break apart and cause damage or personal injury.
12. Never leave any other combustible material on top of the re pit. This could cause unsafe operation of this system
and damage to the component that will not be covered under our warranty.
13 . Ensure proper water drainage is also incorporated into the re pit enclosure.
INSTALLATION OF FIRE PIT INTO AN APPROVED ENCLOSURE
Flat disc’s are typically used with landscape blocks. The illustrations below show examples of possible installations.
Fig’s 4, 5, and 6 show the use of the ex frame system which provides the ability to easily remove the disc if necessary.
Fig.4 Show disc secured under stone caps. Fig. 5 Show disc secured between layer of block.
ON
OFF
Fig. 6 Show blocks supporting center of disc.
ON
OFF
Fig. 7 Show blocks supporting an oversized opening.

REV. A Page 8
Round Flat Disc Fire Pit Pans
INSTALLING BURNER ORIFICE (OAS)
GAS FLOW
Burner Pan
OAS#
U3-8D-S
Lock Nut
Locate the burner nipple underneath the
burner pan. Ensure the nipple from on
the spur burner has gas rated Teon tape
wrapped around the threads. Thread the
OAS (orice air shutter) on to the nipple
of the burning spur clockwise manner.
Secure into position. See Fig. 8.
Fig. 8 Installing OAS assembly to spur burner.
INSTALLING KEY VALVE
The key valve contents: 1- key valve, 1-
key and 1- ange. (See Fig. 9). The valve
requires a 1¼” round clearance hole in the
non-combustible enclosure wall. See the
instructions supplied with the key valve for
more specic details. Note: Be sure to leak
test all tting before operation. Fig. 10 shows
an example of a typical installation.
Primary Gas
Supply
ON
OFF
Fig. 9 Key valve components.
INSTALLATION

REV. A Page 9
Round Flat Disc Fire Pit Pans
Key Valve Flange
Non-
Combustible
Wall Material
Non-
Combustible
Wall Material
Key Valve
Primary Gas
Supply
K
e
y
V
a
l
v
e
S
i
d
e
V
i
e
w
D
e
t
a
i
l

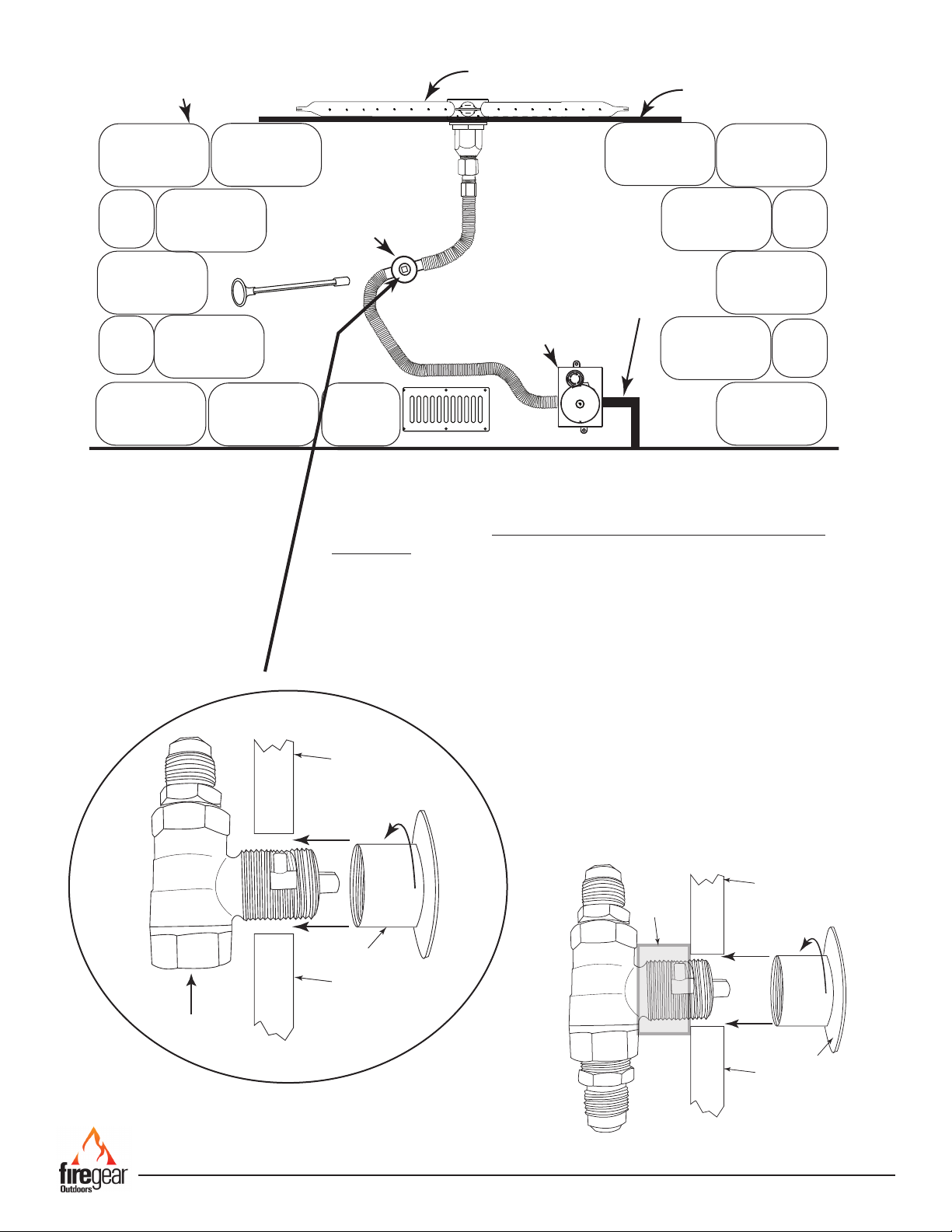

Fig. 10 Typical installations.
Note: A 1¼” x 2” black iron or galvanized
coupler/nipple (not supplied) can be used
as a spacer between the manual valve
and the valve ange to add additional
support to hold the manual key valve in
place.
Key Valve Flange
Non-
Combustible
Wall Material
Non-
Combustible
Wall Material
Key Valve
Black Iron
Nipple
Key Valve
Gas
Supply
Flat Disc
Non-Combustible Enclousure
E-Stop
Spur Burner
Key
PUSH TO STOP
TURN TO START
OFF
0.5
HOURS
1
1.5
2
2.5
Key valve and exible gas line are supplied; gas shut-off is not, but
available in accessories page. Flex lines with ared ttings do not require
Teon tape or pipe compound. Ensure not to “kink” the ex lines to allow
better gas ow of gas. The illustration above is only a guide for the gas
connection. Local codes may require different methods to connect the
gas supply.

REV. A Page 10
Round Flat Disc Fire Pit Pans
/” Washer
Brass Nut
OASNG#
(Burner Orice)
U3-8D-S
(Fitting)
Spur Burner
CVR-BVL2CP
(Chrome cover plate)
BVL2S
(Key Valve)
Fitting
Fire Pit Pan
Inlet Gas Supply
Expanded View of Match Throw (MT) Fire Pits
T200-9898-46
(Flex Connector)
Note: Use joint compound or
Teon tape resistant to all
gasses on all male NPT
threads; not ared ttings.
Ensure all connections are
tight and check for gas leaks
before and after assembly is
complete.
(Not Supplied)
Fitting

REV. A Page 11
Round Flat Disc Fire Pit Pans
CAUTION: Children and adults should be alerted to the hazards on high surface temperatures and should stay away to
avoid burns or clothing ignition. Young children should be carefully supervised when they are in the area of the appliance.
WARNING: Do not use this appliance if any part has been under water. Immediately call a qualied service technician
to inspect the appliance and to replace any part of control system and any gas control, which has been under water.
OPERATION
SAFETY WARNINGS
1. Never leave the re pit unattended during operation.
2. Clothing or other ammable materials should not be placed on or near the appliance.
3. Any guard or other protective device removed for servicing the appliance must be replaced prior to operating the
appliance.
4. Installation and repair should be done by a qualied service person. The appliance should be inspected before
use and at least annually by a qualied service person. More frequent cleaning may be required as necessary. It
is imperative the control compartment, burners and circulating air passageways of the appliance be kept clean.
5. Inspect the fuel supply connection before each use of the appliance.
6. Temporary storage of this appliance indoors is permissible only if it has been disconnected from its fuel supply
(Natural or L.P. gas line).
WARNING
1. This appliance is hot when operated and can cause severe burns if contacted.
2. Do not burn any solid fuels in this appliance.
LIGHTING INSTRUCTIONS
Key
Fig. 12 Inserting Key into Valve
ON
OFF
Fig. 11. Key Valve Face
Butane Lighter
Fig. 13 Lighting re pit with lighter
READ ALL WARNING AND SAFETY INFORMATION ABOVE BEFORE
ATTEMPTING TO LIGHT FIRE PIT
CAUTION: Ensure you have leak tested the re pit before operating.
TURNING ON FIRE PIT
1. Insert key into shut-off valve and secure into square end (see Figs 11 & 12).
2. Light a long match or butane lighter and hold it near the burner (see Fig. 13).
3. Turn the key counter-clockwise in gas valve (until it stops) to allow gas to ow and
simultaneously apply the long burning match or Butane lighter as close to the end
burner as possible to light the re pit.
4. Gas should ignite within 10 seconds or less. If re pit does not light within 10 seconds
turn key clockwise to turn OFF the gas supply. Ensure there is not too much media on
top of the burner that might inhibit gas ow and try again in 5 minutes.
TURNING OFF FIRE PIT
1. Insert key into shut-off valve and secure into square end.
2. Turn key clockwise until it stops.
3. After cooling off install cover.

REV. A Page 12
Round Flat Disc Fire Pit Pans
FLAT DISC REPLACEMENT PARTS
1
2
6a
Drawings are not to scale
46
3
5
7
ON
OFF
8
9
G
A
S
P
R
E
S
S
U
R
E
R
E
G
U
L
A
T
O
R
10 11
1A

REV. A Page 13
Round Flat Disc Fire Pit Pans
1 29-inch Round Flate Stainless Steel Pan 1 Pan-SS29D
1 34-inch Round Flat Stainless Steel Pan 1 Pan-SS34D
1 44-inch Round Flat Stainless Steel Pan 1 Pan-SS44D
1A 25-inch Square Flat Stainless Steel Pan 1 Pan-SS25S
1A 30-inch Square Flat Stainless Steel Pan 1 Pan-SS30S
1A 34-inch Square Flat Stainless Steel Pan 1 Pan-SS34S
1A 40-inch Square Flat Stainless Steel Pan 1 Pan-SS40S
1A 46-inch Square Flat Stainless Steel Pan 1 Pan-SS46S
2 22-inch Spur (Used on 25, 29 & 30-inch pans) B-SPUR22
2 31-inch Spur (used on 34-inch pans) 1 B-SPUR31
2 36-inch Spur (used on 44 & 40-inch pan) 1 B-SPUR36
3 ½” NPS Brass Mounting Nut 1 ST3-113-1032
4 ⅞” Flat Washer/Spacer 1 ST3-113-1026
5 ½” Flex Gas Line (46-inch Length) 1 T-200-9898-46
6 Orice Air Shutter NG (25", 29”, 30" NG models with 22" Spur) 1 OAS-NG14
6a Orice Air Shutter LP (25", 29”, 30" LP models with 22" Spur) 1 OAS-LP30
6 Orice Air Shutter NG (34” NG models with 31" Spur) 1 OAS-NG01
6a Orice Air Shutter LP (34” LP models with 31" Spur) 1 OAS-LP28
6 Orice Air Shutter NG (40", 44” & 46" NG models with 36" Spur) 1 OAS-NG25/64
6a Orice Air Shutter LP (40", 44” & 46" LP models with 36" Spur) 1 OAS-LP22
7Key Valve 1 BVL2S
7Chrome Plated Key 1 KEY-PC-12
7Chrome Cover Plate 1 CVR-BVL2CP
8 ½” NPT to ½” Male Flare Fitting 1 U1-8D-S
9 ½” NPT Female to Male Flare Fitting 1 U3-8D-S
10 5½” x 3” TMSI cover plate 1 PLATE-MT
11 ** LP Regulator with 32” Hose (Not for use with any NG models) 1 FG-32LPHRK
FLAT DISC REPLACEMENT LIST
Item Description Qty. Part Number
FIRE PIT MAINTENANCE
1. The re pit should be inspected and cleaned before initial use at least annually by a qualied eld service person.
2. Any component that is found faulty must be replaced with an approved component.
3. Any tampering or modifying with the re pit is dangerous and voids all warranties.
4. During winter months in cold climates and various seasons operation the re pit may be affected by weather
conditions. It is recommended to use a lid of your re pit to protect it from humid/rainy weather conditions when not in
use (See Media CAUTION on page 3). Heavy rains/downpours could affect the re pit operation if not covered; if this
occurs ensure you allow the re pit time to dry out before attempting to operate. NOTE: If a combustible type cover is
used over the re pit when not in use be sure to remove it before operation to prevent a severe safety hazard.
5. Carbon (soot) may build up on the surface of logs (if installed) during heavy use. Sooting may also occur periodically
on the screen of the ignitor hood. To clean, brush off with a dry bristle brush or cloth. Keep soot away from clothing
or furniture.
6. Over time stainless steel parts can discolor when heated, usually a golden or brown hue. This discoloration is normal
and does not affect the performance of the appliance.

REV. A Page 14
Round Flat Disc Fire Pit Pans
TROUBLE SHOOTING
Symptom Remedy
Fire pit won’t light 1. Bleed gas line.
2. Ensure all gas supply lines are turned ON.
3. Ensure there is not too much media overtop of burner; it can inhibit gas from owing.
4. Check gas pressure.
Low ame 1. Ensure the base media is at least 1 to 2-inches in diameter and top media is no more than
1-inch over top of burner.
2. Ensure all shut-off valves and key valve is fully open. See page 9; Figs 7 & 8.
3. Check for spider webs inside the main burner orice.
4. Check gas pressure.
Water in my re pit 1. Excess dust/sand material from media may be blocking the weep holes to relieve water.
Remove all media and unplug weep holes. Clean or install new media free of dust and dirt.
2. Ensure re pit enclosure has proper drainage for water and proper ventilation to dry out.
3. Recommend to purchase a cover/lid to keep excessive water out of the re pit.
Whistling Noises 1. Check media to ensure it is not too tightly packed around the burner tube.
2. Ensure a non-whistling ex connector is being used.

REV. A Page 15
Round Flat Disc Fire Pit Pans
OPTIONAL ACCESSORIES
The following accessories are available from your local Firegear dealer/distributor. Each accessory comes with a
separate installation manual. Read each instruction thoroughly before installing.
Lava Stones: 1” to 2” size (50lbs)
Model: FG-LS50 Bag
Lava Boulders: 6” to 12” size (30lbs)
Model: FG-LB30 Box
Lava Rock: 1” to 2" size (10lbs)
Model: FG-LAVA-10 Bag
FG-LAVA-50 Bag
Paver bracket, key valve and parts for
MT system.
Model: PAVER-KIT-MT
Paver bracket, key valve, battery Piezo
ignition and parts.
Model: PAVER-KIT-MT-MSI
(2) paver brackets, parts and (2) 4-inch
vents. Provides 18 square inches of
ventilation per side.
Model: PAVER-VENT-4-LNTS
(2) paver brackets, parts and (2) 6-inch
vents. Provides 18 square inches of
ventilation per side.
Model: PAVER-VENT-6-LNTS
(2) 6" x 12" vents and screws. Provides
18 square inches of ventilation.
Model: VENT-KIT-6X12SS
FLEXFRAME
Universal brackets to support re
pit disc when using paver blocks or
other non-combustible enclosures.
Model: FLEXFRAME-SS (2pc)
FLEXFRAME-SS3 (3pc)
Note: Media such as Lava Rock or Lava Stoves are not supplied but required as described in page 7. The Lava
boulders can be added on top of the lava rock in place of traditional logs or you can use the Lava stoves in place of the
lava rock.
FOR TECHNICAL SERVICE, CALL: [phone]
Firegear Outdoors
17322 Gothard St.
Huntington Beach, CA 92647
Web Site: www.regearoutdoors.com

REV. A Page 16
Round Flat Disc Fire Pit Pans
FIREGEAR LIMITED WARRANTY - 2020
Firegear Outdoors hereby warrants to the end user that products will be free from material and workmanship
defects that prevent safe and correct operation of the product. The warranty commences from date of sale to
the end user for the following period:
CONSUMER RESIDENTIAL APPLICATIONS – MANUFACTURED AFTER 12/02/2019
BURNER SYSTEMS, BURNERS, COMPONENTS AND ACCESSORIES
• LIFETIME WARRANTY ON CONSTRUCTION AND MANUFACTURER DEFECTS
• LIFETIME WARRANTY - STAINLESS STEEL BURNERS AND PANS
• LIFETIME WARRANTY - BRASS BURNERS
• FIVE (5) YEAR WARRANTY - GAS VALVE, SPARK IGNITER, PILOT ASSEMBLIES
• FIVE (5) YEAR WARRANTY - AWS ELECONITC IGNITION SYSTEMS (24VAC, 30 VDC)
• FIVE (5) YEAR WARRANTY - TFS/TMSI ELECTRONIC COMPONENTS
• FIVE (5) YEAR WARRANTY – MT COMPONENTS (KEY VALVE)
• FIVE (5) YEAR WARRANTY - REFRACTORY GAS LOG SETS
• FIVE (5) YEAR WARRANTY - READY TO FINISH/ANF FIRE PIT ENCLOSURES
• FIVE (5) YEAR WARRANTY – SKYTECH MANUACFTURED OPTIONAL CONTROLS
OUTDOOR FIREPLACE – KALEA BAY
• LIFETIME WARRANTY - CONSTRUCTION AND MANUFACTURER DEFECTS
• LIFETIME WARRANTY - STAINLESS STEEL COMPONENTS
• FIVE (5) YEAR WARRANTY - GAS VALVE, PILOT ASSEMBLY, POWER SUPPLY, CONTROLS
• FIVE (5) YEAR WARRANTY – SKYTECH MANUACFTURED OPTIONAL CONTROLS
SANCTUARY SERIES – GFRC FIRE FEATURES
• THREE (3) YEAR WARRANTY - GFRC STRUCTURE
• REFER TO THE APPROPRIATE BURNER SYSTEM FOR WARRANTY
WARRANTY COVERS MANUFACTURING DEFECTS OR STRUCTURAL FAILURE. SMALL STRESS
CRACKS AND SURFACE CRAZING ARE A NATURAL OCCURRENCE IN GFRC PRODUCTS AND NOT
COVERED BY WARRANTY.
READY TO FINISH/ANF ENCLOSURES
• FRAME – LIFETIME WARRANTY ON CONSTRUCTION AND MANUFACTURER DEFECTS
ACCESSORIES
• LIFETIME WARRANTY - CONSTRUCTION AND MANUFACTURER DEFECTS
• LIFETIME WARRANTY - STAINLESS STEEL COMPONENTS (LIDS, STAINLESS STEEL COVERS)
• ONE (1) YEAR WARRANTY – ESTOP1-OH, ESTOP2-5H WINDSHIELDS, HOSES AND REGULATORS

REV. A Page 17
Round Flat Disc Fire Pit Pans
COMMERCIAL APPLICATIONS – MANUFACTURED AFTER 12/02/2019
BURNER SYSTEMS, BURNERS, COMPONENTS AND ACCESSORIES
• TWO (2) YEAR WARRANTY ON CONSTRUCTION AND MANUFACTURER DEFECTS
• TWO (2) YEAR WARRANTY - STAINLESS STEEL BURNERS AND PANS
• TWO (2) YEAR WARRANTY - BRASS BURNERS
• TWO (2) YEAR WARRANTY - GAS VALVE, SPARK IGNITER, PILOT ASSEMBLIES
• TWO (2) YEAR WARRANTY - AWS ELECONITC IGNITION SYSTEMS (24VAC, 30 VDC)
• TWO (2) YEAR WARRANTY – MT COMPONENTS (KEY VALVE)
• TWO (2) YEAR WARRANTY - REFRACTORY GAS LOG SETS
• FIVE (5) YEAR WARRANTY - READY TO FINISH/ANF FIRE PIT ENCLOSURES
• TWO (2) YEAR WARRANTY – SKYTECH MANUACFTURED OPTIONAL CONTROLS
OUTDOOR FIREPLACE – KALEA BAY
• LIFETIME WARRANTY - CONSTRUCTION AND MANUFACTURER DEFECTS
• LIFETIME WARRANTY - STAINLESS STEEL COMPONENTS
• TWO (2) YEAR WARRANTY - GAS VALVE, PILOT ASSEMBLY, POWER SUPPLY, CONTROLS
• TWO (2) YEAR WARRANTY – SKYTECH MANUACFTURED OPTIONAL CONTROLS
SANCTUARY SERIES – GFRC FIRE FEATURES
• THREE (3) YEAR WARRANTY - GFRC STRUCTURE
• REFER TO THE APPROPRIATE BURNER SYSTEM FOR WARRANTY
WARRANTY COVERS MANUFACTURING DEFECTS OR STRUCTURAL FAILURE. SMALL STRESS
CRACKS AND SURFACE CRAZING ARE A NATURAL OCCURRENCE IN GFRC PRODUCTS AND NOT
COVERED BY WARRANTY.
READY TO FINISH/ANF ENCLOSURES
• FRAME – LIFETIME WARRANTY ON CONSTRUCTION AND MANUFACTURER DEFECTS
ACCESSORIES
• LIFETIME WARRANTY - CONSTRUCTION AND MANUFACTURER DEFECTS
• LIFETIME WARRANTY - STAINLESS STEEL COMPONENTS (LIDS, STAINLESS STEEL COVERS)
• ONE (1) YEAR WARRANTY – ESTOP1-OH, ESTOP2-5H WINDSHIELDS, HOSES AND REGULATORS

REV. A Page 18
Round Flat Disc Fire Pit Pans
The end-user must provide a bill of sale, canceled check, or payment record to verify the purchase date and to
establish the warranty period. This Limited Warranty shall be valid and limited to the original purchaser only.
WARNING Any modication to the product will void the warranty.
This Limited Warranty shall be limited to the repair and/or replacement of parts that have been proven to be
defective under normal use and service. All warranty claims must be made by the OEM/Distributor/Dealer
account on behalf of the end-user. You may contact Technical Support at 800-966-8126.
Our Technical Service Department must conrm all approved defects. If a defect is conrmed and we approve
the claim, we will replace such parts without charge. This warranty gives you specic legal rights, and you may
also have other rights, which vary from state to state.
The manufacturer may request defective products returned with an RMA (Return Merchandise Authorization)
issued by Firegear Outdoors for specic products, which is considered to be the nature of the defect and or
warranty claim. Product to be returned should; be packed so as not to incur damages during transportation.
Firegear is not responsible for damages on returned items. RMA is valid for thirty (30) days from the date
issued. The RMA must be clearly marked on the outside of the package.
Please check with your local building code department or governing agency for proper approvals before
purchasing. Firegear Outdoors is not responsible for any violation of local codes.
Travel, diagnostic cost, service labor to repair the defect on warranty parts to and from the factory will be the
responsibility of the owner. We will not be responsible for labor charges and/or damage incurred in installation,
repair, and replacement. Firegear is not responsible for Issues related to gas or electrical installation.
The Limited Warranty is voided if not assembled, installed, and operated as intended. This Limited Warranty
does not cover any defects due to accident, abuse, misuse, alteration, misapplication, vandalism, improper
installation or improper maintenance or service, removal from the original location, or re-installation into
another location, or failure to perform normal and routine maintenance.
Damage due to severe weather conditions such as hail, hurricanes, earthquakes, tornadoes, discoloration due
to overheating, exposure to chemicals (including chlorine and salt), either directly or in the atmosphere, or very
high humidity, is not covered by this Limited Warranty. Costal, humid and/or salt environments are subject to
manufacturer review. All out-of-box claims must be made within 30 days of purchase and must be made prior
to installation. Any product installed damaged will be considered damaged during installation and not covered
under warranty.
There are no other express warranties except as set forth herein. For consumer applications, any applicable
implied warranties of merchantability and tness are limited induration to the period of coverage of this Limited
Warranty. Some states do not allow limitation on how long an implied warranty lasts, so this limitation may not
apply to you.
For Commercial Applications, the liability of Firegear Outdoors is limited to the express terms of this warranty.
We expressly disclaim any and all implied warranties, including any warranties of tness for a particular
purpose or merchantability.

REV. A Page 19
Round Flat Disc Fire Pit Pans
We are not liable for any special, indirect or consequential damages. Our maximum liability is limited to the
purchase price of the purchased units. Some states do not allow the exclusion or limitation of incidental or con-
sequential damages, so this limitation or exclusion may not apply to you.
We do not authorize any person or company to assume for it any other obligation or liability in connection with
the sale, installation, use, removal, return, or replacement of its equipment, and or such representation are
binding.
Firegear Outdoors
17322 Gothard Street, Huntington Beach, CA 92647
www.regearoutdoors.com
Phone: [phone]
Email: order@regearoutdoors.com

REV. A Page 20
Round Flat Disc Fire Pit Pans
Having problems getting the fireplace to operate? Don’t leave
the job site! We want to help! Call 800.966.8126for Technical
Support between the hours of 8:00AM to 5:00PM PST.
BEFORE YOU CALL WE WILL NEED THIS INFORMATION
1. Model Number: ___________________________
2. Serial Number: ___________________________
3. How long is the gas line run? Nat Gas ____ LP Gas ____
4. What size is gas line? _____
5. Inlet Gas Pressure: _____WC
Manifold Gas Pressure: _____ WC
6. What type of media are you using? __________________
7. Review the troubleshooting section in the installation manual.
8. What are the symptoms? Please be prepared to explain.
9. Be prepared to send photos to us when on the phone.
10. Found missing or damaged parts? Let us know ASAP or send photos.
FPSS 3-30-16
Fire Pits
