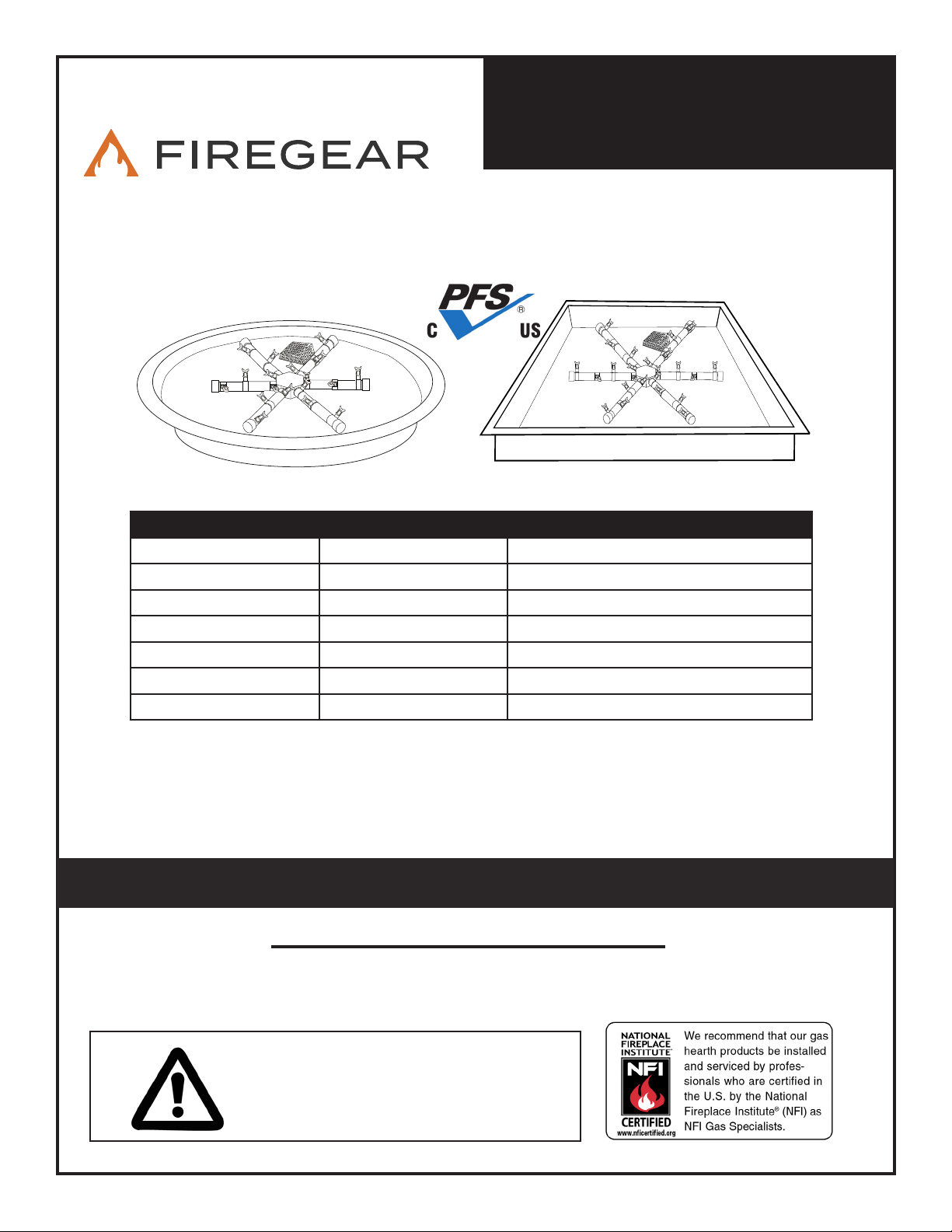

Firegear PRO Series User manual

IF YOU CANNOT READ OR UNDERSTAND THESE INSTALLATION INSTRUCTIONS
DO NOT ATTEMPT TO INSTALL OR OPERATE THIS APPLIANCE
DO NOT DISCARD. THIS MANUAL
HAS IMPORTANT OPERATING AND
MAINTENANCE INSTRUCTIONS.
LEAVE WITH THE HOMEOWNER.
Warning: For Outdoor Use Only
INSTALLATION PRECAUTION:
This system requires a minimum 18-square inches (per side) of cross ventilation.
Failure to provide proper ventilation will void the warranty.
Natural Gas Models Propane Gas Models Description
FPB-19RPSBR14TPSI-N FPB-19RPSBR14TPSI-P 19” Round Pan with 14” Pro Brass Burner
FPB-25RPSBR21TPSI-N FPB-25RPSBR21TPSI-P 25” Round Pan with 21” Pro Brass Burner
FPB-29RPSBR21TPSI-N FPB-29RPSBR21TPSI-P 29” Round Pan with 21” Pro Brass Burner
FPB-33RPSBR21TPSI-N FPB-33RPSBR21TPSI-P 33” Round Pan with 21” Pro Brass Burner
FPB-20SPSBR14TPSI-N FPB-20SPSBR14TPSI-P 20” Square Pan with 14” Pro Brass Burner
FPB-26SPSBR21TPSI-N FPB-26SPSBR21TPSI-P 26” Square Pan with 21” Pro Brass Burner
FPB-32SPSBR21TPSI-N FPB-32SPSBR21TPSI-P 32” Square Pan with 21” Pro Brass Burner
Round Pan
MODEL:
SERIAL #:
PN#90258
Square Pan
“PRO SERIES”
Outdoor Thermocouple Piloted
Safety Ignition (TPSI) Fire Pits
Installation and Operating Instructions
#20-025

FPB Pro Spur Burner; Rd & Sq Drop In Pans with TPSI System REV. A Page 2
CALIFORNIA PROPOSITION 65
WARNING
This product is designed to operate with one of the following fuel sources: Liquid Propane or Natural Gas. The fuel used to
operate this product, and the products of combustion of such fuel, can expose you to chemicals including Benzene which is known to
the State of California to cause cancer, birth defects and other reproductive harm and Carbon Monoxide which is known to the State
of California to cause birth defects or other reproductive harm.
(For more information go to: www.p65Warnings.ca.gov.)
DANGER
CARBON MONOXIDE HAZARD
This appliance can produce carbon monoxide
which has no odor.
Using it in an enclosed area can kill you.
Never use this appliance in an enclosed
space such as a camper, tent, car or home.
If you smell gas:
1. Shut off gas to the appliance
2. Extinguish any open ame.
3. If odor continues, keep away from
the appliance and immediately call
your gas supplier or re department.
DANGER WARNING
Do not store or use gasoline or other
ammable vapors and liquids in the
vicinity of this or other appliances.
Any LP cylinder not connected for use
shall not be stored in the vicinity of this
or other appliances.
WARNING
Do not leave unattended during use.
Do not use for cooking.
Follow all gas leak procedures in this
manual prior to operation.
WARNING
Improper installation, adjustment,
alteration, service or maintenance
can cause injury or property damage.
Read the installation, operating and
maintenance instructions thoroughly
before installing or servicing this
equipment.
WARNING
If the information in these instructions is not followed exactly, a re or explosion
may result causing property damage, personal injury or death.
FOR YOUR SAFETY
Do not store or use gasoline or other ammable vapors and liquids in the vicinity
of this or other appliances.

REV. A Page 3
FPB Pro Spur Burner; Rd & Sq Drop In Pans with TPSI System
All media (i.e. lava rock, lava stones, lava boulders and fire glass) has the potential of
thermal spalling. This is a process that may occur when media is wet and moisture gets
trapped inside of the material due to rapid temperature differences. When this happens
the media has the potential to crack or “pop” outside the fire feature.
WE HIGHLY RECOMMEND COVERING ALL FIRE FEATURES WHEN NOT IN USE
The use of a cover can lessen the impact of thermal spalling; however, heavy rains, high
humidity and the presence of moisture may still cause the media to pop.
ALWAYS USE CAUTION WHEN USING THE FIRE FEATURE
Extra caution should be taken when lighting a fire feature when heavy rains, high humidity
and moisture are present. Light the fire feature; leave the area allowing any moisture in
the media to dissipate. We strongly recommend that during this drying out time that you
monitor the fire feature from a distance. This drying out period should be no less than 30
minutes. Continue monitoring the flame from distance to ensure that all popping has
ceased before fully enjoying the fire.
CAUTION
TABLE OF CONTENTS
Congratulations! You have just purchased a Firegear Outdoors “Pro Series” re pit that includes a
304 Stainless Steel burner pan with a Brass Burner. The Brass Burners come in two diameter sizes,
14-inch, and 21-inch models. Each burner leg incorporates individual injectors that take the place of
a standard main burner orice. Each burner is unique in the fact that the14-inch burner has three
(3) injectors per leg and the 21-inch burner has four (4) injectors per leg. These injectors provide a
unique ame pattern that differs from a typical steel burner.
Specications 4
Gas Pipe Sizing 5
Removing Fire Pit from Carton 6
Preparation for Non-Combustible Structure 7
Hard Piping to Fire Pit 7
Cross Ventilation Requirements 7
Installation into an Approved Enclosure 8
Requirements 8
Installing Key Valve 8-9
Typical Installation Drawing 9
Operation 10
Lighting Instructions 10
Replacement Parts 11
Replacement Parts List 12
Fire Pit Maintenance/ Trouble Shooting 13
Optional Accessories 14

FPB Pro Spur Burner; Rd & Sq Drop In Pans with TPSI System REV. A Page 4

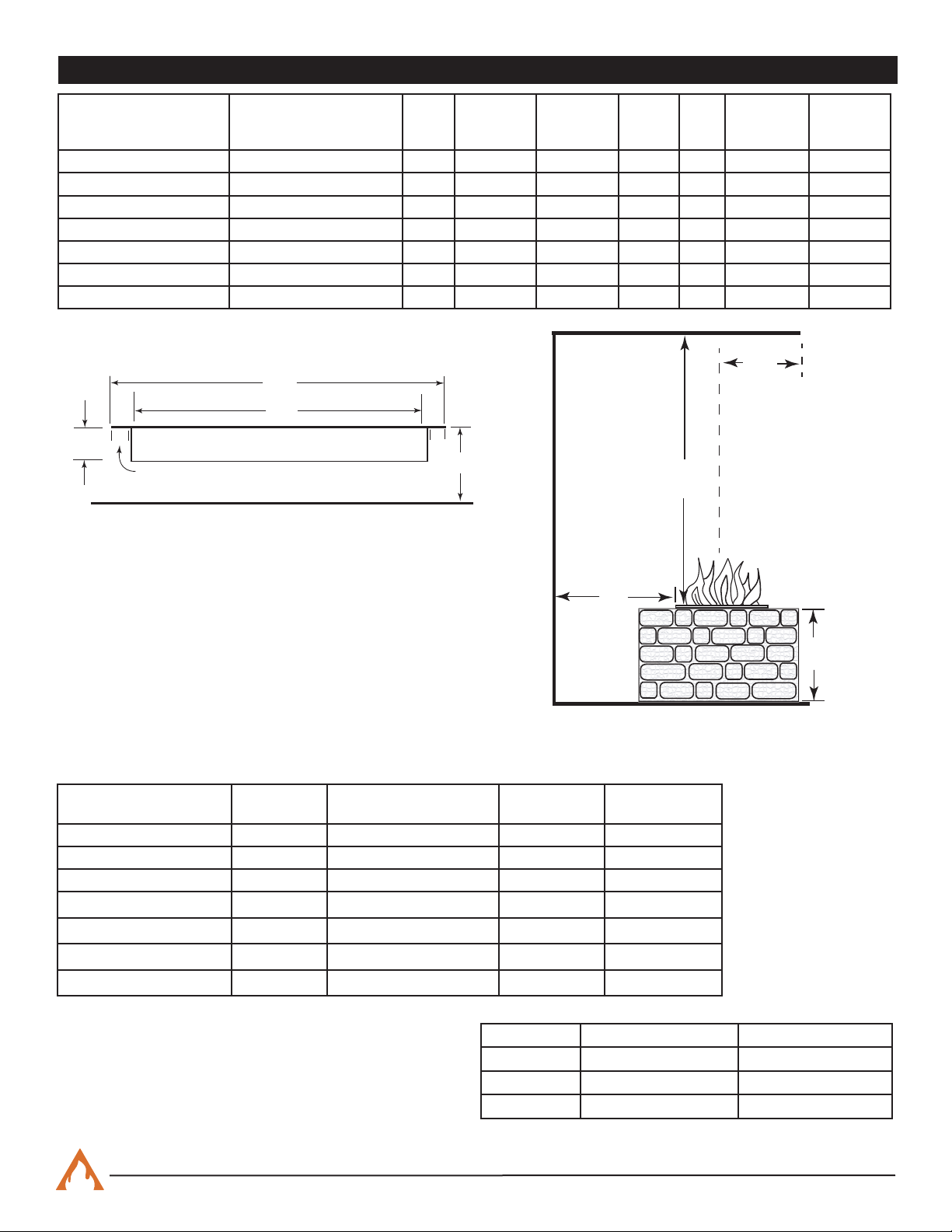

Table 1 Fire Pit Dimensions
Fig. 1 Burner pan specications.
SPECIFICATIONS
Model:
N=Natural Gas
Injector Size Model:
P=Propane Gas
Injector Size Btu Ratings
FPB-19RPSBR14TPSI-N #61 (0.039) FPB-19RPSBR14TPSI-P #68 (0.031) 125K (36.63kW)
FPB-25RPSBR21TPSI-N #61 (0.039) FPB-25RPSBR21TPSI-P #68 (0.031) 175K (51.28kW)
FPB-29RPSBR21TPSI-N #61 (0.039) FPB-29RPSBR21TPSI-P #68 (0.031) 175K (51.28kW)
FPB-33RPSBR21TPSI-N #61 (0.039) FPB-33RPSBR21TPSI-P #68 (0.031) 175K (51.28kW)
FPB-20SPSBR14TPSI-N #61 (0.039) FPB-20SPSBR14TPSI-P #68 (0.031) 125K (36.63kW)
FPB-26SPSBR21TPSI-N #61 (0.039) FPB-26SPSBR21TPSI-P #68 (0.031) 175K (51.28kW)
FPB-32SPSBR21TPSI-N #61 (0.039) FPB-32SPSBR21TPSI-P #68 (0.031) 175K (51.28kW)
Disclaimer: Btu listings are based on 7.0”WC for Natural Gas
and 11.0”WC for Liquid Propane (LP) at the burner orice. Flex
line size and proper gas pipe sizing will also affect Btu’s. As a
result your Btu’s may vary slightly from Table 2 specications.
Table 2 Burner specications.
Natural Gas Models: Propane Gas Models: A
Depth
B
Min/Max
Opening
C
Inside Pan
Dimension
D
Ground
Level
E
Side
Wall
F
Combustible
Ceiling
G
Combustible
Floor
FPB-19RPSBR14TPSI-N FPB-19RPSBR14TPSI-P 2½” 19 ¼” -20” 19” Rd. 16” 36” 120” 18”
FPB-25RPSBR21TPSI-N FPB-25RPSBR21TPSI-P 2½” 25 ¼”- 26” 25” Rd. 16” 36” 120” 18”
FPB-29RPSBR21TPSI-N FPB-29RPSBR21TPSI-P 2½” 30 ¼”- 31” 29” Rd. 16” 36” 120” 18”
FPB-33RPSBR21TPSI-N FPB-33RPSBR21TPSI-P 2½” 34 ¼ - 35” 33” Rd. 16” 36” 120” 18”
FPB-20SPSBR14TPSI-N FPB-20SPSBR14TPSI-P 2½” 20 ¼”- 21” 20” Sq. 16” 36” 120” 18”
FPB-26SPSBR21TPSI-N FPB-26SPSBR21TPSI-P 2½” 26 ¼”- 27” 26” Sq. 16” 36” 120” 18”
FPB-32SPSBR21TPSI-N FPB-32SPSBR21TPSI-P 2½” 32 ¼”- 33” 32” Sq. 16” 36” 120” 18”
Fig. 2 Clearance to Combustibles
(Not to be used in an enclosed space)
120”
36”
18”
C
L
24”
Max
Overhang
A
B
C
.875 TYP. (usable flat lip)
*
*D
Ground Level (Earth)
Pressure NG LP
Min. Inlet 3.5” WC (0.87 kPa) 8.0” WC (1.99kPa)
Max. Inlet 10.5” WC (2.61kPa) 13.0” WC (3.23 kPa)
Normal Inlet 7.0” WC (1.74 kPa) 11.0” WC (2.73 kPa)
Table 3 Gas Pressures

REV. A Page 5
FPB Pro Spur Burner; Rd & Sq Drop In Pans with TPSI System
REFERENCE
GAS PIPE SIZING
Length of Pipe in Feet 1/2” 3/4” 1” 1 - 1/4” 1 - 1/2” 2” 2 - 2 1/2” 3” 4”
10 275 567 1071 2205 3307 6221 10140 17990 35710
20 189 393 732 1496 2299 4331 7046 12510 25520
30 152 315 590 1212 1858 3465 5695 10110 20620
40 129 267 504 1039 1559 2992 4778 8481 17300
50 114 237 448 913 1417 2646 4343 7708 15730
60 103 217 409 834 1275 2394 3908 6936 14150
70 89 185 346 724 1086 2047 3329 5908 12050
80 78 162 307 630 976 1811 2991 5309 10830
90 69 146 275 567 866 1606 2654 4711 9613
100 63 132 252 511 787 1496 2412 4281 8736
125 54 112 209 439 665 1282 2083 3618 7382
150 48 100 185 390 590 1138 1808 3210 6549
175 43 90 168 353 534 1030 1637 2905 5927
200 40 83 155 325 491 947 1505 2671 5450
300 37 77 144 303 458 887 1404 2492 5084
NATURAL GAS : PIPE SIZING CHART
•Natural Gas (NG) flow is given in
thousands of BTU/hr. = 1cubic
foot of NG gas - 1000 BTU
•Nominal pressure at the burner
for Natural Gas is 3.5” of water
column. (Typical machine supply
5”-7”)
•Pipe length must include
additional length for all fittings.
Add approximately 5 feet of pipe
per fitting.
•Natural Gas Example: A machine
with a burner that requires
440,000 BTU would need a 1 -1/4”
pipe for a 20” long run.
LIQUID PROPANE : PIPE SIZING CHART
NOTE: The sizing charts above list the specific pipe sizes required for the amount of BTU’s for a new gas line installations. If you
are using an existing gas line you must take into consideration the existing gas line capacities to ensure you will have proper
pressure. This chart is for reference only, we recommend you consult with a Licensed Plumber/Gas Fitter or NFPA54 (National Fuel
Gas Code - current edition) for more details.
Length of Pipe in Feet 1/2” 3/4” 1” 1 - 1/4” 1 - 1/2” 2” 2 - 2 1/2” 3” 4”
10 108 230 387 793 1237 2259 3640 6434 -
20 75 160 280 569 877 1610 2613 5236 9521
30 61 129 224 471 719 1335 2165 4107 7859
40 52 110 196 401 635 1143 1867 3258 6795
50 46 98 177 364 560 1041 1680 2936 6142
60 42 89 159 336 513 957 1559 2684 5647
70 38 82 149 317 476 896 1447 2492 5250
80 36 76 140 239 443 840 1353 2315 4900
90 33 71 133 275 420 793 1288 2203 4667
100 32 68 126 266 411 775 1246 2128 4518
125 28 60 117 243 369 700 1143 1904 4065
150 25 54 105 215 327 625 1008 1689 3645
175 23 50 93 196 303 583 993 1554 3370
200 22 47 84 182 280 541 877 1437 3160
300 17 37 70 145 224 439 686 1139 2539
•Liquid Propane (LP) Gas flow is
given in thousands of BTU/hr. =
1cubic foot of LP gas - 2500 BTU.
•This chart refers to low pressure LP,
after regulation, Standard nominal
pressure at the burner for Liquid
Propane Gas is 11” of water column.
•Pipe length must include additional
length for all fittings. Add
approximately 5 feet of pipe per
fitting.
•LP Example: A machine with a
burner that requires 440,000 BTU
would need a 1” pipefor a 20’ long
run.
GAS PIPE SIZING CHART
Table 4 Gas Pipe Sizing Chart

FPB Pro Spur Burner; Rd & Sq Drop In Pans with TPSI System REV. A Page 6
WARNING: Proper clearances from combustible materials must be maintained from all sides, top and bottom of this
appliance. Use the specications listed on page 4 for proper clearance to combustibles.
PREPARING A NON-COMBUSTIBLE STRUCTURE
The re pit can be installed on a at, stable surface, away from any combustible materials. Install Fire pit on any level,
outdoor non-combustible, at stable surface or a combustible oor according to the clearances specied in this
manual. NOTE: Do not place re pit directly on grass, dirt, or rocks this may prevent proper ventilation (Fig.1, pg. 4).
Ensure proper water drainage is also incorporated into the re pit enclosure.
HARD PIPING TO FIRE PIT WITHOUT GAS PROXIMITY
NOTE: We recommend using ¾” black iron pipe; however please refer to the NFPA54 (National Fuel Gas Code) for
proper pipe sizing when exceeding 20-feet in length for re pits rated above 100,000 Btu’s.
1. Turn OFF gas supply system. NOTE: All gas connections (except for brass to brass) require the following. Clean pipe
threads using either a wire brush or steel wool. Apply pipe sealant to the ttings before making any connection.
BE CAREFUL! Ensure all gas connections are snug, but do not over tighten!
2. Extend the gas supply system using minimum of ¾” black iron pipe or an approved exible gas line from existing
house supply. This can be accomplished by teeing off or tapping into a gas line connection. Install necessary pipe for the
distance required and then install a manual shut-off valve at the exterior house wall. If pipe is to pass through a foundation
or house wall, make sure to re-seal the area around the pipe with weather sealant.
3. The primary gas shut-off (not supplied) will require a ½” male ared tting to enable connection of the stainless steel
ex gas line supplied with the re pit (see Fig. 7 page 9).
IMPORTANT
Installation of Natural or LP gas should be done by a qualied
installer, service agency or gas supplier. This appliance must
be isolated from the gas supply piping system by closing its
manual shutoff valve during any pressure testing of the gas
supply piping system at test pressures equal to or less than
½” psig (3.5kPa)
VENTILATION FOR NON-COMBUSTIBLE ENCLOSURE
Fire pits are subjected to many outdoor elements such as rain,
snow, wind, heat or cold. A minimum of 18 square inches
(per side) of cross ventilation is required to keep the
components in good working order. Use Fig. 6 as guide to
assist to incorporate proper ventilation.
Fire Pit
Enclousure
(2) 6”x12”
Fire Pit Pan/Disc
Examples of Cross Ventilation
2- Firegear 6 x12 vents
(Model # VENT-KIT-6X12)
Cross Flow Ventilation
(Min. 18 Sq. In. Per Side)
Fig. 6 Cross Ventilation Example
ALL PAN OR FLAT DISCS MUST BE REMOVABLE FOR SERVICE Pans or Discs CANNOT be installed
in a manner to prevent them from being removed for service. Top coping material or top cap of re pit
MUST NOT overlap onto the pan or disc surface without easily being removed. Pan lip of disc edge must
be unobstructed so it can be lifted our of the re pit for servicing. We highly recommend the use of a ex
frame kit for all installations.

REV. A Page 7
FPB Pro Spur Burner; Rd & Sq Drop In Pans with TPSI System
REMOVING FIRE PIT FROM CARTON
Fig. 3 Shows carton contents. Note: Round pan was illustrated for this drawing.
Flared Fitting
& Nipple
Fig. 4 Installing nipple into bottom of burner.
Carton Contents
Valve Assembly
Hardware
Bag
Flexible Gas Line
Piezo Wires
Thermocouple Lead
Pilot Tubing
Control Panel
This re pit is comes partially assembled from the factory.
The pilot tubing and thermocouple leads are 48” in total
length, therefore, when mounting the Gas Valve/Piezo
mounting plate, ensure the mounting plate is close enough
to make all connections.
Open carton and remove contents. Inspect for any damage
or missing parts.
The hardware bag include mounting plate screws, injector
hoods, Piezo wires and ex connector to complete the
installation.
Carefully install the re pit into the prepared enclosure,
connect the gas line and wire according to the gure
drawings in this manual.
The control panel can use the template on the back of this
manual for mounting or you can purchase an optional
PAVER-CP-MT control plate to mount the control panel.
Once you have determined the location of mounting plate
install the gas connections and Piezo wires as shown in
Fig. 5 and secure all connections.
CONTROL PANEL MOUNTING PLATE
Paver Block
Paver Block
Flex Line To Fire Pit
Inlet Gas
Piezo Wires
Pilot Tubing
Thermocouple
PAVER-CP-MT
(Control Panel)
Fig. 5 Installing control panel into PAVER-CP-MT mounting
plate.
BEFORE THE FIRE PIT IS INSTALLED
Install the burner nipple and ared tting to the burner.
Ensure the nipple and tting has gas rated Teon tape
wrapped around the threads (See Fig. 4).
Install in a clock wise manner. Secure into position.

FPB Pro Spur Burner; Rd & Sq Drop In Pans with TPSI System REV. A Page 8
REQUIREMENTS
1. Only non-combustible materials should come in direct contact with any part of the re pit. Underneath area should
be non-combustible or a at level combustible surface according to the clearances specied in this manual.
2. We recommend using ¾” black iron pipe; however please refer to the NFPA54 (National Fuel Gas Code) for
proper pipe sizing when exceeding 20-feet in length for re pits rated above 100,000 Btu’s.
3. Determine the size of the round or square re pit you are preparing to install (Refer to page 4).
4. You must provide a round or square opening out to place the re pit into the non-combustible enclosure.
Do not exceed the maximum opening from Table 1, dimension B.
5. Follow the local code requirements for the gas type being used. This re pit should be installed in accordance with
local codes and ordinances or in the absence of local codes, with the latest National Fuel Gas Code, ANSI Z223.1
NFPA54 or CSA B149.1, Natural and Propane Installation Code in Canada.
6. Fire pits create high temperatures, it is very important to have any combustibles at a safe distance.
7. CAUTION: A minimum of 18 square inches of cross ventilation (per side) is required to keep the enclosure
dry.
8. These products are designed for outdoor use only. Not approved for any indoor use.
9. This re pit is designed to have lava rock completely covering the spur burner, so that the burner is not visible. Do
not cover more than 1” above the top of the burner and do not block the injectors with any media. When purchasing
lava rock use 1” diameter as a base to ll the burner pan.
10. Gas lines and ttings must be installed in to the non-combustible structure. All gas connections must be leak tested
before installation of the re pit. Soapy water leak detection is required before regular use of the re pit.
11. Do not use material that will absorb moisture over time and will not release this moisture quickly. Moisture can boil in
this material and can rapidly break apart and cause damage or personal injury.
12. Never leave any other combustible material on top of the re pit. This could cause unsafe operation of this system
and damage to the component that will not be covered under our warranty.
Ensure proper water drainage is also incorporated into the re pit enclosure.
INSTALLATION OF FIRE PIT INTO AN APPROVED ENCLOSURE
Fig. 7 TPSI control panel mounting plate.
+-
AAA
Plastic Nut
Red Button Cap
Mounting Plate
Remove red button cap and install battery into
Piezo ignitor module.
Thermocouple
Connection
Inlet Gas
Supply
Pilot Gas
Line
Piezo Ignition
Control Knob
PIEZO25WH
PIEZO48WH
Outlet
To Burner
Fig. 8 Installing battery into Piezo.

REV. A Page 9
FPB Pro Spur Burner; Rd & Sq Drop In Pans with TPSI System
INSTALLATION OF LAVA ROCK/MEDIA INTO FIRE PIT
Install lava rock/media into the burner pan. Ensure the lava
rock is a 1 to 2-inch diameter for proper operation. Note:
Do not pour Lava Rock directly from bag. It should be
placed naturally and NOT packed in tight. Loose tting is
important to ensure robust ames. Be sure rocks are free
of any excessive dust. This prevents the burner pan weep
holes from being plugged and holding water.
IMPORTANT: Do not place media directly on top or
under the screen cover. The screen must be free of any
debris to ensure proper lighting of burner and good ame
sense (See Fig. 10).
Cover the burner completely with media but do not make
the depth greater than 1-inch over top of the burner port-
holes.
Do NOT cover the top of the screen hood with any rock or
glass. It must be free an any debris to operate properly.
Fig. 10 Keep screen cover exposed
PILOT ASSEMBLY
It is important to understand that this is a “standing pilot”
system. When placing media around the pilot area ensure
the top of the screen hood/cover is open to exhaust the
gases and enable the pilot to operate properly. See Fig. 9.
Fig. 9 Show TPSI pilot assembly identication.
Thermocouple
Ignitor
Flame Spreader
¼” Female
Terminal
48” Pilot
Tubing
Screen Hood
Lava Rock Lava Rock
Lava Rock
Ignition
Hood
Screen Cover
Install the hood/rain shields over top of each injector of the
pro brass burner by sliding it into position. Use the bead in
the lower section of the hood, and align it with the groove
in the injector, until it snaps into place. See Fig. 11. Rotate
the hood to ensure it is protecting the injector opening from
the elements (i.e. rain, dirt or media). See Fig. 1 for proper
alignment. Note: If there is no detent in the injector, ensure
the hood is ½” from the base of the injector to the bottom
edge of the hood as shown in Fig. 12.
Groove around
the injector
Bead around
the hood
HOOD
1/2”
HOOD
INJECTOR
Fig. 11 Installing hood over top of injector. Fig. 12 Shows 1/2” spacing from bottom of injector.
INJECTOR HOOD/RAIN SHIELD INSTALLATION

FPB Pro Spur Burner; Rd & Sq Drop In Pans with TPSI System REV. A Page 10
Fig. 13 Typical installation.
Gas Supply
Drop In Pan
Non-Combustible Enclosure
Shut-O
Pro Spur Burner
OFF
Gas Valve
Thermocouple
Piezo
Steel Studs
Steel Studs
Steel Studs
Steel Studs
Pilot
Tube
Piezo Wires
Thermocouple
Connection
Inlet Gas
Supply
Pilot Gas
Line
Piezo
Ignition
Control
Knob
PIEZO25WH
PIEZO48WH
Outlet
To Burner
D
e
t
a
i
l
V
i
e
w
o
f
T
P
S
I
V
a
l
v
e
A
s
s
e
m
b
l
y
Gas valve and exible gas lines are supplied; E-Stop shut-off is not supplied, but available in accessories page.
Flex lines with ared ttings do not require Teon tape or pipe compound. Ensure not to “kink” the ex lines to
allow better gas ow of gas. The illustration above is only a guide for the gas connection. Local codes may
require different methods to connect the gas supply. Note: See optional mounting method of TPSI face plate
on back of this manual.
Ensure you determine how to mount valve
bracket into place before completing re pit.

REV. A Page 11
FPB Pro Spur Burner; Rd & Sq Drop In Pans with TPSI System
CAUTION: Children and adults should be alerted to the hazards on high surface temperatures and should stay away to
avoid burns or clothing ignition. Young children should be carefully supervised when they are in the area of the appliance.
WARNING: Do not use this appliance if any part has been under water. Immediately call a qualied service technician
to inspect the appliance and to replace any part of control system and any gas control, which has been under water.
OPERATION
SAFETY WARNINGS
1. Never leave the re pit unattended during operation.
2. Clothing or other ammable materials should not be placed on or near the appliance.
3. Any guard or other protective device removed for servicing the appliance must be replaced prior to operating the
appliance.
4. Installation and repair should be done by a qualied service person. The appliance should be inspected before
use and at least annually by a qualied service person. More frequent cleaning may be required as necessary. It
is imperative the control compartment, burners and circulating air passageways of the appliance be kept clean.
5. Inspect the fuel supply connection before each use of the appliance.
6. Temporary storage of this appliance indoors is permissible only if it has been disconnected from its fuel supply
(Natural or L.P. gas line).
WARNING
1. This appliance is hot when operated and can cause sever burns if contacted.
2. Do not burn any solid fuels in this appliance.
Fig. 14 Control panel with gas valve knob and Piezo.
TURNING OFF FIRE PIT
1. Slightly depress the control knob inward and rotate the knob clock wise to OFF position. Fire pit will turn OFF.
2. After cooling off install cover (if applicable).
OFF
PILOT
ON
Control Knob Piezo Button
READ ALL LIGHTING INSTRUCTIONS BEFORE ATTEMPTING TO LIGHT FIRE PIT
CAUTION: ENSURE YOU HAVE LEAK TESTED THE FIRE PIT BEFORE OPERATING.
WARNING: Do not stand over re pit during ignition or operation due to high surface temperatures.
LIGHTING INSTRUCTIONS
TURNING ON FIRE PIT
1. Depress and hold the red Piezo button and ensure sparking is occurring inside the pilot hood. An audible sparking
sound can be heard.
2. While holding the Piezo button, slightly depress the control knob inward and rotate counter clockwise to the PILOT
position. Depress and hold control knob inward for at least 30 to 60 seconds; to light the PILOT.
3. Once the pilot lights, release the Piezo button and turn control knob counter clockwise to the ON position. If pilot does
not stay lit, release the control knob, turn the control knob clockwise to turn OFF and wait 5 minutes before trying
again. Turn gas supply OFF to check ignitor spacing and Piezo battery if no sparking occurs.
4. Repeat steps 1-4 to try again.

FPB Pro Spur Burner; Rd & Sq Drop In Pans with TPSI System REV. A Page 12
TPSI REPLACEMENT PARTS
12
6
3-3A / 4-4A
Drawings not to scale.
7
8
15
17
16
13
9
14
G
A
S
P
R
E
S
S
U
R
E
R
E
G
U
L
A
T
O
R
10
12
11
5

REV. A Page 13
FPB Pro Spur Burner; Rd & Sq Drop In Pans with TPSI System
1 19-inch Round Stainless Pan 1 PAN-SS19R
1 25-inch Round Stainless Pan 1 PAN-SS25R
1 29-inch Round Stainless Pan 1 PAN-GV29R
1 33-inch Round Stainless Pan 1 PAN-GV33R
2 20-inch Square Stainless Pan 1 PAN-SS20S
2 26-inch Square Stainless Pan 1 PAN-SS26S
2 32-inch Square Stainless Pan 1 PAN-SS32S
3 14-inch Pro Spur Burner - Natural Gas 1 FG-PSBR-BS14-NG
3A 14-inch Pro Spur Burner - Propane Gas 1 FG-PSBR-BS14-LP
4 21-inch Pro Spur Burner - Natural Gas 1 FG-PSBR-BS21-NG
4A 21-inch Pro Spur Burner - Propane Gas 1 FG-PSBR-BS21-LP
5½” Flex Gas Line (46-inch Length) 1 T200-9898-46
6½” MIP x 2” Nipple 1 113SS4-D2
7 Copreci High Capacity Gas Valve 1 68001599
8Stainless Steel Thread Cutting Screws #10-24x ½” 8ST3-113-1028
9Lock Nut, M15 x 1 for TPSI Gas Valve 1 08032504
10 Gas Valve Control Knob for TPSI Valve 1 CN-ALHC
11 ½” OD Flare to ½” MIP Fitting 1 U1-8D-S
12 ½” Flare to ½” MIP 90° elbow 1 49-88
13 ½” NPT Female to ½” Male Flare Fitting 1 U3-8D-S
14 Complete Natural Gas Pilot Assembly with 48” leads 1 PSE-NA495
15 Complete Propane Gas Pilot Assembly with 48” leads 1 PES-LP495
16 TPSI Face Plate 1 78188
17 LP Regulator with 32” Hose 1 FG-32LPHRK
18 #10-24 Stainless Nut (not shown) 4 ST3-113-1020
19 #10 Stainless Flat Washer (not shown) 4 WASHER10SS
20 #10-24 x 1.25” Stainless Phillips Screw (not shown) 4 SCREW1024PANSS
21 Copreci Valve Knob Label Sticker (not shown) 1 VALVEKNOBLABEL
22 48” long ¼” OD Corrugated Pilot Tube (not shown) 90-9898-48
23 Manual Spark Ignitor Module (not shown) 1 3042-RB
24 23" Piezo Extension wire - See page 16 (not shown) 1 PIEZO23WH
25 48" Piezo Extension wire - See page 16 (not shown) 1 PIEZO48WH
26 Ground tab for Piezo ignition (not shown) 1 GROUNDTAB
27 5½” x 3” TPSI cover plate (not shown) 1 78116
Item Description Qty. Part Number
TPSI REPLACEMENT PARTS

FPB Pro Spur Burner; Rd & Sq Drop In Pans with TPSI System REV. A Page 14
1. The re pit should be inspected and cleaned before initial use at least annually by a qualied eld service person.
2. Any component that is found faulty must be replaced with an approved component.
3. Any tampering or modifying with the re pit is dangerous and voids all warranties.
4. During winter months in cold climates and various seasons operation the re pit may be affected by weather
conditions. It is recommended to use a ventilated cover overtop of your re pit to protect it from humid/rainy weather
conditions when not in use. Heavy rains/downpours could affect the re pit operation if not covered; if this occurs
ensure you allow the re pit time to dry out before attempting to operate. NOTE: If a combustible type cover is used
over the re pit when not in use be sure to remove it before operation to prevent a severe safety hazard.
5. Over time stainless steel parts can discolor when heated, usually a golden or brown hue. This discoloration is normal
and does not affect the performance of the appliance.
FIRE PIT MAINTENANCE
TROUBLE SHOOTING
Symptom Remedy
Fire Pit Won’t Light 1. Bleed gas line.
2. Ensure all gas supply lines are turned ON.
3. Ensure there is not too much media over top of burner; it can inhibit gas from owing.
Low Flame 1. Ensure the base media is at least 1-inch in diameter and top media is no more than 1-inch over
top of burner.
2. Ensure all shut-off valves and valve is fully open.
3. Check for spider webs inside burner orice.
Water in my Fire Pit 1. Excess dust/sand material from media may be blocking the weep holes to relieve water.
2. Remove all media and unplug weep holes. Clean or install new media free of dust and dirt.
3. Ensure re pit enclosure has proper drainage for water and proper ventilation to dry out.
4. Recommend to purchase a cover/lid to keep excessive water out of the re pit.
Whistling Noises 1. Check media to ensure it is not too tightly packed around the burner tube.
2. Ensure a non-whistling ex connector is being used.
1. Windy days can potentially blow pilot ame out. Gusts of 25-30mph or higher can cause pilot
intermittent outage.
2. Too much media around the pilot can cause thermocouple to overheat.
3. Operating the re pit after heavy rains can potentially cause pilot outage. Let the re pit
completely dry before using.

REV. A Page 15
FPB Pro Spur Burner; Rd & Sq Drop In Pans with TPSI System
ACCESSORIES
The following accessories are available from your local Firegear dealer/distributor.
Each accessory comes with a separate installation manual. Read each instruction thoroughly before installing.
Manual changes often occur, ensure to check the Firegear Outdoor
website for any recent updates and warranty information.
FOR TECHNICAL SERVICE, CALL:
Firegear Outdoors
17322 Gothard St
Huntington Beach, CA 92647
Web Site: www.regearoutdoors.com
[phone]
See Firegear Outdoors catalog for other accessories.
E-STOP
Gas shut-off valve with mechanical
timer and emergency shut-off.
Models:
ESTOP1-0H 1-hour timer
Paver Vents
Model: PAVER-VENT-4-LNTS
2 - paver brackets, parts and 2 - 4”
vents. Provides 18 sq. in. of ventilation
Model: PAVER-VENT-6-LNTS
2 - paver brackets, parts and 2 - 6”
vents. Provides 18 sq. in. of ventilation
Model: PAVER-VENT-6X12SS
2 - 6”x12” vents and screws.
Provides 18 sq. in. of ventilation
Flexframe
Universal brackets to support a re
pit disc when using paver or other
non-combustible enclosures.
Models: FLEXFRAME-SS (2-piece)
Models: FLEXFRAME-SS3 (3-piece)
Paver Kit
Description: For installation into a
paver block assembly.
Model: PAVER-CP-TPSI

FPB Pro Spur Burner; Rd & Sq Drop In Pans with TPSI System REV. A Page 16
FIREGEAR LIMITED WARRANTY - 2022
Firegear Outdoors hereby warrants to the end user that products will be free from material and workmanship
defects that prevent safe and correct operation of the product. The warranty commences from date of sale to
the end user for the following period:
CONSUMER RESIDENTIAL APPLICATIONS – MANUFACTURED AFTER 12/02/2019
• BURNER SYSTEMS, BURNERS, COMPONENTS AND ACCESSORIES
• LIFETIME WARRANTY ON CONSTRUCTION AND MANUFACTURER DEFECTS
• LIFETIME WARRANTY - STAINLESS STEEL BURNERS AND PANS
• LIFETIME WARRANTY - BRASS BURNERS
• FIVE (5) YEAR WARRANTY - GAS VALVE, SPARK IGNITER, PILOT ASSEMBLIES
• FIVE (5) YEAR WARRANTY - AWS ELECTRONIC IGNITION SYSTEMS (24VAC, 30 VDC)
• FIVE (5) YEAR WARRANTY - TFS/TMSI ELECTRONIC COMPONENTS
• FIVE (5) YEAR WARRANTY – MT COMPONENTS (KEY VALVE)
• FIVE (5) YEAR WARRANTY - REFRACTORY GAS LOG SETS
• FIVE (5) YEAR WARRANTY - READY TO FINISH/ANF FIRE PIT ENCLOSURES
• FIVE (5) YEAR WARRANTY – SKYTECH MANUFACTURED OPTIONAL CONTROLS
OUTDOOR FIREPLACE – KALEA BAY
• LIFETIME WARRANTY - CONSTRUCTION AND MANUFACTURER DEFECTS
• LIFETIME WARRANTY - STAINLESS STEEL COMPONENTS
• FIVE (5) YEAR WARRANTY - GAS VALVE, PILOT ASSEMBLY, POWER SUPPLY, CONTROLS
• FIVE (5) YEAR WARRANTY – SKYTECH MANUFACTURED OPTIONAL CONTROLS
SANCTUARY SERIES – GFRC FIRE FEATURES
• THREE (3) YEAR WARRANTY - GFRC STRUCTURE
• REFER TO THE APPROPRIATE BURNER SYSTEM FOR WARRANT
WARRANTY COVERS MANUFACTURING DEFECTS OR STRUCTURAL FAILURE. SMALL STRESS CRACKS
AND SURFACE CRAZING ARE A NATURAL OCCURRENCE IN GFRC PRODUCTS AND NOT COVERED BY
WARRANTY.
READY TO FINISH/ANF ENCLOSURES
• FRAME – LIFETIME WARRANTY ON CONSTRUCTION AND MANUFACTURER DEFECTS
ACCESSORIES
• LIFETIME WARRANTY - CONSTRUCTION AND MANUFACTURER DEFECTS
• LIFETIME WARRANTY - STAINLESS STEEL COMPONENTS (LIDS, STAINLESS STEEL COVERS)
• ONE (1) YEAR WARRANTY – ESTOP1-OH, ESTOP2-5H WINDSHIELDS, HOSES AND REGULATORS

REV. A Page 17
FPB Pro Spur Burner; Rd & Sq Drop In Pans with TPSI System
COMMERCIAL APPLICATIONS – MANUFACTURED AFTER 12/02/2019
BURNER SYSTEMS, BURNERS, COMPONENTS AND ACCESSORIES
• TWO (2) YEAR WARRANTY ON CONSTRUCTION AND MANUFACTURER DEFECTS
• TWO (2) YEAR WARRANTY - STAINLESS STEEL BURNERS AND PANS
• TWO (2) YEAR WARRANTY - BRASS BURNERS
• TWO (2) YEAR WARRANTY - GAS VALVE, SPARK IGNITER, PILOT ASSEMBLIES
• TWO (2) YEAR WARRANTY - AWS ELECTRONIC IGNITION SYSTEMS (24VAC, 30 VDC)
• TWO (2) YEAR WARRANTY – MT COMPONENTS (KEY VALVE)
• TWO (2) YEAR WARRANTY - REFRACTORY GAS LOG SETS
• FIVE (5) YEAR WARRANTY - READY TO FINISH/ANF FIRE PIT ENCLOSURES
• TWO (2) YEAR WARRANTY – SKYTECH MANUFACTURED OPTIONAL CONTROLS
OUTDOOR FIREPLACE – KALEA BAY
• LIFETIME WARRANTY - CONSTRUCTION AND MANUFACTURER DEFECTS
• LIFETIME WARRANTY - STAINLESS STEEL COMPONENTS
• TWO (2) YEAR WARRANTY - GAS VALVE, PILOT ASSEMBLY, POWER SUPPLY, CONTROLS
• TWO (2) YEAR WARRANTY – SKYTECH MANUFACTURED OPTIONAL CONTROLS
SANCTUARY SERIES – GFRC FIRE FEATURES
• THREE (3) YEAR WARRANTY - GFRC STRUCTURE
• REFER TO THE APPROPRIATE BURNER SYSTEM FOR WARRANTY
WARRANTY COVERS MANUFACTURING DEFECTS OR STRUCTURAL FAILURE. SMALL STRESS CRACKS
AND SURFACE CRAZING ARE A NATURAL OCCURRENCE IN GFRC PRODUCTS AND NOT COVERED BY
WARRANTY.
READY TO FINISH/ANF ENCLOSURES
• FRAME – LIFETIME WARRANTY ON CONSTRUCTION AND MANUFACTURER DEFECTS
ACCESSORIES
• LIFETIME WARRANTY - CONSTRUCTION AND MANUFACTURER DEFECTS
• LIFETIME WARRANTY - STAINLESS STEEL COMPONENTS (LIDS, STAINLESS STEEL COVERS)
• ONE (1) YEAR WARRANTY – ESTOP1-OH, ESTOP2-5H WINDSHIELDS, HOSES AND REGULATORS

FPB Pro Spur Burner; Rd & Sq Drop In Pans with TPSI System REV. A Page 18
The end-user must provide a bill of sale, canceled check, or payment record to verify the purchase date and to
establish the warranty period. This Limited Warranty shall be valid and limited to the original purchaser only.
WARNING: Any modication to the product will void the warranty.
This Limited Warranty shall be limited to the repair and/or replacement of parts that have been proven to be
defective under normal use and service. All warranty claims must be made by the OEM/Distributor/Dealer
account on behalf of the end-user. You may contact Technical Support at 800-966-8126.
Our Technical Service Department must conrm all approved defects. If a defect is conrmed and we approve
the claim, we will replace such parts without charge. This warranty gives you specic legal rights, and you may
also have other rights, which vary from state to state.
The manufacturer may request defective products returned with an RMA (Return Merchandise Authorization)
issued by Firegear Outdoors for specic products, which is considered to be the nature of the defect and or
warranty claim. Product to be returned should; be packed so as not to incur damages during transportation.
Firegear is not responsible for damages on returned items. RMA is valid for thirty (30) days from the date issued.
The RMA must be clearly marked on the outside of the package.
Please check with your local building code department or governing agency for proper approvals before
purchasing. Firegear Outdoors is not responsible for any violation of local codes.
Travel, diagnostic cost, service labor to repair the defect on warranty parts to and from the factory will be the
responsibility of the owner. We will not be responsible for labor charges and/or damage incurred in installation,
repair, and replacement. Firegear is not responsible for Issues related to gas or electrical installation.
The Limited Warranty is voided if not assembled, installed, and operated as intended. This Limited Warranty
does not cover any defects due to accident, abuse, misuse, alteration, misapplication, vandalism, improper
installation or improper maintenance or service, removal from the original location, or re-installation into another
location, or failure to perform normal and routine maintenance.
Damage due to severe weather conditions such as hail, hurricanes, earthquakes, tornadoes, discoloration due
to overheating, exposure to chemicals (including chlorine and salt), either directly or in the atmosphere, or very
high humidity, is not covered by this Limited Warranty. Coastal, humid and/or salt environments are subject to
manufacturer review. All out-of-box claims must be made within 30 days of purchase and must be made prior
to installation. Any product installed damaged will be considered damaged during installation and not covered
under warranty.
There are no other express warranties except as set forth herein. For consumer applications, any applicable
implied warranties of merchantability and tness are limited induration to the period of coverage of this Limited
Warranty. Some states do not allow limitation on how long an implied warranty lasts, so this limitation may not
apply to you.
For Commercial Applications, the liability of Firegear Outdoors is limited to the express terms of this warranty.
We expressly disclaim any and all implied warranties, including any warranties of tness for a particular purpose
or merchantability.

REV. A Page 19
FPB Pro Spur Burner; Rd & Sq Drop In Pans with TPSI System
We are not liable for any special, indirect or consequential damages. Our maximum liability is limited to the
purchase price of the purchased units. Some states do not allow the exclusion or limitation of incidental or
consequential damages, so this limitation or exclusion may not apply to you.
We do not authorize any person or company to assume for it any other obligation or liability in connection with the
sale, installation, use, removal, return, or replacement of its equipment, and or such representation are binding.
Firegear Outdoors
17322 Gothard St.
Huntington Beach, CA 92647
www.regearoutdoors.com
Phone: [phone]
Email: order@regearoutdoors.com
This re pit instruction provides an option to mount the TPSI face plate to concrete board. Use the template
above to complete the installation.
The TPSI face plate can be mounted vertically or horizontally. Our suggestion is to attach the face plate in a
horizontal position with the gas valve on the left side. This allows the control knob text to be orientated in a
position to be easily read.

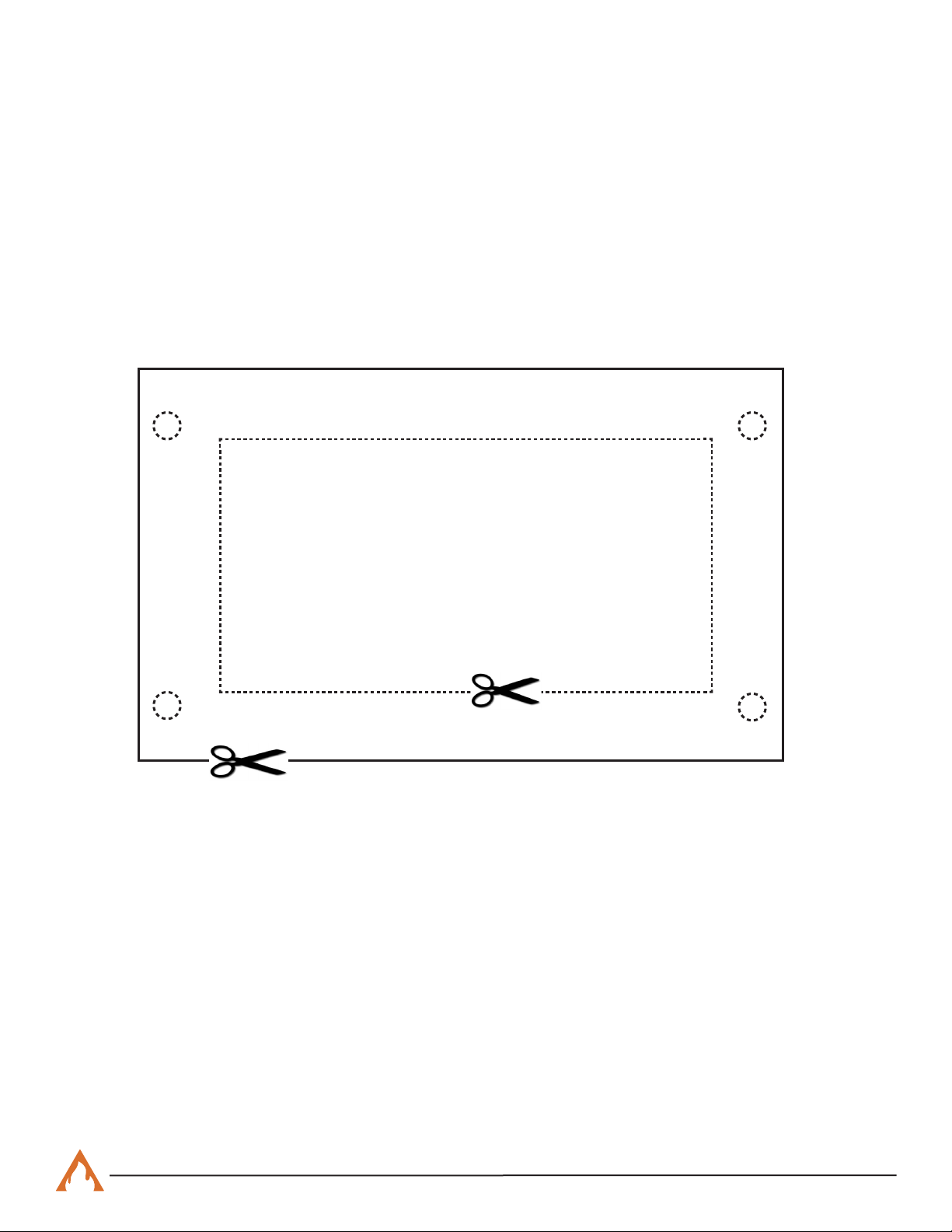

Using scissors carefully cutout the template and trace it on your concrete board. The
dotted line provides the cutout area to mount face plate. Use a concrete drill bit to drill (4) 3/16” diameter
holes. Install the 1¼” black oxide screws through the front of the faceplate with the nuts and washers on the
backside. These are all provided in the hardware bag.
Note: Mounting plate can also be installed into a paver control panel (PAVER-CP-MT) bracket system.
CAUTION: Careful not to over-tighten screws and nuts to ensure the cement board does not crack or break.
Optional Cutout Template for
TMS Face Plate

FPB Pro Spur Burner; Rd & Sq Drop In Pans with TPSI System REV. A Page 20
Having problems getting the fire pit to operate? Don’t leave
the job site! We want to help! Call 800.966.8126for Technical
Support between the hours of 8:00AM to 5:00PM PST.
BEFORE YOU CALL WE WILL NEED THIS INFORMATION
1. Model Number: ___________________________
2. Serial Number: ___________________________
3. How long is the gas line run? Nat Gas ____ LP Gas ____
4. What size is gas line? _____
5. Inlet Gas Pressure: _____WC
Manifold Gas Pressure: _____ WC
6. What type of media are you using? __________________
7. Review the troubleshooting section in the installation manual.
8. What are the symptoms? Please be prepared to explain.
9. Be prepared to send photos to us when on the phone.
10. Found missing or damaged parts? Let us know ASAP or send photos.
FPSS 3-30-16
Fire Pits
