Firegear FPB-G16RBSMT-N User manual

Outdoor Match Throw & Manual Spark Fire Pits
Installation and Operating Instructions
IF YOU CANNOT READ OR UNDERSTAND THESE INSTALLATION INSTRUCTIONS DO
NOT ATTEMPT TO INSTALL OR OPERATE THIS APPLIANCE
Warning: For Outdoor Use Only
PLEASE RETAIN THIS MANUAL FOR FUTURE REFERENCE
INSTALLTION PRECAUTION:
This re pit requires a minimum 18-square inches (per side) of cross ventilation.
Failure to provide proper ventilation can void the warranty.
Match Throw Description Manual Spark
FPB-G16RBSMT/N 16” Round G90 Black Pan & Spur FPB-G16RBSMSI/N
FPB-19RBSMT/N 19” Round Stainless Pan & Spur FPB-19RBSMSI/N
FPB-G25RBSMT/N 25” Round G90 Black Pan & Spur FPB-G25RBSMSI/N
FPB-25RBSMT/N 25” Round Stainless Pan & Spur FPB-25RBSMSI/N
FPB-14SBSMT/N 14” Square Stainless Pan & Spur FPB-14SBSMSI/N
FPB-20SBSMT/N 20” Square Stainless Pan & Spur FPB-20SBSMSI/N
FPB-26SBSMT/N 26” Square Stainless Pan & Spur FPB-26SBSMSI/N
FPB-32SBSMT/N 32” Square Stainless Pan & Spur Not Available
MODELS

!
!! !!!"#$%&!
!
"#!$%&!'()**!+,'-!
!
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. If odor continues, keep away
from the appliance and
immediately call your gas
supplier or fire department.
!!'"&#(#$!
!
.%!/%0!'0%1)!%1!&')!+,'%*2/)!%1!%03)1!
#*,((,4*)!5,6%1'!,/7!*28&27'!2/!03)!
5292/20$!%#!032'!%1!%03)1!,66*2,/9):!
!
;/!<=>9$*2/7)1!/%0!9%//)90)7!#%1!&')!
'3,**!/%0!4)!'0%1)7!2/!03)!5292/20$!%#!032'!
%1!,/$!%03)1!,66*2,/9):!
!!!"#$%&! ! ! )"&*+#,-+#+.(!%,/"00"&!,
,
1234,56673589:,958,6;<=>9:,95;?<8,@<8<A3=:,
B2392,254,8<,<=<;C,
,
D438E,3F,38,58,:897<4:=,4659:,958,G377,H<>C,
,
#:I:;,>4:,F234,56673589:,38,58,:897<4:=,4659:,
4>92,54,5,95@6:;J,F:8FJ,95;,<;,2<@:C,
!
'"&#(#$-!!"#!03)!2/#%1(,02%/!2/!03)')!2/'01&902%/'!2'!/%0!#%**%?)7!)@,90*$A!,!#21)!%1!
)@6*%'2%/!(,$!1)'&*0!9,&'2/+!61%6)10$!7,(,+)A!6)1'%/,*!2/B&1$!%1!7),03:!
!
K+&,L+D&,M"K%1L,
.%!/%!'0%1)!%1!&')!+,'%*2/)!%1!%03)1!#*,((,4*)!5,6%1'!,/7!*28&27'!2/!03)!5292/20$!%#!
032'!%1!,/%03)1!,66*2,/9):!
!
!
!! !!'"&#(#$!
"(61%6)1!2/'0,**,02%/A!,7B&'0()/0A!
,*0)1,02%/A!')1529)!%1!(,2/0)/,/9)!9,/!
9,&')!2/B&1$!%1!61%6)10$!7,(,+):!!C),7!
03)!2/'0,**,02%/A!%6)1,02/+!,/7!
(,2/0)/,/9)!2/'01&902%/'!03%1%&+3*$!
4)#%1)!2/'0,**2/+!%1!')15292/+!032'!
)8&26()/0!!!!!!
'"&#(#$,
.%!/%0!*),5)!&/,00)/7)7!7&12/+!&'):!
.%!/%0!&')!#%1!9%%D2/+:!
E%**%?!,**!+,'!*),D!61%9)7&1)'!2/!032'!
(,/&,*!612%1!0%!%6)1,02%/:!
REV. 5-14-13 Page 1
Burning Spur Fire Pits

!
"#$%&!#&$'!()!*+&!,(-$'!+..%(+)/$&0!+)'!12$!.-3'#/1&!3,!/345#&1(3)!3,!&#/2!,#$%&0!/3)1+()!
/2$4(/+%&!6)37!13!12$!81+1$!3,!9+%(,3-)(+!13!/+#&$!/+)/$-0!5(-12!'$,$/1&!+)':3-!312$-!-$.-3'#/1(;$!
2+-4<!=2(&!7+-)()*!(&!(&&#$'!.#-&#+)1!13!9+%(,3-)(+!>$+%12!?!8+,$1@!93'$!8$/<ABACD<E!
REV. 5-14-13 Page 2
Specications 3
Preparation for Non-Conbustible Structure 4
Hard Piping to Fire Pit 4
Cross Ventilation Requirements 4
High Elevation 4
Installation into an Approved Enclosure 5
Requirements 5
Installing Key Valve & Piezo Ignitor 5
Typical Installation Drawings 6
Installing Battery in Piezo Ignitor 7
Ignitor Alignment 7
Installation of Lava Rock/Media 7
Operation 8
Lighting Instructions 8
Air Shutter Adjustment 8
Replacement Parts 9
Replacement Parts List 10
Fire Pit Maintenance/ Trouble Shooting 11
Optional Accessories/Conversion Kits 11-12
Warranty 13
TABLE OF CONTENTS
NOTE: This installation instruction covers both Match Throw and Manual Spark
Igntition systems. Not all sections will be applicable to your particular application.
Burning Spur Fire Pits

If this re pit is permanently connected to a gas piping
system from a remote supply tank, installation must be in
accordance with local codes or, in absence of local codes,
with the National Fuel Gas codes ANSI Z223/1/NFPA 54.
If constructing an enclosure to conceal a propane •
tank/LP cyclinder- the enclosure must adhere to the
following construction requirements:
Enclosures may be constructed with one side •
compeletely OPEN or if the enclosure is built with four
(4) sides, a top and a bottom, then as ollows:
A Propane/LP gas cyclinder enclosure requires four •
(4) ventilation openings at the top and bottom of the
enclosure. The openings must adhere to the minu-
mum requirements according to the capacity of the
cyclinder (See diagram 1).
Each opening in the enclosure must be equally sized •
and spaced at a minimum of 180º. Openings must
remain unobstructed.
Top ventilation openings are required on the side walls •
of the enclosure within 5-inches (127mm) of the top
enclosure. They need to be of equal size,
unobstructive and spaced 180º apart. The openings
need to be a total area of 1 in² /lb (14.2 cm²/kg) of fuel
storage capacity.
Bottom opening must provide a minimum of 1/2 •
square inches (3.23 cm²) for each pound of Liquid
Propane (LP) contained in the tank (see example
below.
Every opening must have minmum dimensions to allow •
entrance of a 1/2” (3.2 mm) diameter rod.
Ventilation openings in side walls must not connunicate •
directly with other enclosures of the re pit.
The cyclinder valve must be easily accessible by hand. •
Connections should be easy to leak test inside the
enclosure. A door on the enclosure is acceptable only if
easily opened without the use of tools and is non
locking.
The enclosure needs to be isolate the cylinder from the •
burner compartment and provide protection from
radiation, act as a ame barrier and protect cylinder
from foreign material.
The enclosure needs to allow connection, disconnec-•
tion and inspection of the connection of the LP gas
cylinder.
The enclosure should allow testing of any connetion on •
the LP cylinder that might be distrubed during
installation.

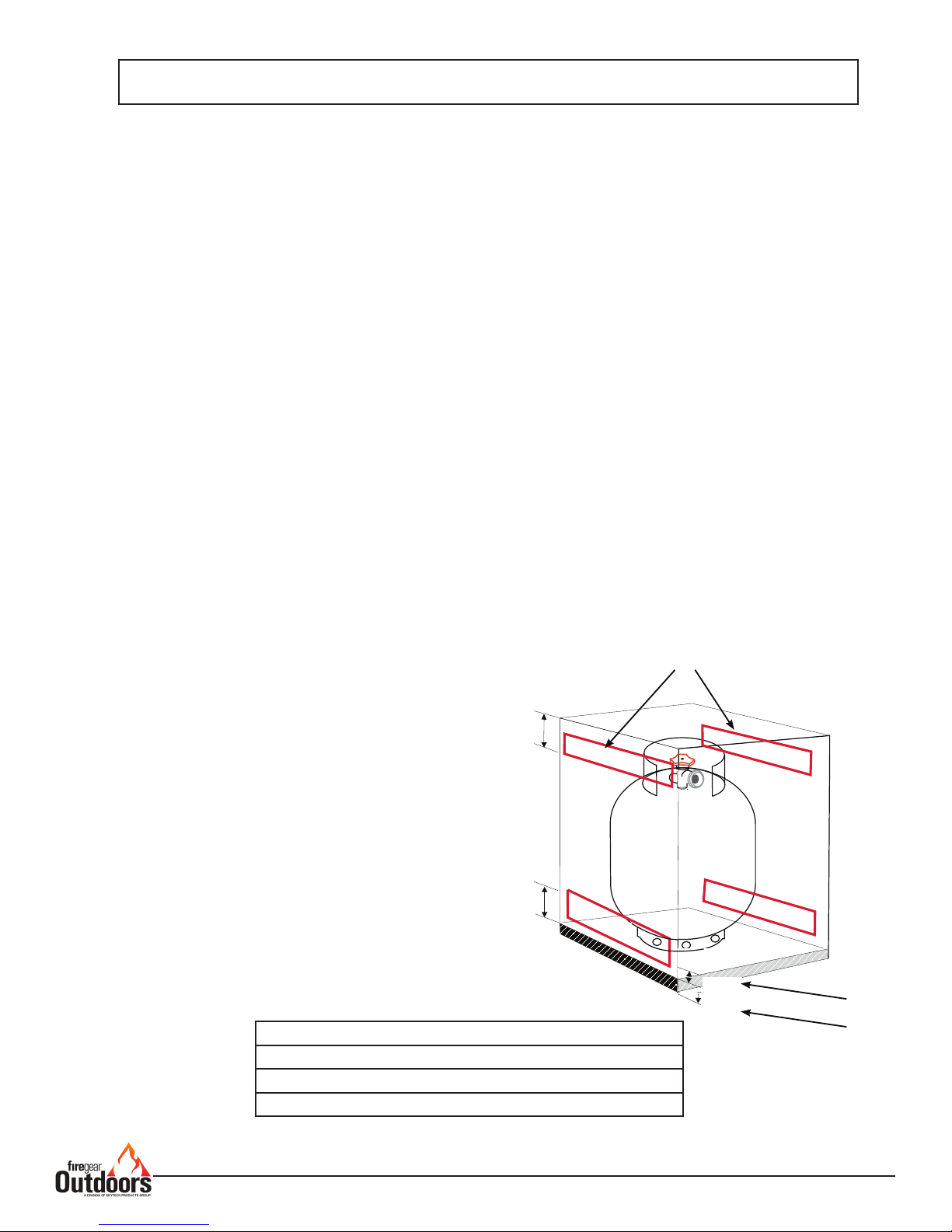

REMOTE PROPANE / LP GAS ENCLOSURES
INSTALLATION GUIDELINES
5” Max.
5” Max.
2” Min.
1” Max.
A
C
B
Diagram 1.
Propane/LP Tank Enclosure Specications
A - Opening 180º apart from each other
B - Min. 2” (50.8mm) from oor/ground to base of tank
C - Max. 1” (25.4mm) from tank base to bottom of opening
Most re pits are equipped for Natural gas (NG) however, if you are considering converting to LP gas
use the guidelines below for proper tank storage.
REV. 5-14-13 Page 3
Burning Spur Fire Pits

SPECIFICATIONS
Table1. Fire Pit Dimensions
A
B
C
.875 TYP. (usable flat lip)
*
*D
Ground Level
Figure 1. Fire Pit dimensions; refer to Table 1. (Dimensions applicable to
round or square pans)
36”
96”
24”
Maximum
Overhang
Center of Flame
!
Figure 2. Clearance to Combustibles
(Not to be used in an enclosed space)
REV. 5-14-13 Page 4
Model:
Match Throw
Model:
Manual Spark
BTU/H
Natural/Propane (LP)
Factory Orice
NG LP
FPB-G16RBSMT/N FPB-G16RBSMSI/N 36,000 BTU/H #42 #52
FPB-G25RBSMT/N FPB-G25RBSMSI/N 100,000 BTU/H #22 #35
FPB-19RBSMT/N FPB-19RBSMSI/N 60,000 BTU/H #31 #45
FPB-25RBSMT/N FPB-25RBSMSI/N 100,000 BTU/H #22 #35
FPB-14SBSMT/N FPB-14SBSMSI/N 36,000 BTU/H #42 #52
FPB-20SBSMT/N FPB-20SBSMSI/N 60,000 BTU/H #31 #45
FPB-26SBSMT/N FPB-26SBSMSI/N 100,000 BTU/H #22 #35
FPB-32SBSMT/N Not Available 160,000 BTU/H #8 #29
Table 2. Btu Specications NG LP
Min.
Inlet
5.0”WC 11.0”WC
Max.
Inlet
10.5”WC 13.0”WC
Table 3. Gas Pressures
Model:
Match Throw
Model:
Manual Spark
A
Pan Depth
B Min/Max
Install Opening
C
Inside Pan
D
Ground Level
FPB-G16RBSMT/N FPB-G16RBSMSI/N 2.500” 16.5”/17.25” 15.875” 8”
FPB-G25RBSMT/N FPB-G25RBSMSI/N 2.500” 25”/25.5” 23.875” 8”
FPB-19RBSMT/N FPB-19RBSMSI/N 2.625” 19.25”/21.5” 19” 8”
FPB-25RBSMT/N FPB-25RBSMSI/N 2.625” 25.25”/27.5” 25” 8”
FPB-14SBSMT/N FPB-14SBSMSI/N 2.625” 14.25”/15.75” 14” 8”
FPB-20SBSMT/N FPB-20SBSMSI/N 2.625” 20.25”/21.75” 20” 8”
FPB-26SBSMT/N FPB-26SBSMSI/N 2.625” 26.25”/27.75” 26” 8”
FPB-32SBSMT/N Not Available 2.625” 32.25”/33.75” 32” 8”
Disclaimer: BTU/H listings are based on 7.0”WC for Natural Gas and
11.0”WC for Liquid Propane (LP) at the burner orice. Flex line size and
proper gas pipe sizing will also affect BTU/H. As a result your BTU’s/H
may vary slightly from Table 2 specications.
Burning Spur Fire Pits

REV. 5-14-13 Page 5
WARNING: Proper clearances from combustible, construction and materials must be maintained from all sides, top and
bottom of this appliance. This appliance should never be placed on any combustible surface. This appliance should
never be placed under any combustibles closer then 96-inches. This appliance should never be placed closer than
36-inches from any side to any combustible construction or materials (See g. 2, pg. 3).
PREPARING A NON-COMBUSTIBLE STRUCTURE
The Fire Pit is to be installed on a at, stable surface, away from any combustible materials. Install Fire Pit on any level,
outdoor non-combustible surface. NOTE: Do not place re pit directly on grass, dirt, or rocks this may prevent proper ven-
tilation (Fig. 1, pg. 3). Ensure proper water drainage is also incorporated into the re pit enclosure.

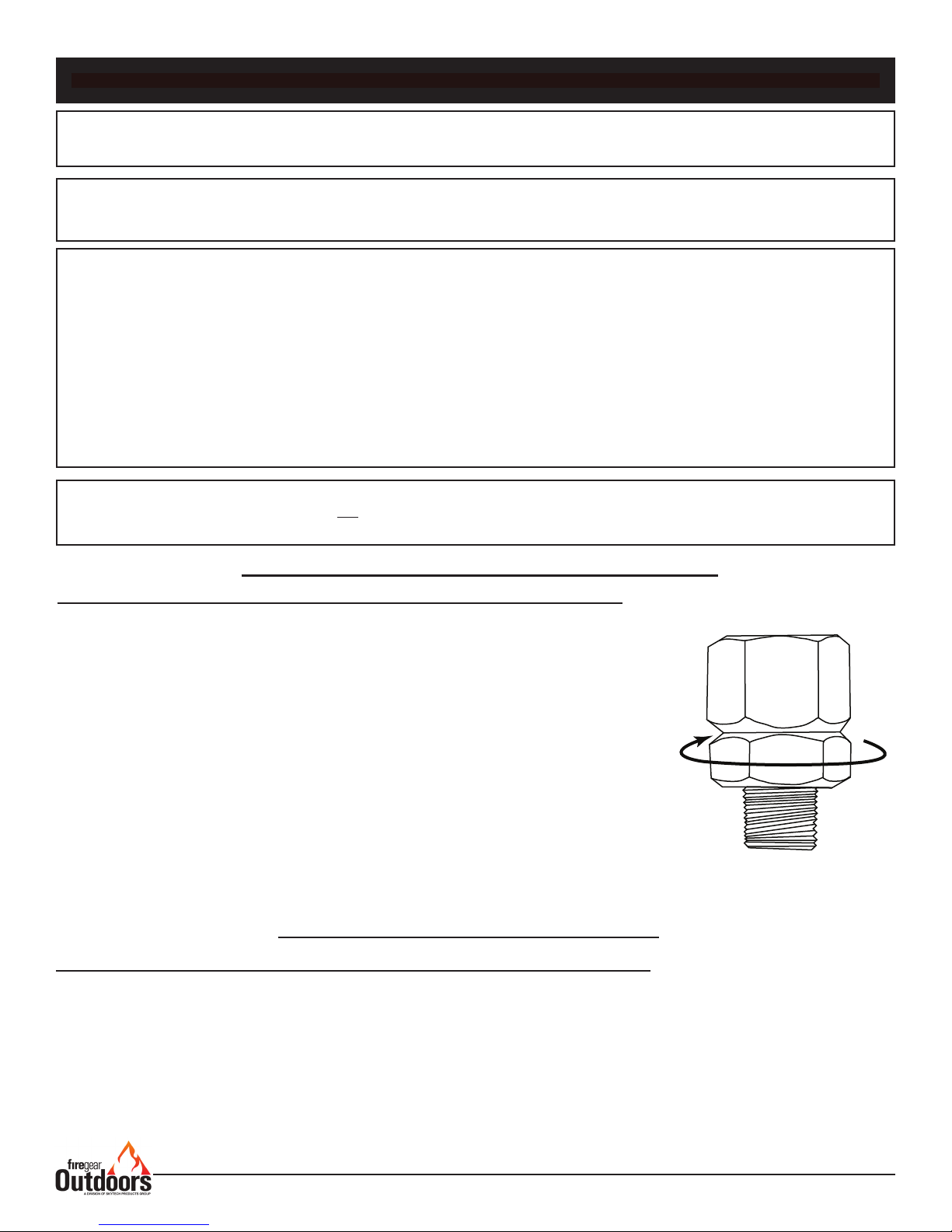

HARD PIPING TO FIRE PIT WITHOUT GAS PROXIMITY
NOTE: We recommend using 3/4” black iron pipe however please refer to the NFPA54 (National Fuel Gas Code) for
proper pipe sizing when exceeding 20-feet in length for re pits rated above 100,000 BTU/H.
1. Turn OFF gas supply system. NOTE: All gas connections (except for brass to brass) require the following. Clean pipe
threads using either a wire brush or steel wool. Apply Teon tape or pipe sealant to the steel ttings before making any
connection. BE CAREFUL! Ensure all gas connections are snug, but not over tighten!
2. Extend the gas supply system using minimum of ¾” black iron pipe or an approved exible gas line from existing house
supply. This can be accomplished by teeing off or tapping into a convenient gas line connection. Install necessary pipe
for the distance required and then install a manual shut-off valve at the exterior house wall. If pipe is to pass through a
foundation or house wall, make sure to re-seal the area around the pipe with weather sealant.
3. From manual valve, extend gas pipe to the Fire Pit location. NOTE: If pipe is to be placed in an underground trench,
check with local codes for required depth and materials needed.
4. Install a ¾” female x ½” male ared brass tting to the end of the ¾” black iron pipe. Be sure to clean the pipe threads
and use Teon tape or pipe sealant.
5. Connect the ½” female ared ex connector from the Fire Pit to the ½” male ared brass tting secured to the black iron
pipe. Note: Flare to are connections do not require Teon tape or pipe sealant.
IMPORTANT
Installation of Natural or LP gas should be done by a qualied installer, service agency or gas supplier.
The appliance and its manual shutoff valve must be disconnected from the gas supply piping system during any
pressure testing of the system at test pressure testing of the system at test pressures in excess of ½ psig (3.5kPa).
This appliance must be isolated from the gas supply piping system by closing its manual shutoff valve during any
pressure testing of the gas supply piping system at test pressures equal to or less than ½ psig (3.5kPa)
NOTE: LP conversion kits are available in the Accessory/Con-
version Kit section of this manual. When converting a Fire Pit
ensure you follow the instructions supplied with the
conversion kit.

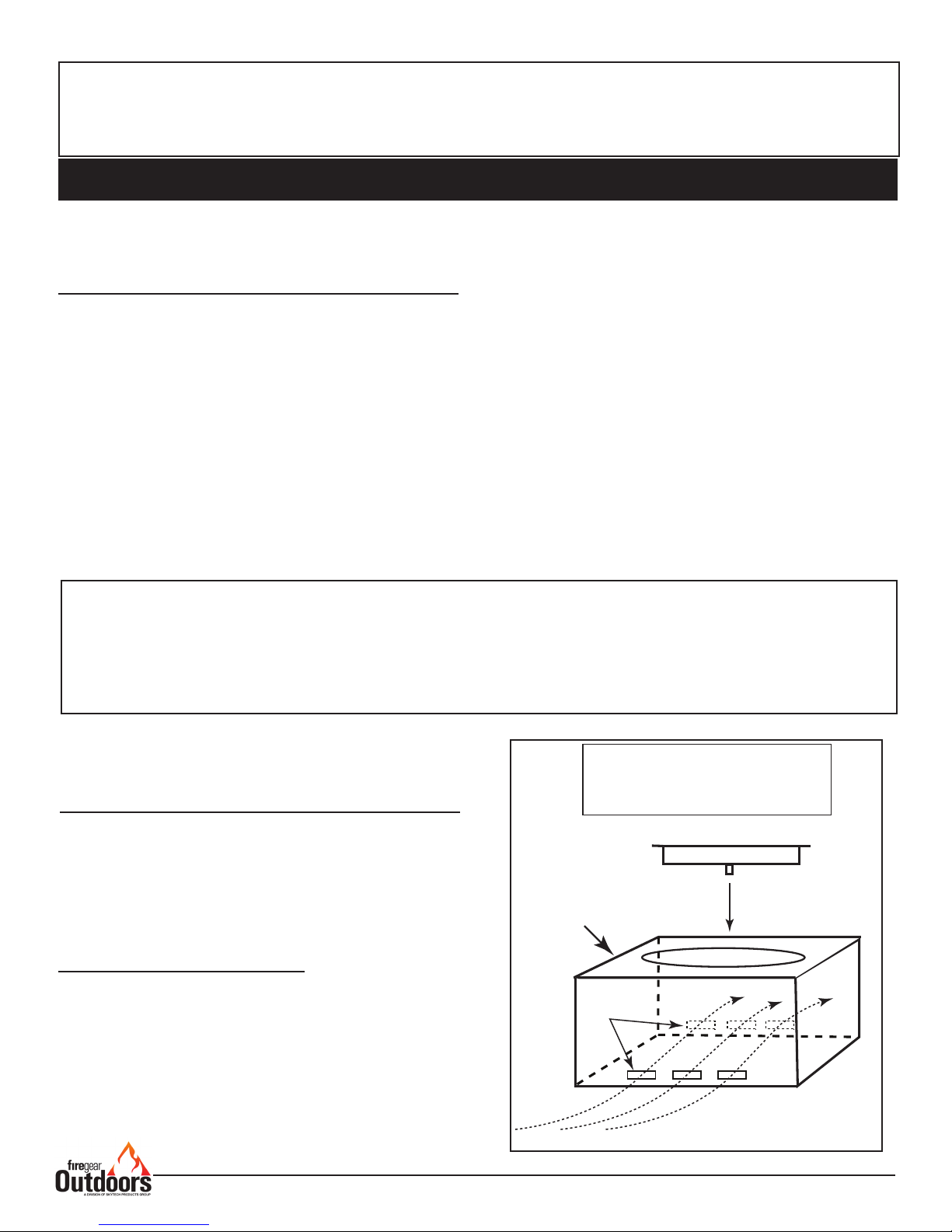

VENTILATION FOR NON-COMBUSTIBLE ENCLOSURE
Fire pits are subjected to many outdoor elements such as
rain, snow, wind, heat or cold. A minimum of 18 square
inches of cross ventilation (2 sides) is required to keep the
components in good working order. Use gure 3 as guide
to assist to incorporate proper ventilation. NOTE: Ventilation is
not required at the bottom and may also be incorporated in the
upper portion of an enclosure.
Fire Pit
Enclousure
2”x3”
Fire Pit
Examples of Cross Ventilation
3 - 2”x3” Slots Per Side or
2- 1” x 9” Slots Per Side
Cross Flow Ventilation
(Min. 18 Sq. In. Per Side)
Figure 3. Cross Ventilation Example
HIGH ELEVATION INSTALLATION
This appliance is listed for elevations from 0-4500 feet in
Canada and the U.S. If elevation exceeds 4500 feet it may be
necessary to decrease the input rating by changing the exist-
ing burner orice to a smaller size. Input should be reduced
4% for each 1000 feet beyond the 4500 feet above sea level.
Check with your local gas utility for assistance in determining
the proper orice in your location. In some cases the heating
value may already be reduced and downsizing the orice may
not be necessary.
Burning Spur Fire Pits

REQUIREMENTS
1. Only non-combustible materials should come in direct contact with any part of the Fire Pit. Underneath area should
be non-combustible as well.
2. Only use ¾” gas supply line to the Fire Pit. Based on the selection of the re pit size, the proper brass ttings should
be used to ensure a proper installation.
3. Determine the size of the round or square Fire Pit you are preparing to install (Refer to page 3).
4. You must provide a round or square opening out to place the re pit into the non-combustible enclosure surround.
Do not exceed the maximum opening from Table 1, dimension B.
5. Follow the local code requirements for the gas type being used. This Fire Pit should be installed in accordance with
local codes and ordinances or in the absence of local codes, with the latest National Fuel Gas Code, ANSI Z223.1
NFPA54 or CSA B149.1, Natural and Propane Installation Code in Canada.
6. Fire Pits create high temperatures, it is very important to have any combustibles at a safe distance.
7. CAUTION: A minimum of 18 square inches of cross ventilation (per side) is required to keep the enclousure
dry.
8. These products are designed for outdoor use only. Not approved for any indoor use.
9. This Fire Pit is designed to have Lava Rock/Media completely covering the re star burner, so that the re star is
invisible. Do not cover more than 1” above the top of the covered re star burner. When purchasing Lava Rock it
is recommended to use minimum of 1” diameter as a base to ll the burner pan. Decorative glass covering may
be loosely scattered on top of the rock if desired or non-combustible logs may be added for a campre look. If logs
are chosen, do not place on decorative glass base, use only Lava Rock as the base. NOTE: If using all glass
media, glass must be a minimum of 1/4-inch diameter or larger.
10. Gas lines and ttings must be installed in to the non-combustible structure. All gas connections must be leak tested
before installation of the re pit. Soapy water leak detection is required before regular use of the re pit.
11. Do not use material that will absorb moisture over time and will not release this moisture quickly. Moisture can boil
in this material and can rapidly break apart and cause damage or personal injury.
12. Never leave any other combustible material on top of the re pit. This could cause unsafe operation of this system
and damage to the component that will not be covered under our warranty.
13. Cover the complete burner with lava or decorative Rock material (min. 1-inch diameter). Completely cover the
star burner, no more than 1-inch above the Spur burner.
INSTALLATION OF FIRE PIT INTO AN APPROVED ENCLOSURE
REV. 5-14-13 Page 6
INSTALLING KEY VALVE AND PIEZO IGNITOR
The key valve contents: 1- key valve, 1- key and 1- ange. (See gure 4). The valve requires a 1 1/4” round clearance
hole in the non-combustible enclousure wall. See the instructions supplied with the key valve for more specic details.
Note: Be sure to leak test all tting before operation. Figure 5 shows an example of a typical installation.
After the re pit pan is installed run the piezo ignitor wires into the electrical junction box. Piezio wires are 24-inches in
length; ensure your installation does not exceed the wire length for proper connection.
Primary Gas
Supply
ON
OFF
Fig. 4 Key valve components.
Burning Spur Fire Pits

REV. 5-14-13 Page 7
Key Valve
Gas Supply
Fire Pit Pan
Non-Combustible
Fire Pit Enclousure
Shut-O
Key Valve Flange
Non-
Combustible
Wall Material
Non-
Combustible
Wall Material
Key Valve
Primary Gas
Supply
K
e
y
V
a
l
v
e
S
i
d
e
V
i
e
w
D
e
t
a
i
l
Non-
Combustible
Wall Material
Non-
Combustible
Wall Material
Securing Tab
Securing Tab
Self-Securing
Junction Box
Piezo Ignitor
Mounting Plate
Piezo Wires
P
i
e
z
o
I
g
n
i
t
o
r
S
i
d
e
V
i
e
w
D
e
t
a
i
l
Fig. 5 Typical installation.
NOTE: Gas supply shut-off and ex
line to the key valve are not supplied.
Burning Spur Fire Pits

REV. 5-14-13 Page 8

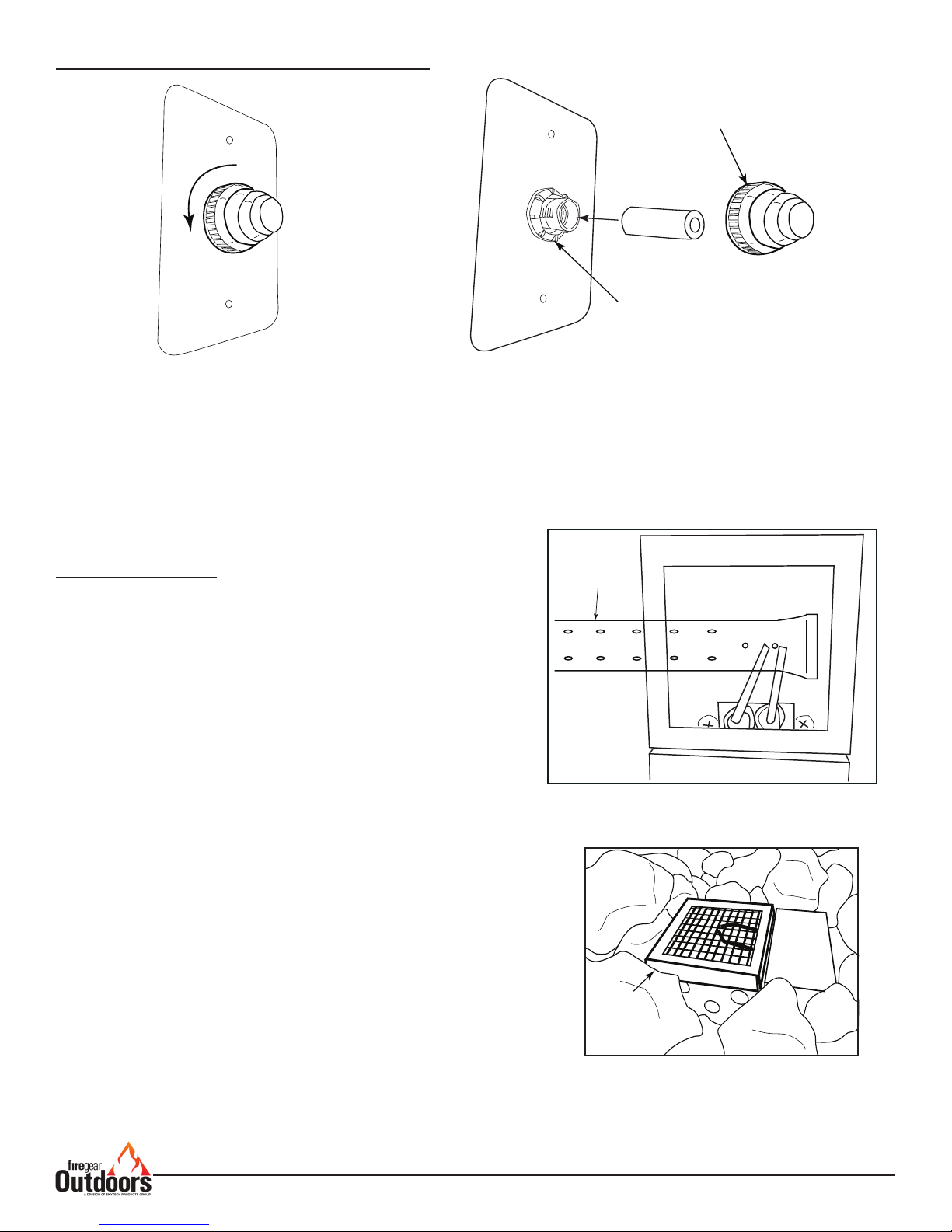

Fig. 6 Piezo ignitor cap.
+-
AAA
Plastic Mounting Nut
Module Red
Button Cap
Fig. 7 Piezo ignitor battery installation.
Unscrew (counter-clockwise) the piezo ignitor module red button cap and the plastic mounting nut. Slide the module on
the back side of the module cover plate and secure with the plastic mounting nut. Insert the positive end of (1) AAA
battery into the ingitor module and carefully screw the red button cap to the ignitor module until snug. Careful not to over-
tighten the cap. Attach the extension wires (PIEZO23WH/25WH) to the 2-probe spark ignitor. Careful not to overtighten
the cap. Test the ignitor by pushing and holding the red button to ensure the ignitor probes inside the re pit are spark-
ing. The spark should be located diectly overtop of the burner port hole for proper ignition of the gas (See g.8). Spacing
between the probes should be approximatel 1/8-inch for proper spark.
Fig. 8 Proper ignitor probe location.
Lava Rock Lava Rock
Lava Rock
Ignition Hood
Screen Cover
Fig. 9 Keep screen cover exposed
INSTALLATION OF BATTERY INTO PIEZO IGNITOR (Manual Spark Ignition only)
IGNITOR ALIGNMENT (Manual Spark Ignition only)
For proper ignition it is important that the ignitor probes be properly
aligned overtop of the burner port holes. Use the gures 8 & 9 as
a guide. Before lighting remove the screen cover of the ignition
hood to burner and ensure the spark probes are directly overtop of a
burner port hole. The sparking probes must be in the path of a ame
to ignite the gas for proper ignition of the ame.
Replace the screen cover and follow the operating instructions.
Burning Spur Fire Pits
Spur Burner
Ignitor Aligned Over
Top Port Hole

REV. 5-14-13 Page 9
CAUTION: Children and adults should be alerted to the hazards on high surface temperatures and should stay away to
avoid burns or clothing ignition. Young children should be carefully supervised when they are in the area of the appliance.
WARNING: Do not use this appliance if any part has been under water. Immediately call a qualied service technician
to inspect the appliance and to replace any part of control system and any gas control, which has been under water.
OPERATION
SAFETY WARNINGS
1. Never leave the Fire Pit unattended during operation.
2. Clothing or other ammable materials should not be placed on or near the appliance.
3. Any guard or other protective device removed for servicing the appliance must be replaced prior to operating the
appliance.
4. Installation and repair should be done by a qualied service person. The appliance should be inspected before
use and at least annually by a qualied service person. More frequent cleaning may be required as necessary. It
is imperative the control compartment, burners and circulating air passageways of the appliance be kept clean.
5. Inspect the fuel supply connection before each use of the appliance.
6. Temporary storage of this appliance indoors is permissible only if it has been disconnected from its fuel supply
(Natural or L.P. gas line).
WARNING
1. This appliance is hot when operated and can cause sever burns if contacted.
2. Do not burn any solid fuels in this appliance.
READ ALL LIGHTING INSTRUCTIONS BEFORE ATTEMPTING TO LIGHT FIRE PIT
CAUTION: Ensure you have leak tested the re pit before operating.
1. Insert key into gas valve.
2. Push and hold the red button on the manual Piezo ignitor and ensure sparking is
occurring at the probes inside the re pit.
3. Rotate the key counter-clockwise in gas valve to allow gas to ow.
4. Gas should ignite within 10 seconds or less. If re pit does not light within
10 seconds turn key clockwise to turn OFF the gas supply. Check igiitor probe
location (Fig. 8), ensure there is an 1/8” gap between the probes with a good
stong spark then repeat steps 2 through 4.
Once re pits lights ame color adjustment can be made turning the air shutter nut
under the burner pan. It is recommended that the nut be OPENED until the gas/air
mixture makes a rushing sound (like a blow torch); then slowly CLOSE until the rush-
ing sound diminishes. A desirable ame is bright yellow with little or no brown at the
tips. Too yellow ame can create excessive sooting (See g. 10).
MANUAL SPARK IGNITION LIGHTING INSTRUCTIONS
MATCH THROW LIGHTING INSTRUCTIONS
READ ALL LIGHTING INSTRUCTIONS BEFORE ATTEMPTING TO LIGHT FIRE PIT
CAUTION: Ensure you have leak tested the re pit before operating.
1. Insert key into gas valve.
2. Light a long match or butane lighter and hold it near the burner.
3. Rotate the key counter-clockwise in gas valve to allow gas to ow and simultaneously apply the burning match as
close to burner as possible to light the re pit.
4. Gas should ignite within 10 seconds or less. If re pit does not light within
10 seconds turn key clockwise to turn OFF the gas supply. Ensure there is not too much media on top of Spur that
my inhibit gas ow and try again.
Burning Spur Fire Pits
Fig. 10 Air shutter adjustment
Open
Counter-clockwise

REV. 5-14-13 Page 10
REPLACEMENT PARTS
12
5
8
67
ON
OFF
Side View
910
11 12
13
14
17
Burning Spur Fire Pits
3

REV. 5-14-13 Page 11
1 16-inch G90 Round Galvanized Black Burner Pan 1 Pan-G90R16
1 19-inch Round Stainless Burner Pan 1 ST3-100-1024
1 25-inch G90 Round Galvanized Black Burner Pan 1 Pan-G90R25
1 25-inch Round Stainless Burner Pan 1 ST3-100-1025
2 14-inch Square Stainless Burner Pan 1 OD-FPPAN/14x14
2 20-inch Square Stainless Burner Pan 1 OD-FPPAN/20x20
2 26-inch Square Stainless Burner Pan 1 OD-FPPAN/26x26
2 32-inch Square Stainless Burner Pan 1 OD-FPPAN/32x32
3 10-inch Spur (used on 14” Square & 16” Round Pan) 1 DBS-10
3 14-inch Spur (used on 20” Square & 19” Round Pan) 1 DBS-14
3 20-inch Spur (used on 26” Square & 25” Round Pan) 1 DFS-20
3 28-inch Spur (used on 32” Square Pan) 1 DFS-28
4 1 x 2¼” Blank Cover Plate (not shown) 1 ST3-100-1030
5 1/2” NPT Conduit Lock Nut 1 ST3-113-1027
6 7/8” Flat Washer/Spacer 1 ST3-113-1026
71/2” Flex Gas Line (46-inch Length) 1 T-200-9898-46
8 Air Shutter Orice NG (Used on 14/16” Fire Pits) 1 OA/S#42
8 Air Shutter Orice NG (Used on 19/20” Fire Pits) 1 OA/S#31
8 Air Shutter Orice NG (Used on 25/26” Fire Pits) 1 OA/S#22
8 Air Shutter Orice NG (Used on 32” Fire Pits) 1 OA/S#8
9 Manual Spark Ignitor Module 1 ST3-040-1020
10 Manual Spark Ignitor Module Cover Plate (w/Screws ) 1 ST3-100-1035
11 Ignition Hood 1 ST3-100-1031
12 Ignition Hood Screen Cover 1 ST3-100-1027
13 2-Probe Manual Spark Ignitor 1 ST3-040-1020
14 Junction Box - With Self Securing Tabs 1 FG-Junction Box
15 AAA Battery 1 ST1-060-1004
16 Stainless Steel Thread Cutting Screws - (Not Shown) 6 ST3-113-1028
17 Std.Capacity Straight Ball Valve (For 14” - 26” re pits) 1 BVS
17 High Capacity Straight Ball Valve (For 32” re pits) 1 954-V
18 8-inch Chrome Key for BVS or 954-V 1 KEY-PC/8
19 Chrome Flange (decorative cover for BVS) 1 FP.BV.CR.B
19 Chrome Flange (decorative chrome cover for 954-V valve) 1 948
Item Description Qty. Part Number
REPLACEMENT PARTS
Burning Spur Fire Pits

FIRE PIT MAINTENANCE
1. The Fire Pit should be inspected and cleaned before initial use at least annually by a qualied eld service person.
2. Any component that is found faulty must be replaced with an approved component.
3. Any tampering or modifying with the Fire Pit is dangerous and voids all warranties.
4. During winter months in cold climates and various seasons operation the Fire Pit may be affected by weather condi
tions. It is recommended to use a ventilated cover overtop of your Fire Pit to protect it from humid/rainy weather condi
tions when not in use. Heavy rains/downpours could affect the Fire Pit operation if not covered; if this occurs ensure
you allow the Fire Pit time to dry out before attempting to operate. NOTE: If a combustible type cover is used over the
Fire Pit when not in use be sure to remove it before operation to prevent a severe safety hazard.
5. Carbon (soot) may build up on the surface of logs (if installed) during heavy use. Sooting may also occur periodically
on the screen of the ignitor hood. To clean, brush off with a dry bristle brush or cloth. Keep soot away from clothing or
furniture.
6. Over time stainless steel parts discolor when heated, usually a golden or brown hue. This discoloration is normal and
does not affect the performance of the appliance.
REV. 5-14-13 Page 12
TROUBLE SHOOTING
Sympton Remedy
Piezo won’t spark 1. Be sure battery is installed properly.
2. Check battery voltage. Min. 1.2 VDC needed.
3. Check ignitor gap at probes inside re pit. Gap should be at 1/8”.
4. Double check wires to ensure they are plugged in and secured to the spark ignitor and the
spark ignitor module.
Fire pit won’t light 1. Ensure ignitor is aligned properly overtop of burner port hole. See page 7, gure 8.
2. Bleed gas line.
3. Ensure all gas supply lines are turned ON.
4. Ensure there is not too much media overtop of burner; it can inhibit gas from owing.
Low Flame 1. Ensure the base media is at least 1-inch in diameter and top media is no more than 1-inch over
top of burner.
2. Adjust air shutter at bottom of re pit pan.
3. Ensure all shut-off valves and key valve is fully open. See page 8; gure 10.
Water in my Fire Pit 1. Excess dust/sand material from media may be blocking the weep holes to relieve water.
Remove all media and unplug weep holes. Clean or install new media free of dust and dirt.
2. Ensure re pit enclosure has proper drainage for water and proper ventilation to dry out.
Burning Spur Fire Pits

MODEL: OA/S#52
Brass orice/air mixer for
10-inch Spur (14/16” Fire Pits)
Liquid Propane (LP) Conversion Kit
MODEL: OA/S#45
Brass orice/air mixer for
14-inch Spur (19/20” Fire Pits)
Liquid Propane (LP) Conversion Kit
MODEL: OA/S#35
Brass orice/air mixer for
20-inch Spur (25/26” Fire Pits)
Liquid Propane (LP) Conversion Kit
MODEL: OA/S#29
Brass orice/air mixer for
(28-inch Spur)
Liquid Propane (LP) Conversion Kit
FCC REQUIREMENTS
NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFER ENCE CAUSED BY
UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’S
AUTHORITY TO OPERATE THE EQUIPMENT.
FOR TECHNICAL SERVICE, CALL: regear Outdoors
9230 Conservation Way
Fort Wayne, IN 46809
[phone]
WEB SITE: www.regearusa.com
REV. 5-14-13 Page 13
CONVERSION KITS
OPTIONAL ACCESSORIES
The following accessories are available from your local regear dealer/distributor. Each accessory comes with a separate
installation manual. Read each instruction thoroughly before installing.
Stainless lid for 19” or 25” round re
pits. Models: LID-19R or LID-25R
Stainless lid for 14 to 32” square re
pits. Models: LID-14S, LID-20S,
LID-26S, LID-32S
Lava Stones 1” to 2” size. (20lbs.)
Model: FG-LS20
Lava Boulders 6” to 12” size (30lbs.)
Model: FG-LB30
LP regulator with 3/8” MPT adapter
Model: FG-LPRK
3/8” Quick connect 12’ hose for NG or
LP gas Model: FG-12QDK
Burning Spur Fire Pits

REV. 5-14-13 Page 14
Skytech II, Inc. (regear Outdoors) hereby warrants to
the ORIGINAL PURCHASER of this Fire Pit
System, that it will be free from material and workman-
ship defects that prevent safe and correct operation of
the product commencing from date of purchase from
regear Outdoors.
Consumer/Non-Commercial Applications
Stainless Steel Fire Pit Burner Bowl/Pan 5 Years
Stainless Steel - Fire Star 5 Years
Stainless Steel – Valve Box 5 Years
Manual Valve & Spark Ignitor Assembly 1 Year
G90 Galvanized Steel Fire Pit Bowl/Pan 3 Years
Commercial Applications
Stainless Steel Fire Pit Burner Bowl/Pan 1 Year
Stainless Steel - Fire Star 1 Year
Stainless Steel – Valve Box 1 Year
Manual Valve & Spark Ignitor Assembly 1 Year
G90 Galvanized Steel Fire Pit Bowl/Pan 1 Year
When assembled, installed and operated in accordance
with the accompanying printed instructions.
regear Outdoors requires reasonable proof of your
date of purchase. YOU SHOULD RETAIN YOUR
SALES SLIP OR INVOICE AND RETURN THE
WARRANTY REGISTRATION CARD WITHIN 30 DAYS
OF PURCHASE.
This Limited Warranty shall be valid and limited to,
the original purchaser only, within the connes of
the original site installation.
WARNING: Any modication to this product will
void the warranty!
This Limited Warranty shall be limited to the repair
and/or replacement of parts that prove defective
under normal use and service and which on
examination shall indicate, to regear Outdoors
satisfaction, that they are defective. Before
returning any parts, contact regear Outdoors
Customer Service Center. If regear Outdoors
conrms the defect and approves the claim, regear
Outdoors will replace such parts without charge.
The Owner must provide a bill of sale, cancelled
check, or payment record to verify purchase date
and establish warranty period. Travel, diagnostic
cost, service labor to repair the defect and freight
charges on warranty parts to and from the
factory will be responsibility of the owner. regear
Outdoors will not be responsible for labor charges
and/or damage incurred in installation, repair, and
replacement or for incidental or consequential
damages.
This Limited Warranty does not cover any failures
or operating difculties due to accident, abuse,
misuse, alteration, misapplication, vandalism,
improper installation or improper maintenance or
service, or failure to perform normal and routine
maintenance.
Damage due to severe weather conditions such as
hail, hurricanes, earthquakes, tornadoes,
discoloration due to over heating, exposure to
chemicals (including salt), either directly or in the
atmosphere, or very high humidity, is not covered
by this Limited Warranty.
There are no other express warranties except as
set forth herein and any applicable implied
warranties of merchantability and tness are limited
in duration to the period of coverage of this express
written Limited Warranty. Some states do not allow
limitation on how long an implied warranty lasts, so
this limitation may not apply to you.
regear Outdoors is not liable for any special,
indirect or consequential damages. regear Out-
doors liability is limited to the purchase price of this
regear Outdoors Fire Pit System. Some states do
not allow the exclusion or limitation of incidental or
consequential damages, so this limitation or
exclusion may not apply to you.
regear Outdoors does not authorize any person
or company to assume for it any other obligation or
liability in connection with the sale, installation, use,
removal, return, or replacement of its
equipment; and no such representations are
binding on regear Outdoors.
This warranty applies only to products sold at retail
and manufactured by regear Outdoors.
LIMITED WARRANTY
Burning Spur Fire Pits
