Food Warming Draws
FWDG

IS 38 ECN 3607 Page 1 of 7
Installation, Operating and Servicing
Instructions
Food Warming Drawers
FWDG
Please make a note of your product details for
future use:
Date Purchased:_________________________
Model Number:__________________________
Serial Number:__________________________
Dealer:_________________________________
_______________________________________

IS 38 ECN 3607 Page 2 of 7
CONTENTS
Important Information
2
Warnings and Precautions
3
Technical Data
3
Checklist of Enclosures
3
Installation and Commissioning
3-4
Operating Instructions
4
Cleaning
5
Servicing, Maintenance and Component Replacement
5
Fault Finding
5
Spare Parts List
5
Service Information and Guarantee
6
IMPORTANT INFORMATION
Read these instructions carefully before using this product, paying particular
attention to all sections that carry warning symbols, caution symbols and notices.
Ensure that these are understood at all times.
WARNING!
This symbol is used whenever there is a risk of personal injury.
CAUTION!
This symbol is used whenever there is a risk of damaging your Lincat product.
NOTE:
This symbol is used to provide additional information, hints and tips.
KEEP THIS MANUAL FOR FUTURE REFERENCE

IS 38 ECN 3607 Page 3 of 7
WARNINGS AND PRECAUTIONS
This appliance must be installed, commissioned and serviced by a qualified person
in accordance with national and local regulations in force in the country of
installation.
If the supply cord is damaged, it must be replaced by the manufacturer, its service
agent or similarly qualified person.
Ensure that the plug/socket is accessible at all times.
Strip plastic coating and clean the appliance before use.
During operation parts may become hot - avoid accidental contact.
Disconnect this appliance before servicing, maintenance or cleaning.
TECHNICAL DATA
Model
Height (mm)
Width (mm)
Depth (mm)
Weight (kg)
FWDG
485
620
585
46.0
CHECK LIST OF ENCLOSURES
Warranty card
Instructions manual
INSTALLATION AND COMMISSIONING
This appliance must be earthed.
An equipotential bonding terminal is provided to allow cross bonding with other
equipment.
If replacing the plug connect the terminals as follows:
Green and Yellow wire Earth E
Blue wire Neutral N
Brown wire Live L

IS 38 ECN 3607 Page 4 of 7

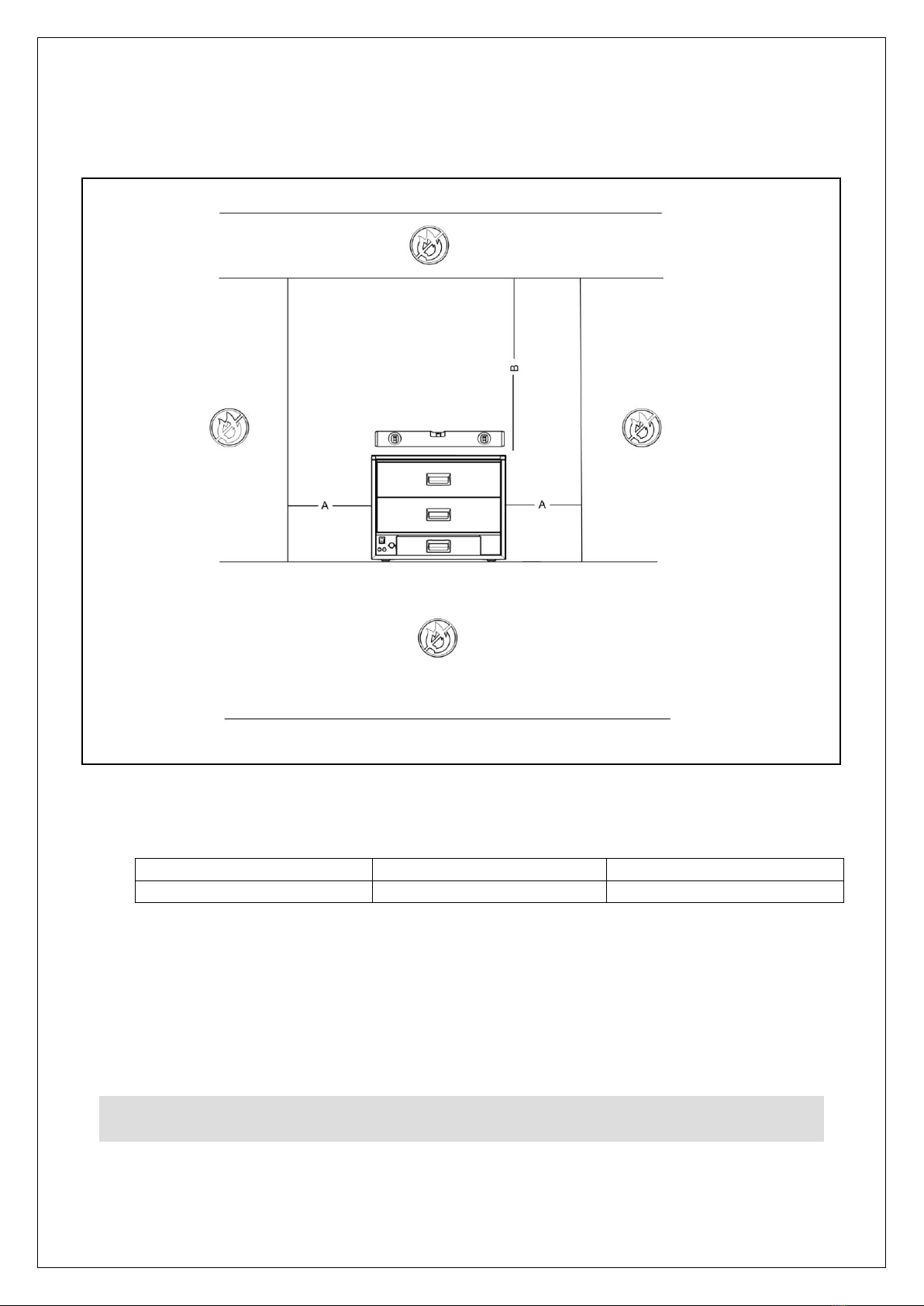

Install this appliance on a level surface ensuring all vents are unobstructed. Any
partitions, walls or furniture must be of non-combustible material. Minimum
distances A 100mm B 500mm –see Fig 1.
Fig 1
Power Rating
Model
kW
Amps
FWDG
1.5
6.5
Ensure that the drawer pans are located within the brackets on top of the drawer
surround.
Pour ¾ pint of water into the centre section of the water drawer to keep the product
moist. Ensure anti-surge bars are in the centre tray to avoid splashing when
opening and closing the drawer.
OPERATING INSTRUCTIONS
Only qualified or trained personnel should use this appliance.

IS 38 ECN 3607 Page 5 of 7
Connect to the power supply –the green neon illuminates.
Switch appliance on at the switch –the amber neon illuminates. When the amber
neon extinguishes, the drawers are ready for use. The appliance is pre-set to hold
the air temperature in the cabinet between 68-83 Deg C. During operation, the
amber neon will operate with the element cycle.
Maintain the water level in the water drawer.
CLEANING
Do not use a water jet or steam cleaner, and do not immerse this appliance.
Clean all panels with warm water and mild detergent, do not use abrasive
materials. Dry with a soft cloth.
SERVICING, MAINTENANCE AND
COMPONENT REPLACEMENT
All servicing, maintenance and component replacement on this appliance should be
carried out by one of our recommended service engineers.
Please refer to the Service Help Desk number on the final page of this manual.
Part Number
Description
EL93
Element
HA73
Handle
NE37
Amber neon
NE38
Green neon
PL143
Cable and plug
SL05
Drawer slides (pair)
TA09
Gastronorm 1/1
TH105
Thermostat
FAULT FINDING
SPARE PARTS LIST

IS 38 ECN 3607 Page 6 of 7
For help with the installation, maintenance and use of your Lincat equipment,
please contact our service department:
UK: 01522 875520
For non-UK customers, please contact your local Lincat dealer
All service work, other than routine cleaning should be carried out by one of our
authorised service agents. We cannot accept responsibility for work carried out by
other persons.
To ensure your service enquiry is handled as efficiently as possible, please tell us:
Brief details of the problem
Product code
All available on serial plate
Type number
Serial number
Lincat reserve the right to carry out any work under warranty, given reasonable
access to the appliance, during normal working hours, Monday to Friday, 08:30 to
17:00.
GUARANTEE
This unit carries a comprehensive UK mainland 2 year warranty. The guarantee is
in addition to, and does not diminish your statutory or legal rights.
The guarantee does not cover:
Accidental damage, misuse or use not in accordance with the manufacturer’s
instructions
Consumable items (such as filters, glass, bulbs, slot toaster elements and door
seals.)
Damage due to incorrect installation, modification, unauthorised service work or
damage due to scale, food debris build-up, etc.
The manufacturer disclaims any liability for incidental, or consequential damages.
Attendance is based on reasonable access to the appliance to allow the authorised
technician to carry out the warranty work.
Service calls to equipment under warranty will be carried out in accordance with the
conditions of sale. Unless otherwise specified, a maximum of 15 minutes of
administrative time, not spent directly carrying out servicing work, is provided for
within the warranty. Any requirement for staff attending the call to spend greater time
than 15 minutes due to administrative requirements, such as on health and safety risk
assessments, will be chargeable at the prevailing rate.
SERVICE INFORMATION
