First Power Stinger Owner's manual

PATENT
PENDING
Owner
/ Operator’s
Manual
Rev A.2
Version 2
8941 Dutton Dr,
Twinsburg, Ohio
44087
330-963-2050

Table of Contents
Stinger® Kit Overview
………………………………………………………………………………
1
Operation Guide
…………………………………………………………………………………….
2
GoPro® Camera Installation and Usage
……………………………
……………..
7
Battery Replacement
……………………………………………………………………………..
9
Replace Black Transmitter Batteries ……………………………………………
9
Replace Receiver Batteries ……………………………………………
11
Stinger® Fluid Overview
…………………………………………………………………………
1
5
Recommended Maintenance and Safety
………………………………………….
1
6
Specifications and Certifications
…………………………………
………………………
1
7
Warranty Information
…………………………………………………………………………….
1
7
Parts Diagram
…………………………………………………………………………………………..
1
8

Stinger® Kit Overview
1
|
©20
20
FirstPower Group LLC
Stgr
-
Manual
-
V2 Rev. A.2
1.

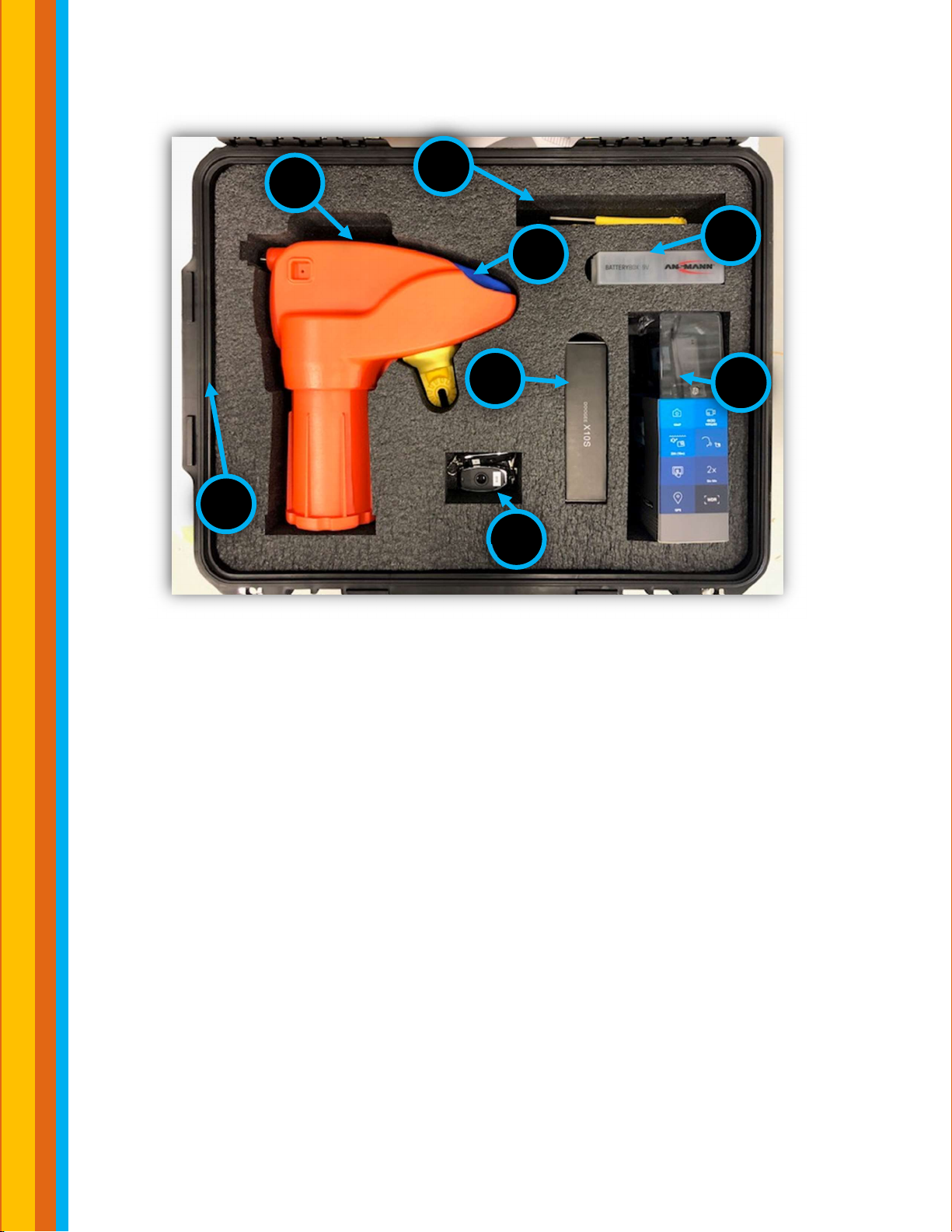

Case: The Stinger® Kit comes in a durable and waterproof case.
2. Main Assembly: Non-conductive housing that safely protects the can
and houses the plumbing and valve to route the Stinger® fluid to the
nozzle.
3a.
Receiver: Allows for remote communication between the main
assembly, and the transmitter to turn the dispense on and off.
3b.
Key Fob Transmitters: The Receiver comes with two Key Fob
Transmitters and it exclusively works with those included Key Fob
Transmitters. Each Key Fob Transmitter allows for Stinger® fluid to be
dispensed from a safe location.
4. Nozzles: The kit comes with a dispense nozzle and 2 spare nozzles.
These nozzles are used to dispense the Stinger Fluids in a direct stream.
5. GoPro® Camera: Captures live video of where the Stinger fluid is being
dispensed.
6.
Optional Smartphone: Used to display video from the GoPro® Camera.
7. Batteries: Six 9V batteries are provided in addition to the batteries
installed in the Receiver.
8. Stinger® Manual: This document
4
2
3a
3b
7
5
6
1

Operation Guide
2
|
©20
20
FirstPower Group LLC
Stgr
-
Manual
-
V2 Rev. A.2
Step 1: Take the Main Assembly (2) out of the Case (1). Typically, the Receiver
(3) is left in the Main Assembly (2). If the Receiver (3) is not installed, installed it
using the procedure shown on page 20. Begin with screwing a Nozzle (4) into
the threaded insert on the Main Assembly (2). Twist with your hand until the
Nozzle (4) stops turning which is shown in the after images.
2
4
2
4
2
4
2
4
Before
After

Operation Guide
3
|
©20
20
FirstPower Group LLC
Stgr
-
Manual
-
V2 Rev. A.2

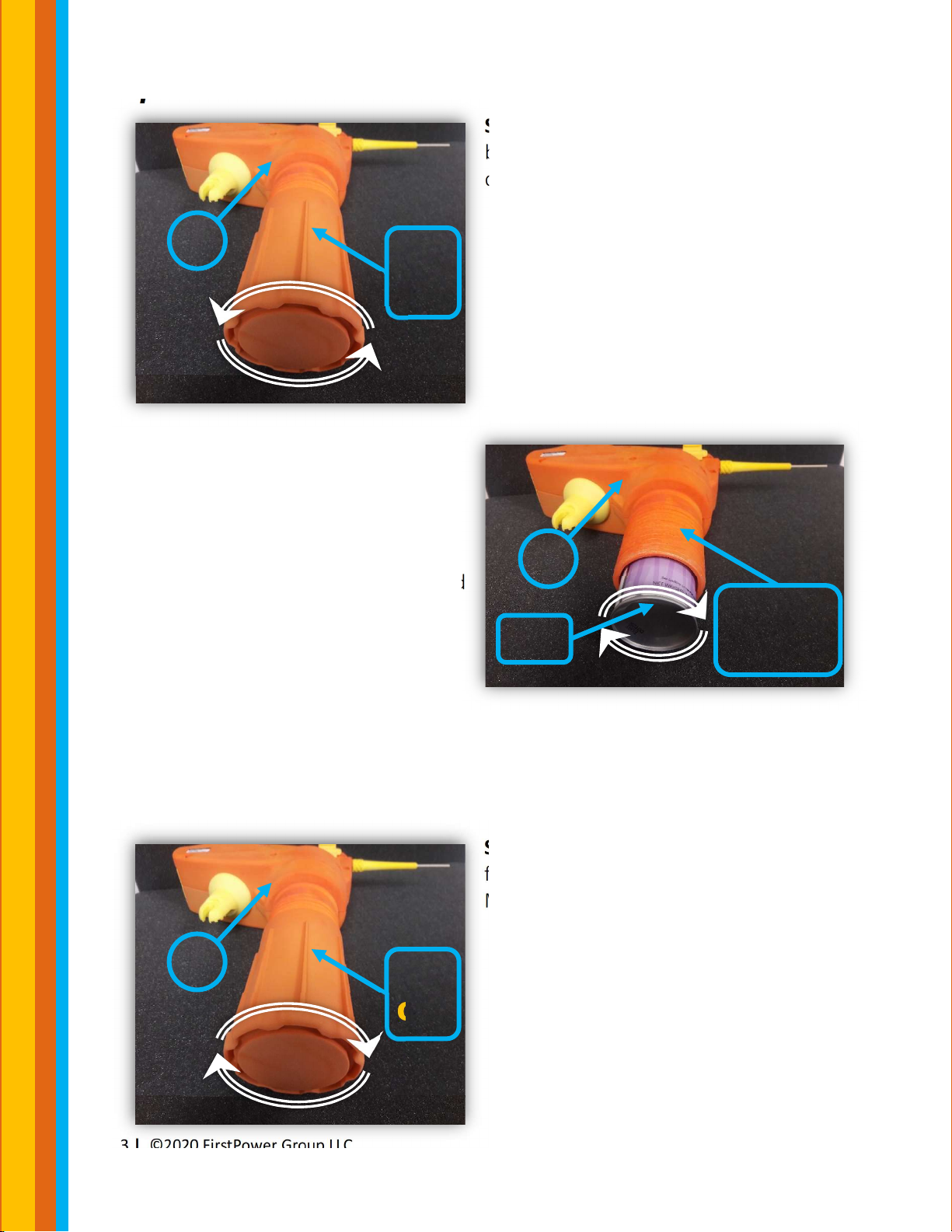

Step 2: Unscrew the Can Cap on the
bottom of the Main Assembly (2) in the
direction indicated.
Step 3: Fully screw in the threaded top
of the appropriate Stinger® Fluid Can
(1FR™, 2C™,3PAO™) with your hand
until hand tight. It is normal to hear a
pressure release sound before the can
is fully screwed in. Typically, you should
give the can another ½ turn after
hearing the pressure release.
Warnings: If it is hard to screw in the
can, remove the can and try again.
DO NOT FORCIBLY SCREW IN THE CAN.
If the can isn’t fully screwed in, the Can could leak or fail inside the Can Housing.
The Stinger® can only be used with proprietary Stinger® fluids, DO NOT attempt
to insert other cans into the Stinger®.
Step 4: After installing a can, be sure to
fully screw the orange Can Cap to the
Main Assembly (2) until hand tight.
2
Can
Cap
2
Can
Housing
Can
2
Can
Cap

Operation Guide
4
|
©20
20
FirstPower Group LLC
Stgr
-
Manual
-
V2 Rev. A.2
Step 5: Power on the Receiver (3a) in the Main Assembly (2) by flipping the
Switch from the Off Position to On Position.
Make sure the power switch is in the
On postion
Step 6: Test fluid stream into a rag
away from equipment for proper
function.
Step 7: Attach the fully assembled
Stinger® to the hot stick using the
yellow universal toothed hot stick
adapter. Be sure to attach the Main
Assembly (2) at an appropriate angle
to easily aim stream of Stinger fluid to
the desired location. We recommend
you practice moving and operating
the stinger when the hot stick is fully
extended before using it in the field.
2
3a
Switch
Hot
Stick
Adapter
Hot
Stick
2
Switch in
the ON
Position
Switch in
the OFF
Position

Operation Guide
5
|
©20
20
FirstPower Group LLC
Stgr
-
Manual
-
V2 Rev. A.2

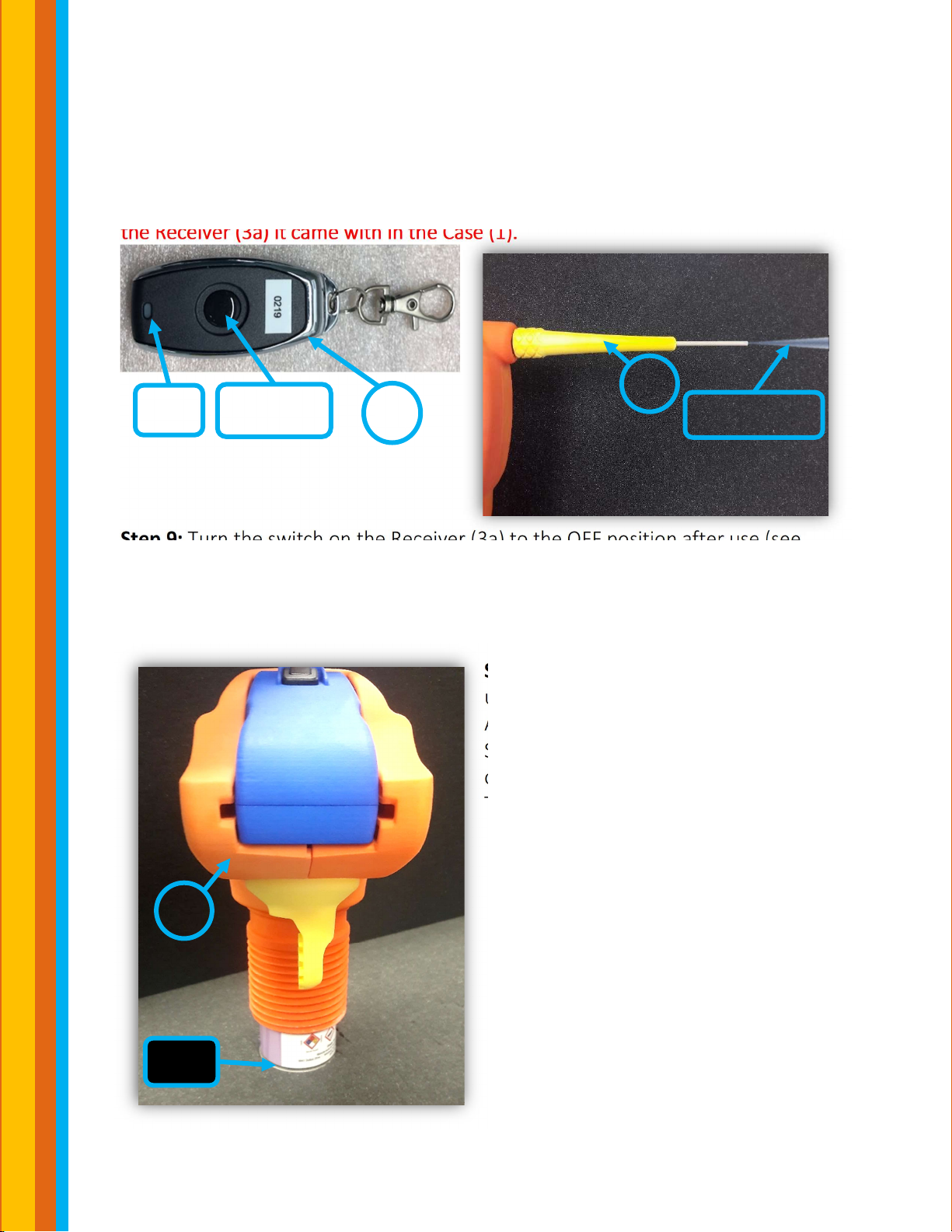

Step 8: Press the Button on the Transmitter (3b) to dispense the liquid. The
liquid will continuously stream out of the Nozzle (4) while the key fob transmitter
is pressed. If the LED does not go ON when the button is pressed, the batteries in
the button must be replaced. Note: The Transmitter (3b) exclusively connects to
the Receiver (3a) it came with in the Case (1).
Step 9: Turn the switch on the Receiver (3a) to the OFF position after use (see
Steps 6 to see what each switch position looks like). Remove the Nozzle (4) from
the Main Assembly (2). Place the Transmitter (3b) and Nozzle (4) back in the Case
(1).
Step 10: Remove the can cap then,
unscrew the can. Make sure the Main
Assembly (2) is upright to prevent the
Stinger® fluids from leaking onto your
clothes when the can is unscrewed.
Then reinstall the can cap.
4
Spray
Button
LED
3b
2
Can

Operation Guide
6
|
©20
20
FirstPower Group LLC
Stgr
-
Manual
-
V2 Rev. A.2
Step 11: Place the Main Assembly (2) with the Receiver (3a) into the Case (1) and
close the Case (1). Make sure this manual is in the Case (1) if the Stinger is not in
use.
2
1
3a

GoPro® Camera Installation and Usage
7
|
©20
20
FirstPower Group LLC
Stgr
-
Manual
-
V2 Rev. A.2
Note: FirstPower Group LLC does not supply the microSD cards with the camera
Step 1: Lift the grey Rubber Locking Plug that is a part of the GoPro® Camera so
that it is touching the back of the camera as shown below.
Step 2: To easily slide the
GoPro® Camera into (or
out of) the Camera Mount
(shown on the next page),
gently pinch the black
plastic Clip Ends.
This product and
/or service is not affiliated with, endorsed by or in any way associated with GoPro Inc.
or its products and services. GoPro, HERO, Session, Karma and their respective logos are trademarks
or registered trademarks of GoPro, Inc. (See- https://gopro.com/en/us/shop/cameras/hero7-
silver/CHDHC-601-master.html)
Rubber
Locking
Plug
Rubber
Locking
Plug
Before After

GoPro® Camera Installation and Usage
8
|
©20
20
FirstPower Group LLC
Stgr
-
Manual
-
V2 Rev. A.2
Step 3: Slide the GoPro® Camera (5) into the camera mount on the right side of
the Stinger® Main Assembly (2). Make sure that the camera lens is in the same
direction as the nozzle (4).
Step 4: Turn on the GoPro® Camera (5) by
pressing the Power Button shown left. The
camera’s Wi-Fi is turned on automatically.
This product and/or service is not affiliated
with, endorsed by or in any way associated with GoPro Inc.
or its products and services. GoPro, HERO, Session, Karma and their respective logos are trademarks or
registered trademarks of GoPro, Inc. (See- https://gopro.com/en/us/shop/cameras/hero7-
silver/CHDHC-601-master.html) for pairing.
Step 5: After use, gently remove the camera from the Main Assembly (3) and
turn it off. Steps 1-4 for reference. Place the Smartphone (6) and the camera
back into the Case (1)
5
Power
Button
4
5
2
Camera
Mount
4
2
5
Camera
Mount
Before After

Battery Replacement
9
|
©20
20
FirstPower Group LLC
Stgr
-
Manual
-
V2 Rev. A.2
Replace Black Transmitter Batteries
The status of the batteries is indicated by the Transmitter’s LED. If the
Transmitter’s LED doesn’t turn on when the button is pressed, then the batteries
must be replaced.
Step 1: Flip the Transmitter
over so that it is on its
bottom side. Then use a #2
Philips head screwdriver to
unscrew three screws on
the Transmitter’s bottom.
Make sure not lose the
screws.
Step 2: Lift the
Transmitter’s bottom, flip
over, and set aside. You will
see the batteries are on
the green circuit board
held by a metal container
and secured with a black
plastic ring as shown on
the left.
LED
Button
Transmitter’s
Bottom
Philips
Head
Screws
Transmitter’s
Bottom
Circuit
Board
Metal
Container
Black
Plastic
Ring
Batteries
Top Bottom

Battery Replacement
10
|
©20
20
FirstPower Group LLC
Stgr
-
Manual
-
V2 Rev. A.2
Replace Black Transmitter Batteries
Step 3: Remove the green
circuit board from the
Transmitter. Gently pull on
the black plastic ring, that
holds the batteries, from the
metal container. Both
batteries are directly stacked
on top of each other and will
fall out once the black plastic
ring is completely out of the
metal container.
Step 4: Use standard CR2016
coin batteries for
replacement. Replace the old
batteries with 2 new CR2016
coin batteries in the
orientation shown left into
the black plastic ring. Push
the black plastic ring
containing the new batteries
back into the metal until it
can’t move further.
Step 5: Carefully set the green circuit board with batteries back into the
Transmitter’s bottom, and carefully replace the Transmitter’s top. Hold it
together and secure with the 3 screws.
Metal
Container
Black
Plastic
Ring
Circuit Board
Batteries
Metal
Container
Black
Plastic
Ring
Circuit Board
CR2016
Coin
Batteries

Battery Replacement
11
|
©20
20
FirstPower Group LLC
Stgr
-
Manual
-
V2 Rev. A.2
Replace Receiver Batteries

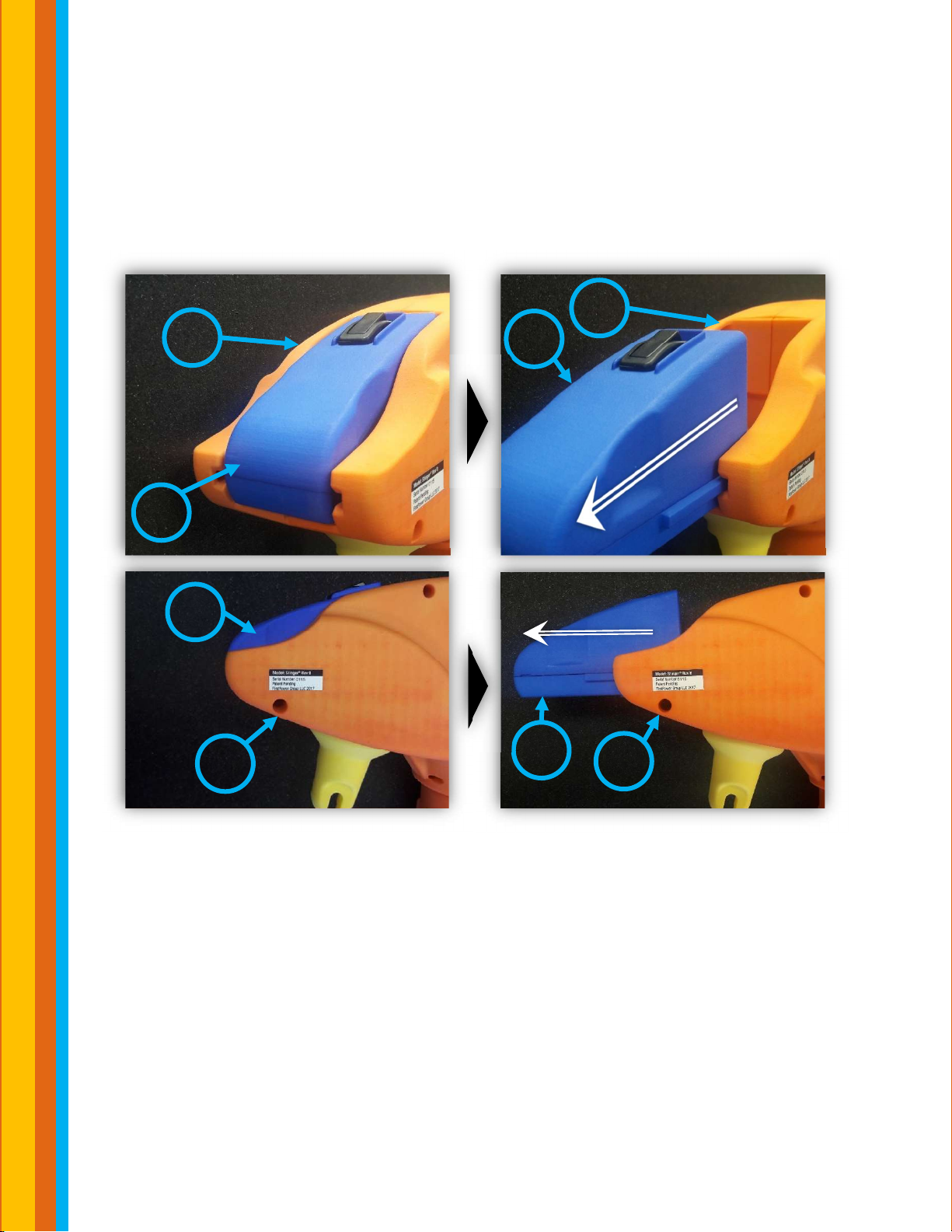

Step 1: Remove the Receiver (3) from its initial position shown in the “Before”
figures. Gently slide it out the back of the Main Assembly (2) which is presented
in the “After” figures.
2
3a
2
3a
3a
2
3a
2
Before After

Battery Replacement
12
|
©20
20
FirstPower Group LLC
Stgr
-
Manual
-
V2 Rev. A.2
Replace Receiver Batteries
Step 2: Make sure that the Receiver is
turned off. Then use a #2 Philips
screwdriver to unscrew each screw on
the battery door. Be sure to not
completely unscrew the 2 screws from
the battery door or else the washers
will detach.
Step 3: Use standard Alkaline 9V
batteries for replacement. Remove the
old batteries and carefully replace with
2 new 9V batteries.
Philips
Head
Screws
Battery
Door
Battery
Door
Alkaline 9V
Batteries

Battery Replacement
13
|
©20
20
FirstPower Group LLC
Stgr
-
Manual
-
V2 Rev. A.2
Replace Receiver Batteries
Step 3: This photo shows the battery
caps assembled and the proper
orientation of the batteries with the
wires facing up.
Step 4: Make sure the battery wires are
routed as shown on this photo. This will
prevent wire damage and allow proper
battery door installation. Battery door
must be installed flush. Screws must be
recessed after installing. DO NOT
FORCE screws in, if they don’t easily
screw in so they are recessed, unscrew
and re-install.
Philips
Head
Screws
Battery
Door
Battery
Door
Alkaline 9V
Batteries

Battery Replacement
14
|
©20
20
FirstPower Group LLC
Stgr
-
Manual
-
V2 Rev. A.2

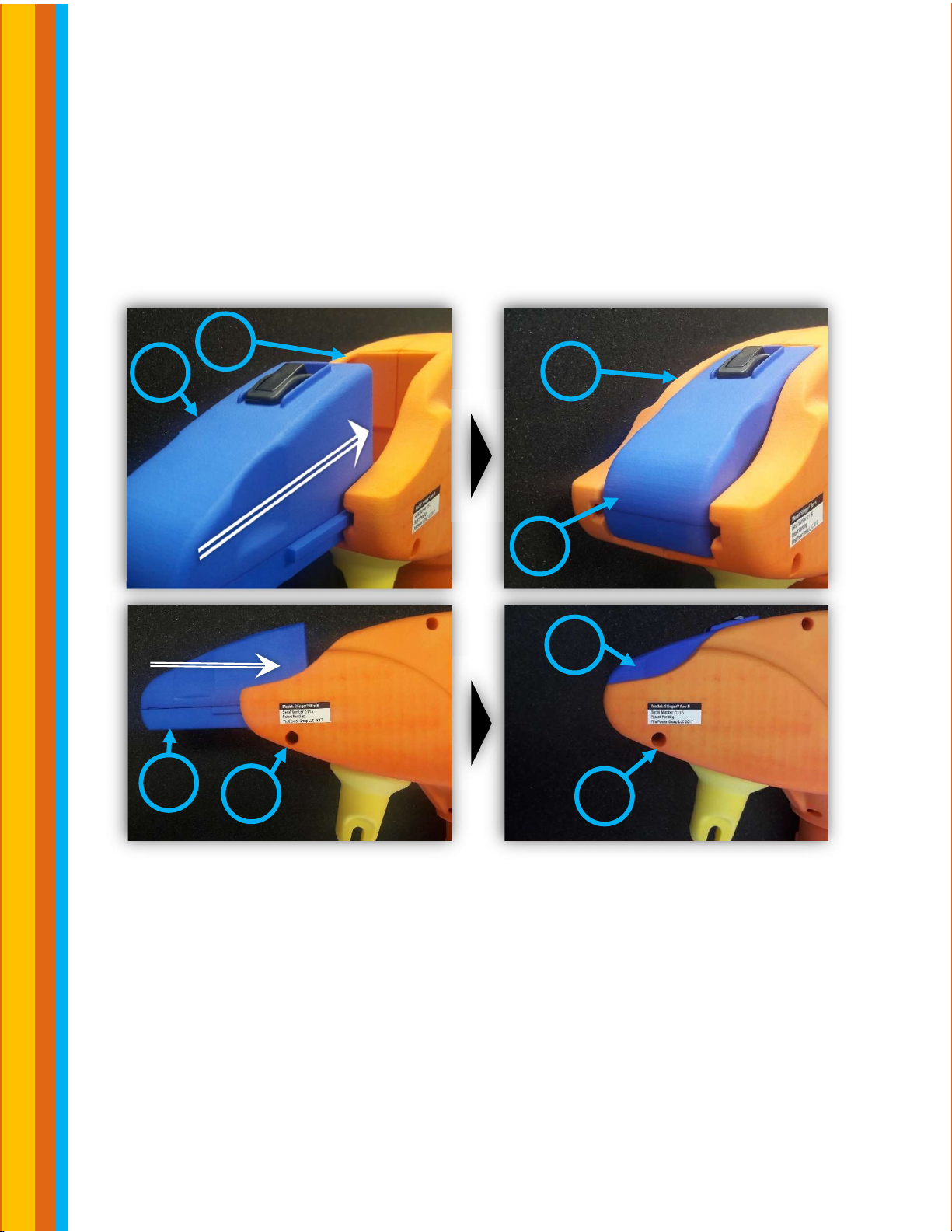

Step 5: Finally, insert the Receiver (3a) back into the back of the Main Assembly
(2) as shown in the “Before” figures. Confirm the that Receiver (3a) is fully
inserted into the Main Assembly (2) as shown in the “After” figures.
2
3a
2
3a
3a
2
3a
2
Before After

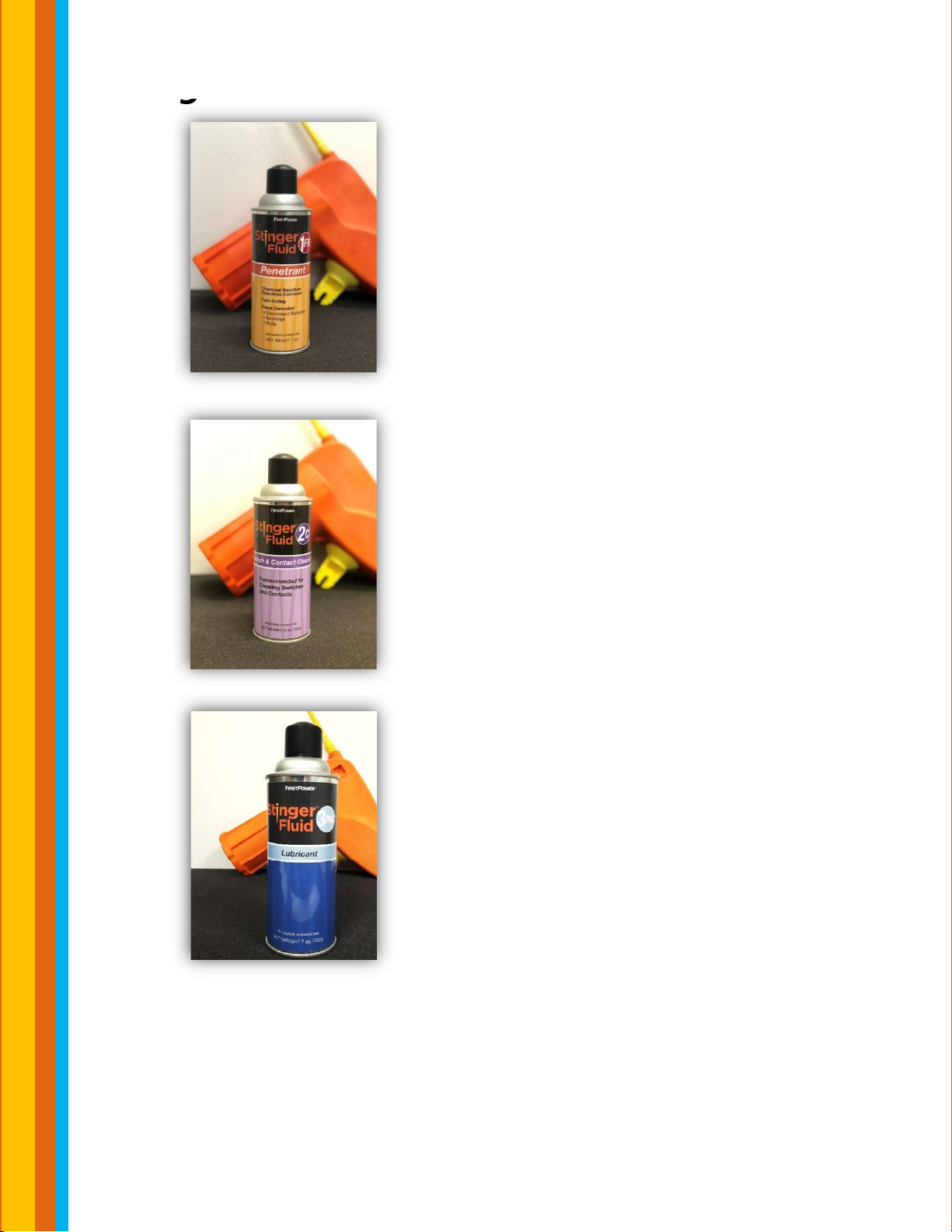

Stinger® Fluid Overview
15
|
©20
20
FirstPower Group LLC
Stgr
-
Manual
-
V2 Rev. A.2
1FR - Penetrant
Stinger® Fluid 1FR is a fast-acting penetrant
that frees corroded disconnect switches,
bushings, and bolts. 1FR has a proprietary
threaded top which only allows it to be
used in the Stinger®. Simply apply to a
seized joint and let sit for 20-30 minutes to
ensure penetration and repeat if needed.
This fluid can be used on energized
equipment.
2C - Cleaner
Stinger® Fluid 2C is a switch and contact
cleaner. 2C has a proprietary threaded top
that allows it to only be used in the
Stinger®. This fluid can be used on
energized equipment. DO NOT use on
polycarbonate plastics, this cleaner can
harm plastics.
3PAO - Lubricant
3PAO is a high-quality synthetic lubricant,
containing anti-wear additives. It is great
for lubricating seized parts, such as gears
and knuckles. After using 1FR to open the
switch, 3PAO may be used to make the
switch move freely and ensure it closes
properly. This fluid can be used on
energized equipment.

Recommended Maintenance and Safety
16
|
©20
20
FirstPower Group LLC
Stgr
-
Manual
-
V2 Rev. A.2
Recommended Maintenance
 Extend the life of the Stinger® by not storing outdoors or in extreme
conditions
 Wipe the Stinger® using a clean lint-free cloth after each use.
o DO NOT USE CHEMICAL SOLVENTS AS THIS WILL VOID WARRANTY.
THIS WILL COMPROMISE THE DIELECTRIC PROPERTIES OF THE
STINGER®.
o DO NOT SUBMERGE THE STINGER® THIS WILL VOID WARRANTY
 Power off Stinger® when not in use.
 Remove can from inside Stinger® when not in use.
 Remove batteries when stored long term.
Safety
Stinger®
 Do not use on energized equipment without the can cap installed.
 Make sure to practice operating the Key fob Transmitter while holding the
hot stick. Also, practice getting used to the weight of the Stinger®.
 Always make sure that the Receiver is fully inserted into the Main
Assembly to avoid it falling out with rough usage.
Stinger® Fluids
 If any fluids contact skin, please wash the area of contact immediately
with soap and water.
 Do not ingest any of the fluids, if ingested please contact emergency
services.
 Do not store fluids near extreme heat or cold because cans are under
pressure.

Specifications and Certifications
17
|
©20
20
FirstPower Group LLC
Stgr
-
Manual
-
V2 Rev. A.2
The Stinger®:
 Dimensions: 10” X 4.25” X 14.6”
 Weight: 4 lbs.
 Material: dielectric resin
o ASTM D149 tested to 221 kV/in
 The Stinger® passes a Proximity High Voltage Withstand test to 230kV
Stinger® Fluids:
 All Stinger® Fluids have passed ASTM 3065D for non-flammability when
applied using the Stinger®
Warranty Information
The Stinger® is warranted for one year from the date of purchase with a factory
warranty. This warranty applies to parts and labor for any defects that are
corrected in our shop when the product has been returned for repair. Pass
through warranties provided where applicable.

Parts Diagram
18
|
©20
20
FirstPower Group LLC
Stgr
-
Manual
-
V2 Rev. A.2
Number: Part Number: Description: Quantity:
1 STGR-1000 Main Assembly 1
2a STGR-3000 Receiver 1
2b* Transmitter* 2
3 STGR-1344 Nozzle 1
4** STGR-7000 GoPro® Camera** 1
5 STGR-6000 Smartphone, not included 0
6 STGR-Aerosol 1FR 1FR, Not included in Stinger® Kit 0
7 STGR-Aerosol 2C 2C, Not included in Stinger® Kit 0
8 STGR-Aerosol 3PAO 3PAO, Not included in Stinger® Kit 0
(2b) sends
signal to
(2
a)
(4)
sends
video to
(5)
#6 ,7, and 8
1
2b
2a
6
7
8
5
4
3
*
*
This product and/or service is not
affiliated with, endorsed by or in any w
ay associated with GoPro
Inc. or its products and services. GoPro, HERO, Session, Karma and their respective logos are
trademarks or registered trademarks of GoPro, Inc.
*
The Receiver comes with two
Transmitter
and the Receiver
exclusively
with those included
Transmitters
.
