Fisher & Paykel CG302 domino User manual

1
NZ AU
Installation instructions
and User guide
Gas cooktops
CG302 domino models

1
Contents
Safety and warnings 2
Installation instructions 6
Introduction 14
Using your cooktop 16
Care and cleaning 19
Troubleshooting 22
Warranty and service 23
Important!
SAVE THESE INSTRUCTIONS
The models shown in this user guide may not be available in all markets and are
subject to change at any time. For current details about model and specification
availability in your country, please visit our local website listed on the back cover
or contact your local Fisher & Paykel dealer.

2
Important safety instructions
Installation
Read these instructions carefully before installing or using this product.
Please make this information available to the person responsible for installing the product as it
could reduce your installation costs.
These products are registered:
in New Zealand at www.ess.govt.nz and
in Australia with AGA at www.gas.asn.au.
This appliance must be installed in accordance with these installation instructions, local
gas fitting regulations, municipal building codes, water supply regulations, electrical wiring
regulations, AS5601 / AG 601/NZS5261 - Gas Installations and any other relevant statutory
regulations.
Do not modify this appliance.
This appliance is to be installed and serviced only by an authorised person.
Incorrect installation, for which the manufacturer accepts no responsibility, may cause personal
injury or damage.
Always disconnect the cooktop from the mains power supply before carrying out any
maintenance operations or repairs.
In the room where the cooktop is installed, there must be enough air to allow the gas to burn
correctly, according to the current local regulations.
Particular attention shall be given to the relevant requirements regarding ventilation.
This product should not be sealed into the bench with silicone or glue. Doing so will make future
servicing difficult. Fisher & Paykel will not be liable for costs associated with releasing such a
product, nor for repairing damage that may be incurred in doing this.
WARNING!
Cut Hazard
Beware of sharp edges when handling stainless steel appliances.
Failure to use caution could result in injury or cuts.
WARNING!
Electrical Shock Hazard
Before carrying out any work on the electrical section of the appliance, it must
be disconnected from the mains.
Connection to a good earth wiring system is absolutely essential and
mandatory.
Failure to follow this advice may result in death or electrical shock.
Safety and warnings

3
No combustible material or products should be placed on this product at any time.
Do not spray aerosols in the vicinity of this product while it is in operation.
Installation must be carried out according to the manufacturer's instructions.
Incorrect installation may cause harm and damage to people, animals or property, for which
the manufacturer accepts no responsibility.
If the installation requires alterations to the domestic electrical system, call a qualified
electrician. The electrician should also check that the socket cable section is suitable for the
power drawn by the appliance.
Before carrying out any work on the electrical section of the appliance, it must be
disconnected from the mains.
The manufacturer accepts no responsibility for any inconvenience caused by failure to
comply with this rule.
Electrical requirements
The appliance must be connected to the mains checking that the voltage corresponds to the
value given in the rating plate and that the power supply cable sections can withstand the load
specified on the plate.
The plug must be connected to an earthed socket in compliance with safety standards.
If the appliance is supplied without plug, fit a standard plug which is suitable for the power
consumed by the appliance.
The wires in the power supply cable are coloured in accordance with the following code:
Green/Yellow = Earth, Blue = Neutral, Brown = Active.
If the colours of the wires in the power cable to the appliance do not correspond with the coloured
markings identifying the terminals in the terminal block, proceed as follows:
1 The wire which is coloured green and yellow must be connected to the terminal marked E (Earth)
or coloured Green.
2 The wire which is coloured blue must be connected to the terminal marked N (Neutral) or
coloured Black.
3 The wire which is coloured brown must be connected to the terminal marked L (Live) or A (Active)
or coloured Red.
A suitable disconnection switch must be incorporated in the permanent wiring, mounted and
positioned to comply with the local wiring rules and regulations. The switch must be of an approved
type installed in the fixed wiring and provide a 3 mm air gap contact separation in all poles in
accordance with the local wiring rules.
In New Zealand and Australia, a switch of the approved type with a 3 mm air gap must be installed in
the active (phase) conductor of the fixed wiring.
The power supply cable must not touch the hot parts and must be positioned so that it does not
exceed 50°C above ambient.
Once the appliance has been installed, the switch or socket must always be accessible.
If the power supply cable is damaged, it must be replaced by the manufacturer or its Service
Agent or a similarly qualified person in order to avoid a hazard.
Safety and warnings

4Safety and warnings
WARNING!
Hot Surface Hazard
This appliance becomes hot during use.
Do not touch the cooktop components, burners, trivets, pan supports or the
base when hot.
Before cleaning, turn the burners o and make sure the whole cooktop is cool.
Failure to follow this advice may result in serious injury.
WARNING!
Electrical Shock Hazard
Switch o the cooktop at the wall before carrying out cleaning or
maintenance.
Failure to follow this advice may result in death or electrical shock.
WARNING!
Explosion Hazard
Do not use or store ammable materials such as gasoline near this
appliance. Do not spray aerosols in the vicinity of this appliance while it is in
operation.
Failure to follow this advice may result in death or serious injury.

5
Important safety instructions
Operation
Household appliances are not intended to be played with by children.
Children, or persons with a disability which limits their ability to use the appliance, should
have a responsible person to instruct them in its use. The instructor should be satisfied that
they can use the appliance without danger to themselves or their surroundings.
If the power supply cable is damaged, it must only be replaced by an authorised person.
Ensure that the electrical connection plug is accessible after installation.
This appliance should be connected to a circuit that incorporates an isolating switch
providing full disconnection from the electricity supply.
Do not use an asbestos mat or decorative covers between the flame and the saucepan as
this may cause serious damage to your cooktop.
Do not place aluminium foil or plastic dishes on the cooktop burners.
Do not let large saucepans or frying pans overlap the bench as this can deflect heat onto
your benchtop and damage the surface.
Do not let large saucepans, frying pans or woks push any other pans aside. This could make
them unstable or deflect heat onto your benchtop and damage the surface.
Do not use a steam cleaner for cleaning this cooktop.
Saucepan handles may be hot to touch. Ensure saucepan handles do not overhang other
gas burners that are on. Keep handles out of reach of children.
Keep children away from the cooktop when it is in use.
Do not stand or place heavy objects on this appliance.
After use, ensure that the knobs are in the ‘off’ position.
This appliance shall not be used as a space heater, especially if installed in marine craft or
caravans.
The use of a gas cooking appliance results in the production of heat and moisture in the
room in which it is installed. Ensure the kitchen is well ventilated. Keep natural ventilation
holes open or install a mechanical ventilation device (mechanical extractor hood).
Prolonged intensive use of the appliance may call for additional ventilation, for example
opening of a window, or more effective ventilation, for example increasing the level of
mechanical ventilation where present.
After having unpacked the appliance, check to ensure that it is not damaged.
In case of doubt, do not use it and consult your supplier or a professionally qualified technician.
Packing elements (i.e. plastic bags, polystyrene foam, staples, packing straps, etc.) should not
be left around within easy reach of children, as these may cause serious injuries.
Some appliances are supplied with a protective film on steel and aluminium parts. This film
must be removed before using the appliance.
Safety and warnings

6
The installation shall comply with the dimensions in Figs. 1 and 2, bearing in mind the fol-
lowing requirements:
A minimum clearance of 20 mm has to be kept between the base of the cooktop and the top
of an underbench appliance or a shelf. To ensure this clearance, mount the spacers supplied
with the appliance, as shown in Fig. 3.
A partition between the base of the cooktop and the cupboard below should be fitted 100 mm
below the benchtop if the cupboard is to be used for storage.
Overhead clearances - In no case shall the clearance between the highest part of the cooktop
and a range hood be less than 650 mm, or for an overhead exhaust fan, 750 mm. Any other
downward-facing combustible surface less than 600 mm above the highest part of the co-
oktop shall be protected for the full width and depth of the cooking surface area in accordance
with local regulations in force. However, in no case shall this clearance to any surface be less
than 450 mm.
Side clearances - Where the distance from the periphery of the nearest burner to any vertical
combustible surface is less than 200 mm, the surface shall be protected in accordance with
with local regulations in force to a minimum height of 150 mm above the cooktop for the full
dimension (width or depth) of the cooking surface area.
Where the distance from the periphery of the nearest burner to any horizontal combustible
surface is less than 200 mm, the horizontal surface shall be more than 10 mm below the
surface of the cooktop, or the horizontal surface shall be above the trivet (see requirement for
vertical combustible surfaces above).
Protection of combustible surfaces - Local regulations in force specify that, where required,
protection shall ensure that the surface temperature of combustible surfaces does not exceed
65 °C above ambient. To comply with this requirement satisfactorily, fix 5 mm-thick ceramic
tiles to the surface or attach fire-resistant material to the surface and cover with sheet metal
(minimum thickness 0.4 mm).

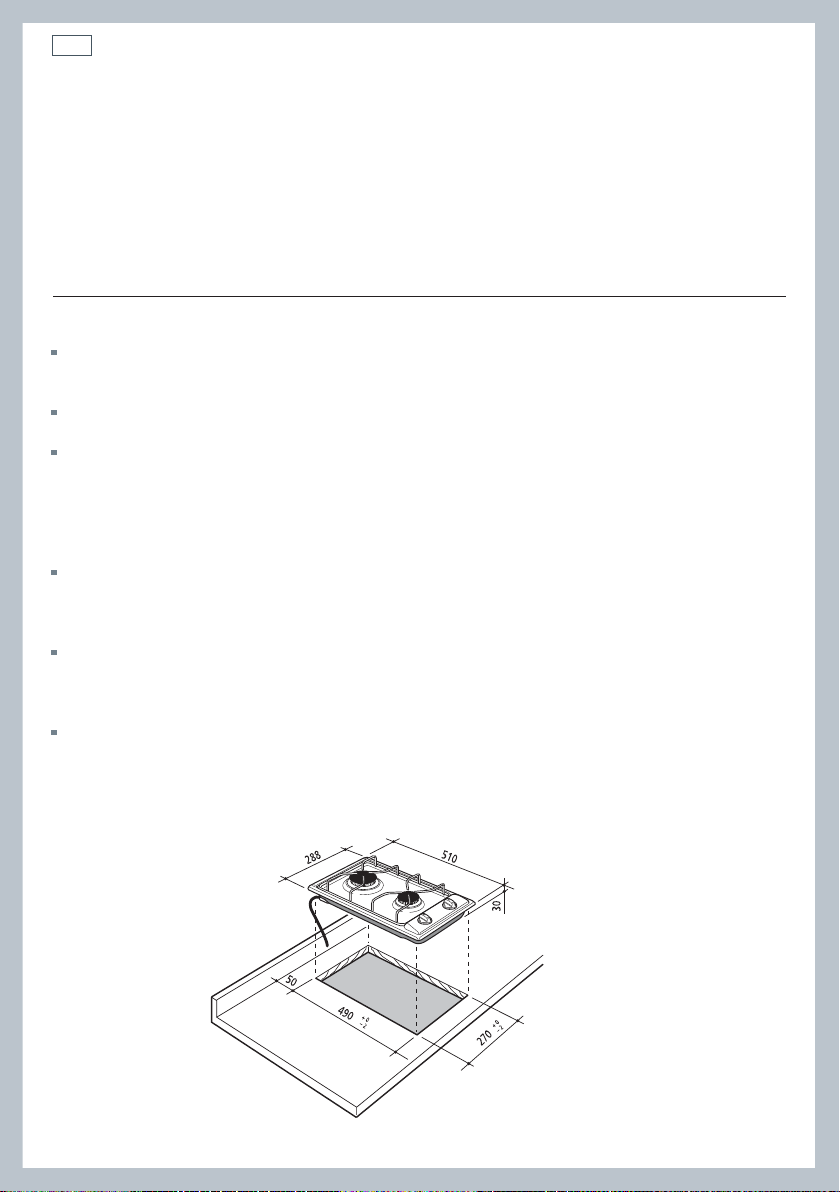

Fig. 1 Product and cutout dimensions
Installation instructions
Dimensions and clearances
This cooktop has been designed and constructed in accordance with the following codes and
specifications:
AGA101 (AS 4551) Approval Requirements for Domestic Gas cooking appliances
AS/NZS 60335-1 General Requirements for Domestic electrical appliances
AS/NZS 60335-2-6 Particular Requirements for Domestic electrical cooking appliances
AS/NZS 1044 Electromagnetic Compatibility Requirements.

7
Installation instructions
650 mm
Fig. 2 Clearances
Fig. 3 Mounting the base
clearance spacers
Installation clearances and protection of combustible surfaces shall comply with the current local
regulations e.g. AG 601 (AS 5601) and NZS 5261 - Gas Installations code.

8Installation instructions
Fastening the installation brackets (Fig. 4)
Each cooktop is provided with an installation kit including brackets and screws for fastening
the cooktop to benches from 20 to 40 mm thick.
1 Remove the trivet and burners from the cooktop.
2 Turn the cooktop upside down and place it on a soft surface.
3 Fasten the brackets “A” to the appropriate socket holes, without tightening the screws “B” for the
moment (see Fig. 4).
Fastening the cooktop (Fig. 5)
1 Spread the sealing material “C” out along the edge of the cutout, making sure that the
junctions overlap at the corners.
2 Insert the cooktop into the cutout and position it correctly.
3 Adjust the position of the brackets “A” and tighten screws “B” to secure the cooktop firmly in
position.
4 Using a sharp cutter or trimmer knife, trim the excess sealing material around the edge of the
cooktop. Take care not to damage the workbench.
Fig. 4 Fastening the installation brackets
D
Fig. 5 Fastening the cooktop

9
Installation instructions
Connecting the cooktop to the gas supply
The gas connection must be carried out by an authorised person according to the relevant
standards.
Before connecting the appliance to the gas supply, mount the brass conical adaptor onto the
gas inlet pipe, upon which the washer has been placed (Figs. 6 and 7).
Conical adaptor and washer are supplied with the appliance (packed with conversion kit for
use with Natural gas or LPG).
This appliance is suitable for use with Natural gas or LPG. (Check the “gas type”sticker attached
to the appliance).
For Natural gas, connect the gas supply to the gas pressure regulator which is supplied with
the appliance (Fig. 6). Adjust the regulator to obtain a test point pressure of 1 kPa with all the
burners operating at the maximum.
For LPG, connect the gas supply to the test point adaptor which is supplied with the appliance
(Fig. 7). Ensure that the supply pressure is regulated to 2.75 kPa.
Do NOT force the ”elbow“ to rotate before loosening the floating nut.
Do NOT overtighten the floating nut at the ”elbow“.
Gas connection for
LPG
Test point adaptor
Washer
Brass conical adaptor
(Thread tight: use
suitable seal)
Gas inlet pipe
Test
point
Gas connection for
NATURAL GAS
Washer
Brass conical adaptor
(Thread tight: use
suitable seal)
Gas pressure
regulator
Test
point
Fig. 6 Natural
gas connection
Fig. 7 LPG connection
Elbow Elbow
Floating nut Floating nut
Gas inlet pipe

10 Installation instructions
Leak-testing and flame-testing the cooktop
1 After connecting the gas supply, check the piping and connections for leaks using a soap and
water solution. The presence of bubbles indicates a leak. Tighten or replace connections as
appropriate.
Important!
Do not use any naked flame to check for leaks.
2 The operation of the appliance MUST be tested before leaving.
3 Adjust the test point pressure or supply pressure to the value which is appropriate for the gas
type.
4 Turn on the appliance gas controls and light each burner. Check for a well defined blue flame
without any yellow tipping. If any abnormality is evident, check that the burner cap is located
properly and the injector nipple is aligned correctly.
5 Check the minimum burner setting by quickly rotating the gas control knob from the maximum
to the minimum position. The flame must not go out. If adjustment is required, see ‘Adjusting the
minimum burner setting’ section following.
6 If satisfactory performance cannot be obtained, the installer shall check the installation and
notify the local gas supply authority about a gas supply problem, or if it is an appliance problem,
our Customer Service Centre should be called to obtain the nearest authorised Service Agent.
7 Where the appliance data plate cannot be easily read with the appliance installed, the duplicate
data plate must be attached to an adjacent surface and the duplicate Natural gas or LPG
conversion label should also be included where a Natural gas or LPG conversion has been
completed.
Installation with a flexible hose assembly
If this appliance has to be installed with a hose assembly, the installer must refer to the network
operator or gas supplier for confirmation of the gas type, if in doubt.
When used with a flexible hose, the connector on the wall should be between 800 mm to 850
mm above the floor and in the region outside the width of the appliance to a distance of 250
mm. The supply connection point shall be accessible with the appliance installed.
Flexible hose assemblies should be AS/NZS 1869 Class B or Class D certified. The thread
connection shall be Rp 1/2” (ISO 7-1) male.
The hose assembly must be as short as practicable and comply with relevant AS 5601/NZS 5261
requirements.
Important!
After connection, the installer must check that the hose is not kinked, subjected to abrasion or
permanently deformed. The installer must check also that the hose is not near (or in contact) with
any hot surfaces eg. base of metal hotplate, underbench oven etc.
The installer shall ensure the hose assembly is restrained from accidental contact with the flue
outlet of an underbench oven.
Table for the choice of injectors
Natural Gas LPG
Test point Pressure [kPa] 1.0 2.75
BURNER
Injector
Orice Dia.
[mm]
Gas
Consumption
[MJ/h]
Injector
Orice Dia.
[mm]
Gas
Consumption
[MJ/h]
Semi-rapid 1.12 6.30 0.70 6.30
Rapid 1.45 10.40 0.91 10.80

11
Installation instructions
Converting to a different gas type
Important!
The conversion procedure must be carried out only by an authorised person.
This appliance is suitable for use with Natural gas or LPG (check the“gas type”sticker attached
to the appliance). To convert from one gas type to another, you need to replace the injectors,
and then adjust the minimum burner setting.
Replacing the injectors
Remove the trivet and burners from the cooktop.
Using a spanner, remove the injector (Fig. 8) and replace it with one according to the gas type
(see ‘Table for the choice of injectors’).
Fix the warning label supplied with the appliance. This label states that the gas cooktop has
been converted for use with LPG/Natural gas.
Where the appliance data plate cannot be easily read with the appliance installed, a second
conversion label should also be affixed to an adjacent surface along with the duplicate data
plate.
Adjusting the minimum burner setting
Follow the instructions under ‘Adjusting the minimum burner setting’ following.
Important!
If you are converting the cooktop from Natural gas to LPG,remove the gas pressure regulator
before connecting the cooktop to the gas supply and replace with the test point adaptor supplied
with the conversion kit.
If you are converting the cooktop from LPG to Natural gas, remove the test point adaptor before
connecting the cooktop to the gas supply and replace with the gas pressure regulator supplied
with the conversion kit.
Note:
- The burners are designed so that regulation of primary air is not required.
Injector
Fig. 8 Rapid and semi-rapid burners

12 Installation instructions
Adjusting the minimum burner setting
When changing from one type of gas to another, the minimum valve output must also be
correct, considering that in this position the flame must be about 4 mm long and must re-
main lit even when the knob is turned quickly from the maximum to the minimum position.
The adjustment is performed with the burner lit, as follows:
Turn the knob to the minimum position.
Remove the knob.
The adjustment screw is positioned on the valve body. Turn the screw “A” to the correct
setting with a screwdriver (Fig. 9).
For LPG, tighten the adjustment screw completely.
Fig. 9 Minimum burner setting
A

13
Installation instructions
Wiring diagram
PA Ignition switch
A Ignition coil
M Terminal block
CA Spark electrode
Fig. 10 Wiring diagram.

14 Introduction
About your new cooktop
Thank you for buying a Fisher & Paykel gas cooktop. Once it is installed and ready to use, you
will want to know everything about it to make sure you get excellent results right from the start.
This guide introduces you to all its special features. We recommend you read the whole guide
before using your new cooktop, for both safety and cooking success.
For more information, go to www.fisherpaykel.com
Before using your new cooktop
Before using your new cooktop, please:
Read this user guide, taking special note of the ‘Safety and warnings’ section.
Plug the cooktop into the electricity supply and turn it on so the electronic ignition will work.
1 Semi-rapid burner
2 Rapid burner
3 Control knobs
2
1
3
Fig.11 Cooktop layout

15
Introduction
Gas burners
The knob (Fig. 12) controls the flow of gas through the safety valve.
OFF = closed valve
= maximum flow
= minimum flow
You can choose to cook at any heat between and , but never between
and OFF.
Fig. 12 Control knob and symbols

16 Using your cooktop
Fig. 13 Pressing then turning the control
knob
Using the burners
1 Choose the control knob for the burner you want to use.
2 Press the knob down gently and turn it anticlockwise to
the position (Fig. 13). The ignitors on all the burners will
spark.
3 Hold down the knob for approximately 10 seconds
after the burner has lit.
Releasing the knob too soon will extinguish the flame.
4 Adjust the flame anywhere between the and
positions. Do not adjust the flame between
and OFF.
Note: If the burner does not light within 15 seconds, turn
the control knob off and wait at least one minute before
trying again.
5 After use, always turn the knobs to the OFF position.
Flame failure safety feature
These models have a flame failure probe as well as the ignitor (see Fig 14).
The flame failure probe cuts off the gas supply to the burner if the flame is blown out.
When lighting the burner, hold down the knob for approximately 10 seconds after the burner
has lit. Releasing the knob too soon will extinguish the flame.
If the flames are accidentally extinguished, turn off the burner and do not try to light it again for
at least one minute (to allow the gas to disperse).
1
2

17
Using your cooktop

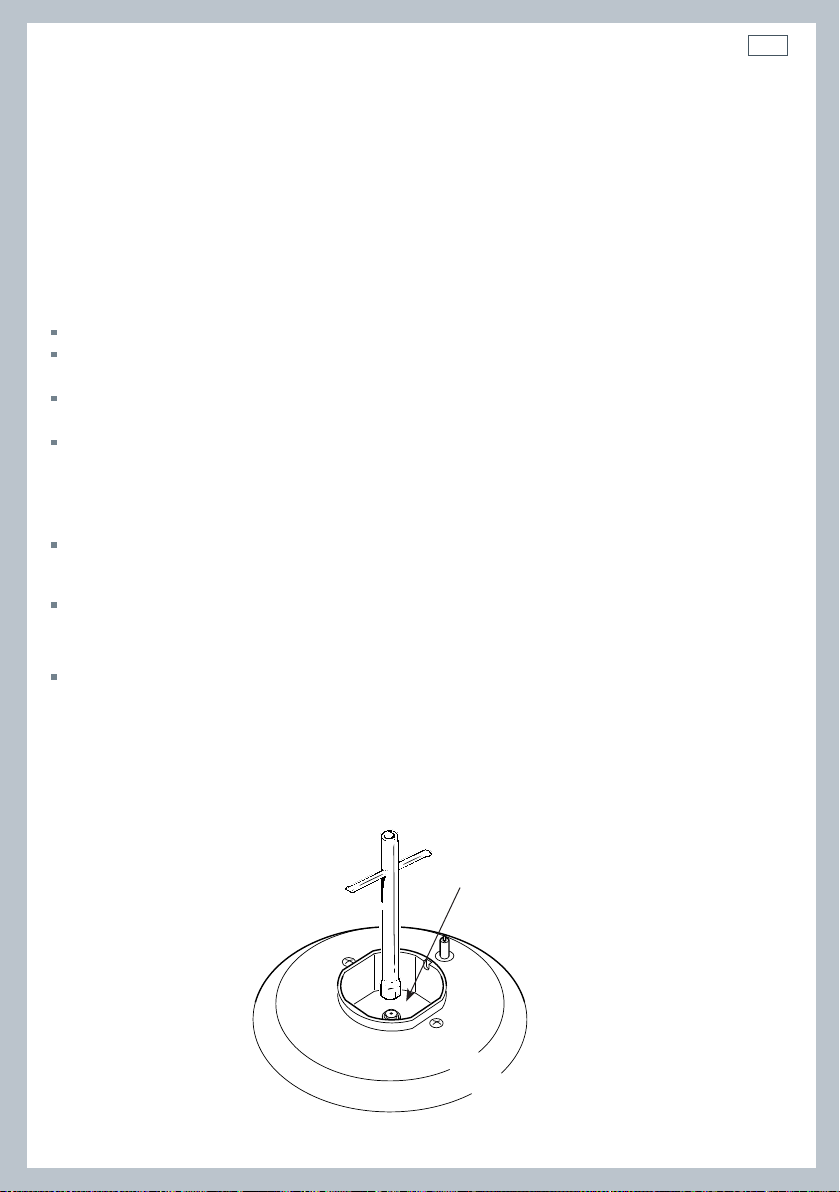

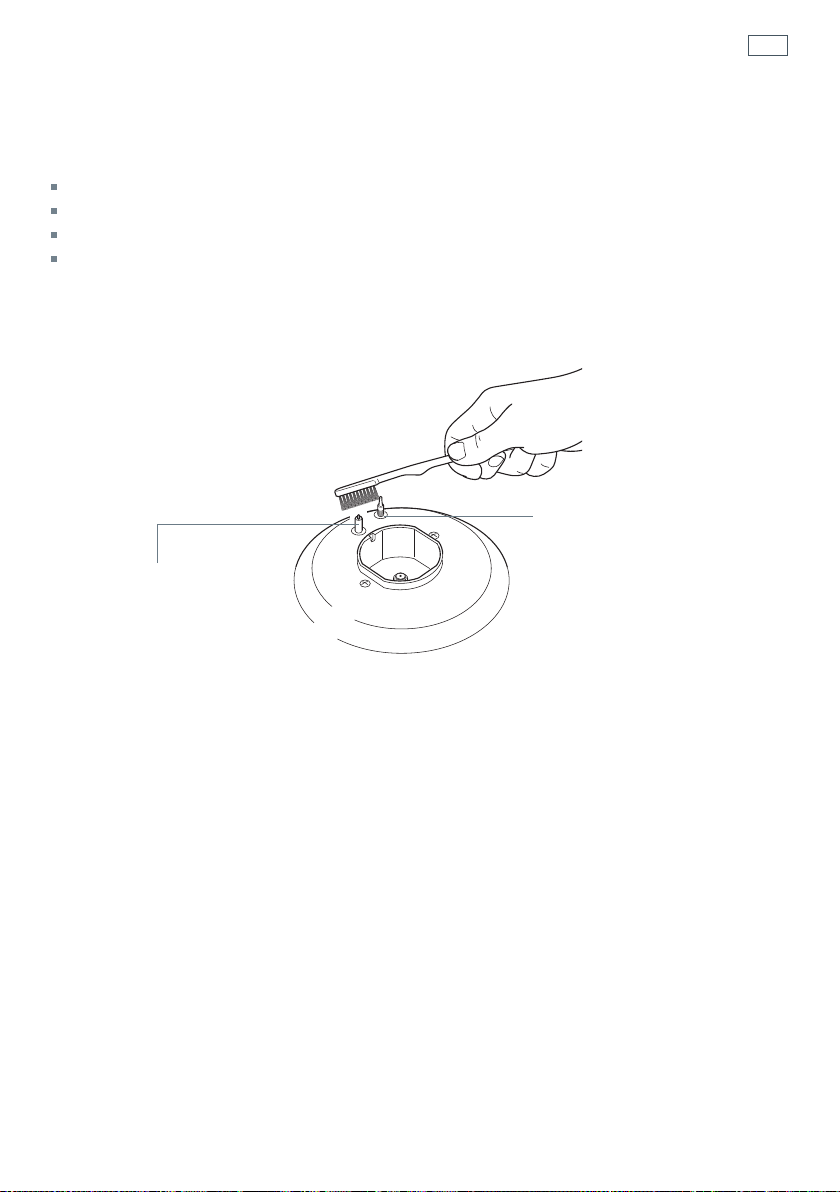

Fig. 14 Cleaning the ignitor and probe
Ignitor
Flame failure probe
If a burner does not light
Check that:
The cooktop is plugged in and the electricity is switched on.
The gas is turned on.
You have held down the knob for at least 10 seconds.
The ignitors are sparking. If the ignitors are not sparking, they may be dirty or wet. Clean them
with a toothbrush and methylated spirits, as shown in Fig. 14.

18
Matching cookware to burner
Use flat-bottomed pans, and make sure that they match your burner, as shown in the following
table. A small pot on a large burner is not efficient.
Small pan support
This pan support is to be placed on top of the
semi-rapid burner when using small diameter
pans, in order to prevent them from tipping over.

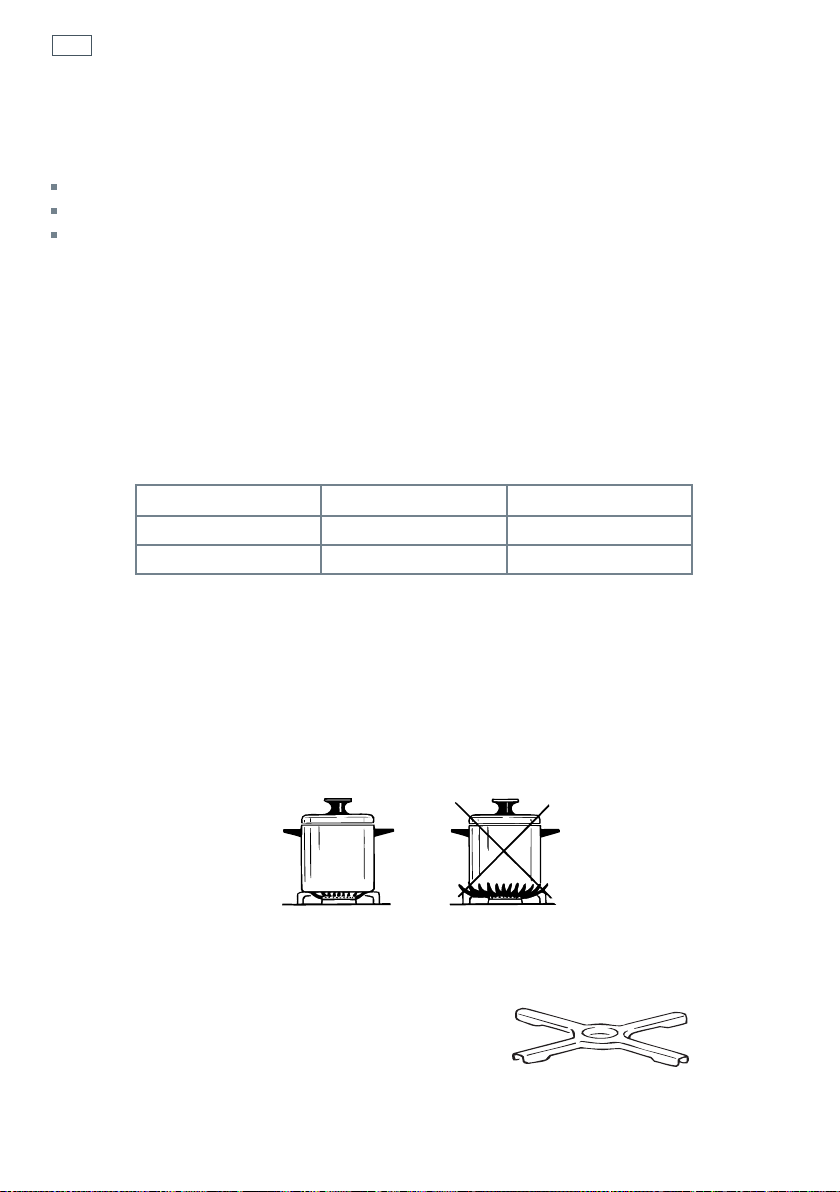

Fig. 15a Correct and incorrect matching
Burners Minimum Maximum
Semi-rapid 12 cm 20 cm
Rapid 22 cm 26 cm
Do not use pans with concave or convex bases
Diameters of pans which may be used on the cooktop
If the flame is irregular
If the flame is yellow or irregular, check that the burner parts, including the burner cap, are:
Clean and dry.
Positioned correctly, as shown in Figs. 16 and 17.
See also ‘Troubleshooting’.
Using your cooktop
Fig. 15b Small pan support for semi-rapid burner
