Fisher & Paykel CI604DT Mounting instructions

Induction cooktop
Installation instructions
and User guide
CI604DT, CI754DT, and CI905DT models
NZ AU GB IE

1
Contents
Safety and warnings 2
Installation instructions 6
Introduction 12
Choosing the right cookware 14
Using your induction cooktop 15
Using your cooktop’s special features 18
Cooking guidelines 28
Care and cleaning 30
Troubleshooting 31
Warranty and service 33
Important!
SAVE THESE INSTRUCTIONS
The models shown in this user guide may not be available in all markets and are
subject to change at any time. For current details about model and specification
availability in your country, please visit our local website listed on the back cover
or contact your local Fisher & Paykel dealer.

2Safety and warnings
Your safety is important to us. Please read this information before using your cooktop.
Installation
WARNING!
Electrical Shock Hazard
Disconnect the appliance from the mains electricity supply before carrying
out any work or maintenance on it.
Connection to a good earth wiring system is essential and mandatory.
Alterations to the domestic wiring system must only be made by a qualified
electrician.
Failure to follow this advice may result in electrical shock or death.
WARNING!
Cut Hazard
Take care - panel edges are sharp.
Failure to use caution could result in injury or cuts.

3
Safety and warnings
Important safety instructions
Read these instructions carefully before installing or using this appliance.
No combustible material or products should be placed on this appliance at any time.
Please make this information available to the person responsible for installing the appliance as it
could reduce your installation costs.
In order to avoid a hazard, this appliance must be installed according to these instructions for
installation.
This appliance is to be properly installed and earthed only by a suitably qualified person.
This appliance should be connected to a circuit which incorporates an isolating switch providing
full disconnection from the power supply.
Failure to install the appliance correctly could invalidate any warranty or liability claims.

4Safety and warnings
Operation and maintenance
WARNING!
Hot Surface Hazard
During use, accessible parts of this appliance will become hot enough to
cause burns.
Do not let body, clothing or any item other than suitable cookware contact
with the ceramic glass until the surface is cool.
Never leave metal objects (such as kitchen utensils) or empty pans on the
cooktop as they can become hot very quickly.
Beware: magnetisable metal objects worn on the body may become hot in
the vicinity of the cooktop. Gold or silver jewellery will not be affected.
Keep children away.
Handles of saucepans may be hot to touch. Check saucepan handles do not
overhang other cooking zones that are on. Keep handles out of reach of
children.
Failure to follow this advice could result in burns and scalds.
WARNING!
Electrical Shock Hazard
Do not cook on a broken or cracked cooktop. If the cooktop surface should
break or crack, switch the appliance off immediately at the mains power
supply (wall switch) and contact a qualified technician.
Switch the cooktop off at the wall before cleaning or maintenance.
Failure to follow this advice may result in electrical shock or death.
WARNING!
Health Hazard
This appliance complies with electromagnetic safety standards.
However, persons with cardiac pacemakers or other electrical implants (such
as insulin pumps) must consult with their doctor or implant manufacturer
before using this appliance to make sure that their implants will not be
affected by the electromagnetic field.
Failure to follow this advice may result in death.

5
Important safety instructions
Never leave the appliance unattended when in use. Boilover causes smoking and greasy
spillovers that may ignite.
Never use your appliance as a work or storage surface.
Never leave any objects or utensils on the appliance.
Do not place or leave any magnetisable objects (eg credit cards, memory cards) or electronic
devices (eg computers, MP3 players) near the appliance, as they may be affected by its
electromagnetic field.
We recommend using plastic or wooden kitchen utensils for cooking with your induction cooktop.
Never use your appliance for warming or heating the room.
After use, always turn off the cooking zones and the cooktop as described in this manual (ie by
using the touch controls). Do not rely on the pan detection feature to turn off the cooking zones
when you remove the pans.
Do not allow children to play with the appliance or sit, stand, or climb on it.
Do not store items of interest to children in cabinets above the appliance. Children climbing on
the cooktop could be seriously injured.
Do not leave children alone or unattended in the area where the appliance is in use.
Children or persons with a disability which limits their ability to use the appliance should have a
responsible and competent person to instruct them in its use. The instructor should be satisfied
that they can use the appliance without danger to themselves or their surroundings.
Do not repair or replace any part of the appliance unless specifically recommended in the
manual. All other servicing should be done by a qualified technician.
Do not use a steam cleaner to clean your cooktop.
Do not place or drop heavy objects on your cooktop.
Do not stand on your cooktop.
Do not use pans with jagged edges or drag pans across the ceramic glass surface as this can
scratch the glass.
Do not use scourers or any other harsh/abrasive cleaning agents to clean your cooktop, as these
can scratch the ceramic glass.
If the power supply cable is damaged, it must only be replaced by a qualified technician.
Do not operate your cooktop by means of an external timer or separate remote-control system.
WARNING!
Cut Hazard
The razor-sharp blade of a cooktop scraper is exposed when the safety
cover is retracted. Use with extreme care and always store safely and out
of reach of children.
Failure to use caution could result in injury or cuts.
Safety and warnings

6
Installation instructions
Cooktop and cutout dimensions
A
B
C
D
G
F
E
Cooktop and cutout dimensions (mm)
CI604DT CI754DT CI905DT
Aoverall width of cooktop 600 750 900
Boverall depth of cooktop 530 530 530
Cheight of chassis (plastic housing incl. terminal block)
below top of bench 50 50 50
Dwidth of chassis (metal frame) 546 716 852
Edepth of chassis (metal frame) 476 476 482
Foverall width of cutout 560 725 870
Goverall depth of cutout 490 490 494
Electrical connection is
made at the right rear

7
Installation instructions
500 x 50 mm
Oven with
cooling fan
500 x 10 mm
4 mm 4 mm
Thermal protection barrier
500 x
10 mm
80 mm
Clearances
A
B
C
C
E
EE
D
Clearances (mm)
CI604DT CI754DT CI905DT
Aminimum clearance from rear edge of cutout to:
nearest combustible surface 55 55 53
Bminimum clearance from glass surface to:
rangehood 650 650 650
Cminimum clearance from side edges of cutout to:
nearest combustible surface 85 78 80
Dminimum clearance from benchtop to:
overhead cabinet not directly above the cooktop 450 450 450
E
minimum clearance below top of benchtop to:
top of oven* installed below cooktop (see Fig.1)
thermal protection barrier (see Fig.2)
90
75
90
75
90
75
WARNING!
This cooktop requires
adequate supply of fresh,
cool air to fully function.
The base of the cooktop
must have direct
unrestricted ventilation to
the room where the
cooktop is installed. Follow
the requirements below.
Fig. 1 Minimum clearances and ventilation
requirements - oven installed below cooktop
* The oven installed below the cooktop MUST have a cooling fan.
Fig. 2 Minimum clearances and ventilation
requirements - cupboard or drawer space below

8
Installation instructions
Before you install the cooktop, make sure that
the benchtop is square and level, and no structural members interfere with space requirements
the benchtop is made of a heat-resistant material
the cooktop will not be installed directly above a dishwasher, fridge, freezer, washing machine or
clothes dryer, as the humidity may damage the cooktop electronics
if the cooktop is installed above an oven, the oven has a built-in cooling fan
the installation will comply with all clearance requirements and applicable standards and
regulations
a suitable isolating switch providing full disconnection from the mains power supply is
incorporated in the permanent wiring, mounted and positioned to comply with the local wiring
rules and regulations. The isolating switch must be of an approved type and provide a 3 mm air
gap contact separation in all poles (or in all active [phase] conductors if the local wiring rules
allow for this variation of the requirements)
the isolating switch will be easily accessible to the customer with the cooktop installed
you consult local building authorities and by-laws if in doubt regarding installation
you use heat-resistant and easy-to-clean finishes (such as ceramic tiles) for the wall surfaces
surrounding the cooktop.
When you have installed the cooktop, make sure that
the power supply cable is not accessible through cupboard doors or drawers
there is adequate flow of fresh air from outside the cabinetry to the base of the cooktop
if the cooktop is installed above a drawer or cupboard space, a thermal protection barrier is
installed below the base of the cooktop
the isolating switch is easily accessible by the customer
you complete the ‘Final checklist’ at the end of these installation instructions.
The thermal protection barrier must be:
removable
heat-resistant
made from low thermal
conductivity material
at least 25 mm below the
plastic housing of the
cooktop chassis
25 mm min.
Fig. 3 Thermal protection barrier
Fresh air from
outside the
cabinetry

9
Installation instructions
PE
1
2
3
4
5
N
LPE
1
2
3
4
5
N
L 1 L 2
PE
1
2
3
4
5
N
L 1 L 3 L 2
PE
1
2
3
4
5
N
L
Single-phase connection
220-240V~
Single-phase connection
220-240V~
Two-phase connection
380-415V 2N~
Three-phase connection
380-415V 3N~
Connecting the cooktop to the mains power supply
Important!
This cooktop must be connected to the mains power supply only by a suitably qualified person.
Before connecting the cooktop to the mains power supply, check that:
1 the domestic wiring system is suitable for the power drawn by the cooktop.
2 the voltage corresponds to the value given in the rating plate
3 the power supply cable sections can withstand the load specified on the rating plate.
To connect the cooktop to the mains power supply, do not use adapters, reducers, or branching
devices, as they can cause overheating and fire.
The power supply cable must not touch any hot parts and must be positioned so that its
temperature will not exceed 75
o
C at any point.
Power supply
CI604DT 6950W @220-240/380-415V 2N~ (30A)
CI754DT 7400W @220-240/380-415V 2N~ (32A)
CI905DT 9800W @220-240/380-415V 3N~ (42A)
Important!
Check with an electrician whether the domestic wiring system is suitable without alterations. Any
alterations must only be made by a qualified electrician.
Connection diagrams
CI604DT, CI754DT
CI905DT

10
Applying the supplied foam seal
1 Turn the cooktop upside down and place it carefully on a soft surface.
Important!
To avoid damage to the glass, ensure there is a protective cover underneath it.
2 Apply the foam seal around the glass overhang, 5 mm in from the edge of the glass.
3 Turn the cooktop the right way up and place it into the cutout.
Clamping down the cooktop
Depending on the thickness of the benchtop, secure the supplied clamping brackets as shown.
Installation instructions
48-65 mm
30-48 mm
Important!
Do not overtighten the screws!
Important!
Do not overtighten the screws!
x 4
x 4

11
Final checklist
TO BE COMPLETED BY THE INSTALLER
Is the cooktop earthed?
Check that there is an adequate and constant flow of fresh air from outside the cabinetry to the
base of the cooktop.
Check that the power supply cable is not accessible via cupboard doors or drawers.
Is the cooktop clamped down securely?
Check that the pan detection feature is working correctly. Turn on each cooking zone without
putting any cookware on them. Are all the displays flashing ?
Check that all the cooking zones function correctly. Place suitable pans with water in them on
each zone, then turn all of them on to a high setting. Is the water heating?
Are all touch controls and displays functioning?
To check that the ‘hot surface’ indicators function correctly, turn off all the zones. Is H
displayed in all the cooking zone displays?
Have you shown the customer how to use the cookop? Make sure you explain to the customer
about:
the importance of taking note of the safety warnings at the beginning of this manual,
especially for persons with cardiac pacemakers or other electrical implants
the ‘hot surface’ indicators (H)
using induction-suitable cookware only
the pan detection feature ( ).
Installer’s name:
Installer’s signature:
Installation company:
Date of installation:
LEAVE THESE INSTRUCTIONS WITH THE CUSTOMER
Installation instructions

12
Introducing your cooktop
Congratulations on your new purchase. Your Fisher & Paykel induction cooktop is the ultimate in
induction cooking, giving you the speed, precision, and simplicity of electronic control, and the
easy-care elegance of a ceramic glass surface. For more information, visit our local website listed
on the back cover.
A word on induction cooking
Induction cooking is a safe, advanced, efficient, and economical cooking technology. It works by
electromagnetic vibrations generating heat directly in the pan, rather than indirectly through
heating the glass surface. The glass becomes hot only because the pan eventually warms it up.
This technology has a number of advantages over traditional radiant energy cooking:
Heat-up times are much faster.
Use is safer as no heating takes place unless a suitable pan is placed on the cooking zone.
As heat is transferred without loss, you save energy.
Before using your new cooktop
Read this guide, taking special note of the ‘Safety and warnings’ section.
Remove any protective film that may still be on your cooktop.
Using the touch controls

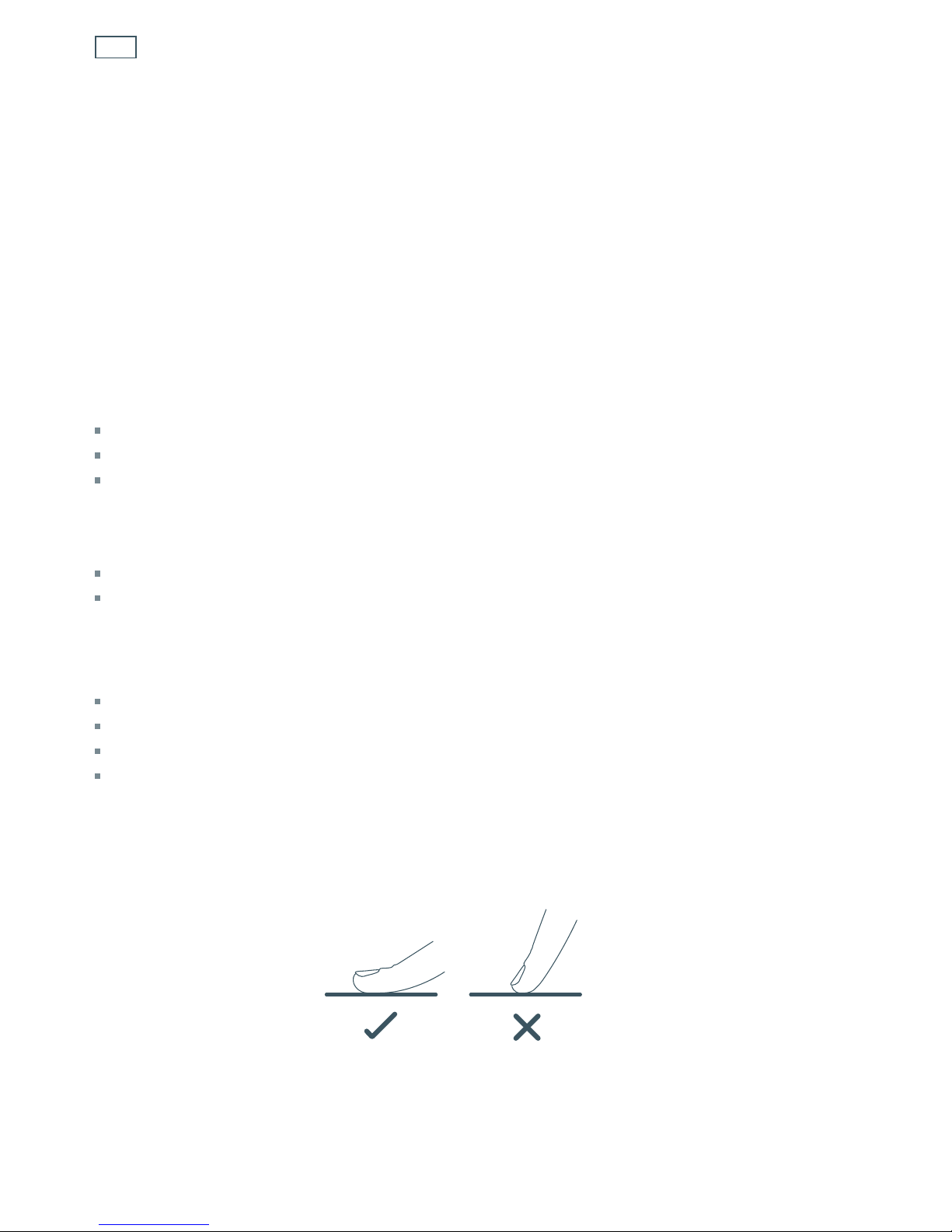

The controls respond to touch, so you don’t need to apply any pressure.
Use the ball of your finger, not its tip.
You will hear a beep each time a touch is registered.
Make sure the controls are always clean, dry, and there is no object (eg a utensil or a cloth)
covering them. Even a thin film of water may make the controls difficult to operate.
Introduction

13
7
7
8
8
9
9
11
11
12
12
10
10
6
66
1 1400 W (1800W*) zone
2 1850 W (2500W*) zone
3 2300 W (3700W*) zone
4 2300 W (3200W*) zone
5 2400 W (3700W*) zone
6 Touch controls
* Maximum power output
when set for PowerBoost
See ‘Using your cooktop’s
special features.’
7 GentleHeat control
8 Timer control
9 PowerBoost control
10 Heat setting controls
11 Keylock control
12 ON/OFF control
Fig.4 CI604DT model
Fig.6 CI905DT model
Fig.5 CI754DT model
Fig.7 Touch controls for CI604DT and CI754DT models
Fig.8 Touch controls for CI905DT model
Introduction
1
1
12
2
4
5
1
3
223
2

14 Choosing the right cookware
Important!
Only use cookware with a base suitable for induction cooking.
Look for the induction symbol on the packaging or the bottom of
the pan.
You can check whether your cookware is suitable by carrying out
a magnet test. Move a magnet towards the base of the pan. If it is
attracted, the pan is suitable for induction.
If you do not have a magnet:
1 Put some water in the pan you want to check.
2 Follow the steps under ‘To start cooking’ opposite.
3 If does not flash in the display and the water is heating, the pan is suitable.
Cookware made from the following materials is not suitable: pure stainless steel, aluminium or
copper without a magnetic base, glass, wood, porcelain, ceramic, earthenware.
Do not use cookware with jagged edges or a curved base.
Make sure that the base of your pan is smooth, sits flat against the glass, and is the same size as
the cooking zone. Always centre your pan on the cooking zone.
Note: for CI905DT models: the large middle cooking zone may also be used successfully with
pans whose base is somewhat smaller than the zone.
Always lift pans off the cooktop– do not slide, or they may scratch the glass.

15
Using your induction cooktop
To start cooking
1 Touch and hold the ON/OFF
control for 2 seconds.
3 Place a suitable pan on the
cooking zone you wish to use.
Make sure the bottom of the pan
and the surface of the cooking
zone are clean and dry.
If a display flashes alternately with the heat setting
This means that:
you have not placed a pan on the correct cooking zone or
the pan you’re using is not suitable for induction cooking or
the pan is too small or not properly centred on the cooking zone.
No heating takes place unless there is a suitable pan on the cooking zone.
The cooktop will automatically turn off after 10 minutes if no suitable pan is placed on it.
4 Select a heat setting by touching –or +.
If you don’t choose a heat setting within 10
seconds, the cooktop will automatically
turn off. Start with step 1 again.
You can modify the heat setting at any time
during cooking.
2 0will appear in the cooking zone displays.

16 Using your induction cooktop
When you have finished cooking
OR
1a Turn the cooking zone off by scrolling down to 0or touching –and +together.
Make sure the display shows 0.
1b Turn the whole cooktop off by touching the ON/OFF control.
2 Beware of hot surfaces
H will show which cooking zone is too hot to touch. It
will disappear when the surface has cooled down to a
safe temperature.

17
Using your induction cooktop
Locking the controls
You can lock the controls to prevent unintended use (for example children accidentally turning
cooking zones on).
When the controls are locked, all controls except the ON/OFF control are disabled.
To lock the controls
1 Make sure that the cooktop is turned on but no cooking zone is in use.
2 Touch and hold the keylock control for 2 seconds. The red light above the control comes on,
indicating that the controls are locked.
Note: the cooktop will automatically turn off after 10 seconds, but the controls will still be locked
when you turn the cooktop on again.
To unlock the controls
1 Make sure the cooktop is turned on.
2 Touch and hold the keylock control for 2 seconds. The red light above the control goes out.
3 You can now start using your cooktop.
Important!
Do not lock the controls while a cooking zone is in use. If you do, you can always turn the cooktop off with
the ON/OFF control in an emergency.

18 Using your cooktop’s special features
Using the PowerBoost feature
This feature enables you to sear meat or bring liquid to the boil very quickly. When a cooking
zone is set for PowerBoost, it uses more than 100% of the power of that particular cooking zone,
resulting in a boost of intense heat.
Important!
PowerBoost heats food and liquids very quickly. Do not leave the cooktop unattended when using this
feature.
To set a cooking zone for PowerBoost
When PowerBoost is set
The cooking zone will be on PowerBoost (more than 100%) for 10 minutes, and then
automatically reduce the heat to setting 9(100%).
To quit the PowerBoost setting
Touch the –control of the cooking zone at any time and select a new setting or turn the cooking
zone off.
1 With the cooktop turned on, touch the
PowerBoost control . The flashing red
light indicates that PowerBoost is ready
to be set.
2 Within 5 seconds, touch the –or +control
of a cooking zone once. Its display will
show P.
10 mins
