Fisher & Paykel ELBA CI704ELTB User manual

Induction cooktop
CI604ELTB, CI704ELTB & CI904ELTB
models
USER GUIDE
NZ AU

1
CONTENTS
IMPORTANT!
SAVE THESE INSTRUCTIONS
The models shown in this user guide may not be available in all markets and are subject
to change at any time. For current details about model and specification availability in
your country, please go to our website www.fisherpaykel.com or contact your local
Fisher & Paykel dealer.
Safety and warnings 2
Introduction 9
Choosing the right cookware 10
Using your induction cooktop 12
Using your cooktop’s special features 18
Cooking guidelines 22
Care and cleaning 26
Troubleshooting 27
Warranty and service 29

2
SAFETY AND WARNINGS
Operation and maintenance
WARNING!
Electrical Shock Hazard
Do not cook on a broken or
cracked cooktop. If the cooktop
surface should break or crack,
switch the appliance off
immediately at the mains power
supply (wall switch) and contact
a qualified technician.
Switch the cooktop off at
the wall before cleaning or
maintenance.
Failure to follow this advice
may result in electrical shock or
death.
WARNING!
Fire Hazard
Unattended cooking on a hob
with fat or oil can be dangerous
and may result in fire.
NEVER try to extinguish a fire
with water, but switch off the
appliance and cover flame, eg
with a lid or fire blanket.
Do not store items on cooking
surfaces.
Failure to follow this advice may
result in serious burns or death.
!
!

3
SAFETY AND WARNINGS
Operation and maintenance
WARNING!
Health Hazard
This appliance complies
with electromagnetic safety
standards.
However, persons with cardiac
pacemakers or other electrical
implants (such as insulin
pumps) must consult with their
doctor or implant manufacturer
before using this appliance to
make sure that their implants
will not be affected by the
electromagnetic field.
Failure to follow this advice may
result in death.
!

4
SAFETY AND WARNINGS
Operation and maintenance
WARNING!
Hot Surface Hazard
During use, accessible parts of
this appliance will become hot
enough to cause burns.
Do not let body, clothing or
any item other than suitable
cookware contact with the
ceramic glass until the surface is
cool.
Never leave metal objects (such
as kitchen utensils) or empty
pans on the cooktop as they can
become hot very quickly.
Beware: magnetisable metal
objects worn on the body may
become hot in the vicinity of the
cooktop. Gold or silver jewellery
will not be affected.
Keep children away.
Handles of saucepans may be
hot to touch. Check saucepan
handles do not overhang other
cooking zones that are on. Keep
handles out of reach of children.
Failure to follow this advice
could result in burns and scalds.
!

5
SAFETY AND WARNINGS
IMPORTANT SAFETY INSTRUCTIONS
 Never leave the appliance unattended
when in use. Boilover causes smoking
and greasy spillovers that may ignite.
 Never use your appliance as a work or
storage surface.
 Never leave any objects or utensils on
the appliance.
 Do not place or leave any
magnetisable objects (eg credit cards,
memory cards) or electronic devices
(eg computers, MP3 players) near the
appliance, as they may be affected by
its electromagnetic field.
 We recommend using plastic or
wooden kitchen utensils for cooking
with your induction cooktop.
 Never use your appliance for warming
or heating the room.
 After use, always turn off the cooking
zones and the cooktop as described
in this manual (ie by using the touch
controls). Do not rely on the pan
detection feature to turn off the
cooking zones when you remove the
pans.

6
SAFETY AND WARNINGS
IMPORTANT SAFETY INSTRUCTIONS
 Do not allow children to play with the
appliance or sit, stand, or climb on it.
 Do not store items of interest to
children in cabinets above the
appliance. Children climbing on the
cooktop could be seriously injured.
 Do not leave children alone or
unattended in the area where the
appliance is in use.
 Children of less than 8 years old must
be kept away from the appliance
unless continuously supervised. This
appliance can be used by children
aged from 8 years and above, and
persons with reduced physical,
sensory or mental capabilities or
lack of experience and knowledge,
if they have been given supervision
or instruction concerning the use of
the appliance in a safe way and they
understand the hazards involved.
Cleaning and user maintenance shall
not be done by children without
supervision.
 Do not repair or replace any part
of the appliance unless specifically
recommended in the manual. All
other servicing should be done by a
qualified technician.

7
SAFETY AND WARNINGS
IMPORTANT SAFETY INSTRUCTIONS
 Do not use a steam cleaner to clean
your cooktop.
 Do not place or drop heavy objects
on your cooktop.
 Do not stand on your cooktop.
 CAUTION: The cooking process
has to be supervised. A short term
cooking process has to be supervised
continuously.
 Do not use pans with jagged edges
or drag pans across the ceramic glass
surface as this can scratch the glass.
 Do not use scourers or any other
harsh/abrasive cleaning agents to
clean your cooktop, as these can
scratch the ceramic glass.
 If the power supply cable is damaged,
it must only be replaced by a qualified
technician.
 Do not operate your cooktop by
means of an external timer or
separate remote-control system.

8

9
INTRODUCTION
Introducing your cooktop
Congratulations on your new purchase. Your Fisher & Paykel induction cooktop is
the ultimate in induction cooking, giving you the speed, precision, and simplicity of
electronic control, and the easy-care elegance of a ceramic glass surface. For more
information, visit our local website listed on the back cover.
A word on induction cooking
Induction cooking is a safe, advanced, efficient, and economical cooking technology.
It works by electromagnetic vibrations generating heat directly in the pan, rather than
indirectly through heating the glass surface. The glass becomes hot only because
the pan eventually warms it up. This technology has a number of advantages over
traditional radiant energy cooking:
 Heat-up times are much faster.
 Use is safer as no heating takes place unless a suitable pan is placed on the cooking
zone.
 As heat is transferred without loss, you save energy.
Before using your new cooktop
 Read this guide, taking special note of the ‘Safety and warnings’ section.
 Remove any protective film that may still be on your cooktop.
Using the touch controls
 The controls respond to touch, so you don’t need to apply any pressure.
 Use the ball of your finger, not its tip.
 Make sure the controls are always clean, dry, and there is no object (eg a utensil or
a cloth) covering them. Even a thin film of water may make the controls difficult to
operate.

10
CHOOSING THE RIGHT COOKWARE

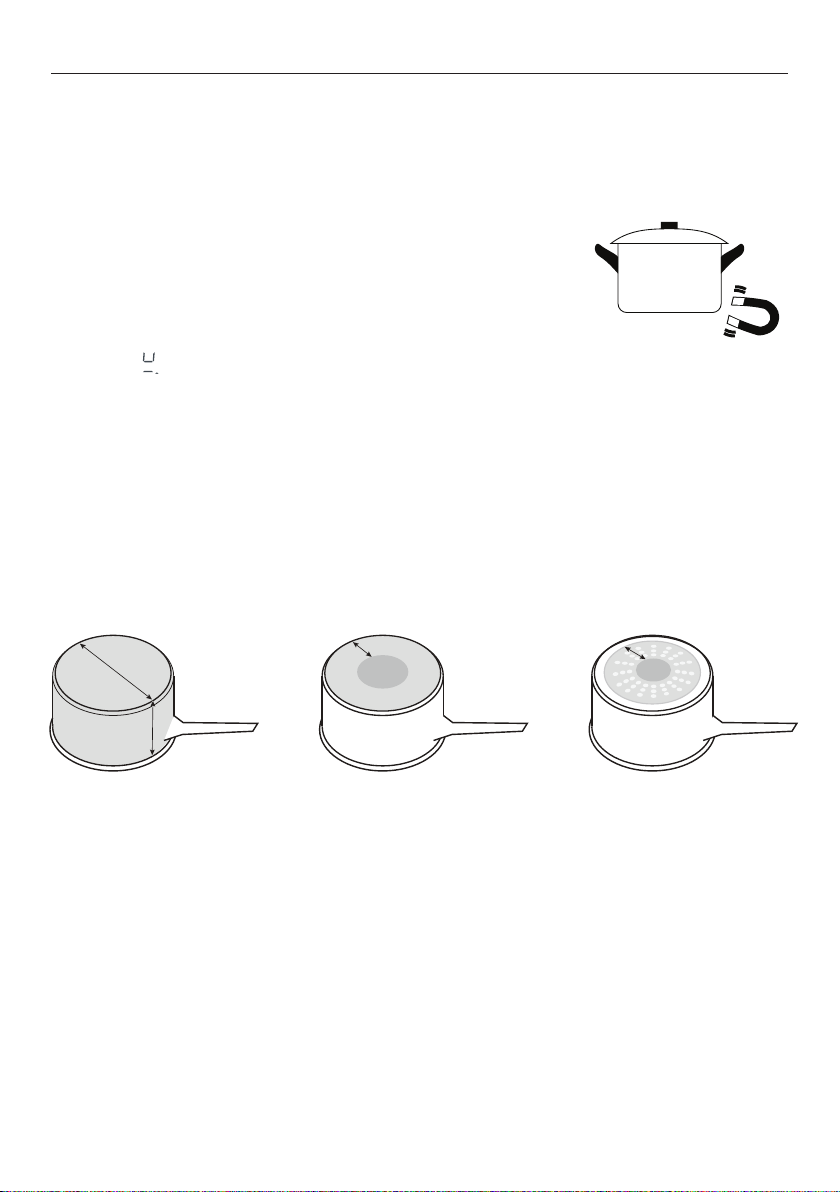

To check if cookware is suitable
 Carry out a magnet test:
 Move a magnet across the base of the pan.
If the magnet is attracted then the pan is induction suitable.
 Note: Make sure attraction is consistent across the base of the pan.
If there are gaps, such as an indented manufacturer’s logo,
then the performance of the pan will be impaired.
 If you do not have a magnet:
1Put some water in the pan you want to check.
2Follow the steps under ‘To start cooking’ opposite.
3If does not flash in the display and the water is heating, the pan is suitable.
Quality of cookware
IMPORTANT!
 The quality of your cookware can affect cooking performance. Only use induction
compatible cookware that has been specifically designed for induction cooking.
Look for the induction symbol on the packaging or the bottom of the pan.
 Cookware that has a high content of ferromagnetic material that continues up from
the base into the sides of the pan will give the best cooking performance.
See below:
Quickest heating
Performance
High content of
ferromagnetic material.
Heating area is
consistent across the
base and continues up
the sides of pan.
Average heating
Performance
Reduced area of
ferromagnetic material.
Reduced zone of
heating, results in poor
cooking performance
and slower heating.
Slow heating
Performance
Very limited area of
ferromagnetic material.
Results in very slow
heating performance.
Note: This type of
pot is good for very
delicate tasks such as
melting chocolate, as
heating is very slow.

11
CHOOSING THE RIGHT COOKWARE
Cookware guidelines
 Cookware made from the following materials is suitable:
 stainless steel with a magnetic base or core
 aluminium and copper with a magnetic base or core
 cast iron
 steel or enamelled steel.
 Cookware made from the following materials is not suitable:
 pure stainless steel
 aluminium or copper without a magnetic base
 glass
 wood
 porcelain
 ceramic or earthenware.
Do not use cookware with jagged edges or a curved base.
Make sure that the base of your pan is smooth, sits flat against the glass, and is similar
in size as the cooking zone. A small pot on a large cooking zone may not be detected.
Always centre your pan on the cooking zone.
Always lift pans off the cooktop – do not slide, or they may scratch the glass.

12
USING YOUR INDUCTION COOKTOP
* Maximum output when set on PowerBoost.
COOKING
ZONE
ZONE
DIAMETER POWER POWERBOOST RECOMMENDED
MINIMUM PAN SIZE
1160mm 1200W 1400W * 110mm
2 200mm 2300W 3000W * 145mm
2
2
2
2
2
21
1
1
11
1
CI704TB modelCI604CTB model
CI904CTB model

13
USING YOUR INDUCTION COOKTOP
Touch controls overview
Cooking zone
selector
Touch to activate
cooking zone
Heat setting/
timer selectors
Touch to adjust
the heat setting
for a cooking
zone, or to adjust
the timer length
Rear cooking zone
displays/timer display
 Shows the heat
settings for the rear
cooking zones
 Shows the number
of minutes set/
remaining on the
timer
Front cooking zone
displays
Shows the heat settings
for the front cooking
zones
ON/OFF control
Touch and hold
to turn the
cooktop on and
off
Timer indicator
If on:
A timer has
been set for
the individual
cooking zone

14
USING YOUR INDUCTION COOKTOP
To start cooking

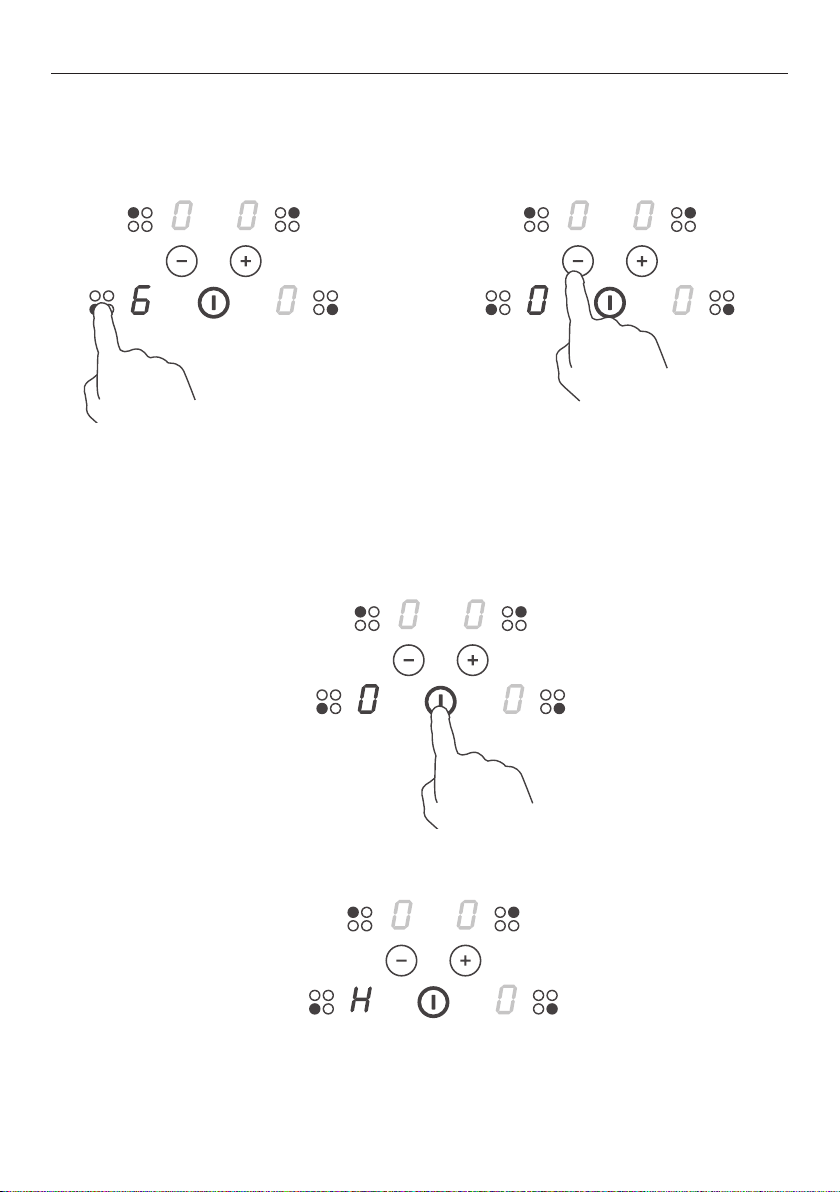

3 Place a suitable pan on the
cooking zone you wish to use.
 Make sure the bottom of the
pan and the surface of the
cooking zone are clean and dry.
IMPORTANT!
Always place small pans in the
centre of the cooking zone.
4 Touch the selector of the cooking zone
you wish to use.
 All the timer indicators will go out.
 The selected cooking zone display
will glow more brightly and the other
cooking zone displays will dim.
2
0will appear in the cooking zone displays.
1 Touch and hold the ON/OFF
control to turn the cooktop on.
 The touch control display will
light up.
 All the timer indicators will
flash.

15
USING YOUR INDUCTION COOKTOP

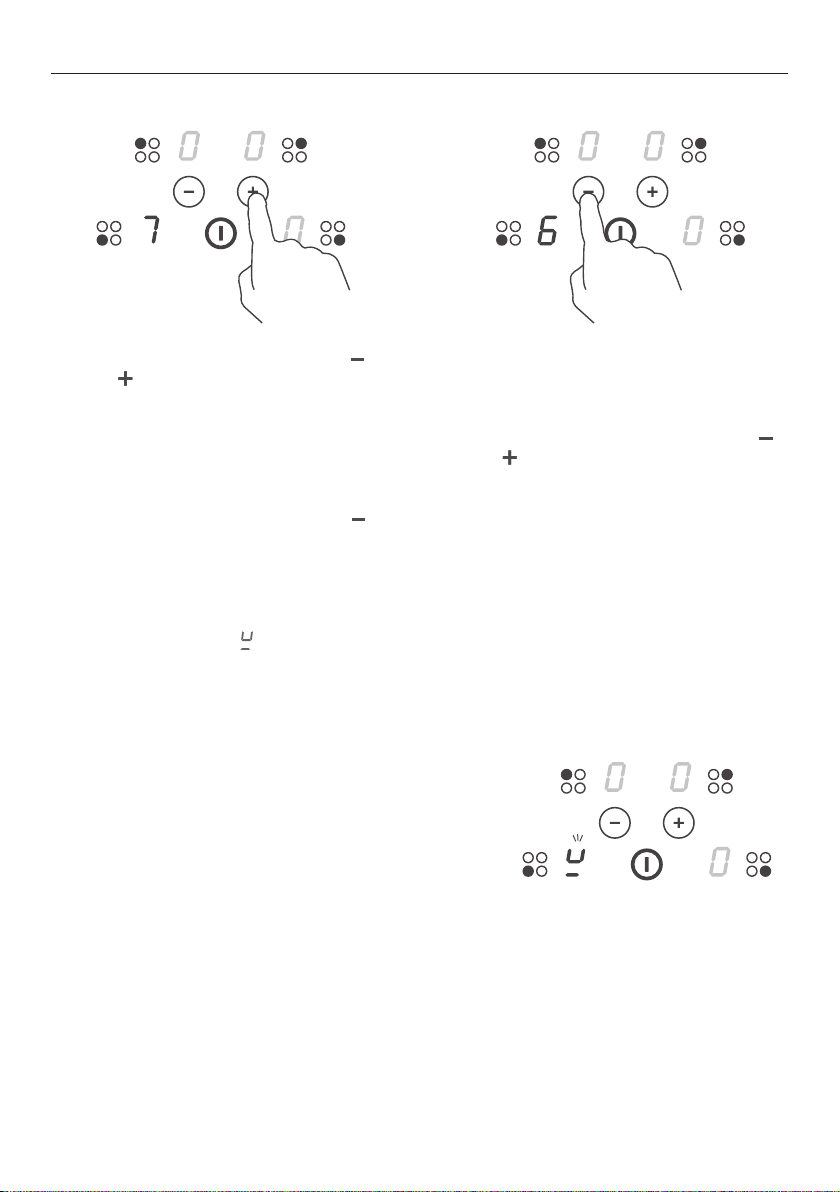

5 Select a heat setting by touching
and
 The setting will appear in the display of
the selected cooking zone.
 If you don’t choose a heat setting
within 10 seconds, the cooktop will
automatically turn off. Start with step 1
again.
 Note: From 0, you can also touch to
set the heat directly to 9
6 You can modify the heat setting at any
time during cooking.
 Touch the selector of the cooking zone
you wish to adjust.
 Adjust the heat setting by touching
and
 The new heat setting will appear in the
display of the selected cooking zone.
If a display flashes alternately with the heat setting
This means that:
 you have not placed a pan on the correct cooking zone or
 the pan you’re using is not suitable for induction cooking or
 the pan is too small or not properly centred on the
cooking zone.
 No heating takes place unless there is a suitable
pan on the cooking zone.
 The cooktop will automatically turn off after
10 minutes if no suitable pan is placed on it.

16
USING YOUR INDUCTION COOKTOP
When you have finished cooking
To turn off an individual cooking zone, but continue to use the other cooking zone
To turn the whole cooktop off
1 Select the cooking zone you want to
turn off.
2 Decrease its heat setting until the
display shows 0. If the cooking zone
surface is too hot to touch, Hwill
replace 0in the display.
1Touch and hold the ON/OFF control.
Beware of hot surfaces
Hwill appear in the display of any cooking zone that is too hot to touch. It will remain
on and steadily lit even when the cooktop is turned off. It will disappear when the
surface has cooled down to a safe temperature.

17
USING YOUR INDUCTION COOKTOP
Locking the controls
 You can lock the controls to prevent unintended use
(for example children accidentally turning cooking zones on).
 When the controls are locked, all controls except the ON/OFF control are disabled.
IMPORTANT!
Do not lock the controls while a cooking zone is in use. If you do, you can always turn
the cooktop off with the ON/OFF control in an emergency.

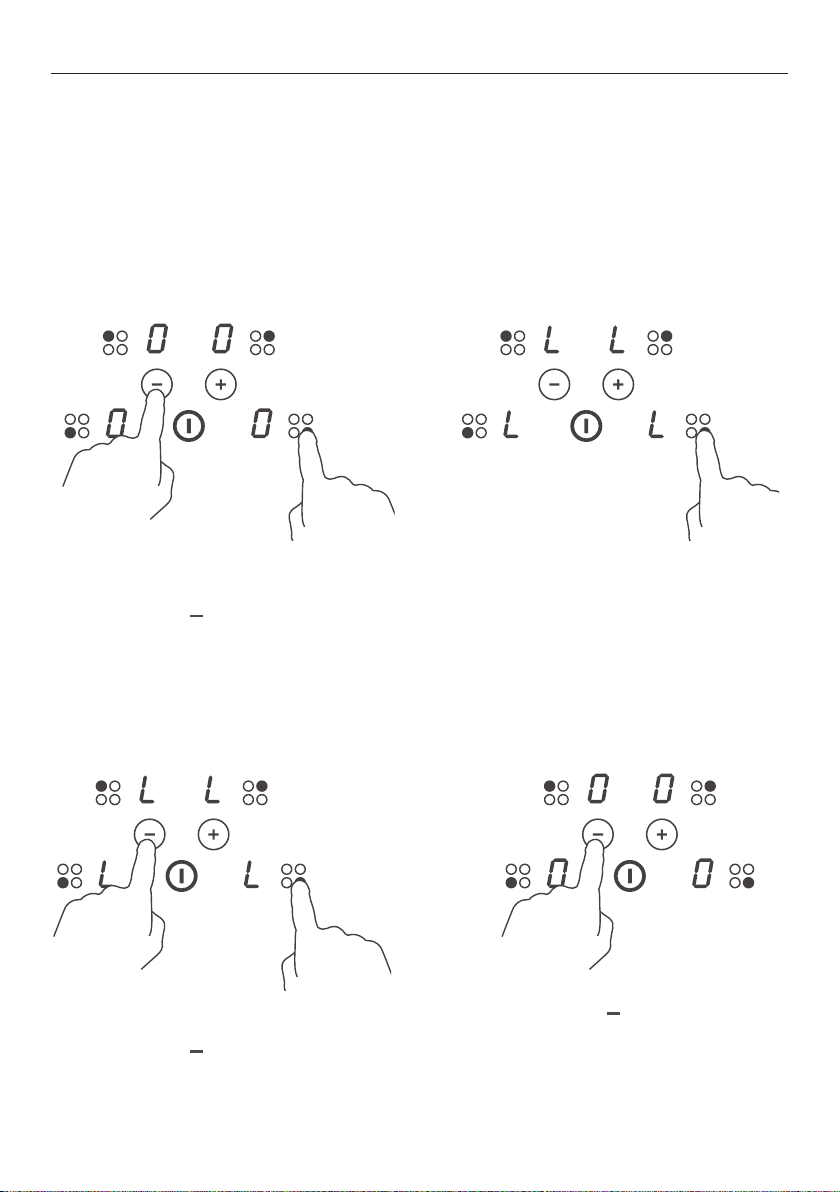

To lock the controls
To unlock the controls
1 Make sure that the cooktop is turned
on but no cooking zone is in use.
2 Touch the front right cooking zone
selector and together.
1 Make sure the cooktop is turned on.
2 Touch the front right cooking zone
selector and together.
3 Touch and hold . 0will appear in
the cooking zone displays, indicating
that the controls are unlocked.
4 You can now start using your cooktop.
3 Then, touch and hold the front right
cooking zone selector again.
 Lwill appear in the cooking zone
displays, indicating that the controls
are locked.
 Note: the cooktop will automatically
turn off after 10 seconds, but the
controls will still be locked when you
turn the cooktop on again.

18
USING YOUR COOKTOP’S SPECIAL FEATURES
Using the PowerBoost feature
The cooking zones can be used with the PowerBoost feature. This feature enables you
to sear meat or bring liquid to the boil very quickly. When the cooking zone is set for
PowerBoost, it uses more than 100% of the power of the cooking zone, resulting in a
boost of intense heat.
IMPORTANT!
PowerBoost heats food and liquids very quickly. Do not leave the cooktop unattended
when using this feature. Take extra care when cooking with oil and fat, as these heat
up very quickly. PowerBoost is not recommended for cooking with oil and fat, such as
deep frying.
To set a cooking zone for PowerBoost
1 Select a cooking zone.
5 mins
When the cooking zone is not already
in use:
2Touch to set the heat to 9, then to
turn on PowerBoost.
If the cooking zone is already in use:
3Touch to adjust the heat to the
maximum setting. will appear in the rear
cooking zone display.
When PowerBoost is set
on the large elements
 The cooking zone will be on PowerBoost (more than 100%) for 5 minutes, P will then
flash for a few seconds before the cooking zone automatically reduces the heat to
setting 9(100%).
on the smaller elements
 When PowerBoost is set on the two smaller cooking zones, it will not automatically
reduce after 5 minutes. To turn PowerBoost off on the smaller cooking zones, touch the
cooking zone selector and then reduce the heat setting by touching .
To quit the PowerBoost setting
Touch to adjust the heat to a new setting or to 0to turn the cooking zone off.
