Fisher & Paykel CI302DTB User manual

BLACK INDUCTION COOKTOP
CI02DTB, CI60DTB, CI604DTB,
CI764DTB & CI905DTB models
USER GUIDE
NZ AU GB IE SG HK SEA

CONTENTS
Safety and warnings 5
First use 10
Cookware 12
Using your cooktop 13
Using the timer 15
Safety features 20
SmartZone 21
Bridging zones 22
PowerBoost 24
GentleHeat 27
Auto RapidHeat 28
Cooking guidelines 30
Care and cleaning 33
Troubleshooting 34
Energy guidelines 37
Energy guidelines (GB IE only) 38
Warranty and service 39
Registration
To register your product visit our website: fisherpaykel.com/register
3

SAFETY AND WARNINGS
!WARNING!
Electric Shock Hazard
Failure to follow this advice may result in
electric shock or death.
• Do not cook on a broken or cracked cooktop.
If the cooktop surface should break or crack,
switch the appliance off immediately at the
mains power supply (wall switch) and contact a
qualified technician.
• Switch off the appliance before cleaning
or maintenance.
!WARNING!
Fire Hazard
Failure to follow this advice may result in
serious burns or death.
• Unattended cooking on a hob with fat or oil can
be dangerous and may result in fire.
• Never try to extinguish fire with water. Switch
off the appliance. Cover the flame, eg with
a lid or fire blanket, or use dry chemical or
foam-type extinguisher.
• Do not store items on cooking surfaces.
5

SAFETY AND WARNINGS
!WARNING!
Hot Surface Hazard
Failure to follow this advice may result in
electric shock or death.
• During use, accessible parts of this appliance
will become hot enough to cause burns.
• Do not let body, clothing or any item other than
suitable cookware contact with the ceramic
glass until the surface is cool.
• Never leave metal objects (such as kitchen
utensils) or empty pans on the cooktop as they
can become hot very quickly.
• Beware: magnetisable metal objects worn on
the body may become hot in the vicinity of
the cooktop. Gold or silver jewellery will not
be affected.
• Keep children away.
• Handles of saucepans may be hot to touch.
Check saucepan handles do not overhang other
cooking zones that are on. Keep handles out of
reach of children.
• Failure to follow this advice could result in burns
and scalds.
6

SAFETY AND WARNINGS
!WARNING!
Health Hazard
Failure to follow this advice may result
in death.
• This appliance complies with electromagnetic
safety standards. However, persons with cardiac
pacemakers or other electrical implants (such
as insulin pumps) must consult with their doctor
or implant manufacturer before using this
appliance to make sure that their implants will
not be affected by the electromagnetic field.
!WARNING!
Cut Hazard
Failure to follow this advice may result in
serious burns or death.
• The razor-sharp blade of a cooktop scraper is
exposed when the safety cover is retracted. Use
with extreme care and always store safely and
out of reach of children.
7

READ AND SAVE THIS GUIDE
WARNING!
To reduce the risk of fire, injury to persons or damage when using the appliance, follow
the important safety instructions listed below. Read all the guidance before using
the appliance.
Installation
zEnsure your appliance is properly installed and grounded by a qualified technician.
General Use
zNever leave the appliance unattended when in use. Boilover causes smoking and greasy
spillovers that may ignite.
zNever use your appliance as a work or storage surface.
zWear proper apparel — Loose-fitting or hanging garments should never be worn while
using the appliance.
zNever leave any objects or utensils on the appliance.
zDo not place or leave any magnetisable objects (eg credit cards, memory cards) or
electronic devices (eg computers, MP3 players) near the appliance, as they may be
affected by its electromagnetic field.
zWe recommend using plastic or wooden kitchen utensils for cooking with your
induction cooktop.
zStorage in or on appliance — Flammable materials should not be stored in an oven or
near surface units.
zDo not place or leave aluminum foil on the cooktop.
zNever use your appliance for warming or heating the room.
zDo not use water on grease fires – Smother fire or flame or use dry chemical or
foam-type extinguisher.
zUse only dry potholders — Moist or damp potholders on hot surfaces may result in
burns from steam. Do not let potholder touch hot heating elements. Do not use a towel
or other bulky cloth.
zUse proper pan size — This appliance is equipped with one or more surface units of
different size. Always place small pans in the centre of the cooking zone.
Select utensils having flat bottoms large enough to cover the surface unit heating
element. The use of undersized utensils will expose a portion of the heating element
to direct contact and may result in ignition of clothing. Proper relationship of utensil to
burner will also improve efficiency.
zAfter use, always turn off the cooking zones and the cooktop as described in this guide
(ie by using the touch controls). Do not rely on the pan detection feature to turn off the
cooking zones when you remove the pans.
zDo not use a steam cleaner to clean your cooktop.
zDo not place or drop heavy objects on your cooktop.
zDo not stand on your cooktop.
zDo not use pans with jagged edges or drag pans across the ceramic glass surface as
this can scratch the glass.
zDo not use scourers or any other harsh/abrasive cleaning agents to clean your cooktop,
as these can scratch the ceramic glass.
zDo not operate your cooktop by means of an external timer or separate
remote-control system.
SAFETY AND WARNINGS
8

SAFETY AND WARNINGS
zDo not cook on broken cooktop — If cooktop should break, cleaning solutions and
spillovers may penetrate the broken cooktop and create a risk of electric shock.
Contact a qualified technician immediately.
Child Safety
zDo not allow children to play with the appliance or sit, stand, or climb on it.
zDo not store items of interest to children in cabinets above the appliance. Children
climbing on the cooktop could be seriously injured.
zDo not leave children alone or unattended in the area where the appliance is in
use. Children of less than 8 years old must be kept away from the appliance unless
continuously supervised. This appliance can be used by children aged from 8 years
and above, and persons with reduced physical, sensory or mental capabilities
or lack of experience and knowledge, if they have been given supervision or
instruction concerning the use of the appliance in a safe way and they understand
the hazards involved. Cleaning and user maintenance shall not be done by children
without supervision.
Cleaning
zClean cooktop with caution — If a wet sponge or cloth is used to wipe spills on a hot
cooking area, be careful to avoid steam burn. Some cleaners can produce noxious
fumes if applied to a hot surface.
Servicing
zDo not repair or replace any part of the appliance unless specifically recommended in
the user guide. All other servicing should be undertaken be a Fisher & Paykel trained
and supported service technician or qualified person.
zIf the power supply cable is damaged, it must only be replaced by a
qualified technician.
zIf the appliance is malfunctioning, it will display an alert code: first note down the alert
code (see section ‘Alert codes’ in this manual), then contact your Authorized Service
Center or Customer Care to arrange for service. Do not use your appliance until it has
been repaired by a Fisher & Paykel authorized technician.
zCAUTION: The cooking process has to be supervised. A short term cooking process has
to be supervised continuously.
Standard Requirements
zThis induction cooktop generates and uses ISM frequency energy that heats cookware
by using an electromagnetic field. It has been tested and complies with Part 18 of the
FCC Rules for ISM equipment. This induction cooktop meets the FCC requirements to
minimize interference with other devices in residential installation. Induction cooktops
may cause interference with television or radio reception. If interfence occurs, the user
should try to correct the interference by:
zRelocating the receiving antenna of the radio or television
zIncreasing the distance between the cooktop and the receiver
zConnecting the receiver into an outlet different than the receiver.
9

FIRST USE
COOKTOP FEATURES
1 Induction zones
2 Control panel
3 Zone indicator
4 Zone display
5 Zone heat selector
6 GentleHeat control
7 GentleHeat indicators
8 Cooktop On/Off
9 Timer control
!0 Timer display
!1 Keylock
1
1
1
1
1
2
4
5
8
6
7
!0
3
9
!1
ZONE DISPLAY DESCRIPTION
Cooking zone off
(not activated)
Cooking zone on
(activated but not operating)
Power levels
4 3 2 1 0 9 8 7 2 1 0 1 0 OFF A
9 8 7
PowerBoost feature
Hot Surface indicator
Pan detection indicator
Bridged zone indicator
Touch display
Your cooktop is operated using
an intuitive touch display. Use
the control panel to navigate
cooking settings.
Using the touch controls
Use the ball of your finger, not its
tip. The controls respond to touch,
so pressure is not needed.
WARNING!
Do not place metal objects on top of the control panel when the cooktop is on.
10

* Maximum output when set on PowerBoost.
** PowerBoost is not available when cooking zones are bridged. See ‘PowerBoost’
ZONE ZONE DIAMETER POWER POWERBOOST RECOMMENDED MINIMUM PAN SIZE
1145mm 1400 W 2200 W* 120mm
2180mm 1850 W 3000 W* 145mm
3210mm 2300 W 3700 W* 145mm
4
Inner zone: 180mm 1850 W 3000 W* 125mm
Dual zone: 260mm 2600 W 5000 W* 250mm
5Smartzone 2100 W 3700 W**
Unbridged: 120mm
Bridged: 250mm
FIRST USE
CI764DTB induction zones
CI302DTB model
5
5
CI603DTB model
1
1
4
12
2
3
CI905DTB induction zones
5
5
5
5
4
CI604DTB model
5
5
5
5
11

COOKWARE
Quickest heating Performance
High content of ferromagnetic material. Heating area is
consistent across the base and up the sides of pan.
Average heating Performance
Reduced area of ferromagnetic material. Reduced zone of
heating, results in poor performance and slower heating.
Slow heating Performance
Very limited area of ferromagnetic material. Results in very
slow heating performance.
Note: This type of pot is good for very delicate tasks such
as melting chocolate, as heating is very slow.
The quality of your cookware can affect cooking performance. Only use
induction-compatible cookware that has been specifically designed for induction cooking.
Look for the induction symbol on the packaging or the bottom of the pan.
Other cookware considerations
Ensure the base of your cookware is smooth, sits flat against the glass, and is similar in size
as the cooking zone. A small pot on a large cooking zone may not be detected. Always
centre your pan on the cooking zone and lift pans off the cooktop – do not slide, or they
may scratch the glass.
Suitable cookware material:
zstainless steel –
with a magnetic base or core
zaluminium and copper –
with a magnetic base or core
zcast iron
zsteel
zenamelled steel.
Unsuitable cookware material:
zaluminium or copper –
without a magnetic base
zglass
zwood
zporcelain
zceramic or earthenware.
To check if cookware material is suitable, carry out a magnet test:
Move a magnet across the base of the pan. If the magnet is attracted, the pan is induction
suitable. Ensure attraction is consistent across the base of the pan. If there are gaps, such
as an indented manufacturer’s logo, then the performance will be impaired.
If you do not have a magnet, fill the pan with some water and refer to section ‘Using your
cooktop’. If does not flash and the water is heating, pan is suitable.
12

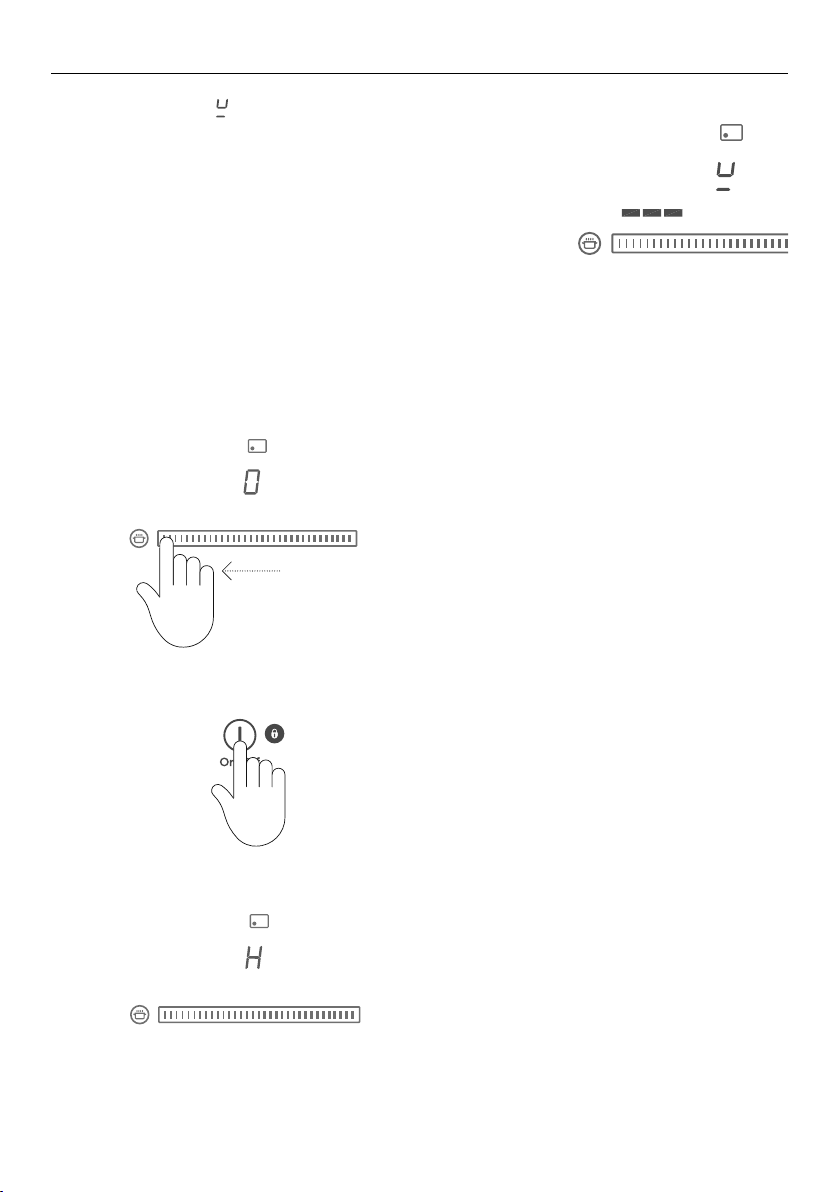

USING YOUR COOKTOP
To start cooking
Touch and hold the COOKTOP On/Off control
for 2 seconds. The indicator light above the
control will glow.
0will appear in the COOKING ZONE displays.
Place a suitable pan on the cooking zone.
Ensure the bottom of the pan and the surface
of the cooking zone are clean and dry.
Always place small pans in the centre of the
cooking zone.
Select a heat setting by touching or sliding
the setting selector with your finger.
zIf you don’t select a heat setting within
20 seconds, the cooktop will automatically
turn off. Start with step 1 again.
zYou can modify the heat setting at any
time during cooking.
1
2
3
4
13

USING YOUR COOKTOP
After cooking is done
Turn the cooking zone off by by touching
or sliding down to 0.
Ensure the display shows 0.
Turn the whole cooktop off by touching the
COOKTOP On/Off control.
Beware of hot surfaces: Hwill flash in the
window of any cooking zone that is too hot
to touch. It will remain on and steadily lit
even when the cooktop is turned off. It will
disappear when the surface has cooled down
to a safe temperature
1
2
3
If a display flashes alternately with the heat setting
This means that:
zyou have not placed a pan on the correct cooking zone or
zthe pan you’re using is not suitable for induction cooking or
zthe pan is too small or not properly centred on the
cooking zone.
No heating takes place unless there is a suitable pan on the cooking zone.
The cooktop will automatically turn off after 10 minutes if no suitable pan is placed on it.
14

USING THE TIMER
You may use the timer in two different ways:
1 You can use it as a minute minder, even when not using the cooktop.
2 You can use it to set individual timers for multiple cooking zones that are in use.
You can set the timer for up to 1 hour and 59 minutes. The time will be displayed in hours
and minutes when the timer is set for longer than 10 minutes.
Using timer as minute minder
You can set the minute minder when you are not using any cooking zones. The cooktop
will turn itself off after 20 seconds after you have set the time, but the timer will continue
to count down. To change or cancel the minute minder setting, you will have to turn the
cooktop back on. See ‘To change or cancel a timer setting’.
.
.
.
Make sure the cooktop is turned ON.
Touch the – and + controls of the
timer together. 0.00 will show in the
minute display.
The egg timer will glow.
Set the time.
Hint: the minutes will scroll faster if you touch
and hold – or + continuously.
A few seconds after the time is set it will
begin to countdown. The display will show
the remaining time in hours and minutes or if
less than 10 minutes, in minutes and seconds.
1
2
3
When the set time is up
0.00 will flash and the timer will beep. Touch the – or + controls to stop the beeping.
15

.
.
.
USING THE TIMER
Using the cooking zone after setting minute minder
If you start using a cooking zone after you have set the minute minder, the minute minder
will continue to count down.
Setting minute minder while using one or more cooking zones
To set the minute minder while using
the cooking zone(s), repeatedly tap
– and + controls of the timer to cycle through
the individual timers for the cooking zones
until the egg timer glows. 0.00 will steadily
show in the minute display.
For example:
If you have 5 cooking zones, you will need to
tap the – and + controls of the timer together
6 times.
Set the time.
Hint: the minutes will scroll faster if you
touch and hold – or + continuously.
A few seconds after the time is set it will
begin to countdown. The display will show
the remaining time in hours and minutes or if
less than 10 minutes, in minutes and seconds.
1
2
3
When set time is up
0.00 will flash and the timer will beep. Touch the – or + controls to stop the beeping.
16

USING THE TIMER
Setting the timer for individual cooking zones
You may now continue to set the timer for additional cooking zones:
Cycle through the zones, by tapping the – and + controls of the timer together until the
timer indicator of the required cooking zone comes on (refer to step 2 and 3).
zNote: the indicator of the cooking zone previously set will be dimly lit, showing you that
the timer is set and counting down for that cooking zone.
Ensure the cooking zone(s) you want to set
the timer for are in use.
Tap the – and + controls of the timer together
until the indicator of the desired cooking
zone comes on.
Set the time.
Note: only indicators of cooking zones in use
will show as you scroll through.
1
2
3
.
.
.
17

Setting different times for each of the cooking zones
Setting the minute minder when other timers are set
1 Repeatedly tap the – and + controls of the timer together as you cycle through the
individual timers for the cooking zones until the egg timer glows. 0.00 will steadily
show in the minute display.
2 Touch the – and + controls to set the timer. It will then countdown.
Note the indicator lights of the previously set cooking zones will be dimly lit, showing
you that the timers are set and counting down.
When the timer is set
zIf more than one timer is set (including the minute minder), the indicator belonging to
the cooking zone or minute minder with the shortest remaining time setting will glow
brightly. Other timer indicators will be dimly lit.
To check the remaining time for another cooking zone:
zTouch the – and + controls of the timer together and repeat until the indicator in the
desired cooking zone window glows brightly.
When the set time is up
z0.00 will flash in the minute display.
zThe timer will beep.
Touch the – or + control to stop the beeping.
The timer indicator of the relevant cooking zone will go out. The display will show 0.
If the timer is still set and counting down for another cooking zone
The cooking time for the timer with the shortest remaining time left will be displayed and
the corresponding timer indicator will glow brightly.
USING THE TIMER
18

To change or cancel a timer setting
With the cooktop turned on, repeatedly tap
the – and + timer controls together until the
indicator light in the desired cooking zone
window glows brightly.
To change:
Set the new time.
To cancel:
Touch the – control of the timer and hold until
the minute display shows 0.
Scrolling down the time to 0will not turn off
the cooking zone.
When you have finished cooking, either touch
or slide the setting selector to a new setting
or to 0to turn the cooking zone off.
1
2
3
USING THE TIMER
19

SAFETY FEATURES
The cooktop control dials can be locked for cleaning and to prevent unintended use.
When the cooktop is locked the controls and cooktop display will remain unresponsive.
Ensure all cooking zones have been turned
to OFF. Touch and hold the keylock control
for 5 seconds. The indicator light
above the control comes on, indicating
that the controls are locked.
To unlock the cooktop, touch and hold
the keylock control for 3 seconds.
The indicator light above the control
goes out. Your cooktop is now unlocked.
LOCKING THE COOKTOP UNLOCKING THE COOKTOP
20
