Fisher & Paykel DD605H User manual

DishDrawer
User guide
GB IE
DS605 and DD605 models

1
Contents
Electrical connection 2
Safety and warnings 3
Controls (Integrated and Prefinished - no LCD) 6
Controls (Prefinished models with LCD) 8
Operation 10
Wash programme chart 11
Caring for your dinnerware 12
Dishwasher standards test 13

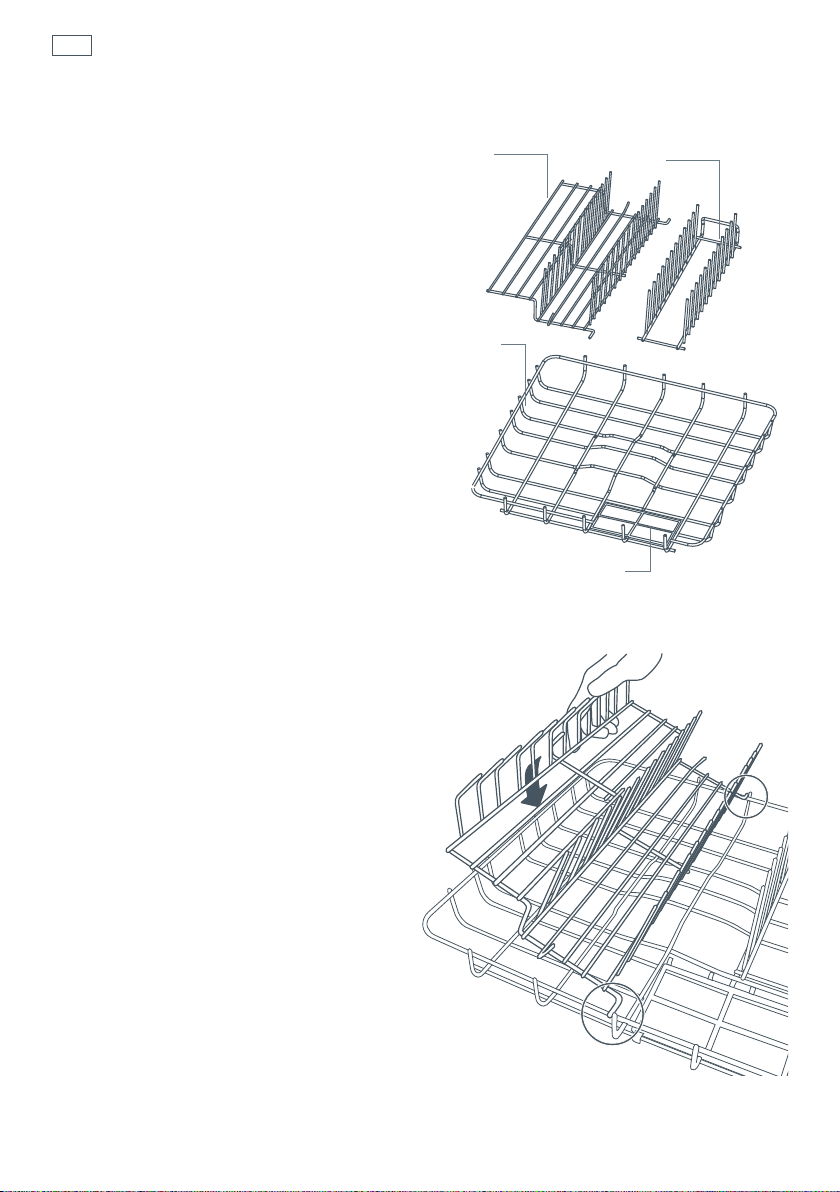

Accessories 14
Loading 16
Detergent dispenser 18
Detergent detergent 19

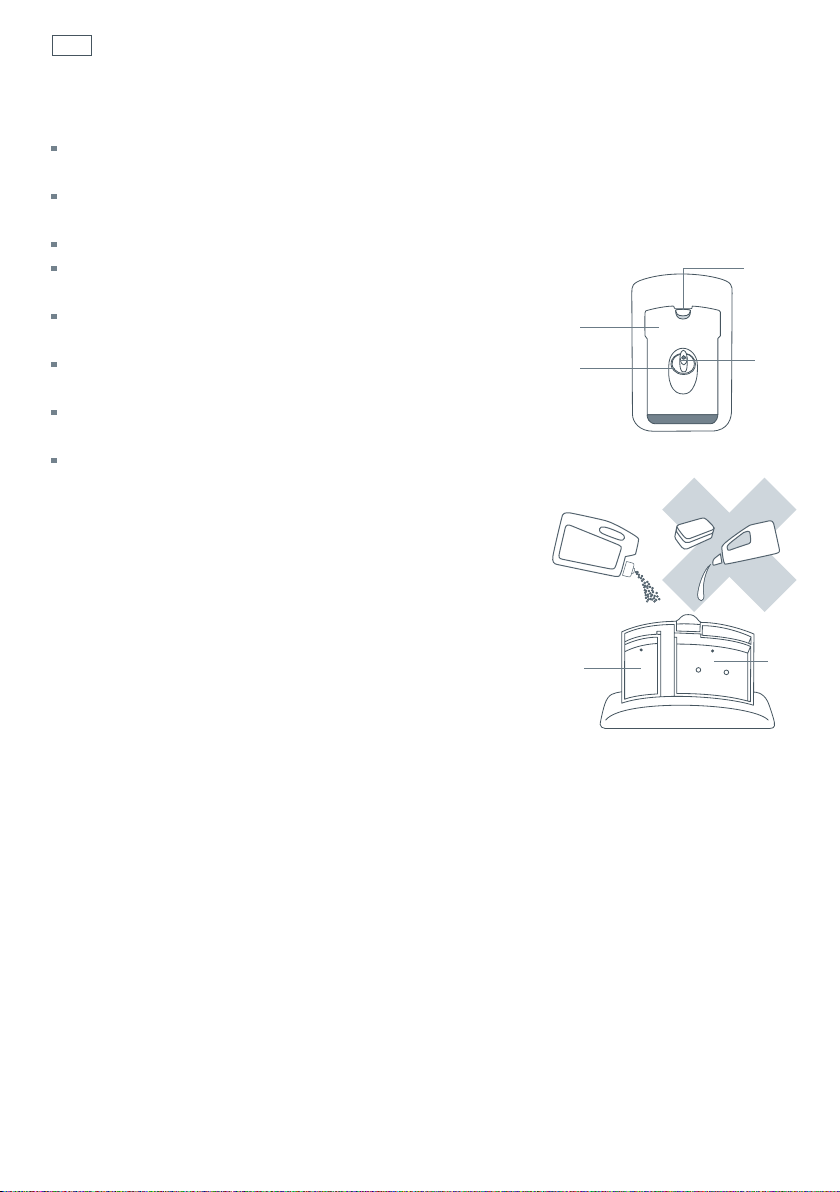

Water softener 20
Rinse aid dispenser 22
Option adjustments 23
Care and cleaning 26
Troubleshooting 29
Fault codes 31
Warranty and service 34
Important!
SAVE THESE INSTRUCTIONS
The models shown in this User Guide may not be available in all markets and are
subject to change at any time. For current details about model and specification
availability in your country, please go to our website www.fisherpaykel.com or
contact your local Fisher & Paykel dealer.

2Electrical connection
For Great Britain only
Important!
This appliance must be earthed.
Fuse replacement
If the mains lead of this appliance is fitted with a
BS 1363A 13 amp fused plug, to change a fuse in
this type of plug use an A.S.T.A. approved fuse to
BS 1362 type and proceed as follows:
1 Remove the fuse cover and fuse.
2 Fit the replacement 13A fuse into the fuse cover.
3 Refit both into plug.
Important!
The fuse cover must be refitted when changing a fuse and if the fuse cover is lost, the plug
must not be used until a correct replacement is fitted.
Correct replacements are identified by the colour insert or the colour embossed in words on
the base of the plug.
Replacement fuse covers are available from your local electrical store.
For the Republic of Ireland
The information given in respect to Great Britain will frequently apply, but a third type of plug
and socket is also used: the 2-pin, side earth type.
Socket outlet / plug (valid for both countries)
If the fitted plug is not suitable for your socket outlet, please contact an Authorised Service
Agent. Please do not attempt to change the plug yourself. This procedure must be carried out
by a qualified service technician in compliance with the manufacturer’s instructions and current
standard safety regulations.
Fuse cover
Fuse

3
Safety and warnings
Your DishDrawer has been carefully designed to operate safely during normal dishwashing
procedures. Please keep the following guidelines in mind when you are using your
DishDrawer®. Please read all instructions before operating the DishDrawer®.
Important safety precautions
The information in this manual must be followed to minimise the risk of fire or explosion or to
prevent property damage, personal injury or loss of life.
Use the DishDrawer® only for its intended function as described in this User Guide.
Use only detergents or rinse aid recommended for use in a domestic Dishwasher and keep them
out of reach of children. Check that the detergent dispenser is empty after the completion of
each wash programme.
When loading items to be washed, locate sharp items so that they are not likely to damage the
lid seal and load sharp knives with the handles up to reduce the risk of cut type injuries.
Do not touch the heater plate during or immediately after use.
Do not operate your DishDrawer® unless all the enclosure panels are properly in place.
Do not tamper with the controls.
Do not abuse, sit on, stand in or on the drawer or dish rack of the DishDrawer®.
The cup racks are designed to support cups, glasses and kitchen utensils. When the cup racks
are in the DishDrawer® do not lean on or use the cup racks to support your body weight.
To reduce the risk of injury, do not allow children to play in or on the DishDrawer®.
Under certain conditions hydrogen gas may be produced in a hot water heater system that has
not been used for two weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot water system
has not been used for such a period, before using the dishwasher, turn on all hot water taps and
let the water flow from each for several minutes. This will release any accumulated hydrogen
gas. As gas is flammable, do not smoke or use an open flame during this time.
Remove the door to the washing compartment when removing an old dishwasher from service
or discarding it.
Dishwasher detergents are alkaline. They can be dangerous if swallowed. Avoid contact with
skin and eyes, keep children and infirm person(s) away from the dishwasher when the drawer is
opened.

4Safety and warnings
Important safety precautions
Installation
This DishDrawer® must be installed and located in accordance with the Installation Instructions
before it is used. If you did not receive Installation Instruction sheets with your DishDrawer®, you
can order them by calling your Authorised Service Agent or from the Fisher & Paykel website,
www.fisherpaykel.com.
Installation and service must be performed by a qualified technician.
If the power supply cord is damaged, it must be replaced by a dealer or Authorised Service Centre
or a similar qualified trades person in order to avoid a hazard.
Ensure the DishDrawer® is secured to adjacent cabinetry using the brackets provided. Failure to
do so may result in an unstable product, which may cause damage or injury.
Do not operate this appliance if it is damaged, malfunctioning, partially disassembled or has
missing or broken parts, including a damaged power supply cord or plug.
Do not store or use petrol, or other flammable vapours and liquids in the vicinity of the
DishDrawer®.
Connect to a properly rated, protected and sized power supply circuit to avoid electrical overload.
Make sure that the power supply cord is located so that it will not be stepped on, tripped over or
otherwise subject to damage or stress.
Do not install or store the DishDrawer® where it will be exposed to temperatures below freezing
or exposed to weather.
Do not use an extension cord or a portable electrical outlet device (e.g. multi-socket outlet box)
to connect the DishDrawer® to the power supply.
Maintenance
Do not repair or replace any part of the appliance or attempt any servicing unless specifically
recommended in this User Guide. We recommend that you call an Authorised Service Agent.
Keep the floor around your appliance clean and dry to reduce the possibility of slipping.
Keep the area around/underneath your appliance free from the accumulation of combustible
materials, such as lint, paper, rags and chemicals.
When cleaning the underside of the filter plate, care must be taken on the sharp outer edge to
avoid the risk of cut type injuries.

5
Safety and warnings
Important safety precautions
Important!
Under no circumstances should you open the drawer whilst the DishDrawer® is in operation.
Operational
Always press the button to pause and wait until you hear the three additional beeps before
opening the drawer.
The DishDrawer® must be used with the motor assembly, filter plate, drain filter and spray arm in
place.
When disconnecting the appliance pull the plug rather than the power supply cord or junction of
cord to avoid damage.
Take care when loading the DishDrawer® not to load dishware items so they prevent the lid from
properly sealing with the drawer. Items should be placed so they do not protrude above and/or
forced into the drawer, otherwise a service call may result.
Household appliances are not intended to be played with by children. Children or persons with a
disability which limits their ability to use the appliance, should have a responsible person instruct
them in its use. The instructor should be satisfied that they can then use the appliance without
danger to themselves or their surroundings.
Close supervision is necessary if this appliance is used by or near children. Do not allow children
to play inside, on or with this appliance or any discarded appliance.
If a Dishwasher cleaner is used, we would strongly recommend a wash programme with detergent
should be run immediately afterward, to prevent any damage to the DishDrawer®.
The DishDrawer® is designed for washing normal household utensils. Items that are
contaminated by petrol, paint, steel or iron debris, corrosive, acidic or alkaline chemicals are not
to be washed in the DishDrawer®.
If the DishDrawer® is not being used for long periods of time, turn the electricity and water supply
to the DishDrawer® off.
Do not pour detergent or rinse aid into the salt reservoir. The detergent or rinse aid will destroy
the water softener.

6Controls
(Integrated and Prefinished - no LCD)
If you have a double DishDrawer®, each drawer has its own controls and can run independently
of the other.
Power button
The button turns the DishDrawer® on or off. Opening
the drawer will automatically turn the DishDrawer® on for
30 seconds. To end a wash programme in mid cycle, press
the button. Any water in the DishDrawer® will be
pumped out.
Start/Pause button
The button starts a wash programme. Press the
button to pause or restart the DishDrawer® during a wash
programme. When paused, wait for three beeps before
opening the drawer. Forcing the drawer open while in mid cycle may cause damage or injury.
Delay Start
The button also sets the Delay Start feature which can delay the start of a wash programme
from 1 to 12 hours.
To activate Delay Start
1 Press and hold the button until the light above the button turns orange (or purple,
depending on your model).
2 Continue holding the button down until the desired delay time has been reached. The
DishDrawer® will emit audible ‘beeps’ as you hold the button down, each beep indicates
another hour delay.
3 The DishDrawer® will start once the delay time has elapsed and the drawer is closed.
To cancel Delay Start
Press the button.
Lock button /(optional)
The / button activates/deactivates the Keylock or the Childlock functions.
Keylock
The Keylock feature disables all the buttons on the DishDrawer®.
To activate, press and hold the / button until you hear one beep (3 seconds). The light
above the / button is lit when Keylock is activated.
To cancel the Keylock feature, press and hold the / button until the light above the /
button disappears.

7
Controls (Integrated and Prefinished - no LCD)
Childlock
The Childlock feature locks the drawer and disables all the buttons on the integrated badge.
To activate, press and hold the / button until you hear two beeps (5 seconds). The light
above the / button is lit when Childlock is activated.
To cancel the Childlock feature, press and hold the / button until the light above the
/ button disappears.
Wash programme selector
Press the button to select a wash programme. The DishDrawer® will remember the last
programme used.
Eco button (optional)
Press the button if you would like the wash programme to use less energy. The red ECO
light will indicate the feature is on. If your dishes are heavily soiled or you require enhanced dry
performance, we do not recommend ECO programmes.
Power failure
If the DishDrawer® is operating and a power failure occurs, it will stop. The DishDrawer® may be
unable to be opened during this time. When the power supply is resumed, the DishDrawer® will
restart in the same part of the wash programme.
Heavy Normal Fast Delicate Rinse

8Controls
(Prefinished models with LCD)
If you have a double DishDrawer®, each drawer has its own control panel and can run
independently of the other.
Power Button
The button turns the DishDrawer® on or off. Opening the drawer will automatically turn the
DishDrawer® on for 30 seconds. To end a wash programme in mid cycle, press the button.
Any water in the DishDrawer® will be pumped out.
Start/Pause Button
The button starts a wash programme. Press the button to pause or restart the
DishDrawer® during a wash programme. When paused, wait for three beeps before opening the
drawer. Forcing the drawer open while in mid cycle may cause damage or injury.
Delay Start
The button also sets the Delay Start feature which can delay the start of a wash programme
from 1 to 12 hours.
To activate Delay Start
1 Press and hold the button until the delay symbol appears on the electronic display.
2 Continue holding the button down until the desired delay time has been reached.
3 The DishDrawer® will start once the delay time has elapsed and the drawer is closed.
To cancel Delay Start
Press the button.
Lock Button (optional)
The button activates/deactivates the Keylock or the Childlock functions.
Wash programme
progress symbol
Power button
Electronic display
Time remaining
(Delay Start)
Delay Start symbol
Start/Pause
button
Lock button

9
Keylock
The Keylock feature disables all the buttons on the control panel.
To activate, press and hold the button until you hear one beep (3 seconds). The symbol
appears in the electronic display when the Keylock feature is activated.
Childlock
The Childlock feature locks the drawer and disables all the buttons on the control panel.
To activate, press and hold the button until you hear two beeps (5 seconds). The symbol
appears in the electronic display when the Childlock feature is activated.
To cancel the Childlock feature, press and hold the button until you hear one beep and the
symbol disappears from the electronic display.
Wash programme selector
Press the button to select a wash programme. The DishDrawer® will remember the last
programme used.
Eco button (optional)
Press the button if you would like the wash programme to use less energy. The red ECO
light will indicate the feature is on. If your dishes are heavily soiled or you require enhanced dry
performance, we do not recommend ECO programmes.
Wash programme progress symbols
As the wash programme advances through the cycle, the following symbols will appear in
the electronic display to indicate the progression. When a wash programme has started, the
electronic display also will count down the time remaining in one minute increments.
Power failure
If the DishDrawer® is operating and a power failure occurs, it will stop. The DishDrawer® may be
unable to be opened during this time. When the power supply is resumed, the DishDrawer® will
restart in the same part of the wash programme.
Controls (Prefinished models with LCD)
Dirty Pre Wash Main Wash Post Rinse Drying Clean
Heavy Normal Fast Delicate Rinse

10 Operation
1 Load dishes
Remove all food scraps and load the dishes.
2 Add detergent
3 Check rinse aid
4 Press the button
5 Select a wash programme
The length of the wash programme will
appear on the electronic display (Prefinished
models only).
6 Select (optional)
7 Check
Ensure there is nothing obstructing the
spray arm. The drain filter must be level with
the filter plate.
8 Start
Close the drawer and press the button.
9 Finish
The DishDrawer® will beep six times to
indicate the end of the wash programme. At
the end of the wash programme the drying
fan will continue to run for a set time or
until the drawer is opened. The fan assists
with drying and uses negligible amounts
of energy. It is normal for some water to
remain in the drain filter area after the wash
programme is complete.
DD605 only: At the end of a wash
programme, you may find both drawers
draining simultaneously. This is normal.
1
2,3
4
6
7
8
5

11
Wash programme chart
Standard Wash Programme - when to use
Heavy
Heavily soiled
pots, pans and
dishes.
Normal
Dishes with
normal soils
for optimum
wash and dry
performance.
Fast
Lightly soiled
dishes.
Delicate
Lightly soiled and
heat sensitive
crockery.
Rinse
Prevents odours and
soils drying on dishes.
pre wash
main wash 70
o
C main wash 65
o
C main wash 55
o
C main wash 50
o
C
post rinse post rinse post rinse post rinse
post rinse post rinse post rinse
final rinse 65
o
C final rinse 65
o
C final rinse 50
o
C final rinse 60
o
C
drying phase drying phase drying phase
Eco Wash Programme - when to use
Heavy
Heavily soiled
everyday dishes.
Normal*
Normal soiled
dishes for
optimum energy
use.
Fast
Lightly soiled, non
greasy dishes.
Delicate
Lightly soiled,
non greasy and
heat sensitive
crockery.
main wash 60
o
C main wash 55
o
C main wash 45
o
C main wash 45
o
C
post rinse post rinse post rinse post rinse
post rinse post rinse
final rinse 55
o
C final rinse 60
o
C final rinse 45
o
C final rinse 50
o
C
drying phase drying phase drying phase
Note
*Reference programme for energy label in compliance with EN50242 Regulations.
Wash times can vary depending on the incoming water temperature, ambient conditions, type
of dish load and whether the drawer has been opened during the wash. Wash times are only
APPROXIMATE on the Electronic Display (LCD) and based on 15 °C incoming water.

12 Caring for your dinnerware
The combination of high temperatures and dishwasher detergent may cause damage to some
items if they are washed in the DishDrawer®. Remember, if in any doubt about any aspect
concerning items washed in the DishDrawer®, follow the instructions from the manufacturer of
the items, or wash the item by hand.
Cutlery & silverware
All cutlery and silverware should be rinsed immediately after use to prevent tarnishing caused
by some foods. The Rinse wash programme is useful for this. Silver items should not come into
contact with stainless steel, eg other cutlery. Mixing these items can cause staining. Remove
silver cutlery from the DishDrawer® and hand dry it immediately after the programme has
finished.
Aluminium
Aluminium can be dulled by dishwasher detergent. The degree of change depends on the
quality of the product.
Other metals
Iron and cast iron objects can rust and stain other items. Copper, pewter and brass tend to stain.
Woodware
Wooden items are generally sensitive to heat and water. Regular use in the dishwasher may
cause deterioration over time. If in doubt, wash by hand.
Glassware
Most everyday glassware is dishwasher safe. Crystal, very fine and antique glassware may etch
that is, become opaque. You may prefer to wash these items by hand.
Plastic
Some plastic may change shape or colour with hot water. Check manufacturer’s instructions
about washing plastic items. Washable plastic items should be weighed down so they do not
flip over and fill with water or fall through the basket during the wash.
Decorated items
Most modern china patterns are dishwasher safe. Antique items, those with a pattern painted
over the glaze, gold rims or hand painted china may be more sensitive to machine washing. If in
doubt, wash by hand.
Glued items
Certain adhesives are softened or dissolved in machine washing. If in doubt, wash by hand.
Holiday time
If the DishDrawer® is not going to be used for some time, we recommend you ensure the baskets
are empty. Leave the inside of the DishDrawer® clean. Leave the drawers ajar to allow air to
circulate. Turn off both the power and water supply to the DishDrawer®.

13
Dishwasher standards test
The DishDrawer®s are tested to EN50242 standards for both wash and dry performance.
The following are loading pattern diagrams, detergent quantities and rinse aid quantities used
for the DishDrawer®.
Wash Programme Normal Eco
Detergent Quantities 2.5g (pre wash)
15.5g (main wash)
Rinse Aid Setting 4
Water Softener setting Adjust the water softener to match the water
hardness. Refer to the water softener and option
adjustment mode section of the User Guide.
Maximum Place Setting (per
DishDrawer)
6
Accessories to be used in the
Dishwasher Standards Test
Basket, drain filter access panel, mega rack, plate
insert, cutlery basket, cup racks and cup support
assembly.
Recommended Loading Pattern
To install the cup support assembly
Note: the front cup support assembly is
longer than the rear.
Loading particulars for the cups
12 3 456 78
3224 4223
7244 4426
815
315
315
518
513
513

14 Accessories
The inserts and racks can be added or removed to
suit your individual needs. If you have the double
DishDrawer® model, some of the accessories are
interchangeable between the two drawers. For
example you can combine the two Mega Racks into
one drawer and wash all cups and glasses, leaving
the other drawer for plates and larger items.
a. Basket
The basket holds some of the accessories in place
and keeps dishes away from the spray arm.
b. Drain filter access panel
The drain filter access panel is designed to snap
onto the basket over the drain filter. This prevents
objects from touching the base of the DishDrawer®
and stopping the rotation of the spray arm, while
still giving access to the drain filter.
c. Mega rack
The Mega rack is designed to hold
glasses, cups and small plates.
d. Plate insert
The plate insert supports plates and
bowls.
How to install the Mega rack
To install the Mega rack, place the outer
legs of the rack on top of the basket,
and clip the Mega rack to the side of the
basket. When the Mega rack is correctly
installed it should not feel loose in the
basket.
cd
a
b

15
Accessories
Cup racks
Cups, glasses and kitchen utensils can be placed on the
left and right hand side of the cup racks.
For best performance ensure there are no large items
below, blocking the wash water from reaching the cup
racks.
Wine glasses can be supported on the cup racks if used in
conjunction with the Mega rack.
There are stops on the cup rack to prevent cups from
touching the DishDrawer® wall. This will maximise the dry
and wash performance.
Cutlery basket
Cutlery, small kitchen utensils and some plastic lids are
best placed into the cutlery basket.
For best wash performance, we recommend loading
cutlery with handles pointing down and sharp utensils
with their handles facing up, to reduce the risk of injury.
Mix spoons, knives and forks within each section, to
stop cutlery nesting together and to ensure the water
circulates freely.
Keep stainless steel from touching silver cutlery to avoid
staining.
Small items, like plastic lids, can be placed under the anti-
nesting grids. This will prevent them from being displaced
by wash water and falling to the bottom, where they may
stop the spray arm rotation.

16 Loading
Wash water for the DishDrawer® comes from the spray arm which is situated inside the base of
the drawer. The spray arm rotates, providing wash water to all areas of the wash compartment
so care needs to be taken when loading dishes to ensure there is enough space for the water to
reach all areas, particularly the cup racks. If there are any items blocking the spray arm path or
the wash water, then the performance will be reduced.
How to load your DishDrawer®
Note: The basket and its inserts are not designed to be lifted out of the DishDrawer® while
loaded with dishes.
Standard test load
Heavy load

17
Loading
How NOT to load your DishDrawer®
Overcrowded and wash water will not
reach some of the dinnerware.
Cups, glasses and bowls must have their
openings facing down.
The plates are nesting together and wash
water may not get through.
Ensure cutlery items are not nesting or stuck
together. They need to be evenly spread
out.
Ensure dishware items are not forced
into or protrude out of the drawer as this
may prevent the lid from properly sealing
which could result in a service call.
Locate sharp items safely to prevent
injuring the user and damaging the lid
assembly.
Check the bottom of the cutlery basket to
ensure sharp or pointed items have not
come through as they may stop spray arm
rotation.
Ensure cutlery has not fallen through the
basket and stopped the spray arm from
rotating.
The large bowl is blocking wash water
reaching the cup racks.
Large utensils should be on cup racks so
they do not become dislodged and stop the
spray arm from rotating.
Sharp or pointed items must be placed
horizontally or with sharp edges/points
facing down to avoid risk of injury.

18 Detergent dispenser
Important!
Only use powdered detergent recommended for domestic automatic dishwashers in the
detergent dispenser.
Dishwasher detergents are strongly alkaline and can be dangerous if swallowed.
Avoid contact with skin and eyes.
Keep children and infirm persons away from the DishDrawer® when the drawer is open.
Check that the detergent receptacle is empty after completion
of the wash cycle. Failure to do so could result in poisoning.
Do not place dishwasher tablets in the
detergent dispenser
Detergent and dishwasher tablets should not
be in direct contact with dishes or cutlery.
Liquid detergents are not suitable to be used in
the DishDrawer®.
Hand washing liquids, soap, laundry detergents
or disinfectants will damage the DishDrawer®.
Filling the detergent dispenser
1 Press the latch down and the door will open.
2 Pour in detergent. No detergent is needed for the Rinse
programme.
3 After filling the main wash compartment, close the dispenser
door until it clicks shut. The detergent will automatically be
released into the DishDrawer® during the wash programme.
a Pre Wash Compartment,
10g capacity (not used in
Europe)
b Main Wash Compartment,
30g capacity
c Detergent Dispenser Latch
d Rinse Aid Indicator Light
e Rinse Aid Plug
Closed detergent dispenser
Open detergent dispenser
a,b
ed
c
ab
