INSTALLATION GUIDE
INTEGRATED
DD24SI9, DD24STI9, DD24SHI9
DD24SHTI9
SINGLE DISHDRAWER™ DISHWASHER
US CA
INSTALLATION GUIDE

3
SAFETY AND WARNINGS
! WARNING!
Electric Shock Hazard
Failure to follow this advice may result in
electrical shock or death.
• Fitting an integrated panel requires access to
electrical service areas. This must be performed
by a Fisher & Paykel trained and supported
service technician or qualified person.
• Before fitting the front panel, the dishwasher
must be disconnected from the power supply.
• After installing the front panel, the installer
must ensure that the following components
are electrically earthed: the panel bracket and
any custom metal component (e.g. handle) that
extends past the rubber seal.
• This appliance must be earthed. In the event of a
malfunction or breakdown, earthing will reduce
the risk of electric shock by providing a path of
least resistance for electric current. This appliance
is equipped with a cord having an equipment-
earthing conductor and an earthing plug.
• Before installing the DishDrawer™ Dishwasher,
remove the house fuse or open the circuit breaker.
• The plug must be plugged into an appropriate
outlet that is installed and earthed in accordance
with all local codes and ordinances.
• Do not modify the power supply plug provided
with the appliance – if it will not fit the outlet,
have a proper outlet installed by a qualified
electrician. Do not use an extension cord, adapter
plug or multiple outlet box.
• The dishwasher must be completely enclosed at
the time of installation.
! WARNING!
Electric Shock Hazard
Failure to follow this advice may result in
electrical shock or death.
• WARNING – Improper connection of the
equipment-earthing conductor can result in a
risk of electric shock. Check with a qualified
electrician or service representative if you
are in doubt as to whether the appliance is
properly earthed.
! WARNING!
Cut Hazard
Failure to use caution could result in injury.
• Take care – panel edges are sharp.

4
SAFETY AND WARNINGS
WARNING!
To reduce the risk of fire, injury to persons or damage when using the appliance, follow the
important safety instructions listed below. Read all the guidance before using the appliance.
Servicing
zDo not repair or replace any part of the appliance unless specifically recommended in
this guide. All other servicing should be undertaken by a Fisher & Paykel trained and
supported service technician or qualified person.
Installation
zInstallation of this DishDrawer™ Dishwasher requires basic mechanical and
electrical skills.
zInstallation must comply with your local building and electricity regulations.
zRemove all packaging materials supplied with the dishwasher.
zBe sure to leave these Instructions with the Customer.
zAt the completion of the installation, the Installer must perform the Final Checklist.
zThis dishwasher is manufactured for indoor use only.
zEnsure all water connections are turned OFF. It is the responsibility of the plumber and
electrician to ensure that each installation complies with all Codes and Regulations.
zThe DishDrawer™ Dishwasher MUST be installed to allow for future removal from the
enclosure if service is required.
zThe switched power outlet must be outside the dishwasher cavity, so that it is
accessible after installation.
zCare should be taken when the appliance is installed or removed to reduce the
likelihood of damage to the power supply cord and hoses.
zIf the DishDrawer™ Dishwasher is relocated from one installation site to another it must
be kept upright to avoid damage from water spillage.
zEnsure only supplied hoses are used for connection. Old hoses should not be reused.
zFailure to install correctly could invalidate any warranty or liability claims.
zIf the product is installed in a motor vehicle, boat or similar mobile facility, you must
bring the vehicle, boat or mobile facility containing the product to the service shop at
your expense or pay the service technician’s travel to the location of the product.
SAVE THESE INSTRUCTIONS
The models shown in this installation guide may not be available in all markets and are subject to
change at any time. For current details about model and specification availability in your country,
please go to our website www.fisherpaykel.com or contact your local Fisher&Paykel dealer.

5
TOOLS AND COMPONENTS
zKeep all packing materials until the unit has been inspected.
zInspect the product to ensure there is no shipping damage. If any damage is detected
contact the dealer or retailer you bought the product from to report the damage.
zFisher & Paykel is not responsible for shipping damage.
*optional | **comes fitted to the product
Supplied
PARTS SUPPLIED TOOLS REQUIRED
INSTALL VIDEO
Side mounting bracket
kits (2)*
Drain hose support (1)
38mm bottom fixing
screws and washers (2)
Drain hose joiner (1)
Moisture protection
tape (1)
Wire clip (1) External venting kit (1) Trim bracket*
16mm Phillips screws (16)
Clamp (1)
Panel bracket kits (1)**
Inlet hose rubber washer
(1)**
This video provides an overview of what is needed to install a DishDrawer™ Dishwasher. It is
intended as an overview only of the installation process and is not intended to be used as a
standalone guide on how to install a DishDrawer™ Dishwasher yourself. Installation should be
undertaken by a Fisher & Paykel trained and supported service technician or qualified person.
To access installation videos
Scan the QR code with your smartphone or watch online at:
fisherpaykel.com/dishdrawer-install
Flat-blade screwdriver
Level
Powered driver
Pliers
Box cutter Pencil
Not supplied
Phillips screwdriver

6

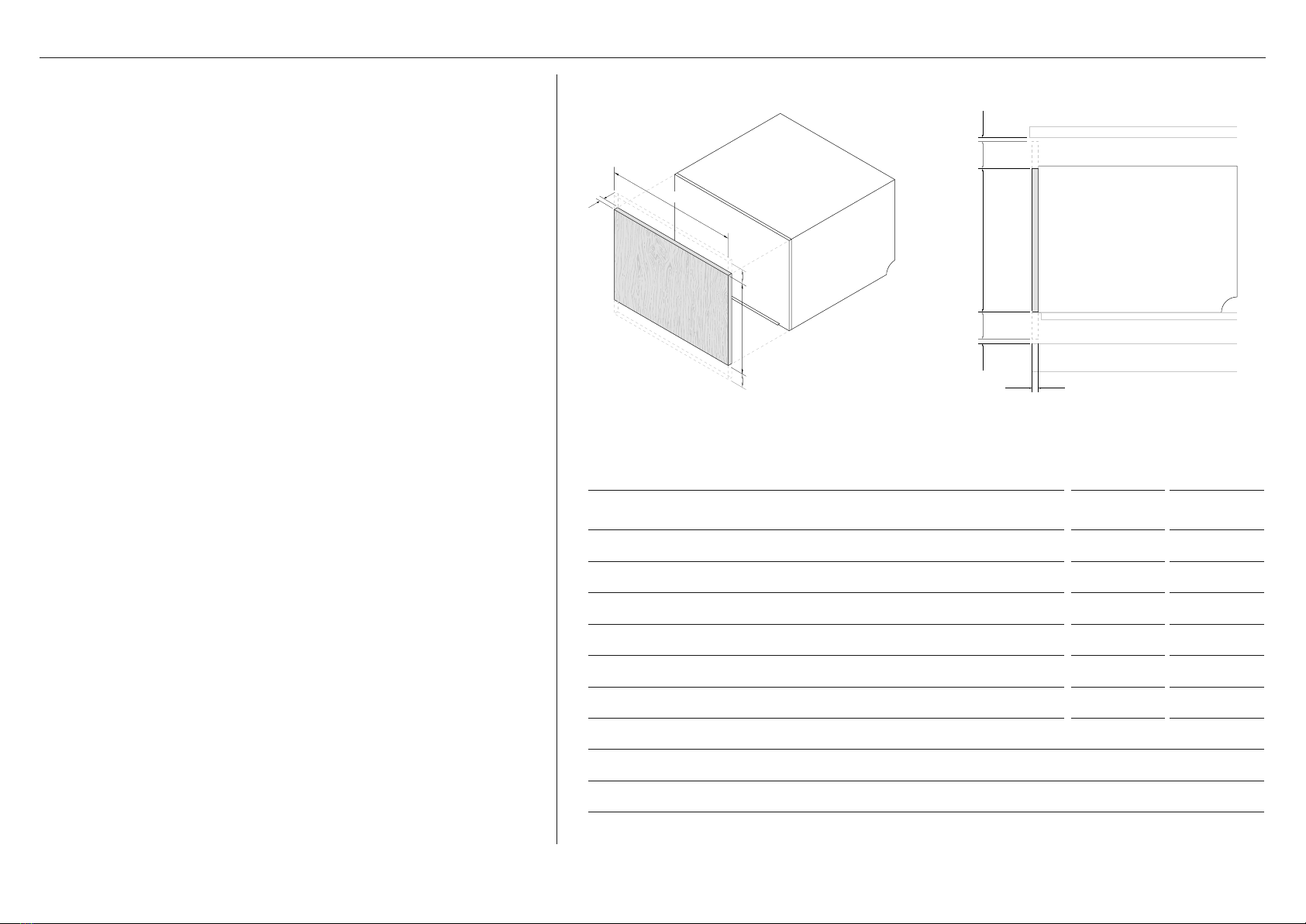

PRODUCT DIMENSIONS
Actual product dimensions may vary by ± 1/16” (2 mm)
PRODUCT DIMENSIONS
DD24SI DD24STI
INCHES MM INCHES MM
A Overall height 16 1/8 410 17 7/8 454
B Overall width 23 9/16 599 23 9/16 599
C Overall depth* 22 1/2 572 22 1/2 572
D Depth of chassis 21 3/4 553 21 3/4 553
E Front panel depth** 5/8 – 13/16 16 – 20 5/8 – 13/16 16 – 20
F Max. drawer
extension*** 20 3/4 527 20 3/4 527
*based on front panel thickness of 3/4" (19mm)
**refer to 'Custom panel dimensions' for more information
***excluding custom panel and handle
PLAN
PROFILEFRONT
A
C
b
f
D
e
ISOMETRIC

7

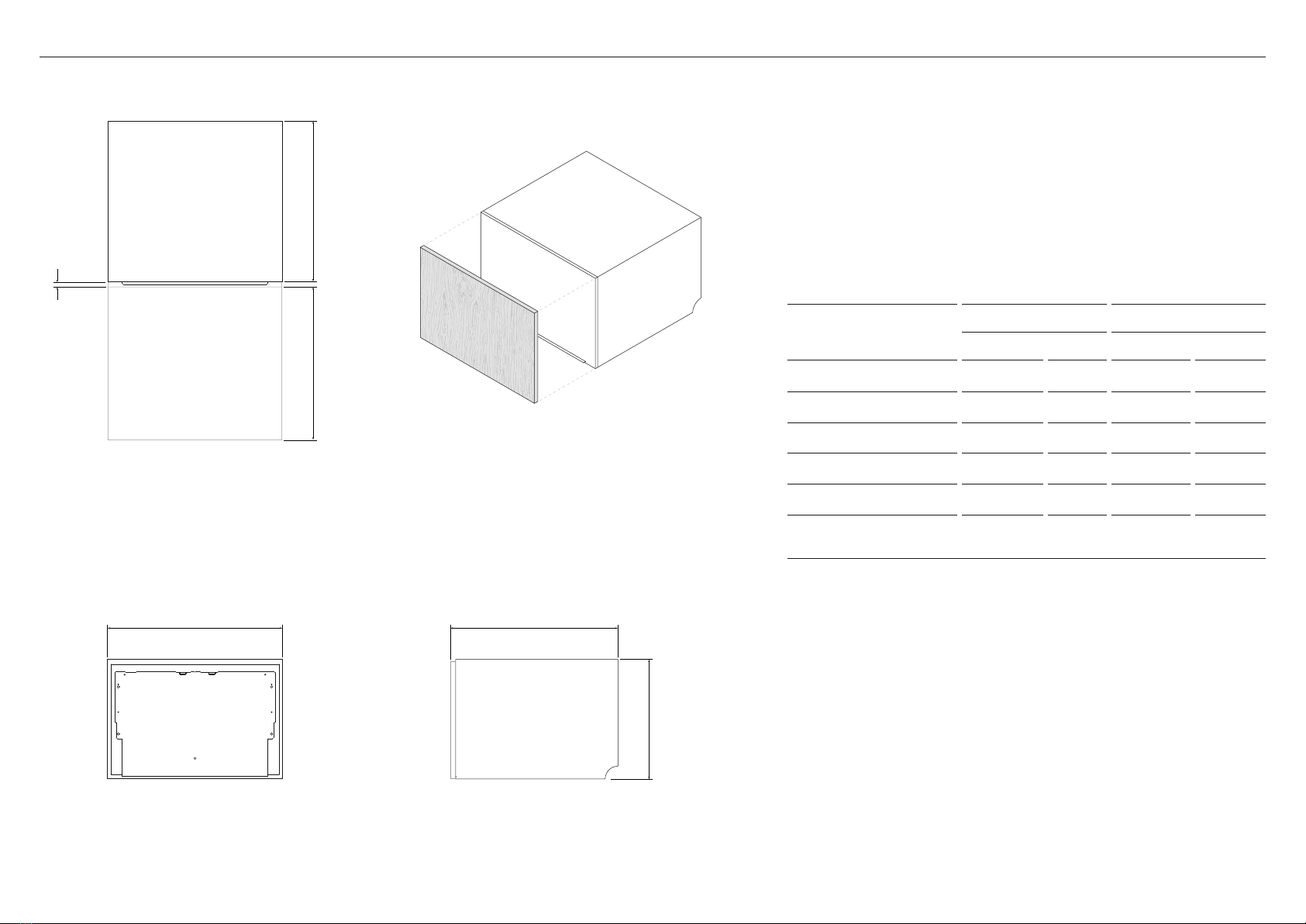

CUSTOM PANEL DIMENSIONS
CUSTOM PANEL CONSIDERATIONS INCHES MM
A Minimum panel height
zTall models 17 13/16 452
zStandard models 16 1/16 408
B Minimum panel width 23 7/16 596
C Panel depth 5/8 – 13/16 16 – 20
D Minimum clearance between base of door panel and cabinetry 1/16 2
E Minimum clearance between top of door panel and countertop 1/16 2
Maximum weight of each drawer panel (including handle) 2lbs 9kg
*Core panel dimension. Panel can be extended or lowered to suit installation.
ISO PROFILE
A
A
D
e
C
B
C
Material specifications
zMaximum weight of door panels must not exceed 20lbs (9kg)
(including handle).
zThe panel should be adequately sealed to withstand moisture 122°F (50°C)
@ 80% RH). The back and sides of the panel should be completely sealed
with a waterproof vapour barrier, such as polyurethane, to prevent damage.
zThe back of the panel should be completely flush so that the seal between
the panel and the rubber trim is maintained. The door panel should not rest
on the surrounding cabinetry.
zInstallation outside these specifications may result in condensation on
cabinetry surfaces.

8

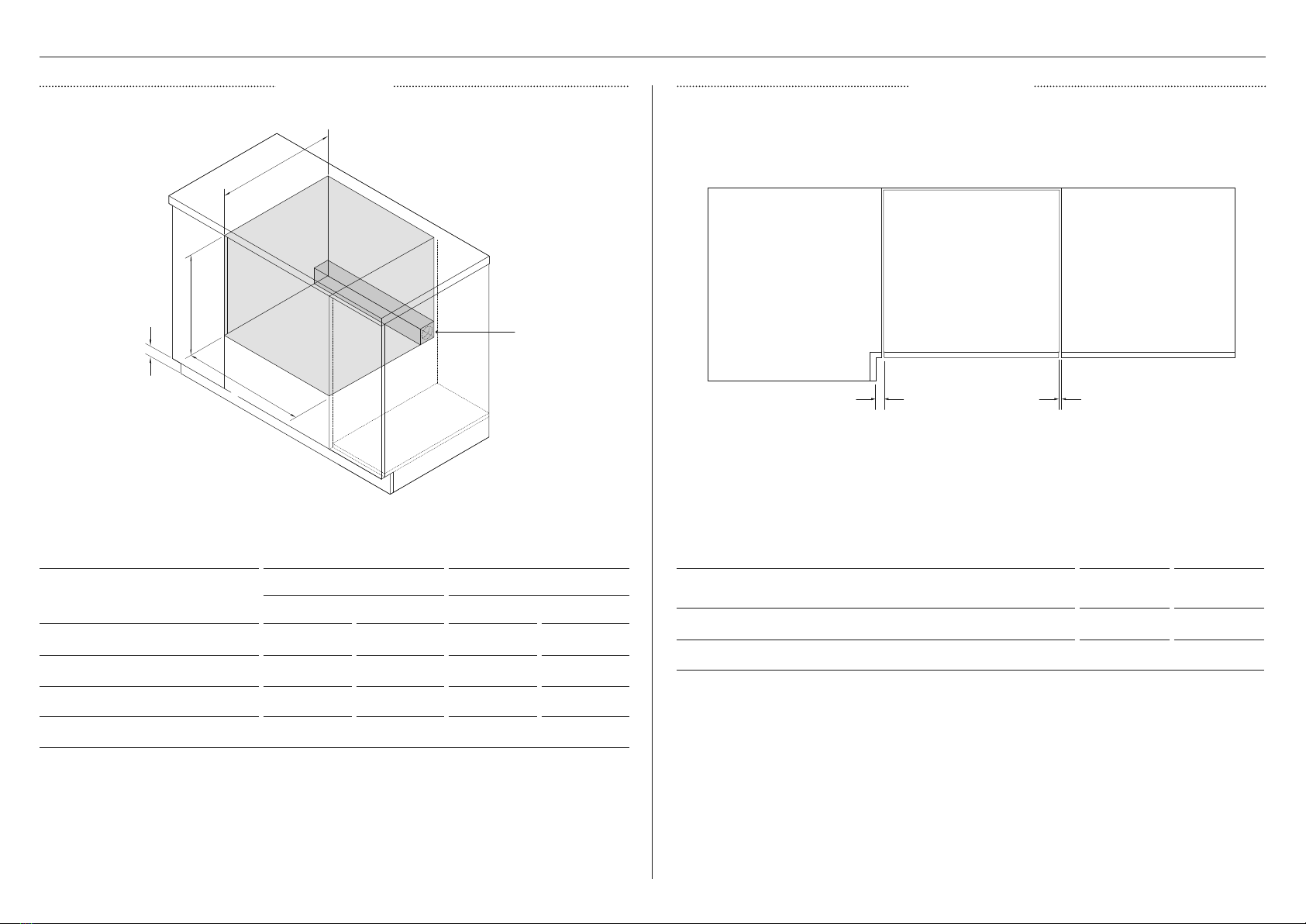

CABINETRY
CABINETRY DIMENSIONS STD MODELS TALL MODELS
INCHES MM INCHES MM
A Minimum inside height min. 412 min. 412 min. 17 15/16 min. 456
B Inside width 23 5/8 600 23 5/8 600
C Minimum overall depth* 22 13/16 579 22 13/16 579
D Minimum toe kick height** 3 15/16 100 3 15/16 100
*including 3/4" (19mm) door panels on adjacent cabinetry
**when venting through the same or adjacent cabinet. Refer to 'External venting preparation' for more information.
***for more information on service requirements, refer to 'Plumbing & electrical considerations' and 'Cabinetry preparation'
CABINETRY CLEARANCES INCHES MM
A Minimum clearance to adjacent cupboard door 1/16 2
B Minimum clearance to corner cupboard 1/2 13
DIMENSIONS CLEARANCES
B A
ISOMETRIC
PLAN
A
C
B
D
Connections can
be located in an
adjacent cabinet
on either side of
the DishDrawer™
Dishwasher***

9

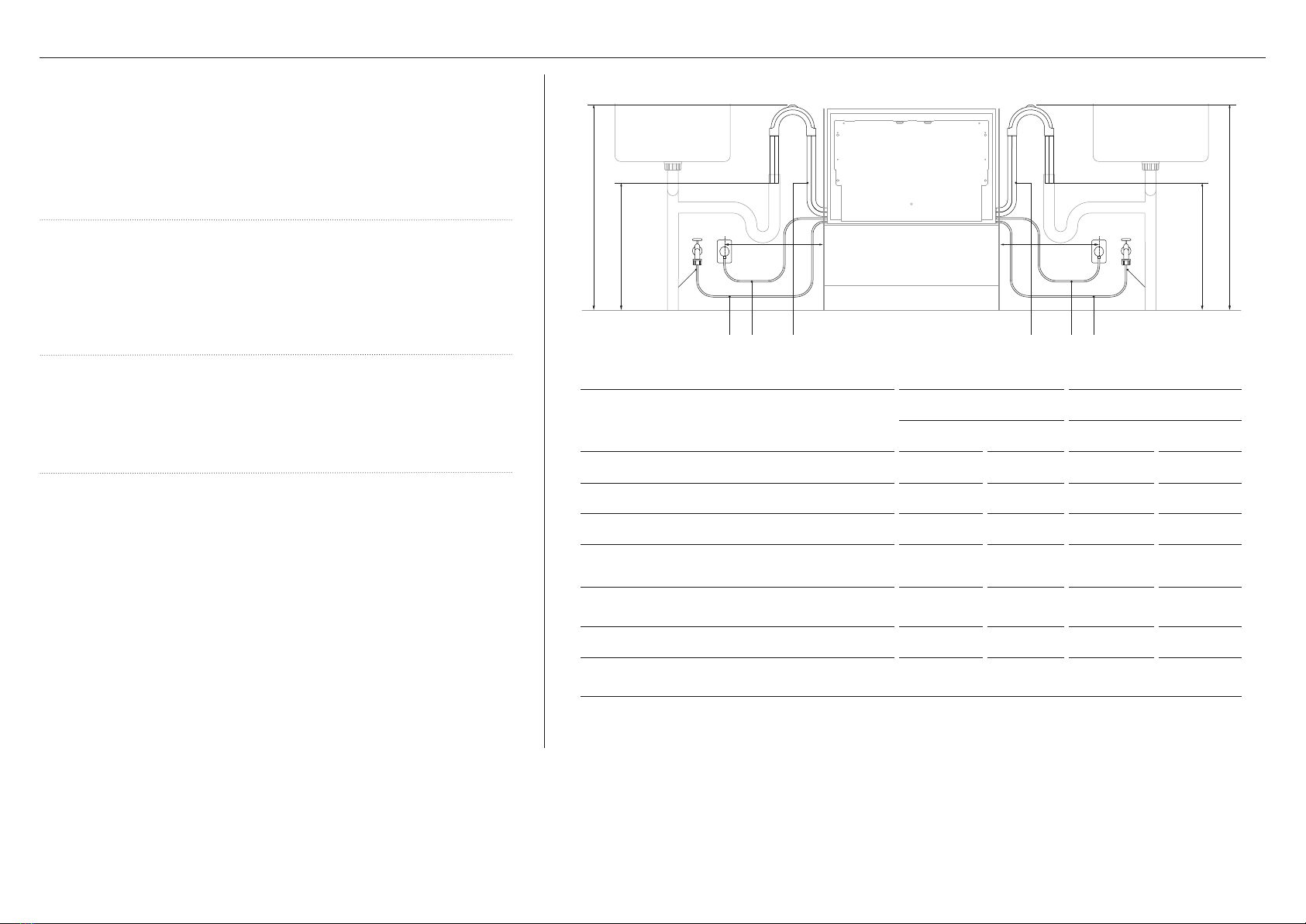

PLUMBING & ELECTRICAL CONSIDERATIONS
SERVICE DIMENSION
LEFT SIDE* RIGHT SIDE*
INCHES MM MM MM
A Length of drain hoses 78 3/4 2000 70 7/8 1800
B Length of power cord** 64 15/16 1650 64 15/16 1650
C Length of inlet hose 64 15/16 1650 49 3/16 1250
D Distance from floor to top of hose support 29 1/2 –
34 3/4 750 – 883 29 1/2 – 34 3/4 750 – 883
E Minimum distance from floor to end of
drain hoses*** 19 11/16 500 19 11/16 500
F Minimum inlet hose radius 7 7/8 200 7 7/8 200
G Maximum distance from cabinetry centre of
electrical outlet 17 3/4 450 17 3/4 450
*dimensions taken from the chassis edge where applicable
**excluding plug
***standpipe install illustrated. Distance is the same for all plumbing installs.
a a b cbc
d d
e e
f f
Hose and cord lengths
zYour services can be installed to either the left-hand or right-hand side
of the product in an adjacent cabinet. Refer to 'Cabinetry preparation'
for service access requirements.
zIf the drain hoses supplied are not long enough to reach your services,
you may purchase a Fisher & Paykel drain hose extension kit which will
extend the drain hoses by 3.6m (part number 525798).
Water connection
zRecommended water temperature: Cold (maximum 140°F (60°C))
z3/4” BSP (GB20) to suit flat washer
zEnsure water connection complies with local plumbing regulations.
Water pressure
zWater softener models: max. 1 MPa (145 psi), min. 0.1 MPa (14.5 psi)
zNon-water softener models: max. 1 MPa (145 psi), min. 0.03 MPa (4.3 psi)
Electrical requirements
z220 – 240V min 4.2A

10

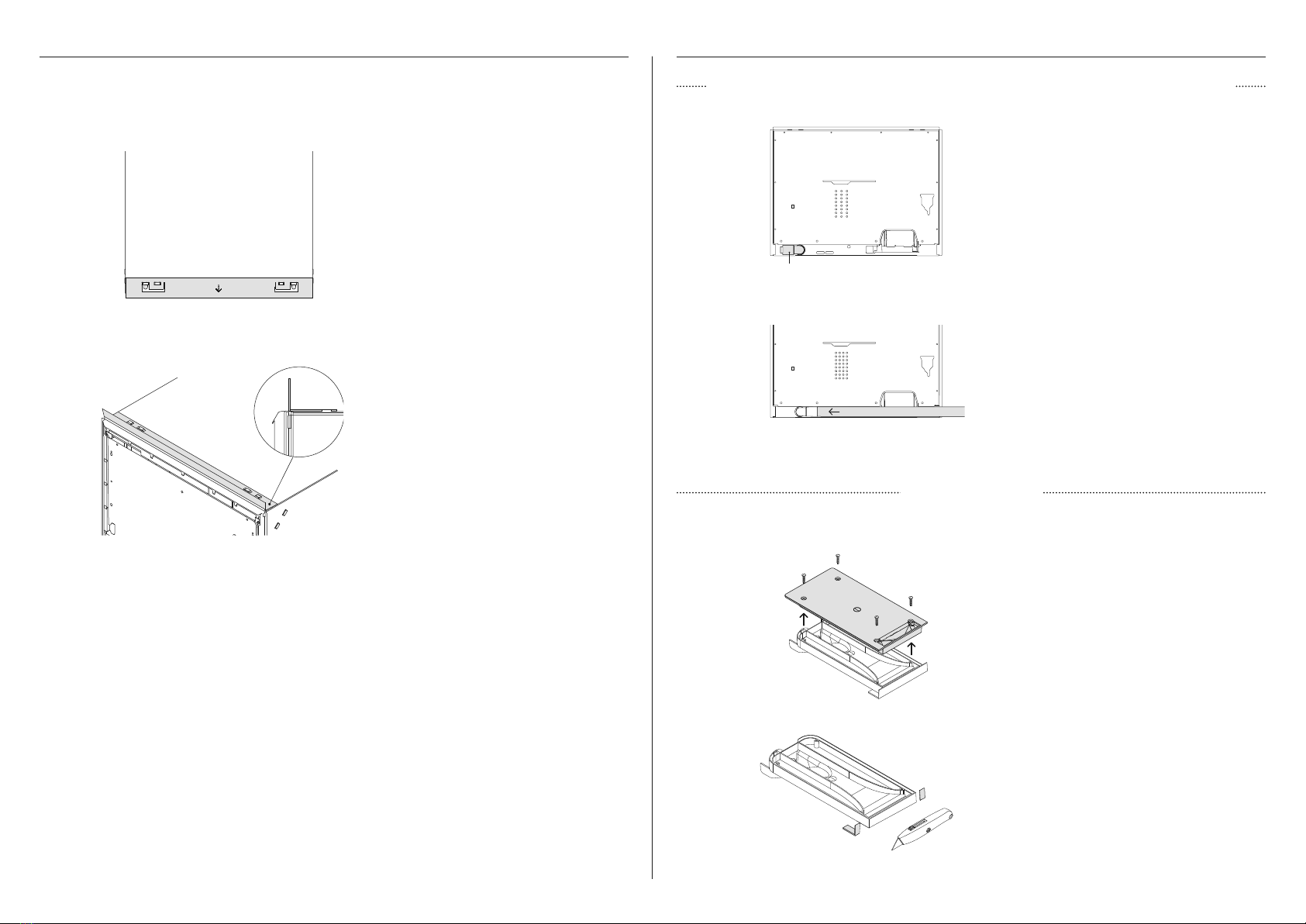

HARD-WIRING (OPTIONAL)
You have the option to hard-wire your DishDrawer™ Dishwasher. To do this, we recommend
to remove the supplied power cord and do the hardwiring installation as close to the cavity
as possible. Ensure only copper conductors are used.
Unscrew the Live, Neutral and Earth
wires as shown.
Slide the terminal block cover sideways
to unlock and hinge open to access the
terminal block.
With a screwdriver, unclip the plastic
harness cover and hinge open.
Fit a suitable cable clamp for the
conduit through the metal knockout.
Ensure wiring is routed through or under
under housing ribs.
With a flat-bladed screwdriver, push in
the clips and slide out the access cover.
Safely cut the cord from the inside
and outside of the product to remove
the cord.
5
6
3
7
48
1
2
Lift the drawer off the runners and
carefully set aside on a protected
surface. Push runners back in.
Take care not to pull drawer out too
far to prevent any strain on the hoses.
Where possible, protect the base of the
tub to prevent damage.
Open the drawer and press both locking
tabs back to release.

11

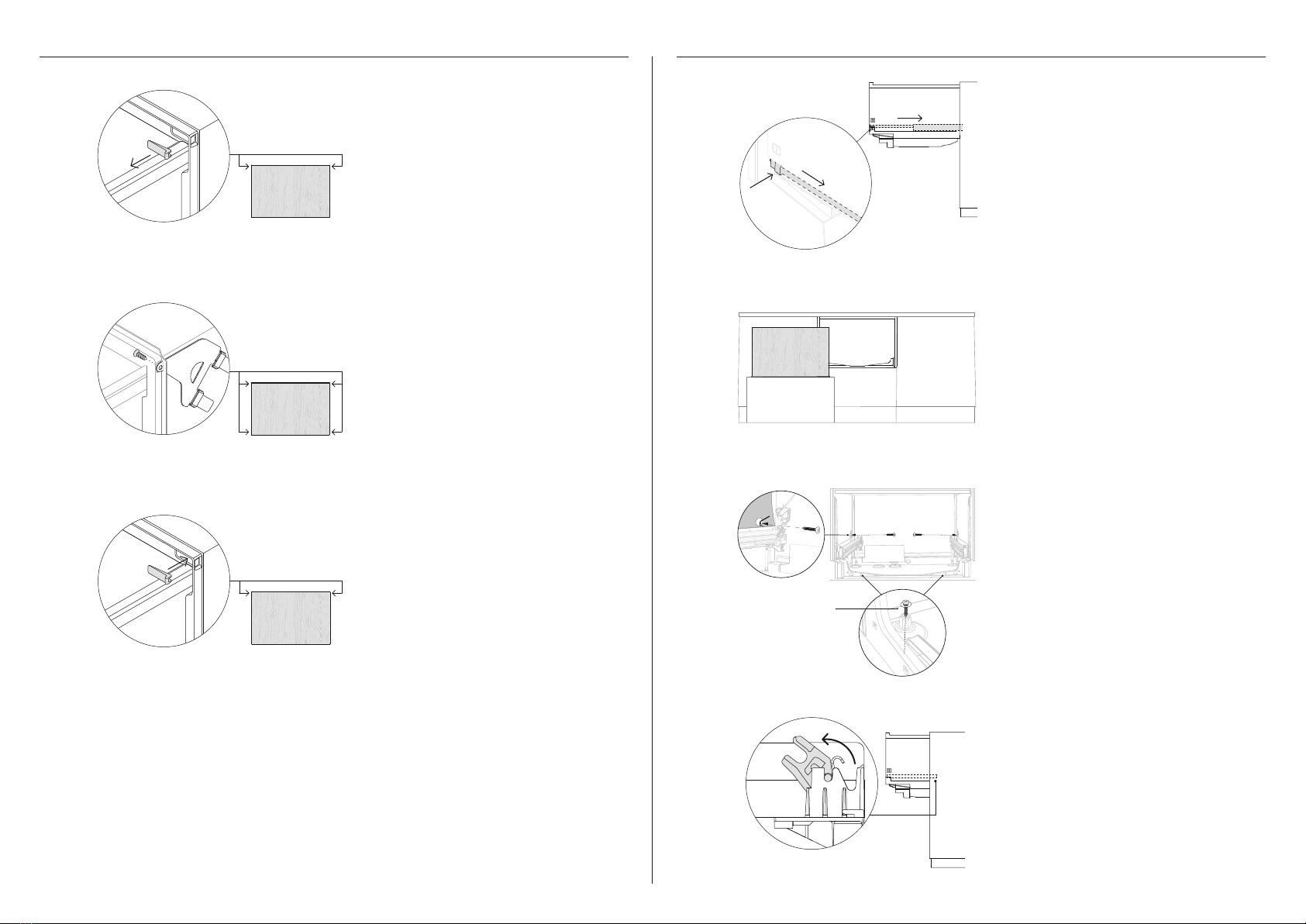

HARD WIRING (OPTIONAL)
Refit module cover before sliding the
access cover back into place, ensuring
the 2 clips shown are fully locked.
Screw down the Live, Neutral and Earth
wires correctly.
9
!0
!1
!2
Refit the drawer back onto the
runners, ensure both runners are
entended halfway before lowering
the tub. Slide the runners forward
to engage.
Before refitting the drawer, ensure the
hoses are not twisted.
Refit the drawer to the runners and
clip into place via both locking tabs.

12
CABINETRY PREPARATION

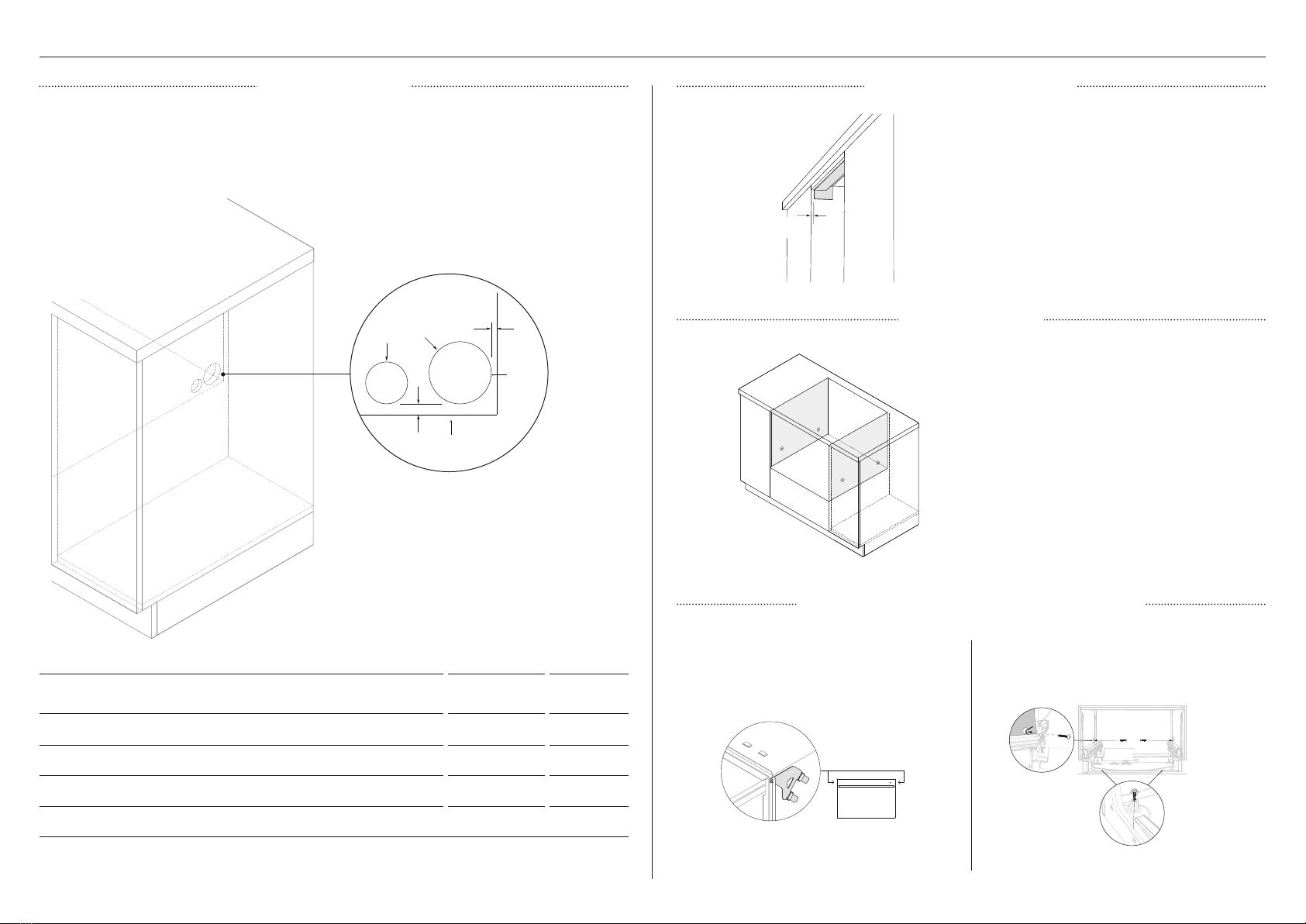

SERVICE ACCESS
REAR
WALL
SHELF*
PROFILE
A
B
C
D
zService holes can be created on either side of the DishDrawer™ Dishwasher cavity
as shown below.
zIf the hole is created through wood, ensure the edges are smooth and rounded.
zIf the hole is created through metal, ensure the edge protector is fitted. Align the supplied moisture protection
tape to the cabinetry as illustrated
Ensure this area is free of debris
before carefully applying the tape to
the surface.
1
MOISTURE PROTECTION
SIDE PARTITION
SELECT CABINETRY SECURING METHOD
1
Recommended method*
*frameless cabinetry only
METHOD A
Secure to cabinetry via brackets
METHOD B
Secure via drawer removal
If securing via the drawer removal method,
ensure the marked locations provide
adequate support.
If there are no side partitions, construct
timber bracing to secure the fixings to.
SERVICE HOLE DIMENSIONS INCHES MM
A Maximum distance between rear of cavity and service hole 1/4 5
B Maximum distance between shelf and service hole 1/2 10
C Minimum diameter of hose service hole 2 1/4 57
D Maximum diameter of power cord service hole 1 1/2 38
*for assisted opening installations, maximum distance should be referenced from the top of the spacer blocks
3/8"
(10mm)

13
EXTERNAL VENTING PREPARATION
To prevent the build up of condensation produced by your DishDrawer™ Dishwasher, the external venting kit must be installed via one of the following options:
THROUGH SAME CABINET THROUGH ADJACENT CABINET THROUGH FLOOR
zThere is no minimum toe kick height for venting the
DishDrawer™ Dishwasher through the floor below the
cabinetry, the space below the floor however, must be a
sub-area of the house and have adequate airflow.
zA Ø2 1/4" (Ø57mm) service hole should be created
through the side wall following the guidance under
‘Cabinetry preparation’. In addition to this, a Ø2 1/4"
(Ø57mm) service hole must be also be created through
the shelf, the base of the cavity and the floor to route the
venting hose through.
zThe duct is not required for this venting method.
zEnsure all cutout edges are smooth and rounded and the
supplied edge protector is fitted if required.
zEnsure cutout in the floor is sealed adequately.
zA toe kick height of at least 3 15/16" (100mm) is required.
zA Ø2 1/4" (Ø57mm) service hole should be created
through the side wall following the guidance under
‘Cabinetry preparation’. In addition to this, a second
Ø2 1/4" (Ø57mm) service hole must be also be created
through the shelf and the base of the cavity to route the
venting hose through.
zFrameless cabinetry: A 3 15/16 – 7 7/8" (100mm x 200mm)
cutout must be created at the front of the cabinetry base
to secure the duct to.
zFramed cabinetry: A toe kick depth of at least 2 3/8"
(60mm) is required. In addition, a 3 15/16 – 7 7/8"
(100mm x 200mm) cutout must be created within the
adjacent cabinetry base to secure the duct to. This cutout
should be set back a minimum of 1" (25mm) from the
frame edge for optimal venting.
zA toe kick height of at least 100mm is required.
zA notched-out Ø2 1/4" (Ø57mm) service hole should
be created through the side wall following the
guidance under ‘Cabinetry preparation’.
zFrameless cabinetry: A 3 15/16 – 7 7/8" (100mm x
200mm) cutout must be created in the base of the
adjacent cabinetry to secure the duct to.
zFramed cabinetry: A toe kick depth of at least 2 3/8"
(60mm) is required. In addition, a 3 15/16 – 7 7/8"
(100mm x 200mm) cutout must be created within the
adjacent cabinetry base to secure the duct to. This
cutout should be set back a minimum of 1" (25mm)
from the frame edge for optimal venting.
FRAMED FRAMED FRAMED & FRAMELESSFRAMELESS
ISO* ISO* ISO
FRAMELESS
1" 1"
7 7/8" 7 7/8" 7 7/8" 7 7/8"
3 15/16" 3 15/16" 3 15/16" 3 15/16"
Ø2 1/4" Ø2 1/4" Ø2 1/4" Ø2 1/4" Ø2 1/4"
3/16" 3/16" 3/16" 3/16" 3/16"
custom framed edge custom framed edge
*frameless install illustrated *frameless install illustrated

14
FIT THE TRIM BRACKET PREPARE EXTERNAL VENTING
2Check the trim seal is facing forward
and sitting flat under the bracket.
1
Align the bracket to the chassis ensuring
the arrow is facing forward and firmly
slot the tabs into place to secure.
Ensure the ends of the tabs are not
pushed into the chassis.
Rotate the elbow at the rear of the
product to either the left or right
depending on your venting location.
Push the vent hose onto the elbow
firmly to secure.
We recommend fitting the trim bracket when installing your DishDrawer™ Dishwasher into a
480mm cavity to conceal any visible gap left between the countertop and chassis. FIT THE VENTING HOSE TO THE DISHDRAWER™ DISHWASHER
TRIM THE DUCT
On a protected surface, carefully cut
and remove the clips from the vent as
shown. Refit the top cover.
Unscrew the top cover from the vent
and set aside.
2
2
1
1
Framed cabinetry only
elbow

15
If securing via bracket method:
Secure all four side brackets to the
DishDrawer™ Dishwasher, aligning
bracket A with slot A and bracket B
with slot B.
Ensure the ends of the brackets are not
pushed into the chassis.
Route the venting hose through
the floor. Ensure any excess hose
is removed.
Unframed cabinetry
Route the venting hose to the cutout
and push onto the duct firmly to secure.
Push the duct onto the cabinetry and
secure using the four provided screws.
Framed cabinetry
Route the venting hose to the cutout
and push onto the duct firmly to secure.
Place duct into cutout and insert the
bracket into vent slot. Secure using the
five provided screws.
1
2Push the product into the cavity, pulling
the hoses through as you push to avoid
crushing or twisting them.
PUSH THE PRODUCT INTO THE CAVITY SECURE THE VENTING HOSE TO CABINETRY
VENTING THROUGH FLOOR
VENTING THROUGH CABINETRY
AAB B

16

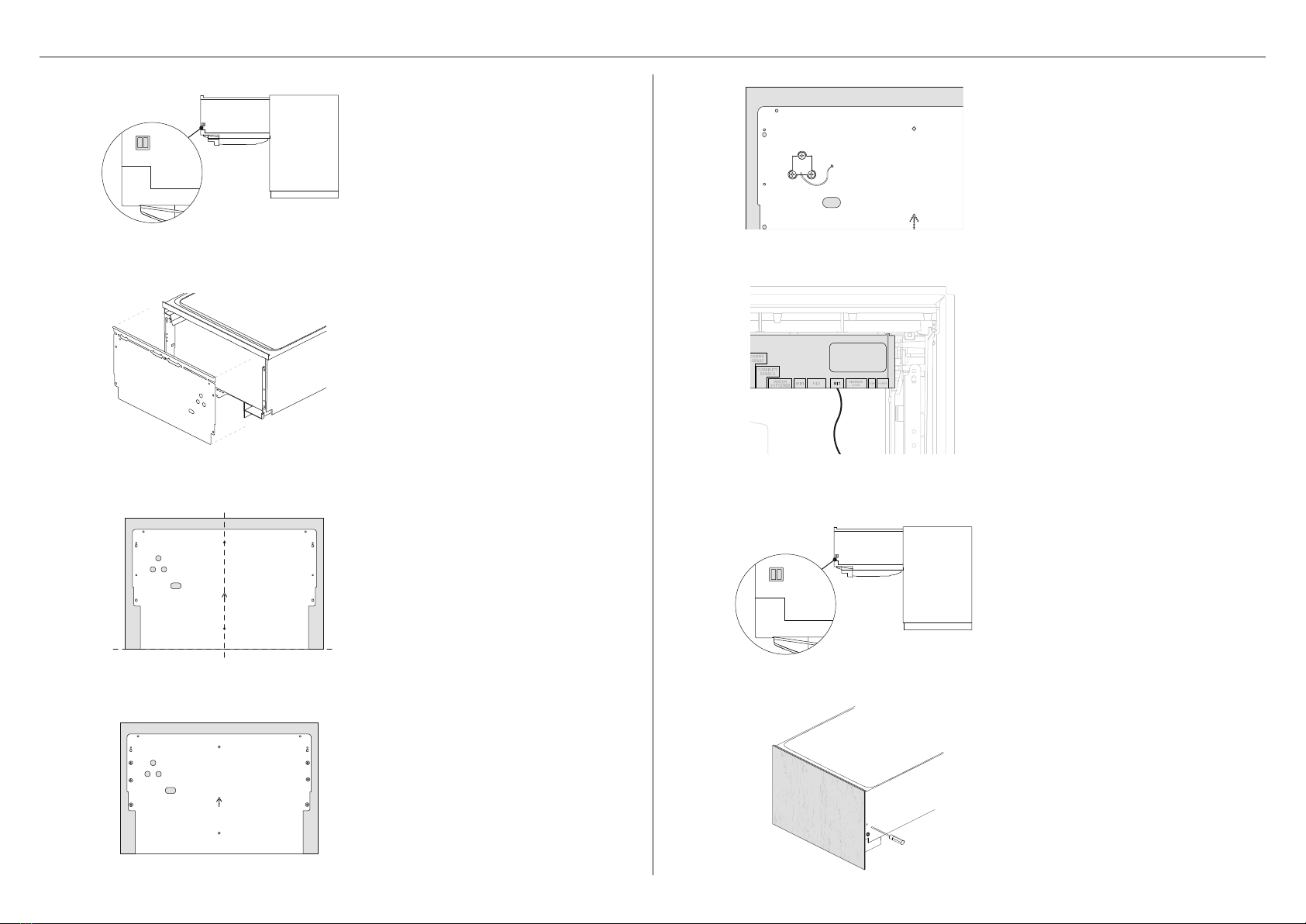

FIT THE CUSTOM PANEL
26
37
4 8
Carefully pull the bracket down and
out from DishDrawer™ Dishwasher and
unplug the Knock-to-Pause module and
earth wire.
Remove the Knock-to-Pause module
from the back of the bracket.
Attach the Knock-to-Pause module to
the panel as shown.
Ensure the Knock-to-Pause module is
oriented correctly and is not in contact
with the bracket before securing.
On the back of the panel, mark the
centre and align the base of the bracket
with the base of the panel. Re-insert both side pins to each drawer.
Secure the bracket to the panel using a
minimum of 3 screws on either side.
Insert a Phillips screwdriver into the
hole above the side pin and rotate to
adjust the panel alignment. There is a
maximum travel distance of ± 2mm.
Repeat on the other side if required.
Ensure the minimum clearance gap of
2mm is maintained and that the door
panel does not rest on the surrounding
cabinetry when closed.
15
Remove both side pins.
Electric shock hazard:
To earth the panel bracket, connect the
earth wire from the product to one of
the tabs. Any custom metal components
(e.g. handle) that extend past the
rubber seal must be earthed also.
Reconnect the Knock-to-Pause module
to the UI 1 slot on the wash controller as
shown. Reconnect the earth wire to the
panel bracket before fitting the panel to
the product.

17

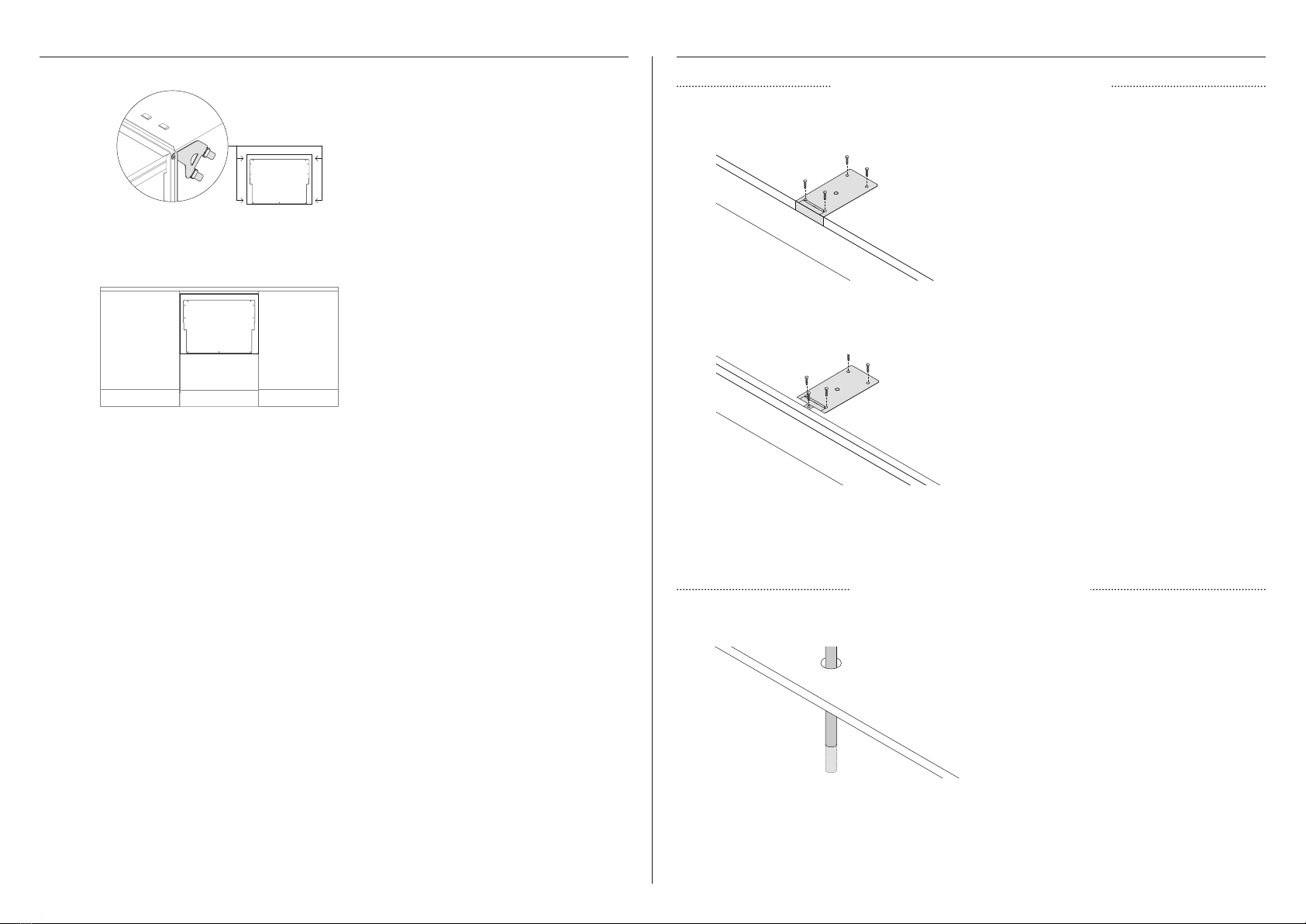

SECURE TO CABINETRY VIA BRACKETS (METHOD A) SECURE TO CABINETRY VIA DRAWER REMOVAL (METHOD B)
Secure to cabinetry via the brackets.
Pre-drilling a pilot hole may be required
depending on the cabinetry material.
2
3Replace the trim cover and repeat for
the remaining brackets.
Secure to cabinetry via all three fixing
locations in the chassis.
Ensure sound insulation is
replaced correctly.
3
1
2
4
Open the drawer and press both
locking tabs back to release.
Before refitting the drawer, ensure the
hoses are not twisted.
Refit the drawer to the runners and
clip into place via both locking tabs.
Partially open the drawer and remove
the first screw cover from the
trim moulding.
1
Lift the drawer off the runners and
carefully set aside on a protected
surface. Push runners back in.
Take care not to pull drawer out
too far to prevent any strain on the
hoses. Where possible, protect the
base of the tub to prevent damage.
38mm screw
and large washer

18
PLUMBING & ELECTRICAL CONNECTION
Ø38MM STANDPIPE INSTALLATION SINK TRAP/WASTE TEE INSTALLATION
Connect the inlet hose to tap and hand-
tighten into place.
Using a spanner or pliers, turn a further
180°to secure. Avoiding over-tightening.
Do not turn water supply on. The
DishDrawer™ Dishwasher must be
powered on for the flood protection
feature to be enabled.
Connect the inlet hose to tap and hand-
tighten into place.
Using a spanner or pliers, turn a further
180°to secure. Avoiding over-tightening.
Do not turn water supply on. The
DishDrawer™ Dishwasher must be
powered on for the flood protection
feature to be enabled.
Install the drain hose support to the
back wall, as close to the underside of
the countertop as possible. Refer to
'Plumbing & electrical considerations' for
minimum install heights.
Install the drain hose support to the
back wall, as close to the underside of
the countertop as possible. Refer to
'Plumbing & electrical considerations' for
minimum install heights.
Pull both hoses through the support
guide and rest in standpipe.
Ensure the drain hose does not extend
into water retained in the trap; an air
gap is required to prevent waste water
from siphoning back into the tub.
Pull both hoses through the drain hose
support before threading the wire
clips on to the hoses and fitting to the
supplied hose joiner. Secure using the
wire clips.
Ensure hose is routed straight to the
joiner, removing excess drain hose if
necessary. Do not shorten the inlet hose.
Unplug or drill out the waste tee before
securing joiner to sink trap or waste tee.
1 1
2 2
3 3
4 4
min.
4 3/4"
(120mm)
Plug product in.Plug product in.

19
Connect the inlet hose to tap and hand-
tighten into place.
Using a spanner or pliers, turn a further
180°to secure. Avoiding over-tightening.
Do not turn water supply on. The
DishDrawer™ Dishwasher must be
powered on for the flood protection
feature to be enabled.
PLUMBING & ELECTRICAL CONNECTION
Install your Air Gap Kit to the benchtop.
We recommend using a Dual Air Gap Kit.
Refer to 'Plumbing & electrical
connection' for minimum install heights.
Plug product in.
AIR GAP INSTALLATION
1
2
3
4
Thread wire clips onto the hoses before
fitting them to the hose joiner. Secure
using the wire clips. Fit the joiner to the
Air Gap Kit and secure using the hose
clamp. Ensure hoses are routed straight
to the joiner, removing excess drain hose
if necessary.
Unplug or drill out the waste tee before
securing to sink trap or waste tee.
Dual Air Gap Single Air Gap

20
TO BE COMPLETED BY THE INSTALLER
Electrical
Ensure all electrical tests have been conducted in accordance with local regulations.
Test operation
Turn on the power and water supplies, then open the drawer. You should hear a beep
and see a program indicator light up on the control panel.
Add three cups of water into the drawer.
Navigate to RINSE and start the program.
Repeat for the other drawer.
After the Rinse cycle has finished, ensure the dishwasher has run and drainedcorrectly.
Check the water supply has been shut off correctly.
Check drainage connections for leaks.
If site is left without power after installation is complete, ensure water supply is
turned off to prevent flooding.
Installation
Check all parts are installed correctly and are secure.
Ensure DishDrawer™ Dishwasher is securely fastened to the cabinetry and drawer opens
and closes freely with no resistance.
Ensure panel is fitted correctly to the DishDrawer™ Dishwasher
Ensure any packaging or tape securing the racks and spray arm is removed.
Check the spray arm is in place, mounted correctly and rotates freely.
Ensure knock-to-pause module is fitted securely and operating correctly.
Plumbing
Ensure any knock-outs or plugs in drain connection have been drilled out and drain
connection has been made.
The drain hose joiner must not support the weight of excess hose material. Keepdrain
hose as fully extended as possible to prevent sagging. Any excess length of drain hose
should be kept on the dishwasher side of the highloop.
Ensure inlet hose has supplied rubber washer fitted, and that it’s tightened.
If connecting the drain hose to the sink trap, ensure the highloop is a minimum 150mm
higher than the drain hose joiner.
Water softener models: adjust the water softener setting from the default setting to suit
the water hardness of the area. Refer to your user guide.
Ensure water supply is turned off until power is connected and turned on. The
DishDrawer™ Dishwasher must be powered on for the flood protection feature to
be enabled.
INSTALLER CHECKLIST
