Fisher & Paykel DishDrawer DD60 Series User manual

NZ AU
DishDrawer®
User guide
DD60 models

1
Contents
Safety and warnings 3
Controls (models with no LCD) 6
Controls (models with LCD) 8
Operation 10
Wash programme chart 11
Caring for your dinnerware 12
Dishwasher standards test 13

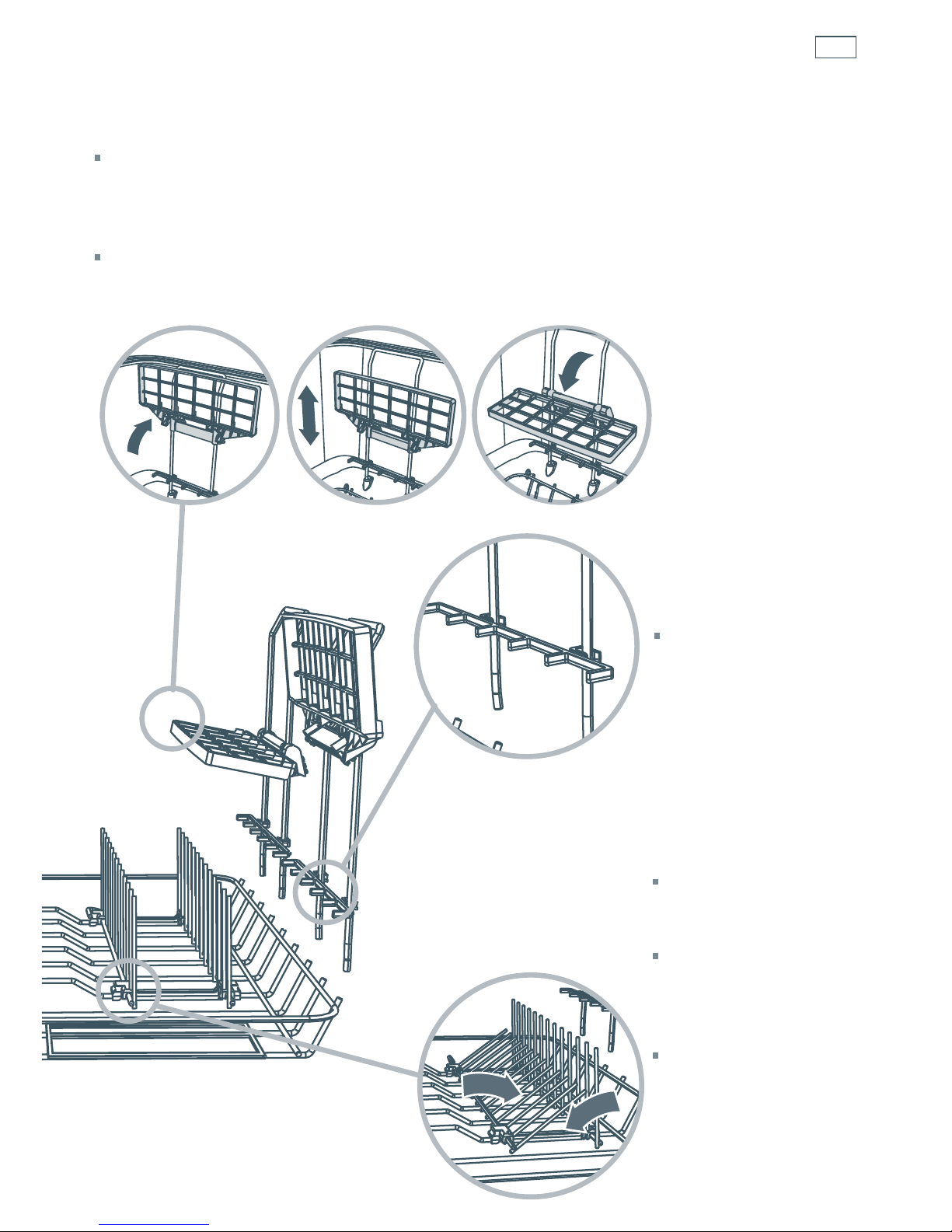

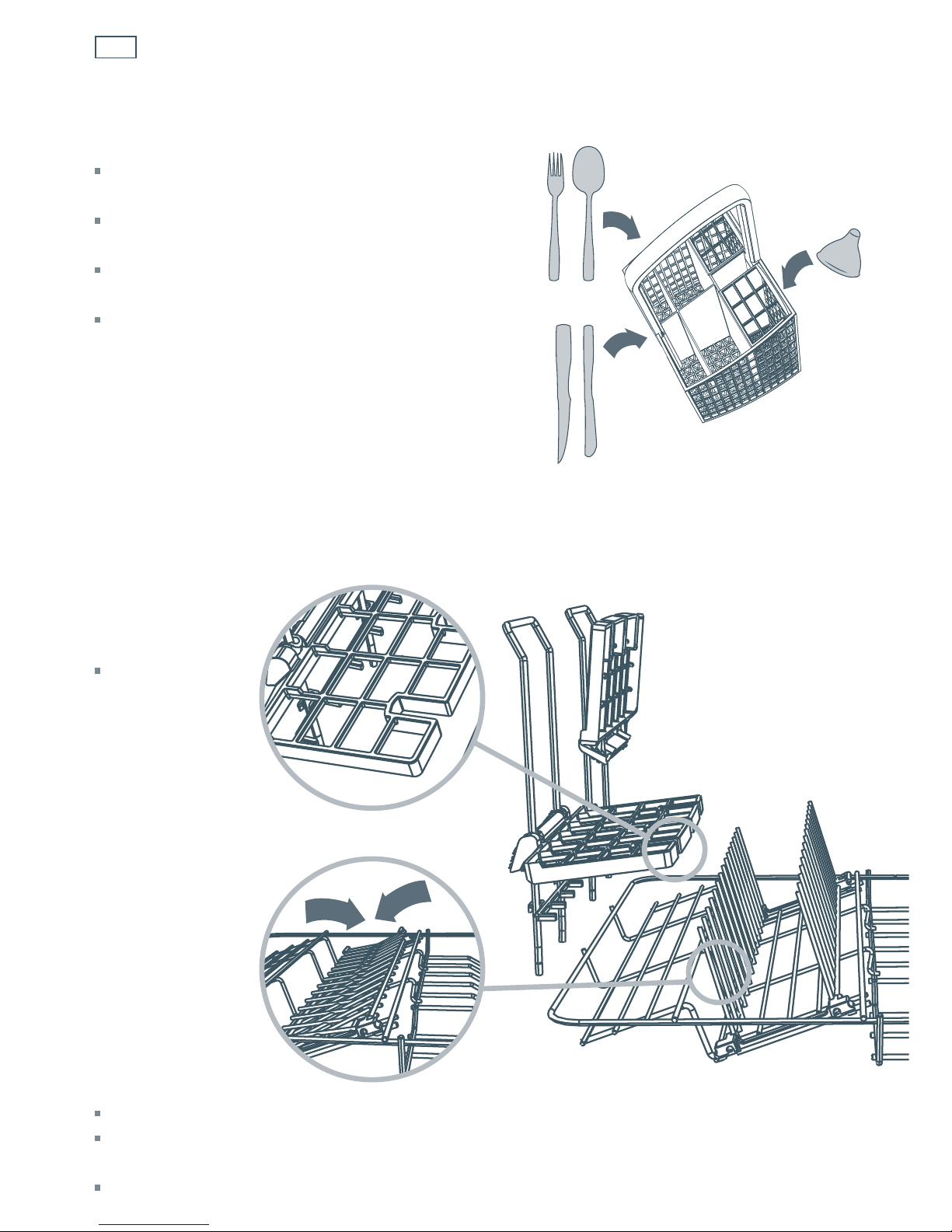

Racking features and accessories 14
Loading suggestions 16
Detergent dispenser 18
Dishwasher detergent and tablets 19
Rinse aid dispenser 20
Option adjustments 21
Care and cleaning 24
Troubleshooting 27
Fault codes 29
Warranty and service 32
Important!
SAVE THESE INSTRUCTIONS
The models shown in this user guide may not be available in all markets and are
subject to change at any time. For current details about model and specification
availability in your country, please visit our local website listed on the back cover
or contact your local Fisher & Paykel dealer.

2

3
Safety and warnings
Your DishDrawer® has been carefully designed to operate safely during normal dishwashing
procedures. Please keep the following instructions in mind when you are using your
DishDrawer®.
Important safety instructions
WARNING! - When using your dishwasher, follow basic precautions, including the following:
Read all instructions before using the DishDrawer®.
The information in this manual must be followed to minimise the risk of fire or explosion or to
prevent property damage, personal injury or loss of life.
Use the DishDrawer® only for its intended function as described in this user guide.
Use only detergents or rinse aid recommended for use in a domestic dishwasher and keep them
out of reach of children. Check that the detergent dispenser is empty after the completion of
each wash programme.
When loading items to be washed, locate sharp items so that they are not likely to damage the
lid seal and load sharp knives with the handle up to reduce the risk of cut-type injuries.
Do not touch the heater plate during or immediately after use.
Do not operate your DishDrawer® unless all enclosure panels are properly in place.
Do not tamper with the controls.
Do not abuse, sit on, stand in or on the drawer or dish rack of the DishDrawer®.
The adjustable racks are designed to support cups, glasses and kitchen utensils. When the
adjustable racks are in the DishDrawer® do not lean on or use them to support your body
weight.
To reduce the risk of injury, do not allow children to play in or on the DishDrawer®.
Under certain conditions, hydrogen gas may be produced in a hot water heater system that has
not been used for two weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot water system
has not been used for such a period, before using the dishwasher, turn on all hot water taps and
let the water flow from each for several minutes. This will release any accumulated hydrogen
gas. As the gas is flammable, do not smoke or use an open flame during this time.
Remove the door to the washing compartment when removing an old dishwasher from service
or discarding it.
Dishwasher detergents are alkaline. They can be dangerous if swallowed. Avoid contact with
skin and eyes, keep children and infirm persons away from the dishwasher when the drawer is
opened.

4Safety and warnings
Important safety instructions
Installation
This DishDrawer® must be installed and located in accordance with the Installation instructions
before it is used. If you did not receive Installation instruction sheets with your DishDrawer®, you
can order them by calling your Authorised Service Agent or from the Fisher & Paykel website,
www.fisherpaykel.com.
Installation and service must be performed by a qualified technician.
If the power supply cord is damaged, it must be replaced by a dealer or Authorised Service Centre
or a similar qualified trades person in order to avoid a hazard.
Ensure the DishDrawer® is secured to adjacent cabinetry using the brackets provided. Failure to
do so may result in an unstable product, which may cause damage or injury.
Do not operate this appliance if it is damaged, malfunctioning, partially disassembled or has
missing or broken parts, including a damaged power supply cord or plug.
Do not store or use petrol, or other flammable vapours and liquids in the vicinity of the
DishDrawer®.
Connect to a properly rated, protected and sized power supply circuit to avoid electrical overload.
Make sure that the power supply cord is located so that it will not be stepped on, tripped over or
otherwise subject to damage or stress.
Do not install or store the DishDrawer® where it will be exposed to temperatures below freezing
or exposed to weather.
Do not use an extension cord or a portable electrical outlet device (e.g. multi-socket outlet box)
to connect the DishDrawer® to the power supply.
Maintenance
Disconnect the appliance from the power supply before any cleaning or maintenance.
Do not repair or replace any part of the appliance or attempt any servicing unless specifically
recommended in this user guide. We recommend that you call an Authorised Service Agent.
Keep the floor around your appliance clean and dry to reduce the possibility of slipping.
Keep the area around/underneath your appliance free from the accumulation of combustible
materials, such as lint, paper, rags and chemicals.
When cleaning the underside of the filter plate, care must be taken on the sharp outer edge to
avoid the risk of cut type injuries.

5
Safety and warnings
Important safety instructions
Important!
Under no circumstances should you open the drawer whilst the DishDrawer® is in operation.
Operational
Always press the button to pause and wait until you hear the three additional beeps before
opening the drawer.
The DishDrawer® must be used with the motor assembly, filter plate, drain filter and spray arm in
place.
When disconnecting the appliance pull the plug rather than the power supply cord or junction of
cord to avoid damage.
Take care when loading the DishDrawer® not to load dishware items so they prevent the lid from
properly sealing with the drawer. Items should be placed so they do not protrude above and/or
forced into the drawer, otherwise a service call may result.
Household appliances are not intended to be played with by children. Children or persons with a
disability which limits their ability to use the appliance, should have a responsible person instruct
them in its use. The instructor should be satisfied that they can then use the appliance without
danger to themselves or their surroundings.
Close supervision is necessary if this appliance is used by or near children. Do not allow children
to play inside, on or with this appliance or any discarded appliance.
If a dishwasher cleaner is used, we would strongly recommend a wash programme with detergent
should be run immediately afterward, to prevent any damage to the DishDrawer®.
The DishDrawer® is designed for washing normal household utensils. Items that are
contaminated by petrol, paint, steel or iron debris, corrosive, acidic or alkaline chemicals are not
to be washed in the DishDrawer®.
If the DishDrawer® is not being used for long periods of time, turn the electricity and water supply
to the DishDrawer® off.
Do not pour detergent or rinse aid into the salt reservoir. The detergent or rinse aid will destroy
the water softener.
Do not operate your appliance by means of an external timer or separate remote-control system.

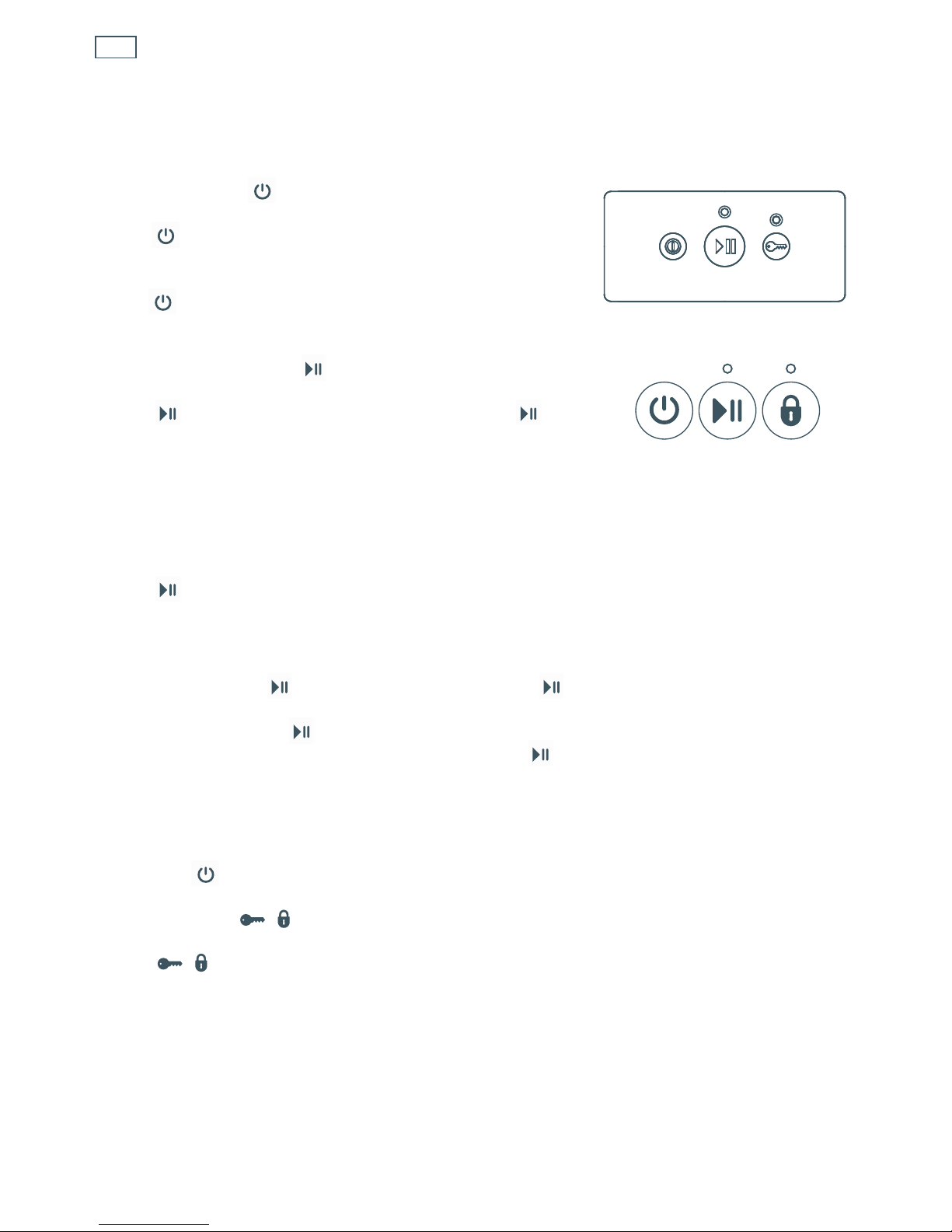

6Controls (models with no LCD)
If you have a double DishDrawer®, each drawer has its own controls and can run independently
of the other.
Power button
The button turns the DishDrawer® on or off. Opening
the drawer will automatically turn the DishDrawer® on for
30 seconds. To end a wash programme in mid cycle, press
the button. Any water in the DishDrawer® will be
pumped out.
Start/Pause button
The button starts a wash programme. Press the
button to pause or restart the DishDrawer® during a wash
programme. When paused, wait for three beeps before
opening the drawer. Forcing the drawer open while in mid
cycle may cause damage or injury.
Delay start
The button also sets the Delay start feature which can delay the start of a wash programme
from 1 to 12 hours.
To activate Delay start
1 Press and hold the button until the light above the button turns orange (or purple,
depending on your model).
2 Continue holding the button down until the desired delay time has been reached. The
DishDrawer® will emit audible ‘beeps’ as you hold the button down, each beep indicates
another hour delay.
3 The DishDrawer® will start once the delay time has elapsed and the drawer is closed.
To cancel Delay start
Press the button.
Lock button /(optional)
The /button activates/deactivates the Keylock or the Childlock functions.

7
Controls (models with no LCD)
Keylock
The Keylock feature disables all the buttons on the DishDrawer®.
To activate, press and hold the / button until you hear one beep (3 seconds). The light
above the / button is lit when Keylock is activated.
To cancel the Keylock feature, press and hold the / button until the light above the /
button disappears.
Childlock
The Childlock feature locks the drawer and disables all the buttons.
To activate, press and hold the / button until you hear two beeps (5 seconds). The light
above the / button is lit when Childlock is activated.
To cancel the Childlock feature, press and hold the / button until the light above the
/ button disappears.
Wash programme selector
Press the button to select a wash programme. The DishDrawer® will remember the last
programme used.
Eco button (optional)
Press the button if you would like the wash programme to use less energy. The red ECO
light will indicate the feature is on. If your dishes are heavily soiled or you require enhanced dry
performance, we do not recommend ECO programmes.
Power failure
If the DishDrawer® is operating and a power failure occurs, it will stop. The DishDrawer® may be
unable to be opened during this time. When the power supply is resumed, the DishDrawer® will
restart in the same part of the wash programme.

8
If you have a double DishDrawer®, each drawer has its own control panel and can run
independently of the other.
Power button
The button turns the DishDrawer® on or off. Opening the drawer will automatically turn the
DishDrawer® on for 30 seconds. To end a wash programme in mid cycle, press the button.
Any water in the DishDrawer® will be pumped out.
Start/Pause button
The button starts a wash programme. Press the button to pause or restart the
DishDrawer® during a wash programme. When paused, wait for three beeps before opening the
drawer. Forcing the drawer open while in mid cycle may cause damage or injury.
Delay start
The button also sets the Delay start feature which can delay the start of a wash programme
from 1 to 12 hours.
To activate Delay start
1 Press and hold the button until the delay symbol appears on the electronic display.
2 Continue holding the button down until the desired delay time has been reached.
3 The DishDrawer® will start once the delay time has elapsed and the drawer is closed.
To cancel Delay start
Press the button.
Lock button (optional)
The button activates/deactivates the Keylock or the Childlock functions.
Power
button
Time
remaining
Fault symbols - see ‘Fault
codes’ if they appear
Start/Pause
button
Wash programme
progress symbol
Lock button
Keylock or Childlock is
activated
Delay start symbol
Controls (models with LCD)

9
Keylock
The Keylock feature disables all the buttons on the control panel.
To activate, press and hold the button until you hear one beep (3 seconds). The symbol
appears in the electronic display when the Keylock feature is activated.
Childlock
The Childlock feature locks the drawer and disables all the buttons on the control panel.
To activate, press and hold the button until you hear two beeps (5 seconds). The symbol
appears in the electronic display when the Childlock feature is activated.
To cancel the Childlock feature, press and hold the button until you hear one beep and the
symbol disappears from the electronic display.
Wash programme selector
Press the button to select a wash programme. The DishDrawer® will remember the last
programme used.
Eco button (optional)
Press the button if you would like the wash programme to use less energy. The red ECO
light will indicate the feature is on. If your dishes are heavily soiled or you require enhanced dry
performance, we do not recommend ECO programmes.
Wash programme progress symbols
As the wash programme advances through the cycle, the following symbols will appear in
the electronic display to indicate the progression. When a wash programme has started, the
electronic display also will count down the time remaining in one minute increments.
Power failure
If the DishDrawer® is operating and a power failure occurs, it will stop. The DishDrawer® may be
unable to be opened during this time. When the power supply is resumed, the DishDrawer® will
restart in the same part of the wash programme.
Dirty Pre Wash Main Wash Post Rinse Drying Clean
Controls (models with LCD)

10
1 Load dishes
Remove all food scraps and load the dishes.
2 Add detergent
3 Check rinse aid
4 Press the button
5 Select a wash programme
The length of the wash programme will
appear on the electronic display (models
with LCD only).
6 Select (optional)
7 Check
Ensure there is nothing obstructing the
spray arm. The drain filter must be level with
the filter plate.
8 Start
Close the drawer and press the button.
9 Finish
The DishDrawer® will beep six times to
indicate the end of the wash programme. At
the end of the wash programme the drying
fan will continue to run for a set time or
until the drawer is opened. The fan assists
with drying and uses negligible amounts
of energy. It is normal for some water to
remain in the drain filter area after the wash
programme is complete.
Double models only: At the end of a wash
programme, you may find both drawers
draining simultaneously. This is normal.
Operation
1
7
4
5
8
6
2
3

11
Wash programme chart
Standard wash programme - when to use
Heavy
Heavily soiled
pots, pans and
dishes.
Normal
Dishes with
normal soils
for optimum
wash and dry
performance.
Also the only
recommended
programme if
you are using
dishwasher
tablets.
Fast
Lightly soiled
dishes.
Delicate
Lightly soiled and
heat sensitive
crockery.
Rinse
Prevents odours and
soils drying on dishes.
pre wash 45
o
C pre wash
pre wash pre wash
main wash 70
o
C main wash 55
o
C main wash 55
o
C main wash 50
o
C
post rinse post rinse post rinse post rinse
final rinse 65
o
C final rinse 65
o
C final rinse 50
o
C final rinse 60
o
C
drying phase drying phase drying phase
Eco wash programme - when to use
Heavy
Heavily soiled
everyday dishes.
Normal*
Normal soiled
dishes for
optimum energy
use.
Fast
Lightly soiled, non
greasy dishes.
Delicate
Lightly soiled,
non greasy and
heat sensitive
crockery.
pre wash 35
o
C
pre wash pre wash
main wash 60
o
C main wash 40
o
C main wash 45
o
C main wash 45
o
C
post rinse post rinse post rinse post rinse
final rinse 55
o
C final rinse 43
o
C final rinse 45
o
C final rinse 50
o
C
drying phase drying phase drying phase
Note
*Reference programme for energy label in compliance with AS/NZS 2007.
Wash times can vary depending on the incoming water temperature, ambient conditions, type
of dish load and whether the drawer has been opened during the wash. Wash times are only
APPROXIMATE on the electronic display and based on 20 °C incoming water.

12 Caring for your dinnerware
The combination of high temperatures and dishwasher detergent may cause damage to some
items if they are washed in the DishDrawer®. Remember, if in any doubt about any aspect
concerning items washed in the DishDrawer®, follow the instructions from the manufacturer of
the items, or wash the item by hand.
Cutlery & silverware
All cutlery and silverware should be rinsed immediately after use to prevent tarnishing caused
by some foods. The Rinse wash programme is useful for this. Silver items should not come into
contact with stainless steel, eg other cutlery. Mixing these items can cause staining. Remove
silver cutlery from the DishDrawer® and hand dry it immediately after the programme has
finished.
Aluminium
Aluminium can be dulled by dishwasher detergent. The degree of change depends on the
quality of the product.
Other metals
Iron and cast iron objects can rust and stain other items. Copper, pewter and brass tend to stain.
Woodware
Wooden items are generally sensitive to heat and water. Regular use in the dishwasher may
cause deterioration over time. If in doubt, wash by hand.
Glassware
Most everyday glassware is dishwasher safe. Crystal, very fine and antique glassware may etch
that is, become opaque. You may prefer to wash these items by hand.
Plastic
Some plastic may change shape or colour with hot water. Check manufacturer’s instructions
about washing plastic items. Washable plastic items should be weighed down so they do not
flip over and fill with water or fall through the base rack during the wash.
Decorated items
Most modern china patterns are dishwasher safe. Antique items, those with a pattern painted
over the glaze, gold rims or hand painted china may be more sensitive to machine washing. If in
doubt, wash by hand.
Glued items
Certain adhesives are softened or dissolved in machine washing. If in doubt, wash by hand.
Holiday time
If the DishDrawer® is not going to be used for some time, we recommend you leave the
DishDrawer® clean and empty. Leave the drawers ajar to allow air to circulate. Turn off both the
power and water supply to the DishDrawer®.

13
Dishwasher standards test
The DishDrawer®s are tested to AS/NZS 2007 standards for both wash and dry performance.
The following are loading pattern diagrams, detergent quantities and rinse aid quantities used
for the DishDrawer®.
Wash programme Normal Eco
(At the end of the programme, open the DishDrawer 50
mm to improve the dry performance.)
Detergent quantities 22.5g (main wash) per drawer
Rinse aid setting 4
Maximum place setting (per drawer) 6
Accessories to be used in the Dishwasher
standards test
Base rack, drain filter access panel, folding tines,
‘slide-and-fold’ tines, cutlery basket, adjustable
racks, glass supports.
Height setting of adjustable racks
Correct orientation of glass supports
on both sides of drawer
Recommended loading pattern
140mm
12345
222 22 2
444 444
315
315
315
513
513
513

14 Racking features and accessories
Stemware
notches
The six notches
on the left-
hand side
help support
long-stemmed
glassware.
Folding tines
The front half is ideal for large, deep bowls.
Fold the tine sections down towards each other if you need the space for pots or other large
items.
Fold down the right-hand section only and lean cups against the upright tines for extra stability.
Cutlery basket
Mix spoons, knives and forks within each section to
stop cutlery nesting together.
Most cutlery is placed with the handle pointing
down.
For your safety, knives and sharp utensils should
have their handles up.
Small light items like baby bottle teats are best
placed under the anti-nesting grids to prevent
them from being displaced.

15
Racking features and accessories
123
Glass supports
These clip on the rack
wires to give your tall
glasses extra stability.
Adjustable racks
You can adjust these independently of each other to any height:
1 Fold up to unlock the rack.
2 Adjust the height to suit by sliding up or down.
3 Fold down to lock in position.
Fold the racks away if you need the space.
‘Slide-and-fold’
tines
Slide all the way to the
left to fit larger dinner
plates.
For optimum stability,
place larger plates
between the longer
tines in the front.
Fold the tine sections
down towards each
other if you need the
space for pots or other
large items.

16 Loading suggestions
When loading your DishDrawer®, make sure that
you place items so that water coming from the rotating spray arm below can reach all areas
(wash performance will be reduced if it can’t)
nothing blocks the water from getting to items on the adjustable racks.
Typical breakfast load
Typical dinner party load
Typical heavy load

17
Loading suggestions
How NOT to load your DishDrawer®
Overcrowded and wash water will not
reach some of the dinnerware.
Cups, glasses and bowls must have their
openings facing down.
The plates are nesting together and wash
water may not get through.
Ensure cutlery are not nesting or stuck
together. They need to be evenly spread
out.
Ensure dishware items are not forced
into or protrude out of the drawer, as this
may prevent the lid from properly sealing
which could result in a service call.
Locate sharp items safely to prevent
injuring the user and damaging the lid
assembly.
Check the bottom of the cutlery basket to
ensure sharp or pointed items have not
come through as they may stop spray arm
rotation.
Ensure cutlery has not fallen through the
base rack and stopped the spray arm from
rotating.
The large bowl is blocking wash water
reaching the adjustable racks.
Large utensils should be on the adjustable
racks so they do not become dislodged and
stop the spray arm from rotating.
Sharp or pointed items must be placed
horizontally or with sharp edges/points
facing down to avoid risk of injury.

18 Detergent dispenser
a Pre-wash compartment,
10g capacity
b Main wash compartment,
30g capacity
c Detergent dispenser latch
d Rinse aid indicator light
e Rinse aid plug
Important!
Only use powdered detergent recommended for domestic automatic dishwashers in the
detergent dispenser.
Dishwasher detergents are strongly alkaline and can be dangerous if swallowed.
Avoid contact with skin and eyes.
Keep children and infirm persons away from the DishDrawer® when the drawer is open.
Check that the detergent receptacle is empty after completion
of the wash cycle. Failure to do so could result in poisoning.
Do not place dishwasher tablets in the
detergent dispenser.
Detergent and dishwasher tablets should not
be in direct contact with dishes or cutlery.
Liquid detergents are not suitable to be used in
the DishDrawer®.
Hand washing liquids, soap, laundry detergents
or disinfectants will damage the DishDrawer®.
Filling the detergent dispenser
1 Press the latch down and the door will open.
2 Pour in detergent. No detergent is needed for the Rinse
programme.
3 After filling the main wash compartment, close the dispenser
door until it clicks shut. The detergent will automatically be
released into the DishDrawer® during the wash programme.
Closed detergent dispenser
Open detergent dispenser
a,b
ed
c
ab
