Fisher & Paykel DishDrawer DS602 Owner's manual

All manuals and user guides at all-guides.com
all-guides.com

1

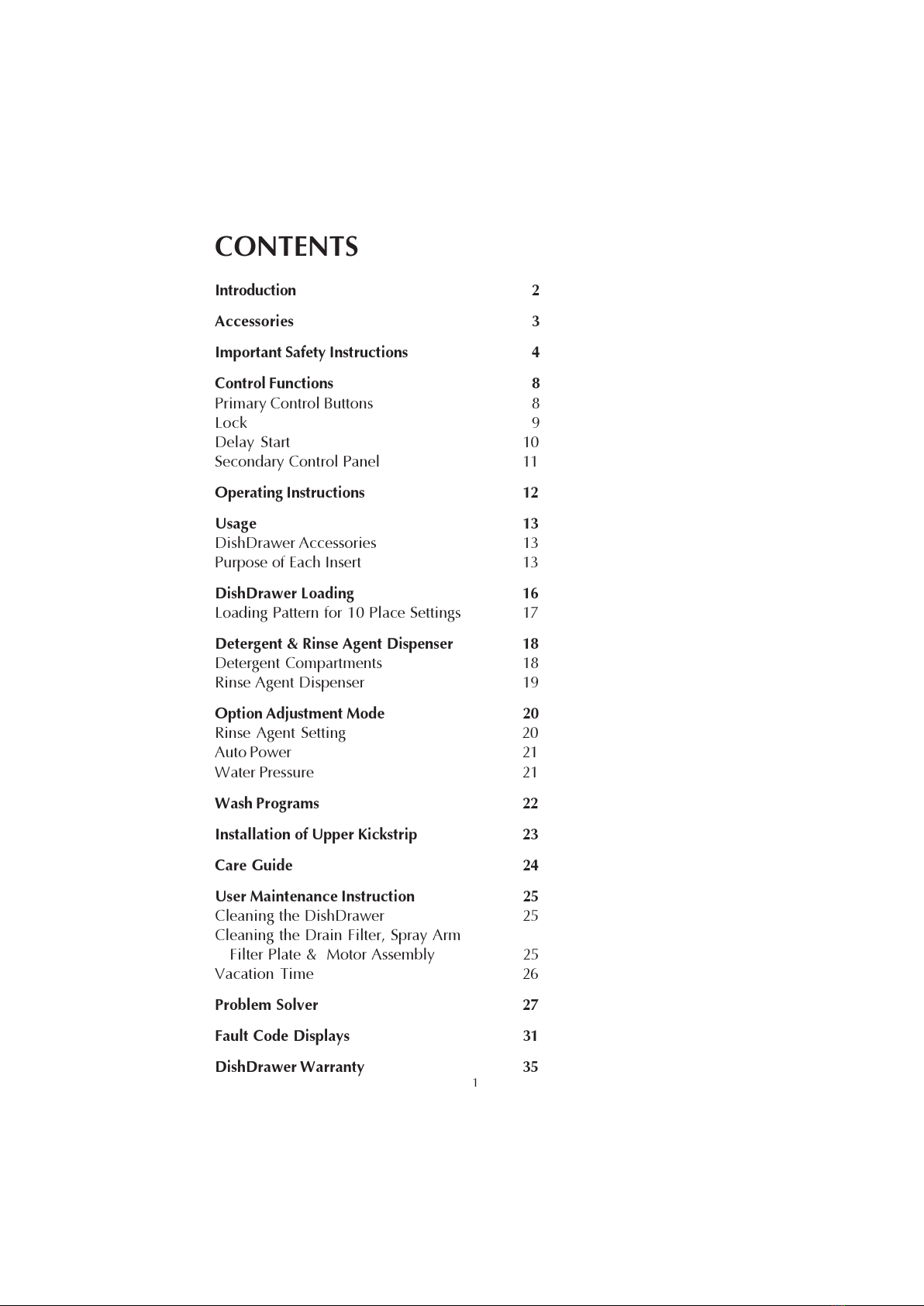

CONTENTS
Introduction 2
Accessories 3
Important Safety Instructions 4
Control Functions 8
Primary Control Buttons 8
Lock 9
Delay Start 10
Secondary Control Panel 11
Operating Instructions 12
Usage 13
DishDrawer Accessories 13
Purpose of Each Insert 13
DishDrawer Loading 16
Loading Pattern for 10 Place Settings 17
Detergent & Rinse Agent Dispenser 18
Detergent Compartments 18
Rinse Agent Dispenser 19
Option Adjustment Mode 20
Rinse Agent Setting 20
Auto Power 21
Water Pressure 21
Wash Programs 22
Installation of Upper Kickstrip 23
Care Guide 24
User Maintenance Instruction 25
Cleaning the DishDrawer 25
Cleaning the Drain Filter, Spray Arm
Filter Plate & Motor Assembly 25
Vacation Time 26
Problem Solver 27
Fault Code Displays 31
DishDrawer Warranty 35
All manuals and user guides at all-guides.com

2
INTRODUCTION
Thank you and congratulations for making the wise decision in purchasing your
Fisher & Paykel DishDrawer. Every care has been taken in designing and
manufacturing your appliance. We are sure that you will enjoy using your
DishDrawer and will soon appreciate its many benefits. We wish you many years of
satisfying use.
Unique Features of Your DishDrawerTM
By now you will be aware that Fisher & Paykel's DishDrawer is a unique
dishwasher, which offers benefits no other dishwasher can.
The DishDrawer takes the everyday kitchen drawer - long recognised as the most
efficient, easy to access storage system in the kitchen - and turns it into the most
advanced dishwasher in the world.
If you have chosen a double DishDrawer, or more than one single DishDrawer, you
will have totally separate, independently operated washing units, introducing loading
and washing possibilities that have never before been possible.
Now you can treat precious glassware to a delicate wash and give pots and pans the
heavy duty treatment - all at the same time.
The Clutter-Free Counter Top Becomes A Reality
Now it really is possible to keep your counter top free from everyday clutter like tall
glasses and awkward serving dishes. The double DishDrawer's spacious
configuration gives you many new ways to load your machine - and use it.
Used cleverly, two DishDrawers can even provide extra kitchen storage. Use clean
dishes directly from one drawer and load them back into the other drawer when dirty.
Design Your Own Rack System
With flexible, interchangable inserts the DishDrawer can be arranged to
accommodate the way you live and the dishes you use most often. Inserts are easy to
remove so it is easy to change your layout as your daily needs change.
If you have two DishDrawers, you can arrange one drawer for all your lightly soiled
cups, saucers and fine glassware - including long-stemmed glasses - and wash them
using a delicate cycle. Set up your other drawer for your more robust, heavily-soiled
items like plates, pots and pans. Inserts can easily be removed completely to fit
awkward preparation or serving dishes.
All manuals and user guides at all-guides.com

3
The Guilt-Free Small Load
All DishDrawer models make the small, guilt-free load a reality. The DishDrawer
minimizes water and energy consumption with each drawer using less than half the
water of a conventional dishwasher. By washing smaller loads more frequently, you
need never run out of clean dishes.
Gentler Introduction of Detergent
The DishDrawer's innovative detergent dispenser thoroughly pre-mixes water with
detergent before it is introduced into the drawer, so your delicate dishes are protected
from "detergent burn". Precise markings inside the dispenser ensure you never use
too much or too little detergent for each program.
Big On the Inside
Each DishDrawer has been carefully designed to give you more usable space than
ever before.
Each DishDrawer can accommodate 12 large dinner plates up to 11.4" in diameter. A
deeper drawer design means large plates can be loaded into the drawer while cups
and glasses can be safely stacked into the two levels.
Fisher & Paykel strongly recommends that you read the information contained in
this Use & Care Manual before using the DishDrawer.
ACCESSORIES
Each DishDrawer is supplied with the following:
·Basket
·Cutlery Basket
·Mega Rack
·Drain Filter Access Panel
·Plate Insert
All manuals and user guides at all-guides.com

4

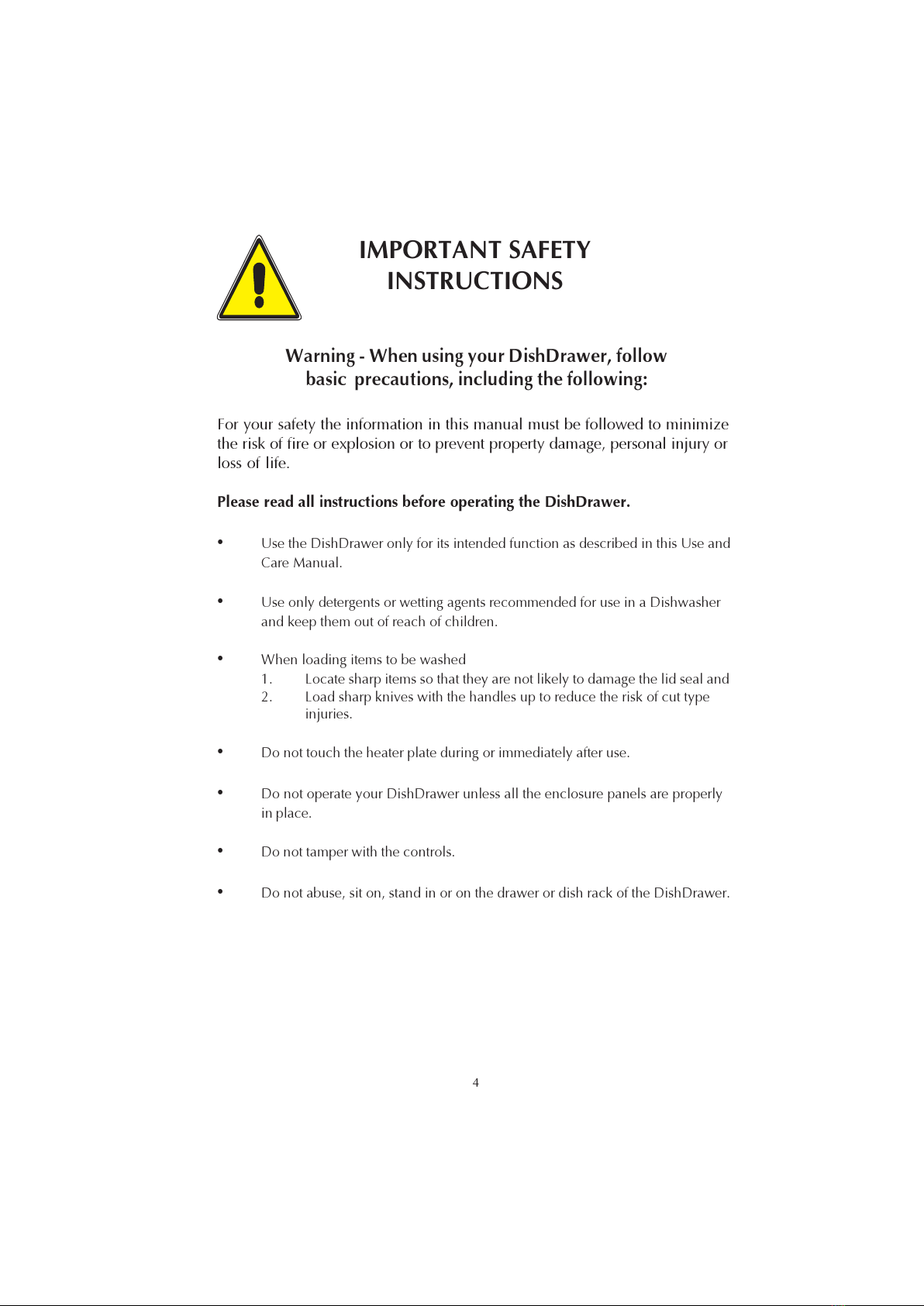

IMPORTANT SAFETY
INSTRUCTIONS
Warning - When using your DishDrawer, follow
basic precautions, including the following:
For your safety the information in this manual must be followed to minimize
the risk of fire or explosion or to prevent property damage, personal injury or
loss of life.
Please read all instructions before operating the DishDrawer.
Use the DishDrawer only for its intended function as described in this Use and
Care Manual.
Use only detergents or wetting agents recommended for use in a Dishwasher
and keep them out of reach of children.
When loading items to be washed
1. Locate sharp items so that they are not likely to damage the lid seal and
2. Load sharp knives with the handles up to reduce the risk of cut type
injuries.
Do not touch the heater plate during or immediately after use.
Do not operate your DishDrawer unless all the enclosure panels are properly
in place.
Do not tamper with the controls.
Do not abuse, sit on, stand in or on the drawer or dish rack of the DishDrawer.
All manuals and user guides at all-guides.com

5

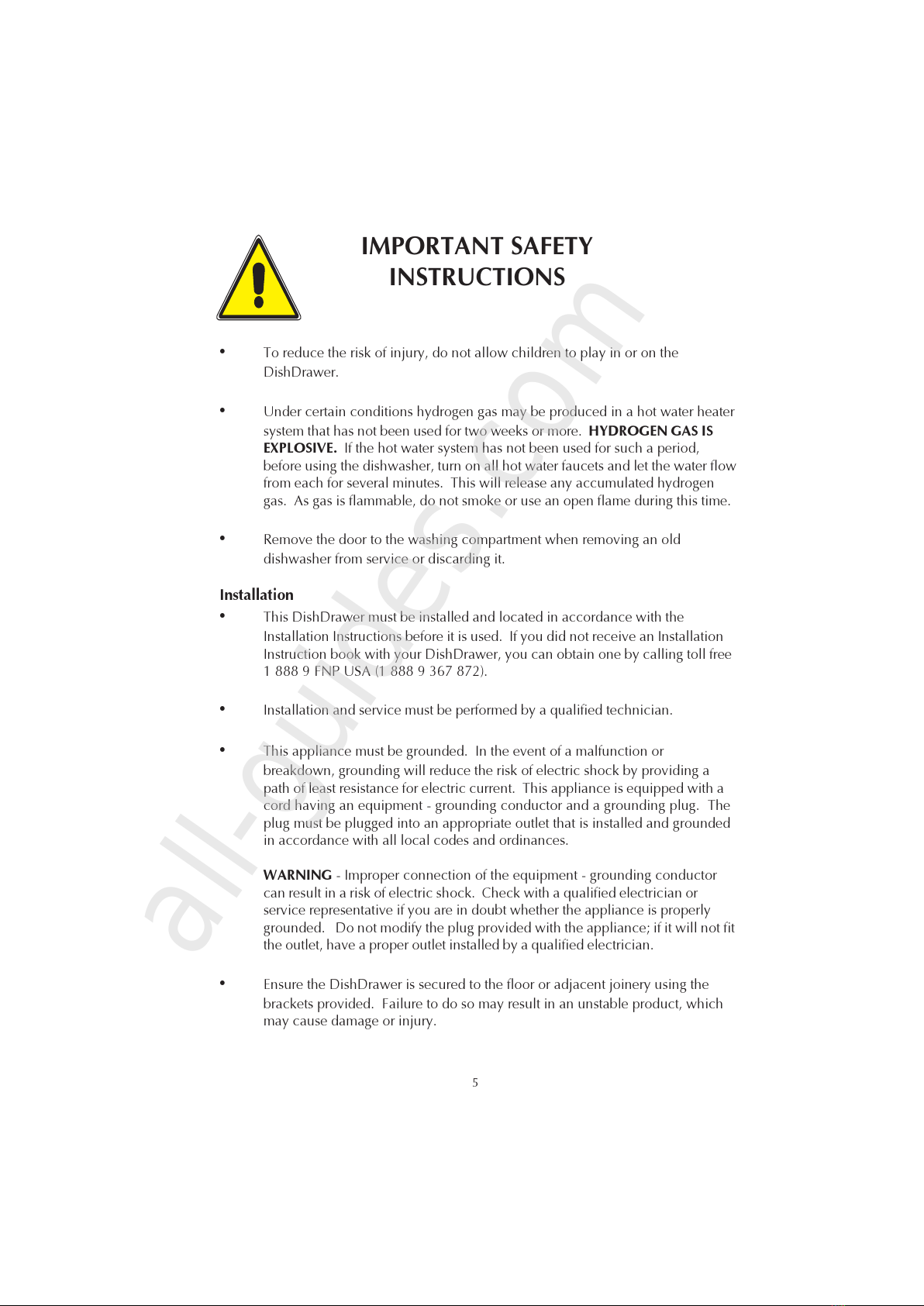

IMPORTANT SAFETY
INSTRUCTIONS
To reduce the risk of injury, do not allow children to play in or on the
DishDrawer.
Under certain conditions hydrogen gas may be produced in a hot water heater
system that has not been used for two weeks or more. HYDROGEN GAS IS
EXPLOSIVE. If the hot water system has not been used for such a period,
before using the dishwasher, turn on all hot water faucets and let the water flow
from each for several minutes. This will release any accumulated hydrogen
gas. As gas is flammable, do not smoke or use an open flame during this time.
Remove the door to the washing compartment when removing an old
dishwasher from service or discarding it.
Installation
This DishDrawer must be installed and located in accordance with the
Installation Instructions before it is used. If you did not receive an Installation
Instruction book with your DishDrawer, you can obtain one by calling toll free
1 888 9 FNP USA (1 888 9 367 872).
Installation and service must be performed by a qualified technician.
This appliance must be grounded. In the event of a malfunction or
breakdown, grounding will reduce the risk of electric shock by providing a
path of least resistance for electric current. This appliance is equipped with a
cord having an equipment - grounding conductor and a grounding plug. The
plug must be plugged into an appropriate outlet that is installed and grounded
in accordance with all local codes and ordinances.
WARNING - Improper connection of the equipment - grounding conductor
can result in a risk of electric shock. Check with a qualified electrician or
service representative if you are in doubt whether the appliance is properly
grounded. Do not modify the plug provided with the appliance; if it will not fit
the outlet, have a proper outlet installed by a qualified electrician.
Ensure the DishDrawer is secured to the floor or adjacent joinery using the
brackets provided. Failure to do so may result in an unstable product, which
may cause damage or injury.
All manuals and user guides at all-guides.com
all-guides.com

6
IMPORTANT SAFETY
INSTRUCTIONS
Do not operate this appliance if it is damaged, malfunctioning, partially
disassembled or has missing or broken parts, including a damaged cord or
plug.
Do not store or use gasoline, or other flammable vapors and liquids in the
vicinity of the DishDrawer.
Connect to a properly rated, protected and sized power supply circuit to avoid
electrical overload.
Make sure that the cord is located so that it will not be stepped on, tripped over
or otherwise subject to damage or stress.
Do not install or store the DishDrawer where it will be exposed to temperatures
below freezing or exposed to weather.
Do not use an extension cord or a portable electrical outlet device (e.g. multi
socket outlet box) to connect the DishDrawer to the power supply.
Maintenance
Do not repair or replace any part of the appliance or attempt any servicing
unless specifically recommended in this Use and Care Manual. We
recommend that you call a Fisher & Paykel Authorized Service Agent.
Keep the floor around your appliance clean and dry to reduce the possibility of
slipping.
Keep the area around / underneath your appliance free from the accumulation
of combustible materials, such as lint, paper, rags and chemicals.
When cleaning the underside of the filter plate, care must be taken on the
sharp outer edge to avoid the risk of cut type injuries.
Operational
Under no circumstances should you open the drawer whilst the DishDrawer
is in operation. Always use the Start / Pause button to pause and wait until you
hear the two additional beeps before opening the drawer.
All manuals and user guides at all-guides.com

7
IMPORTANT SAFETY
INSTRUCTIONS
The DishDrawer must be used with the motor assembly, filter plate, drain filter
and spray arm in place.
When disconnecting the appliance pull the plug rather than the cord or
junction of cord to avoid damage.
Household appliances are not intended to be played with by children.
Children or persons with a disability that may limit their ability to use the
appliance, should have a competent person instruct them in its use. This
person should be satisfied that they can then use the appliance without danger
to themselves or their surroundings.
Close supervision is necessary if this appliance is used by or near children. Do
not allow children to play inside, on or with this appliance or any discarded
appliance.
The DishDrawer is designed for washing normal household utensils. Items that
are contaminated by gasoline, paint, steel or iron debris, corrosive, acidic or
alkaline chemicals are not to be washed in the DishDrawer.
If the DishDrawer is not being used for long periods of time, turn the power and
water supply to the DishDrawer off.
It is important that the Use & Care Manual should be retained with the appliance for
future reference. Should the appliance be sold or transferred to another owner, always
ensure that the Use & Care Manual is left with the appliance in order that the new
owner can familiarize themselves with the appliance and the relevant warnings.
SAVE THESE INSTRUCTIONS
All manuals and user guides at all-guides.com

8
CONTROL FUNCTIONS
Where there are two DishDrawers in the one cabinet, each drawer has its own control
panel and can run independently of the other.
Figure 1 - Primary Control Panel
Key
1. Power
2. Start / Pause
3. Lock
Primary Control Buttons
Power
The Power button turns the DishDrawer on and off.
On
When pressing the Power button, a short series of beeps will be emitted, a green light
above the Start / Pause button will flash.
Off
To terminate a wash program, press the Power button. Any remaining water in the
DishDrawer will be pumped out. The green light above the Start / Pause button will
switch off.
All manuals and user guides at all-guides.com

9
Figure 2 - Display
showing the lock mode
Start / Pause
This button has a number of functions. It serves to:
·Start the DishDrawer once the desired wash program has been selected.
·Interrupt the wash program while in operation.
To pause the DishDrawer, press the Start / Pause button and wait until you
have heard two additional beeps before you open the drawer, allowing the lid
seal to deflate. While in pause mode, the light above the Start / Pause button
will flash.
·Restart the DishDrawer after being paused.
You may notice a delay after the Start / Pause button has been pressed. During
this time the lid seal will be inflating.
·One Button Start.
This starts the DishDrawer and will run the last wash program used.
NOTE:
Under no circumstances do we recommend that you open the DishDrawer while in
operation unless you have pressed the Start / Pause button. If the drawer is opened
during the wash program, there is a possibility of getting wet, burnt, or damaging the
DishDrawer. There are safety mechanisms in place to stop the DishDrawer if it is
opened.
If a red light appears above the Start / Pause button, check the secondary control panel
and note which lights are lit up. If the red lights above the rinse and fast are lit this
indicates that the door was opened during the wash program. To remove this fault,
ensure the drawer is closed and press Power. The DishDrawer will now be ready to
start from the beginning of the wash program. You may have to add more detergent in
the dispenser and then press Start / Pause button to start the DishDrawer. The
DishDrawer will not restart where it was interrupted after a fault.
Lock
The Lock function disables all the other functions on the
DishDrawer. This function is useful when cleaning the
control panel and can also prevent children from turning
the DishDrawer on or off accidentally. This button can be
used when the DishDrawer is in operation and will remain
active until the Lock is deactivated.
To activate this function, press and hold the Lock button
until the red light above it appears continuously and is no
longer blinking. All the other buttons are now inactive.
To deactivate this function, press and hold Lock button
until the red light above this button has disappeared.
All manuals and user guides at all-guides.com

10
Delay Start
This feature allows you to delay the start of the wash program from one to twelve
hours. It is useful if you want to take advantage of the off peak power rates. (Check
with your local Electricity Utility if this is available), or if you wish to start the
DishDrawer at a later time.
To Activate Delay Start
1. Ensure the DishDrawer is closed.
2. Press and hold the Start / Pause button. The light above the Start / Pause button
will turn orange.
3. Hold or press the Start / Pause button and the time will increase in increments
of one hour. The DishDrawer will emit a beep for each hour passed.
4. Release the button when the desired time has been reached.
The DishDrawer will automatically start when the time has elapsed.
To cancel the Delay Start, press the Power button or keep pressing until it passes 12
beeps / hour. The light above Start / Pause button will turn green when the Delay Start
has been cancelled.
All manuals and user guides at all-guides.com
all-guides.com

11
Secondary Control Panel
Wash Programs
One advantage of two independent DishDrawers is that you can divide the dish loads
according to need. For example, you can wash pots or heavily soiled items on a Heavy
Plus program in one drawer while washing china or glassware on a Delicate Eco Save
program in the other drawer.
When selecting a wash program ensure the control panel inside the drawer is clean
and dry. If not, wipe with a clean dry cloth.
Program
This button advances through the wash programs in sequence.
The wash program indicator light can be either red or green. If the light above the
selected wash program is red, it indicates that you have selected a Plus program. If the
light above the wash program is green, an Eco Save program has been chosen.
Rinse
Rinse can be used for dirty dishes that need rinsing and will be washed later. The Eco
Save function has no effect on the Rinse program.
Heavy Wash
This wash is recommended for heavily soiled dishes such as roasting dishes, pots and
dishes with baked on soil.
Normal Wash
This wash can be used for normal everyday dishes.
Fast Wash
This wash is designed for non greasy, lightly soiled dishes.
Delicate Wash
This wash is a gentle program for lightly soiled and heat sensitive crockery.
Program Modifier
Plus Programs (Red)
The Plus Programs uses higher wash temperatures and longer wash times to give optimum
wash and dry performance. The light above the wash program is red to indicate that this
option has been chosen.
Eco Save (Green)
Eco Save saves on energy. It achieves this by using lower wash temperatures and shorter
times and because of this, dry performance may be compromised.
Figure 3 - Secondary Control Panel
All manuals and user guides at all-guides.com

12

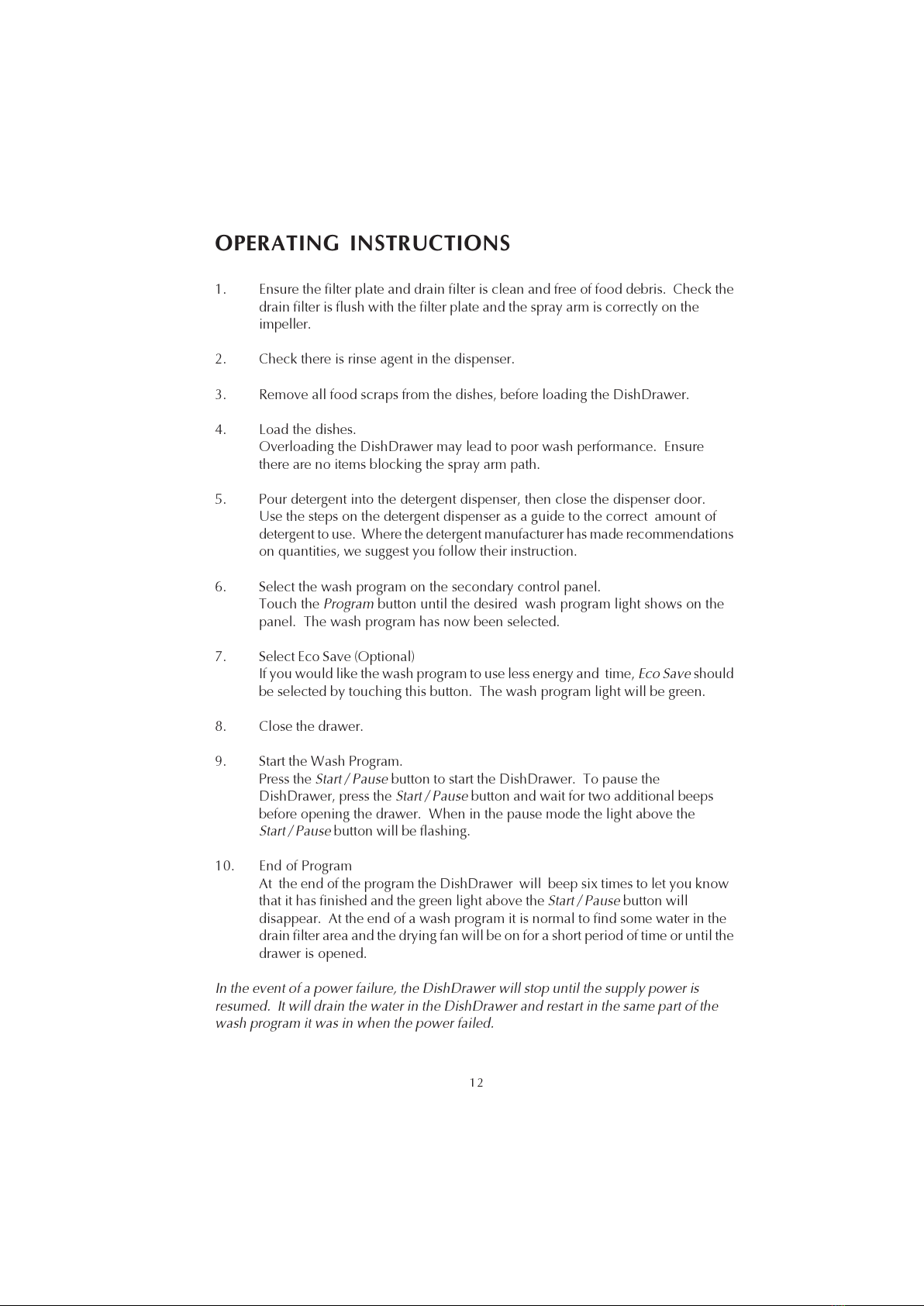

OPERATING INSTRUCTIONS
1. Ensure the filter plate and drain filter is clean and free of food debris. Check the
drain filter is flush with the filter plate and the spray arm is correctly on the
impeller.
2. Check there is rinse agent in the dispenser.
3. Remove all food scraps from the dishes, before loading the DishDrawer.
4. Load the dishes.
Overloading the DishDrawer may lead to poor wash performance. Ensure
there are no items blocking the spray arm path.
5. Pour detergent into the detergent dispenser, then close the dispenser door.
Use the steps on the detergent dispenser as a guide to the correct amount of
detergent to use. Where the detergent manufacturer has made recommendations
on quantities, we suggest you follow their instruction.
6. Select the wash program on the secondary control panel.
Touch the Program button until the desired wash program light shows on the
panel. The wash program has now been selected.
7. Select Eco Save (Optional)
If you would like the wash program to use less energy and time, Eco Save should
be selected by touching this button. The wash program light will be green.
8. Close the drawer.
9. Start the Wash Program.
Press the Start / Pause button to start the DishDrawer. To pause the
DishDrawer, press the Start / Pause button and wait for two additional beeps
before opening the drawer. When in the pause mode the light above the
Start / Pause button will be flashing.
10. End of Program
At the end of the program the DishDrawer will beep six times to let you know
that it has finished and the green light above the Start / Pause button will
disappear. At the end of a wash program it is normal to find some water in the
drain filter area and the drying fan will be on for a short period of time or until the
drawer is opened.
In the event of a power failure, the DishDrawer will stop until the supply power is
resumed. It will drain the water in the DishDrawer and restart in the same part of the
wash program it was in when the power failed.
All manuals and user guides at all-guides.com

13
USAGE
DishDrawerTM Accessories
The basket is the basic insert DishDrawer requires to
wash dishes. The inserts and racks can be added or
removed to suit your individual needs. If you have two
DishDrawers, some of the parts are interchangable
between the two drawers. For example you can
combine the two Mega Racks into one drawer and wash
all cups and glasses, leaving the other drawer for plates
and larger items.
Purpose of Each Insert
Basket
This is the most basic piece and it is essential for this to
be carefully placed into the DishDrawer first. It holds
some of the inserts in place and keeps the dishes above
the spray arm so it can rotate and spray water onto the
dishes.
Drain Filter Access Panel
The drain filter access panel is designed to give access to
the drain filter. The purpose of this insert is to prevent
objects from touching the base of the DishDrawer and
stopping the rotation of the spray arm, but still giving
access to the drain filter.
Cutlery Basket
The cutlery basket is removable and ideally should sit
over the opening of the drain filter in the front right hand
side of the drawer. For maximum wash performance the
oval slots should face the middle of the drawer.
Individual pieces of cutlery, like knives or spoons, can
be placed in the oval slots for convenience.
Figure 4 - Recommended
Positions for Inserts &
Racks
Figure 5 - Basket & Drain
Filter Access Panel
Figure 6 - Cutlery Basket
All manuals and user guides at all-guides.com

14
Plate Insert
The plate insert can be installed to the left or the right
side of the basket. This insert is capable of supporting
plates and bowls.
Mega Rack
The Mega Rack can be installed to the left or the right
side of the basket. If you want to wash wine glasses, this
rack should be installed on the left side. This rack is
designed to hold a combination of glasses, cups and
small plates. To install this rack, place the outer legs of
this rack on the top of the basket, hook into the mid
section under the middle wire and clip the Mega Rack to
the side of the basket.
When correctly installed this rack should not feel loose.
It is important to assemble the Mega Rack correctly to
minimize the chance of obstructing the spray arm.
Figure 7 - Accessories in
the DishDrawer
Key
1. Mega Rack
2. Plate Insert
2
1
All manuals and user guides at all-guides.com

15
û
ü
ü
Figure 10 Figure 11
Examples of how NOT to load your DishDrawer
û
Figure 8 Figure 9
Examples of how we recommend you load your DishDrawer
DISHDRAWERTM LOADING
Baskets
·Scrape off all food scraps and remove any bones, crusts, toothpicks and any
similar items.
·Overloading can lead to poorly washed dishes.
·Small light items should be placed soiled side down on the basket.
·Plates, bowls and saucers can be slotted into spaces provided.
·Long kitchen utensils can be laid flat on the large cup inserts.
·If there are no inserts in the basket, large bowls and pots can be placed flat in
the DishDrawer.
·Ensure no items touch or protrude above the top of the drawer as you close it,
as damage to the DishDrawer and dishware may occur.
·Locate sharp items so they are not likely to damage the lid seal. Particular
attention must be paid to knives to ensure they do not dislodge during the
wash to prevent injury to yourself or the DishDrawer.
Please note that the DishDrawer basket and its inserts are not designed to be lifted out
of the DishDrawer while loaded with dishes.
All manuals and user guides at all-guides.com
all-guides.com

16
Cup Rack Posts
Cups, glasses and kitchen utensils can be placed on both
sides of the cup racks. For best wash performance ensure
there are no large items blocking the wash water from
reaching the cup racks. See Figures 8 and 9 for the
recommended method of loading the DishDrawer.
Wine glasses can be supported on the left hand cup racks
if used in conjunction with the Mega Rack, see Figure 12.
Cutlery Baskets
·For best wash performance, mix spoons, knives
and forks within each section of the basket.
alternate between handles up and down to prevent
nesting and ensure water circulates freely.
·We recommend that sharp utensils should have
their handles facing up, to reduce the risk of cut
injuries.
·Keep stainless steel from touching silver - mixing
these metals can stain cutlery.
Spray Arms
·Ensure there are no items blocking the path of the
spray arm.
·Check that no items have slipped through the
cutlery basket.
Figure 13 - Cutlery Basket
Figure 12 -
Recommended Placement
for Wine Glasses
All manuals and user guides at all-guides.com

17
Recommended Loading Pattern for 10 Place Settings
Figure 14
Figure 15
Detergent Quantities
We recommend the use of 5g of deter-
gent in the pre-rinse compartment and
10g in the main wash compartment.
Top Basket
Bottom Basket
Cutlery Basket
Figure 16
All manuals and user guides at all-guides.com

18
DETERGENT AND RINSE AGENT DISPENSER
Figure 18
Detergent & Rinse Agent
Dispenser
Key
1. Latch
2. Main Wash Compartment
3. Pre Wash Compartment
Figure 17 - Detergent
& Rinse Agent Dispenser
Key
1. Latch
2. Rinse Agent Indicator
Light
3. Rinse Agent Plug
1
2
1
23
The detergent and rinse agent dispenser is located on the
inside of the DishDrawer.
Detergent Compartments
There are two compartments - one for pre-wash
detergent and the other for the main wash detergent.
The pre-wash compartment is the smaller. The size
of the compartments are a guide to detergent usage.
The main wash compartment has steps on the side,
these can be used as a guide for how much detergent
to use. The lowest step is equivalent to one teaspoon
when the detergent is level with this step, the middle
step is equivalent to two teaspoons and the top step is
equivalent to three teaspoons.
The detergent dispenser is designed for the use with
powdered detergents, however if liquid detergents are
used we do recommend that it not be left in the
dispenser for long periods of time before operating
the DishDrawer. Tablet detergents are not suitable to
be used in the DishDrawer.
To Load the Detergent Dispenser
·Press the latch down and the door will open.
·Pour detergent
- For heavily soiled items, extra detergent can be
placed in the pre-wash detergent compartment.
- No detergent is needed for the Rinse program.
·After filling the compartment(s), close the dispenser
door until it clicks shut.
·The detergent will automatically be released into
the DishDrawer during the wash program.
Important
Only use detergent recommended for domestic
automatic dishwashers. Handwashing liquids, soap,
laundry detergents or disinfectant will damage the
DishDrawer. Never sprinkle or pour detergent
directly onto any item in the DishDrawer.
WARNING
Dishwasher detergents are strongly alkaline. They can
be dangerous if swallowed. Avoid contact with skin
and eyes. Keep children and infirm person(s) away
from the DishDrawer when the drawer is open.
3
All manuals and user guides at all-guides.com

19
Figure 19 - Filling the
Rinse Agent Dispenser
Rinse Agent Indicator Light
·If the rinse agent indicator light is red, then there is little or no rinse agent left in
the dispenser. Rinse agent should be added into the dispenser.
·If the rinse agent window is black, there is enough rinse agent for the wash.
How Much Rinse Agent to Use
The regulator may need adjusting to suit your water conditions. The lowest
setting is 1 and the highest is 5 (refer to Option Adjustment Mode).
·If your dishes have white streaks, or there is excessive foam in the
DishDrawer, reduce the setting.
·If your dishes have water marks, or if flecks are left on glasses after drying,
increase the setting.
Rinse Agent Dispenser
Rinse agent gives a streak free sparkling clean look
to glass and chinaware. It speeds up drying and
helps prevent metal from tarnishing.
We highly recommend that you regularly use liquid
rinse agent to give the best drying results. For best
drying results, periodically check the rinse agent
dispenser to see if it needs filling and fill when
empty.
The rinse agent dispenser is on the inside of the
drawer, located underneath the detergent dispenser.
The dispenser holds approximately 1.7 fluid oz of
rinse agent.
To Load the Rinse Agent Dispenser
·Turn the plug counter clockwise, about one
eighth of a turn and remove.
·Pour the rinse agent into the circular opening.
·Take care not to spill rinse agent into the drawer.
·Wipe any overflow to prevent excess foaming.
·Fit the plug back into the original position.
1
All manuals and user guides at all-guides.com
