Fisher & Paykel DishDrawer DD603 PREFINISHED User manual

User guide
US CA
Dishwasher
DD603 and DS603 Series Models

Installation checklist
Your installer MUST have completed and checked the following:
The DishDrawer
®is square and level.
The DishDrawer
®is fastened securely to the cabinetry.
Ensure moisture protection tape has been applied and the cabinet is sealed according to the
DishDrawer®Installation Instructions.
The DishDrawer
®opens and closes freely. The DishDrawer® must be free to close completely with
no resistance from cabinetry.
For the integrated models, check the
5/16” air gap has been achieved in the correc t place.
The power supply is connected and switched on.
The inlet water hose is connected and turned on. There should be no leaks.
The drain hose(s) are connected and there are no leaks. There must be no kinks, or obstructions
in the drain hose(s).
The spray arm is in the center and can freely rotate.
Therinseprogramhasbeenrun.
The water level will be below the stainless steel filter plate at the end of the wash program. It is
normal to find some water in the drain filter area.
Set the water softener to the correct water hardness for your area.
Important!
The installer is responsible for the DishDrawer® installation. Incorrect installation is not
covered by warranty.

Important safety information
Save these instructions
WARNING!
For your safety, follow basic precautions when using your DishDrawer®, including the
following:
Please read all instructions before operating the DishDrawer®.
The information in this manual must be followed to minimize the risk of fire or explosion or to
prevent property damage, personal injury or loss of life.
Use the DishDrawer
®only for its intended function as described in this User Guide.
Use only detergents or rinse agent recommended for use in a domestic Dishwasher and keep
them out of reach of children. Check that the detergent dispenser is empty after the completion
of each wash program.
When loading items to be washed locate sharp items so that they are not likely to damage the
lid seal and load sharp knives with the handles up to reduce the risk of cut type injuries.
Do not touch the heater plate during or immediately after use.
Do not operate your DishDrawer
®unless all the enclosure panels are properly in place.
Do not tamper with the controls.
Donotabuse,siton,standinoronthedrawerordishrackoftheDishDrawer
®.
The cup racks are designed to support cups, glasses and kitchen utensils. When the cup racks
are in the DishDrawer®do not lean on or use the cup racks to support your body weight.
Toreducetheriskofinjury,donotallowchildrentoplayinorontheDishDrawer
®.
Under certain conditions hydrogen gas may be produced in a hot water heater system that has
not been used for two weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot water system has
not been used for such a period, before using the dishwasher, turn on all hot water taps and let
the water flow from each for several minutes. This will release any accumulated hydrogen gas. As
gas is flammable, do not smoke or use an open flame during this time.
Remove the door to the washing compartment when removing an old dishwasher from service
or discarding it.
Dishwasher detergents are alkaline. They can be dangerous if swallowed. Avoid contact with
skin and eyes, keep children and infirm person(s) away from the dishwasher when the drawer is
opened.

Installation
This DishDrawer
®must be installed and located in accordance with the Installation Instructions
before it is used. If you did not receive Installation Instruction sheets with your DishDrawer®, you
can order them by calling your Authorized Service Agent.
Installation and service must be performed by a qualified technician.
If the power supply cord is damaged, it must be replaced by a dealer or Authorized Service
Center or a similar qualified trades person in order to avoid a hazard.
Ensure the DishDrawer
®is secured to adjacent cabinetry using the brackets provided. Failure to
do so may result in an unstable product, which may cause damage or injury.
Do not operate this appliance if it is damaged, malfunctioning, partially disassembled or has
missing or broken parts, including a damaged power supply cord or plug.
Do not store or use petrol, or other flammable vapors and liquids in the vicinity of the
DishDrawer®.
Connect to a properly rated, protected and sized power supply circuit to avoid electrical
overload.
Makesurethatthepowersupplycordislocatedsothatitwillnotbesteppedon,trippedoveror
otherwise subject to damage or stress.
Do not install or store the DishDrawer
®where it will be exposed to temperatures below freezing
or exposed to weather.
Do not use an extension cord or a portable electrical outlet device (e.g. multi socket outlet box)
to connect the DishDrawer®to the power supply.
Maintenance
Do not repair or replace any part of the appliance or attempt any servicing unless specifically
recommended in this User Guide. We recommend that you call an Authorized Service Agent.
Keep the floor around your appliance clean and dry to reduce the possibility of slipping.
Keep the area around/underneath your appliance free from the accumulation of combustible
materials, such as lint, paper, rags and chemicals.
When cleaning the underside of the filter plate, care must be taken on the sharp outer edge to
avoid the risk of cut type injuries.

Operational
Important!
Under no circumstances should you open the drawer whilst the DishDrawer®is in operation.
Alwayspressthe button to pause and wait until you hear the three additional beeps before
opening the drawer.
The DishDrawer
®must be used with the motor assembly, filter plate, drain filter and spray arm in
place.
When disconnecting the appliance pull the plug rather than the power supply cord or junction
of cord to avoid damage.
Take care when loading the DishDrawer
®not to load dishware items so it prevents the lid from
properly sealing with the drawer. Items should be placed so they do not protrude above and/or
forced into the drawer, otherwise a service call may result.
Household appliances are not intended to be played with by children. Children or persons with a
disability which limits their ability to use the appliance, should have a responsible person instruct
them in its use. The instructor should be satisfied that they can then use the appliance without
danger to themselves or their surroundings.
Close supervision is necessary if this appliance is used by or near children. Do not allow children
to play inside, on or with this appliance or any discarded appliance.
If a Dishwasher cleaner is used, we would strongly recommend a wash program with detergent
should be run immediately afterward, to prevent any damage to the DishDrawer®.
The DishDrawer
®is designed for washing normal household utensils. Items that are contaminated
by petrol, paint, steel or iron debris, corrosive, acidic or alkaline chemicals are not to be washed
in the DishDrawer®.
If the DishDrawer
®is not being used for long periods of time, turn the electricity and water
supply to the DishDrawer®off.
Do not pour detergent or rinse agent into the salt reservoir. The detergent or rinse agent will
destroy the water softener.
Important!
This User Guide should be retained with the appliance for future reference. Should the
appliance be sold or transferred to another owner, always ensure that the User Guide is left
with the appliance in order that the new owner can become familiar with the appliance and
the relevant warnings.

DishDrawer® user guide
DishDrawer®Prefinished model with LCD controls
DishDrawer®Prefinished model with no LCD controls
Contents
Installation checklist
Important safety information
Controls (Integrated badge and Prefinished
models with no LCD) 2
LCD Controls 4
Operation 6
Wash program chart 7
Caring for your dinnerware 8
Dishwasher standards test 9
Accessories 10
Loading 12
Detergent dispenser 14
Water softener 16
Rinse agent dispenser 18
Option adjustment 19
User maintenance instructions 22
Trouble shooting 25
Fault codes 28
Limited warranty 30
This User Guide explains how to operate
and maintain your new appliance
properly and safely. Please read the
whole guide carefully before starting to
use your appliance.

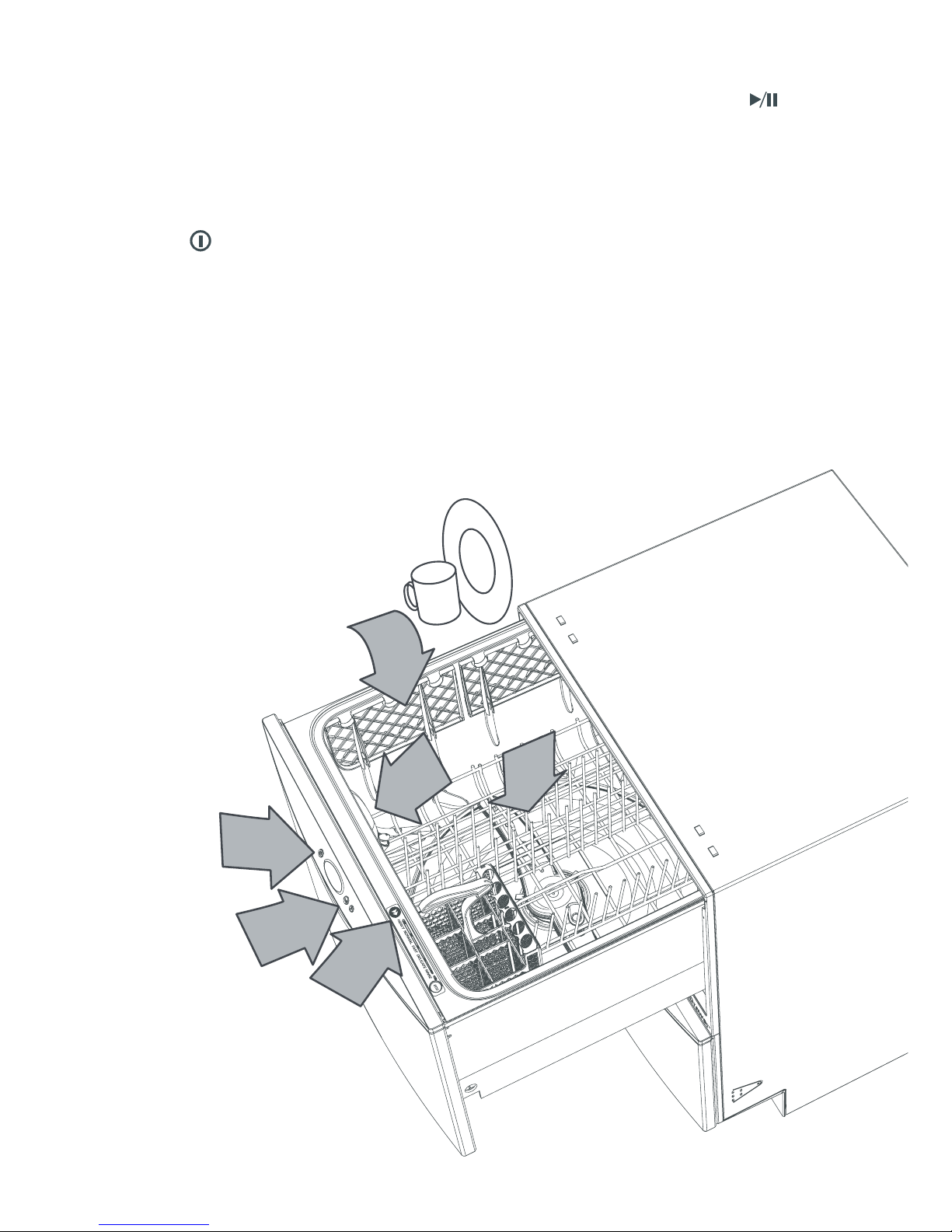

DishDrawer®Integrated with badge controls

2
Controls (Integrated badge and Prefinished models with no LCD)
If you have a double DishDrawer®, each drawer has
its own controls and can run independently of the
other.
Power button
The button turns the DishDrawer® on or off.
Opening the drawer will automatically turn the
DishDrawer® on for 30 seconds. To end a wash
program in mid cycle, press the button. Any
water in the DishDrawer® will be pumped out.
Start/Pause button
The button starts a wash program. Press the button to pause or restart the
DishDrawer® during a wash program. When paused, wait for three beeps before opening the
drawer. Forcing the drawer open while in mid cycle may cause damage or injury.
Delay Start
The button also sets the Delay Start feature which can delay the start of a wash program
from 1 to 12 hours. This feature also satisfies Shabbat requirements if the Auto Power option is
disabled (see Option Adjustment).
To activate Delay Start
1 Pressandholdthe button until the light above the button turns orange (or purple
depending on your model).
2 Continue holding the button down until the desired delay time has been reached. The
DishDrawer® will emit audible ‘beeps’ as you hold the button down, each beep indicates
another hour delay.
3 The DishDrawer® will start once the delay time has elapsed and the drawer is closed.
To cancel Delay Start
Press the button.
Lock button / (optional)
The /button activates/deactivates the Keylock or the Childlock functions.
Keylock
The Keylock feature disables all the buttons on the DishDrawer®.
To activate, press and hold the /button until you hear one beep (3 seconds). The light
above the /button is lit when Keylock is activated.
To cancel the Keylock feature, press and hold the /button until the light above the
/button disappears.
Integrated badge
Prefinished models with no LCD

3
Childlock
The Childlock feature locks the drawer and disables all the buttons.
To activate, press and hold the /button until you hear two beeps (5 seconds). The light
above the /button is lit when Childlock is activated.
To cancel the Childlock feature, press and hold the /button until the light above
the /button disappears.
Wash program selector
Press the button to select a wash program. The DishDrawer® will remember the last
program used.
Eco button (optional)
Press the button if you would like the wash program to use less energy and time. The red
ECO light will indicate the feature is on. If your dishes are heavily soiled or you require enhanced
dry performance, we do not recommend ECO programs.
Power failure
If the DishDrawer® is operating and a power failure occurs, it will stop. The DishDrawer® may be
unable to be opened during this time. When the power supply is resumed, the DishDrawer® will
restart in the same part of the wash program.

4

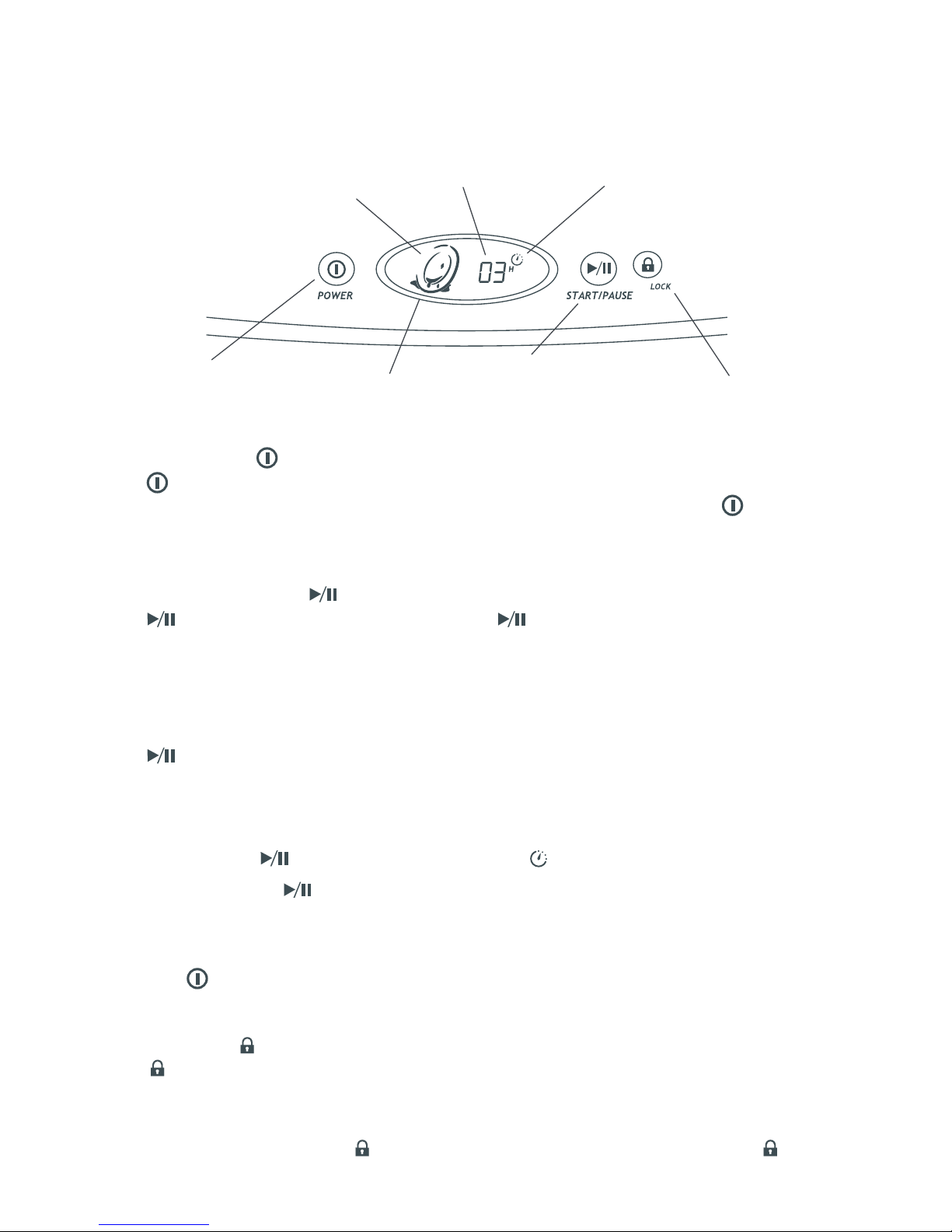

LCD screen controls (Prefinished models with LCD)
If you have a double DishDrawer®, each drawer has its own control panel and can run
independently of the other.
Power Button
The button turns the DishDrawer® on or off. Opening the drawer will automatically turn the
DishDrawer® on for 30 seconds. To end a wash program in mid cycle, press the button. Any
water in the DishDrawer® will be pumped out.
Start/Pause Button
The button starts a wash program. Press the button to pause or restart the
DishDrawer® during a wash program. When paused, wait for three beeps before opening the
drawer. Forcing the drawer open while in mid cycle may cause damage or injury.
Delay Start
The button also sets the Delay Start feature which can delay the start of a wash program
from 1 to 12 hours. This feature also satisfies Shabbat requirements if the Auto Power option is
disabled (see Option Adjustment).
To activate Delay Start
1 Pressandholdthe button until the delay symbol appears on the electronic display.
2 Continue holding the button down until the desired delay time has been reached.
3 The DishDrawer® will start once the delay time has elapsed and the drawer is closed.
To cancel Delay Start
Press the button.
Lock Button (optional)
The button activates/deactivates the Keylock or the Childlock functions.
Keylock
The Keylock feature disables all the buttons on the control panel.
To activate, press and hold the button until you hear one beep (3 seconds). The symbol
appears in the electronic display when the Keylock feature is activated.
Wash program progress
symbol
Time remaining
(Delay Start)
Power button
Electronic display
(LCD screen)
Start/Pause button
Lock button
Delay Start symbol

5
Childlock
The Childlock feature locks the drawer and disables all the buttons on the control panel.
To activate, press and hold the button until you hear two beeps (5 seconds). The symbol
appears in the electronic display when the Childlock feature is activated.
To cancel the Childlock feature, press and hold the button until you hear one beep and the
symbol disappears from the electronic display.
Wash program selector
Press the button to select a wash program. The DishDrawer® will remember the last program
used.
Eco button (optional)
Pressthe button if you would like the wash program to use less energy and time. The red
ECO light will indicate the feature is on. If your dishes are heavily soiled or you require enhanced
dry performance, we do not recommend ECO programs.
Wash program progress symbols
As the wash program advances through the cycle, the following symbols will appear in the
electronic display to indicate the progression. When a wash program has started, the electronic
display also will count down the time remaining in one minute increments.
Dirty PreWash MainWash PostRinse Drying Clean
Power failure
If the DishDrawer® is operating and a power failure occurs, it will stop. The DishDrawer® may be
unable to be opened during this time. When the power supply is resumed, the DishDrawer® will
restart in the same part of the wash program.

6
Operation
1 Load Dishes
Remove all food scraps and load the dishes.
2 Add Detergent
3 CheckRinseAgent
4 Press the Button
5 Select a Wash Program
The length of the wash program will appear
on the electronic display (if applicable).
6 Check
Ensure there is nothing obstructing the spray
arm. The drain filter must be level with the
filter plate.
7 Start
Closethedrawerandpressthe button.
8 Finish
The DishDrawer®
will beep six times to
indicate the end of the wash program. At
the end of the wash program the drying fan
will continue to run for a set time or until the
drawer is opened. The fan assists with drying
and uses negligible amounts of energy. It
is normal for some water to remain in the
drain filter area after the wash program is
complete.
1
2,3
4
6
75

7
Wash program chart
Standard Wash Program - when to use
Heavy
Heavily soiled pots,
pans and dishes.
Normal
Dishes with normal
soils for optimum
wash and dry
performance.
Fast
Lightly soiled dishes.
Delicate
Lightly soiled and
heat sensitive
crockery.
Rinse
Prevents odors
and soils drying on
dishes.
pre wash 1 pre wash 1 pre wash pre wash
pre wash 2 pre wash 2
main wash 150oF main wash 145
oFmainwash130 oFmainwash120 oF
post rinse 1 post rinse post rinse post rinse
post rinse 2
final rinse 163oFfinalrinse140
oFfinalrinse120 oFfinalrinse130 oF
drying phase drying phase drying phase
Eco Wash Program - when to use
Heavy
Heavily soiled
everyday dishes.
Normal
Normal soiled
dishes for optimum
energy use.
Fast
Lightly soiled, non
greasy dishes.
Delicate
Lightly soiled, non
greasy and heat
sensitive crockery.
pre wash 1 pre wash pre wash
pre wash 2
main wash 150oF main wash 130
oFmainwash115 oFmainwash115 oF
post rinse 1 post rinse post rinse post rinse
post rinse 2
final rinse 150oFfinalrinse130
oFfinalrinse115 oFfinalrinse120 oF
drying phase drying phase drying phase
note
Wash times can vary depending on the incoming water temperature, ambient conditions, type
of dish load and whether the drawer has been opened during the wash. Wash times are only
APPROXIMATE on the Electronic Display and based on 120°F incoming water.

8
Caring for your dinnerware
The combination of high temperatures and dishwasher detergent may cause damage to some
items if they are washed in the DishDrawer®. Remember, if in any doubt about any aspect
concerning items washed in the DishDrawer®, follow the instructions from the manufacturer of
the items, or wash the item by hand.
Cutlery & Silverware
All cutlery and silverware should be rinsed
immediately after use to prevent tarnishing
caused by some foods. The Rinse wash
program is useful for this. Silver items should
not come into contact with stainless steel,
for example other cutlery. Mixing these
items can cause staining. Remove silver
cutlery from the DishDrawer® and hand dry it
immediately after the program has finished.
Aluminum
Aluminium can be dulled by dishwasher
detergent. The degree of change depends
on the quality of the product.
Other Metals
Iron and cast iron objects can rust and stain
other items. Copper, pewter and brass tend
to stain.
Woodware
Wooden items are generally sensitive to heat
and water. Regular use in the dishwasher
may cause deterioration over time. If in
doubt, wash by hand.
Glassware
Most everyday glassware is dishwasher safe.
Crystal, very fine and antique glassware may
etch i.e. become opaque. You may prefer to
wash these items by hand.
Plastic
Some plastic may change shape or color with
hot water. Check manufacturer’s instructions
about washing plastic items. Washable
plastic items should be weighed down so
they do not flip over and fill with water or fall
through the basket during the wash.
Decorated Items
Most modern china patterns are Dishwasher
safe. Antique items, those with a pattern
painted over the glaze, gold rims or hand
painted china may be more sensitive to
machine washing. If in doubt wash these
items by hand.
Glued Items
Certain adhesives are softened or dissolved
in machine washing. If in doubt, wash glued
items by hand.
Vacation time
If the DishDrawer® is not going to be used for some time, we recommend you ensure the
baskets are empty. Leave the inside of the DishDrawer® clean. Leave the drawers ajar to allow air
to circulate. Turn off both the power and water supply to the DishDrawer®.

9
Dishwasher standards test
The DishDrawer®s are tested to various standards for both wash and dry performance.
The following are loading pattern diagrams, detergent and rinse agent quantities used for the
DishDrawer®.
Wash Programme Normal Eco
Detergent Quantities 5g (pre wash) per drawer
10g (main wash) per drawer
Rinse Agent Setting 4
Water Softener Setting
(for DD603-H and DS603-H models only)
Adjust the water softener to match the water
hardness. Refer to the water softener and
option adjustment section.
Recommended Loading Pattern
top drawer bottom drawer

10
Accessories
The inserts and racks can be added or removed to suit your individual needs. If you have the
double DishDrawer® model, some of the accessories are interchangeable between the two
drawers. For example you can combine the two Mega Racks into one drawer and wash all cups
and glasses, leaving the other drawer for plates and larger items.
a. Basket
The basket holds some of the accessories in
place and keeps dishes away from the spray
arm.
b. Drain Filter Access Panel
The drain filter access panel is designed to
snap onto the basket over the drain filter.
This prevents objects from touching the
base of the DishDrawer® and stopping the
rotation of the spray arm, while still giving
access to the drain filter.
c. Mega Rack
The Mega rack is designed to hold glasses,
cups and small plates.
d. Plate Insert
The plate insert supports plates and bowls.
How to install the Mega Rack
To install the Mega rack, place the
outer legs of the rack on top of the
basket, and clip the Mega rack to
the side of the basket. When the
Mega rack is correctly installed it
should not feel loose in the basket.
a
b
c
d

11
Cup Racks
Cups, glasses and kitchen utensils can be placed on the
left and right hand side of the cup racks.
For best performance ensure there are no large items
below, blocking the wash water from reaching the cup
racks.
Wine glasses can be supported on the cup racks if used in
conjunction with the Mega Rack.
Therearestopsonthecupracktopreventcupsfrom
touching the DishDrawer® wall. This will maximize the dry
and wash performance.
Cutlery Basket
Cutlery, small kitchen utensils and some plastic lids are
best placed into the cutlery basket.
For best wash performance, we recommend loading
cutlery with handles pointing down and sharp utensils
with their handles facing up, to reduce the risk of injury.
Mixspoons,knivesandforkswithineachsection,to
stop cutlery nesting together and to ensure the water
circulates freely.
Keep stainless steel from touching silver cutlery to avoid
staining.
Use the oval slots (spoon rack) for spoons and teaspoons.
Small items, like plastic lids, can be placed under the
spoon rack, this will prevent them from being displaced
by wash water and falling to the bottom, where they may
stop the spray arm rotation.

12
Loading
Wash water for the DishDrawer® comes from the spray arm which is situated inside the base of
the drawer. The spray arm rotates, providing wash water to all areas of the wash compartment
so care needs to be taken when loading dishes to ensure there is enough space and room for
the water to reach all areas, particularly the cup racks. If there are any items blocking the spray
arm path or the wash water, then the performance will be ineffective.
How to load your DishDrawer®
Note
The basket and its inserts are not designed to be lifted out of the DishDrawer® while loaded
with dishes.
Standard load Heavy load

13
How NOT to load your DishDrawer®
figure 1 - overcrowding
Overcrowded and wash water will not
reach some of the dinnerware.
Cups, glasses and bowls must have their
openings facing downwards.
figure 2 - nesting
figure 3 figures 4 & 5
The plates are nesting together and wash
water may not get through.
Ensure cutlery are not nesting or stuck
together. They need to be evenly spread out.
Ensuredishwareitemsarenotforcedinto
or protrude out of the drawer as it may
prevent the lid from properly sealing which
could result in a service call.
Locatesharpitemssafelytoprevent
injuring the user and damaging the lid
assembly.
Check the bottom of the cutlery basket to
ensure sharp or pointed items have not
come through as they may stop spray arm
rotation.
Ensure cutlery has not fallen through the
basket and stopped the spray arm from
rotating.
The large bowl is blocking wash water
reaching the cup racks.
Large utensils should be on cup racks so they
do not become dislodged and stop the spray
arm from rotating.
Sharp or pointed items must be placed
horizontally or with sharp edges/points
facing downward to avoid risk of injury.

14
Detergent dispenser
Important!
Only use powdered detergent recommended
for domestic automatic dishwashers in the
detergent dispenser.
Never sprinkle or pour detergent directly onto
any item in the DishDrawer®.
Tablets and liquid detergents are not suitable to
be used in the DishDrawer®.
Hand washing liquids, soap, laundry detergents
or disinfectants will damage the DishDrawer®.
Filling the detergent dispenser
1 Press the latch down and the door will open.
2 Pourindetergent. Nodetergentisneededforthe
Rinse program.
3 After filling the compartment(s), close the
dispenser door until it clicks shut. The detergent
will automatically be released into the DishDrawer®
during the wash program.
aPreWashCompartment,
10gcapacity
bMainWashCompartment,
30gcapacity
cDetergentDispenserLatch
dRinseagentIndicatorLight
eRinseagentPlug
open detergent dispenser
closed detergent dispenser
ab
ed
c
a,b
WARNING!
Dishwasher detergents are strongly alkaline and can be dangerous if swallowed.
Avoid contact with skin and eyes.
Keep children and infirm persons away from the DishDrawer® when the drawer is open.
Check that the detergent receptacle is empty after completion of the wash cycle.
Failure to do so could result in poisoning
