Fisher & Paykel Dishdrawer DD60DI User manual

591383C 05.19
INSTALLATION GUIDE
NZ AU GB IE SG
DD60DI & DD60DHI models
DOUBLE DISHDRAWER™ DISHWASHER

1

2
1SAFETY AND WARNINGS
WARNING!
Electrical shock hazard
Before installing the dishwasher, remove the
house fuse or open the circuit breaker.
This appliance must be earthed. In the event
of a malfunction or breakdown, earthing will
reduce the risk of electric shock by providing
a path of least resistance for electric current.
This appliance is equipped with a cord having
an equipment-earthing conductor and an
earthing plug. The plug must be plugged into
an appropriate outlet that is installed and
earthed in accordance with all local codes
and ordinances.
WARNING- Improper connection of the
equipment-earthing conductor can result in a
risk of electric shock. Check with a qualified
electrician or service representative if you
are in doubt as to whether the appliance is
properly earthed.
Do not modify the power supply plug provided
with the appliance - if it will not fit the outlet,
have a proper outlet installed by a qualified
electrician. Do not use an extension cord,
adapter plug or multiple outlet box.
Failure to follow this advice may result in
electrical shock or death.
WARNING!
Electrical Shock Hazard
WARNING: To reduce the risk of electrical
shock, fire, or injury to persons, the installer
must ensure that the dishwasher is completely
enclosed at the time of installation.
Before fitting the front panels and connecting
the integrated badges (where present), the
installer must ensure that the dishwasher is
disconnected from the power supply.
After installing the front panels, the installer
must ensure that the following components
are electrically earthed: the panel bracket, the
integrated badge (where present) and any
custom metal component (eg handle) that
extends past the rubber seal.
Failure to follow these warnings may result in
electrical shock, injury or fire.
WARNING!
Cut Hazard
Take care - panel edges are sharp.
Failure to use caution could result in injury
or cuts.
! !
!
Fitting integrated front panels requires access to
electrical service areas.
This work must be performed and certified by a
qualified electrical service technician.

3
1SAFETY AND WARNINGS
IMPORTANT SAFETY INSTRUCTIONS
O Installation of this dishwasher requires basic
mechanical and electrical skills.
O Be sure to leave these Instructions with the Customer.
O Installation must comply with your local building and
electricity regulations.
O At the completion of the dishwasher installation,
the Installer must perform the Final Checklist.
O Remove all packaging materials supplied with
the dishwasher.
O This dishwasher is manufactured for indoor use only.
O Ensure all water connections are turned OFF.
It is the responsibility of the plumber and electrician
to ensure that each installation complies with all
Codes and Regulations.
O The dishwasher MUST be installed to allow for future
removal from the enclosure if service is required.
O The switched power outlet must be outside
the dishwasher cavity, so that it is accessible
after installation.
O Care should be taken when the appliance is installed
or removed to reduce the likelihood of damage to
the power supply cord and hoses.
O If the dishwasher is to be relocated from one
installation to another it must be kept upright to
avoid damage from water spillage.
O Make sure only new hoses are used for connection
(supplied with the dishwasher). Old hoses should not
be reused.
O Failure to install the dishwasher correctly could
invalidate any warranty or liability claims.
IMPORTANT SAFETY INSTRUCTIONS
O Ensure the product is not plugged in when fitting
custom panels.
O Installation of custom panels requires basic mechanical
and electrical skills.
O Installation must comply with your local building and
electricity regulations.
O Failure to install the custom panels correctly could
invalidate any warranty or liability claims.
IMPORTANT!
SAVE THESE INSTRUCTIONS
The models shown in this installation guide may not be available in all markets and are subject to change at any time. For current details about model and specification availability in your
country, go to our website www.fisherpaykel.com or contact your local Fisher & Paykel dealer.

4
2PARTS SUPPLIED
If the Drain hoses supplied are not long enough to reach your services, you must use a Drain Hose Extension Kit P/N 525798 which will extend the drain hoses by 3.6 m.
The kit is available from the nearest Fisher & Paykel Authorised Service Centre or our website.
Clamp (1)
(for securing
Drain hose joiner)
Wire clip (2)
(for securing
Drain hose joiner)
Phillips 16 mm
screws (9)
Drain hose
support (1)
Moisture protection tape (1)
(to prevent moisture damage
to cabinetry)
Drain hose
joiner (1)
Top
mounting
brackets (2)
OPTIONAL
Prefinished toekick (1)Rubber washer for inlet hose (1)
(comes already fitted)
Hexagonal socket for feet
adjustment (2)
(long & short)
Side mounting
bracket kit
(A and B) (2)
OPTIONAL
Panel bracket (2)
& Knock-to-Pause Module (2)
(shipped fixed to product)
Panel mounting
screws (12)
Toekick
mounting
screws (5)
Toekick mounting bracket (1)
(A custom toekick panel of any material
with thickness 9 - 19mm can be screwed
to the Toekick mounting bracket)
Toekick panel cutting template (1)
(To enable a custom toekick panel to be
cut to fit the product profile dependant
on the depth of the toekick)
Dishdrawer™installation overview
This video provides an overview of what is needed to install a DishDrawer™. It is intended as an overview only
of the installation process and is not intended to be used as a guide on how to install a DishDrawer™ yourself.
https://vimeo.com/325297597

5
3PRODUCT DIMENSIONS
B
D
N
E
A
G
H
I
J
C
F
M
L
K
PLAN
PROFILEFRONT
DD60DI
DD60DHI
PRODUCT DIMENSIONS MM
AOverall height of product 1, 2 820-880
BOverall width of product 599
COverall depth of product 3571
DDepth of chassis (to back of front drawer panel) 553
EDepth of drawer front panel 16-20
FHeight of chassis 1811
GHeight of drawer front panels min. 717
HHeight of upper drawer front panel min. 398
IHeight of lower drawer front panel 311-360
JVentilation gap between drawer front panels 8
KHeight of toekick (customisable) 58-118
LDepth from front of drawer panel to front of toekick (adjustable) 4, 5 40-100
MHeight of leveling feet (adjustable) 29-69
NMaximum extension of drawer 3545
1 includes 2mm high bracket slots2 depending on adjustment of leveling feet 3 assuming front panel thickness of 18mm
4 adjustable to match toekick recess on adjoining cabinetry
5 assuming custom toekick panel thickness of 18mm; if recess is between 50-84mm deep, the panel will need to be cut out
- see step ‘Custom panel calculations’

6
Q
P
O
R
S
4CABINETRY DIMENSIONS
Minimum clearances from adjacent cabinetry
min. 13 mm
clearance
from a corner
cupboard
Bracket slots
min. 2 mm
clearance
to adjacent
cupboard door
PROFILEPLAN
DD60DI
DD60DHI
CABINETRY DIMENSIONS MM
OInside height of cavity* min. 820
PInside width of cavity 600
QInside depth of cavity min. 560
RRecommended height of adjacent cabinet space 720
SHeight of toekick space* 100-160
* depending on adjustment of levelling feet

7

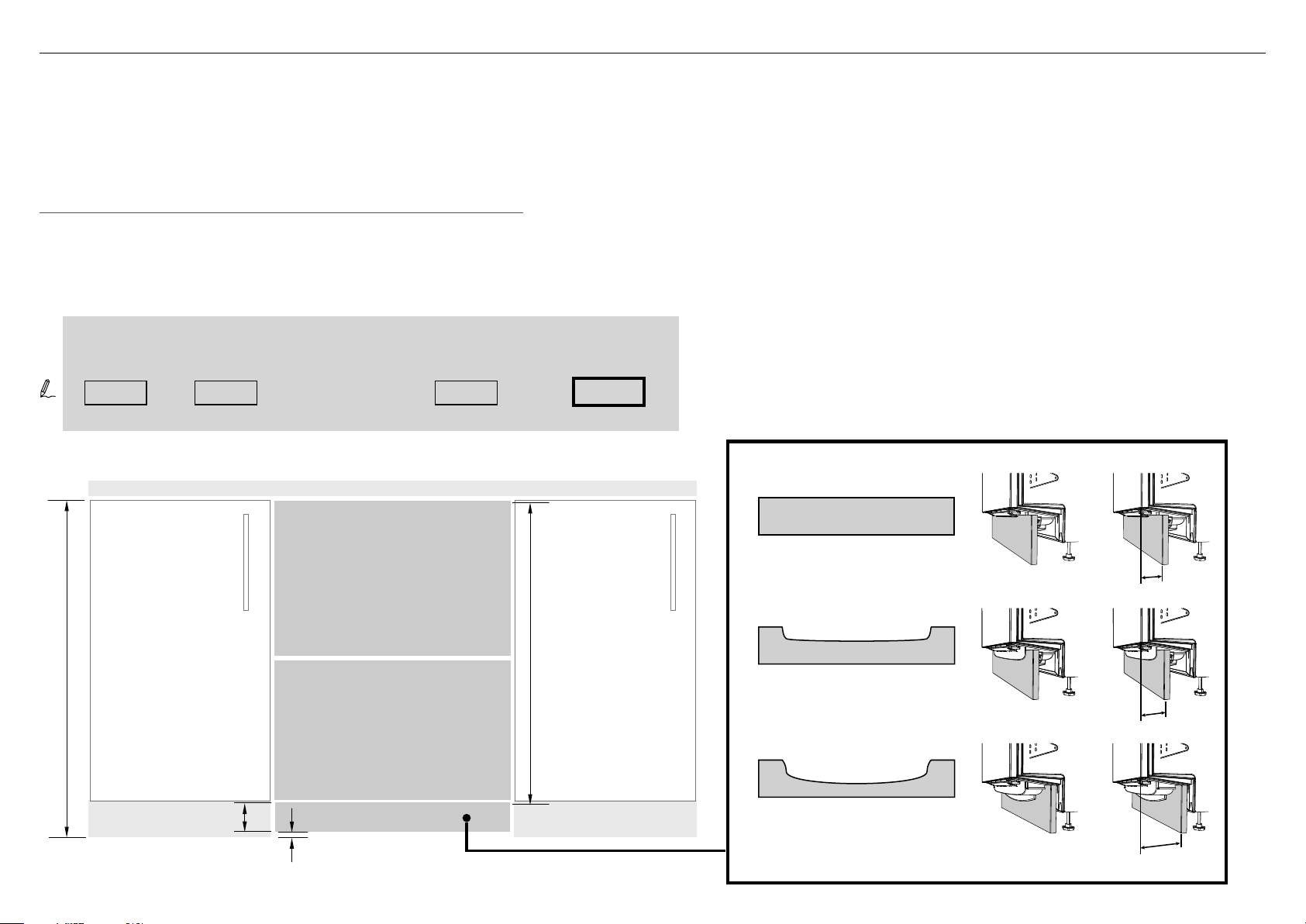

5CUSTOM DRAWER PANEL CALCULATIONS
The following calculations assume the top of the upper panel is
aligned with the top of the adjacent cabinetry.
The final panel/cabinetry alignment is achieved by adjusting the feet:
WIDTH OF ALL PANELS
Measure A(the width between adjacent door/drawer fronts)
and write it in the first box below, then complete the equation.
HEIGHT OF THE UPPER PANEL
HEIGHT OF THE LOWER PANEL
Measure C(door/drawer height (or equivalent)) and write it in the
first box below, then complete the equation.
min. 2mm
Ventilation Gap (min. 8mm)
min. 2mm
min. 2mm
min. 2mm
WIDTH OF ALL PANELS
UPPER PANEL
LOWER PANEL
TOEKICK PANEL
HEIGHT OF
LOWER PANEL
HEIGHT OF
UPPER PANEL
C
A
B
A
B
C
Clearance to adjacent
cabinet front
(min. 2mm)
(0mm recommended)
(min. 311mm)
(min. 8mm)
(596 - 615mm)
Height of
Upper Panel
Upper Panel extension
Ventilation Gap
(min 717mm + B)
minimum
height
WIDTH OF PANEL
HEIGHT OF
UPPER PANEL
HEIGHT OF
LOWER PANEL
398mm
Note: The ‘upper panel extension’ Ballows for the top of the upper
panel to extend above the chassis where required, however a
min. 2mm gap to the benchtop must be maintained.
Note: The ‘upper panel extension’ Ballows
for the top of the upper panel to extend
above the chassis where required, however
a min. 2mm gap to the benchtop must
bemaintained.
-2x =
=
=
+
--
FRONT PANEL MATERIAL SPECIFICATIONS
O 16 - 20mm panel thickness
O Adequately sealed to withstand moisture (50OC @ 80% RH)
Because of it being a hot and wet environment generally, the back and sides of the
panel should be completely sealed with a waterproof vapour barrier (ie polyurethane)
to prevent damage to the panel.
O The back of the panel (including any integrated handle) should be completely flush
so that the seal between the panel and the rubber trim is maintained.
O Installation outside these specs may result in condensation on cabinetry surfaces.
O Maximum weight of each panel: 9kg

8
6CUSTOM TOEKICK PANEL CALCULATIONS
HEIGHT OF THE TOEKICK PANEL
Measure D(height from the top of adjacent cabinet door fronts to the floor)
and write it in the first box below, then complete the equation.
Clearance to floor
(min. 12mm)
Toekick Depth
For a Toekick Depth 40mm
Depth is measured from FRONT of door panel
(assuming thickness ~18mm) to front face of
custom toekick panel
For a Toekick Depth 40-88mm
For a Toekick Depth 88-100mm
Toekick panel cutting template:
PROFILE A
Toekick panel cutting template:
PROFILE B
NO CUTOUT
HEIGHT OF
TOEKICK PANEL
D
750mm
40mm
40-88mm
88-100mm
B
D
(0mm recommended) (min. 58mm)
(min. 12mm)
Upper Panel
extension
height from top
of product to
toekick panel
mounting point
Height from top
of product to
toekick panel
mounting point
Clearance to floor
HEIGHT OF
TOEKICK PANEL
750mm =-- -
TOEKICK PANEL MATERIAL SPECIFICATIONS
O min. 9mm panel thickness if using supplied screws
O Adequately sealed to withstand moisture (50OC @ 80% RH)
O You may choose to affix your custom toekick panel either by screwing
it or gluing it to the supplied mounting bracket.
CUSTOM TOEKICK PANEL
CUSTOM TOEKICK PANEL
CUSTOM TOEKICK PANEL

9
Service Holes
Can be located either side of dishwasher, close to the rear face and
the floor, as illustrated, for access to the water supply and drain.
O If the hole is through wood, make sure its edges are smooth
androunded.
O If the hole is through metal, ensure you fit the supplied Edge
Protector to prevent damage to the power cord.
These marks indicate formed
bracket screw locations, if
securing by drawer removal.
If there is no side partition, you
can construct timber bracing
as something to secure into.
Moisture
protection tape
must be applied.
10 mm
COUNTERTOP
WARNING!
Incorrect placement of the hole
will result in damage to hoses.
Ø 57mm
Max 10mm
Max distance between
hole edge and floor
Max 5mm
Max distance
between hole edge
and rear inner face
max. 450mm
7CAVITY PREPARATION
Water Connection
Recommended COLD
(Maximum 60°C).
3/4“ BSP (GB20) to
suit flat washer.
Kosher requirements
Drains will need to be
separated to satisfy
kosher requirements.
We suggest you confirm
acceptability with your
local rabbi in respect to
kosher installations.
Water Pressure
Water softener models
Max. 1 MPa (145 psi)
Min. 0.1 MPa (14.5 psi)
Models without water softener
Max. 1 MPa (145 psi)
Min. 0.03 MPa (4.3 psi)
IMPORTANT!
The power outlet must be
located in a cabinet adjacent
to the dishwasher cavity.
220-240 VAC min. 9.5 A
min. 200 mm

10
8MAXIMUM DISTANCE OF HOSES & CORD FROM CHASSIS EDGE
LEFT HAND SIDE
Drain hoses - 2000mm Drain hoses - 1800mm
Inlet hose - 1650mm Inlet hose - 1250mm
Power cord (excl.plug) - 1650mm Power cord (excl.plug) - 1650mm
RIGHT HAND SIDE

11
(x2)
9 RECOMMENDED METHOD (A) - SECURE WITHOUT DRAWER REMOVAL (FRAMELESS CABINETRY ONLY)
NOW CHOOSE WHICH INSTALLATION METHOD (A) OR (B)
IS MORE SUITABLE FOR YOUR CABINETRY...
As you push product
in, pull through hoses
and cord, ensuring
they don’t get kinked
or twisted.
optionally attach the
two top mounting brackets
Initially level the product
A
A
A
B
B

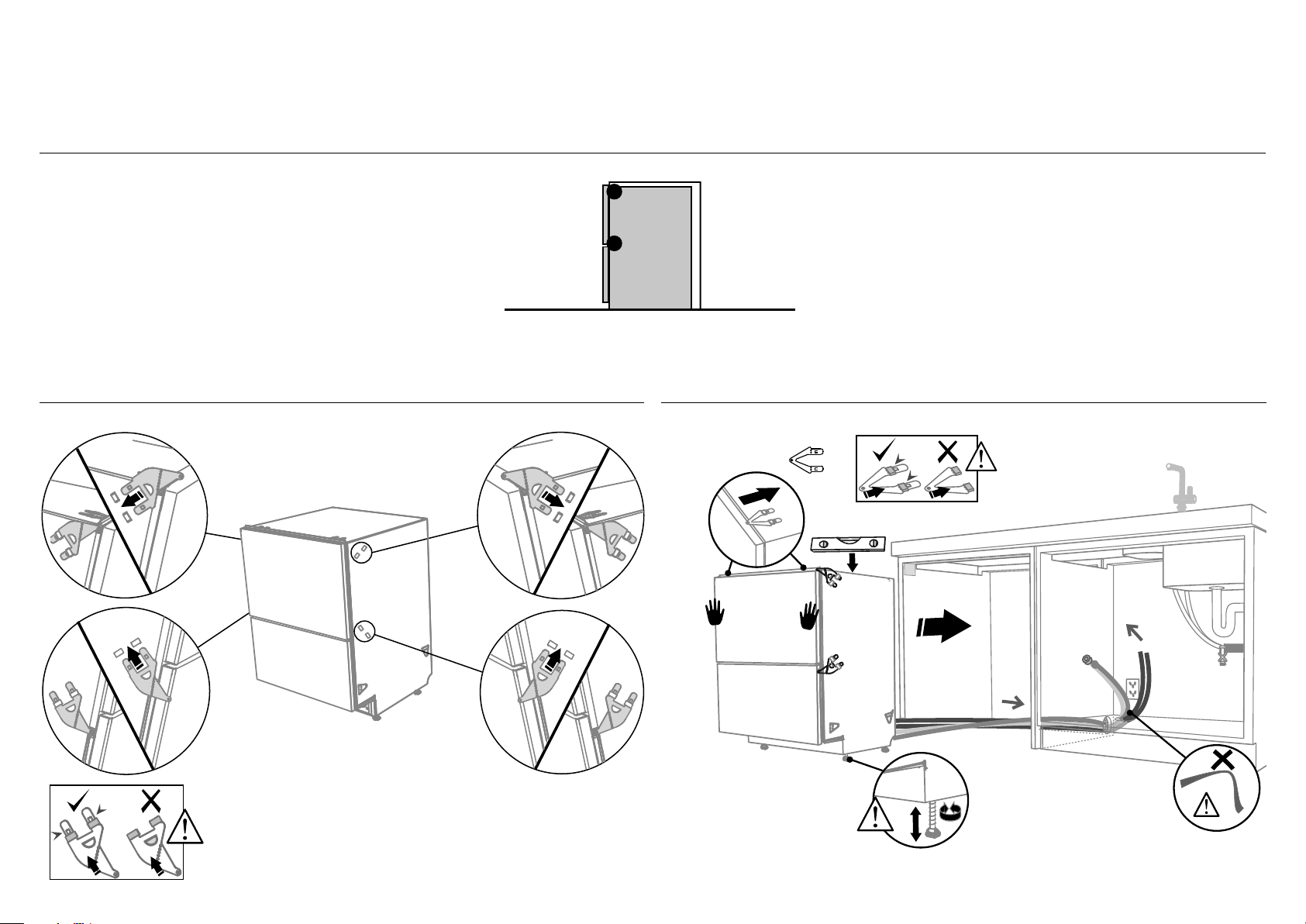

Clip all four side mounting brackets
into their slots using a flat-bladed
screwdriver. Ensure they’re securely
fitted before sliding product into cavity.
The mounting slots are in pairs, one on
each side diagonally across the product.
Abracket must match Aslot and B
bracket must match Bslot.
When fitting brackets,
ensure the ends are
not pushed down into
the chassis.
When fitting brackets, ensure the
ends are not pushed down into
the chassis.
B
AB
You can raise or lower
the product by twisting
the feet. Then take
care when pushing the
product into the cavity
that you do not bend
the feet.
9-AATTACH SIDE MOUNTING BRACKETS !0-APULL THROUGH HOSES & PUSH INTO THE CAVITY

12
2
1
3
(x2)
!1-ASECURE TO THE CABINETRY ON THE SIDES
!3-AAFTER SECURING, REFER TO ‘FIT THE SUPPLIED TOEKICK PANEL’ STEP
!2-AOPTIONALLY SECURE TO THE CABINETRY ABOVE
Open the drawer
halfway. Using
a flat bladed
screwdriver, prise
the grey rubber
plug out of the
trim moulding.
Replace the grey
rubber plug back into
the trim moulding
and ensure the trim
seal is facing forward.
Repeat for all
four brackets.
Using a small Philips
screwdriver, screw
through the trim
moulding, securing the
side mounting bracket
to the cabinetry.
Do not damage the
rubber trimseal.
The top mounting
brackets will only
bend upwards a
maximum of 10mm.

13
(x2)
1
2
4
4
3
3
9 ALTERNATIVE METHOD (B) - SECURE BY DRAWER REMOVAL
As you push product
in, pull through hoses
and cord, ensuring
they don’t get kinked
or twisted.
optionally attach the
two top mounting
brackets
Initially level the product
You can raise or lower
the product by twisting
the feet. Then take
care when pushing the
product into the cavity
that you do not bend
the feet.
9-BPULL THROUGH HOSES & PUSH INTO THE CAVITY !0-BREMOVE THE LOWER DRAWER
To prevent kinked hoses
Either sit the drawer down on the left
hand side (recommended) or rotate the
drawer clockwise, resting it on its side
after removal.
Press the release tabs
in on either side and
push back to release
drawer from runners.
Lift drawer off runners.
Push drawer
runners back in
on either side.
Push drawer
runners back in
on either side.
Sit the drawer down
Rotate the drawer
clockwise (max. 90o)
and rest on side.
When fitting brackets,
ensure the ends are
not pushed down into
the chassis.
100 mm

14
x4
(x2)
1
2
3
4
!1-BSECURE TO THE CABINETRY ON THE SIDES !2-BOPTIONALLY SECURE TO THE CABINETRY ABOVE
100 mm
Secure using two pairs
of formed brackets.
Repeat on the other
side of the chassis.
For further adjustment,
using the most appropriate
length Hexagonal socket
supplied, fully extend
levelling feet up to
required distance by hand
Ensure product is level and
aligning with cabinetry.
Hexagonal
socket
The top mounting
brackets will only
bend upwards a
maximum of 10 mm.
!3-BREFIT THE DRAWER ONTO THE RUNNERS
Before refitting the
drawer, ensure the hoses
are not twisted and the
latches at the rear of
each drawer runner are
facing forward.
Lift or rotate anti-clockwise the
drawer back onto the drawer runners
on either side.
Pull the release tabs forward on both
sides 100 mm. Ensure the tabs are fully
pulled forward and click into place.
Release tab

15
!4 INSTALLING CUSTOM FRONT DRAWER PANELS
1
1
2
Electrical Shock Hazard
WARNING!
Before continuing, ensure that the product is
disconnected from the power supply.
Failure to follow this warning may result in
electrical shock, injury or fire.
3
1
1

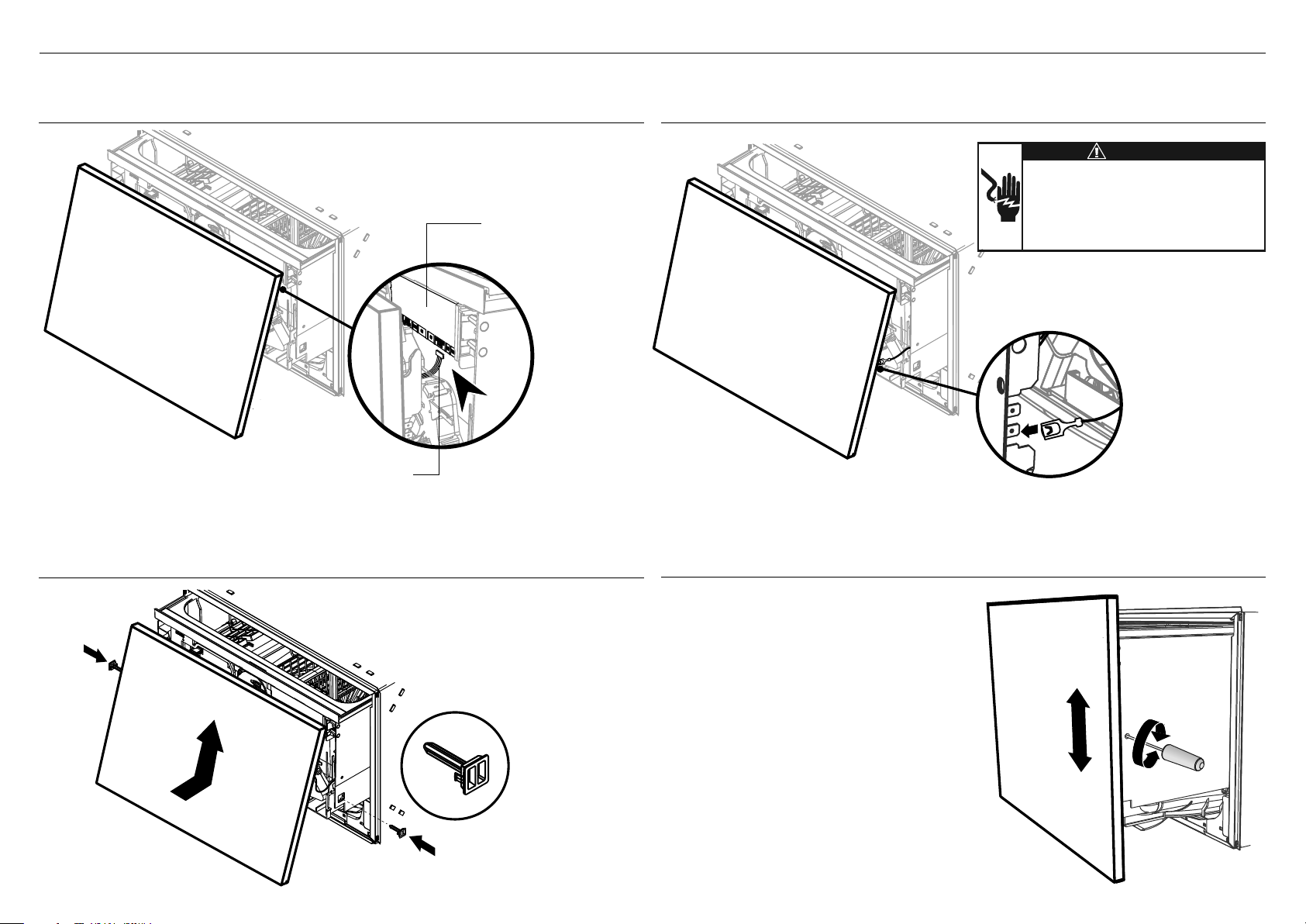

!4-AREMOVE BOTH PANEL BRACKETS FROM PRODUCT
Remove side pins and gently pull
off the panel bracket slightly.
Repeat for the other drawer.

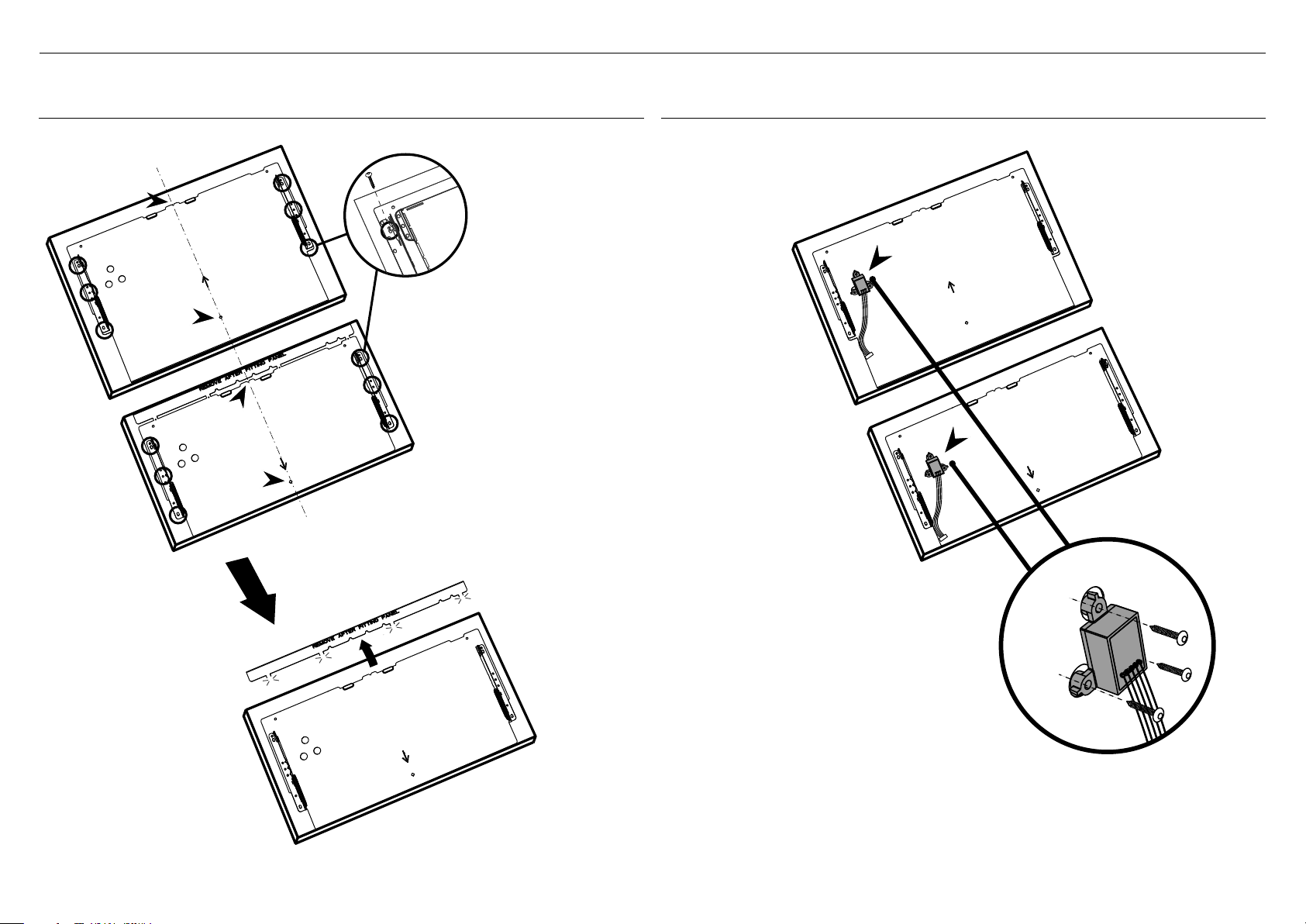

1Disconnect the Earth Wire
from the bracket
2Unplug the Knock-to-Pause module
from the controller.
Repeat for the other drawer.
Remove the Knock-to-Pause module
from the back of the bracket.
Repeat for the other bracket.
Knock-to-Pause module
Side Pin
!4-BREMOVE THE KNOCK-TO-PAUSE MODULE

16
!4 INSTALLING CUSTOM FRONT DRAWER PANELS
23
2
16mm (x6)
4
1
1
2
16mm (x3)
!4-CATTACH CUSTOM PANELS TO PANEL BRACKETS
There must be at least
3 screws used each side.
IMPORTANT!
O Ensure the Knock-To-Pause
module is orientated correctly
before attaching.
O Ensure the module is centralized
in the holes and not in contact
with the bracket.
Attach the Knock-To-Pause
module to the back of the custom
panel through the 3 holes cut into
the panel bracket as shown.
Use all 3 screws provided.
Repeat for the other module.
Align bottom of each custom panel
with the bottom of each bracket.
IMPORTANT!
Break off and discard the
tab at the top of the Lower
Panel Bracket.
!4-DATTACH KNOCK-TO-PAUSE MODULES
TO CUSTOM PANELS

17
!4 INSTALLING CUSTOM FRONT DRAWER PANELS
!4-ECONNECT THE KNOCK-TO-PAUSE MODULE
TO THE CONTROLLER
!4-GATTACH CUSTOM PANELS TO PRODUCT
!4-FRECONNECT THE EARTH WIRE TO THE
PANEL BRACKET
!4-HADJUST CUSTOM PANEL HEIGHT TO
ALIGN CABINETRY GAPS
2
2
1
Controller
Ensure the Knock-To-Pause Module
Cable is connected to the UI1 Port.
Repeat for the other drawer.
Electrical Shock Hazard
WARNING!
To earth the panel bracket, connect the earth
wire from the product to one of the tabs.
Any custom metal component (e.g. handle)
that extends past the rubber seal must be
earthed too.
Failure to follow these warnings may result
in electrical shock, injury or fire.
Reconnect the
Earth Wire to the
Panel bracket.
Repeat for the
other drawer.
+ or - 2mm
Push the Custom Panel on to
the drawer and reinsert the
side pins on each side.
Repeat for the other drawer.
With the front panels fitted, insert
an appropriately sized Philips
screwdriver into the hole above the
side pin and rotate the panels up or
down to align the gaps
in your cabinetry.
Repeat on the other side if necessary.
Each panel has a maximum travel of
2mm up or down.
IMPORTANT!
Ensure that you maintain a minimum
of 8mm ventilation gap between the
upper and lower panels.
Side Pin

18

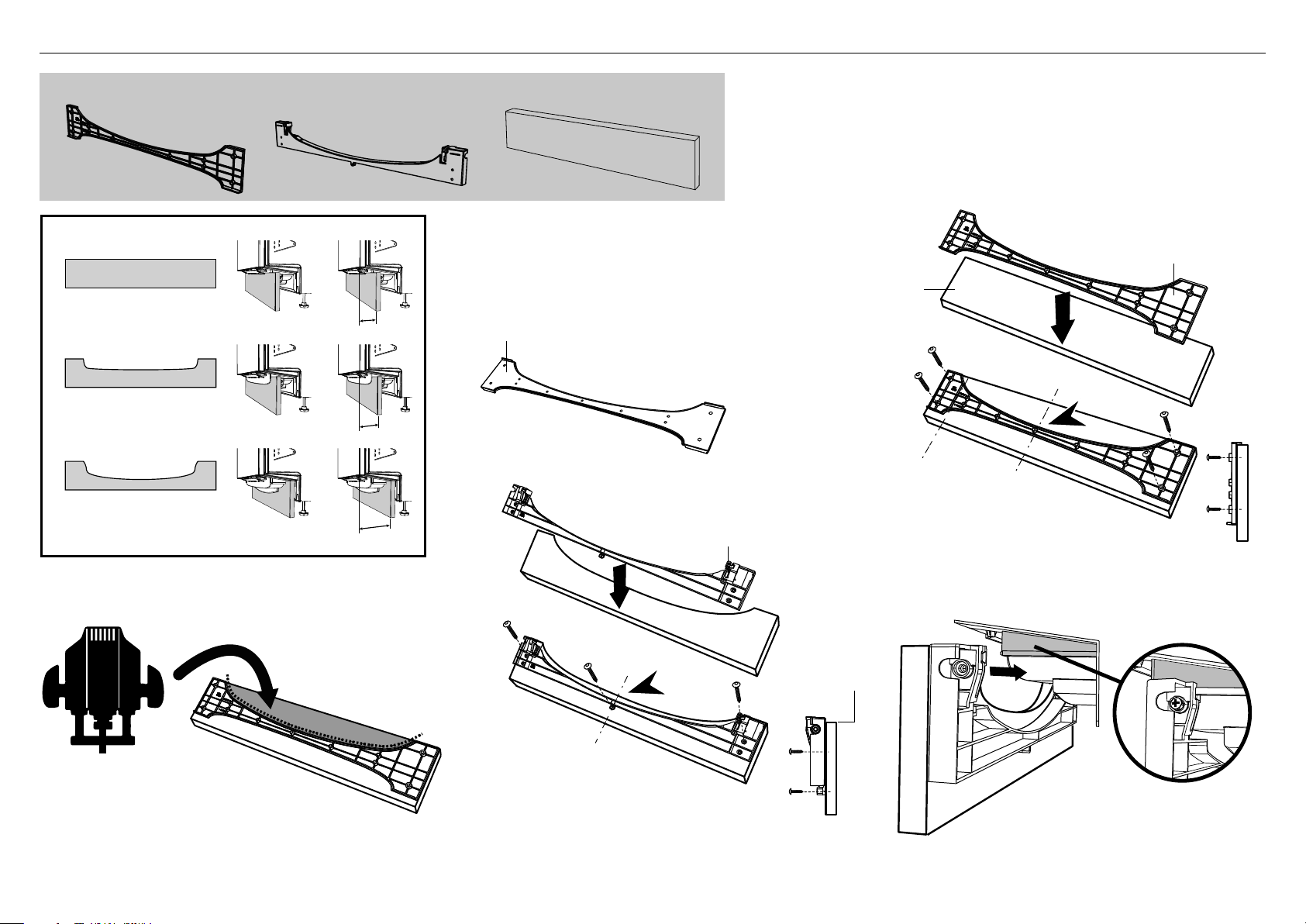

!5 FITTING A CUSTOM TOEKICK PANEL
PROFILE A
PROFILE B
9
Custom Toekick Panel
Toekick panel cutting template
Custom toekick panel
Toekick mounting bracket
cutting template
Toekick mounting
bracket
Align panel
with the ribs
Toekick Depth
For a Toekick Depth 40mm
Depth is measured from FRONT of door
panel (assuming thickness ~18mm) to front
face of custom toekick panel
For a Toekick Depth 40-88mm
For a Toekick Depth 88-100mm
Toekick panel cutting template:
PROFILE A
Toekick panel cutting template:
PROFILE B
NO CUTOUT
40mm
40-88mm
88-100mm
CUSTOM TOEKICK PANEL
CUSTOM TOEKICK PANEL
CUSTOM TOEKICK PANEL
If you require a cutout in your custom
toekick panel, choose the most
appropriate cutout profile (Aor B)
depending on the final depth of your
toekick panel.
After marking the panel, carefully cut or
router out the desired profile. Use the
template as a cutting guide.
Place the Toekick panel cutting template onto
your toekick panel. Ensure they are centered
and the template rests on the top surface of
the panel.
Secure template to panel either by clamping
or using the supplied mounting screws.
1
4
4
5
6
1
2
2
3
3
IMPORTANT!
Do not overtighten screw.
IMPORTANT!
Ensure all bare edges are sealed appropriately.
Slide the toekick onto the mounting rails
either side and screw the toekick onto
the bottom of tub on either side.
Place the Toekick mounting bracket onto your
toekick panel. Ensure they are centered and
the horizontal ribs at the top of the template
aligns with the top surface of the panel.
Secure template to panel using the supplied
toekick mounting screws.
5
6
7
7

19
!6 FIT THE SUPPLIED PREFINISHED TOEKICK PANEL (IF PREFERRED)
1
2
3
4
19
19
5
6
8
9
7
IMPORTANT!
Do not overtighten screw.
Slide the toekick onto the
mounting rails either side
and screw the toekick
onto the bottom of tub
on either side.
Where the toekick
meets the bottom
of the tub is the
cut-off point
Mark this point
on the toekick
with a pencil
Lay the toekick face down on
a chopping board or similiar.
Score along with a knife Gently snap off the excess Snap off the two end tabs
Turn the toekick over and
score along the same line.
Smooth the edge with a file.
Be careful of sharp edges.
Prefinished Toekick Panel
1
2
357
8
6
4
9
