Fisher & Paykel DH8060C User manual

INSTALLATION GUIDE /USER GUIDE
NZ AU
HEAT PUMP CLOTHES DRYER
DH8060C & DH9060C models

1
CONTENTS
IMPORTANT!
SAVE THESE INSTRUCTIONS
The models shown in this User guide
may not be available in all markets
and are subject to change at any time.
For current details about model and
specification availability in your country,
go to our website fisherpaykel.com or
contact your local Fisher & Paykel dealer.
Registration
Register your product with us so we can
provide you with the best service possible.
To register your product visit our website:
fisherpaykel.com
Introduction 3
Safety and warnings 4
Installation instructions 7
Control panel 12
Drying cycles 14
Sorting and loading 16
Getting started quickly 19
Customising drying cycle 20
Customising dryer settings 22
Caring for your dryer 23
Before you call for service 26
Fault codes 27
Troubleshooting 28
Manufacturer’s Warranty 34
Customer care 36

3

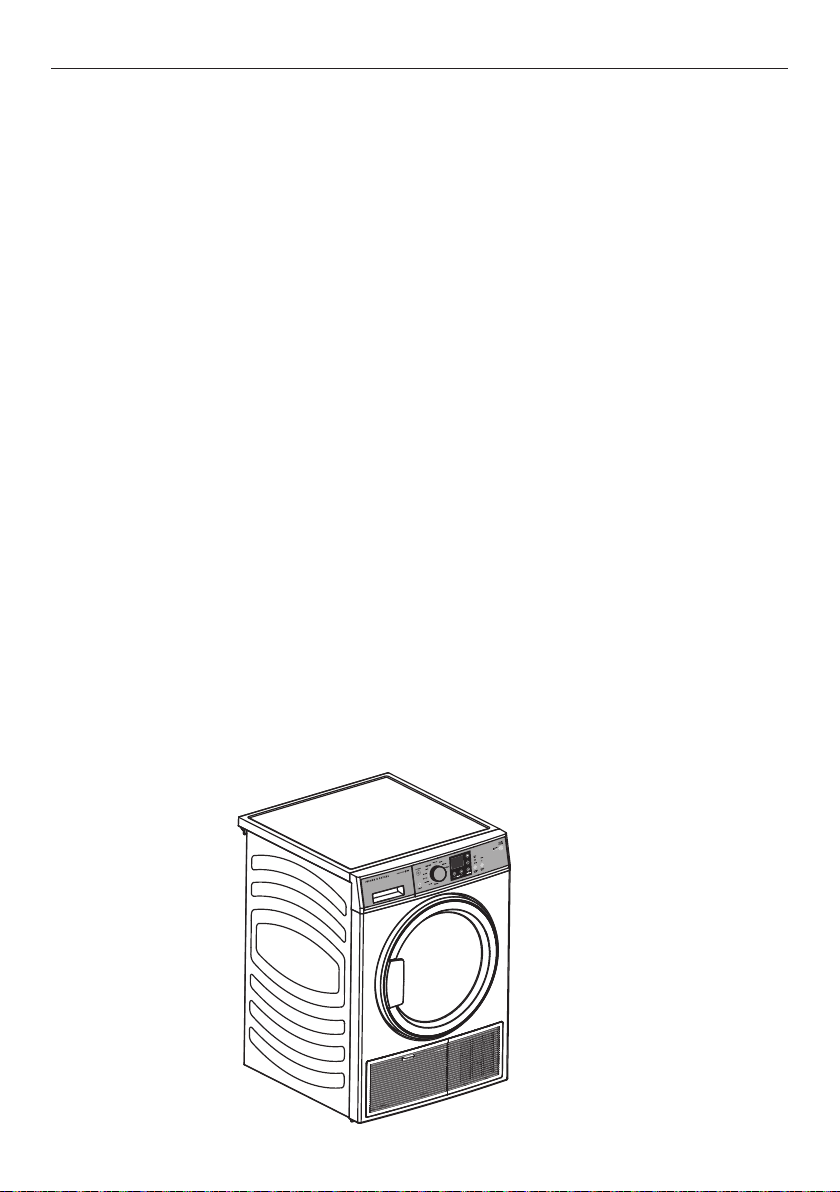

INTRODUCTION
Welcome to your new heat pump clothes dryer
Thank you for purchasing a Fisher & Paykel clothes dryer. We are proud of this dryer
andtrust it will serve you well for many years.
At Fisher & Paykel we aim to provide innovative products that are simple to use,
ergonomic, energy efficient and kind to the environment. Thousands of tonnes of
laundry and 80 years of experience have been programmed into your dryer tohelp
giveyou the best possible performance.
Your dryer has the benefit of heat pump technology, which allows clothes to be dried
atlower temperatures, improving clothes care while saving energy. This dryer also
hasthe advantage of not needing to be vented outside, instead it condenses the
moisture from the clothes and collects this in a water tank, or for convenience, can
pump it directly into a drain.
Your new dryer gives you the convenience of tumble drying and your clothes the
advantage of not being subjected to the harsh over drying effects of the sun.
Yourclothes will feel softer, retain their shape and require less ironing. This dryer has
been specifically designed to complement our front loading Fisher&Paykel washers.
Your heat pump dryer has numerous cycles and options so you can perform every
drying task (including flat drying) with ease, allowing you to spend less time in the
laundry. With the ability to automatically sense when your clothes are dry, your dryer
ismore efficient, making it kinder on your wallet and the environment.
Please take the time to read these instructions carefully before you begin using your
dryer. Following the advice in this User guide will ensure you get the performance
you expect from your dryer and that you get the best possible results. Keep these
instructions for future reference and pass them on with your dryer, if it changes hands.
We hope you enjoy your new dryer. We have certainly enjoyed designing it for you.

4
SAFETY AND WARNINGS
IMPORTANT SAFETY INSTRUCTIONS
WARNING!
When using this appliance always exercise basic safety precautions including
the following:
Dryer use
 The tumble dryer is intended only for drying textile material washed in water.
 Undergarments that contain metal reinforcements should not be placed in the dryer.
Damage to the dryer can result if the metal reinforcements come loose during drying.
If you wish to dry these items use a drying rack or place in a garment bag.
 Check and remove all objects from pockets, eg lighters and matches.
 The maximum mass of dry textile material is 8 or 9 kilograms, depending on the model.
Do not overload yourdryer.
 Never dry rubber articles, or any plastic items or film, eg plastic lined tablecloths
andbaby bibs.
 Clothes should go through the cool down/airing phase in the final part of thecycle.
This ensures items are left at a temperature where they will not be damaged.
Ifforanyreason the dryer is stopped before the cycle has finished, dry clothes should
be removed immediately and not left in the dryer. Clothes should be quickly spread
out flat to cool so heat can dissipate, not left bunched up, eg in a clothes basket.
 This dryer has been designed for domestic use only, not for commercial applications,
such as massage/beauty clinics where there may be increased lint accumulation or
flammable materials in the atmosphere or load.
Meaning of symbols on the dryer
Warning: Risk of fire/Flammable materials
Read the instructions
! WARNING!
Fire Hazard
 Only dry fabrics that have been washed with water.
 Do not use heat to dry articles containing foam rubber or similarly
textured rubber—like materials, dry on ‘Cool Air’.
 Do not stop a tumble clothes dryer before the end of the drying cycle
unless all items are removed and spread out in order to dissipate the heat.
 A clothes dryer produces combustible lint; the lint filter must be
cleaned before each drying cycle.
 Failure to follow the warnings outlined in these user instructions can
cause a fire hazard.
 Failure to follow these instructions can result in death or personal injury.

5
SAFETY AND WARNINGS
 Do not operate this product without the lint filters in place or allow lint to accumulate
in or around the dryer.
 This dryer is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge,
unless given supervision or instruction concerning the use of the dryer by a person
responsible for their safety.
 Children should be supervised to ensure they do not play with the dryer.
 Unplug the machine from the power supply when it is not in use.
 Do not swing or put weight on the door.
 Your dryer is designed to stop operating in the event of power outage.
Whenpowerisresumed, the machine will remain off until the ‘POWER’ button is
pressed. To restart the dryer, press ‘POWER’, select your drying cycle and touch .
 Never attempt to repair the dryer yourself.
 The only user-removable parts of the dryer are the drain hose, lint filter, drying rack,
condenser filter and the water tank. No other parts are designed to be removed by
anyone other than a Fisher & Paykel trained and supported service technician.
 For problems that cannot be solved from information in this User guide, turn off and
unplug your dryer and contact a Fisher & Paykel trained and supported service technician.
 When disposing of the dryer, it is recommended that the door is removed to avoid
children getting trapped inside, and that the electrical cable is cut off close to
thedryer.
IMPORTANT!
We do not recommend the use of extension cords or portable electrical outlet
devicesfor safety reasons. If you are using an extension cord or portable electrical
outlet device (eg multi-socket outlet box) ensure that it is positioned so that it
doesnot come into contact with water or moisture.
Lint
 Accumulated lint in the dryer can become a fire hazard; it also reduces the efficiency
of the dryer by causing longer drying times and increased power consumption.
 Clean the lint filters before every load.
 Ensure the area around the dryer is clear of lint.
 At regular intervals have the interior of the dryer cleaned of any accumulated lint.
Thismust be done by a Fisher & Paykel trained and supported service technician.

6
SAFETY AND WARNINGS
Spontaneous combustion
IMPORTANT!
To reduce the risk of fire in a tumble dryer the following should be observed:
 Items that have been spotted or soaked with vegetable oil or cooking oil are
afirehazard and should not be placed in a tumble dryer.
 Oil-affected items can ignite spontaneously, especially when exposed to heat
sourcessuch as a tumble dryer. The items become warm causing an oxidation
reactionin the oil. This oxidation creates heat. If the heat cannot escape the items
canbecome hot enough to catch fire. Piling, stacking or storing oil-affected items
canprevent heat from escaping creating a fire hazard.
 If it is unavoidable that fabrics that contain vegetable oil, cooking oil or have been
contaminated by hair care products be placed in a tumble dryer, they should first
bewashed in hot water with extra detergent—this will reduce, but not eliminate
the fire hazard. The cool down cycle of the dryer should be used to reduce the
temperature of these items. They should not be removed from the tumble dryer
andpiled or stacked while hot.
 Items that have previously been cleaned in, washed in, soaked in or spotted with
flammable liquids or solids, eg petrol/gasoline, kerosene, dry cleaning solvents,
vegetable or cooking oil, acetone, denatured alcohol, some brands of spot removers,
turpentine, waxes and wax removers or other flammable or explosive substances
should not be placed in a tumble dryer.
 Do not dry unwashed items in the tumble dryer.
 The dryer is not to be used if industrial chemicals have been used for cleaning.
 Fabric softeners or similar products should not be used in a tumble dryer to
eliminatethe effects of static electricity, unless this practice is specifically
recommended by the manufacturer of the fabric softener product.
 Rubber backed articles, foam rubber (latex foam), clothes or pillows fitted with
foamrubber pads, fibreglass, shoes containing rubber, shower caps, babies
waterproof napkin covers and waterproof textiles should not be dried in the dryer.
These materials can when heated produce fire by spontaneous combustion.
Disposal
Extreme care must be taken when disposing of your old appliance to avoid hazards.

7
Read and follow the ‘Safety and warnings’ and ‘Installation instructions’ sections
carefully before using your dryer!
Moving your appliance
When moving your dryer only tip towards the right hand side (when viewed from
thefront). If the dryer has not been transported as described, leave it standing
uprightfor at least one hour before turning on.
Accessories
Please check you received the following accessories with your Fisher & Paykel dryer.
You will find them inside the drum:
 1 x Drying rack

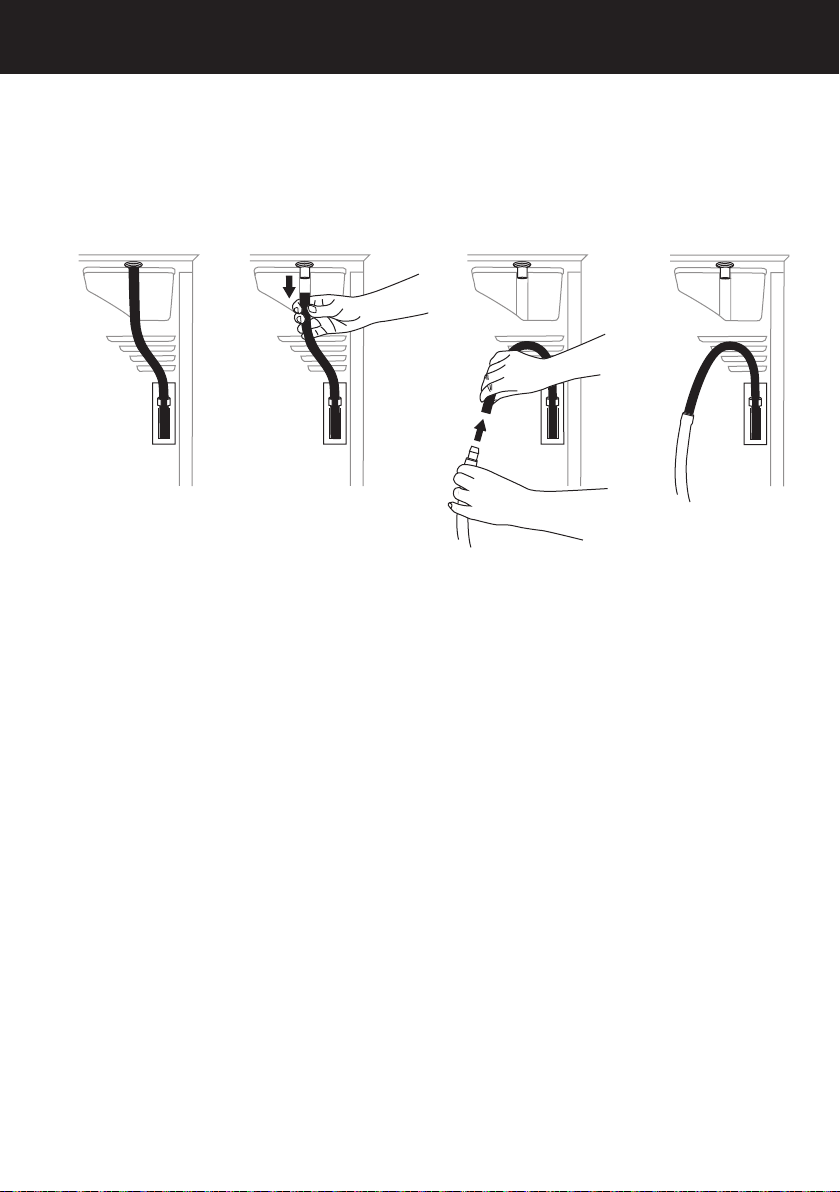

 1 x Drain hose
 1 x Installation guide / User guide.
Unpacking
To ensure the best performance from your new dryer please follow the instructions below.
Removing the packaging
1 Remove the outer packaging (including the polystyrene packer and plastic wrapping).
All packaging must be removed prior to use.
2 Tilt the machine backwards and ‘walk’ it off the base one foot at a time.
Notdoingsomay cause damage to your floor and dryer.
3 Remove all packaging and accessories from inside the drum and ensure you
removeprotective covers from door and console.
IMPORTANT
 Ensure packaging materials are kept out of reach of children.
 Please help protect the environment and dispose of the packaging from around
thedryer in an environmentally friendly manner.
Location
IMPORTANT!
 The dryer must be installed in a well-ventilated,
dust-free environment.
 The dryer must not be installed on any textured floor
coverings (eg carpet, rugs) to ensure that openings
atthe base of the machine are not obstructed.
 Do not install the dryer behind a lockable door,
slidingdoor, or behind a door where the hinge is
onthe opposite side to that of the dryer in such
awaythat the full opening of the door is inhibited.
Ensure the dryer door can always be opened fully.
Note: this dryer CANNOT BE INVERTED AND
MOUNTED ON THE WALL.
INSTALLATION INSTRUCTIONS

INSTALLATION INSTRUCTIONS
8
Installation options
Your dryer can be installed one of two ways, either freestanding, or stacked on top
ofaFisher & Paykel front loading washer.
1Free standing
The dryer stands on the floor and can easily be moved into position.
2Stacking
Your dryer has been designed to be able to be stacked on top of any Fisher & Paykel
frontloading washer. A stacking kit MUST BE USED between the products and fitted
correctly to the washing machine and dryer, as per the stacking kit instructions.
– Stacking Kit White: Part No. 428159. This Stacking kit is available from your
Fisher&Paykel dealer, online or from a Fisher & Paykel service technician.
1 Move the machine into the desired position. Do not lift the dryer by the top panel.
2 Have a minimum clearance on all sides of at least 20mm.
3 Install the machine on a stable and level floor (if not stacking on top of a front
loadingwasher).
 Do not install your dryer in such a way that the dryer door cannot be opened fully.
 Do not install the dryer outside, in a damp place, where there is a risk of freezing,
whereit may be rained on, in direct sunlight or close to a source of heat.
 Do not place your machine on top of its power cable.
Levelling the machine
It is IMPORTANT to level the machine to ensure the machine runs efficiently with minimal
noise. The dryer should be levelled in as close to its final position as possible so it stands
balanced evenly on all four feet. Ensure the dryer does not rock in any direction.
The dryer comes with four adjustable feet. Wind
all four feet up or down until the dryer is correctly
level. A spirit level can assist with this process.
The machine is considered level when the bubble
sits in the centre (ie within the two lines or the
circle), when the spirit level is placed flat on top
of your dryer, in the directions from:
1 left to right
2 back to front, and
3 corner to corner.
Never unscrew the feet completely from their housings.
Note: After levelling, the corners of the dryer cabinet should be clear of the floor
andthemachine must not rock in any direction.
Levelling the feet
