Fisher & Paykel RS6019S2 User manual

INTEGRATED
REFRIGERATOR & FREEZER
INTEGRATED REFRIGERATOR FREEZER
RS6019B models
INTEGRATED REFRIGERATOR
RS6019S2 & RS6019S models
INTEGRATED FREEZER
RS6019F2 & RS6019F models
USER GUIDE
NZ AU UK IE HK SG EU

3
CONTENTS
Registration
To register your product visit our website: fisherpaykel.com/register
Safety and warnings 5
Before you begin 10
Control panel 13
Food modes 14
Features 15
Settings 16
Wi-Fi connection 17
Adjusting the temperature 18
Food mode presets 19
Changing features 20
Changing settings 21
Water dispenser 22
Ice maker 23
Storage features 24
Care and cleaning 25
Food care 29
User warnings and sounds 30
Troubleshooting 31
European Directive 2012/19/EU on Waste
ElectricalandElectronic Equipment(WEEE) 34
Manufacturer’s Warranty and Service guide 35

5
SAFETY AND WARNINGS
WARNING!
Electric Shock Hazard
Failure to do so can result in death, electric
shock, fire or injury to persons.
• Read and follow the safety and warnings
outlined in this user guide before operating
this appliance.
WARNING!
This appliance contains flammable
refrigerant isobutane (R600a).

6
SAFETY AND WARNINGS
READ AND SAVE THIS GUIDE
WARNING!
Read entire manual. Failure to follow all guides and rules could cause personal injury or
property damage. When using this appliance, always exercise basic safety precautions
including thefollowing:
General Use
zThis appliance is designed for use in a normal domestic (residential) environment.
zChildren should be supervised to ensure that they do not play with the appliance.
zChildren aged 3 to 8 years may load and unload this appliance under supervision.
zCleaning and user maintenance shall not be undertaken by children without supervision.
zThis appliance can be used by children aged from 8years and above and persons
withreduced physical, sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or instruction concerning use of
theappliance in a safe way and understand the hazards involved.
zThe manufacturer’s installation instructions for appliance and cabinetry ventilation must
be followedwhen installing the appliance.
zTo avoid hazard due to instability of the appliance,itmust be fixed in accordance with
installation guide.
zKeep ventilation openings, in the appliance enclosure or in the built-in structure, clear
of obstruction.
zDo not use mechanical devices or other means toaccelerate the defrosting process,
other than those recommended by the manufacturer.
zDo not damage the refrigerant circuit. In case of damage to the refrigerant circuit,
ventilate the area by opening all windows.
zIt is hazardous for anyone other than a Fisher & Paykel trained and supported service
technician to service this appliance.
zWhen installing the appliance, use new tubing supplied with the appliance. DO NOT
reuse any existing water connections.
zAvoid contact with the moving parts of the ice maker ejector mechanism, and do not
place your fingers on the automatic ice-making mechanism while the appliance is
in operation.
zIt is hazardous for anyone other than an Authorised Service Person to service this
appliance. In Queensland – the authorized Service Person MUST hold a Gas Work
Authorisation for hydrocarbon refrigerants, to carry out Servicing or repairs which
involve the removal of covers.
Installation
zEnsure that the appliance is secured to prevent tipping forward. Tippingofappliance
can lead to serious injury or death.
zConnect to potable water supply only.
zThe water connection to your Ice and water appliance must be installed by a qualified
plumber or Fisher & Paykel trained and supported service technician andcomply with
all state and local laws.
zInstallation and use MUST comply with all state and local plumbing codes. Check
with your local public works department for plumbing codes. You must follow their
guidelines as you install the water filtration system.

7
SAFETY AND WARNINGS
zYour water filtration system can withstand up to 120psi (827kPa) of water pressure.
zIf a pressure limiting valve is supplied, ensure that it is installed before installing the
water filtration system. DO NOT install if water pressure exceeds 120psi (827kPa).
WARNING!
To reduce the risk associated with choking:
zDO NOT allow children under 3 years of age to have access to small parts during the
installation of the water filter.
Electrical
zDo not plug in any other appliance at the same power point as your appliance or use
extension cords or double adapters.
zWhen moving your appliance away from the wall, be careful not to roll over or damage
the powercord.
zWhen positioning the appliance, ensure the power cord is not trapped or damaged. If
the power cord is damaged, it must only be replaced by your Fisher & Paykel trained
and supported service technician.
zDonot operate electrical equipment or any otherequipment that may produce arcs,
sparks or flames in the area. Contact your Fisher & Paykel trained and supported
service technician immediately to arrange for theappliance to be repaired.
zDo not use electrical appliances inside the food storage compartments of the appliance,
unless they are of the type recommended by the manufacturer.
zDo not locate multiple portable socket-outlets or portable power supplies at the rear of
the appliance.
Temperature control
zThis refrigerating appliance is intended to be used at ambient temperatures ranging
from 16 °C to 43 °C. The appliance performance may be compromised when operating
outside of the temperature range.
zOnce you turn on your appliance for the first time, the cooling system will automatically
cool all compartments to their set temperatures. This will take between 2 – 3 hours.
zThe control panel enables you to change and control the temperatures of the
compartments accurately and independently regardless of the temperature or humidity
of the surroundings whether it is summer or winter.
zWe recommend checking the operation of your appliance once every 4 hours for the
first 24 hours.
zIf at any time you notice that the appliance is not cooling properly, call your installer
or Fisher & Paykel trained and supported service technician to verify if the unit is
operating properly. Take immediate steps to prevent food from spoiling by storing in
another appliance or freezer.
zFor common foodstuffs, factory default setting provides the optimum setting for
food care. Storing at temperatures other than settings recommended may impact the
storage life.
zFor storage of general household foods in the most efficient manner, it is recommended
to use the product in the factory configuration supplied. Moving the shelves and bins
will have a minimal impact on efficiency.

8
SAFETY AND WARNINGS
Servicing
zYour appliance is designed to operate for many years without the need for service
checks. However, if your appliance is malfunctioning, have it attended to by your
Fisher & Paykel trained and supported service technician as soon as possible.
zAll electrical repairs must be carried out by an adequately trained service technician or
qualifiedelectrician.
zElectrical shock hazard. Assume all parts are live.
zDisconnect supply before servicing and installation.
zThe LED light cannot be serviced by the user. Contact your Fisher & Paykel Dealer or
Fisher & Paykel trained and supported service technician.
zFor spare parts, please contact Fisher & Paykel Customer Care. Spare parts are available
for all Fisher & Paykel appliances for a minimum period of 10 years from the date of
manufacture.
IMPORTANT!
Your appliance is designed to operate for many years without the need for service
checks. However, if your appliance is malfunctioning, have it attended to by your
Fisher & Paykel trained and supported service technician as soon as possible.
Cleaning
zIf the appliance is left empty for long periods, switch off, defrost, clean, dry, and leave
the door open to prevent mould developing within the appliance.
zClean water tanks if they have not been used for 48 hours. Flush the water filter
connected to a water system if water has not been drained for 5 days.
zUse only soap-based cleaning products. Many commercially available cleaning products
contain solvents that may degrade the plastic components of your refrigerator and
cause them to crack
zAvoid using anti-bacterial cleaning products on either the interior or exterior
of the cabinet as they may cause rusting of metal components and cracking of
plasticcomponents.
zRegularly clean accessible draining systems and surfaces that come in contact
with food.
Disposal
zExtreme care must be taken when disposing of your old appliance to avoid hazards:
zThe flammable refrigerant gas must be safely removed by a qualified
service technician.
zThe thermal insulation foam in this appliance contains flammable insulation which
can emit gases. Anyexposed foam may be highly flammable andmust be carefully
treated during disposal.
zWARNING: Risk of child entrapment. Before you throw away your old refrigerator or
freezer, the doors and panels should be removed and the racks left in place so that
children may not easily climb inside.
zConsult your local energy authority or local codes as to the best way to dispose of your
old appliance.
zYour Fisher & Paykel trained and supported service technician will be able to give
advice on environmentally-friendly methods of disposing of your old appliance
or freezer.
zRemove all packaging and dispose of it responsibly. Recycle items that you can.

9
SAFETY AND WARNINGS
Storing food and drinks
zOnly models with 4-star compartment(s) are suitable for the freezing of foodstuffs.
zEnsure hot foods and beverages are cooled sufficiently before placing them into the
appliance. Hot items may cause other foods to warm to unsafe temperatures. It may
also cause sealed items to sweat/condensate which is undesirable.
zEnsure partially or fully defrosted foods are never re-frozen — cook immediately.
zConsume food items within the recommended storage times. Discard foods that show
sign of spoilage.
zStore perishable foods in the appliance immediately after purchase. Storing at room
temperature increases the rate of deterioration and can allow harmful microbial growth.
zStore any raw meat or fish in sealed containers to prevent cross-contamination.
zImmediately clean any drips or spills on surfaces.
zDo not store explosive substances such as aerosol cans with a flammable propellant in
this appliance.
zNever store volatile or flammable materials in your appliance as they may explode.
zDo not consume food if it is too cold. Food removed from freezer compartment may
be cold enough to cause damage when brought into contact with bare skin, eg frozen
ice cubes.
zOpening the door for long periods of time can cause a significant increase of the
temperature in the compartments of the appliance.
zNever freeze liquids in glass containers. Liquid expands when it freezes and can cause
the container to explode.
zNever freeze carbonated drinks. They may explode.
IMPORTANT!
If you suspect that the product is not getting cold — items such as ice cream are
melting — remove all perishable food and store in another appliance or cooler to prevent
spoilage. Immediately call for a service technician.
Power failure
zDo not refreeze frozen foods that have thawed completely.
zFoods that have defrosted but are still cold may be cooked immediately.
zFoods that have defrosted and are warmer than 5°C should be discarded.
You can identify the model information on the serial plate located on the inside or outer
edge of the lower compartment.
Energy Labelling and Eco-design
zThis product contains light sources of energy efficiency class F.
zInformation on product can be found in European Product Database (EPREL) at the
following link http://eprel.ec.europa.eu/. You will be asked to enter the model identifier.

10
BEFORE YOU BEGIN

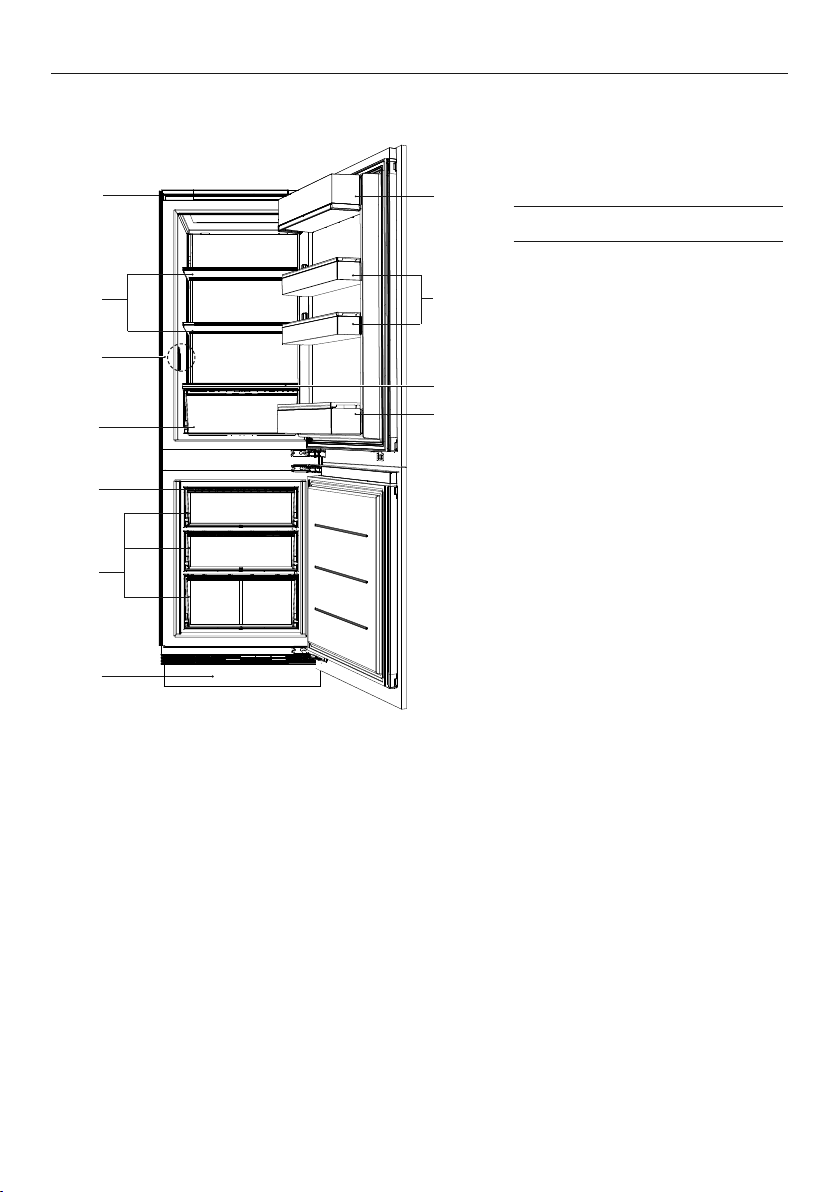

Dual Zone Refrigerator (RS6019S2)
Dual Zone Freezer (RS6019F2)
Features
1 Control panel
2 Dairy compartment
3 Adjustable shelving
4 Door shelves
5 Bottle holder accessory
6 Bottle shelf
7 Humidity control bins
2
1
6
4
3
7
5
Features
1 Control panel
2 Adjustable shelving
3 Freezer bins
2
1
3

11
BEFORE YOU BEGIN

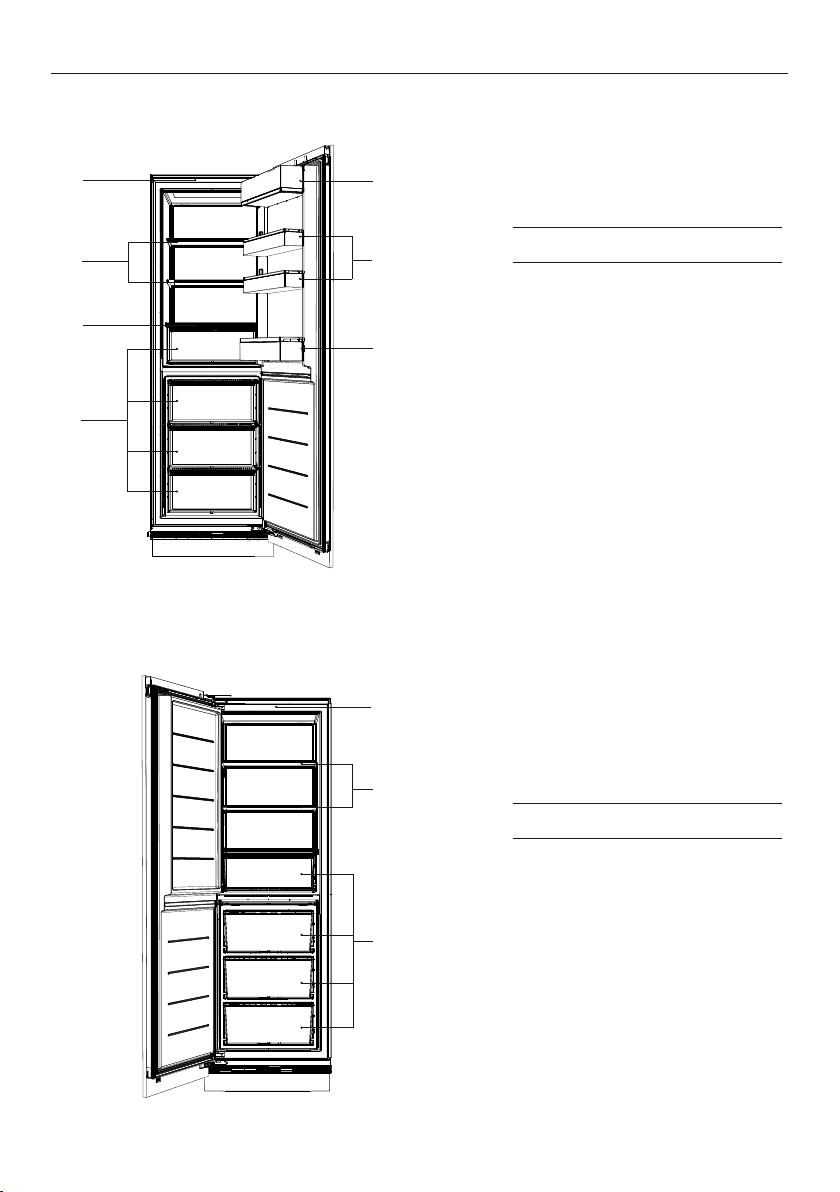

Triple Zone Refrigerator (RS6019S3)
Triple Zone Freezer (RS6019F3)
Features
1 Control panel
2 Dairy compartment
3 Adjustable shelving
4 Door shelves
5 Internal water dispenser*
6 Bottle holder accessory
7 Bottle shelf
8 Humidity control bins
9 Variable temperature zone
!0 Water filter (not shown)
*Located in inner left side wall of the
top compartment.
Features
1 Control panel
2 Pocket shelf
3 Adjustable shelving
4 Fixed shelves
5 Bottle holder accessory
6 Bottle shelf
7 Variable temperature zones
8 Automatic ice maker
(not shown)*
9 Freezer bins
!0 Water filter (not shown)
*Located inside freezer bin.
!0
4
3
1
9
2
5
8
67
2
7
6
4
3
8
5
1
!0
9

12
BEFORE YOU BEGIN
Bottom mount refrigerator (RS6019B)
Features
1 Control panel
2 Dairy compartment
3 Adjustable shelving
4 Door shelves
5 Internal water dispenser*
6 Bottle holder accessory
7 Bottle shelf
8 Humidity control bin
9 Ice maker (not shown)
!0 Freezer bins
!1 Water filter (not shown)
*Located in inner left side wall of the
top compartment.
1
5
34
8
6
7
2
9
!0
!1

13
CONTROL PANEL
Bottom mount / Dual Zone Refrigerator / Freezer
Triple Zone Refrigerator / Freezer
1 Menu Press to access product features and settings, or to return to
standby. If the display has been locked, hold for two seconds
to unlock.
2 Display screen Displays product features and settings.
3 Scroll Press to select food modes and adjust temperatures. Enables you
to scroll through the menu, features and settings.
4 Select Press to confirm and activate the selected features and settings.
5 Back Press to go back to the previous menu.
4321 5
0°C
0°C
er
er
3.0°C
3.0°C
Fridge
Fridge
4321 5
-18.0°C
Freezer
Freezer
-18.0°C
Freezer
-18.0°C
0°C
0°C
er
Fridge
0°C
Fridge
Fridge
0°C
Fridge
0°C
0°C
0°C
er
er
0°C
0°C
Fridge
Fridge
Install mode
When the product is first delivered it is in Install Mode to help assist installers.
Press and hold to activate the appliance
and display the menu.
MODE
INSTALL
Press and hold
to activate
appliance

14
FOOD MODES
Variable temperature zones
Separate zones allow for different temperature settings and food modes for a variety
of foods.
FOOD MODES DESCRIPTION TYPES OF FOOD
TO STORE
PANTRY
(12°C)
PANTRY mode provides a cool, dark
place for a wide variety of foods
that perish quickly or may spoil
at room temperature, but are too
sensitive to be stored at normal
refrigerator temperatures.
PANTRY mode runs under Cellar
Compartment storage conditions
as per Commission Regulation (EU)
2019/2019.
Bananas, avocados, tomatoes
tropical fruits, root vegetables.
Dry food items such as grains,
flours, sugars, crackers, cereal,
baked goods, tortillas, wraps
and breads.
Spreads, preserves, honey,
tropical fruits, nuts and seeds,
chocolate and fresh herbs.
Wine
FRIDGE
(3°C)
The ideal mode for fresh, everyday
foods. This mode offers a higher
relative humidity than many other
refrigerators allowing fresh foods such
as fruits and vegetables, meats and
cheeses to stay fresher for longer.
Fruit and vegetables, dairy
products, jams and chutneys/
preserves, meats and drinks.
CHILL
(-0.5°C)
CHILL mode is an extension of FRIDGE
mode, providing the perfect storage
zone for highly perishable food to
ensure they retain their vital freshness
and quality. These items will last slightly
longer here compared with storage at
FRIDGE mode.
Highly perishable meats,
poultryand seafood.
Alcoholic beverages such
asbeer.
SOFT FREEZE
(-9°C)
SOFT FREEZE mode is an extension
of your refrigerator, extending the
shelf life of perishable items while
maintaining the quality. SOFT FREEZE
mode allows easy portioning of food
and the ability to heat, cook or serve
foods straight from the compartment
without waiting for it to thaw.
Meats, seafood, soups, sauces,
pureed foods, bread, desserts
and pastries.
Soft Freeze mode is not
recommended for storage
of creamy desserts such as
ice cream.
FREEZER
(-18°C)
FREEZER mode is for general frozen
food items that require storage
between 1–12 months.
Meat, poultry, seafood, pre-
cooked foods and leftovers,
some fruits and vegetable,
ice cream, and other
frozen desserts.
Not all food modes available on every model.
Some food modes cannot be used in combination.

15
FEATURE DESCRIPTION
ICE Turns on or off your automatic ice maker in the bottom compartment.
Your ice maker is designed to automatically dispense ice into the ice
storage bin below until it detects the bin is full. The more ice you use,
the more it makes.
Before first use the automatic ice system must be flushed. Refer to your
install guide for further information.
ICE BOOST Increases ice production and deactivates automatically after 24hours.
MAX COLD Boosts the cooling speed by dropping a compartment to its coldest
temperature for a set time.
Durations: Pantry - 6 hours, Fridge - 6 hours, Chill - 4 hours,
Soft freeze - 12 hours & Freezer - 24 hours.
Use MAX COLD when you are adding food items to your appliance such
as after grocery shopping. This feature will ensure your food is chilled
or frozen within the shortest period of time, locking in freshness and
extending the shelf life of your food.
BOTTLE CHILL Rapidly chills your beverages in the freezer for 15 minutes. Depending on
the size of your beverage, the default time may not be enough to chill
your beverage. If your beverage is notcold enough after the set time,
return it to the compartment and reset the BOTTLE CHILL feature.
WATER DISPENSER Enables you to lock and unlock the water dispenser.
DOOR ALARM Allows you to temporarily mute door alarms. It will automatically disable
after 20 minutes or when the doors are closed.
DISPLAY LOCK/UNLOCK Enables you to disable the buttons on the control panel. This is useful
when cleaning your appliance.
SABBATH In SABBATH, alarms, lights and displays are deactivated for 80 hours:
zThe interior light will not turn on when you open the refrigerator.
zThe door alarms will not operate.
zThe display will not illuminate, except the SABBATH.
zThe control panel will not operate.
zSabbath mode automatically deactivates after 80 hours.
If you turn off your refrigerator while in SABBATH, it will resume
automatically once the refrigerator is switched on again.
Not all features available on every model.
FEATURES

16
SETTINGS
SETTING DESCRIPTION
WI-FI SETUP May enable you to connect to your home wireless network and operate
remotely using the app.
WATER FILTER TIMER
RESET
Enables you to reset the water filter replacement reminders.
Reminders are set for every six months.
FORCE ICE FLIP Enables you to force the ice tray to flip. This is used when flushing the
water filter after a vacation or when the filter has been replaced.
DISPLAY SOUND Enables you to silence all control panel sounds.
DISPLAY BRIGHTNESS Enables you to adjust the brightness of the display on the control panel.
TEMPERATURE UNITS Enables you to change the unit of temperature shown on the display
screen between Celsius (°C) and Fahrenheit (°F).
WATER FILTER REMINDERS Enables a notification to indicate when the water filter must be replaced.
FACTORY RESET Enables you to reset your appliance to the default factory settings.

17
Setup
i-Fi
Settings
3.0°C
Fridge
Pantry
12.0°C
Chill
-0.5°C
Setup
i-Fi
Settings
Setup
Wi-Fi
Getting started
Your appliance may be connected to your home wireless network and operated remotely
using the app.
zEnsure your home Wi-Fi network is turned on.
zYou will be given step by step guidance on both your appliance and mobile device.
zIt may take up to 10 minutes to connect your appliance.
1
2
4
3
Press to display the menu.
Press or to scroll through the list and
select SETTINGS.
Press to confirm.
Press or to scroll through the list and
select WI-FI SETUP. Press to confirm.
WI-FI CONNECTION
Connecting to Wi-Fi
Illustrations may differ from your purchased appliance.
Follow the prompts on screen and in
the app to complete set-up.
On your mobile device:
1 Download the app from www.fisherpaykel.com/connect
2 Register and create an account.
3 Add your appliance and set up the Wi-Fi connection.
ONNECTED
i-Fi
3D4
TBPHMPNQ
Connect
To complete
connection,
follow the app
instructions

18

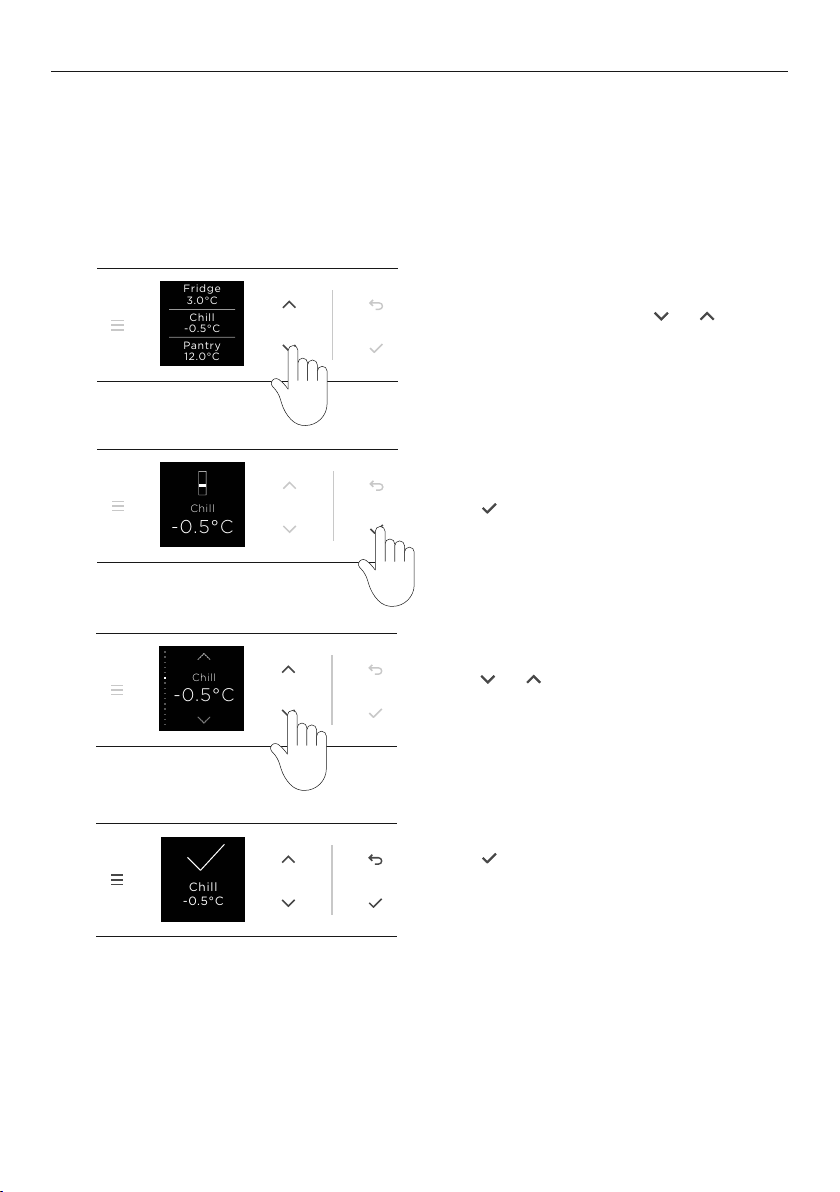

ADJUSTING THE TEMPERATURE
From the idle screen, press or to
select the desired compartment.
Press to confirm the selection.
Press to confirm.
A confirmation screen will appear and the
change will be reflected on the idle screen.
Press or to increase or decrease
the temperature.
Adjusting the temperature from quick access
When you turn on your appliance for the first time, the cooling system will automatically
cool all compartments to their default food mode and temperature (Fridge and 3C for
refrigerators and Freezer and -18C for freezers). This will take about 2-3 hours.
The temperature can be adjusted to user’s preference. Follow the steps below to quickly
adjust the temperature of the food mode in each compartment.
Illustrations may differ from your purchased appliance.
3.0°C
Fridge
Pantry
12.0°C
Chill
-0.5°C
0°C
Fridge
antry
0°C
Chill
.5°C
0°C
Chill
.5°C
Chill
.5°C
Chill
-0.5°C
Chill
1
2
3
4
-0.5°C
Chill
Chill
-0.5°C

19

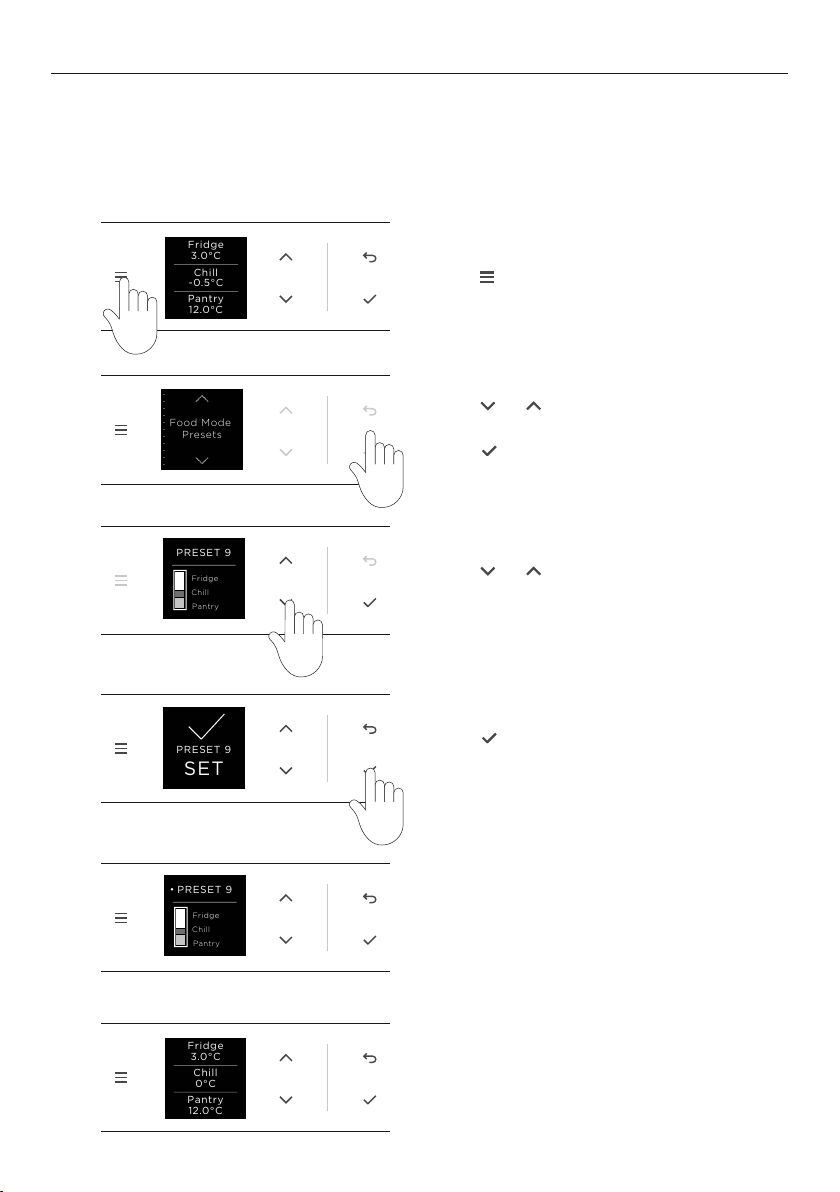

FOOD MODE PRESETS
Food modes have been grouped into preset combinations. Ensure each compartment is
running the intended food mode and is appropriate for the foods being stored. Ensure the
appropriate food mode has been selected for the food types you wish to store. Refer to
‘Food modes’ and ‘Food care’ for information.
Follow the steps below to adjust the food mode in each compartment.
Press
Press to select the desired Food Mode
combination.
Press or to scroll through the preset
combinations.
1
2
3
4
The active Food Mode preset will show first
in the list of presets, and be reflected by a
dot adjacent to the preset number.
5
Press or to scroll through the list to
Food Mode Presets.
Press to confirm.
The food mode combination in use will be
shown on the idle screen.
6
Food Mode
Presets
PRESET 9
Fridge
Chill
antry
PRESET 9
Fridge
Chill
antry
0°C
Fridge
antry
0°C
Chill
0°C
PRESET 9
SET
0°C
Fridge
antry
0°C
Chill
.5°C
PRESET 9
Fridge
Chill
Pantry
PRESET 9
Fridge
Chill
antry
0°C
Fridge
antry
0°C
Chill
0°C
PRESET 9
SET
0°C
Fridge
antry
0°C
Chill
.5°C
PRESET 9
Fridge
Chill
antry
0°C
Fridge
antry
0°C
Chill
0°C
PRESET 9
SET
0°C
Fridge
antry
0°C
Chill
.5°C
PRESET 9
Fridge
Chill
Pantry
0°C
Fridge
antry
0°C
Chill
0°C
0°C
Fridge
antry
0°C
Chill
.5°C
3.0°C
Fridge
Pantry
12.0°C
Chill
0°C
0°C
Fridge
antry
0°C
Chill
.5°C
3.0°C
Fridge
Pantry
12.0°C
Chill
-0.5°C

20
CHANGING FEATURES
Press to display the menu.
Press or to scroll through the
list and select the required feature.
Press to confirm.
Press or to select the
desired compartment if
applicable for the feature.
Press to activate/deactivate
the feature.
Illustrations may differ from your purchased appliance.
3.0°C
Fridge
Pantry
12.0°C
Chill
-0.5°C
0°C
Fridge
antry
0°C
Chill
.5°C
0°C
Chill
.5°C
Chill
.5°C
Chill
1
2
3
4
Max Cold
OFF
OFF
Upper
OFF
Upper
old
OFF
Upper
OFF
Upper
old
Max Cold
ON
