Fisher & Paykel ActiveSmart RF135 Mounting instructions

US CA
Installation instructions
and User guide
Ice & Water refrigerator
Réfrigérateur Ice & Water
RF170 & RF135 models
RF170 & RF135 modèles
Instructions d’installation
et Guide d’utilisation

English Page 1 – 43
Français Page 45 – 87

1
US
CA
Introduction 2
Safety and warnings 3
Installation instructions 5
Before you start using your Ice & Water refrigerator 15
All about the display 16
Using the display options 18
Bottle Chill 18
Fast Freeze 18
The temperature of your refrigerator and freezer 19
Settings 19
User warnings 20
Using your water dispenser 21
Water filter 22
Using your ice maker 24
ActiveSmart™ special features 26
Cleaning and caring for your refrigerator 28
On vacation/holiday 31
Refrigerator sounds 32
Storing food in your refrigerator 33
Storing food in your freezer 35
Troubleshooting 37
Limited warranty 41
Filter performance data sheet 88
Contents
Important!
SAVE THESE INSTRUCTIONS
The models shown in this User Guide may not be available in all markets and are
subject to change at any time. For current details about model and specification
availability in your country, please visit our local website listed on the back cover
or contact your local Fisher & Paykel dealer.
Note that the word “refrigerator” throughout this User Guide, refers to combination
refrigerator/freezer products.

2
US
CA
Thank you for buying a Fisher & Paykel ActiveSmart™ refrigerator with chilled water through the
door and automatic ice dispensing.
At Fisher & Paykel we are very proud of this refrigerator. This refrigerator combines size and
storage space with the latest features and functions. We feel we have achieved water dispensing
through the door without compromising storage space or access to the refrigerator.
Thousands of hours of food care research and 75 years of refrigeration experience has been
programmed into your refrigerator to give you the best possible performance.
We hope you enjoy your new refrigerator.
Introduction
Important!
It is important that this User Guide should be retained with your Ice & Water refrigerator for
future reference. Should the appliance be sold or transferred to another owner, please ensure
that the User Guide is left with the appliance. This will ensure that the new owner can familiarize
themselves with the information and warnings contained within the Guide.

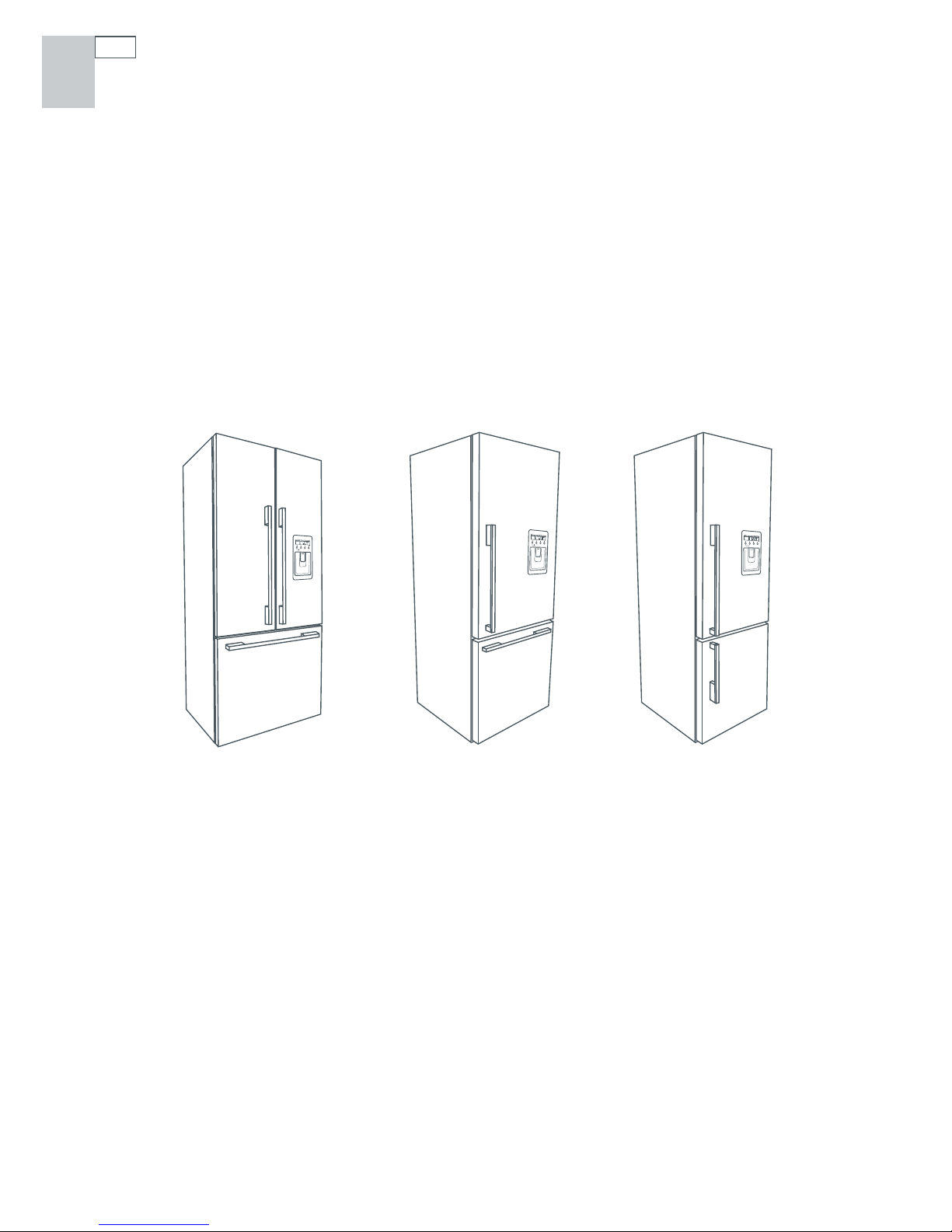

Fig.1 Ice & Water Refrigerators
Refrigerator French door
and freezer drawer
Refrigerator door
and freezer door
Refrigerator door
and freezer drawer

3
US
CA

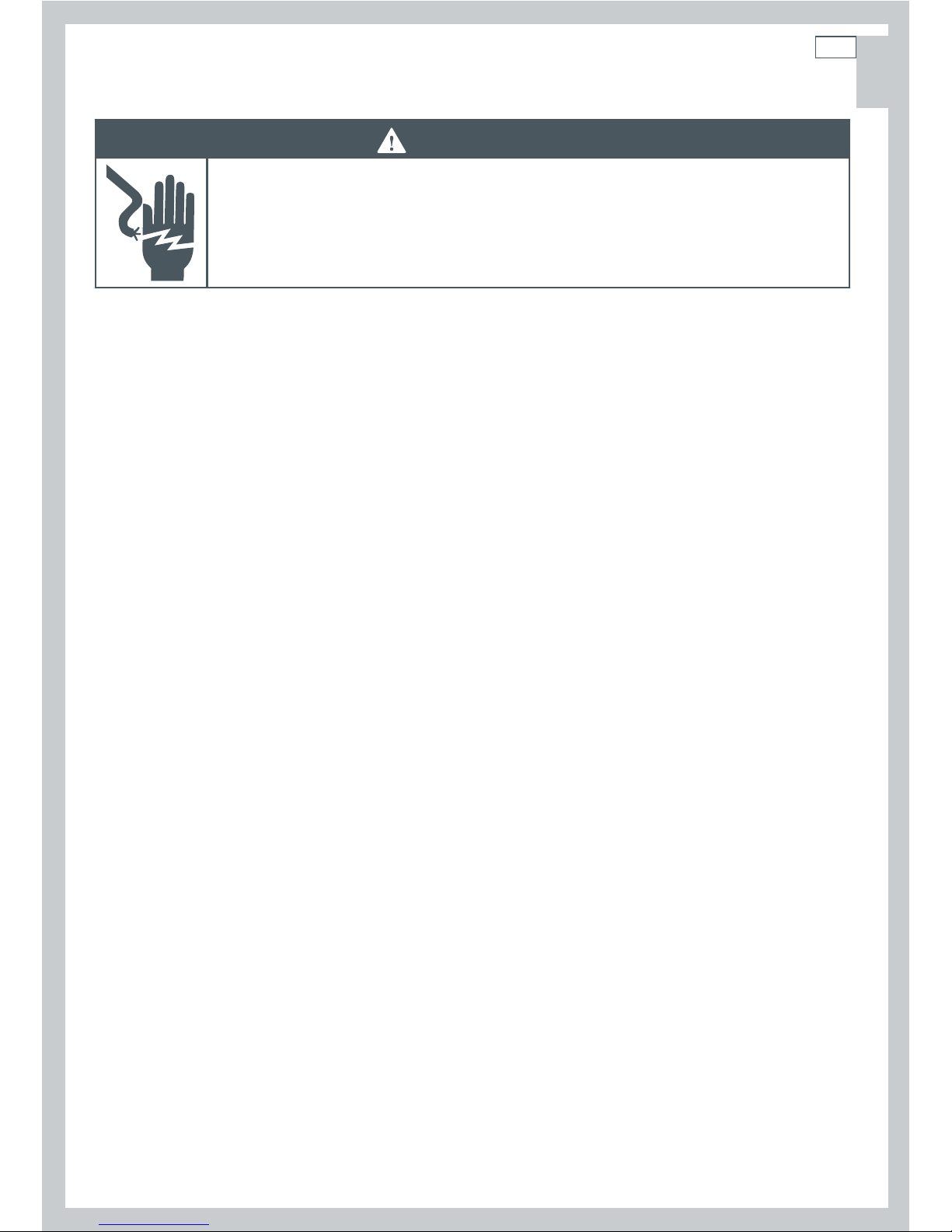

WARNING!
Electric Shock Hazard
Read and follow the SAFETY AND WARNINGS outlined in this User Guide
before operating this appliance.
Failure to do so can result in death, electric shock, fire or injury to persons.
Use this appliance only for its intended purpose as described in this User Guide.
Important safety precautions
Warning
When using this appliance always exercise basic safety precautions including the following:
Danger

Refer to the stability bracket and leaflet supplied to avoid hazard due to instability of the
appliance.

This appliance is not intended for use by children or infirmed persons without supervision. This is
especially important when using the freezer drawer compartment.

Young children should be supervised to ensure they do not play with the appliance.
Disposal

Extreme care must be taken when disposing your old appliance to avoid hazards:
– The refrigerant gas must be safely removed
– The doors should be removed and the shelves left in place so that children may not easily
climb inside.

Your Fisher & Paykel Appliances Authorized Service Center will be able to give advice on
environmentally friendly methods of disposing of your old refrigerator or freezer.
Electrical

This appliance must be properly installed in accordance with the installation instructions before
it is used.

Never unplug your refrigerator by pulling on the power cord.

Always grip the plug firmly and pull straight out from the outlet socket.

Do not plug in any other appliance at the same power point as your refrigerator or use extension
cords or double adapters.

Repair or replace immediately all electric service cords that have become frayed or otherwise
damaged. Do not use a cord that shows cracks or abrasion along its length or at either the plug
or appliance end.
If the power supply cord is damaged, it must only be replaced by your Fisher & Paykel Appliances
Authorized Service Center because special purpose tools are required.
Safety and warnings

4
US
CA
Safety and warnings

When moving your appliance away from the wall, be careful not to roll over or damage the
power cord.

Unplug your refrigerator before cleaning or replacing the interior lightbulb.

Do not use electical appliances inside the food storage compartments of the appliance.
Important!
Your refrigerator is designed to operate for many years without the need for service checks.
However, if your refrigerator is malfunctioning, have it attended to by your Fisher & Paykel
Appliances Authorized Service Center as soon as possible. All electrical repairs must be carried
out by an adequately trained service technician or qualified electrician.
Storing food and drinks

Never store volatile or flammable materials in your refrigerator or freezer as they may explode.

Never freeze liquids in glass containers. Liquid expands during freezing, which may cause the
container to explode.

Never freeze carbonated drinks. They may explode.

Do not consume food if it is too cold. Food removed from the freezer compartment may be cold
enough to cause damage when brought into contact with bare skin, eg. frozen ice cubes.
Power failure – food safety

Do not refreeze frozen foods that have thawed completely, the food may be dangerous to eat.
Follow the recommendations below if you discover food in your freezer has thawed:
1) Ice crystals still visible – food may be refrozen but should be stored for a shorter period than
recommended.
2) Thawed but refrigerator cold – refreezing generally not recommended. Fruits and some
cooked food can be refrozen but use as soon as possible. Meat, fish and poultry – use
immediately or cook then refreeze. Vegetables – discard as they usually go limp and soggy.
3) Thawed and warmer than 41°F (5°C). Discard all food.
Important!
Cleaning

Many commercially available cleaning products contain solvents which may attack plastic
components of your refrigerator or freezer and cause them to crack. Please refer to the cleaning
care section of this booklet for further advice.
SAVE THESE INSTRUCTIONS

Installation instructions
WARNING!
Electric Shock Hazard
Read and follow the SAFETY AND WARNINGS outlined in this User Guide
before operating this appliance, pages 3 – 4.
Failure to do so can result in death, electric shock, fire or injury to persons.
Please follow the steps for installation to ensure your appliance operates correctly.
1. Power

The appliance must be installed so the plug is accessible.

To ensure that the appliance is not accidentally switched off, connect your refrigerator to its
own power point. Do not plug in any other appliance at this power point or use extension cords
and double adaptors, as the combined weight of both power cords can pull the double adaptor
from a wall outlet socket.

For power requirements, refer to the information on the serial plate located at the front bottom
right-hand side of the refrigerator when the door is open.

It is essential that the appliance be properly grounded (earthed).
2. Location

Your refrigerator should not be located in direct sunlight or next to any heat generating
appliance such as a cooktop, oven or dishwasher.
3. Ice & Water

Your Ice & Water refrigerator must be installed by an authorized plumber or authorized
Fisher & Paykel service person as incorrect plumbing can lead to water leaks.

Fisher & Paykel Appliances do not accept responsibility for damage (including water damage)
casued by faulty intallation or plumbing.
US
CA
5

Installation instructions
RF135B & RF170W RF170A
Flush with refrigerator chassis – full door rotation
Flush with refrigerator door – 90° door rotation
Flush with refrigerator chassis – full door rotation
Flush with refrigerator door – full door rotation
Flush with refrigerator door – 90° door rotation
Flush with refrigerator door – full door rotation
AD
B
C N
N K L
J
H
G
R
P
O
OF
NK K
E
Q
N K M
I
D
B
C N
A
P
O
O
H
N K L N K
J
M
I
R
G
F
N K K
Q
E
D
B
C N
A
P
O
O
H
N K L N K
J
M
I
R
G
F
N K K
Q
E
D
B C N
A
P
O
O
H
N K L N K
J
M
I
R
G
F
N K K
Q
E
D
B C N
A
P
O
O
H
N K L
N K
J
M
I
R
G
F
N K K
Q
E
D
B C N
A
P
O
O
H
N K L
N K
J
M
I
R
G
F
N K K
Q
E
D A
B C N
P
O
O
F
N K K
E
Q
H
N L L
G
R
J
N L M
I
D A
B C N
P
O
O
F
N K K
E
Q
H
N L L
G
R
J
N L M
I
D A
B C N
P
O
O
F
N K K
E
Q
H
N L L
G
R
J
N L M
I
D A
B C N
P
O
O
F
N K K
E
Q
H
N L L
G
R
J
N L M
I
Your handles may differ slightly from the drawings above.
US
CA
6

Installation instructions
4. Ventilation and installation

To ensure adequate ventilation for your refrigerator and its correct operation see recommended
cabinetry dimensions below.

These measurements do not include space for the water filter at the back of the cabinet as we
recommend that the filter is placed as close to the incoming water supply as possible.
Product dimensions
RF135B RF170W RF170A
inches mm inches mm inches mm
A
Overall height of product 67 ⁄ 1715 67 ⁄ 1715 67 ⁄ 1715
B
Overall width of product 25 635 31 ⁄ 790 31 ⁄ 790
C
Overall depth of product (excludes handle, includes
evaporator) 27 ⁄ 695 27 ⁄ 695 27 ⁄ 695
Cabinetry dimensions (including minimum air clearances)
D
Inside height of cavity 68 ⁄ 1735 68 ⁄ 1735 68 ⁄ 1735
Flush with refrigerator chassis – full door rotation
E
Inside width 26 ⁄ 675 32 ⁄ 830 32 ⁄ 830
F
Inside depth 24 ⁄ 620 24 ⁄ 620 24 ⁄ 620
Flush with refrigerator door – full door rotation
G
Inside width 31 ⁄ 790 37 ⁄ 945 41 ⁄ 1060
H
Inside depth flush to flat door 27 ⁄ 695 27 ⁄ 695 27 ⁄ 695
Flush with refrigerator door – 90° door rotation
(for full drawer/shelf access, the doors need to be open past 90°)
I
Inside width 29 ⁄ 745 35 ⁄ 900 40 1015
J
Inside depth flush to flat door 27 ⁄ 695 27 ⁄ 695 27 ⁄ 695
Minimum clearances
K
Side clearance ⁄ 20 ⁄ 20 ⁄ 20
L
Side clearance – hinge side flush with door – full rotation 5 ⁄ 135 5 ⁄ 135 5 ⁄ 135
M
Side clearance – hinge side flush with door – 90° rotation 3 ⁄ 90 3 ⁄ 90 3 ⁄ 90
N
Rear clearance (incl. evaporator tray) 1 ⁄ 30 1 ⁄ 30 1 ⁄ 30
O
Vent – around top of cupboard (optional) 250 250 250
P
Top clearance – above refrigerator cabinet 250 250 250
Q
Door clearance – hinge side flush with chassis – full rotation 25 ⁄ 645 25 ⁄ 645 12 ⁄ 325
R
Door clearance – hinge side flush with door – full rotation 20 ⁄ 530 20 ⁄ 530 8 ⁄ 210
US
CA
7

Installation instructions

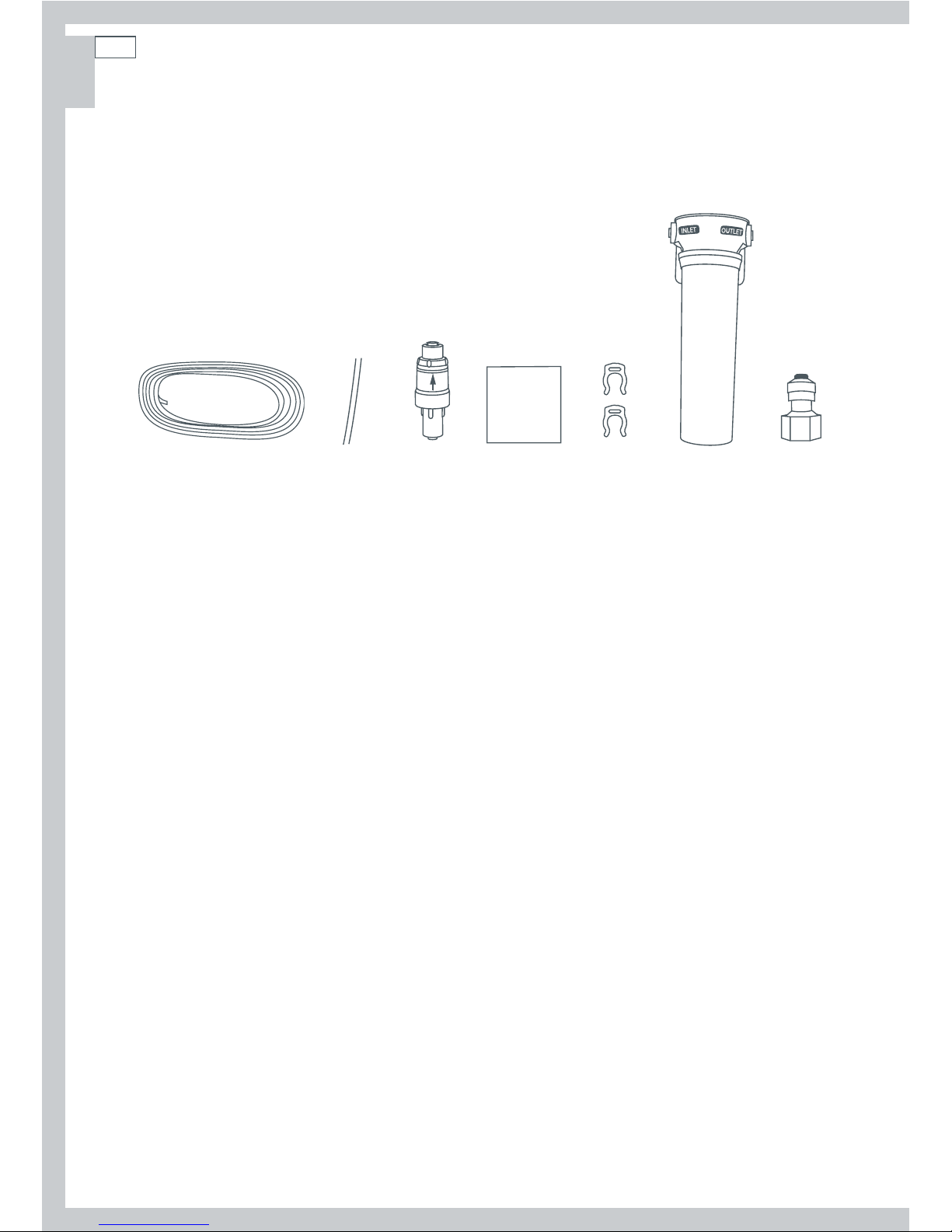

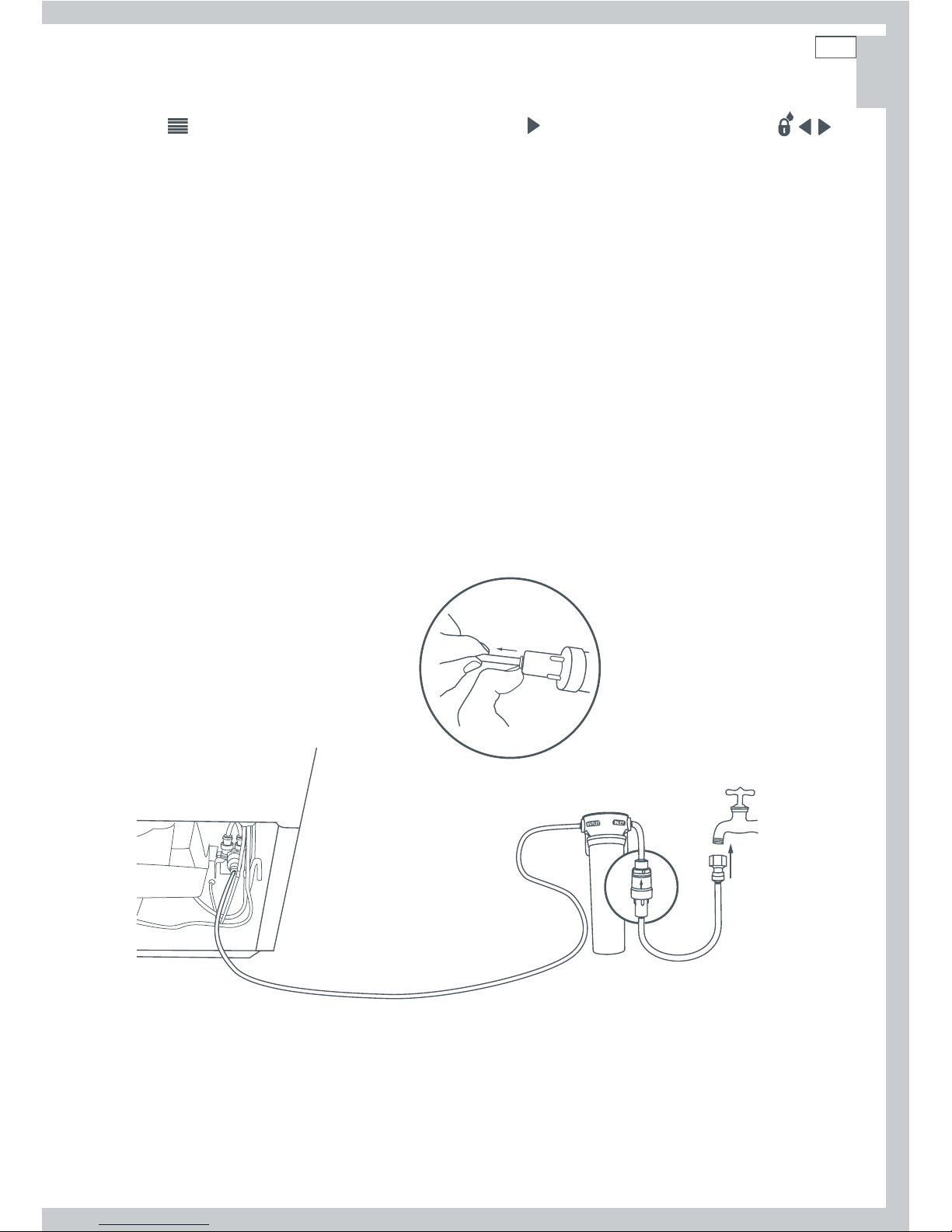

Contents of filter kit
1
13 ft (4 m) white ¼” (6 mm) tubing
2
1 x 8” (200 mm) blue tubing
3
1 x pressure reducing valve (PRV)
4
1 x double sided tape
5
2 x locking keys
6
1 x water filter cartridge and head
7
1 x faucet connection
Important!

It is imperative the pressure reducing valve (PRV) is fitted prior to the filter. This valve ensures the
water will not flow back into the mains from the refrigerator water system. If the PRV is not fitted
to the connection line, the Ice & Water features may not function in some circumstances.

The water connection to your Ice & Water refrigerator must be installed by an authorized
plumber or authorized Fisher & Paykel service person.

The water connection instructions below are intended only for the professional installer.

The new tubings supplied with the refrigerator are to be used, old tubings from old Ice & Water
connections should not be used.
Installation precautions/warning

DO NOT use with water that is microbiologically unsafe or of unknown quality without
adequate disinfection before or after the system.

WARNING – connect to potable water supply only.

DO NOT install on line pressure above 119 psi (827 kPa) or below 22 psi (150 kPa).

DO NOT use on hot water supply (100°F [38°C max.]).

DO NOT cut any length of tube shorter than 200 mm.

DO NOT install near electrical wires or water pipes that will be in the path of drilling when
selecting the location of filter system.

DO NOT mount filter in such a position so that it will be struck by other items, such as
wastebaskets, etc.

DO NOT install the filter or any water tubing in direct sunlight as prolonged exposure to light
can weaken plastic components.

DO NOT install in a location that is susceptible to freezing temperatures as damage to the
housing could occur.

DO NOT screw filter to the refrigerator.

DO NOT install the filter or any water tubing in high temperature areas eg in a ceiling cavity.

AVOID contamination of pipes during installation.

DO NOT use copper tubing. The plastic tubing supplied should always be used.

DO NOT continuously dispense water for longer than 2 minutes.
Fig.2 Water connection kit
1 234567
US
CA
8

Installation instructions
Installation instructions:
1
Ensure the refrigerator is NOT plugged into a powersupply.
2
Locate a cold water supply/feed only suitable for a water
connection. Tee and tap fitting is not supplied.
3
Connect the 8” (200 mm) blue tubing to the outlet of the
PRV (blue collet) and the inlet connection of the water filter
cartridge as shown in Diagram 1. Gently pull on both ends to
ensure it is locked.
4
Connect the white ¼” (6 mm) tubing to the outlet of the
water filter cartridge as shown in Diagram 2. Gently pull to
ensure it is locked.
5
Measure the required length of tubing to run from the PRV
to the water connection point.
6
Cut the tubing making sure the ends are square and clean.
7
Connect the tubing to the faucet connection and the base
of the PRV (white collet) and then to the faucet as shown in
Diagram 3. Please note that the faucet connection supplied
should fit most installation situations.
8
Connect one locking key to each side of the water filter
cartridge in between the cartridge and the locking
collet as shown in Diagram 4.
9
To flush the water filter of any trapped air, harmless
carbon fines and to also check for leaks, aim the end
of the tubing into a bucket, turn isolating faucet on
and run at least 10 qt (10 L) of water through. Once
complete, turn isolating faucet off.
10
Locate desired position for water filter noting carefully
the following points:

It is recommended to fit the water filter in a
vertical orientation with the water filter head at the
top. This will minimize water leakage when replacing
cartridge.

Ensure the filter is in a convenient location to access
every 6 months for replacement. We suggest that this
location is beside the water filter supply faucet in a
cupboard beside the refrigerator.

A minimum clearance of 2 ½” (64 mm) from the
bottom of the filter cartridge is required to perform
cartridgeremoval.

Do not screw water filter to refrigerator.
Diagram 2
Fig.4 Waterline connection
to refrigerator
INLET
Diagram 4
Fig.6 Locking key
Fig.3 PRV connection
Diagram 1
Diagram 3
Fig.5 Faucet connection
US
CA
9

Installation instructions
11
Attach double sided foam to the back of the
water filter head as shown in Diagram 5. Write
the date to be replaced on the filter (date
installed +6months). Remove double sided foam
backing and attach filter to the desired position
as located in step 10 (refer to previous page).
12
Run the ¼” (6 mm) tubing to back of the
refrigerator ensuring there is enough tubing to
pull out the refrigerator for service.
13

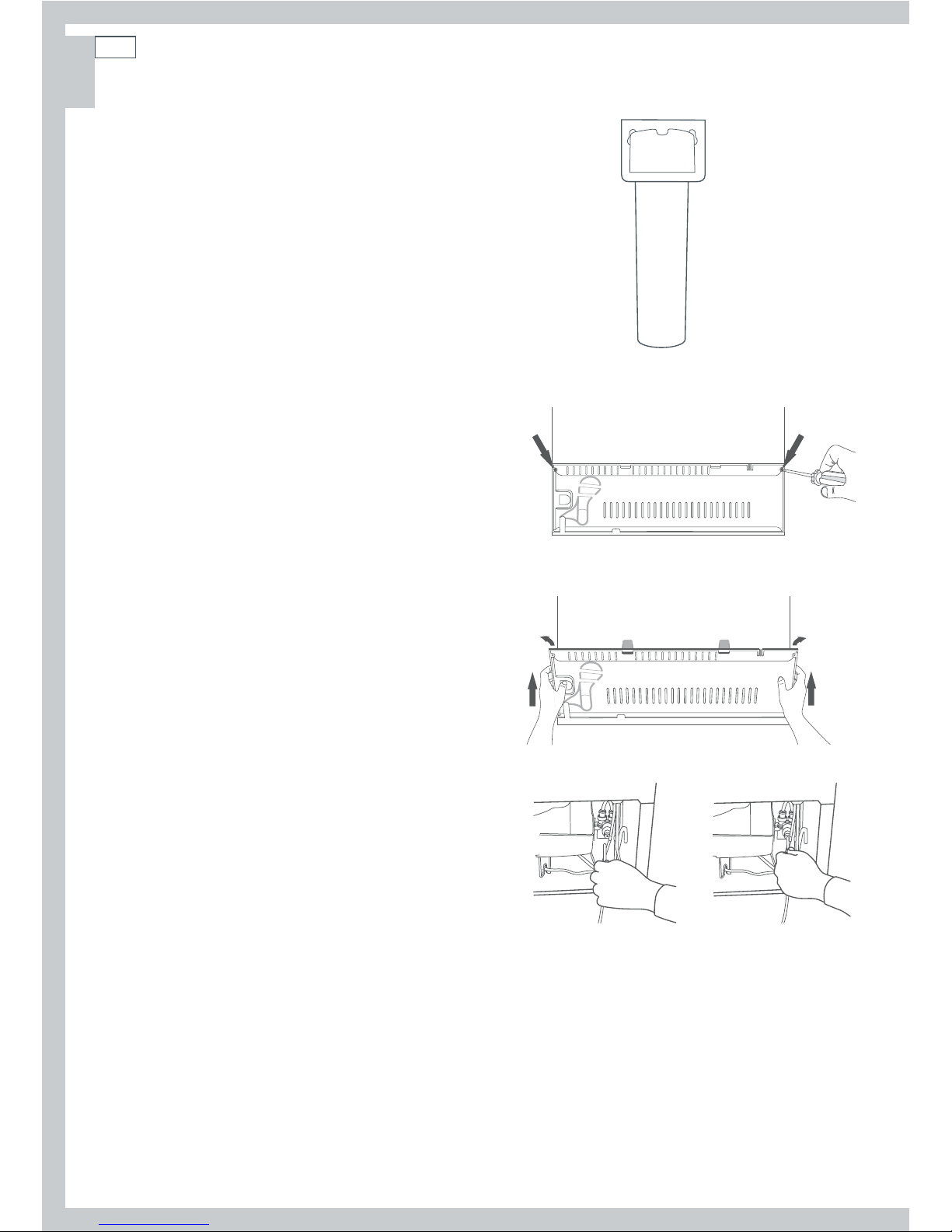

Remove compressor compartment cover by
removing screw at the top of each side of the
cover as shown in Diagram 6. Lift and tilt the
compressor compartment cover to remove as
shown in Diagram 7.
14
Connect tubing into the water (solenoid)
valve located on the right hand side of the
unit (compressor) compartment as shown in
Diagram8. Beware of hotpipes.
15
Pull gently on tubing to ensure it is locked in as
shown in Diagram 9.
16
Place compressor compartment cover back into
position, run the ¼” (6 mm) tubing through
the space provided at the top right hand side
of the compressor compartment cover in an
upward direction and rescrew the compressor
compartment cover.
17
The completed installation should look like
Diagram11 on page 11.
18
Turn isolating faucet on and check that all
connections are dry and free of drips.
19
Coil water line tubing behind the refrigerator.
Pushyour refrigerator into place being careful
notto kink or squash the water line running into
the water (solenoid) valve.
20
Read pages 12 – 14 carefully and then turn
refrigeratoron.
21

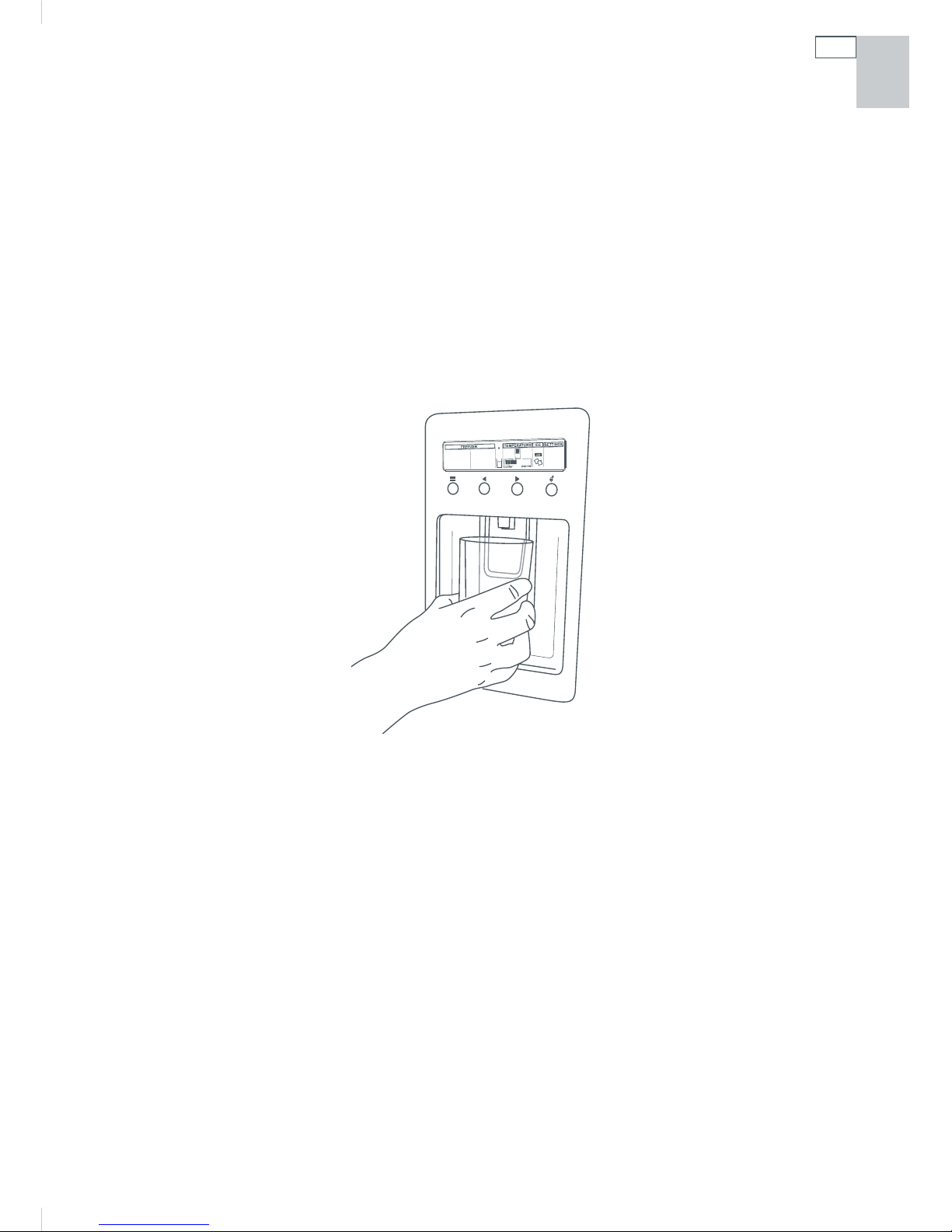

The first time you require water out of the
dispenser, there will be a delay while the water
reservoir fills up.
22
Run a further 3 qt (3 L) through the system,
stopping intermittently to ensure the reservoir
is flushed out. Failure to do this will result in
excessive dripping from your dispenser.
Fig.8 Waterline connection to refrigerator
Diagram 5
Fig.7 Double sided
foam attachment
Diagram 7
Diagram 9
Diagram 8
Diagram 6
US
CA
10

Installation instructions
23
Press until the Ice menu is highlighted then press to turn on the ice maker. Press
together to force a cycle. The ice tray will flip. Force another cycle. The ice tray will flip and spill
the water into the ice bin. Empty water and replace bin.
24
You are now ready to enjoy chilled water and ice dispensing from your ActiveSmart™ refrigerator.
Please note that once installation is complete a few drips may appear out of the dispenser over
the next few days as the remaining trapped air is cleared.
Important!

All connections must be checked for leaks.

Ensure white ¼” (6 mm) tubing is routed away from sharp objects, sharp corners (beware of
kinking tube as this will stop water flow), clear of the refrigerator unit compartment and not in a
location where it can be squashed.

Ensure all push-fit connections are firmly pushed into place. The tube should push in ¾” (20 mm)
before reaching the stop.

If tubing is removed at any point, re-cut the end and re-insert. Tubing must be fully inserted to
avoid leaks.

To remove tube from connection points, turn off the isolating faucet, push in the collet and
gently pull tubing at the same time, as shown in Diagram 10.
Fig.9 Connection to water supply
Diagram 11
Diagram 10
System tested and certified by NSF International against NSF/ANSI Standard 53 for the reduction
of Asbestos, Atrazine, Benzene, Cyst, Carbofuran, Lead, Lindane, Mercury, P-Dichlorobenzene,
Toxaphene & Turbidity; against Standard NSF/ANSI 42 for the reduction of Chlorine Taste and
Odor and Nominal Particulate Class I to a capacity of 750 gallons (2,838 liters).
US
CA
11

Installation instructions
5. Installation
Your Fisher & Paykel ActiveSmart™ refrigerator is fitted
with front and rear rollers, designed for moving the
product in the forwards and backwards direction.
Avoid moving the product in a sideways direction
asthis may damage the rollers or the floor
covering/surface.
A
Your refrigerator will arrive with the front feet wound
up making moving the product into its final location a
simple task.
B
Roll the refrigerator into its final position making sure
there is the correct air gap between the product and
surrounding cabinetry. See minimum clearance in
cabinetry dimensions table (refer to page 7).
(French Door models only)
C
Adjust the front feet down until the refrigerator
is leaning backward with the front approximately
/”(10mm) higher than the back. This will ensure
agood door closing action (refer to Fig.10).
D
Aligning your refrigerator with cabinetry.

Align the sides of the refrigerator with the cabinetry
byadjusting the hinge side front foot.

Adjust the handle side foot until it touches the floor
and takes a small amount of weight.

Once the refrigerator is in place and aligned with
cupboards/alcove, push gently on the front top and
check if the product is rocking or stable.
6. Leveling of refrigerator door
(French door models only)

For uneven surfaces, front feet can be used to align the
2 doors.

If left hand door is too low, then unscrew the left hand
foot to lift up the cabinet until the two doors top
edges are aligned.

If right hand door is too low, then adjust the right
hand foot in the same way.
Fig.12 Even door alignment
Fig.11 Uneven door alignment
Raise the front of
the refrigerator
Lower the front
of the refrigerator
Fig.10 Refrigerator feet
US
CA
12

Installation instructions

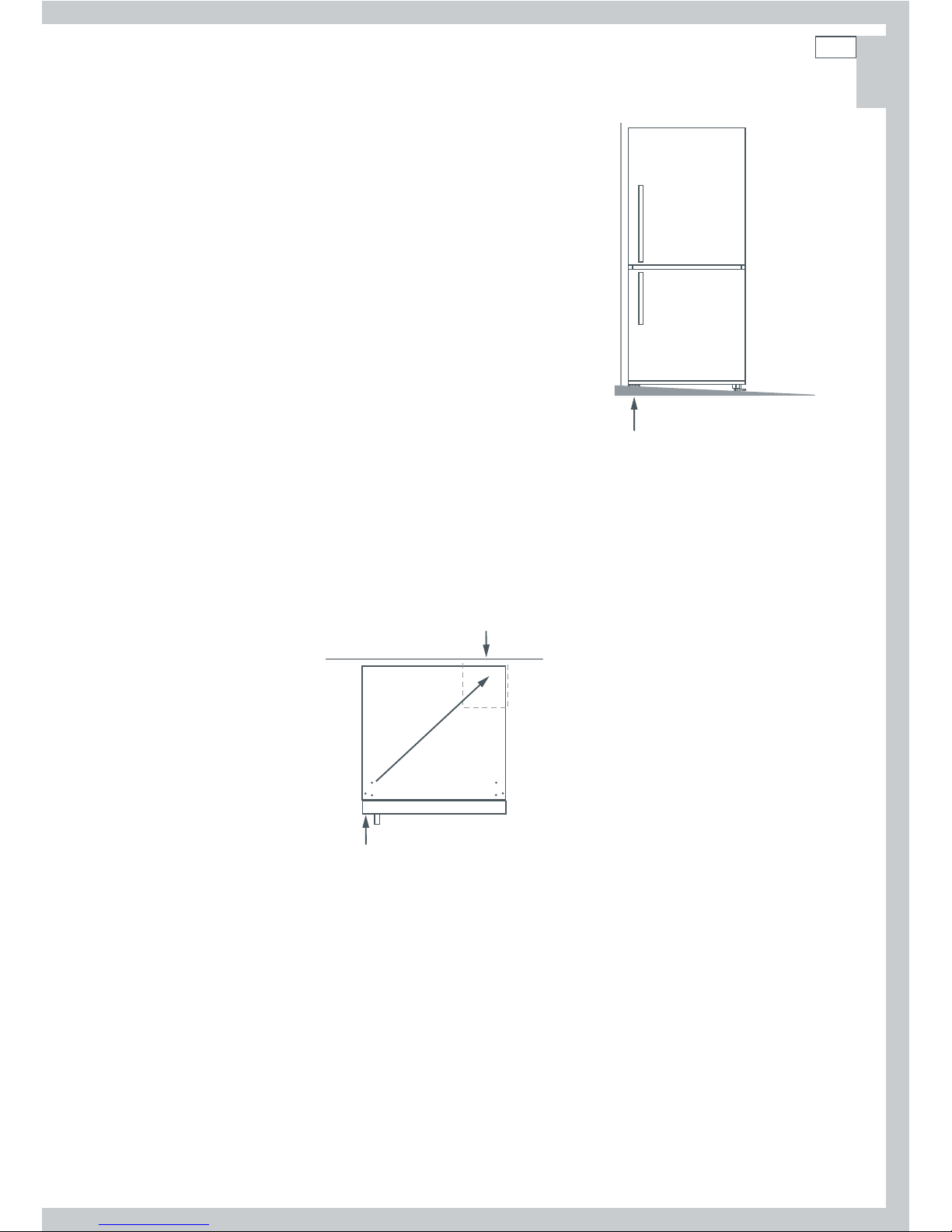

7. What to do if your product is unstable
E
Gently push the refrigerator back until the rear rollers
contact the floor.

Measure the gap under the front foot, which has come
off the floor.

Obtain some solid packing material (hardwood,
plastic,etc) which fits firmly into the gap under the foot.
Note: do not use metallic materials that may corrode,
stain and/or damage floor coverings.
F
Wind both front feet up and roll the product out
ofposition.

Place the packing material in the location diagonally
opposite the front roller that lifts off the floor.

Make sure the packing material stays in place when the
product is pushed back into position.

Ideally, the packing material is large enough to rest
against the back wall so as to prevent it moving when
the cabinet is pushed into position.
Wall behind refrigerator
For example: if this foot lifts off
the floor when pushing gently on
the top front of the refrigerator
Packing material goes under rear roller
diagonally opposite front foot that lifts
Fig.14 Stabilizing your refrigerator
G
Roll the refrigerator back into position and adjust front feet as per step
D
. (Check alignment and
door closing action are satisfactory).

Make small adjustments to front feet where necessary.

Check that the product is stable (all 4 feet are on the floor). If not return to step
E
and repeat
steps
F
and
G
.
This foot lifts off the floor when
top front is gently pushed back
Example only
Un-level floor
Fig.13 Unstable refrigerator
US
CA
13

Installation instructions
Before placing food in the fresh food or freezer compartments

Remove all packaging. Ensure that all transit clips are removed from the refrigerator. These are
small rubber stops located at the back of the shelves.

Clean the inside of the appliance with a mix of warm water, a little liquid detergent and a soft
cloth to remove manufacturing and transportation dust.

Allow the refrigerator and freezer to run empty for 2 – 3 hours to allow each compartment to
cool to the appropriate temperature.

The appliance may have an odor on its initial operation, but this will go when the refrigerator
and freezer have cooled sufficiently.
Energy efficiency
For the most energy efficient use of your appliance:

Ensure your refrigerator has adequate ventilation as recommended in the installation instructions.

Do not cover your appliance with any material that will prevent air from flowing around the
cabinet sides.

Allow good clearances in front of air ducts within the cabinet for maximum cold air distribution.

Cool hot foods down before placing them in the appliance.

Do not overfill the compartments.

Keep door openings to a minimum.

Select a temperature setting that isn’t too cold.

Check your door seals for leaks.
Moving or storing your refrigerator
If your refrigerator is turned off for any reason, wait 10 minutes before turning it back on. This
will allow the refrigeration system pressures to equalize before restarting.
Moving your refrigerator

Turn off the appliance and unplug from the power point. Remove all food.

Turn the adjustable feet to the right as far as they will turn (refer to page 12).

Ease the refrigerator out of its position. Tuck the power cord away, tape the shelves in place and
tape the doors closed. If the cabinet needs to be placed at an angle or laid down, carefully lay it
on its side (the right hand side when viewed from the front).

Relocate and install. If the appliance has been left on its side for any length of time, leave it
standing upright for at least 10 minutes before turning on.
Storing your refrigerator

When storing your cleaned appliance, leave the doors open. This allows air to circulate and
prevents the build up of bacteria and moulds.

Before using again, clean well using a mixture of warm water and baking soda (add 1 teaspoon
of baking soda to each 1 pint (500 ml) of water). Rinse with clean water.
Holiday time
We recommend you leave your refrigerator operating while you are on holiday.
14
US
CA

15
US
CA
Before you start using your Ice & Water refrigerator

Check refrigerator is switched on and has cooled for at least 2 hours before use (refer to
page19– The temperature of your refrigerator and freezer).

Check that the water filter has been connected and turned on.

Turn on the ice maker (refer to page 24).

At first use allow approximately a minute from when the dispensing pad is pushed until water is
dispensed. This will allow the tank to fill.

Run through and discard the first 3 qt (3 L) of water from the dispenser, stopping intermittently
(refer to page 21 – First use). Failure to do this will result in excessive dripping from yourdispenser.

Discard the first 3 harvests of ice (8 cubes are produced per harvest), refer to page 24 – First use.
You are now ready to enjoy ice and water from your ActiveSmart™ refrigerator.
Fig.15 Water dispenser
Please note that once installation is complete a few drips may appear out of the dispenser over
the next few days as the remaining trapped air is cleared.

16
US
CA
All about the display
The display screen enables you to view and modify all the features and options on your
refrigerator. For example, you can change the temperature in your fresh food and freezer
compartment, and select the Fast Freeze function when you want to quickly freeze meat.
Youmay want to also quickly chill a bottle of wine when friends arrive unexpectedly.
Fig.16 Electronic control panel
Keys
For more detailed information on these functions please refer to pages 18 – 20.
Main menu
Scrolls through the main menu. (Freezer, Temperature, Ice, and Settings).
Arrow keys
Scrolls through the settings of each function.
Key and Dispenser Lock
Locks buttons and water dispenser.

17
US
CA
All about the display
Display features
Freezer (page 18)
Bottle Chill (page 18)
Fast Freeze (page 18)
Dispensing water (page 21)
Temperature (page 19)
Ice (page 24)
Settings/User warnings (pages 19 – 20)
Key Silent Mode (page 19)
Dispenser and Key Lock (page 19)
Key Lock – disables the buttons (page 19)
Sabbath Mode (page 20)
Filter Reset (page 20)
Service/Fault Diagnosis (page 20)

18
US
CA

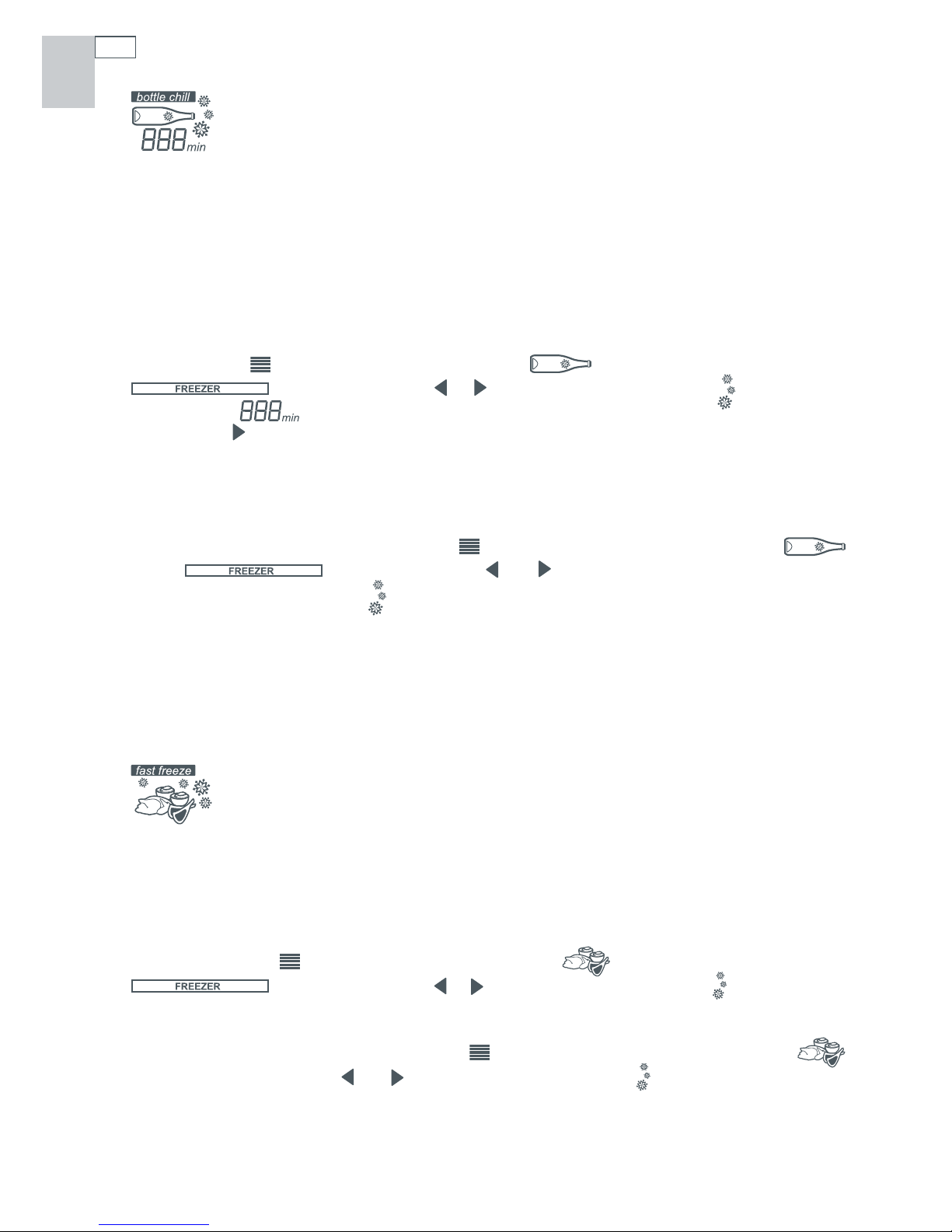

Using the display options
Bottle Chill
This function allows you to chill your beverages in the freezer without the worry of forgetting
aboutthem. The time taken to chill depends on the size of your beverage. Bottle Chill allows
you to customize this chill time.
Recommended times:

20 minutes – can or small bottle

25 minutes – wine bottle or similar size beverage

30 minutes – larger bottle

To activate, use button until the bottle chill icon ( ) is showing on the
screen. Then use the or buttons until the snowflakes ( ) and the
minute timer ( ) are displayed on the Bottle Chill screen.

Then use the button to select 10, 15, 20, 25 or 30 minutes as displayed on the Bottle Chill
screen. After several seconds, the snowflakes will then animate as the timer counts down.

An alarm will sound after the amount of time selected has elapsed.

Press any button on the display to silence the alarm. Remember to remove the beverage from
the freezer.

To deactivate Bottle Chill manually, use the button to scroll to the bottle chill icon ( )
on the screen, then use the and buttons until no minutes are shown on
the screen and the snowflakes ( ) are no longer visible.

If you remove your beverage from the freezer and it is not chilled to your liking, reset the timer
to 10 minutes and place the beverage back into the freezer.
Important!
Do not leave the bottle inside the freezer longer than the time needed for chilling, as glass
bottles may explode.
Fast Freeze
We have created the Fast Freeze feature to help you to get the best possible results when
freezing fresh food. Fast Freeze boosts the freezing speed by dropping the freezer to its coldest
temperature for 12 hours, which helps to ensure vital freshness, texture and taste are retained
during the freezing process.

To activate, use the button until the Fast Freeze icon ( ) is showing on the
screen. Then use the or buttons until the snowflakes ( ) are
displayed on the Fast Freeze screen. The animating snowflakes indicate that Fast Freeze has
been activated.

To deactivate the function manually, use the button to scroll to the Fast Freeze icon ( )
on the screen. Then use the and until there are no snowflakes ( ) present on the screen.
For best results, we recommend that you activate the function approximately 2 hours before it is
required. Alternatively, activate it when placing food into the freezer.
Note: the Bottle Chill and Fast Freeze option cannot be used at the same time.
