USER GUIDE
NZ AU GB IE HK SG IN
8699A08.19
ACTIVESMART™
INTEGRATED REFRIGERATOR
RS90A, RS80A models & RS9120W

1
IMPORTANT!
SAVE THIS USER GUIDE
The models shown in this user guide may
not be available in all markets and are
subject to change at any time. For current
details about model and specification
availability in your country, visit our
website fisherpaykel.com or contact your
local Fisher & Paykel dealer.
Note: the word ‘refrigerator’, throughout
this user guide, refers to the combination
of refrigerator/freezer products.
Registration
Register your product with us so we can
provide you with the best service possible.
To register your product visit our website:
fisherpaykel.com
CONTENTS
Introduction 3
Safety and warnings 4
Storage features 12
RS80 and RS90 models 12
RS9120W models 14
ActiveSmart™ special features 16
Control panel 16
External display (Ice & Water models only) 17
Humidity control system 18
Fast Freeze 19
Ice On/Off 19
Ice Boost 19
Bottle Chill 19
Operating instructions 20
Cleaning care 25
Food care 30
User warnings and sounds 31
Troubleshooting 32
European Directive 2012/19/EU on WasteElectricalandElectronic
Equipment(WEEE) 36
Service & Warranty 37

3
Thank you for buying this Fisher & Paykel integrated refrigerator.
Introducing the next generation in Fisher & Paykel refrigeration. With a new
flush-fit design, and the ability to easily slide into existing kitchen spaces or be
integrated behindkitchen cabinetry, these family-sized fridges offer a seamless look to
the kitchenwhile providing excellent food care with ActiveSmart™ technology.
As your life changes, so can your refrigerator. This book explains the features
andfunctions that will help you get the most out of your refrigerator.
We hope you enjoy your new integrated refrigerator.
Note: Not all models are available in all countries.

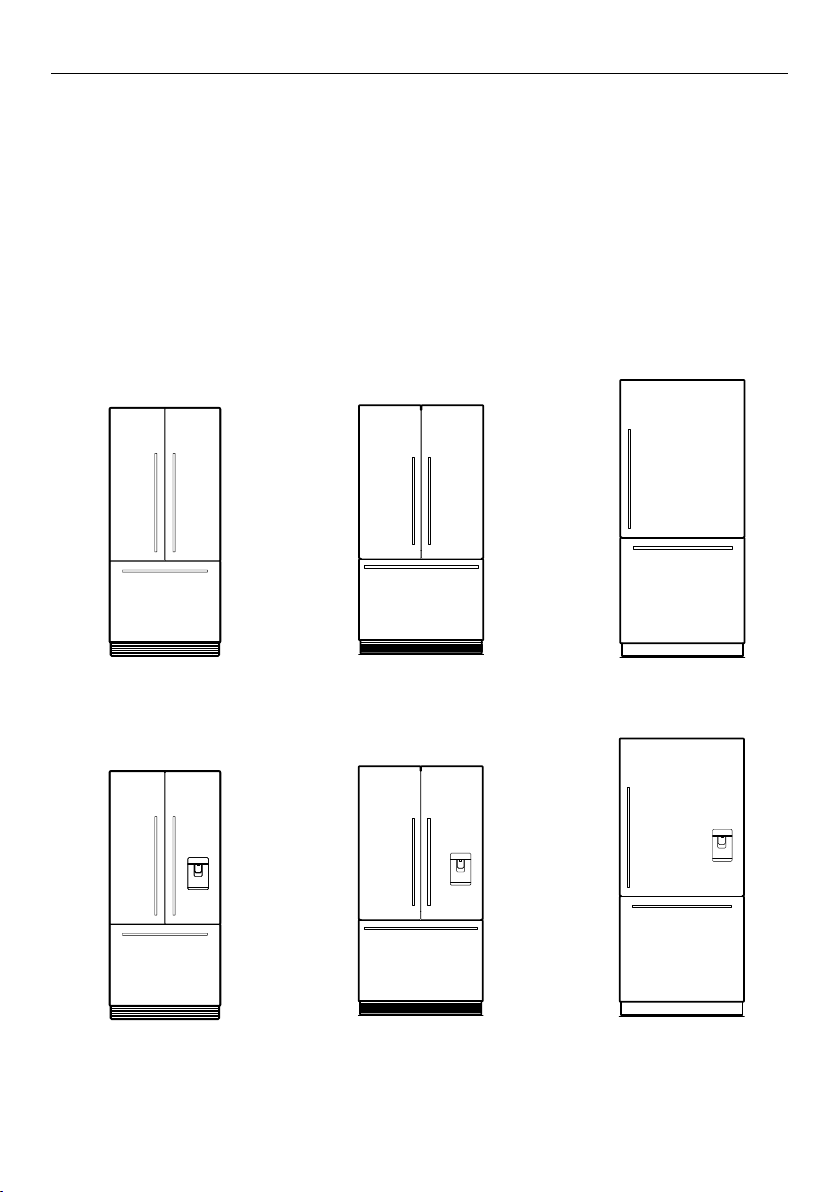

INTRODUCTION
RS90AU
RS90A
RS36A72U1 (with RD3672U SS Door skin) RS36A72J1 (with RD3672 SS Door skin)
RS36A80U1 (with RD3680U SS Door skin) RS36A80J1 (with RD3680 SS Door skin)
RS36A80U1 (with RD3684U SS Door skin) RS36A80U1 (with RD3684 SS Door skin)
RS36A72J1 (shown with custom panels)
RS36A80J1 (shown with 80’’ custom panels)
RS36A80U1 (shown with 84’’ custom panels)
RS36A72U1 (with RD3672U SS Door skin) RS36A72J1 (with RD3672 SS Door skin)
RS36A80U1 (with RD3680U SS Door skin) RS36A80J1 (with RD3680 SS Door skin)
RS36A80U1 (with RD3684U SS Door skin) RS36A80U1 (with RD3684 SS Door skin)
RS36A72J1 (shown with custom panels)
RS36A80J1 (shown with 80’’ custom panels)
RS36A80U1 (shown with 84’’ custom panels)
RS9120W
RS9120WU
RS36W72RU1 (with RD3672RU SS Door skin) RS36W72RJ1 (with RD3672R SS Door skin)
RS36W80RU1 (with RD3680RU SS Door skin) RS36W80RJ1 (with RD3680R SS Door skin)
RS36W80RU1 (with RD3684RU SS Door skin) RS36W80RU1 (with RD3684R SS Door skin)
RS36W72RU1 (with RD3672RU SS Door skin) RS36W72RJ1 (with RD3672R SS Door skin)
RS36W80RU1 (with RD3680RU SS Door skin) RS36W80RJ1 (with RD3680R SS Door skin)
RS36W80RU1 (with RD3684RU SS Door skin) RS36W80RU1 (with RD3684R SS Door skin)
RS80A
RS80AU

4
!WARNING!
Electric Shock Hazard
Read and follow the safety and warnings
outlined in this user guide before operating
this appliance.
Failure to do so can result in death,
electricshock, fire or injury to persons.
R600a
This appliance contains flammable
refrigerant isobutane (R600a).
Use this appliance only for the intended purpose
asdescribed in the user guide.
SAFETY AND WARNINGS

5
IMPORTANT SAFETY INSTRUCTIONS
WARNING!
Read the entire user guide. Failure to follow all
guides and rules could cause personal injury or
property damage. When using this appliance
always exercise basic safety precautions including
the following:
• Children should be supervised to ensure that they do
not play with the appliance.
• Children aged 3 to 8 years may load and unload this
appliance under supervision.
• Cleaning and user maintenance shall not be
undertaken by children without supervision.
• This appliance can be used by children aged from
8years and above and persons withreduced
physical, sensory or mental capabilities or lack
of experience and knowledge if they have been
given supervision or instruction concerning use
of theappliance in a safe way and understand the
hazards involved.
• The manufacturer’s installation instructions
for product and cabinetry ventilation must be
followedwhen installing the appliance.
• To avoid hazard due to instability of the
appliance,itmust be fixed in accordance with
installation guide.
• Keep ventilation openings, in the appliance enclosure
or in the built-in structure, clear of obstruction.
• Do not use mechanical devices or other means
toaccelerate the defrosting process, other than
those recommended by the manufacturer.
SAFETY AND WARNINGS

6
SAFETY AND WARNINGS
• Do not damage the refrigerant circuit.
• In case of damage to the refrigerant circuit, ventilate
the area by opening all windows.
• Donot operate electrical equipment or any
otherequipment that may produce arcs, sparks or
flames in the area. Contact your Fisher & Paykel
trained and supported service technician immediately
to arrange for theappliance to be repaired.
• It is hazardous for anyone other than a
Fisher & Paykel trained and supported service
technician to service this appliance. InQueensland,
Australia, the service technician must hold a gas
work license or authorization for hydrocarbon
refrigerants to carry our service or repairs which
involve removal of covers.
Electrical
WARNING!
• This appliance must be installed in accordance
withthe installation instructions beforeuse.
• To allow disconnection of the appliance from
thesupply after installation, incorporate a switch in
the fixed wiring in accordance with thewiringrules.
• Never unplug your refrigerator by pulling on the
power cord. Always grip the plug firmly and pull
straight out from the outlet.
• Do not plug in any other appliance at the same
power point as your refrigerator or use extension
cords or double adapters.

7
SAFETY AND WARNINGS
• Repair or replace immediately all electric service
cords that have become frayed or otherwise
damaged. Do not use a cord that shows cracks
or abrasion along its length or at either the plug
or appliance end.
• If the power supply cord is damaged, it must
only be replaced by your Fisher & Paykel trained
and supported service technician because special
purpose tools are required.
• When moving your appliance away from the
wall, be careful not to roll over or damage the
powercord.
• Do not use electrical appliances inside the food
storage compartments of the appliance.
• When positioning the appliance, ensure the power
cord is not trapped or damaged.
• Do not locate multiple portable socket-outlets or
portable power supplies at the rear of the appliance.
IMPORTANT!
Your refrigerator is designed to operate for
many years without the need for service checks.
However, if your refrigerator is malfunctioning,
have it attended to by your Fisher & Paykel trained
and supported service technician as soon as
possible. All electrical repairs must be carried out
by an adequately trained service technician or
qualifiedelectrician.
• If you suspect that the product is not getting
cold—items such as ice cream are melting—remove
all perishable food and store in another appliance
or cooler to prevent spoilage. Immediately call for a
service technician.

8
SAFETY AND WARNINGS
Cleaning
• Use only soap-based cleaning products.
• Many commercially available cleaning products
contain solvents that may degrade the plastic
components of your refrigerator and cause
them tocrack.
• Avoid using anti-bacterial cleaning products
on either the interior or exterior of the cabinet
as they may cause rusting of metal components
andcracking of plastic components.
• Regularly clean accessible draining systems and
surfaces that come in contact with food.
• If the appliance will be left empty for long periods,
switch off, defrost, clean, dry, and leave the
door open to prevent mould developing within
the appliance.
• Please refer to the ‘Cleaning care’ section of
this user guide for further information.
Disposal
• Extreme care must be taken when disposing
of your old appliance to avoid hazards:
– The flammable refrigerant gas must be
safely removed by a qualified service technician.
– The thermal insulation foam in this appliance
contains flammable insulation which can
emit gases. Anyexposed foam may be highly
flammable andmust be carefully treated
during disposal.
– DANGER: The doors and panels should be
removed andtheshelves left in place so that
children maynot easily climb inside.

9
SAFETY AND WARNINGS
– DANGER: Risk of child entrapment. Before you
throw away your old refrigerator or freezer, the
doors and panels should be removed and the
shelves left in place so that children may not
easily climb inside.
• Consult your local energy authority or local codes as
to the best way to dispose of your old appliance.
• Your Fisher & Paykel trained and supported
service technician will be able to give advice on
environmentally-friendly methods of disposing of
your old refrigerator or freezer.
Storing food and drinks
• Store raw meat and fish in suitable containers in the
refrigerator, so that it is not in contact with or drip
onto other food.
• Do not store explosive substances such as aerosol
cans with a flammable propellant in this appliance.
• Never store volatile or flammable materials in your
appliance as they may explode.
• Never freeze liquids in glass containers. Liquid
expands when it freezes and can cause the container
to explode.
• Never freeze carbonated drinks to prevent the
container from exploding.
• Do not consume food if it is too cold. Food removed
from the freezer compartment may be cold enough
to cause damage when brought into contact with
bare skin, egfrozen ice cubes.

10
Water filter
IMPORTANT!
• The water connection to your Ice & water refrigerator
must be installed by an authorised plumber or
Fisher & Paykel trained and supported service
technician and comply with all state and local laws.
• Installation and use MUST comply with all state
and local plumbing codes. Check with your local
public works department for plumbing codes. You
must follow their guidelines as you install the water
filtration system.
• Connect to a safe drinking water supply only.
• Use new tubing supplied with the appliance. DO NOT
reuse old tubing from old water and ice connections.
• Clean the water tanks if they have not been used for
48 hours. Flush the water system connected to the
water supply if water has not been used for 5 days.
WARNING!
To reduce the risk associated with choking:
• DO NOT allow children under 3 years of age to have
access to small parts during the installation of the
water filter.
Power failure — food safety
Do not refreeze frozen foods that have thawed
completely. The food may be dangerous to eat.
Follow the recommendations below if you discover
food in your freezer has thawed:
• Ice crystals still visible—food may be refrozen
but should be stored for a shorter period
thanrecommended.
SAFETY AND WARNINGS

11
• Thawed but refrigerator cold—refreezing generally
not recommended. Fruit and some cooked food
can be refrozen, but make sure it is use as soon
aspossible.
• Meat, fish, poultry—use immediately or cook
then refreeze.
• Vegetables—discard as they usually become limp
andsoggy.
• Thawed and warmer than 5°C—discard all food.
Ice making
IMPORTANT!
• Avoid contact with the moving parts of the ice maker
ejector mechanism, and do not place your fingers
on the automatic ice-making mechanism while the
appliance is inoperation.
• Do not use ice cubes that may have become
discolored, usually with a green-blue color.
Ifsuchdiscoloration is noted, discard the ice cubes
and contact your Fisher&Paykel trained and
supported service technician.
SAFETY AND WARNINGS

12
STORAGE FEATURES
Freezer compartment
Acessories
 Manual ice tray with lid (non-Ice & Water models only)
RS80 and RS90 models
Refrigerator compartment
Accessories
 Single bottle holders
Door
shelves
Dairy
shelf
Ice maker (top left of freezer)
(Ice& Water models only)
Ice storage bin with scoop
Mid tray
Large bottom bin
Top bin
Water filter
Dairy shelf
Full-width cantilever glass shelves
Fruit and vegetable bins
with humidity control lids
Slim bin with humidity control lid
Half-width cantilever glass shelves

13
STORAGE FEATURES
REFRIGERATOR COMPONENTS
Fruit and vegetable bins
with humidity control lids
 Store all fruit and vegetables in separate bins without
external packaging.
 Separate the fruit and vegetables to prevent the
ethylene-sensitive produce from ripening too
quickly—helps to extend their storage life.
Slim bin with humidity
control lid
 The slim bin stores long vegetables which cannot
fitin the fruit and vegetable bins.
 Also used for storing deli items and beverages, or
fordefrosting foods.
Cantilever glass shelving  Heat treated safety glass.
 Can be removed and positioned at heights to suit
your storage requirements.
 The half-width shelves can be positioned side by
side; best when storing large items such as platters.
 Maximize the storage space when storing items of
varying heights by positioning the half-width shelves
at different levels.
Dairy shelf and door shelves  The top shelves are dairy compartments (designed
tostore butter and cheeses).
 The middle shelves are designed for general items,
condiments and drinks.
 The bottom shelves are designed to store large
drinks or those drinks you require frequent access to.
 Clear windows give ultimate visibility to what is
being stored in the door shelves.
 Adjustable door shelves with dividers.
Single bottle holders  Placed along the length of any shelf to store a
varietyof bottles.
 Store bottles with the neck facing the front of
therefrigerator.
 Unused bottle holders can be stacked on top ofone
another to maximize shelf space.
FREEZER COMPONENTS
Ice maker
(Ice & Water models only)
 Removable ice container.
 Hygienic ice scoop.
Freezer bins  Allow for easy storage of frozen food items.

14
STORAGE FEATURES
Large aluminum
extrusion door shelf
Fruit and vegetable bins
with humidity control lids
Cantilever
glass shelving
Door shelves
Bottle divider
Slim bin with
humidity control lid
Dairy shelf
Freezer compartment Ice maker (top left of freezer)
Ice storage bin with scoop
Top bin
Mid tray
Large bottom bin
Accessories
 Single bottle holders
Acessories
 Manual ice tray with lid (non-Ice & Water models only)
Water filter
RS9120W models
Refrigerator compartment

15
STORAGE FEATURES
REFRIGERATOR COMPONENTS
Fruit and vegetable bins
with humidity control lids
 Store all fruit and vegetables in separate bins without
external packaging.
 Separate the fruit and vegetables to prevent the
ethylene-sensitive produce from ripening too
quickly—helps to extend their storage life.
Slim bin with humidity
control lid
 The slim bin stores long vegetables which cannot
fitin the fruit and vegetable bins.
 Also used for storing deli items and beverages, or
fordefrosting foods.
Cantilever glass shelving  Heat treated safety glass.
 Can be removed and positioned at heights to suit
your storage requirements.
 The half-width shelves can be positioned side by
side; best when storing large items such as platters.
 Maximize the storage space when storing items of
varying heights by positioning the half-width shelves
at different levels.
Dairy shelf and door shelves  The top shelves are dairy compartments (designed
tostore butter and cheeses).
 The middle shelves are designed for general items,
condiments and drinks.
 The bottom shelves are designed to store large
drinks or those drinks you require frequent access to.
 Clear windows give ultimate visibility to what is
being stored in the door shelves.
 Adjustable door shelves with dividers.
Single bottle holders  Placed along the length of any shelf to store a
varietyof bottles.
 Store bottles with the neck facing the front of
therefrigerator.
 Unused bottle holders can be stacked on top ofone
another to maximize shelf space.
FREEZER COMPONENTS
Ice maker
(Ice & Water models only)
 Removable ice container.
 Hygienic ice scoop.
Freezer bins  Allow for easy storage of frozen food items.

16
ACTIVESMART™ SPECIAL FEATURES
Control panel
The control panel enables you to
view and modify all the features
and options of yourrefrigerator.
SmartTouch™ CONTROL PANEL FEATURES
Compartment Allows you to select which compartment to adjust the temperature.
Alarm mute Deactivates the door alarm for 20minutes.
Colder Reduces the temperature of compartments.
Warmer Increases the temperature of compartments.
Fast Freeze Boosts the freezing speed by dropping the freezer to its coldest
temperature for 12hours.
Bottle Chill Allows you to rapidly chill your beverage for a set time of
15minutes.
Ice On/Off Indicates when automatic ice maker is on or off.
Ice Boost Increases ice production up to 30% from standard ice making,
and deactivates automatically after 24hours.
Key lock Allows you to disable the buttons on the control panel.
Filter change
indicator Icon will illuminate indicating that water filter requires changing.
Sabbath mode All alarms, lights and displays are deactivated for 80hours.
Key mute Allows you to silence all button presses.
Ice & Water models Non-Ice & Water models

17
ACTIVESMART™ SPECIAL FEATURES
External display (Ice & Water models only)
The external display enables you to lock the water dispenser, indicates to you when
‘Bottle Chill’ is activated and when your water filter requires changing.
EXTERNAL DISPLAY FEATURES
Dispenser lock
button and
LED light
Locks/unlocks the water dispenser.
When locked the LED above the button will illuminate.
Bottle Chill
indicator
Icon illuminates to indicate when ‘Bottle Chill’
is activated and flashes when beverage is ready.
Filter change
indicator
Icon will illuminate indicating when water filter requires
changing. Check online at fisherpaykel.com for information
on how to reorder a filter.

18
ACTIVESMART™ SPECIAL FEATURES
Humidity control system
Humidity control lids
The control lids are fitted to the fruit and vegetable bins and slim bin of your refrigerator.
 These lids seal the bins and provide a humid microclimate to extend the storage
timesof fruit and vegetables.
 The lids have specially designed grooves that retain moisture to prevent condensation
from dripping onto the fruits and vegetables at times of high humidity.
Humidity slide
Each bin has an adjustable humidity slide that enables you to choose a fruit or
vegetable setting depending on your storage needs.
 If there is too much water in the bins (due to high humidity), the control can be
adjustedtowards the fruit setting to reduce drips of water and/or wipe the
waterdry (if required).
 Be aware that a small amount of water in the bins is beneficial for fruit and
vegetablestorage.
 Use the vegetable setting when you store ethylene-sensitive vegetables such
aslettuce, spinach, broccoli, cabbage, carrots.
 Use the fruit setting when you store high-ethylene fruits such ascitrus fruits,
stonefruits and some tropical fruits.
 We recommend adjusting the humidity slide to the center when you store both
fruitsandvegetables.
 We recommend storing all fruit and vegetables without external packaging and
inseparate bins.
– Separating the fruit and vegetables prevent ethylene-sensitive produce
fromripening too quickly, and help extend their storage life.
Humidity control graphic
