INTEGRATED COLUMNS
RS1884FJ, RS2484FJ, RS084FJ,
RS2484S & RS084S models
INSTALLATION GUIDE
US CA
847985B 0.17

1
TABLE OF CONTENTS
IMPORTANT!
SAVE THESE INSTRUCTIONS
The models shown in this installation guide may not be available in all markets and are subject to change at any time. For current details about model and specification availability in your country, please go to
our website fisherpaykel.com or contact your local Fisher & Paykel dealer.
1SAFETY AND WARNINGS
2INTEGRATED COLUMNS
3COMPONENTS LIST
4PRODUCT DIMENSIONS AND SPECIFICATIONS
5CABINETRY OPTIONS
6CAVITY DIMENSIONS
7DOOR AND TOE KICK PANEL DIMENSIONS
8CUSTOM DOOR PANEL DIMENSIONS
9DOOR OPENING ROTATION
!0ELECTRICAL AND PLUMBING
!1BEFORE INSTALLATION
!2UNPACKING AND MOVING YOUR PRODUCT
!3ATTACH THE ANTI-TIP BRACKET
!4CONNECT TO WATER AND POWER SUPPLY
!7INSTALL WATER FILTER
OR
!5SINGLE INSTALLATION !6DUAL INSTALLATION
OR
!8INSTALL BRACKETS TO DOOR PANEL
(STAINLESS STEEL)
!9INSTALL BRACKETS TO DOOR PANEL
(CUSTOM)
@0INSTALL DOOR PANELS
@1INSTALL TOE KICK
@2INSTALL KICKSTRIP GRILLE
@3INSTALL CABINET TRIMS
@4INSTALL FLOW DIVIDER AND DOOR TRIMS
@5OPTIONAL—CHANGING OVER DOOR HINGES
@6FINAL CHECKLIST

2
1SAFETY AND WARNINGS
!WARNING!
Electric Shock Hazard
Read and follow the safety and warnings outlined in this installation
guide before operating this appliance.
Failure to do so can result in death, electric shock, fire or injury
topersons.
!WARNING!
Cut Hazard
Take care—panel edges are sharp. Failure to use caution could result
in injury or cuts.
!WARNING!
This appliance is top-heavy and must be secured to prevent the
possibility of tippingforward.
To ensure that the appliance is stable under all loading conditions, the
anti-tip bracket and fittings supplied must be installed according
tothe following installation instructions by a professional installer.
2INTEGRATED COLUMNS
Note: Interchangeable door hinges available for each model.
18” (457mm)24” (610mm)30” (762mm)
FREEZER
RS1884FJ RS2484FJ RS3084FJ
REFRIGERATOR
RS2484S RS3084S

3
3COMPONENTS LIST

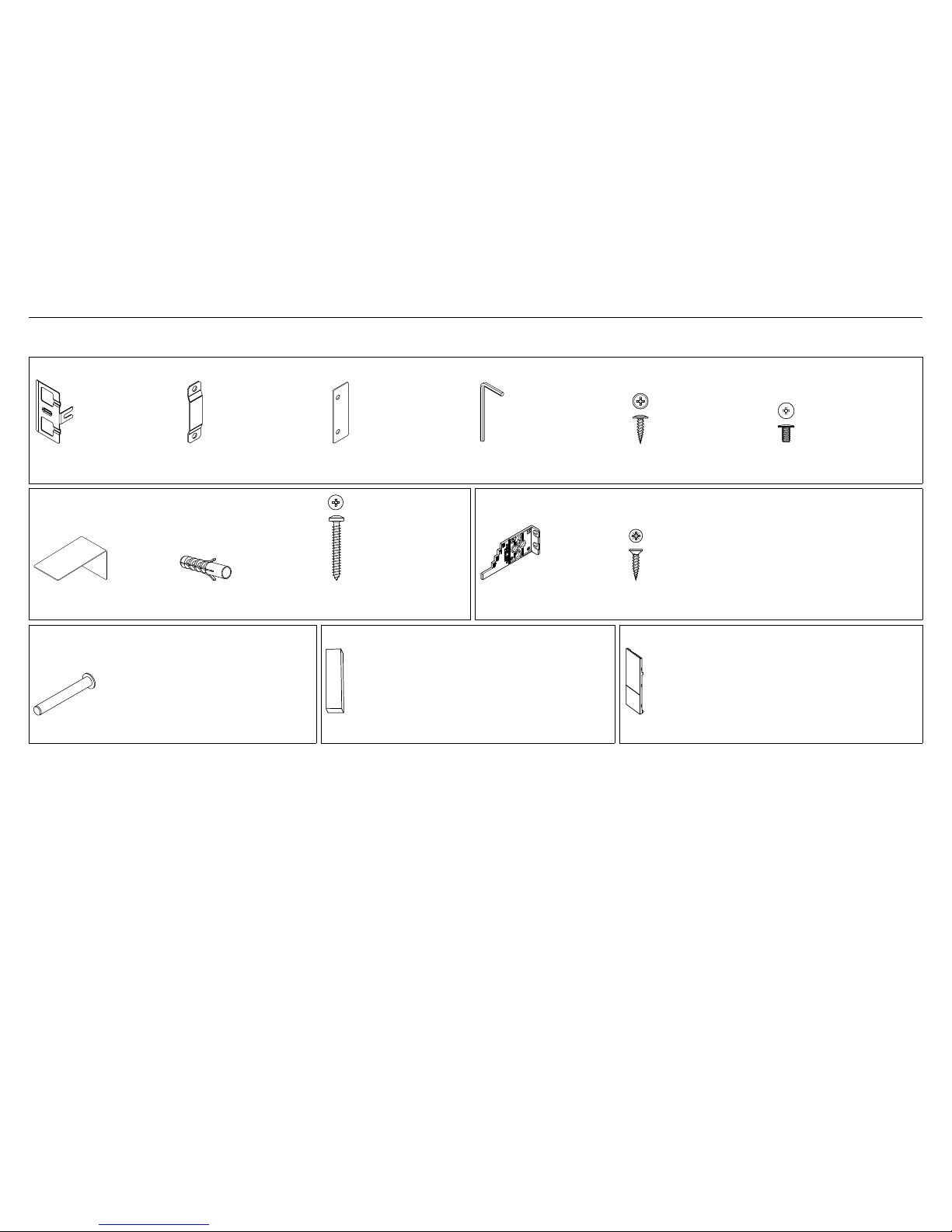

Installation kit (847677) — included with the appliance
Door panel attachment kit (848191)
#8 x 16
Mush Washer
Twin Thread
Philips Screw
#8 x 16
Mush Washer
Twin Thread
Philips Screw
M5 x 14
Mush Head
SS
Philips Screw
M5 x 14
Mush Head
SS
Philips Screw
side bracket (6x)
(838183)
bracket slider (6x)
(838201)
side spacer bracket (6x)
(846177)
M4 hex key (1x)
(844124)
For SS door panels:
8Gx16 mush washer screw
(30x) (840371)
For Custom door panels:
M5x12 Phillips screw (30x)
(845432)
Anti-tip bracket assembly (843934)
#10x40
Pan Head
Philips Screw
#10x40
Pan Head
Philips Screw
Install fasteners kit (848192)
#8 x 19
Countersunk
Twin Thread
Posi Screw
#8 x 19
Countersunk
Twin Thread
Posi Screw
anti-tip bracket (1x)
(843933)
10x30mm masonry plug (5x)
(880910)
10-12x35mm pan head screw
(5x) (847398)
cabinet depth alignment
gauge (4x)
(847760)
8Gx16 countersunk screw (7x)
(840597)
Supplied in separate bag Supplied in separate bag Supplied in separate bag
hinge limiting bolt (3x)
(843662)
air kickstrip seal (1x)
(846405)
flow divider cap (1x)
(847957)

4
3COMPONENTS LIST

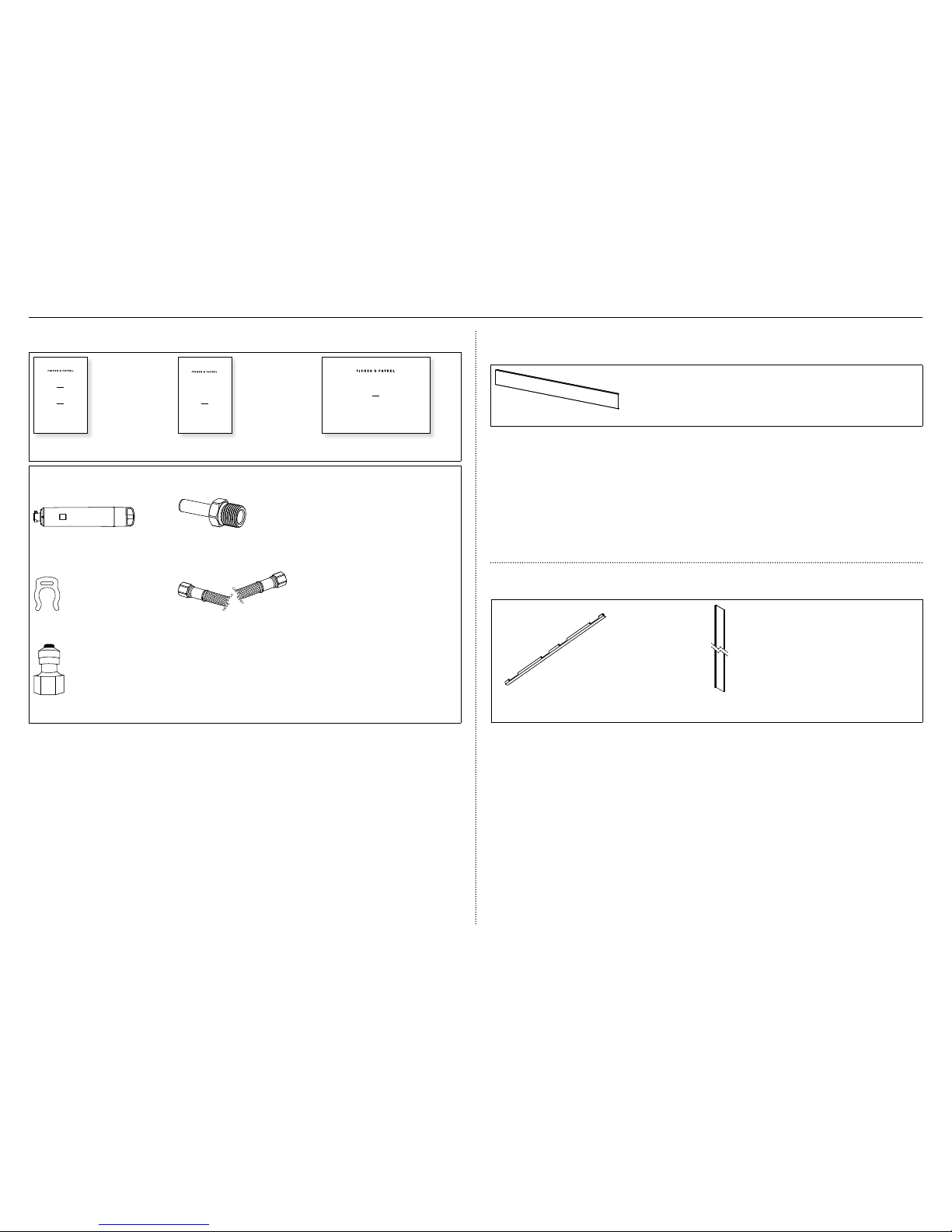

MI (miscellaneous items) pack — included with the appliance.
INTEGRATED COLUMNS
RS1884FJ RS2484FJ, RS3084FJ,
RS2484S & RS3084S models
COLONNES ENCASTRABLES
Modèles RS1884FJ, RS2484FJ, RS3084FJ,
RS2484S et RS3084S
USER GUIDE
GUIDE D’UTILISATION
US CA
SERVICE & WARRANTY
SERVICE ET GARANTIE
ΣΈΡΒΙΣΚΑΙ ΕΓΓΎΗΣΗ
SERVIZIO E GARANZIA
SERVICE & GARANTIE
HUOLTO JA TAKUU
SERVICE OG GARANTI
保修和维修
服務和保修
INTEGRATED COLUMNS
RS1884FJ, RS2484FJ, RS3084FJ,
RS2484S & RS3084S models
INSTALLATION GUIDE
US CA
847985B 03.17
User guide (1x)
(847987)
Service & Warranty (1x)
(590256H)
Installation guide (1x)
(847985)
Water filter installation kit (847678) — included in MI pack of Freezer models only
water filter (1x)
(847200)
1/4” (6mm) adaptor (2x)
(841679)
collet locking clip (2x)
(837193)
1/4” (6mm) comp. Stainless steel braided hose (1x)
(841651)
adaptor tube (1x)
(312198)
Kickstrip installation kit— Fisher & Paykel (Stainless steel) toe kick is not included with the
appliance.
Toe kick (1x)
Standard toe kick height is 4” (102mm) with the optional stainless door panel.
For Custom door panel installation, a custom toe kick 2”–6” (50–152mm) can be manufactured and fitted by
cabinetmaker. The Custom door panel height needs to be adjusted accordingly.
An extra bottom grille is required for a 2” (50mm) toe kick installation.
Install parts— included with the appliance. Attached to back of appliance.
door panel side extrusion (2x)
(843266)
alcove side trim assembly (1x)
(848193)

5
3COMPONENTS LIST

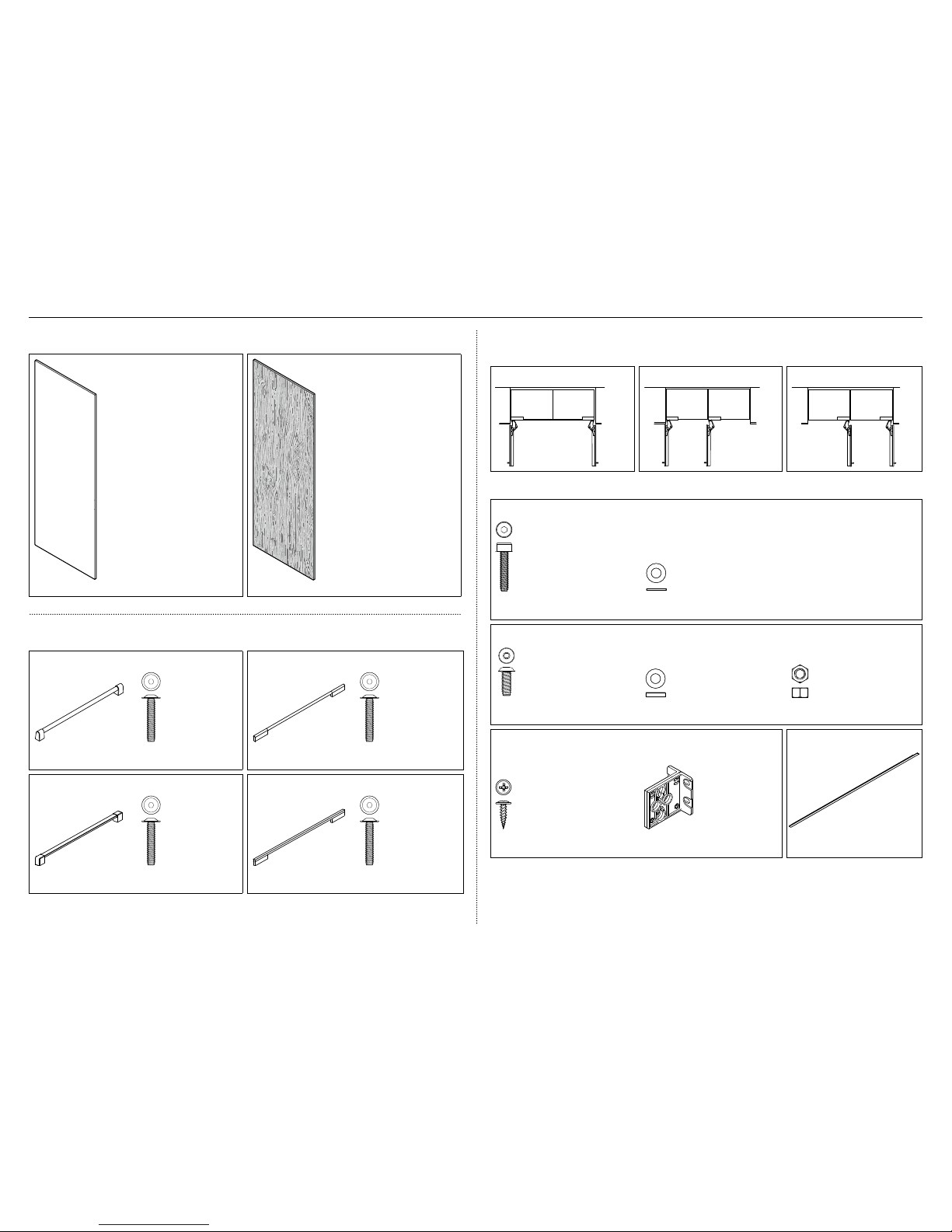

Door handle kit— not included with the appliance and must be purchased separately.
EVO1 handle kit (CA: 24980) F&P (D3) handle kit (CA: 24979)
M5 x 25
Pan Head
Socket Screw
OR
M5x25 hex screw
M5 x 25
Pan Head
Socket Screw
OR
M5x25 hex screw
M5 x 25
Pan Head
Socket Screw
OR
M5x25 hex screw
M5 x 25
Pan Head
Socket Screw
OR
M5x25 hex screw
EVO1 handle
(1x)
M5x25 hex screw
(4x)
F&P (D3) handle
(1x)
M5x25 hex screw
(4x)
EVO2 (U handle) (CA: 24982) S handle (RD3) kit (CA: 24981)
M5 x 25
Pan Head
Socket Screw
OR
M5x25 hex screw
M5 x 25
Pan Head
Socket Screw
OR
M5x25 hex screw
M5 x 25
Pan Head
Socket Screw
OR
M5x25 hex screw
M5 x 25
Pan Head
Socket Screw
OR
M5x25 hex screw
EVO2 (U handle)
(1x)
M5x25 hex screw
(4x)
S handle (RD3)
(1x)
M5x25 hex screw
(4x)
Door panels
Stainless steel door panel (1x) Custom door panel
Fisher & Paykel (Stainless steel)
door panel is not included
with the appliance and must
be purchased separately.
Customers can supply their
own Custom door panel to
match their cabinetry.
Dual install joiner kit (CA: 24985)— included with the appliance (Freezer model only). Attached
to back of appliance. Used for any of the dual install options shown below.
Left/Right Left/Left Right/Right
WALL
Included in each joiner kit:
Top joiner fastener kit (848313)
M5x20 cap screw (1x)
(847984)
M5x16x1 plain washer (1x)
(611307)
Bottom joiner fastener kit (848312)
M6 Washer
843453
M5 Washer
M5 x20
Cap Screw
847984
M6 x 12
Cap Screw
248072
8Gx16
Mush Washer
840371
10 x 50
Dual Lock
M6 Nut
839455
M5 Nut
839107
M6x16 screw plastic washer
M6x16 washer screw (1x)
(848869)
M6x12x3.2 plastic washer (1x)
(848870)
M6 hex nut (1x)
(839455)
Top joiner bracket kit (848311)
#8 x 16
Mush Washer
Twin Thread
Philips Screw
#8 x 16
Mush Washer
Twin Thread
Philips Screw
8Gx16 mush washer screw
(2x) (840371)
central spacer (1x)
(847695)
center trim assembly (1x)
(848309)

6
3COMPONENTS LIST

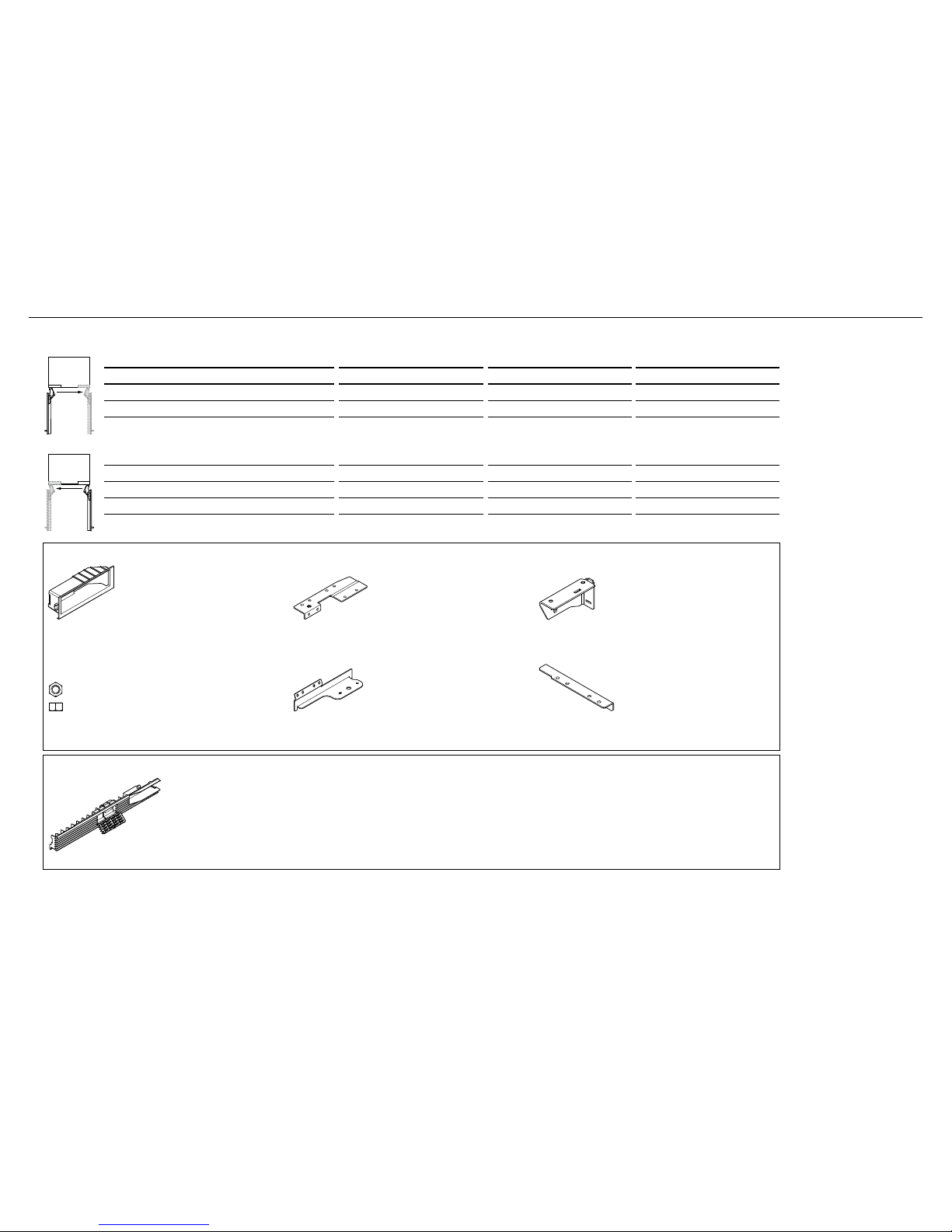

LEFT HINGE (LH) TO RIGHT HINGE (RH) RS18 (848186) RS24 (848188) RS30 (848190)
Hinge change assembly (1x) 848184 848184 848184
Top (fixed) grille assembly (1x) 847375 847374 847372
RIGHT HINGE (RH) TO LEFT HINGE (LH) RS18 (848185) RS24 (848187) RS30 (848189)
Hinge change assembly (1x) 848183 848183 848183
Top (fixed) grille assembly (1x) 846663 847373 847371
Hinge change kit — not included with the appliance and must be purchased separately.
Hinge change assembly
hinge top pocket (1x)
RH (843718)
LH (843719)
K05 top adapter bracket (2x)
RH (842935)
LH (841982)
lower hinge bracket (2x)
RH (842881)
LH (843027)
M5 nut (2x)
(839107)
alcove top bracket (2x)
RH (847005)
LH (847006)
K05 bottom adapter bracket (2x)
RH (842890)
LH (842889)
Top (fixed) grille assembly
top (fixed) grille (1x)

7

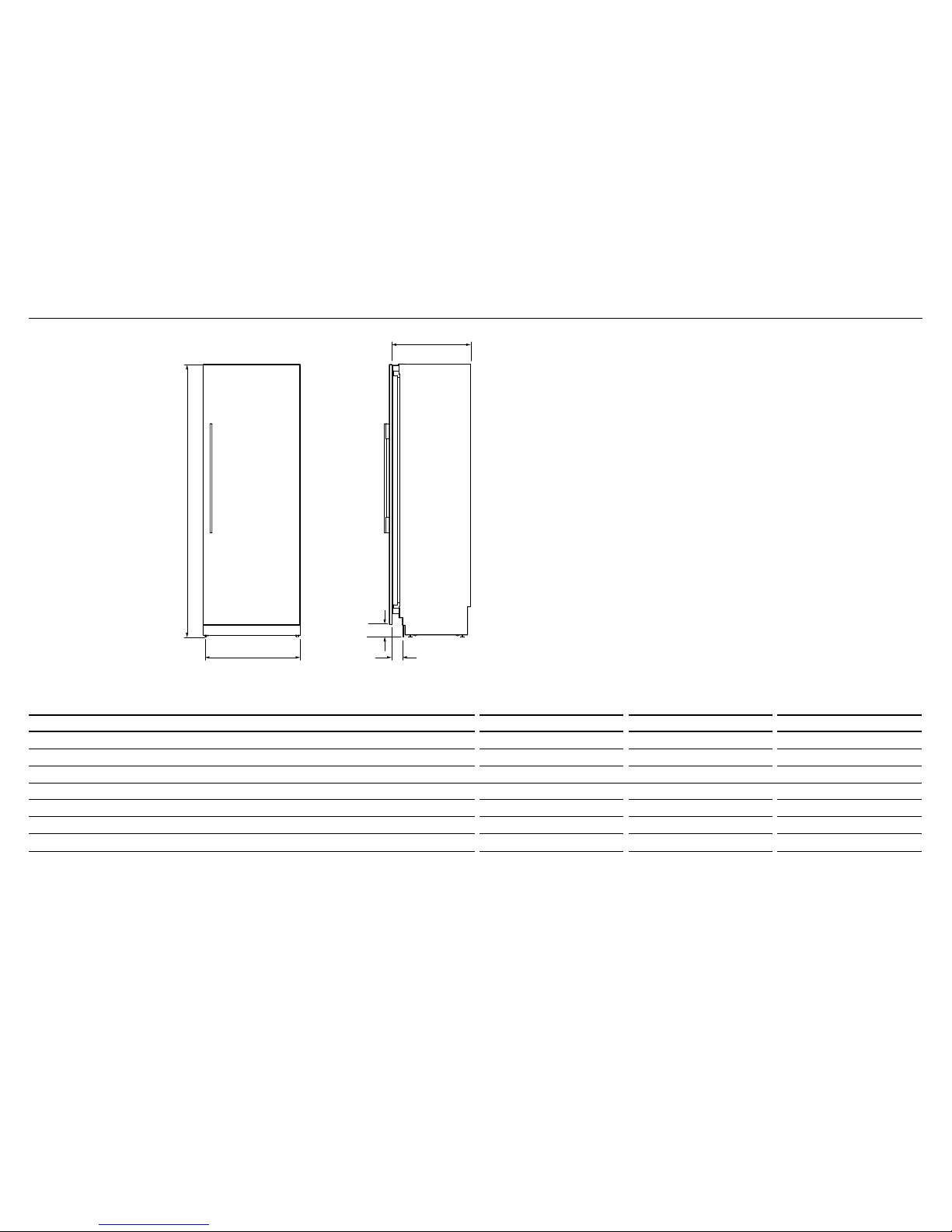

4PRODUCT DIMENSIONS AND SPECIFICATIONS
RS18 RS24 RS30
PRODUCT DIMENSIONS inches (mm) inches (mm) inches (mm)
AOverall height of product 84” (2134) 84” (2134) 84” (2134)
BOverall width of product 173/4” (451) 233/4” (603) 293/4” (756)
COverall depth of product (excluding front door panel) 24” (610) 24” (610) 24” (610)
PRODUCT SPECIFICATIONS
Door clearance 20” (508mm) 26” (660mm) 32” (813mm)
Weight (including packaging) 260lb (118kg) 302lb (137kg) 344lb (156kg)
Door hinge Hettich K05 Hettich K05 Hettich K05
PROFILE VIEWFRONT VIEW
A
BD
E
C

8
5CABINETRY OPTIONS
FRAMELESS CABINETRY
(Frameless: Aligns the product/s with the cabinetry)
FRAMED CABINETRY
(Framed: Aligns the product/s with the frame of the cabinetry)
Note: Images shown for single install. These options are also applicable for dual install.
E
DD
E
Frameless
E
DD
E
Framed

9
6CAVITY DIMENSIONS
SINGLE INSTALL DUAL INSTALL
RS18 RS24 RS30 RS18 + RS24 RS18 + RS30 RS24 + RS24 RS24 + RS30 RS30 + RS30
CAVITY DIMENSIONS inches (mm) inches (mm) inches (mm) inches (mm) inches (mm) inches (mm) inches (mm) inches (mm)
AOverall height of cavity 84” (2134) 84” (2134) 84” (2134) 84” (2134) 84” (2134) 84” (2134) 84” (2134) 84” (2134)
bOverall width of cavity 18” (457) 24” (610) 30” (762) 42” (1067) 48” (1219) 48” (1219) 54” (1372) 60” (1524)
cMinimum overall depth of cavity* 25” (635) 25” (635) 25” (635) 25” (635) 25” (635) 25” (635) 25” (635) 25” (635)
dMinimum cabinetry gap clearance from edge
of door panels 1/8” (3) 1/8” (3) 1/8” (3) 1/8” (3) 1/8” (3) 1/8” (3) 1/8” (3) 1/8” (3)
eMinimum required finished return 4” (102) 4” (102) 4” (102) 4” (102) 4” (102) 4” (102) 4” (102) 4” (102)
* Assumes a door panel thickness of 3/4” (19mm).
Note: These dimensions are intended for ‘Flush Installation’ only.
E
D
D
Flush with front
of cabinetry
PLAN VIEW
E
DD
E
E
DD
E
B
A
C
B
A
C
Frameless: finished return
cavity sides and top
Framed: finished return
cavity sides and top

10
7DOOR AND TOE KICK PANEL DIMENSIONS
RS18 RS24 RS30
DOOR PANEL DIMENSIONS (STAINLESS STEEL) inches (mm) inches (mm) inches (mm)
AHeight of door panel 79 7/8" (2029) 79 7/8" (2029) 79 7/8" (2029)
BWidth of door panel 173/4” (451) 23 3/4" (603) 29 3/4" (756)
CDepth of door panel (excluding door handle) 3/4” (19) 3/4” (19) 3/4” (19)
DOOR PANEL DIMENSIONS (CUSTOM)*
AHeight of door panel 77 7/8” – 81 7/8” (1978 – 2080) 77 7/8” – 81 7/8” (1978 – 2080) 77 7/8” – 81 7/8” (1978 – 2080)
BWidth of door panel 17 3/4” (451) 23 3/4" (603) 29 3/4" (756)
CDepth of door panel min 5/8” – max 1” (16 – 25) min 5/8” – max 1” (16 – 25) min 5/8” – max 1” (16 – 25)
DOOR PANEL WEIGHT lb (kg) lb (kg) lb (kg)
Maximum weight of Stainless steel/Custom door panel (including handle/brackets)†44lb (20kg) 55lb (25kg) 66lb (30kg)
* Custom door panels to be manufactured and fitted by cabinetmaker.
† Door handle kit is available as an optional accessory for both Stainless Steel door panels and Custom door panels and must be purchased separately.
SINGLE INSTALL DUAL INSTALL
RS18 RS24 RS30 RS18 + RS24 RS18 + RS30 RS24 + RS24 RS24 + RS30 RS30 + RS30
TOE KICK DIMENSIONS inches (mm) inches (mm) inches (mm) inches (mm) inches (mm) inches (mm) inches (mm) inches (mm)
DWidth of toe kick
Stainless steel panel/Custom panel 177/8” (454) 23 7/8” (606) 29 7/8” (759) 41 7/8” (1064) 47 7/8” (1216) 47 7/8” (1216) 53 7/8” (1368) 59 7/8” (1521)
EHeight of toe kick#
Stainless steel panel 4” (102) 4” (102) 4” (102) 4” (102) 4” (102) 4” (102) 4” (102) 4” (102)
Custom panel** 2”–6”
(51–152)
2”–6”
(51–152)
2”–6”
(51–152)
2”–6”
(51–152)
2”–6”
(51–152)
2”–6”
(51–152)
2”–6”
(51–152)
2”–6”
(51–152)
FDepth of toe kick (measured from
front of door)
Stainless steel panel/Custom panel 27/8”–4”
(73–102)
27/8”–4”
(73–102)
27/8”–4”
(73–102)
27/8”–4”
(73–102)
27/8”–4”
(73–102)
27/8”–4”
(73–102)
27/8”–4”
(73–102)
27/8”–4”
(73–102)
#Standard toe kick height is 4” (102mm) with the optional Stainless door panel. For Custom door panel installation, a custom toe kick 2” –6” (50 – 152mm) can be manufactured and fitted by cabinetmaker. The Custom door panel height needs
to be adjusted accordingly.
** Extra lower grilles are required for a 2” (50mm) toe kick installation.

11
7DOOR AND TOE KICK PANEL DIMENSIONS
E
F
E
E
E
F
4” toe kick height 6” toe kick height2” toe kick height
(with extra lower grille attached)
27/8”–4” toe kick depth
measured from the front of the door
A
C
B
DE
SINGLE INSTALL
A
C
B
B
DE
DUAL INSTALL

12
8CUSTOM DOOR PANEL DIMENSIONS
Custom door panel dimensions
Dimensions apply for the preparation and installation of Custom door
panels. For Dwg and Dxf files of the below panel preparation download the
folder on http://thekitchentools.fisherpaykel.com
IMPORTANT!
 The thickness of the custom door panel can vary provided that the screws
do not penetrate beyond the full depth of the door panel. Refer to ‘Door
panel dimensions (Custom)’ table on page 10 for thickness limitations of
door panel.
 Measurements of screw hole locations can vary depending on the height
of toe kick 2”–6” (50–152mm).
11/4” (33mm)
23/8” (60mm)
7/8” x Ø1/8”
(22mm x Ø2mm)
29 3/4” (756mm)
3/4” (20mm) 31/2” (90mm)
2” (51mm)
8” (203mm)
147/8” (378mm)
5” (127mm)
2” (50mm)
2” (50mm)
20” (508mm)
50” (1270mm)
70” (1778mm)
77 7/8” – 81 7/8” (1978 – 2080mm)
Do not place handle holes in
marked areas to avoid clashing
with panel attachment brackets
RS30
2” (50mm)2” (50mm)

13
8CUSTOM DOOR PANEL DIMENSIONS
233/4” (603mm)
11/4” (33mm)
2” (50mm) 2” (50mm) 2” (50mm) 2” (50mm)
77 7/8” – 81 7/8” (1978 – 2080mm)
70” (1778mm)
50” (1270mm)
20” (508mm)
5” (127mm)
Do not place handle holes in
marked areas to avoid clashing
with panel attachment brackets
2” (51mm)
8” (203mm)
117/8” (302mm)
RS24
23/8” (60mm)
3/4” (20mm) 31/2” (90mm)
7/8” x Ø1/8”
(22mm x Ø2mm)
77 7/8” – 81 7/8” (1978 – 2080mm)
70” (1778mm)
50” (1270mm)
20” (508mm)
5” (127mm)
2” (50mm)
87/8” (225mm)
2” (51mm)
Do not place handle holes in
marked areas to avoid clashing
with panel attachment brackets
11/4” (33mm)
173/4” (450.8mm)
2” (50mm)
2” (50mm)
2” (50mm)
RS18
3/4” x Ø1/8”
18mm x Ø2mm
23/8” (60mm)
3/4” (20mm) 31/2” (90mm)

14

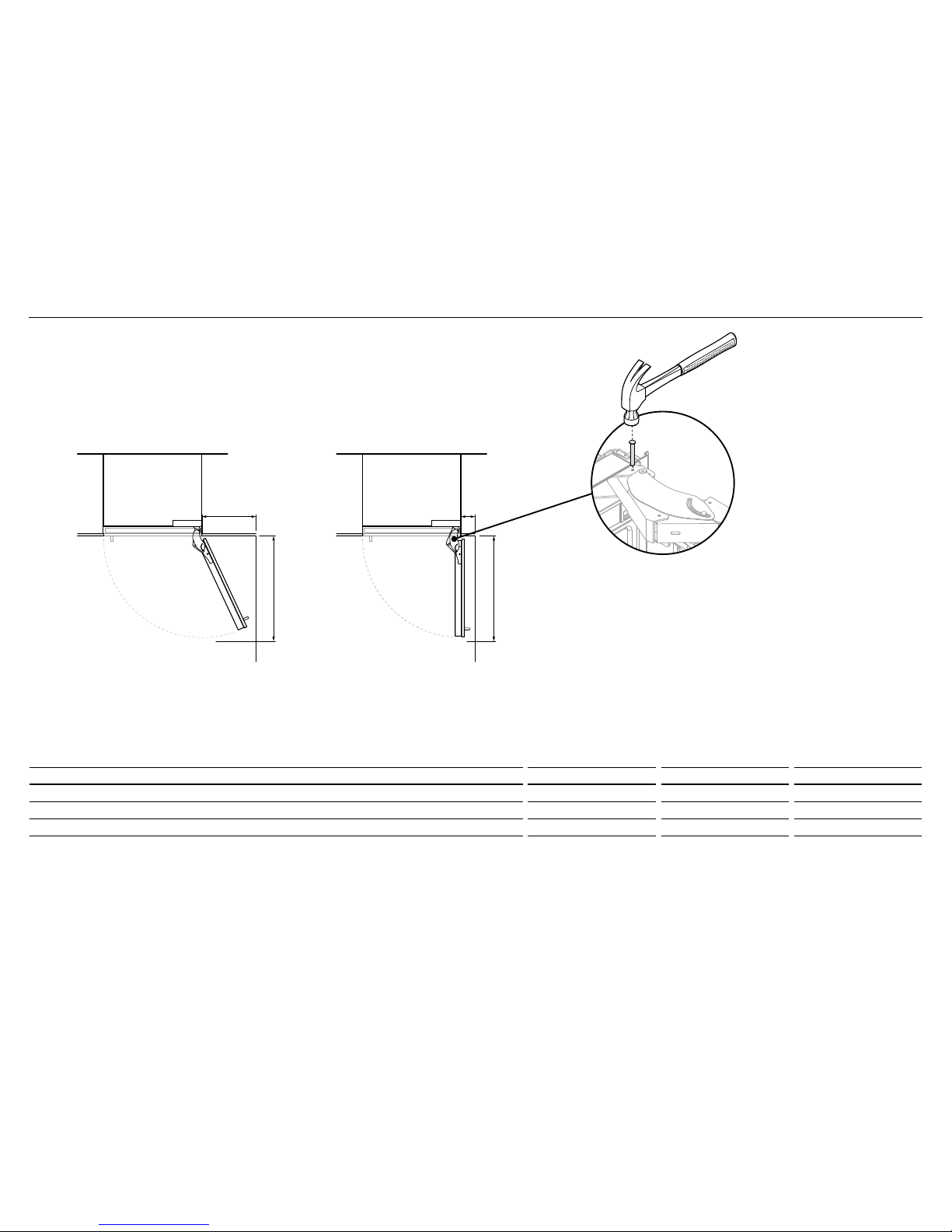

9DOOR OPENING ROTATION
RS18 RS24 RS30
DOOR OPENING AND CLEARANCE DIMENSIONS inches (mm) inches (mm) inches (mm)
AWidth of door (90° open) measured from front of door 20” (508) 26” (660) 32” (813)
bMinimum door clearance* to adjacent wall** (115° — full internal access) 11 1/2” (292) 14” (356) 16 1/2” (419)
cMinimum door clearance* to adjacent wall** (90° — reduced internal access) 4 5/16” (110) 4 5/16” (110) 4 5/16” (110)
* Measured from front cabinetry edge.
** Does not include the Custom door panels or handles to be manufactured and fitted by cabinetmaker.
For 90° door swing a hinge limiting bolt is supplied with your
appliance. This pin fits in the boreholes of the top hinge (Z).
WARNING!
 Before opening the doors, ensure that the appliance is stable.
 Follow these instructions to avoid risks that can cause serious
injury or death.
1Open door to 90°.
2Align the hinge limiting bolt vertically with the bore hole.
3Insert the pin through the bore hole. Use a hammer to drive the pin
through the hole.
115° DOOR OPENING
(FULL ROTATION)
90° DOOR OPENING
B
AA
C
Wall Wall
Z

15
!0ELECTRICAL AND PLUMBING
ELECTRICAL SPECIFICATIONS FREEZER REFRIGERATOR
Supply 115VAC, 60Hz 115VAC, 60Hz
Service 10 amp circuit 10 amp circuit
Outlet 3-prong grounding-type 3-prong grounding-type
Power cord (excluding plug) 86” (2190mm) 86” (2190mm)
PLUMBING SPECIFICATIONS FREEZER REFRIGERATOR
Supply 1/4” (6mm) comp. Stainless steel braided hose NA
Pressure kPa (psi) min 150 (22) / max 827 (120) @ 68°F (20°C) NA
Water inlet hose 831/2” (2121mm) 831/2” (2121mm)
A
BB
C
Left side of cavity
Electrical and water connections must be within this space if located
behind the appliance and must not protrude from the back wall.
REAR OF CAVITY
ELECTRICAL AND PLUMBING DIMENSIONS inches (mm)
AOverall height of supply area 9” (229)
BWidth from the side of the cabinetry 1/2” (13)
CHeight at sides of supply area 5” (127)
Note: Dimensions are based on minimum depth of cavity.
Image shown is for single install.
For dual install, each appliance should have a separate power supply connection with only the
freezer having a water connection.
Floor
Note: We recommend to use an isolating switch that is easily accessible to the user after the
appliance is installed.
WARNING!
 Electric shock hazard! Assume all parts live. Disconnect supply before servicing
and installation.

16
!1BEFORE INSTALLATION
IMPORTANT!
 Ensure your appliance is not exposed to any heat generating appliance eg cooktop, oven or dishwasher.
 The appliance has front and rear rollers for moving the appliance forward and backward. Do not move the appliance sideways to avoid damaging the rollers or the floor covering/surface.
 The appliance must be installed by a qualified installer, or Fisher & Paykel trained and supported service technician to avoid faulty electrical connection and water leaks.
 All connections for water, electrical power and grounding must comply with local codes and ordinances and be made by licensed personnel when required.
 Avoid installation of the appliance/s under a ground fault circuit interrupter (GFCI).
 Ensure the appliance is installed properly. Improper installation that results in appliance failure is not covered under the appliance warranty.
Check the installation location
Check the cabinetry
 Check the dimensions of the cabinetry (width, depth, height, floor level, finished alcove returns).
 Ensure that the ventilation openings in the cabinetry are clear of obstruction.
Check the power supply connection
 Ensure that there is a separate power outlet for each appliance.
 Avoid sharing the power point with other appliances to prevent accidental switching off of the appliance.
 For power requirements, please refer to the information on the serial plate.
 Ensure your appliance is properly grounded (earthed).
 Connect your appliance to an electrical supply with the fitted plug and lead.
 We recommend to use an isolating switch that is easily accessible to the user after the appliance is installed.
Check the water supply connection (for Freezer models only)
 We recommend connecting the hose to exit at an angle if there is not enough clearance between the cabinet wall and back of appliance.
 Fisher & Paykel is not liable for damage (including water damage) caused by faulty installation or plumbing.
Check your appliance
 Ensure that your appliance is the correct model as per your order.
 Ensure that the packaging is not damaged upon delivery.
 Check that the components and install kits are complete.
 You have the option to change the door hinge side of your appliance from right hand hinge to left hand hinge or vice versa.
A hinge change kit is required for this installation. Refer to ‘Optional — Changing over door hinges’ for more information.

17
!2UNPACKING AND MOVING YOUR PRODUCT
1 Remove the top of the packaging
carton. Cut along the cut lines
and remove the carton and EPS
(Expanded Polystyrene) foam.
2Remove pre-packed install parts
(door panel side extrusion and side
trim assembly, center trim assembly,
dual install joiner kit) taped to the
back panel of the appliance.
3Remove the pre-installed parts.
– top (fixed) grille
– bottom grille
– top trim
– top door panel extrusion
– bottom flow door divider
Note: Set aside the screws to use
later when reinstalling the removed
parts.
IMPORTANT!
 Be careful when unpacking to prevent damage to the surface of your appliance.
 Ensure that the appliance is stable to prevent from tipping over when unpacking.
 Do not open the doors to prevent the appliance from tipping over.
 The appliance is heavy and requires a minimum of 2persons to unpack and install.
 Ensure that the feet of the appliance are retracted.
 If the appliance is damaged, contact your Fisher & Paykel dealer.
 Take note of your model and registration numbers located at the lower right side of the
appliance. You will need these to request for servicing or repair of your appliance.
1 Remove the angled brackets (A)from one side of the appliance
(preferably, non-hinge side).
2 Tape the door shut and then tilt (B)the appliance slightly forward
to slide a 2-wheel cart (C) between the appliance andEPS.
– Do not insert the cart from the back or front side!
– Taping the door shut prevents the possible opening of the
doors when tilting.
3 Remove the top screws of the remaining angled brackets (D). Do
not remove the screws fixed to the pallet.
4 Restrain the appliance to the cart with straps, and then tilt the
appliance backward (E) onto the cart.
5 Set aside the pallet and push the cart to the installation location.
– Make sure the door stays closed until the appliance is
positioned inside the cabinet.
B
E
D
C
A
WARNING!
 Follow these instructions to avoid risks that can cause serious injury or death.
 Keep doors closed until the appliance has been moved to its installation location.
Required components/tools:
 Phillips screwdriver
 cutter or scissors
 2-wheel cart with restraining straps
Unpacking your product Moving your product
side trim
assembly
door panel
side extrusion
top trim top door panel extrusion
top (fixed) grille
bottom grille
center trim
assembly
flow door divider

18
IMPORTANT!
Make sure the bracket overlaps the appliance
by a minimum 71/8” (180mm) for a secure
hold (E).
If the minimum 71/8” (180mm) overlap
cannot be achieved, install a solid spacer to
the wall stud behind the bracket (F).
!3ATTACH THE ANTI-TIP BRACKET
min 7 1/8”
(180mm)
E
Bracket
Appliance Wall
F
Bracket
Spacer
min 7 1/8”
(180mm)
Wall
Appliance
1 Project horizontally from the bottom end of the
alcove return towards the back wall (A).
– This will locate the contact surface between
the bracket and the appliance.
2 Mark the screw locations of the anti-tip bracket on
the wall based on the most central wall stud (B).
– If there are no wall studs, the bracket can be
installed to solid brick walls with masonry
plugs. (However, not recommended to be
used on perforated brick or hollow concrete
bricks).
3 Drill screw holes to the marked locations.
4 For wooden/plaster board wall installation:
Skip to step 5.
For solid wall installation: Hammer 10x30mm
masonry plugs (x4) into the wall until flush.
5 Fix the bracket to the wall with 10-12x35mm pan
head screws (4x), and screw tightly (C).
A
Projection must be from
the alcove return towards
the bottom of the bracket
Bracket
IMPORTANT!
Ensure the appliance/s is stable when the door/s is open. The anti-tip bracket and fittings supplied must be fitted to the
wall of the finished enclosure to withstand a 220lb (100kg) load. If installed correctly, this will prevent the possibility of
the appliance tipping forward, when the door/s is open.
WARNING!
Read the following reminders before fastening with masonry plugs and/or screws to avoid serious injury or possible death:
 Ensure the screws avoid electrical, gas and water conduits.
 Ensure that the surface where the bracket is fastened can withstand a 220lb (100kg) load.
 Ensure light-weight masonry material such as cinder block and new concrete (no curing time) are not used in installation.
 Do not use metallic materials that may corrode, stain and/or damage the enclosure.
Required components/tools:
 anti-tip bracket assembly (843934)
– 1x anti-tip bracket (843933)
– 4x 10x30mm masonry plugs (880910)
– 4x 10-12x35mm pan head screws (847398)
 Phillips screwdriver
 marker/pencil
SINGLE INSTALL DUAL INSTALL
C
B
Wall
board Wall
stud
