INTRODUCTION
Thank you for buying this Fisher & Paykel integrated refrigerator.
Introducing the next generation in Fisher & Paykel refrigeration. With new flush-fit
design and the ability to easily slide into existing kitchen spaces or be integrated behind
kitchen cabinetry, these family-sized fridges offer a seamless look to the kitchen while
providing excellent food care.
Your refrigerator is designed to adapt to changes in your lifestyle. This book explains the
features and functions that will help you get the most out of your refrigerator.
We hope you enjoy your new integrated refrigerator.
* These models are shown with Fisher & Paykel EZKleen stainless steel door panel sets.
RS9120W
(Automatic ice model)*
RS9120WU
(Ice & Water model)*
RS36W72RU1 (with RD3672RU SS Door skin) RS36W72RJ1 (with RD3672R SS Door skin)
RS36W80RU1 (with RD3680RU SS Door skin) RS36W80RJ1 (with RD3680R SS Door skin)
RS36W80RU1 (with RD3684RU SS Door skin) RS36W80RU1 (with RD3684R SS Door skin)
RS36W72RU1 (with RD3672RU SS Door skin) RS36W72RJ1 (with RD3672R SS Door skin)
RS36W80RU1 (with RD3680RU SS Door skin) RS36W80RJ1 (with RD3680R SS Door skin)
RS36W80RU1 (with RD3684RU SS Door skin) RS36W80RU1 (with RD3684R SS Door skin)

4
SAFETY AND WARNINGS
!WARNING!
Electric Shock Hazard
Read and follow the safety and warnings
outlined in this user guide before operating
this appliance.
Failure to do so can result in death, electric
shock, fire or injury to persons.
R600a
This refrigerator contains flammable
refrigerant isobutane (R600a).
Use this appliance only for the intended purpose as
described in the user guide.
IMPORTANT SAFETY INSTRUCTIONS
WARNING!
When using this appliance always exercise basic
safety precautions including the following:
• This appliance is not intended for use by persons
(including children under the age of 8 years) with
reduced physical, sensory or mental capabilities, or
lack of experience and knowledge, unless they have
been given supervision or instruction concerning
use of the appliance by a person responsible for
their safety.
• Young children should be supervised to ensure they
do not play with the appliance.
• The manufacturer’s installation instructions for
product and cabinetry ventilation must be followed
when installing the appliance.

5
SAFETY AND WARNINGS
• To avoid hazard due to instability of the appliance,
it must be fixed in accordance with installation
instructions.
• Keep ventilation openings, in the appliance enclosure
or in the built-in structure, clear of obstruction.
• Do not use mechanical devices or other means to
accelerate the defrosting process.
• Do not damage the refrigerant circuit.
• In case of damage to the refrigerant circuit, ventilate
the area by opening all windows. Do not operate
electrical equipment or any other equipment that may
produce arcs, sparks or flames in the area. Contact
your Fisher & Paykel trained and supported service
technician immediately to arrange for the appliance
to be repaired.
• It is hazardous for anyone other than an authorised
service person to service this appliance. In
Queensland the authorised service person must hold
a gas work licence or authorisation for hydrocarbon
refrigerants to carry our service or repairs which
involve removal of covers.
Electrical
• This appliance must be installed in accordance with
the installation instructions beforeuse.
• To allow disconnection of the appliance from the
supply after installation, incorporate a switch in the
fixed wiring in accordance with the wiring rules.
• Never unplug your refrigerator by pulling on the
power cord. Always grip the plug firmly and pull
straight out from the outlet.
• Do not plug in any other appliance at the same
power point as your refrigerator or use extension
cords or double adapters.

6
SAFETY AND WARNINGS
• Repair or replace immediately all electric service
cords that have become frayed or otherwise
damaged. Do not use a cord that shows cracks or
abrasion along its length or at either the plug or
appliance end.
• If the power supply cord is damaged, it must only
be replaced by your Fisher & Paykel trained and
supported service technician because special
purpose tools are required.
• When moving your appliance away from the wall, be
careful not to roll over or damage the power cord.
• Do not use electrical appliances inside the food
storage compartments of the appliance.
Important!
Your refrigerator is designed to operate for many
years without the need for service checks. However, if
your refrigerator is malfunctioning, have it attended
to by your Fisher & Paykel trained and supported
service technician as soon as possible. All electrical
repairs must be carried out by an adequately trained
service technician or qualified electrician.
Cleaning
• Many commercially available cleaning products
contain solvents that may attack the plastic
components of your refrigerator and cause them
tocrack.
• Avoid using anti-bacterial cleaning products on
either the interior or exterior of the cabinet as they
may cause rusting of metal components and cracking
of plastic components.
• Please refer to the ‘Cleaning care’ section of this
user guide for further information.

7
SAFETY AND WARNINGS
Disposal
• Extreme care must be taken when disposing of your
old appliance to avoid hazards:
– The flammable refrigerant gas must be safely
removed.
– The thermal insulation foam in this appliance
contains flammable insulation blowing gases, any
exposed foam may be highly flammable and must
be carefully treated during disposal.
– The doors and panels should be removed and
the shelves left in place so that children may not
easily climb inside.
• Your Fisher & Paykel trained and supported
service technician will be able to give advice on
environmentally friendly methods of disposing of
your old refrigerator or freezer.
Storing food and drinks
• Do not store explosive substances such as aerosol
cans with a flammable propellant in this appliance.
• Never store volatile or flammable materials in your
refrigerator as they may explode.
• Never freeze liquids in glass containers. Liquid
expands during freezing, which may cause the
container to explode.
• Never freeze carbonated drinks. They may explode.
• Do not consume food if it is too cold. Food removed
from the freezer compartment may be cold enough
to cause damage when brought into contact with
bare skin, egfrozen ice cubes.

8
SAFETY AND WARNINGS
Power failure — food safety
• Do not refreeze frozen foods that have thawed
completely. The food may be dangerous to eat.
Follow the recommendations below if you discover
food in your freezer has thawed:
– Ice crystals still visible — food may be refrozen
but should be stored for a shorter period than
recommended.
– Thawed but refrigerator cold — refreezing
generally not recommended. Fruits
and some cooked food can be refrozen
but use as soon as possible. Meat, fish,
poultry — use immediately or cook then refreeze.
Vegetables — discard as they usually go limp
andsoggy.
– Thawed and warmer than 5°C — discard all food.

9

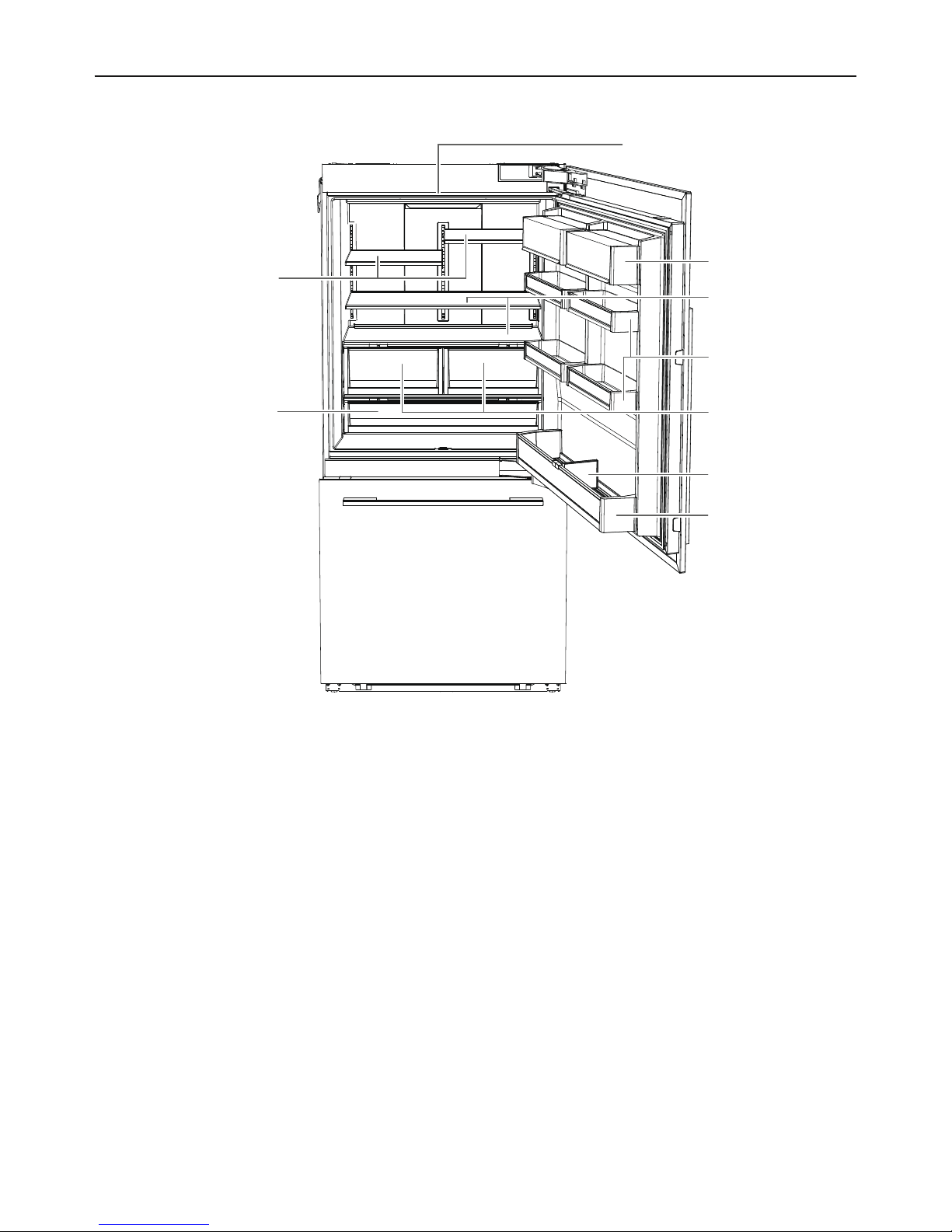

Refrigerator compartment
Accessories (not shown)
 Single bottle holders
Water tank
(Ice & Water model only)
Large aluminium
extrusion door shelf
Fruit and vegetable
bins with humidity
control lids
Half-width cantilever
glass shelves Full-width cantilever
glass shelves
Mid door shelves
Bottle divider
Slim bin with
humidity control lid
Dairy shelf
Fruit and vegetable bins
You can store all fruits and vegetables in separate bins without external packaging.
Separating the fruits and vegetables prevent ethylene-sensitive produce from ripening
too quickly, and help extend their storage life.
Slim bin
The slim bin stores long vegetables which cannot fit in the fruit and vegetable bins. It
can also be used for storing deli items and beverages, or for defrosting foods.
Single bottle holders
 The bottle holders can be used to store a variety of bottles.
 Place the bottle holder along the length of any shelf in your refrigerator.
 If you are not using all or some of the bottle holders, the unused bottle holders can be
stacked up on top of one another so they do not take up unnecessary shelf space.
 Bottles are best stored with the neck of the beverage facing the front of the refrigerator.
 Additional bottle holders can be purchased by calling your Fisher & Paykel Customer
Care Centre, or online at www.fisherpaykel.com.
STORAGE FEATURES

10

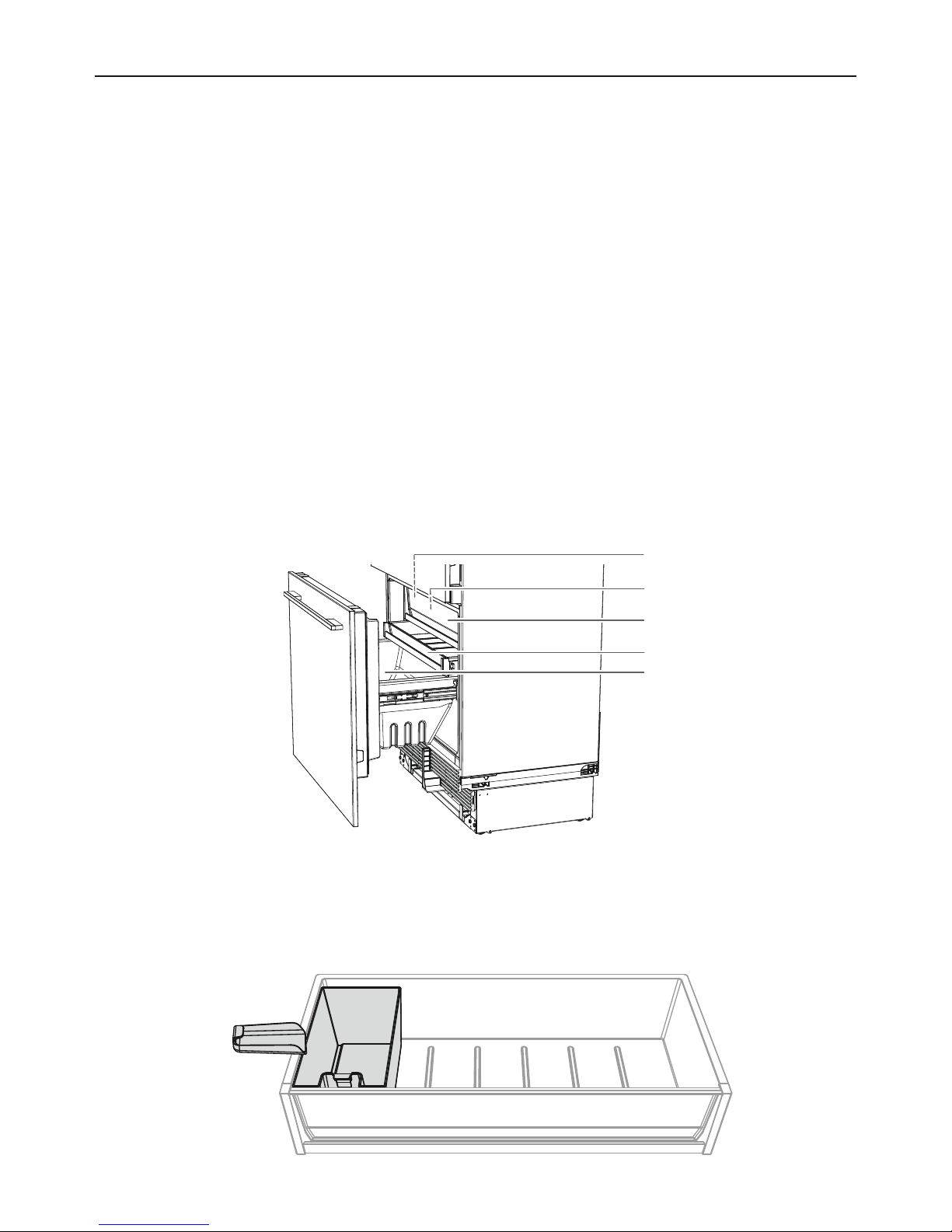

Freezer compartment
Ice maker (top left of freezer)
Ice storage bin with scoop
Top bin
Mid tray
Large bottom bin
Cantilever glass shelves — half-width and full-width
 The cantilever glass shelves have been designed with strength and versatility in mind.
 The half-width and full-width shelves can be removed from the refrigerator.
 To remove the shelves, grasp the front of the shelf firmly with two hands. Tilt the front
of the shelf upwards to dislodge the shelf hooks from the back support lugs, and then
pull towards you. These shelves can be positioned at heights that suits your storage
requirements.
 The half-width shelves can be positioned side-by-side to store large items such as platters.
 Place the half-width shelves at different levels to maximise the storage space when you
store items of varying heights.
Door shelves
 The top shelves are dairy compartments for storing butter and cheese.
 The middle shelves can store general items, condiments and drinks.
 The bottom aluminium extrusion shelf can store large bottles or frequently-used items.
This shelf is fitted with a moveable and removable divider for better organisation and
bottle stability.
 The door shelves have clear windows so you can easily see your stored items.
Ice storage bin and scoop
Ice storage bin with scoop
 The ice storage bin is located inside the top freezer bin, and includes a hygienic scoop
for scooping up ice cubes.
 The ice storage bin stores ice cubes produced by the automatic ice maker.
STORAGE FEATURES

11
SmartTouchTM control panel
SmartTouch™ control panel
The control panel is located
in the inside front of the
refrigerator for easy access.
It enables you to view and
modify all the features and
options of your refrigerator.
SmartTouch™ CONTROL PANEL FEATURES
Compartment Allows you to select which compartment to adjust the
temperature.
Alarm Mute Deactivates the door alarm for 20minutes.
Colder Reduces the temperature of compartments.
Warmer Increases the temperature of compartments.
Fast Freeze Boosts the freezing speed by dropping the freezer to its
coldest temperature for 12hours.
Bottle Chill Allows you to rapidly chill your beverage for a set time of
15minutes.
Ice On/Off Indicates when automatic ice maker is on or off.
Ice Boost Increases ice production up to 30% from standard ice
making, and deactivates automatically after 24hours.
Key lock Allows you to disable the buttons on the control panel.
Faults Indicates when an error occurs after you open the fresh
food compartment door.
Filter change
indicator
Icon will illuminate indicating that water filter requires
changing.
Sabbath mode All alarms, lights and displays are deactivated for 80hours.
Key mute Deactivates sounds of all button presses.
ACTIVESMART™SPECIAL FEATURES

12
External display (Ice & Water model only)
The external display enables you to lock the water dispenser, indicates when ‘Bottle
Chill’ is activated and when to replace your water filter.
EXTERNAL DISPLAY FEATURES
Dispenser lock button
and LED light
Locks/unlocks the water dispenser.
When locked, the LED above the button will
illuminate.
Bottle Chill indicator Icon will illuminate indicating that ‘Bottle Chill’ is
activated and flashes when beverage is ready.
Filter change
indicator
Icon will illuminate indicating that water filter
requires changing.
ACTIVESMART™SPECIAL FEATURES

13
Humidity control system
Humidity control lids
 The control lids are fitted to the fruit and vegetable bins and slim bin of your
refrigerator.
 These lids seal the bins and provide a humid microclimate to extend the storage times
of fruit and vegetables.
 The lids have specially designed grooves that retain moisture to prevent condensation
from dripping onto the fruits and vegetables at times of high humidity.
Humidity slide
 Each bin has an adjustable humidity slide that enables you to choose a fruit or
vegetable setting depending on your storage needs.
 If there is too much water in the bins (due to high humidity), the control can be
adjusted towards the fruit setting to reduce drips of water and/or wipe the water
dry (if required).
 Be aware that a small amount of water in the bins is beneficial for fruit and vegetable
storage.
 We recommend using the vegetable setting when you store ethylene-sensitive
vegetables such as lettuce, spinach, broccoli, cabbage, carrots.
 We recommend using the fruit setting when you store high-ethylene fruits such as
citrus fruits, stone fruits and some tropical fruits.
 We recommend adjusting the humidity slide to the centre when you store both fruits
and vegetables.
 We recommend storing all fruits and vegetables without external packaging and in
separate bins.
–Separating the fruits and vegetables prevent ethylene-sensitive produce from
ripening too quickly, and help extend their storage life.
Humidity control graphic
ACTIVESMART™SPECIAL FEATURES

14
Door alarms
 If the fresh food compartment door is left open, the alarm will beep after 90seconds, if
the freezer door is left open, the alarm will beep after 60seconds.
 If either of the doors remains open, subsequent beeps will sound every 30seconds for
5minutes
If either door remains open for 5minutes or longer, an alarm will sound continuously
and the interior compartment light(s) will turn off. The alarm will stop only when the
door(s) is closed.
Alarm Mute
 To activate, press the button once.
 The ‘Alarm Mute’ will be illuminated.
–If the doors are left open for 5minutes or more, the compartment light turns off
and normal door alarms suspended.
–The light above the button will illuminate to indicate the refrigerator is muted.
 The ‘Alarm Mute’ will deactivate after 20minutes.
 To deactivate manually, press the ‘Alarm Mute’ button again.
 Closing the door also deactivates the ‘Alarm Mute’
Note: When the fresh food or freezer compartment door is left open for longer periods
of time, food quality and/or safety may be compromised.
Key mute
 To activate key mute, press and hold the button for 4seconds.
 The icon on the control panel illuminates.
 Once key mute is activated, all key sounds are silenced.
 Door alarms and ‘Bottle Chill’ alarm are still operational.
 The key mute can only be deactivated manually by pressing and holding the button
for 4seconds. The icon will no longer illuminate.
Key lock
This is useful when cleaning your refrigerator.
 To activate key lock, press and hold the and buttons for 4seconds.
 The icon on the control panel will illuminate.
 Pressing any buttons will sound several beeps to let you know they are disabled.
 Key lock will not automatically deactivate. To deactivate, press the and buttons for
4seconds.
 The icon will not illuminate.
Ice On/Off
The ice maker is off when you turn on your refrigerator for the first time after
installation.
 To activate your automatic ice maker, press the ‘Ice On/Off’ button once. The LED
light above the button illuminates to indicate the Ice maker is on.
OPERATING INSTRUCTIONS

15
Fast Freeze
‘Fast Freeze’ boosts the freezing speed by dropping the freezer to its coldest temperature
for 12hours. This helps retain the freshness, texture and taste during the freezing process.
 To activate, press the button on the control panel. The ‘Fast Freeze’ light above the
button illuminates when you activate the function.
Ice Boost
This function is most useful when you require more ice eg for a party.
 The ‘Ice Boost’ function is off once you turn on your ice maker for the first time.
 To turn this function on, press the button. The light above the button will
illuminate when the ‘Ice Boost’ function is on.
 To turn off the ‘Ice Boost’ function manually, press the button again. The light above
the button will not illuminate.
 Activating the ‘Ice Boost’ function will automatically turn ON ice maker.
Deactivating the ice maker automatically deactivates the ‘Ice Boost’ function.
Bottle Chill
The time taken to chill depends on the size of your beverage. If your beverage is not
cold enough after 15 minutes, return it to the freezer and reset the ‘Bottle Chill’ function.
 To activate, press the button on the control display. The ‘Bottle Chill’ light above the
button will illuminate when you activate the function. For Ice & Water model, the icon
will illuminate on the external display.
 An alarm will sound after 15minutes to remind you to remove your beverage from
thefreezer.
To silence the alarm — Automatic ice model
Open the fresh food compartment door and press the button on the controlpanel.
To silence the alarm — Ice & Water model:
Open the fresh food compartment door and press the button on the controlpanel, or
press the button once on the external display.
 If your beverage is cold enough before 15minutes elapses, press the button on the
control panel to deactivate ‘Bottle Chill’ manually.
 When ‘Bottle Chill’ is deactivated, the light above will not illuminate and the icon is not
visible on the external display (Ice & Water model only).
If you like your beverage colder, return it to the freezer and reset the ‘Bottle Chill’ function
To deactivate before the 12hours has elapsed, press the button again. The ‘Fast
Freeze’ light above the button will not illuminate when the function is deactivated.
For best results, we recommend that you activate the function before it is required
egbefore grocery shopping. Alternatively, activate it when placing food in the freezer.
OPERATING INSTRUCTIONS

16
OPERATING INSTRUCTIONS
Sabbath mode activation (all models)
 To activate Sabbath mode, press and hold , and buttons for 4seconds.
 The icon on the control panel will illuminate.
Once in Sabbath mode:
 The interior light will not turn on when you open the refrigerator.
 The door alarm will not operate.
 The display will not illuminate, except the Sabbath mode icon.
 The control panel and external display will not operate.
 Sabbath mode automatically deactivates after 80 hours.
 To deactivate manually, press and hold , and for 4 seconds.
 The icon on the control panel will not illuminate.
Note: Sabbath mode resumes automatically once the refrigerator is switched on again.
Temperature control
 Once you turn on your refrigerator for the first time, the cooling system will
automatically cool all compartments to their set temperatures.
 This will take between 2–3 hours
 The control panel enables you to change and control the temperatures of both
compartments accurately and independently regardless of the temperature or humidity
of the surroundings whether it is summer or winter.
 We recommend checking the operation of your refrigerator once every 4hours for the
first 24hours.
 If at any time you notice that the refrigerator is not cooling properly, call your installer/
Fisher & Paykel trained and supported service technician to verify the unit is operating
properly. Take immediate steps to prevent food from spoiling by storing in another
refrigerator or freezer.
Adjusting the fresh food compartment temperature
When the fresh food compartment door is opened, the interior light automatically
illuminates. The temperature for this compartment will show as a series of lights.
 To increase the temperature, press the button. This will increase the number of lights.
 To decrease the temperature, press the button. This will decrease the number of lights.
 Fewer lights illuminated indicates a colder temperature for the compartment selected.
Adjusting the freezer compartment temperature
 Press the button once. The freezer compartment light will be illuminated.
 To increase the temperature, press the button. This will increase the number of lights.
 To decrease the temperature, press the button. This will decrease the number of lights.
 Fewer lights illuminated indicates a colder temperature for the compartment selected.
 Note: successively pressing the button will scroll between compartments.
 When the door is re-opened, the control panel will return automatically to the fresh food
compartment setting.

17
Water dispenser (Ice & Water model only)
Ensure your ice and water system is correctly installed by following the Installation
guide supplied with this User guide.
Before using your ice and water system, flush out water to displaced trapped air in the
water tank and filter system.
Flushing the water filtration system
 Press the water dispenser pad to dispense water for 2minutes.
–Wait for 2minutes before dispensing again.
 Dispense 4L of water and then wait for another 2minutes.
– Be aware that carbon residue may be dispensed together with water. This is not
harmful, and is normal during flushing out process.
 Dispense another 4L of water.
–This prevents excessive dripping of water from your dispenser.
 There may be few drips of water coming out of the dispenser over the next few days
after installation. This is to clear the remaining trapped air in the dispenser.
 Ensure your refrigerator has cooled for at least 2hours beforeuse.
You are now ready to enjoy water from your water dispenser.
Dispensing
 Your water dispenser is designed for one-handed operation.
 To dispense water, gently press the dispensing pad with a glass or container.
 To stop the flow of water, simply pull your glass away from the dispensing pad.
 Pressing hard against the dispensing pad will not increase the flow or dispense
morewater.
IMPORTANT!
To avoid damage to property or personal injury do not put hands, fingers or objects
up the dispenser opening.
Dispenser lock
The dispenser lock is located on the external display and can be activated to prevent
water from being dispensed. This is useful when you are cleaning the external display or
when there are small children around.
 To activate dispenser lock, press the button for 4seconds. The LED above the button
will illuminate.
 When the dispenser pad is pressed, several beeps will sound to alert the user that water
cannot be dispensed.
 To deactivate dispenser lock and dispense water, press the button for 4seconds. The
LED above the button will not illuminate.
OPERATING INSTRUCTIONS

18
Automatic ice maker
Your automatic ice maker is designed to dispense ice cubes into the ice storage bin
below until it detects the bin is full. If you need more ice, remove the ice storage bin and
allow ice to fill the top freezer bin.
Initial setup
 To activate your automatic ice maker, press the ‘Ice On/Off’ button once. The LED
light above the button illuminates to indicate the Ice maker is on.
 Press the , and together for 4seconds then close the doors. The ice tray will flip
twice and empty the water into the bin below. The ice tray will flip only after the doors
are closed.
 Repeat the cycle to remove dust in the ice tray collected during manufacture and
transport.
 Empty the water bin and return it correctly. Ensure that the scoop is in front of the bin.
 Once your ice maker is turned on, discard the ice made in the first 24 hours. This will
flush away any impurities in the water line and ensure best ice quality. We recommend
you do this after vacations or extended periods of not using ice.
 Turn the ice maker off if:
– There is no water supply for several hours.
– You are removing the ice storage bin for a period of time.
– You are going on holiday/vacation.
Collecting ice
Your automatic ice maker produces approximately eight cubes of ice every 3–4 hours,
depending on the freezer compartment temperature and the number of times the door
is opened.
 The ice cube tray is filled with filtered water.
 Frozen ice cubes are dispensed from the ice tray and into the ice storage bin below.
 Ice making will continue until the storage bin is full, and only resumes once you start to
use the stored ice.
 When the ‘Ice Boost’ function is activated, ice production will increase up to 30% from
standard ice making. This function automatically deactivates after 24 hours.
 If large amounts of ice are needed, remove the ice storage bin and allow ice to fill the
top freezer bin.
 For maximum ice storage, level the stored cubes with the ice scoop.
 If ice is not used often, the quality of ice cubes will deteriorate. Empty the ice storage
bin periodically and wash in lukewarm water. Dry thoroughly and place back into the
correct position.
IMPORTANT!
 Avoid contact with the moving parts of the ice maker ejector mechanism, and do not
place your fingers on the automatic ice making mechanism while the refrigerator is
inoperation.
 Do not use ice cubes that may have become discoloured, usually with a green-
blue colour. If such discolouration is noted, discard the ice cubes and contact your
Fisher&Paykel trained and supported service technician.
 Ensure the ice maker is connected to the filter cartridge and to a potable water
supplyonly.
 Installation of the water connection to the ice maker must be completed by a qualified
service technician or a qualified plumber.
OPERATING INSTRUCTIONS
