Installation instructions
and User guide
Active Smart™ refrigerator
E402B, E442B, E522B & RF610A models

Product model number Product name Country of origin
22407 E402BRXFDI (E402B Integrated) Made in New Zealand
22408 E402BLXFDI (E402B Integrated) Made in New Zealand
22409 E402BLXFD (E402B) Made in New Zealand
22410 E402BRXFDU (E402B) Made in New Zealand
22403 E442BLXFD (E442B) Made in Thailand
22401 E442BRXFDU (E442B) Made in Thailand
22405 E522BLXFD (E522B) Made in Thailand
22404 E522BRXFDU (E522B) Made in Thailand
22406 RF610ADUX (RF610A) Made in Thailand
Key
E=Electronic Refrigerator
RF =Freestanding
402
442
522
610
=Capacity (L)
B=Bottom Mount Freezer
A=French Door and Drawer
R=Right-hand Hinged Door
L=Left-hand Hinged Door
X=Stainless Steel finish
F=Flat Door
D=Designer Handle
U=Water and Internal Ice

1
Contents
Introduction 2
Safety and warnings 3
Installation instructions 5
Non Ice & Water display 13
Ice & Water display 15
Using the display options 17
Bottle Chill 17
Fast Freeze 18
The temperature of your refrigerator and freezer 18
Settings 19
User warnings 20
Using your water dispenser 21
Water filter 22
Using your ice maker 23
Active Smart™ special features 25
Active Smart™ maintenance 27
Cleaning and caring for your refrigerator 28
On vacation/holiday 31
Refrigerator sounds 32
Storing food in your refrigerator 33
Storing food in your freezer 34
Troubleshooting 36
Wiring diagrams 40
Important!
SAVE THESE INSTRUCTIONS
The models shown in this User Guide may not be available in all markets and are
subject to change at any time. For current details about model and specification
availability in your country, please visit our local website listed on the back cover
or contact your local Fisher & Paykel dealer.

2Introduction
Thank you for buying a Fisher & Paykel Active Smart™ refrigerator. Thousands of hours of
food care research and 75 years of refrigeration experience has been programmed into your
refrigerator to give you the best possible performance.
With the Ice & Water models we have achieved water dispensing through the door without
compromising storage space or access in the refrigerator. The automatic ice maker means ice is
always on hand, ready for your use.
We hope you enjoy your new refrigerator.
Important!
It is important that this User Guide should be retained with your Active Smart™ refrigerator for
future reference. Should the appliance be sold or transferred to another owner, please ensure
that the User Guide is left with the appliance. This will ensure that the new owner can familiarise
themselves with the information and warnings contained within the Guide.
Fig.1 Active Smart™ refrigerators

3
Safety and warnings (all models)
WARNING!
Electric Shock Hazard
Read and follow the SAFETY AND WARNINGS outlined in this User Guide
before operating this appliance.
Failure to do so can result in death, electric shock, fire or injury to persons.
Use this appliance only for its intended purpose as described in this User Guide.
Important safety precautions
Warning
When using this appliance always exercise basic safety precautions including the following:
Danger
This appliance is not intended for use by children or infirmed persons without supervision. This
is especially important when using the freezer drawer compartment. Young children should be
supervised to ensure they do not play with the appliance.
Risk of child entrapment. Before you throw away your old refrigerator:
– Take off the doors
– Leave the shelves in place so that children may not easily climb inside.
Disposal
Extreme care must be taken when disposing of your old appliance to avoid hazards. The
refrigerant gas must be safely removed and for the safety of young children, remove doors.
Your Fisher & Paykel Appliances Authorised Service Centre will be able to give advice on
environmentally friendly methods of disposing of your old refrigerator.
Electrical
This appliance must be properly installed in accordance with the installation instructions before
it is used.
Never unplug your refrigerator by pulling on the power cord.
Always grip the plug firmly and pull straight out from the outlet socket.
Do not plug in any other appliance at the same power point outlet socket as your refrigerator is
using. Do not use extension cords or double adapters with these products.
Repair or replace immediately all electric service cords that have become frayed or otherwise
damaged. Do not use a cord that shows cracks or abrasion along its length or at either the plug
or appliance end.
If the power supply cord is damaged, it must only be replaced by your Fisher & Paykel Appliances
Authorised Service Centre because special purpose tools are required.

4Safety and warnings (all models)
When moving your appliance away from the wall, be careful not to roll over or damage the
power cord.
Unplug your refrigerator before cleaning or replacing the interior light bulb.
Storing food and drinks
Never store volatile or flammable materials in your refrigerator as they may explode.
Never freeze liquids in glass containers. Liquid expands during freezing, which may cause the
container to explode.
Never freeze carbonated drinks. They may explode.
Do not consume food if it is too cold. Food removed from the freezer compartment may be cold
enough to cause damage when brought into contact with bare skin, eg frozen ice cubes.
Power failure – food safety
Do not refreeze frozen foods that have thawed completely. Follow the recommendations below if
you discover food in your freezer has thawed:
1) Ice crystals still visible – food may be refrozen but should be stored for a shorter period than
recommended.
2) Thawed but refrigerator cold – refreezing generally not recommended. Fruits and some
cooked food can be refrozen but use as soon as possible. Meat, fish, poultry – use immediately
or cook then refreeze. Vegetables – discard as they usually go limp and soggy.
3) Thawed and warmer than 5°C. Discard all food.
Do not refreeze frozen foods that have thawed completely. The food may be dangerous to eat.
Important!
Cleaning
Many commercially available cleaning products contain solvents which may attack plastic
components of your refrigerator or freezer and cause them to crack. Please refer to the cleaning
care section of this booklet for further advice.

5
Installation instructions (all models)
WARNING!
Electric Shock Hazard
Read and follow the SAFETY AND WARNINGS outlined in this User Guide
before operating this appliance, pages 3 – 4.
Failure to do so can result in death, electric shock, fire or injury to persons.
Please follow the steps for installation to ensure your appliance operates correctly.
1. Power
The appliance must be installed so the plug is accessible.
To ensure that the appliance is not accidentally switched off, connect your refrigerator to its
own power point. Do not plug in any other appliance at this power point or use extension cords
and double adaptors, as the combined weight of both power cords can pull the double adaptor
from a wall outlet socket.
For power requirements, refer to the information on the serial plate located at the front bottom
right-hand side of the refrigerator when the door is open.
It is essential that the appliance be properly grounded (earthed).
2. Location
Your refrigerator should not be located in direct sunlight or next to any heat generating
appliance such as a cooktop, oven or dishwasher.

6Installation instructions (all models)
*If the appliance is installed in a corner, a side clearance of 400 mm on the hinge side allows for full drawer/shelf
access and removal.
E402B, E442B, E522B
(Non Ice & Water and Ice & Water models)
RF610A
Flush with refrigerator chassis – full door rotation Flush with refrigerator chassis – full door rotation
Flush with refrigerator door – full door rotation Flush with refrigerator door – full door rotation
Flush with refrigerator door – 90˚ door rotation* Flush with refrigerator door – 90˚ door rotation*

7
Installation instructions (all models)
3. Ventilation and installation
To ensure adequate ventilation for your refrigerator and it’s correct operation see recommended
cabinetry dimensions below.
The appliance is intended to be placed against a wall with a free distance not exceeding 75 mm.
These measurements do not include space for the water filter at the back of the cabinet as we
recommend that the filter is placed as close to the incoming water supply as possible.
Cabinetry dimensions (mm)
(including minimum air clearances) E402B E442B E522B RF610A
A inside height 1745 1745 1745 1810
Flush with refrigerator chassis – full door rotation
B inside width 675 720 830 940
C inside depth 620 620 620 620
Flush with refrigerator door – full door rotation
D inside width 705 750 860 1000
E inside depth flush to curved door 675 675 675 –
F inside depth flush to flat door 690 690 690 690
Flush with refrigerator door – 90° door rotation
G inside width 745 790 900 1010
H inside depth flush to curved door 675 675 675 –
I inside depth flush to flat door 690 690 690 690
Minimum clearances
J side clearance 20 20 20 20
K side clearance – hinge side flush with door – full rotation 50 50 50 50
L side clearance – hinge side flush with door – 90° rotation 90 90 90 90
M rear clearance (incl. evaporator tray) 30 30 30 30
N vent 50 50 50 50

8

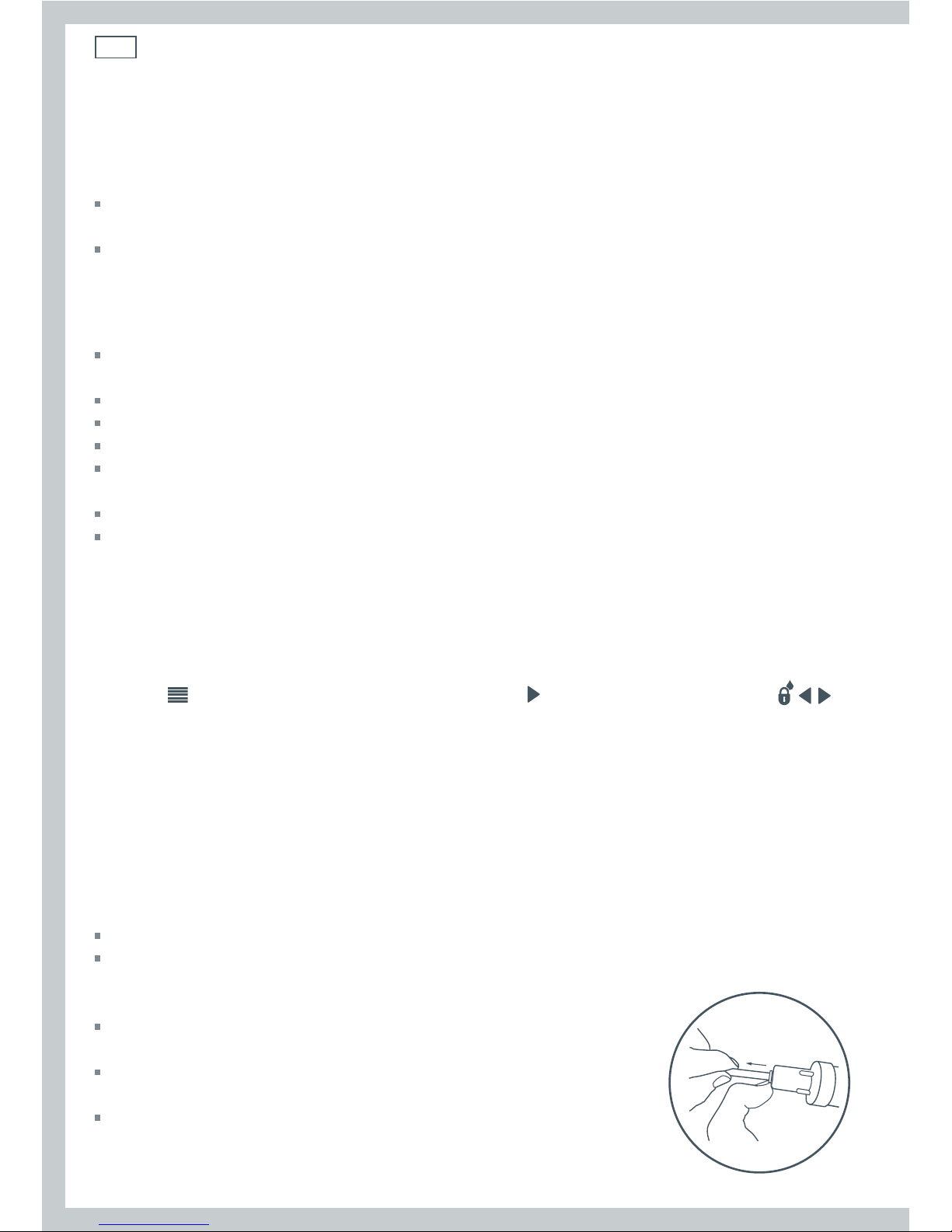

Installation instructions (Ice & Water models only)
To continue installation of Non Ice & Water models see page 9.
Important!
It is recommended that an authorised plumber in your city or town is used to install the water
connection.
The new tubings supplied with the refrigerator are to be used, old tubings from old Ice & Water
connections should not be used.
Installation precautions/warning
DO NOT use with water that is microbiologically unsafe or of unknown quality without
adequate disinfection before or after the system.
WARNING – connect to potable water supply only.
DO NOT install on line pressure above 900 kPa or below 150 kPa.
DO NOT use on hot water supply, 38°C max.
DO NOT install in a location that is susceptible to freezing temperatures as damage to the
housing could occur.
AVOID contamination of pipes during installation.
DO NOT use copper tubing. The plastic tubing supplied should always be used.
1
Read pages 9 – 12 carefully, and then turn refrigerator on.
2
The first time you require water out of the dispenser, there will be a delay while the water
reservoir fills up.
3
Run a further 3 L through the system, stopping intermittently to ensure the reservoir is flushed
out. Failure to do this will result in excessive dripping from your dispenser.
4
Press until the Ice menu is highlighted then press to turn on the ice maker. Press
together to force a cycle. The ice tray will flip. Force another cycle. The ice tray will flip and spill
the water into the ice bin. Empty water and replace bin.
5
You are now ready to enjoy chilled water and ice dispensing from your Active Smart™ refrigerator.
Please note that once installation is complete a few drips may appear out of the dispenser over
the next few days as the remaining trapped air is cleared.
Note: If you want to install a water filter see page 22.
Important!
All connections must be checked for leaks.
Ensure white 6 mm tubing is routed away from sharp objects, sharp corners (beware of kinking
tube as this will stop water flow), clear of the refrigerator unit
compartment and not in a location where it can be squashed.
Ensure all push-fit connections are firmly pushed into place. The tube
should push in 20 mm before reaching the stop.
If tubing is removed at any point, re-cut the end and re-insert. Tubing
must be fully inserted to avoid leaks.
To remove tube from connection points, turn off the
isolating faucet, push in the collet and gently pull
tubing at the same time, as shown in Diagram 1.
Diagram 1

9
Installation instructions (all models)

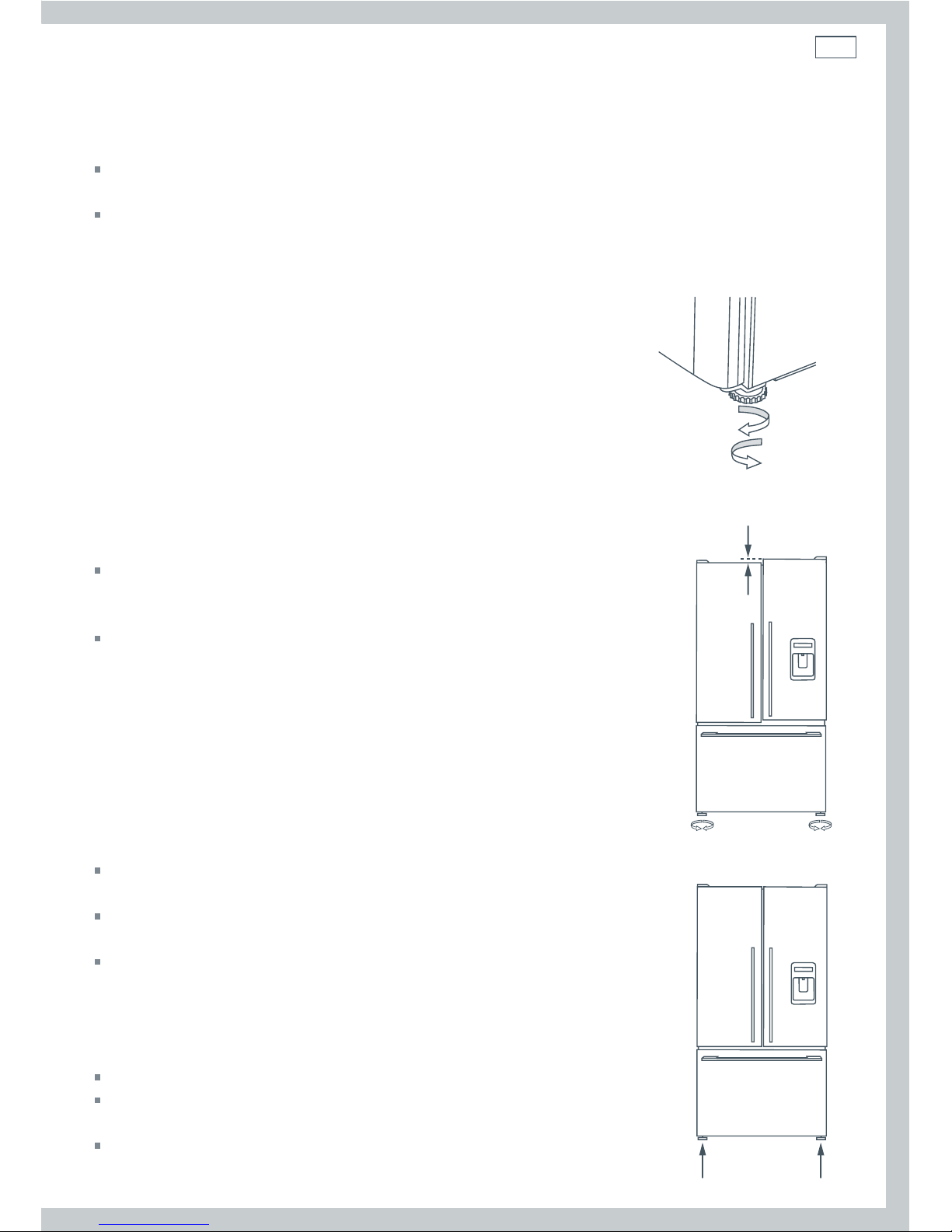

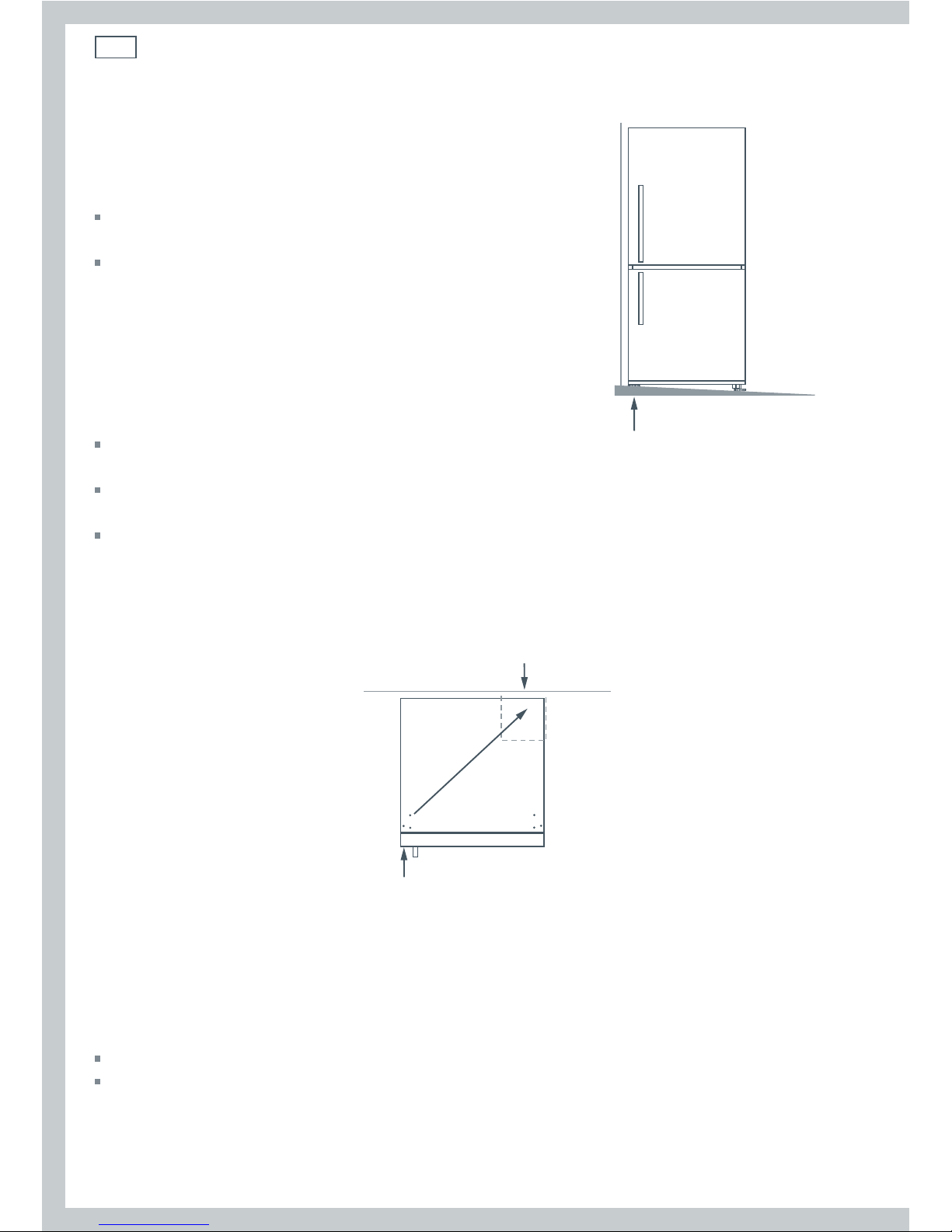

4. Installation
It is important that all four corners of the refrigerator base are supported firmly on the floor to
eliminate any cabinet movement.
Installing the appliance on a soft or uneven or unlevel floor may result in twisting of the cabinet
and poor sealing of the doors. If the doors do not seal properly, warm air will enter the food
storage areas causing the temperature to increase, resulting in food spoilage and food loss.
Your Fisher & Paykel Active Smart™ refrigerator is fitted with front
and rear rollers, designed for moving the product in the forwards
and backwards direction. Avoid moving the product in a sideways
direction as this may damage the rollers or the floor covering/surface.
A
Your refrigerator will arrive with the front feet wound up making
moving the product into its final location a simple task.
B
Roll the refrigerator into its final position making sure there is the
correct air gap between the product and surrounding cabinetry. See
minimum clearance in cabinetry dimensions table (refer to page 7).
If required raise the front of the appliance (by turning the
adjustable feet clockwise) until it is stable and the doors move
towards the closed position on their own, when open.
The front levelling foot on the hinge side should take the
majority of the weight of the cabinet and the cabinet should
be stable, ie the cabinet should not rock or wobble.
(Model RF610A only)
C
Adjust the front feet down until the refrigerator is leaning backward
with the front approximately 10 mm higher than the back. This will
ensure a good door closing action. (Refer to Fig.2).
D
Aligning your refrigerator with cabinetry.
Align the sides of the refrigerator with the cabinetry by adjusting
the hinge side front foot.
Adjust the handle side foot until it touches the floor and takes a
small amount of weight.
Once the refrigerator is in place and aligned with cupboards/alcove
push gently on the front top and check if the product is rocking or stable.
5. Levelling of refrigerator door (model RF610A only)
For uneven surfaces, front feet can be used to align the 2 doors.
If left hand door is too low, then unscrew the left hand foot to lift
up the cabinet until the two doors top edges are aligned.
If right hand door is higher, then adjust the right hand foot in the
same way.
Fig.3 Uneven door alignment
Raise the
front of the
refrigerator
Lower the
front of the
refrigerator
Fig.2 Refrigerator feet
Fig.4 Even door alignment

10 Installation instructions (all models)
6. What to do if your product is unstable
E
Gently push the refrigerator back until the rear rollers
contact floor.
Measure the gap under the front foot, which has come
off the floor.
Obtain some solid packing material (hardwood, plastic,
etc) which fits firmly into the gap under the foot.
Note: Do not use metallic materials that may corrode,
stain and/or damage floor coverings.
F
Wind both front feet up and roll the product out
of position.
Place the packing material in the location diagonally
opposite the front roller that lifts off the floor.
Make sure the packing material stays in place when the
product is pushed back into position.
Ideally, the packing material is large enough to rest
against the back wall so as to prevent it moving when
the cabinet is pushed into position.
Wall behind refrigerator
This foot lifts off the floor when pushing
gently on the top front of the refrigerator
Packing material goes under rear roller
diagonally opposite front foot that lifts
Fig.6 Stabilising your refrigerator
G
Roll the refrigerator back into position and adjust front feet as per step D. (Check alignment and
door closing action are satisfactory).
Make small adjustments to front feet where necessary.
Check that the product is stable (all 4 feet are on the floor). If not return to step E and repeat
steps F and G.
This foot lifts off the floor when
top front is gently pushed back
Example only
Unlevel floor
Fig.5 Unstable refrigerator

11
Installation instructions (all models)
Before placing food in the fresh food or freezer compartments
Remove all packaging. Ensure that all transit clips are removed from the refrigerator. These are
small rubber stops located at the back of the shelves.
Clean the inside of the appliance with a mix of warm water, a little liquid detergent and a soft
cloth to remove manufacturing and transportation dust.
Allow the refrigerator and freezer to run empty for 2 – 3 hours to allow each compartment to
cool to the appropriate temperature.
The appliance may have an odour on its initial operation, but this will go when the refrigerator
and freezer have cooled sufficiently.
If you have an Ice & Water refrigerator, please also carry out the following:
Turn on the ice maker (refer to page 23).
At first use allow approximately a minute from when the dispensing pad is pushed until water is
dispensed. This will allow the tank to fill.
Run through and discard the first 8 – 10 L of water from the dispenser, stopping intermittently
(refer to page 21 – First use). Failure to do this will result in excessive dripping from your
dispenser.
Discard the first bin of ice (refer to page 23 – First use).
You are now ready to enjoy ice and water from your refrigerator.
Please note that once installation is complete a few drips may appear out of the dispenser over
the next few days as the remaining trapped air is cleared.
Energy efficiency
Do not cover your appliances with any material that will prevent air from flowing around the
cabinet sides.
Do not leave the door open for any longer than is necessary.
Allow good clearances in front of the air ducts within the cabinet for maximum cold air
distribution.

12 Installation instructions (all models)
Moving or storing your refrigerator
If your refrigerator is turned off for any reason, wait 10 minutes before turning it back on. This
will allow the refrigeration system pressures to equalise before restarting.
Moving your refrigerator
On Ice & Water model refrigerators disconnect the water supply.
Turn off the appliance and unplug from the power point. Remove all food.
Turn the adjustable feet to the right as far as they will turn (refer to page 9).
Ease the refrigerator out of its position. Tuck the power cord away and tape the doors closed.
Tape the shelves in place. If the cabinet needs to be placed at an angle or laid down, carefully
lay it on its side (the right hand side when viewed from the front).
Relocate and install. If the appliance has been left on its side for any length of time, leave it
standing upright for at least 10 minutes before turning on.
Storing your refrigerator
When storing your cleaned appliance, leave the doors open. This allows air to circulate and
prevents the build-up of bacteria and moulds.
Before using again, clean well using a mixture of warm water and liquid dishwashing detergent
or baking soda (add 1 teaspoon of baking soda to every 500 ml of water). Rinse with clean water.
Holiday time
We recommend you leave your refrigerator operating while you are on holiday.
Door conversion (Non Ice & Water models only)
If you need to hinge your door on the opposite side we recommend that you call your local
Fisher & Paykel Authorised Service Centre or Dealer to make this conversion. Active Smart™
refrigerators with silver handles need to be ordered either with left or right opening doors
and can not be interchanged. All other models need to have an appropriate conversion kit for
your model refrigerator. The kit is available from your Authorised Service Centre or Dealer. Full
instructions are included in the conversion kit.

13
Non Ice & Water display
Models: 635 mm wide E402B
680 mm wide E442B
790 mm wide E522B
For information on the operation of the Ice & Water control panel please refer to page 15.
Temperature control
When the refrigerator is first turned on, the powerful cooling system will automatically cool
both refrigerator and freezer compartments to their set temperatures. This will take between
2 – 3 hours depending on the temperature and humidity of the environment.
The two compartment temperatures are accurately and independently controlled and do not
change with the temperature or humidity of the surroundings; whether summer or winter.
If you wish to alter the temperature of either the fresh food or freezer compartment, this can be
easily done by using the control panel located at the back of the fresh food compartment.
Control panel To adjust temperatures
Fig.7 Non Ice & Water control panel
Fresh food (top) and freezer (bottom)
compartment indicator
Compartment
select button
Increase temperature button
Decrease temperature button
Temperature
indicator (thermometer)
Fresh food compartment
The fresh food compartment light on the refrigerator diagram will be showing. The temperature
indicator illustrated by a thermometer will show the temperature setting for this compartment as
a series of lights.
The temperature may be altered by pressing the or buttons. One press on either of these
buttons will produce a dimmer light which indicates a small change in temperature.
Pressing either button twice gives a brighter light and indicates a greater change in temperature.
Fewer lights on the thermometer means a cooler temperature for the compartment selected.

14 Non Ice & Water display
Freezer food compartment
To adjust the freezer temperature press the button until the light flashes on the freezer
compartment indicator.
The freezer temperature can be altered by pressing the or buttons.
One press on either of these buttons will produce a dimmer light which indicates a small change
in temperature. Pressing either button twice gives a brighter light and indicates a greater change
in temperature.
Note: Successively pressing the button will automatically select between the compartments,
a return to the fresh food compartment will be accompanied by a longer beep.
When the door is reopened the control panel will return automatically to the fresh food
compartment setting.
Sabbath mode
To activate the Sabbath mode press and hold the button on the temperature control panel
for 10 seconds.
When the product is in Sabbath mode:
The light will not operate when the door is opened.
The door alarm will not operate.
The display will not be illuminated.
Opening the door will not affect the compressor or fans.
If the power to the refrigerator is turned off whilst in this mode, the product will continue in
Sabbath mode when the power is restored.
Sabbath mode will automatically de-activate 80 hours after activation.
To de-activate earlier than 80 hours press the compartment select button on the temperature
control panel for 10 seconds.
Fault alarms
If the electronic controller detects a fault from which it is unable to recover an alarm will sound.
When the fresh food compartment door is opened a fault code (specific pattern of lights) will
flash red and green on the Control panel to alert you to the fault. The audible alarm will stop
when any button is pressed but the lights will remain flashing. If such a fault occurs, call your
Fisher & Paykel Appliances Authorised Service Centre immediately; the fault code will help the
service person find and remedy the cause of failure.

15
Ice & Water display
The display screen enables you to view and modify all the features and options on your
refrigerator. For example, you can change the temperature in your refrigerator or freezer, and
select the Fast Freeze function when you want to quickly freeze meat. You may want to also
quickly chill a bottle of wine when friends arrive unexpectedly.

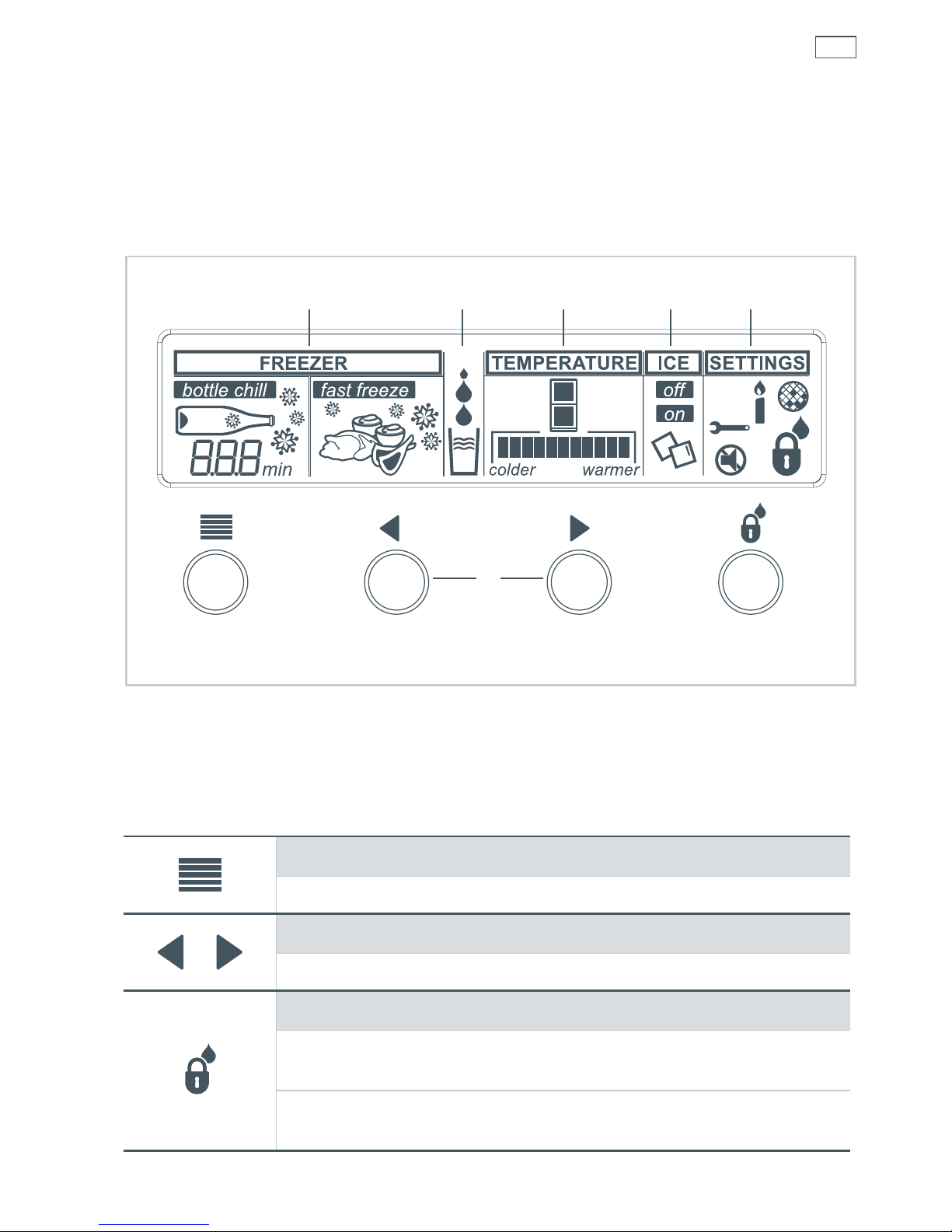

Keys
For more detailed information on these functions please refer to pages 17 – 23.
1. Main menu
Scrolls through the main menu. (Freezer, Temperature, Ice and Settings).
2. Arrow keys
Scrolls through the settings of each function.
3. Key and Dispenser Lock
Dispenser Lock – disables the buttons and prevents water from being
dispensed.
Key Lock – disables the buttons.
Fig.8 Ice & Water display
45 6 7 8
1 32

16 Ice & Water display
4. Freezer (refer to pages 17 – 18)
Bottle Chill
Your drinks can be chilled more rapidly using this function. An alarm will
alert you when they are ready (refer to page 17).
Fast Freeze
When activated this feature boosts cooling in your freezer, optimizing the
rate at which your foods are frozen (refer to page 18).
5. Dispensing water (refer to page 21)
Animation shows you water is being dispensed.
6. Temperature (refer to page 18)
The temperature setting can be individually adjusted for each
compartment.
7. Ice (refer to pages 23 – 24)
The ice making function can be turned on or off.
8. Settings/User alerts (refer to pages 19 – 20)
Key Silent mode
All key presses can be silenced (refer to page 19).
Dispenser and Key Lock
Dispenser Lock – disables the buttons and prevents water from being
dispensed (refer to page 19).
Key Lock – disables the buttons (refer to page 19).
Sabbath mode
Can be activated if necessary (refer to page 19).
Filter reset
If you install a water filter to your water system, the filter icon will appear
when the water filter needs changing (refer to page 22).
Service/Fault Diagnosis
If a fault occurs, the fault icon and fault code will be displayed on the
screen (refer to page 20).

17
Ice & Water display
Using the display options

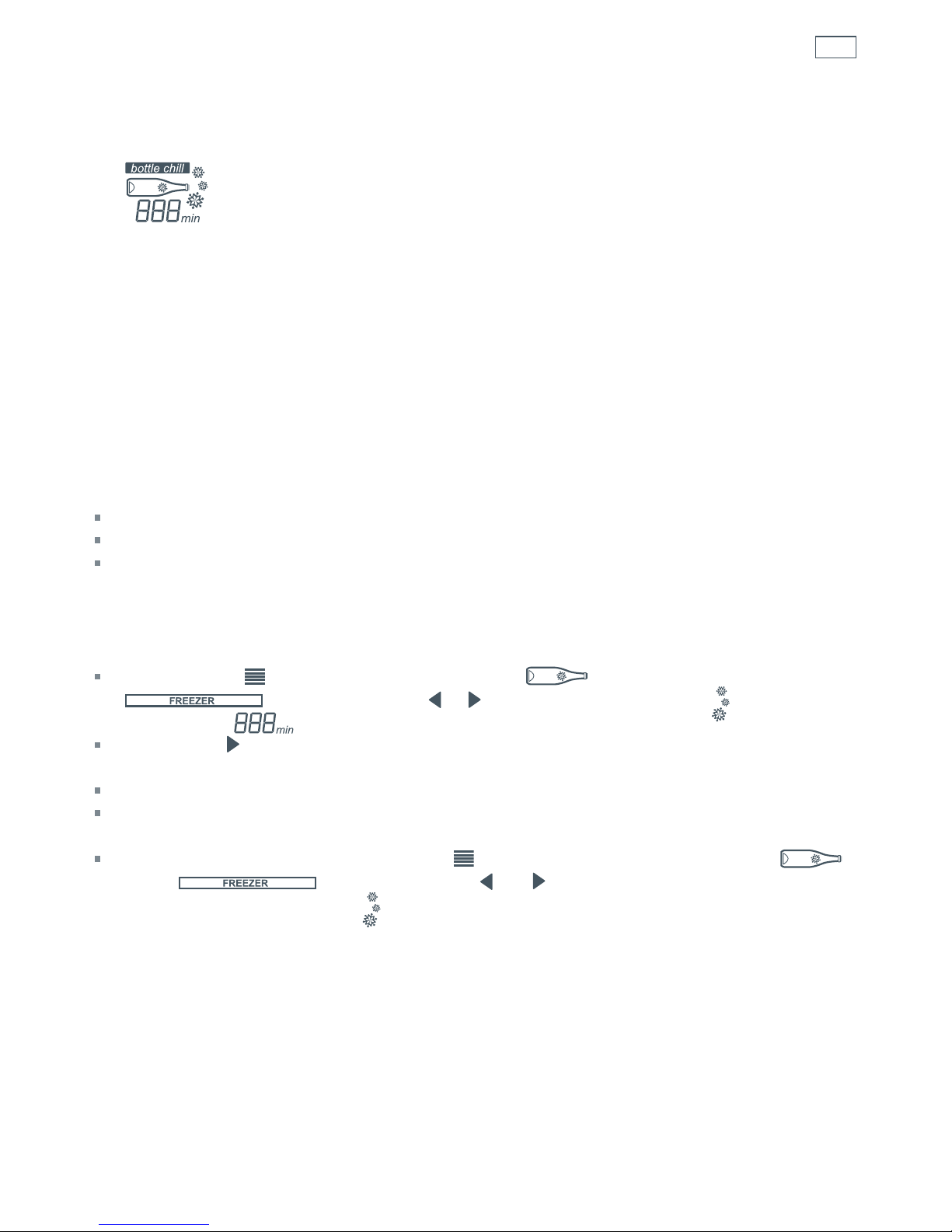

Bottle Chill
This function allows you to chill your beverages in the freezer without the worry of forgetting
about them.
When activated, place your beverage into the freezer and after the set time has elapsed,
Bottle Chill will remind you to remove your beverage by sounding an alarm. The user alarm will
continue to sound until any key on the panel is pressed.
The time taken to chill depends on the size of your beverage. Bottle Chill allows you to
customise this chill time.
Recommended times:
20 minutes – can or small bottle
25 minutes – wine bottle or similar size beverage
30 minutes – larger bottle
If you remove your beverage from the freezer and it is not chilled to your liking, reset the timer
to 10 minutes and place the beverage back into the freezer.
To activate, use button until the Bottle Chill icon ( ) is showing on the
screen. Then use the or buttons until the snowflakes ( ) and the
minute timer ( ) are displayed on the Bottle Chill screen.
Then use the button to select 10, 15, 20, 25 or 30 minutes as displayed on the Bottle Chill
screen. After several seconds, the snowflakes will then animate as the timer counts down.
An alarm will sound after the amount of time selected has elapsed.
Press any button on the display to silence the alarm. Remember to remove the beverage from
the freezer.
To deactivate Bottle Chill manually, use the button to scroll to the Bottle Chill icon ( )
on the screen, then use the and buttons until no minutes are shown on
the screen and the snowflakes ( ) are no longer visible.
Important!
Do not leave the bottle inside the freezer longer than the time needed for chilling, as glass
bottles may explode.

18 Ice & Water display
Using the display options
Fast Freeze
We have created the Fast Freeze feature to help you to get the best possible results when
freezing fresh food. Fast Freeze boosts the freezing speed, which helps to ensure vital freshness,
texture and taste are retained during the freezing process.
The Fast Freeze feature drops the freezer to its coldest temperature for a 12 hour period and
then returns to its normal mode. You may wish to use this when freezing a quantity of meat or
when making frozen desserts.
To activate, use the button until the Fast Freeze icon ( ) is showing on the
screen. Then use the or buttons until the snowflakes ( ) are
displayed on the Fast Freeze screen. The animating snowflakes indicate that Fast Freeze has been
activated.
To deactivate the function manually, use the button to scroll to the Fast Freeze icon ( )
on the screen. Then use the and until there are no snowflakes ( ) present on the screen.
For best results, we recommend that you activate the function approximately 2 hours before it is
required. Alternatively, activate it when placing food into the freezer.
Note: The Bottle Chill and Fast Freeze option cannot be used at the same time.
The temperature of your refrigerator and freezer
When the refrigerator is first turned on it will take approximately 2 to 3 hours to cool, depending
on the humidity and temperature of the environment.
To adjust the temperature of a compartment, use the button to scroll to the
screen, use the button to select the compartment you want to change.
The temperature can then be adjusted using the button to make the compartment warmer or
the button to make the compartment colder.
The temperature setting will be indicated on the icon below.
It is important to have your refrigerator set to the correct temperature. Setting it too cold may
cause some items in the refrigerator to freeze, and setting it too warm will decrease the storage
life of your food.
For further information on food storage refer to the Food Care section (pages 33 – 35).
