Fisher & Paykel RX216 Mounting instructions

Installation instructions
and user guide US CA (EN)
Side by side refrigerator
Instructions d’installation et guide de
l’utilisateur US CA (FR)
Réfrigérateur à compartiments juxtaposés
Instructivo de instalación
y guía del usuario US CA (ES)
Refrigerador doble
US CA
RX256 / RX216 models

English Page 1 – 47
Español Pág 49 – 95
Français Page 97 – 143

1
Contents
Introduction 2
Safety and warnings 3
Installation instructions 5
Before use 11
Temperature controls
RX256DT7X1 12
RX256DT4X1 / RX216DT4X1 16
Fresh food features 17
Freezer features 20
Ice and water 21
Water filter 25
Food storage tips 29
Care and cleaning 32
Operating sounds 37
Troubleshooting 38
Warranty and service 45
Important!
SAVE THESE INSTRUCTIONS
The models shown in this User Guide may not be available in all markets and are
subject to change at any time. For current details about model and specification
availability in your country, please visit our local website listed on the back cover
or contact your local Fisher & Paykel dealer.
EN

2Introduction
Thank you for buying a Fisher & Paykel side by side refrigerator with chilled water and
ice dispensing through the door.
This refrigerator combines size and storage space with the latest features and functions. Many
hours have been spent researching how you, our customer, use your refrigerator and what we
can do to make life easier for you.
Select refrigerator models have a number of customizable storage zones, such as a Beverage
Chiller with adjustable temperature settings and a fruit and vegetable bin with adjustable
humidity.
Select models also have some special modes, such as Vacation Mode that will help you save
energy, and Speed Ice that will increase ice production.
As your life changes, so can your refrigerator. This book explains the features and functions, and
will help you get the most out of your refrigerator.
We hope you enjoy your new refrigerator!
Important!
It is important that this User Guide should be retained with your Ice & Water refrigerator for
future reference. Should the appliance be sold or transferred to another owner, please ensure
that the User Guide is left with the appliance. This will ensure that the new owner can familiarize
themselves with the information and warnings contained within the Guide.

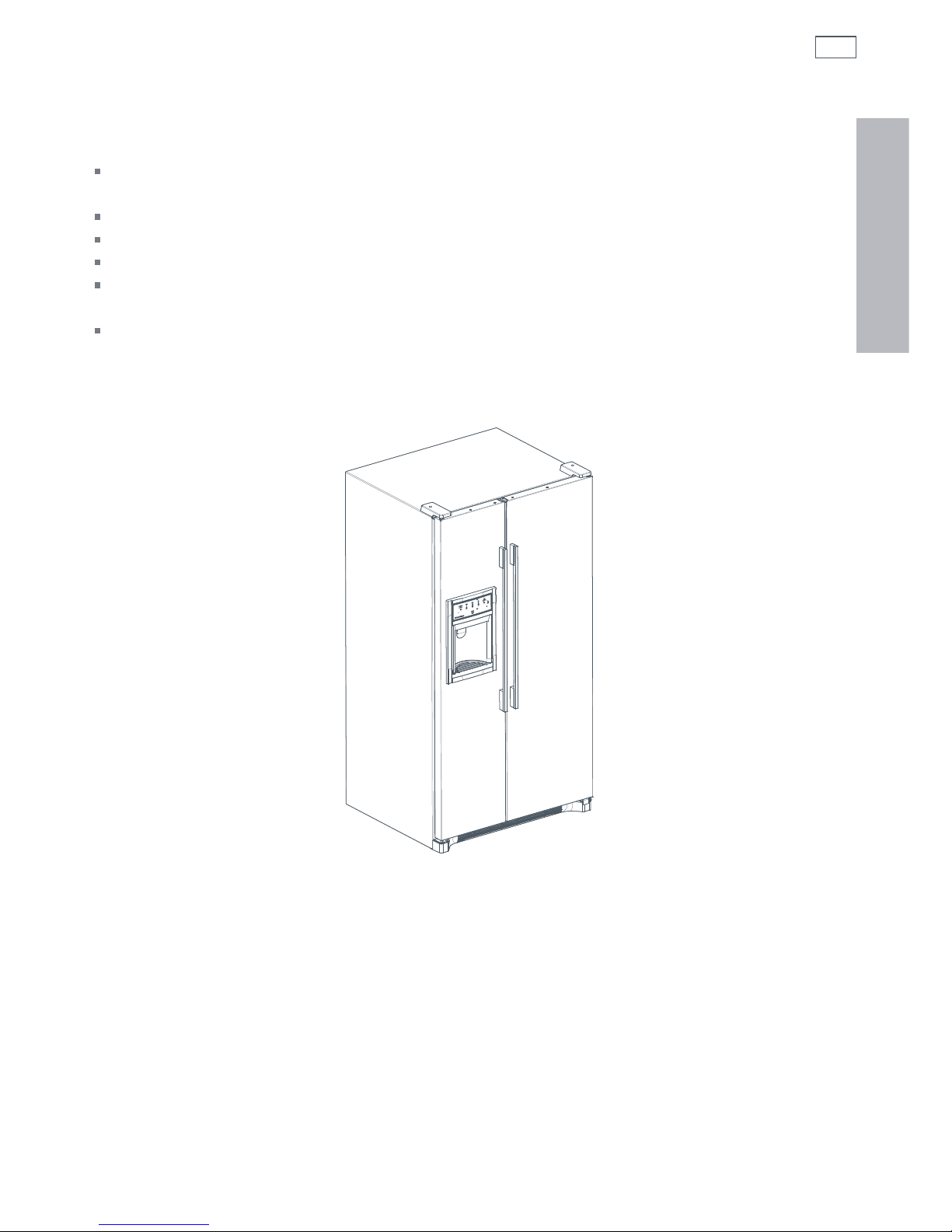

Fig.1 Side by side refrigerator

3
Safety and warnings

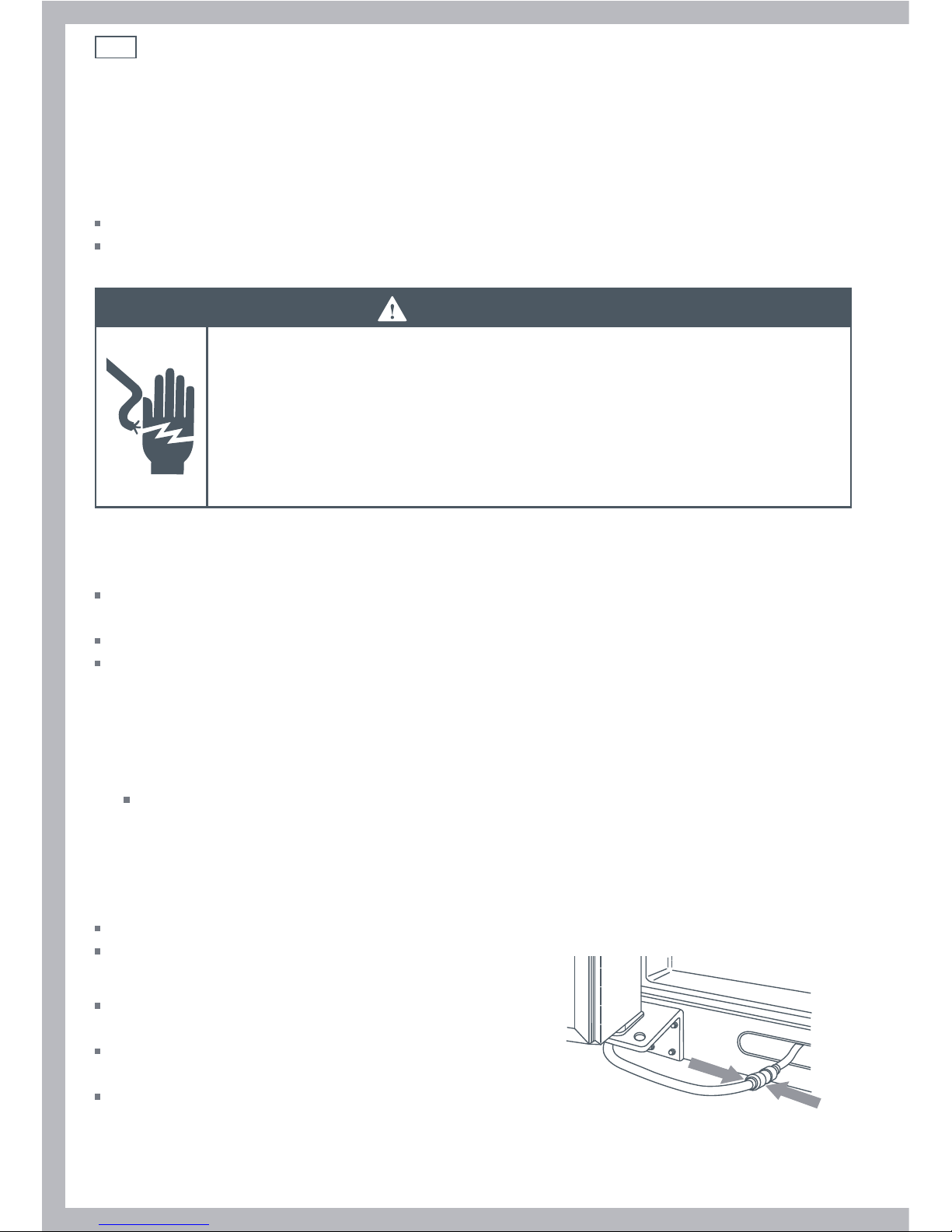

WARNING!
Electric Shock Hazard
Read and follow the SAFETY AND WARNINGS outlined in this User Guide
before operating this appliance.
Failure to do so can result in death, electric shock, fire or injury to persons.
Use this appliance only for its intended purpose as described in this User Guide.
Important safety precautions
Warning
When using this appliance always exercise basic safety precautions including the following:
Danger
This appliance is not intended for use by children or infirmed persons without supervision. This is
especially important when using the freezer compartment. Young children should be supervised
to ensure they do not play with the appliance.
Risk of child entrapment. Before you throw away your old refrigerator or freezer:
–
Take off the doors
–
Leave the shelves in place so that children can not easily climb inside.
The plastic packaging may be a choking or suffocation hazard to children. Ensure all plastic is
disposed of properly.
Disposal
Extreme care must be taken when disposing of your old appliance to avoid hazards. The
refrigerant gas must be safely removed and for the safety of young children, remove doors.
Your Fisher & Paykel Appliances Authorized Service Center will be able to give advice on
environmentally friendly methods of disposing of your old refrigerator or freezer.
Electrical
This appliance must be properly installed in accordance with the installation instructions before
it is used.
Never unplug your refrigerator or freezer by pulling on the power cord.
Always grip the plug firmly and pull straight out from the outlet socket.
Do not plug in any other appliance at the same power point outlet socket as your refrigerator is
using. Do not use extension cords or double adapters with these products.
EN

4Safety and warnings
Repair or replace immediately all electric service cords that have become frayed or otherwise
damaged. Do not use a cord that shows cracks or abrasion along its length or at either the plug
or appliance end.
If the power supply cord is damaged, it must only be replaced by your Fisher & Paykel Appliances
Authorized Service Center because special purpose tools are required.
When moving your appliance away from the wall, be careful not to roll over or damage the power
cord.
Unplug your refrigerator before cleaning it or replacing the interior light bulb.
Storing food and drinks
Never store volatile or flammable materials in your refrigerator or freezer as they may explode.
Never freeze liquids in glass containers. Liquid expands during freezing, which may cause the
container to explode.
Never freeze carbonated drinks. They may explode.
Do not consume food if it is too cold. Food removed from the freezer compartment may be cold
enough to cause damage when brought into contact with bare skin, eg frozen ice cubes.
Power failure – food safety
Do not refreeze frozen foods that have thawed completely. Follow the recommendations below if
you discover food in your freezer has thawed:
1) Ice crystals still visible – food may be refrozen but should be stored for a shorter period than
recommended.
2) Thawed but refrigerator cold – refreezing generally not recommended. Fruits and some cooked
food can be refrozen but use as soon as possible. Meat, fish, poultry – use immediately or cook
and refreeze. Vegetables – discard as they usually go limp and soggy.
3) Thawed and warmer than 41˚F (5˚C) – discard all foods.
Do not refreeze frozen foods that have thawed completely. The food may be dangerous to eat.
Important!
Cleaning
Many commercially available cleaning products contain solvents which may attack plastic
components of your refrigerator or freezer and cause them to crack. Please refer to the Care and
cleaning section of this booklet for further advice.

5
Installation instructions
WARNING!
Electric Shock Hazard
Read and follow the SAFETY AND WARNINGS outlined in this User Guide
before operating this appliance, pages 3 – 4.
Failure to do so can result in death, electric shock, fire or injury to persons.
Location
Do not install refrigerator near an oven, radiator or other heat source. If not possible, shield
refrigerator with cabinet material.
Do not install where temperature falls below 55° F (13° C) or rises above 110° F (43° C).
Malfunction may occur at these temperatures.
The refrigerator is designed for indoor household application only.
Measuring the opening
When installing your refrigerator, allow ½” (13 mm) space at the top and ½” (13 mm) space
behind machine compartment cover (located in the rear) for proper air circulation. If the
refrigerator is placed with the door hinges against a wall, you may want to allow additional space
so the door can be opened wider.
Subflooring or floor coverings (ie carpet, tile, wood floors, rugs) may make your opening smaller
than anticipated.
Some clearance may be gained by using the leveling procedure under Leveling, page 8.
Important!
If refrigerator is to be installed into a recess where the top of the refrigerator is completely
covered, use dimensions from floor to top of hinge cap to verify proper clearance.
Transporting your refrigerator
NEVER transport refrigerator on its side. If an upright position is not possible, lay refrigerator on
its back. Allow refrigerator to sit upright for approximately 30 minutes before plugging it in to
ensure oil returns to the compressor. Plugging refrigerator in immediately may cause damage to
internal parts.
Use an appliance dolly/trolley when moving refrigerator. ALWAYS truck refrigerator from its side
or back – NEVER from its front.
Protect the outside finish of the refrigerator during transport by wrapping the cabinet in
blankets or inserting padding between the refrigerator and dolly.
Secure refrigerator to dolly firmly with straps or bungee cords. Thread straps through handles
where and when possible. Do not over-tighten. Over-tightening restraints may dent or damage
the outside finish.
EN

6Installation instructions
Door and hinge removal
Some installations require door removal to get the refrigerator to its final location.
Tools needed:
Phillips screwdriver
⁄” (9.5 mm) hex head driver
WARNING!
Electric Shock Hazard
Disconnect power to refrigerator before removing doors. Connect power
only after replacing doors.
Green ground wire must be attached to top hinge while performing door
removal and replacement.
Failure to do so may result in death, electric shock, fire, or injury to persons.
Caution!
To avoid property damage, observe the following:
Protect vinyl or other flooring with cardboard, rugs or other protective material, prior to moving
the refrigerator.
Tape decorative panels (select models) securely in place before removing door handles.
Do not adjust the refrigerator to be any shorter than 68½” (1740 mm) tall (minus hinge and cap).
Doing so may damage underside components.
1
Unplug power cord from power source.
2
Remove toe grille (see page 8).
Open both doors 180°, or as wide as possible.
Note: for refrigerators in operation, shut off water before removing water line from the door.
To disconnect the water line:
Push in white collar (
a
) and hold.
Pull the door-side tube from the connector (
b
).
To reconnect the water line:
Firmly push tube ⁄” (8 mm) into the connector.
Use lines on the tube as a guide for full insertion.
If tube end is damaged, cut off ⁄” (8 mm) before
reconnecting.
If leaking occurs, cut and reconnect the line.
a
b
Step 2

7
Installation instructions
3
Close doors.
4
Remove top hinge covers by removing
Phillips screws.
5
Unscrew ⁄” (8 mm) hex head screws from
top hinges.
6
Detach main wire connector harness.
Do not remove screw connecting green
ground wire.
To detach main wire harness, use a flat
blade tool or fingernail to press junction
point between two connectors to release.
7
Remove top hinges along with doors.
8
Remove bottom hinges with a ⁄” (9.5 mm)
hex head driver.
Replacing the doors
To replace the doors, follow the steps in
door and hinge removal in reverse order.
Important!
If water line tube end is damaged, cut off
⁄” (16 mm) before reconnecting.

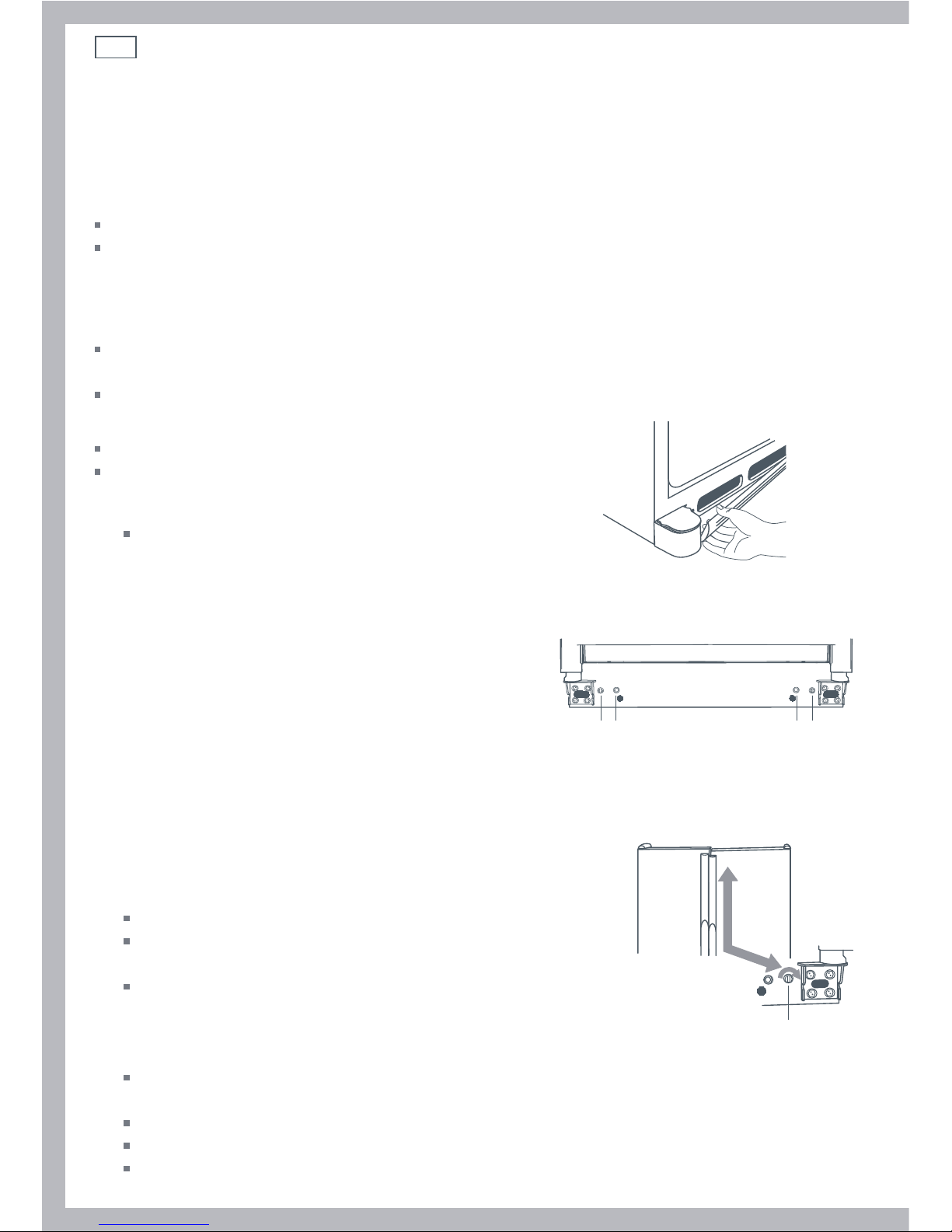

Fig.2 Door and hinge removal
Step 4
Step 6
Step 7
Step 8
EN

8
Leveling
Caution!
To protect personal property and refrigerator from damage, observe the following:
Protect vinyl or other flooring with cardboard, rugs, or other protective material.
Do not use power tools when performing leveling procedure.
To enhance the appearance and maintain performance, the refrigerator should be level.
Note:
Complete any required door reversal, panel installation and/or a water supply connection before
leveling.
Some models only have adjustment front leveling screws (
a
).
Tools needed:
⁄” (9.5 mm) hex head driver
Carpenter’s level
1
Remove toe grille.
Grasp firmly and pull outward to unclip.
2
Using hex head driver, turn front adjustment screws
(
a ) clockwise to raise and counterclockwise to lower
the front of the refrigerator.
3
Select models also have rear adjustment screws
(
b
). Using the hex head driver, turn each of these
adjustment screws (
b
) to raise or lower the rear of
the refrigerator.
4
Using the carpenter’s level, make sure front of refrigerator
is ⁄” (6 mm) or ½ bubble higher than back of refrigerator
and that the refrigerator is level from side to side.
5
If required, correct rocking of refrigerator by turning rear
adjustment screw clockwise to raise rocking corner.
If doors are uneven, do the following:
Determine which door needs to be raised.
Turn front roller adjustment screw (
a
) clockwise
to raise front corner of door.
If one refrigerator door has reached the limit of its
adjustment range and doors are still not level,
raise or lower the opposite door by turning roller
adjustment screw clockwise or counterclockwise.
Check with level to verify ⁄” (6 mm) tilt to the back for
proper door closure.
If refrigerator is aligned and stable, replace toe grille and hinge covers.
Align the toe grille mounting clips with the lower cabinet slots.
Push the toe grille firmly until it snaps into place.
Installation instructions
a b b a
Fig.3 Leveling the refrigerator
Step 1
Steps 2, 3
Step 5
a

9
Connecting the water supply
Important!
Read the instructions before connection, and do not attempt if instructions are not understood
or are beyond personal skill level.
It is recommended that an authorized plumber in your state or town is used to install the water
connection, to ensure all local codes and ordinances are followed. Consult a plumber to connect
¼” (6.35 mm) OD copper tubing to household plumbing to assure compliance with local codes
and compliance.
Installation precautions/warnings
CONFIRM water pressure to water valve is between 35 and 100 pounds per square inch, 20
pounds per square inch without filter.
WAIT two to three hours before placing refrigerator in final position to check and correct any
water leaks. Recheck for leaks after 24 hours. Water damage to an improper water connection
may cause mold/ mildew growth. Clean up spills or leakage immediately.
DO NOT use with water that is microbiologically unsafe or of unknown quality without adequate
disinfection before or after the system.
DO NOT use a self piercing or ⁄” (4.7 mm) saddle valve. Both reduce the water flow, can become
clogged over time, and may cause leaks if repair is attempted.
DO NOT service ice maker unless specifically recommended in User Guide or published user-
repair instructions.
CHECK the copper tubing under the sleeve is smooth and free from defects. Do not reuse an old
sleeve.
Tools needed:
⁄” (6.35 mm) outer diameter flexible copper tubing.
Shut-off valve (requires a ⁄” (6.35 mm) hole to be drilled into water supply line before valve
attachment).
Adjustable wrench (2).
⁄” (6.35 mm) hex nut driver.
Note:
Use copper tubing only for installation. Plastic is less durable and can cause damage.
Add 8’ (2440 mm) to tubing length needed to reach water supply for creation of service loop.
Installation instructions
EN

10
Water connection
Note: ensure refrigerator is not plugged into a power supply.
1
Create service loop with copper tubing (minimum 2’ (610 mm) diameter).
Avoid kinks in the copper tubing when bending the service loop. Do not use
plastic tubing.
2
Remove plastic cap from water valve inlet port.
3
Place brass nut (
a
) and sleeve (
b
) on copper tube end as illustrated.
Reminder: Do not use an old sleeve. The nut and sleeve are provided in the
Use and Care packet.
4
Place end of copper tubing into water valve inlet port. Shape tubing slightly
– do not kink – so that tubing feeds straight into inlet port.
5
Slide brass nut (
a
) over sleeve (
b
) and screw nut into inlet port.
Place adjustable wrench on nut (
1
) attached to plastic waterline and
maintain position. Using second adjustable wrench, turn the lower nut (
2
)
counterclockwise and fully tighten while holding the upper nut in place.
Important!
Do not over-tighten. Cross threading may occur.
6
Pull on tubing to confirm connection is secure. Connect tubing to frame
with water tubing clamp (
c
) and turn on water supply. Check for leaks and
correct if necessary. Continue to observe the water supply connection for
two to three hours prior to moving the refrigerator to its permanent location.
7
Monitor water connection for 24 hours.
Correct leaks, if necessary.
Handle removal
Handles are installed at the factory.
Tools needed:
⁄” (4 mm) Allen wrench
To remove:
Remove cap-screw from handle mounting post using ⁄” (4 mm) Allen
wrench.
Repeat the procedure on all posts to remove the handle.
To replace:
Align handle with the mounting posts.
Fully tighten all cap-screws to secure handle in place.
Installation instructions

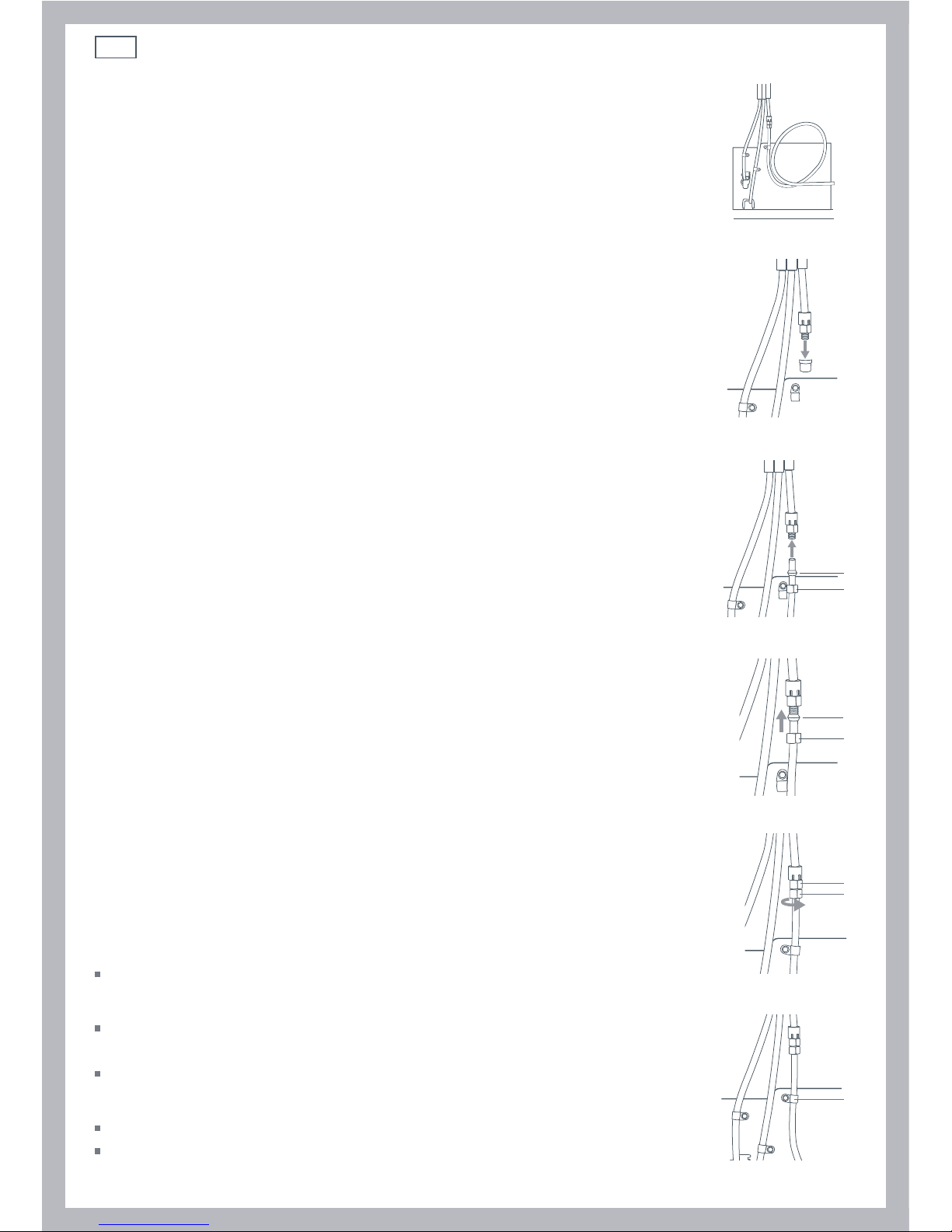

Fig.4 Connecting the water supply
2’ diameter
min
Step 1
Step 2
a
b
Step 3
a
b
Step 5a
1
2
Step 5b
c
Step 6

11
Before you start using your refrigerator
Check refrigerator is switched on and has been allowed to cool for three to four hours before
loading with food.
Check the water is connected correctly.
Turn icemaker on (see page 23).
Fit filter if desired (see page 25).
Dispense 5 qt (5 L) of water and discard. There may be a 1 minute delay as the tank fills from the
dispenser.
Discard the first 24 hours worth of ice.
Now you can enjoy the ease and simplicity of ice and water being dispensed out the front of
your refrigerator.
Before use
EN

12 Temperature controls (RX256DT7X1)

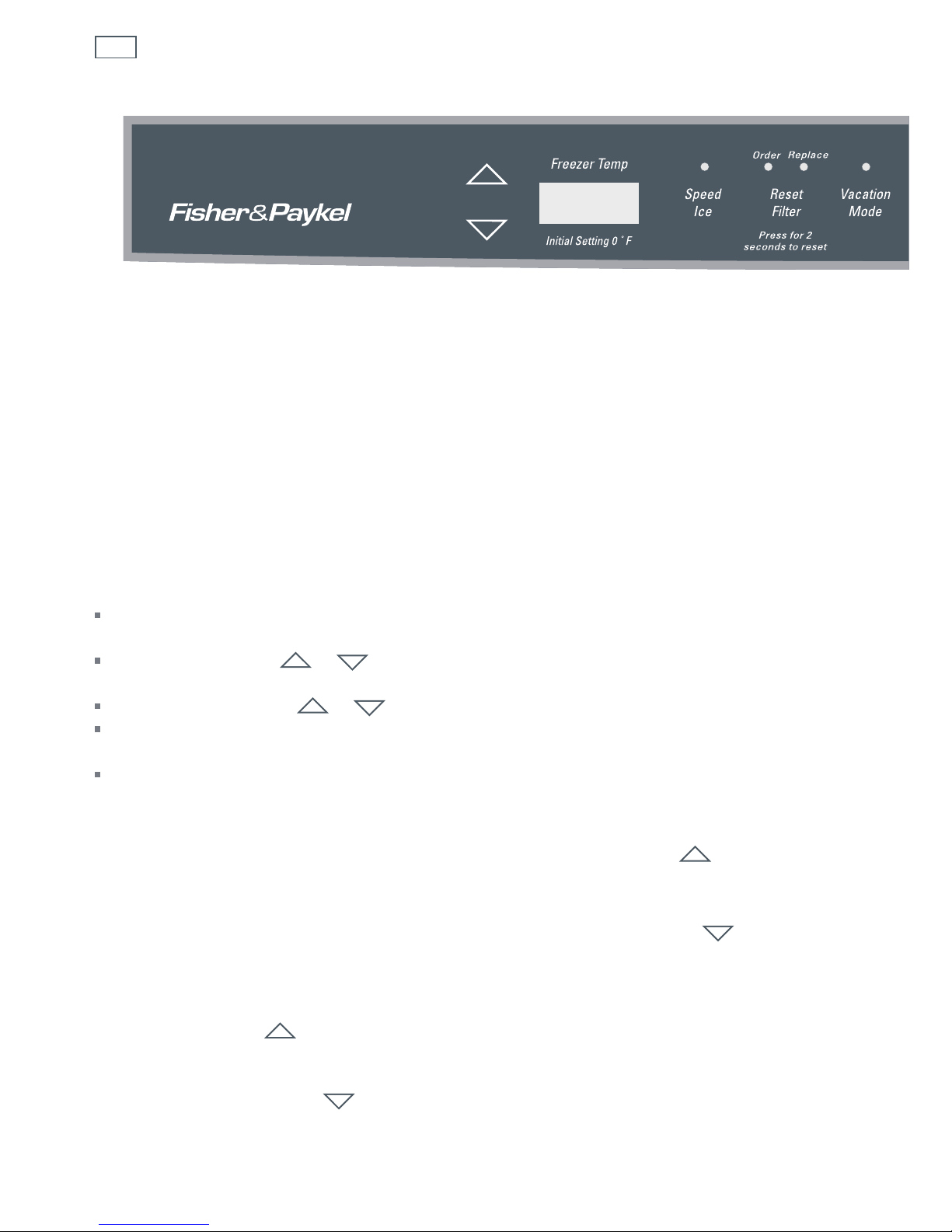

There are two control panels on your refrigerator, one on the outside of the door and one inside
the fresh food compartment. Temperature is controlled through the panel located at the inside
top of the fresh food compartment.
The temperatures are preset at 38°F (3°C) in the fresh food compartment and 0°F (-18°C) in the
freezer compartment. After being initially switched on the refrigerator will take several hours to
cool, depending on the environment it is placed in. You can start to store food in it 3 – 4 hours
after it was turned on.
After placing food in the refrigerator, leave it to stabilize for 24 hours. After this time you may
wish to alter the temperature. The fresh food and the freezer compartment temperatures are set
individually.
Before any buttons have been pushed, the display shows the current temperature of both
compartments.
The first touch of an or button shows the current temperature setting in that
compartment.
Further touches of the or button will change the temperature setting in 1°F increments.
The display will show the new setting for three seconds, and then return to the actual
temperature currently within that compartment.
Do not change the temperature more than one degree at a time. Allow the temperature to
stabilize for 24 hours before making another temperature adjustment.
If either compartment is too cold
Adjust the compartment temperature up 1°F by pressing the appropriate button for the
compartment. If display set to degrees Celcius, temperature will go up 1°C at a time (see page 15).
If either compartment is too warm
Adjust the compartment temperature down 1°F by pressing the appropriate button for the
compartment. If display set to degrees Celcius, temperature will go down 1°C at a time (see
page 15).
To turn the refrigerator off
Press either of the buttons repeatedly, until the numbers disappear from the display. THIS
WILL TURN THE WHOLE REFRIGERATOR UNIT (both fresh food and freezer compartments) OFF,
although the compartment lights remain on.
To turn back on, press the button until the desired temperature is reached.
Note: if turning the refrigerator off, ensure ALL food and ice is removed.

13
Temperature controls (RX256DT7X1)
Speed Ice
Sometimes you need more ice than normal. Speed Ice will solve this problem by dropping
the freezer compartment temperature, increasing ice production by up to a third over normal
production.
To activate Speed Ice simply press the SPEED ICE button
The indicator light will illuminate, and the Speed Ice function will be activated for 24 hours.
After this time the indicator light will turn off and the freezer compartment temperature will
return to the previously selected temperature.
When Speed Ice is activated the freezer compartment temperature can not be adjusted.
Vacation Mode
If you are going on vacation, there is an easy way to save energy and money. Vacation Mode
makes defrosts occur less frequently, consuming less energy.
To activate Vacation Mode simply press the VACATION MODE button
The indicator light will illuminate, and Vacation Mode will remain on until deactivated. To
deactivate the mode, open either door or press the VACATION MODE button. Opening a door in
the first hour after activation will not deactivate this mode. The indicator light will go out when
deactivated.
See Preparing for vacation (page 35) for more details.
Max Cool
Having the door open for a long time, or loading the refrigerator full of warm food (such as after
a trip to the supermarket) will raise the temperature of the refrigerator. The Max Cool function
will drop the fresh food and freezer compartments to their minimum temperatures for 12 hours,
and allow maximum cooling to take place.
To activate Max Cool simply press the MAX COOL button
The indicator light will illuminate, and the Max Cool function will be activated for 12 hours. After
this time the indicator light will turn off, and both compartments will return to their previously
selected temperatures. To deactivate Max Cool in less than 12 hours, press the MAX COOL button.
When the Max Cool feature is activated neither of the temperature adjustments will operate.
EN

14 Temperature controls (RX256DT7X1)
Reset Filter
The water filter needs to be replaced every 12 months, or after 750 gallons (2838 liters) of
water has been dispensed (which ever is sooner). To remind you of this, the orange Order light
will illuminate after 11 months or once 90% of the volume of water has been dispensed. The
red Replace light will illuminate after 12 months, or once 750 gallons (2838 liters) have flowed
through. Install a new filter immediately when the red light shows up (see page 25).
After replacing the filter, reset the filter by pressing and holding the RESET FILTER button for two
seconds. Both lights will go off.
Temp Alarm
The Temp Alarm system will tell you if compartment temperatures exceed normal operating
temperatures due to a power outage (or other event). When activated, the Temp Alarm light will
illuminate.
If the temperatures exceed operating limits, the display will show the highest compartment
temperatures reached when the power was out. Once the refrigerator starts to cool, the display
will alternate between the current compartment temperature and the highest temperature
reached. An audible alarm will sound repeatedly.
Press the TEMP ALARM button once to stop the audible alarm. The Temp Alarm light will
continue to flash and the temperatures will alternate.
To turn off Temp Alarm, press and hold the TEMP ALARM button for three seconds. The indicator
light will go off.
Door Alarm
The Door Alarm will alert you when one of the doors has been left open for five continuous
minutes. This is to ensure your food will not spoil accidentally. When this happens, an audible
alarm will sounds every few seconds until the door is closed, or the DOOR ALARM button is
pressed.

15
Temperature controls (RX256DT7X1)
Your refrigerator has a User Preference menu, in which you can alter settings to suit you.
To access the User Preferences menu, press and hold the DOOR ALARM button for three seconds.
When in the User Preferences menu, a short title for the feature will appear in the freezer
temperature display and the feature status will appear in the refrigerator display.
Use the freezer or buttons to scroll through the features.
When the desired feature is displayed, use the refrigerator or buttons to change the
status.
When changes are complete close the fresh food door.
The following features can be accessed through the User Preferences menu.
Display (F_C)
Change the display to show the temperature in degrees Fahrenheit (F) or degrees Celsius (C).
Alarm (AL)
When the Alarm Mode is OFF, no audible alarms will sound.
Auto Light Level Selection (LL)
When Auto Light is activated, it controls the level at which the dispenser light will illuminate
when the sensor detects the light levels in the room are low (see page 21). Setting 1 is the
darkest light level setting, setting 9 is the lightest light level setting.
Sabbath Mode (SAB)
When the Sabbath Mode is ON, all control and exterior lights will be disabled until the feature
is turned OFF. This feature does not disable the interior lights. Press any button to restore the
control lights, and turn off Sabbath Mode.
Note: Warm cabinet surfaces
At times the front of the refrigerator cabinet may be warm to the touch. This is a normal
occurrence that helps prevent moisture from condensing on the cabinet. This condition will be
more noticeable when the refrigerator is first started, during hot weather and after excessive or
lengthy door openings.
EN

16 Temperature controls (RX256DT4X1 / RX216DT4X1)

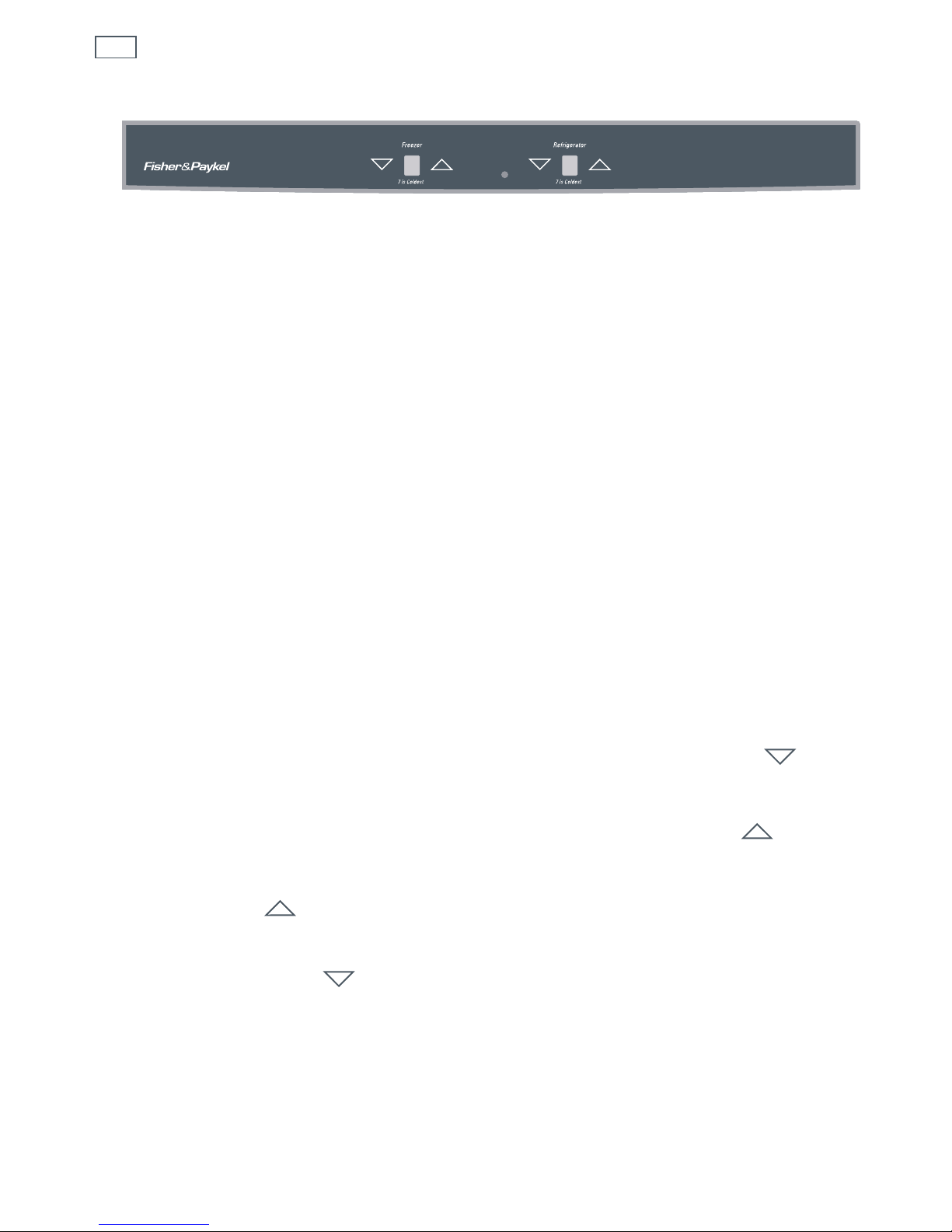

There are two control panels on your refrigerator, one on outside of the door and one inside the
fresh food compartment. Temperature is controlled through the panel located at the inside top
on the fresh food compartment.
The temperatures are preset to setting 4 in both the fresh food and freezer compartments.
After being switched on, the refrigerator will take several hours to cool, depending on the
environment it is placed in. You can start to store food in it 3 – 4 hours after it was turned on.
After placing food in the refrigerator, leave it to stabilize for 24 hours. After this time you may
wish to alter the temperature. The fresh food and the freezer compartments are independent of
each other, and their temperatures are set individually.
There are seven possible settings for each compartment:
1 2 3 4 5 6 7
Warmest Recommended Coldest
Do not change the temperature more than one setting at a time. Allow the temperature to
stabilize for 24 hours before making another temperature adjustment.
If either compartment is too cold
Adjust the compartment temperature down one setting by pressing the appropriate button
for the compartment.
If either compartment is too warm
Adjust the compartment temperature up one setting by pressing the appropriate button for
the compartment.
To turn the refrigerator off
Press either of the buttons repeatedly, until the numbers disappear from the display. THIS
WILL TURN THE WHOLE REFRIGERATOR UNIT OFF (both fresh food and freezer compartments),
although the compartment lights remain on.
To turn back on, press the button until the desired temperature is reached.
Note: if turning the refrigerator off, ensure ALL food and ice is removed.
The water filter needs to be replaced regularly. This is monitored through the control panel on
the front of the refrigerator door (see page 21).

17
Fresh food features
The fresh food compartment is designed to keep your fresh food as fresh, chilled, healthy, and
tasty as possible.
Fruit and vegetable storage
The fruit and vegetable storage bin provides an environment in which you control the humidity.
Fruit and vegetables stored in the normal refrigerator environment will lose moisture very
quickly to the cold, dry air. This means they will shrivel and lose flavor very quickly. By
controlling the humidity in the bin, the air is kept moist, and fruit and vegetables retain
significantly more moisture. This keeps them more flavorsome, fresher and healthier, for longer.
Fruit needs slightly lower humidity than vegetables, so the storage bin has an adjustable slide
with three settings.
To remove
Pull drawer out to full extension.
Tilt up front of drawer and pull straight out.
To install
Insert drawer into frame rails and push back into place.
Meat drawer
The temperature controlled meat drawer at the bottom of the fresh food compartment provides
an environment perfect for storing a range of items. It has two settings – cold setting and
coldest setting.
The coldest setting is slightly colder than the rest of the fresh food compartment, and is perfect
for storing meat. The cold setting is a similar temperature as the fresh food compartment, and is
great for other fresh foods. To change between settings slide the control to the desired setting.
Fig.6 Fruit and vegetable bin
Fig.5 Humidity Control Settings
Vegetables
Lettuce
Spinach
Broccoli
Carrots
Mixed fruit
and vegetables
Fruit with
skin/peel
Oranges
Lemons
Grapes
Plums
Suitable for:
High Low
.....
EN

18 Fresh food features
There are a number of customizable storage options throughout the compartment.
Shelves
Caution!
To avoid personal injury or property damage, observe the following:
Never attempt to adjust a shelf that is loaded with food.
Confirm shelf is secure before placing items on shelf.
Handle tempered glass shelves carefully. Shelves may break suddenly if nicked, scratched, or
exposed to sudden temperature changes.
Your refrigerator is fitted with shelves specially designed to retain spills, making clean up easier.
To remove a shelf slightly tilt up the front and lift up the rear of the shelf, then pull the shelf
straight out.
To install a shelf tilt the front edge up and insert the hooks into the desired frame openings and
let the shelf settle into place. Be sure the shelf is securely locked at the rear.
The top of each bin serves as the shelf above it. To remove the bin top place hand under the
frame to push the glass up. Lift glass out. To install, reverse the instructions.
Covered storage bucket (select models)
The storage bucket has a lid and removable egg tray. When the
tray is removed the bucket will fit other items, such as a standard
egg carton.
Wine bottle holder (select models)
The wine bottle holder will hold a single bottle. To install slide the
upper lip of the holder along the top left side of any shelf, so the
holder sits underneath the shelf.
Door buckets (for fresh food and freezer compartments)
Door buckets can be moved to meet individual storage needs.
To remove lift the bucket up and pull straight out.
To install place bucket in desired door liner retainer, push down
gently until bucket stops.
Fig.7 Covered storage bucket
Fig.8 Door bucket
