Fisher & Paykel RS2484WR User manual

USER GUIDE
US CA
INTEGRATED
REFRIGERATOR-FREEZER
24" INTEGRATED
RS2484WR & RS2484WL
0" INTEGRATED
RS084WR & RS084WL

3
CONTENTS
Safety and warnings 4
Integrated refrigerator-Freezer 8
Before you begin 9
Control panel 10
Storage features 11
Food modes 12
Special features 13
Using your appliance 14
Wifi connection 21
Care and cleaning 22
Food care 30
User warnings and sounds 31
Troubleshooting 32
Service & warranty 36
Customer care 37
Registration
To register your product visit our website: fisherpaykel.com/register

4
SAFETY AND WARNINGS
!WARNING!
Electric Shock Hazard
Failure to do so can result in death, electric
shock, fire or injury to persons.
• Read and follow the safety and warnings
outlined in this user guide before operating this
appliance.
!WARNING!
This appliance contains flammable
refrigerant isobutane (R600a).

5
SAFETY AND WARNINGS
READ AND SAVE THIS GUIDE
WARNING!
Read entire manual. Failure to follow all guides and rules could cause personal injury or
property damage. When using this appliance, always exercise basic safety precautions
including thefollowing:
General Use
zThis product has been designed for use in a normal domestic (residential) environment.
zChildren should be supervised to ensure that they do not play with the appliance.
zCleaning and user maintenance shall not be undertaken by children without supervision.
zThis appliance can be used by children aged from 8years and above and persons
withreduced physical, sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or instruction concerning use of
theappliance in a safe way and understand the hazards involved.
zThe manufacturer’s installation instructions for product and cabinetry ventilation
mustbe followed when installing the appliance.
zTo avoid hazard due to instability of the appliance, it must be fixed in accordance
withinstallation instructions.
zKeep ventilation openings, in the appliance enclosure or the built-in structure,
clearofobstruction.
zDo not use mechanical devices or other means to accelerate the defrosting process,
other than those recommended by the manufacturer.
zDo not damage the refrigerant circuit.
zIn case of damage to the refrigerant circuit, ventilate the area by opening all windows.
zDo not operate electrical equipment or any other equipment that may produce arcs,
sparks or flames in the area. Contact your Fisher & Paykel trained and supported
service technician immediately to arrange for the appliance to be repaired.
zIt is hazardous for anyone other than an fisher & paykel trained and supported service
technician to service thisappliance.
zDANGER: Risk of child entrapment. Before you throw away your old refrigerator or
freezer, the doors and panels should be removed and the racks left in place so that
children may not easily climb inside.
zConnect to potable water supply only
Electrical
zThis appliance must be installed in accordance with the installation instructions before
use.
zTo allow disconnection of the appliance from the supply after installation, incorporate a
switch in the fixed wiring in accordance with the wiring rules.
zNever unplug your refrigerator by pulling on the power cord. Always grip the plug
firmly and pull straight out from the outlet.
zDo not plug in any other appliance at the same power point as your refrigerator or use
extension cords or double adapters.
zRepair or replace immediately all electric service cords that have become frayed or
otherwise damaged. Do not use a cord that shows cracks or abrasion along its length or
at either the plug or appliance end.
zIf the power supply cord is damaged, it must only be replaced by your Fisher & Paykel
trained and supported service technician because special purpose tools are required.
zWhen moving your appliance away from the wall, be careful not to roll over or damage
the power cord.

6
SAFETY AND WARNINGS
zWARNING: Do not use electrical appliances inside the food storage compartments of
the appliance, unless they are of the type recommended by the manufacturer.
zWhen positioning the appliance, ensure the power cord is not trapped or damaged.
zDo not locate multiple portable socket-outlets or portable power supplies at the rear of
the appliance.
Food safety
zRegularly clean accessible draining systems and surfaces that come in contact with
food.
zStore raw meat and fish in suitable containers in the refrigerator, so that it is not in
contact with or drips onto other food.
zIf the appliance will be left empty for long periods, switch off, defrost, clean, dry, and
leave the door open to prevent mould developing within the appliance.
IMPORTANT!
zYour appliance is designed to operate for many years without the need for service
checks. However, if your appliance is malfunctioning, have it attended to by your Fisher
& Paykel trained and supported service technician as soon as possible.
zIf you suspect that the product is not getting cold — items such as ice cream are
melting— remove all perishable food and store in another appliance or cooler to prevent
spoilage. Immediately call for a service technician.
Cleaning
zUse mild dish-washing liquid with warm water and a lint-free cloth to clean the product.
zAvoid using anti-bacterial cleaning products on either the interior or exterior
of the cabinet as they may cause rusting of metal components and cracking of
plasticcomponents. For further information see pages 17 - 19
Disposal
zExtreme care must be taken when disposing of your old appliance to avoid hazards:
zThe flammable refrigerant gas must be safely removed by a qualified servicetechnician.
zThe thermal insulation foam in this appliance may contain flammable insulationblowing
gases, any exposed foam may be highly flammable andmustbe carefully treated
during disposal.
zDANGER: The doors and panels should be removed and the shelves left inplaceso that
children may not easily climb inside.
zConsult your local energy authority or local codes as to the best way to dispose ofyour
old appliance.
Storing food and drinks/wine
zDo not store explosive substances such as aerosol cans with a flammable propellant
inthis appliance.
zNever store volatile or flammable materials in your appliance as they may explode.
zNever freeze liquids in glass containers. Liquid expands during freezing, which may
cause the container to explode.
zNever freeze carbonated drinks. They may explode.
Water filter
zThe water connection to your Ice & water refrigerator must be installed by an
authorised plumber or Fisher & Paykel trained and supported service technician and
comply with all state and local laws.

7
SAFETY AND WARNINGS
zInstallation and use MUST comply with all state and local plumbing codes. Check
with your local public works department for plumbing codes. You must follow their
guidelines as you install the water filtration system.
zUse new tubing supplied with the refrigerator. DO NOT reuse old tubing from old water
and ice connections.
zIf the water tank has not been used for an extended period of time, or has developed
an unpleasant taste or odour, flush the water system. If the problem persists, replace
the water filter cartridge and refer to the flushing instructions detailed in section
‘Flushing through the water dispenser.
WARNING!
To reduce the risk associated with choking:
zDO NOT allow children under 3 years of age to have access to small parts during the
installation of the water filter.
Ice making
zAvoid contact with the moving parts of the ice maker ejector mechanism, and do not
place your fingers on the automatic ice- making mechanism while the appliance is
inoperation.
zDo not use ice cubes that may have become discolored. If such discoloration is noted,
discard the ice cubes and contact your Fisher&Paykel trained and supported service
technician.
Power failure
zIn the event of a power interruption, the appliance will automatically save the current
temperature settings. When power is recovered, the appliance will revert to the current
temperature settings only.
zMost power failures are corrected within a short period of time. 1 – 2 hours loss of
power will not affect the appliance’s temperatures.
zTo avoid sudden change of temperature while the power is off, you should avoid
opening the door. A refrigerator will keep food safe for up to 4 hours during a power
outage. Keep the door closed as much as possible. Discard refrigerated perishable food
such as meat, poultry, fish, eggs, and leftovers after 4 hours without power.
IMPORTANT!
This device complies with part 15 of the FCC Rules. Operation is subject to the
following conditions:
zThis device may not cause harmful interference.
zThis device must accept any interference received, including interference that may
cause undesired operation.
zDo not change or modify the wireless communication device in any way. Changes or
modifications not expressly approved by Fisher & Paykel could void the user’s authority
to operate the equipment.
This device contains licence-exempt transmitter /receiver that comply with Innovation,
Science and Economic Development Canada’s licence-exempt RSS(s). Operation is
subject to the following two conditions:
zThis device may not cause interference.
zThis device must accept any interference, including interference that may cause
undesired operation of the device.

8

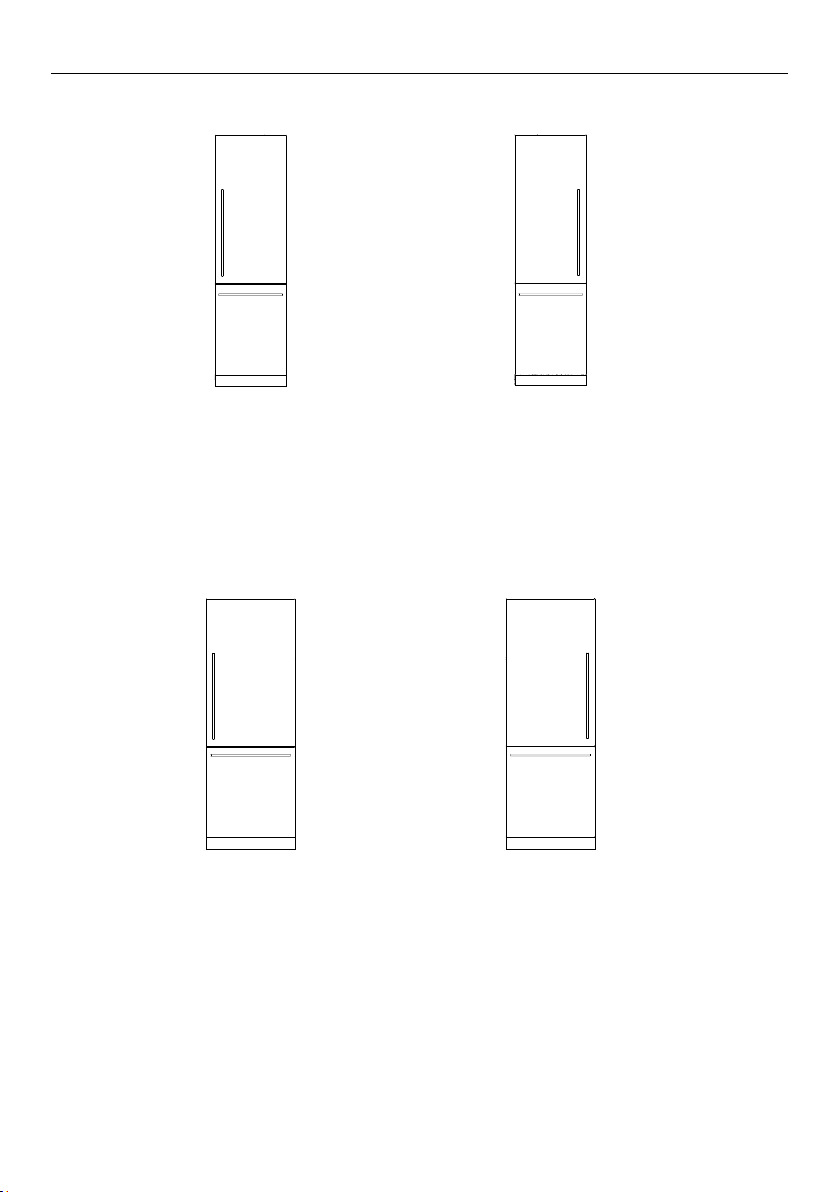

INTEGRATED REFRIGERATOR-FREEZER
RS2484WR
24" Refrigerator-Freezer
Right Hinge
RS3084WL
30" Refrigerator-Freezer
Left Hinge
RS2484WL
24" Refrigerator-Freezer
Left Hinge
RS3084WR
30" Refrigerator-Freezer
Right Hinge

9
BEFORE YOU BEGIN
Refrigerator features
1 Bottle racks
2 Shelving
3 Internal water dispenser
4 Soft close bins with
humidity control
5 Dairy compartment
6 Door shelf
7 Gallon shelf
Freezer features
1 Top bin with ice storage
2 Mid tray
3 Large bottom steel bin
4 Water filter
zEnsure the installer has completed the final checklist in the installation instructions.
zRead this guide, taking special note of the Safety and Warnings section.
zRemove all packaging and dispose of it responsibly. Recycle items that you can.
15
1
3
4
2
7
6
2
4
Freezer Compartment
3
Refrigerator Compartment

10
CONTROL PANEL
1 2 3 4 5 87
6
1COMPARTMENT activates the control panel when pressed. Allows you to select the
compartment to adjust the temperature.
zUPPER to indicate the refrigerator compartment is selected.
zLOWER to indicate the freezer compartment is selected.
2Allows you to select the food mode for the selected compartment.
3WiFi illuminates when functionality is activated.
Illuminates when the water filter needs replacement.
IIluminates to indicate that Sabbath mode is activated.
Illuminates to indicate that the keys on the control panel are locked. When
the door is closed, the display is automatically locked.
4Displays the set temperature of the compartments.
To change between Celsius and Fahrenheit on the display:
Press and together for 4seconds.
5Allows you to adjust the temperature of the selected compartment.
6Press and keys for 4 seconds to lock the water dispenser. When locked,
the icon will illuminate.

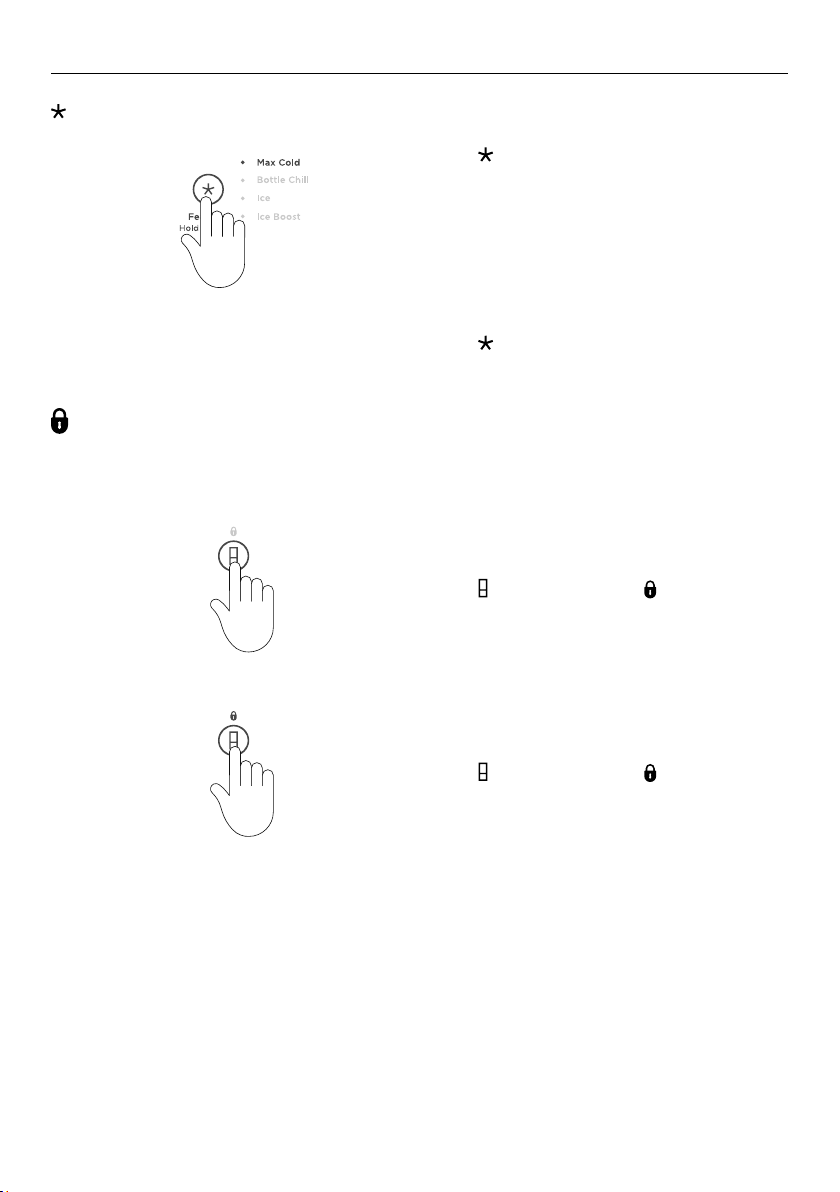

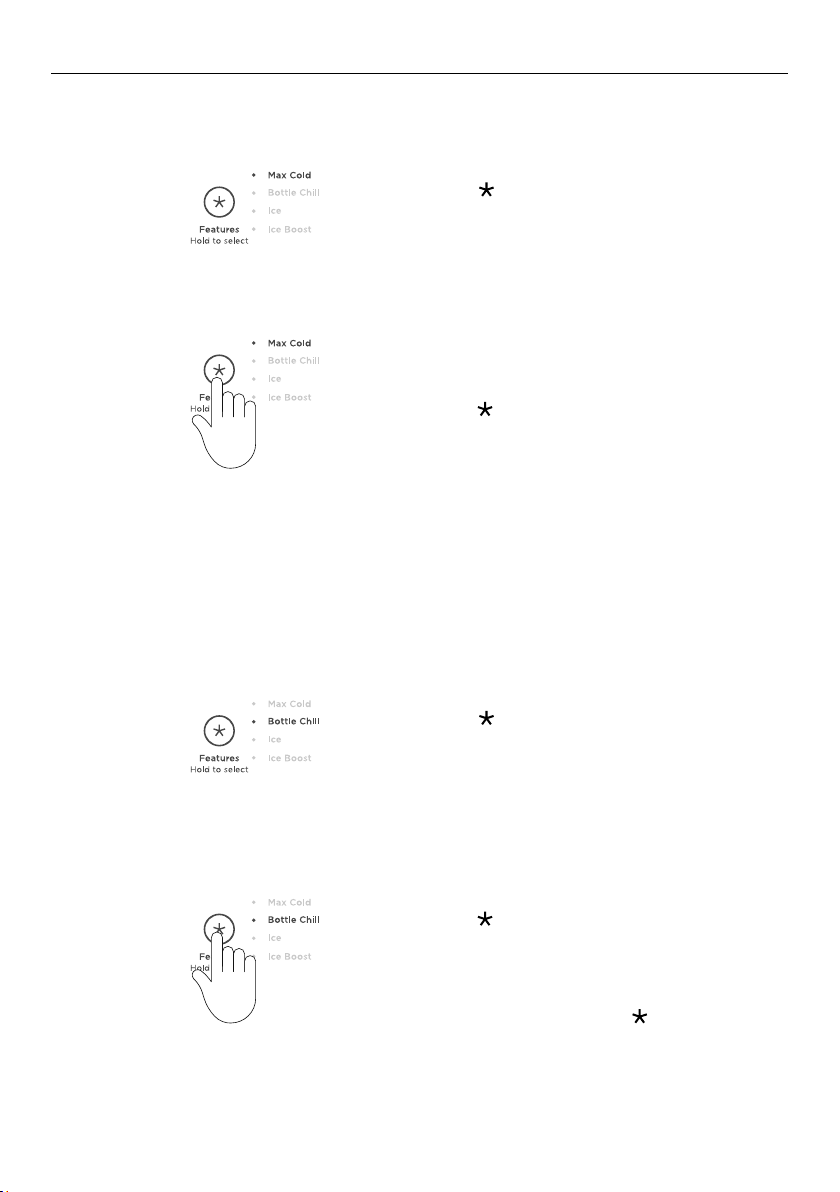

7Allows you to scroll and select features:
zMax Cold
zBottle Chill
zIce
zIce Boost

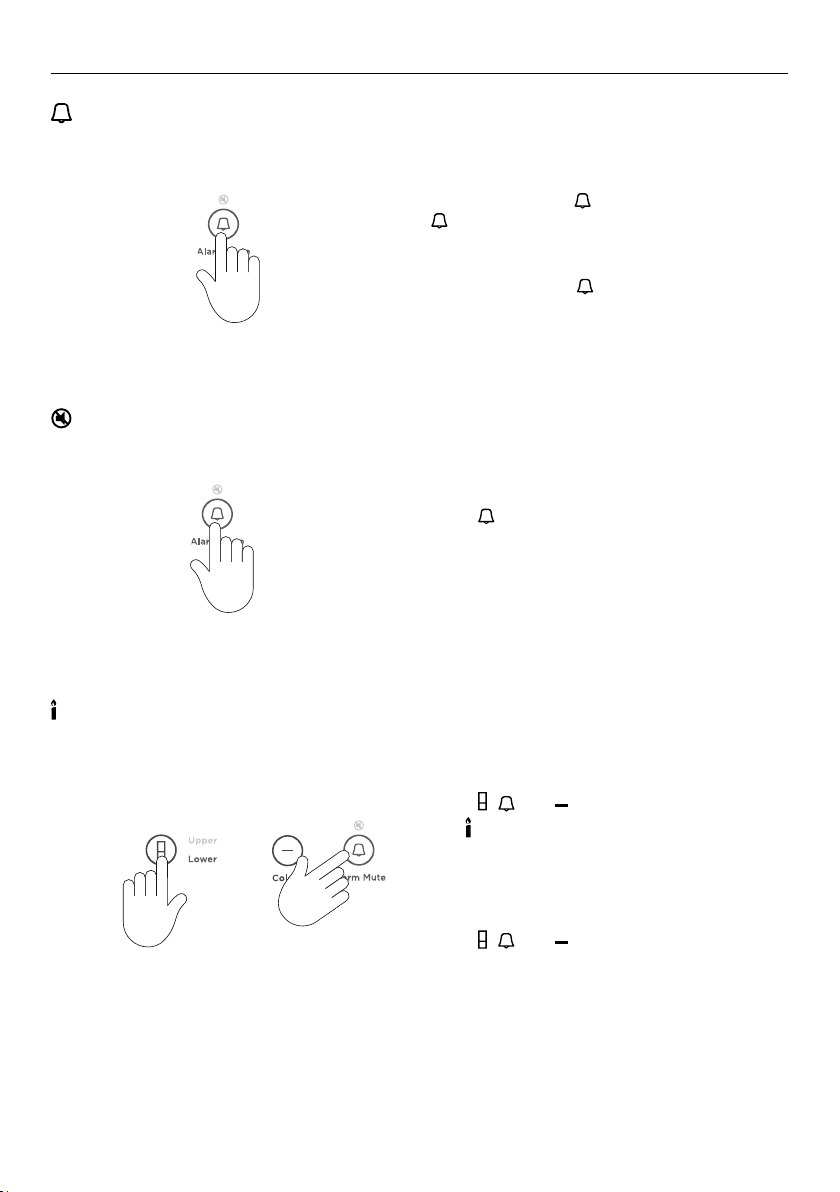

8This button has a dual function—it allows you to deactivate door alarms for
20minutes and/or mute key tones on the control panel.

11
STORAGE FEATURES
REFRIGERATOR COMPONENTS
Fruit and vegetable bins/Slim bin
with humidity control lids
Separate fruits and vegetables to prevent the ethylene-sensitive
produce from ripening too quickly-helps to extend their storage life.
Also used for storing deli items and beverages, or fordefrosting
foods.
Cantilever glass shelving Heat-treated safety glass
Can be removed and positioned at heights to suit your storage
requirements.
Dairy shelf and door shelves The top door shelf is a dairy compartment for storing butter and
cheeses.
The middle shelves are designed for general items, condiments and
drinks.
The bottom shelves are designed to store large drinks or those
drinks you require frequent access to.
Clear windows give ultimate visibility to what is being stored in the
door shelves.
Adjustable door shelves with dividers.
Single bottle holders Can be placed along the length of any shelf (except half-depth
cantilever shelves) to store a varietyof bottles.
Half-depth cantilever shelf bottle
holders Can be placed only on half depth cantilever shelves to store a
variety of bottles.
Store bottles with the neck facing the front of therefrigerator.
Unused bottle holders can be stacked on top ofone another to
maximize shelf space.
FREEZER COMPONENTS
Top bin with removable ice
container and hygienic ice scoop
For storing large or small frozen food items.
Mid tray For storing smaller food items.
Large bottom steel bin For storing multiple frozen food items or large food items.

12
Variable temperature zones
Separate food modes, in both fridge and freezer, allow you adjust the temperature
independently for optimal storage.
Refrigerator
FOOD
MODES DESCRIPTION TYPES OF FOOD TO STORE
Pantry
(12°C/54°F)
Pantry mode provides a cool, dark place
for a wide variety of foods that perish
quickly or mayspoil at room temperature,
but are too sensitive to be stored at normal
refrigerator temperatures.
Bananas, avocados, tomatoes.
Dry food items such as grains, flours,
sugars, crackers, cereal, baked goods,
tortillas, wraps and breads.
Dry food items such as grains, flours,
sugars, crackers, cereal, baked goods,
tortillas, wraps and breads.
Wine
Fridge
(3°C/37°F)
The ideal mode for fresh, everyday foods.
This mode offers a higher relative humidity
than many other refrigerators allowing fresh
foods such as fruits and vegetables, meats
and cheeses to stay fresher for longer.
Fruit and vegetables, dairy products,
jams and chutneys/preserves, meats
and drinks.
Freezer
FOOD
MODES DESCRIPTION TYPES OF FOOD TO STORE
Soft Freeze
(-9°C/16°F)
Soft Freeze mode is an extension of your
refrigerator, extending the shelf life of
perishable items while maintaining the
quality. Soft Freeze mode allows easy
portioning of food and the ability to heat,
cook or serve foods straight from the
compartment without waiting for it to thaw.
Meats, seafood, soups, sauces, pureed
foods, bread, desserts and pastries.
Note: Soft Freeze mode is not
recommended for storage of creamy
desserts such as ice cream.
Freezer
(-18°C/0°F)
Freezer mode is for general frozen food
items that require storage between 1–12
months. For frozen food items that may
need to be stored for longer periods,
press the minus ( - ) button to reach
-13°F (-25°C). This extends the shelf life of
general frozen items by up to 6months.
Meat, poultry, seafood,
pre-cooked foods and leftovers, some
fruits and vegetable, ice cream, and
other frozen desserts.
General frozen food items that are
required to be stored for extended
times, eg larger cuts ofmeat.
FOOD MODES

13
Max Cold
Boosts the cooling speed of the selected compartment by dropping to its coldest
temperature for a set time, dependent on the food mode in use. We recommend using ‘Max
Cold’ when you are adding food items toyour appliance, such as after grocery shopping.
This feature will ensure the food ischilled/frozen within the shortest period of time, locking
in the freshness andextending the shelf life of your food.
Bottle Chill
This feature allows you to rapidly chill your beverages in the freezer for 15 minutes.
Depending on the size of your beverage, the default time may not be enough to chill
your beverage. If your beverage is notcold enough after the set time, return it to the
compartment and reset the ‘Bottle Chill’ feature.
Ice*
Turns on your automatic ice maker. This feature is only available in the freezer compartment.
Ice Boost*
Increases ice production by lowering the freezer to the coldest set point, and deactivates
automatically after 24 hours.
* This feature is not available if the compartment is set to ‘Soft Freeze’. If ice making is turned on and the foodmode is
changed to ‘Soft Freeze’ any ice that is already in the ice bin may melt and form clumps.
SPECIAL FEATURES

14
1
2
Selecting the compartment
Press to select UPPER compartment.
Food modes PANTRY and FRIDGE are
illuminated.
Adjusting the temperature
Press  to increase the temperature of the
selected food mode.
Press  to decrease the temperature of the
selected food mode.
USING YOUR APPLIANCE
Temperature control
zOnce you turn on your refrigerator for the first time, the compartments will automatically
default to the recommended temperature setting.
zThe control panel enables you to change and control the temperature of all
compartments accurately and independently.
Adjusting the temperature — Refrigerator compartment
1
2
Selecting the compartment
Press again to select LOWER
compartment.
Food modes SOFT FREEZE and FREEZER are
illuminated.
Adjusting the temperature
Press  to increase the temperature.
Press  to decrease the temperature.
Adjusting the temperature — Freezer compartment

15
1
1
2
Allows you to disable the buttons on the control panel. Suitable when cleaning your
appliance. It is automatically activated when the refrigerator door opens.
Press to scroll through the available
FEATURES for the compartment and food
mode you have selected.
To activate:
Select from the list by scrolling through and
stopping at your preferred feature.
A blinking light indicates the current feature
when scrolling through the list.
Press for 2 seconds to activate.
To activate:
Press for 2seconds. The icon on the
control panel will illuminate.
Key lock
Selecting Features
USING YOUR APPLIANCE
Door alarm
zIf the refrigerator compartment door is left open, the alarm will beep after 90 seconds.
zIf the freezer compartment drawer is left open, the alarm will beep after 60 seconds.
zIf the door remains open, subsequent beeps will sound every 30 seconds for 5 minutes.
zIf the door remains open for 5 minutes or longer, an alarm will sound continuously and
the interior compartment light(s) will turn off.
To deactivate:
Press for 2seconds. The icon will not
illuminate.

16
1
To activate:
Press for 2seconds, a single beep will
sound to indicate key mute is activated. All
key sounds are now muted.
Door alarms and the BOTTLE CHILL alarm are
still operational.
Key mute
USING YOUR APPLIANCE
1
To activate:
Press , and together for 4 seconds.
The icon on the control panel will
illuminate. When activated, the display, all
alarms and lights are deactivated for 80
hours.
To deactivate manually:
Press , and together for 4seconds.
Note: If you turn off your appliance
while in Sabbath mode, it will resume
automaticallyonce the appliance is switched
on again.
1
To activate:
To activate, press once. The light above
will illuminate to indicate the refrigerator
is muted.
ALARM MUTE will deactivate after
20minutes. Press To deactivate manually,
Closing the door also deactivates the
ALARM MUTE.
Alarm mute
Sabbath mode

17
USING YOUR APPLIANCE

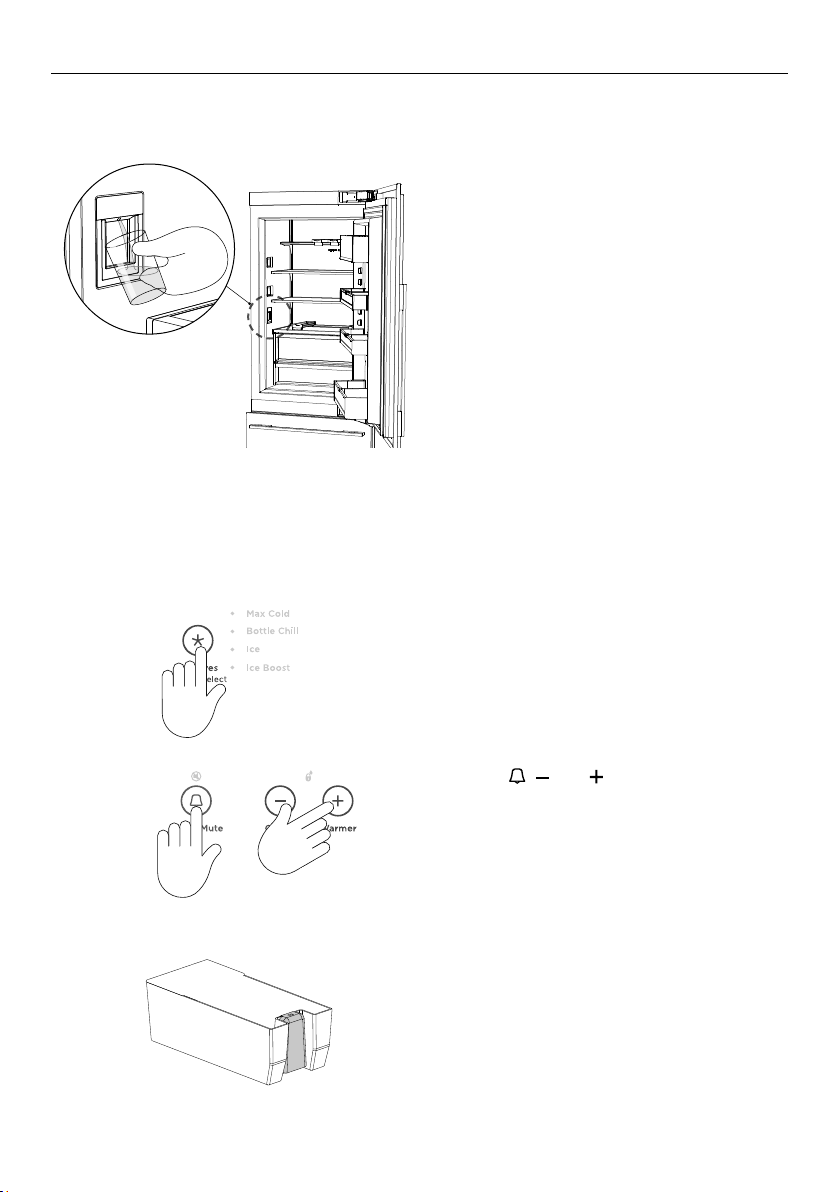

Using the internal water dispenser
The water dispenser is located inside at the left side wall of the refrigerator compartment.
1
To dispense water, gently press the
dispensing pad with a glass or container.
To stop the flow of water, simply pull your
glass or container away from the dispensing
pad.
Pressing hard against the dispensing pad
will not increase the flow or dispense more
water.
Using the automatic ice maker
1
2
Before turning on your automatic ice maker, the system must be flushed to remove any
impurities or trappedair inthe filter system.
Turn your Ice maker on, select
LOWER COMPARTMENT >FREEZER >ICE.
Press the , and together for
4seconds then close the doors.
The ice tray will have filled with water.
zRepeat step 2to remove dust in the ice
tray collected during manufacture and
transport.
3
Remove the bin and empty the water. Dry
the bin and return it correctly.
Once your ice maker is turned on, the
first bin of ice may be discolored. This
discoloration is normal during the flushing
process and is not harmful. Discard the first
full bin of ice made. Your ice maker is now
ready to use.

18
USING YOUR APPLIANCE
Water filter
The water supplied to your appliance is filtered through a water filter to remove impurities.
The water filter is located at the bottom front of your appliance, and must be replaced
every 6months. Refer to your installation guide for instructions on how to remove and
install the water filter.
zA water filter icon on the control panel illuminates when the filter needs replacement.
zReplacement filter cartridges can be purchased online from fisherpaykel.com or by
calling Fisher & Paykel Customer Care. Details of the replacement filter cartridge are
labelled on the cartridge. Instructions on how to install your replacement water filter are
provided with the filter.
Changing the water filter cartridge
Guidance of how to replace your water filter and reset your indicator icon can be found
at fisherpaykel.com/water-filter.
Press and together for 4 seconds.
The on the control panel will turn off
when reset.
Resetting the filter indicator
1 Press the water dispenser pad to dispense 1 gal (4L) of water.
zHarmless carbon residue may be dispensed with water during the flushing process.
2 Wait for 4 minutes before dispensing again.
3 Dispense 1 gal (4L) of water then wait another four minutes.
4 Dispense another 1 gal (4L) of water. Your water dispenser is ready for use.
5 Water will continue to drip from the dispenser for a few more days after installation.
Flushing through the water dispenser

19
USING YOUR APPLIANCE
Max Cold
1
1
2
Press to select MAX COLD. A blinking light
indicates MAX COLD is selected.
Press to select BOTTLE CHILL. A blinking
light indicates BOTTLE CHILL is selected.
2To activate:
Press for 2 seconds to activate.
To activate:
Press for 2 seconds to activate.
An alarm will sound after 15 minutes has
elapsed to indicate that beverage can be
removed.
To mute the alarm, press once.
Bottle Chill

20
Ice*
1
1
2
Press to select ICE.A blinking light
indicates ICE is selected.
Press to select ICE BOOST. A blinking light
indicates ICE BOOST is selected.
2
To activate:
Press for 2 seconds to activate. A beep
will sound to indicate ICE is active.
To mute the alarm, press once.
To activate:
Press for 2 seconds to activate. An alarm
will sound to indicate ICE BOOST is active.
An alarm will sound again after 15 minutes
as reminder to remove your beverage.
Ice Boost*
USING YOUR APPLIANCE
*If ice making is turned on and the foodmode is changed to SOFT FREEZE, any ice that is already in the ice bin may melt
and form clumps.
