Fisher & Paykel WH8060J User manual

INSTALLATION GUIDE
WH8060J, WH8060P, WH8560P, WH9060J, WH9060P, WH1060P,
and WM1490P models
FRONT LOADER WASHING MACHINE
NZ AU SG BI EU

3

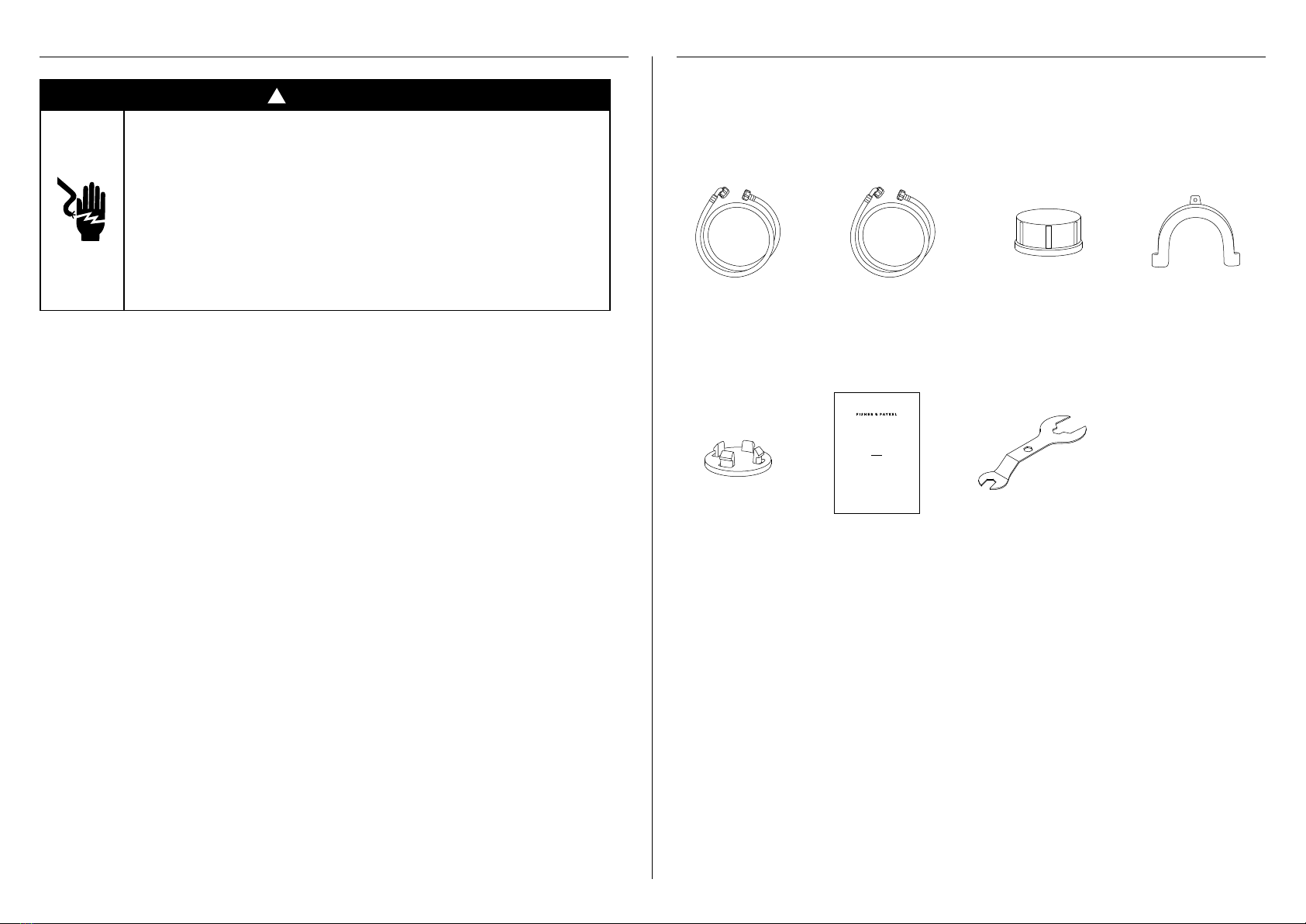

SAFETY AND WARNINGS SUPPLIED PARTS
zKeep all packing materials until the unit has been inspected.
zInspect the product to ensure there is no shipping damage. If any damage is detected
contact the dealer or retailer you bought the product from to report the damage.
zFisher & Paykel is not responsible for shipping damage.
Inlet hose cold (1) Inlet valve cap (1)
Only WM1490P1
Drain hose guide (1)
Spanner (1)
!WARNING!
Electric Shock Hazard
Failure to follow this advice may result in
electric shock or death.
• If you are using an extension cord or
a portable electrical outlet device (eg
multi-socket outlet box), ensure that it is
positioned so that it does not come into
contact with water or moisture.
READ AND SAVE THIS GUIDE
Installation
zFor guidance on how to install your product, please refer to installation instructions
contained in this document.
zInstall the washer on a solid and level floor surface ensuring it has at least 20mm
clearance on each side. The washer must not be installed on any textured floor coverings
(eg carpet, rugs).
zThis washer must not be installed or operated on a plinth.
zEnsure the installation provides accessibility to the plug or incorporate a switch in the
fixed wiring in accordance with the wiring rules to allow disconnection of the appliance
from the supply after installation.
Water supply requirements:
zInlet water pressure: Max. 1MPa (145psi), Min. 30kPa (4.5psi)
zInlet water flow rate: Min. 6litres/minute
zA pressure-reducing valve must be installed if pressure is higher than 1MPa.
zFor optimum wash performance check the supply pressure is within the
recommendedrange.
zNew hose sets provided with the washer should be used to connect the washer to the
water mains. Old hose sets should not be re-used.
zWe recommend the inlet hose(s) are changed every 5 years. WARNING: Failure to do so
may result in a flood and damage to property.
zThe hot water temperature should not exceed 65°C and the cold water temperature not
exceed35°C. Temperatures above these may cause the washer to fault or cause damage
to the washer.
User guide (1)
USER GUIDE
FRONT LOADER
WASHING MACHINE
Plastic plug (4)
Inlet hoses hot (1)
Only WM1490P1
SAVE THESE INSTRUCTIONS
The models shown in this installation guide may not be available in all markets and are subject to
change at any time. For current details about model and specification availability in your country,
please go to our website www.fisherpaykel.com or contact your local Fisher & Paykel dealer.

4
PRODUCT DIMENSIONS
FRONT PROFILE
PLAN
PRODUCT DIMENSIONS MM
A Overall height*
zMin
zMax
850
865
B Overall width 600
C Overall depth** 655
D Depth with door open 1075
* Exact height is dependent on foot adjustment
** Including dial and door (when closed)
Actual product dimensions may vary by ± 2 mm.
WH8060P, WH8560P, WH9060J, WH9060P, WH1060P3, WM1490P models
A
BC
D
D
C

5

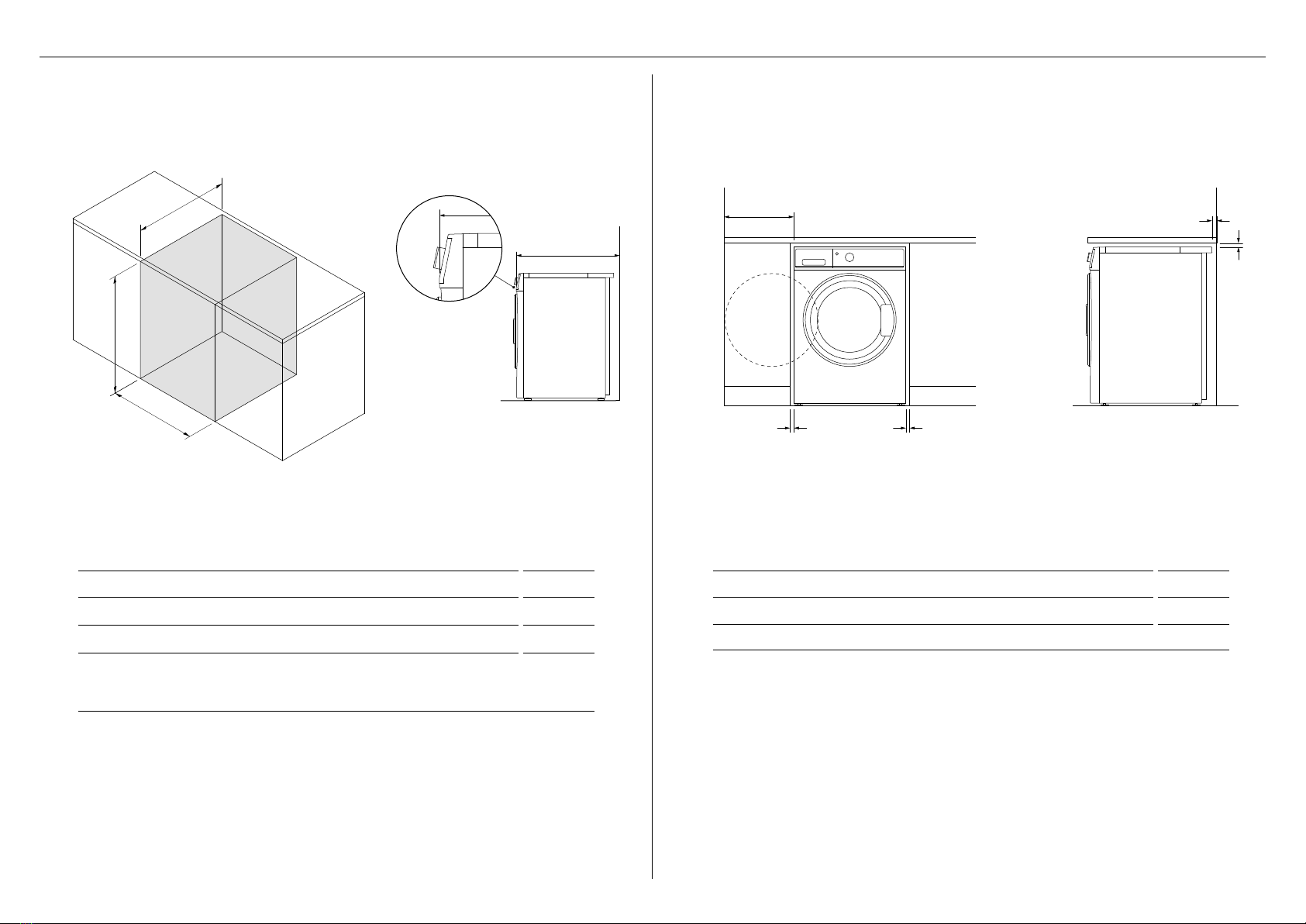

CAVITY & CLEARANCE DIMENSIONS
ISOMETRIC FRONT PROFILE
a
b
a
c
CAVITY DIMENSIONS MM
A Minimum cavity height 870
B Minimum cavity width 640
C Minimum cavity depth
zFlush with front panel of the product*
zIn cupboard
650
695
b
b
bb
* Front panel of the product
CLEARANCE DIMENSIONS MM
A Minimum washer door clearance to adjacent wall 320
B Minimum gap clearance to adjacent product or cabinetry* 20
* Applies to sides, top and rear
Actual dimensions may vary by ± 2 mm.
For paired installation dimensions please visit fisherpaykel.com
WH8060P, WH8560P, WH9060J, WH9060P, WH1060P3, WM1490P models

6
PRODUCT DIMENSIONS
FRONT PROFILE
PLAN
PRODUCT DIMENSIONS MM
A Overall height*
zMin
zMax
850
865
B Overall width 600
C Overall depth** 595
D Depth with door open 1015
* Exact height is dependent on foot adjustment
** Including dial and door (when closed)
Actual product dimensions may vary by ± 2 mm.
D
C
A
BC
D
WH8060J

7
WH8060J
CAVITY & CLEARANCE DIMENSIONS
ISOMETRIC FRONT PROFILE
a
b
a
c
CAVITY DIMENSIONS MM
A Minimum cavity height 870
B Minimum cavity width 640
C Minimum cavity depth
zFlush with front panel of the product*
zIn cupboard
580
635
b
b
bb
* Front panel of the product
CLEARANCE DIMENSIONS MM
A Minimum washer door clearance to adjacent wall 320
B Minimum gap clearance to adjacent product or cabinetry* 20
* Applies to sides, top and rear
Actual dimensions may vary by ± 2 mm.
For paired installation dimensions please visit fisherpaykel.com

8

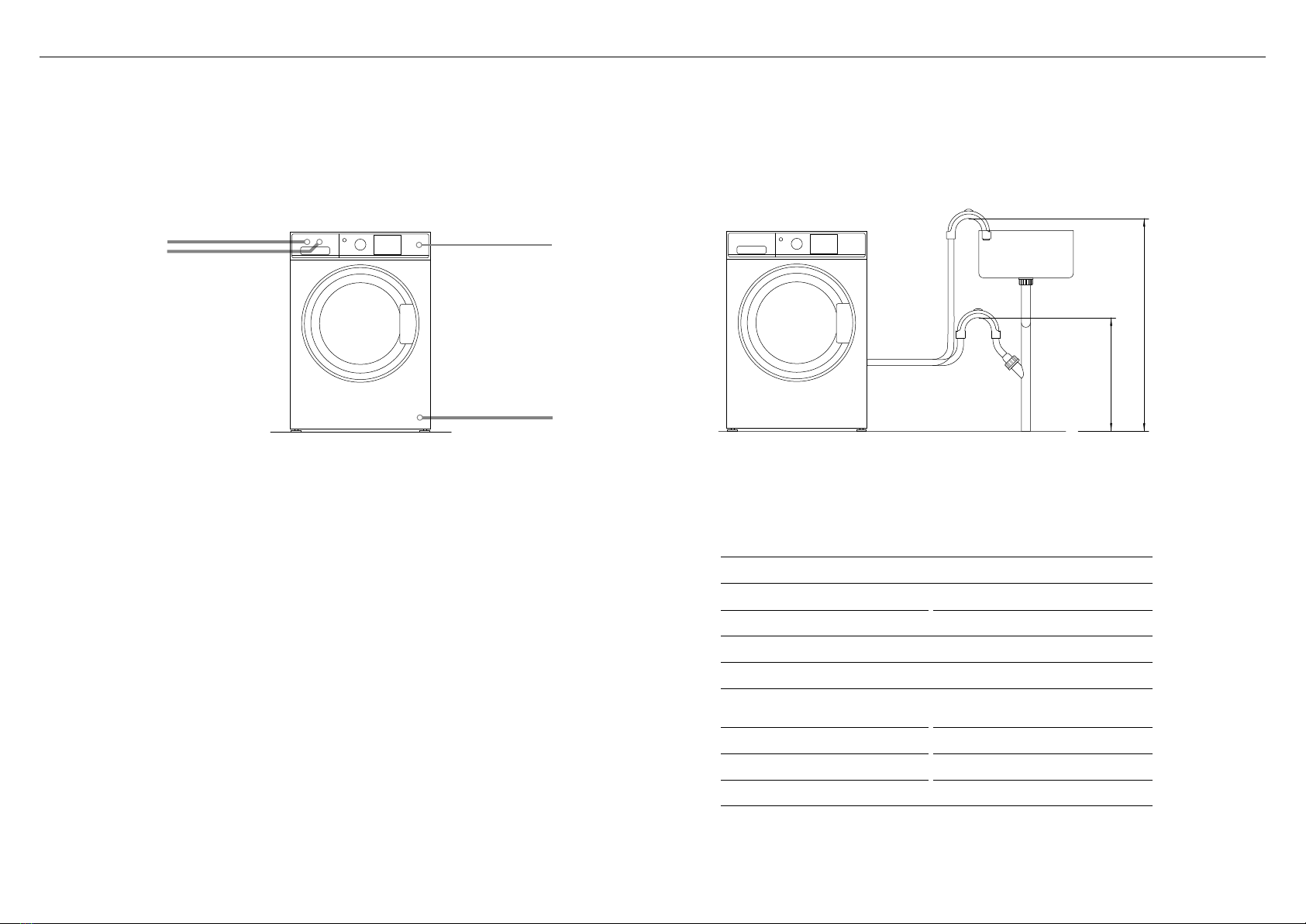

ELECTRICAL & PLUMBING CONNECTION
SPECIFICATIONS
ELECTRICAL
Supply 220–240 V, 50 Hz
Service 10 amp circuit
PLUMBING
Pressure max 1 MPa (150psi)
min 30 kPa (4.5psi)
Flow rate at tap Min. 6 litres/minute
Cold water temp max 35°C
Hot water temp max 65°C
1500 or 1600mm
(model dependant)
1500mm
1500mm
600mm
min
1000mm
max*
Drain Hose
Power Cord
Water Hoses
DRAINAGE HEIGHTSCONNECTION LOCATIONS / LENGTHS
* Recommended standpipe height is 800mm

9

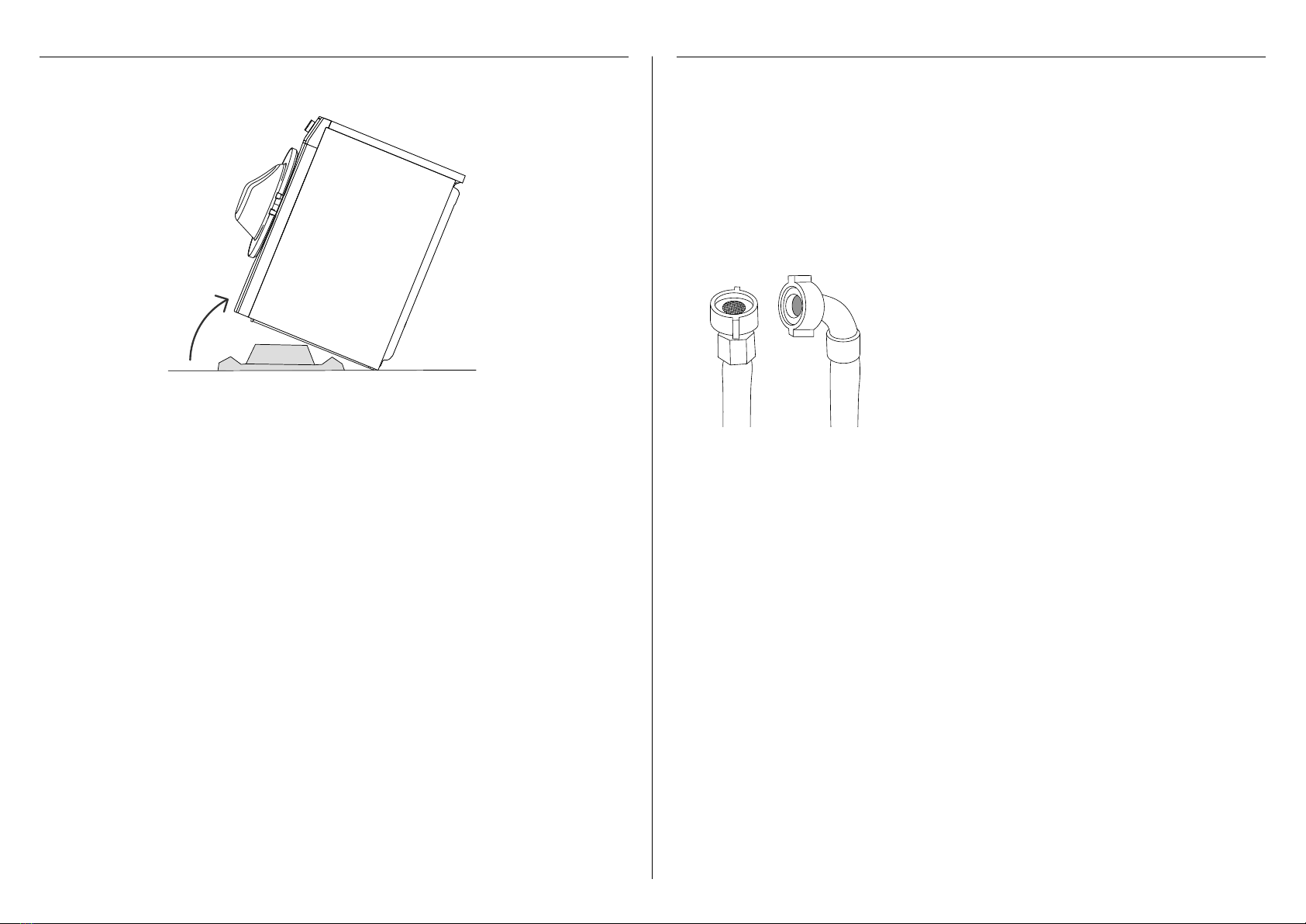

Your washer is heavy, we recommend two persons to move and install.
1 Remove the outer packaging including the polystyrene packer and
plastic wrapping.
2 Lift the washer off the base.
3 Remove all packaging and accessories from inside the drum.
4 Dispose of all packaging sustainably, ensuring these materials are
kept out of the reach of children.
UNPACKING WATER SUPPLY
Inlet hose(s)
Failure to adhere to the following guidance may result in
a flood and damage to property. Only use the new hose
set(s) provided with your washer.
1 Connect the straight ends of the inlet hose(s) to the
tap(s), thereare washers fitted in both ends.
2 Connect the elbow ends to the corresponding washer
inlet valves. If present, the hot valve is coloured
orange to make this easier.
3 Tighten the inlet hose(s) ends by hand until the hose
seal just makes contact with the tap-sealing face.
Continue to tighten a further half-turn.
4 Make sure there are no kinks in the hose(s).
5 Turn the tap(s) on and check for leaks. Check for leaks
again after 24 hours.
Water supply requirements
If you have an uncontrolled water heating source (eg a wet back or solar heating system) you
should fit a tempering valve. This will ensure the hot water temperature remains within safe
limits. Contact your registered plumber to select and install the tempering valve.
Your cold water should not exceed 35°C and your hot water should not exceed 65°C.
Temperatures above these may cause the washer to fault or cause damage to the washer.
Cold supply only
If you only have a cold water supply, you must connect the inlet valve cap (blanking cap)
provided with your washer to the hot inlet valve. The cap prevents water leaking out of the hot
valve. This appliance incorporates backflow protection complying with AS3500.1/IEC61770. No
further backflow protection is required for connection to the water supply.
Your washer has an internal heater to heat water. If you do not connect a hot water inlet hose,
your washer will automatically recognise there is no hot water supply and its internal heater
will heat the cold water to the selected cycle temperature.

10
DRAINING
20 mm
max.
Place the drain hose in a tub or standpipe
Attach drain hose to spigot
In multi-storey apartments or any upper floor, the washer should be installed on a floor
equipped with a drain. Draining must comply with local by-laws.
1 Flex the guide apart and pull the hose
through the guide.
2 Ensure a maximum of 20mm of the hose
is left exposed at the end.
3 Secure the hose guide to prevent it
dislodging from the standpipe or tub.
If the drain hose is placed on the ground or if the tub or standpipe is less than 600mm
high, the washer will continuously drain (siphon) while being filled.
Tub or standpipe height should be a minimum of 600mm.
Regularly check that your tub or standpipe is free from lint or other obstructions. This may
affect operation or cause flooding.
The hose guide is used to hold the drain hose high enough to prevent continuous
draining (siphoning).
The hose guide is used to hold the drain hose over the tub or standpipe.
1 Flex the guide apart and pull the hose
through the guide.
2 Secure the hose guide to a wall or the
back wall of the cupboard using a screw.
3 Drill out the blanking insert from spigot to
ensure the washer can drain correctly.
4 Attach drain hose to spigot and secure
using a hose clamp.
5 Check for leaks.
zThe clothes washer is fitted with transit safety bolts at the rear to avoid possible damage
to the internal components of the washer during transportation.
zThe four transit bolts must be removed prior to operation of the washer.
Failure to remove these will result in damage to the washer and compromise your
manufacturer’s warranty.
zThe transit bolts must be removed in order to use the power cord.
3
To remove the bolt, grommet and
white plastic spacers, pull on the black
rubber grommets.
Use a spanner or socket to unscrew and
remove all four transit bolts at the back of
the washer.
1
2
REMOVING TRANSIT BOLTS
Cover the transit bolt holes with the plastic
plugs delivered with the washer. Push to plug
into place.

11
1
2
3
Move the washer into its final position
allowing for required clearances.
Level the washer side to side:
Place the level on the centre front of the
washer. Pull the washer out, loosen the lock
nut (using the spanner provided) and wind
the feet up or down until the washer is level
side to side.
Level the washer front to back:
Place the level on the left side, in line with
the centre of the washer. Adjust the front left
foot and then the right foot until the washer
is level.
There should be equal weight on both
front feet.
Using the spanner provided, tighten the lock
nuts against the base of the washer tolockthe
feet in position.
Move and centre the washer into its
final position within the cavity, ensuring
recommended clearances.
Recheck the washer is level, front to back and
side to side. Repeat the above steps if required.
It is IMPORTANT to level the washer. Having a level washer set up in its cavity will
ensure best performance for spinning, minimising noise, vibrations and wear and tear on
the washer.
LEVELLING THE WASHER COMPLETE INSTALLATION
zTurn on the water and check all hose connections for leaks. Make sure there are no kinks in
the hose(s). Check the hose connections for leaks again after 24hours.
zUncoil power cord, remove and discard the plastic pin cover, and plug into wall socket.
zConnect the appliance to an earthed outlet protected by a fuse of suitable capacity.
Test cycle
Your washer must be correctly installed before use. To check the installation and operation of
the washer follow the steps below:
1Press POWER to activate your washer.
2Select a QUICK cycle. Ensure the drum is
empty and the door closed.
3Press to start.

12
If there are any problems, you must address these before proceeding with normal use. The
washer will automatically turn off at the end of the cycle if there are no problems.
If the washer is moved or tipped for any reason, it must be completely re-installed
following the steps in this installation guide. This includes running a test cycle to check for
any problems.
*Your washer control panel may differ from that shown.
4Wait until you see water in the bottom of
the drum.
Press to stop the cycle, then press
POWER to turn the washer off.
Activate the washer again by pressing
POWER , select SPIN cycle.
Press to begin the spin.
Check the drain hose is firmly secured to the
standpipe or tub, or spigot.
Observe that the washer pumps out the
water, and spins.
The washer will beep to signal the end of
the cycle. Any faults will be displayed on the
screen, refer your user guide.
5
6
INSTALLER CHECKLIST
TO BE COMPLETED BY THE INSTALLER
Have the packaging and transit bolts and rods been removed?
Is the washer correctly levelled, feet are extended and cabinet corners are clear of
the floor?
Is the drain hose threaded through the hose guide ‘U bend’ (with no more than 20mm
extended) and hooked into your standpipe or tub, or attached to a spigot?
Have the taps been turned on?
Is the hot hose connected to the hot valve marked ‘H’?
Is the cold hose connected to the cold valve marked ‘C’?
Has the power cord been connected to an appropriate power supply and the power
turned on?
Have you performed the test cycle?.
Complete a DRUM CLEAN cycle with a half-load amount of detergent and without a load
to remove any residues remaining in the washer from the manufacturing process.
Complete and keep for safe reference:
Model
Serial no.
Purchase date
Purchaser
Dealer address
Installer’s name
Installer’s signature
Installation company
Installation date
COMPLETE INSTALLATION

13
SPARE PARTS* PART NO.
Hose(s) inlet long (2m) 422680P
Hose(s) inlet large bore 426123P
*Available from your Fisher&Paykel dealer or a Fisher&Paykel trained and supported service technician
SPARE PARTS

40291A 04.21
FISHERPAYKEL.COM
© Fisher & Paykel Appliances 2021. All rights reserved.
The models shown in this guide may not be available in all markets
and are subject to change at any time.
The product specifications in this guide apply to the specific products and
models described at the date of issue. Under our policy of continuous product
improvement, these specifications may change at any time.
For current details about model and specification availability in your country,
please go to our website or contact your local Fisher&Paykel dealer.
