Fisher & Paykel QuickSmart Series; WashSmart Series User manual

NZ AU PAC SG
Installation instructions
and User guide
QuickSmart™ and WashSmart™
Clothes washer

Intelligence working for you
Your washer is born from 75 years of Fisher & Paykel laundry innovation. Unlike conventional
machines, Fisher & Paykel clothes washers, through Smart Drive™ technology adapt the wash
action and water levels to save on water and electricity use; making it kinder on your wallet and
the environment.
Intelligent electronics
A powerful microprocessor controls every aspect of
your machine, allowing it to continually monitor and
respond to each wash. This intelligence is the result of
many years of testing and fine-tuning, giving you the
best possible performance.
Direct drive motor
Our revolutionary direct drive motor is capable of
infinite wash actions, continuously adjusting its speed
to the movement of your clothes, removing dirt while
caring for the fabric, delivering the ultimate wash.
Reliability
Your washer has no mechanical brake, pulleys or
gears, which means fewer moving parts and greater
reliability.
Saves time
With a top spin speed of 1000 rpm, your washer
reduces clothes drying time by up to 30%.
Energy conservation
The unique wash action means a typical load uses
only the same amount of electricity as a 100-watt
light bulb left on for an hour.
Eco
Designed to make every drop count, using up to 25%
less water than a traditional rinse.

1
Contents
Important!
SAVE THESE INSTRUCTIONS
The models shown in this User Guide may not be available in all markets and are
subject to change at any time. For current details about model and specification
availability in your country, please visit our local website listed on the back cover
or contact your local Fisher & Paykel dealer.
Installation Instructions 2
Getting started
Before you do your first wash 5
Using your WashSmart™ washer 6
Using your QuickSmart™ washer 8
Lid lock 10
Wash cycles and options
Wash cycles 11
Selecting wash options and advancing the cycle 12
Water levels 13
Saving water & time – Eco & Quick Wash options 14
Wash options - Soak, Spin Hold, Delay Start options 15
Washing bulky items, Washing woollens 16
Favourite cycle 17
Customising the wash cycles 18
Before you wash
Sorting, Loading 19
Detergent 20
Fabric softener, Scrud 21
Changing pre-set options
Option adjustment mode 22
Wash temperatures, Rinse options 24
Controlled cold, End of cycle beeps, Auto water fill level 25
Out of balance recovery routine 26
Machine information
Specifications 26
Caring for your washer 27
Additional information 28
Saving water 29
Problem solving
If your washer beeps for help 31
Operating problems 33
Wash problems 34
Manufacturer’s Warranty 36
Customer Care 38

2Installation instructions
Unpacking
To ensure the best performance from your new
washer please follow the instructions below.
Removing the packaging
1
Remove the outer packaging.
2
Tilt the machine backwards and walk it off the bottom
packer one foot at a time.
3
Remove the bottom packer from under the machine by
pulling it out the front.
4
Lift the lid and remove the bowl packer from the bowl.
5
Remove the hoses and accessories.
6
Keep the bottom packer and bowl packer in case they
are required for future transit.
Important!
Please ensure that the bottom packer has been removed before operating your machine.
Location
Your washer must be installed on a level surface, and not on any textured floor coverings
(eg carpet, rugs) to ensure that the opening at the bottom of the machine is not obstructed.
In your clothes washer you will find:
1 hose guide.
2 inlet hoses.
Drain hose
1
Carefully pull the drain hose out from the back
of the machine by pulling the exposed part of
the hose downward and outward.
2
To guide the drain hose over the tub or
standpipe the hose guide MUST be fitted to the
drain hose.
To prevent syphoning:
The drain hose should not extend more than
20 mm from the end of the guide.
The height of the standpipe or tub should be
between 850 – 1200 mm.
The drain hose can be trimmed to length.
3
Place the drain hose in the tub or standpipe.
Fig.1 Tilt washer backwards to remove packer
Pull hose
through guide
(20 mm)
maximum
Flex hose
guide apart
Standpipe 850 – 1200 mm
Fig.2 Fitting the drain hose guide

3
Installation instructions
Fig.3 Inlet hose ends
Machine end
Tap end
Inlet hoses
Note: new hose sets provided with the machine are to be used to connect
the washer to the water mains. Old hose sets should not be re-used.
1 Connect the straight ends of the inlet hoses to the taps (there are washers
fitted in both ends). Connect the red connector hose to hot, and the white
connector hose to cold (if your hoses are colour-coded).
2 Connect the elbow ends of the inlet hoses to the corresponding machine
inlet valves.
Inlet valves are marked on the back of the machine.
H = Hot C = Cold
Minimum height of taps to clear the top of the machine is 1150 mm.
Cold supply only:
If you only have a cold water supply, an inlet valve cap (blanking cap) MUST be connected to
the hot inlet valve. The cap prevents water leaking out of the hot valve. The cap is available from
your Fisher & Paykel Dealer or Authorised Repairer, Part No. 388491P. This appliance incorporates
backflow protection complying with AS3500.1. No further backflow protection is required for
connection to the water supply.
Note: your washer does not have an internal heater to heat water.
Inlet hose replacement
We recommend replacing the inlet hoses every 5 years. Hoses should be checked from time to
time and replaced if any wear, cuts, bulges, kinks or leaks are found.
Levelling your machine
It is IMPORTANT to level the machine to ensure even spin
performance.
1 Separate the 4 rubber foot inserts from the moulding and fit
into the feet on the base of the machine.
2 Move the machine to its final position (we suggest a minimum
clearance of 20 mm each side).
3 Adjust the feet (wind down) so the machine is level and cannot rock.
To check if your machine is level:
Look down on the wash bowl and make sure it sits slightly forward of centre (see Diagram 1).
Close the lid. Visually check that the lid fits evenly on both sides. If it does not look like the
diagram in the middle, adjust one of the feet slightly until it matches. The diagram on the top
and bottom are not correct (see Diagram 2).
Correct
To check levelling look
down on the wash bowl
Incorrect
Fig.5 To assess levelling, check lid alignment
Lid alignment Lid
Topdeck Lid
Lid
Topdeck
Topdeck
Wind right foot down
(out) to correct
Wind left foot down
(out) to correct
Diagram 1 Diagram 2
4 Turn on the water and check all hose connections for leaks. Check for leaks again after 24 hours.
Make sure there are no kinks in the hoses.
5 Uncoil the power cord, remove and discard the plastic pin cover, and plug into the wall socket.
Fig.4 Adjusting the levelling feet
Adjustable feet
Corner cabinets
Rubber insert

4
Water supply
Your cold water should not exceed 35°C and your
hot water should not exceed 65°C. Temperatures
above these may cause the machine to fault or
cause damage to the machine.
If you have an uncontrolled water heating source
(eg a wet back or solar heating system) you should
fit a Safe Valve. This will ensure the hot water
temperature remains within safe limits.
Inlet water pressure: Max.1 MPa (150 psi) Min. 34 Pa (5 psi)
Inlet water flow rate: Min. 3 litres/min
Minimum height of taps to clear the top of the machine is 1150 mm.
Draining
Regularly check that your standpipe or tub is free from lint or other obstructions, which may
affect how your machine works or may cause flooding.
In multi-storey apartments or any upper floor, the machine should be installed on a drained floor.
Draining must comply with local by-laws.
Clothes washer safety
This clothes washer is not intended for use by children and persons with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a person responsible for their safety.
Your washer can be opened while it is filling and agitating. Supervise children at all times to
ensure they do not play with the washer.
WARNING!
Electrical Shock Hazard
If you are using an extension cord or a portable electrical outlet device
(eg multi-socket outlet box), ensure that it is positioned so that it does
not come into contact with water or moisture.
Failure to do so may result in death or electrical shock.
Accessories and spare parts
Available from your Fisher & Paykel Dealer or Authorised Repairer.
Inlet Valve Cap Part No. 388491P
Hose Inlet Long (2m) Part No. 422680P
Hose Inlet Large Bore Part No. 426123P
Drain Hose Extension Part No. 425627P
Power Cord If the power cord of your clothes washer is damaged it must be replaced
by a Fisher & Paykel Authorised Repairer, as it is not a standard power cord.
Installation instructions
Hot ‘N’ Safe Valves available are:
RMC TVA 50HF
RMC TVA 75HFS
Adjustable between 35°C – 55°C
RMC TVA 50HP
For instantaneous gas hot water supply

5
Getting started
Thank you for buying a Fisher & Paykel washing machine. We are very proud of this washer and
trust it will serve you well for many years.
At Fisher & Paykel we aim to provide innovative products that are simple to use, ergonomic and
energy efficient. Thousands of tonnes of washing and 75 years of laundry experience have been
programmed into your washing machine to help give you the best possible performance.
We hope you enjoy your new washing machine. We have certainly enjoyed designing it.
Before you do your first wash
You owe it to yourself and your washer to have it installed correctly by a technician from a
Fisher & Paykel Authorised Repairer.
Before you start, it is a good idea to go through the following checklist:
1
Has the basepacker been removed?
2
Is the hot hose connected to the hot valve marked ‘H’? Is the cold hose connected to the cold
valve marked ‘C’?
3
Is the drain hose threaded through the ‘U bend‘ (with no more than 20 mm extended) and on to
your standpipe?
4
Are the rubber inserts secured into the feet on the base of your machine and is the machine
levelled? Refer to ‘Installation instructions’, page 3.
If you have bought a QuickSmart™ model it is a good idea to check the warm fill temperature
(refer to page 24).
Fig.6 WashSmart™ washer Fig.7 QuickSmart™ washer

6Using your WashSmart™ washer
B. Fabric softener
If you wish to use fabric softener, place it in the
dispenser on the top of the agitator (refer to page 21).
Important!
Fabric softener must not be used if you have selected
the ECO or QUICK WASH option (refer to page 14).
Place the load evenly around the agitator (refer to ‘Sorting’ and ‘Loading’, page 19).
Remove fabric softener dispenser.
A. Detergent
Follow the instructions on the detergent package.
Use the mark on the agitator, nearest to the top of
the clothes, as a guide to the correct amount
of detergent to use (refer to ‘Detergent’, page 20).
Pour the detergent down the centre of the
agitator stem.
Replace the fabric softener dispenser (this stops
small articles falling down the centre of the agitator).
WashSmart™ – WA80T65G, WA70T60G, WA55T56G, WA10T65G, WA85T60G, WA75T56G
D
C

7
Using your WashSmart™ washer
C. Power
Press POWER to turn the machine on.
D. Wash cycles
Select the desired wash cycle by pressing the button.
E. Wash options
Select the WASH TEMPERATURE, WATER LEVEL, SPIN SPEED and other wash options (refer to
pages 12 – 15).
F. Advance
Use to advance through to the desired part of the wash cycle (refer to page 12).
G. Start
Press START/PAUSE to start the machine.
If you wish to stop your WashSmart™ washer
Press START/PAUSE.
If it is during spray rinse or spin there is a slight delay while the bowl slows to a stop and the lid
is unlocked.
Important!
For best fabric and colour care remove your clothes as soon as the cycle has finished.
E
G
F

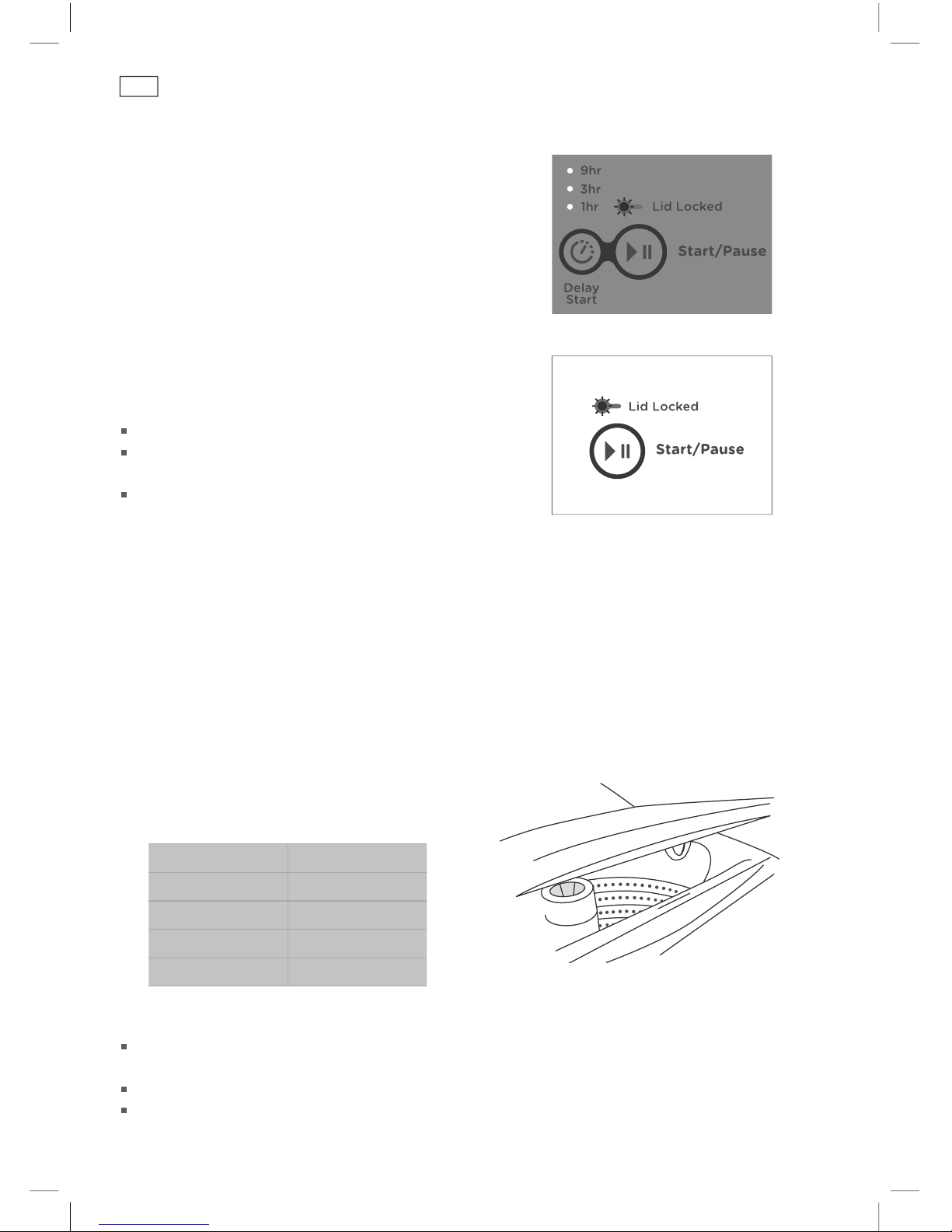

8Using your QuickSmart™ washer
Place the load evenly around the agitator (refer to ‘Sorting’ and ‘Loading’, page 19).
Remove fabric softener dispenser.
A. Detergent
Follow the instructions on the detergent package.
Use the mark on the agitator, nearest to the top of
the clothes, as a guide to the correct amount
of detergent to use (refer to ‘Detergent’, page 20).
Pour the detergent down the centre of the
agitator stem.
Replace the fabric softener dispenser (this stops
small articles falling down the centre of the agitator).
B. Fabric softener
If you wish to use fabric softener, place it in the
dispenser on the top of the agitator (refer to page 21).
Important!
Fabric softener must not be used if you have selected
the ECO option (refer to page 14).
QuickSmart™ – WA65T60M (MW613), WA55T56M (MW513), WA75T56M (MWC12)
C
D
