Fisher & Paykel 836848 Guide

Ice and water refrigeration products using
water filters 836848 & 842802
WATER FILTER
REPLACEMENT INSTRUCTIONS
INSTALLATION GUIDE
NZ AU GB IE HK SG IN US CA

1
Water filter
IMPORTANT!
 The water connection to your ice & water refrigerator must be installed by
aqualified plumber or Fisher & Paykel trained and supported service technician
and comply with all state and local laws.
 Installation and use MUST comply with all state and local plumbing codes.
Checkwith your local public works department for plumbing codes.
Youmustfollow their guidelines as you install the water filtration system.
 To avoid serious illness or death, only connect your water filter to safe
drinkingwater.
 The water filter cartridge needs to be changed when the replacement indicator
icon illuminates. This will happen every 6 months.
 If the water filtration system has been allowed to freeze, replace filter cartridge.
Failure to replace the disposable filter at recommended intervals may lead to
reduced filter performance and failure of the filter, causing property damage
from water leakage or flooding.
 In cases of excessively reduced filter life — we recommend that you consult
a local plumber or your water supplier for advice on suitable filtration
requirements for the water supplied to your home.
 Filter replacement is the consumer’s responsibility and will not be covered
by the warranty except in the case of faulty parts or materials within the
filtercartridge.
 If the water has not created ice for some time or ice has an unpleasant taste
or odor dispose of ice and refer to the flushing instructions in this book.
Ifunpleasant taste or odor persists, you may wish to fit a new filter cartridge.
 Your water filtration system can withstand up to 120psi (827kPa) of water
pressure. Ensure the supplied pressure-reducing valve is installed before
installing the water filtration system. DO NOT install if water pressure exceeds
120psi (827kPa).
To reduce the risk associated with property damage due to water leakage
orflooding:
 DO NOT install systems in areas where ambient temperatures may go above
100°F(38°C) or drop below 33°F(0.6°C).
 DO NOT install on hot water supply lines. The maximum operating water
temperature of this filter system is 100°F(38°C).
 DO NOT install where water hammer conditions may occur. If water hammer
conditions exist, you must install a water hammer arrester.
Replacement filter cartridges can be purchased online at fisherpaykel.com
or bycallingFisher&Paykel Customer Care. Details of the replacement filter
cartridge arelabelledon the cartridge.
Office address
Fisher & Paykel Appliances Ltd
PO Box 58550
Botany
Auckland 2163
New Zealand
Customer Care
Phone: [phone]
1 SAFETY AND WARNINGS

2
Note: It is not necessary to turn the water supply off when removing or installing the water filter.

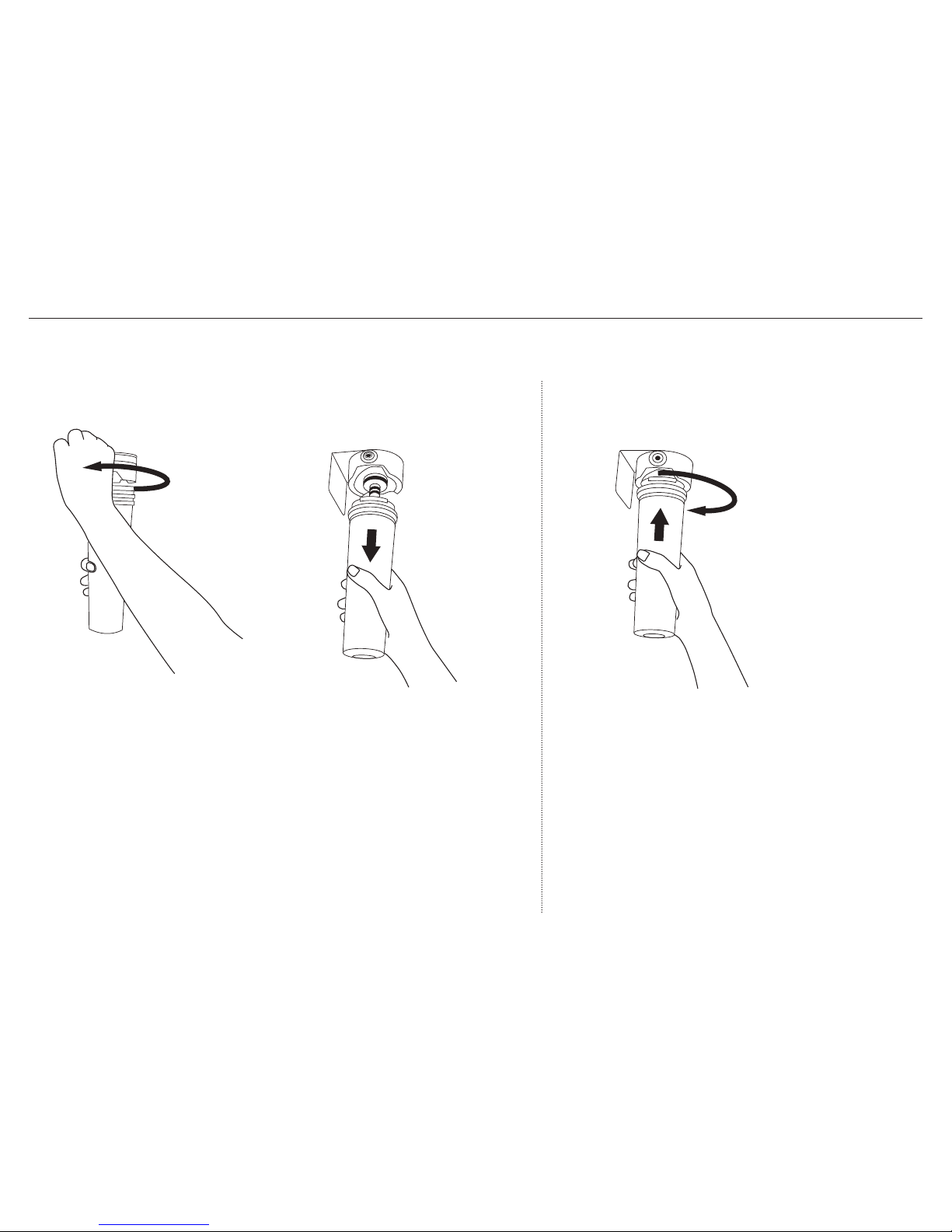

Removing the old filter Installing the new filter
1
Remove the plastic wrapping from the new filter and then
remove the protective cap.
2
Align the filter correctly. Insertthefilter into the filter head
and rotate in a clockwise direction (C) (to the right when
installed in the recommended orientation).
IMPORTANT!
After installation, the water filter MUST be flushed.
Refer to ‘Flushing the water filter’ for details.
2
Pull the cartridge away from the filter head
(down when installed in the recommended
orientation).
– It is not unusual for a few drops
ofwater to be present when the
filterisremoved.
Discard the old filter.
1
Grasp and firmly twist the cartridge in an
anti-clockwise direction (A)(to the left when
installed in the recommended orientation).
A
B
C
2 FOR REFRIGERATORS WITH EXTERNAL FILTER

3

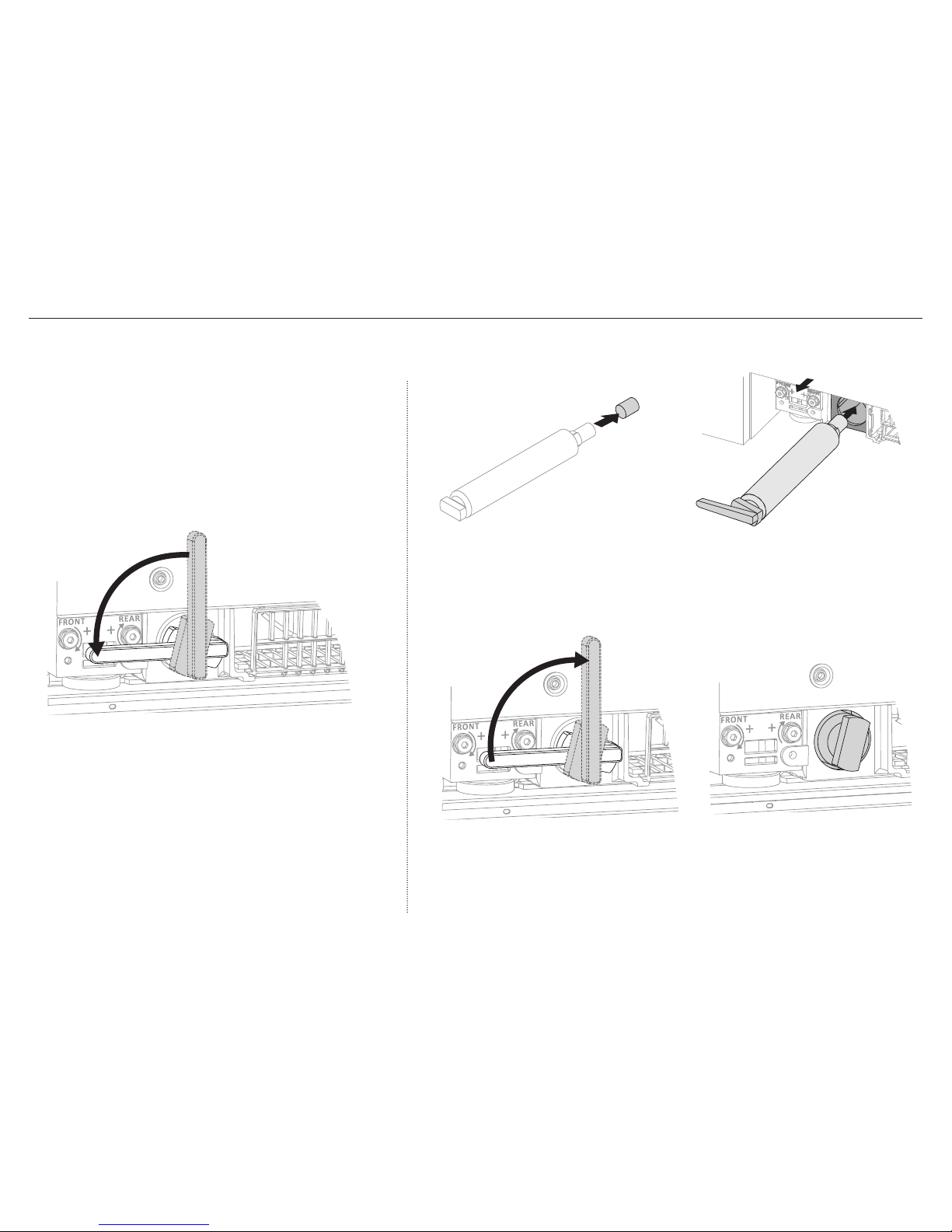

3 FOR ACTIVESMART™INTEGRATED REFRIGERATORS
Removing the old filter
The filter is located behind the toe kick grille.
1
Remove toe kick grille by inserting fingers into the left and right
square openings on the grille. Pull grille towards you.
2
Pull the freezer drawer out slightly, the filter is located on the
left-hand side.
Installing the new filter
3
Using the filter removal tool, align the tool to the cartridge handle
and turn 90°counterclockwise to loosen (A).
4
Remove the tool, grasp firmly onto the cartridge handle and pull
towards you to remove. Discard the old filter.
3
Pull the freezer drawer out slightly to access
the filter casing. Align the filter correctly (C).
4
Using the filter tool, push the filter firmly
inside the casing all the way into the filter
head.
5
Rotate the filter head clockwise 90° to lock in
place (D).
BC
D
E
A
Note: It is not necessary to turn the water supply off when removing or installing the water filter.
1
Remove the plastic wrapping from the new
filter and then remove the protective cap (B).
2
Remove toe kick grille by inserting fingers
into the left and right square openings on the
grille. Pull grille towards you.
6
Ensure the filter is in the locked position (E).
Remove filter removal tool and close the
freezer drawer.
IMPORTANT!
After installation, the water filter MUST be
flushed. Refer to ‘Flushing the water filter’
fordetails.

4
Flushing the water filter
 Check your refrigerator is switched on.
 Allow at least 2hours for your appliance to cool before use.
 Complete all the flushing steps detailed in this document to ensure optimum
performanceof your water filter.
For Ice & Water only models:
Flushing must be completed through both the water dispenser and ice maker.
For Automatic Ice only models:
Flushing must be completed through the ice maker.
Flushing through water dispenser
1
Press the water dispenser pad to dispense 1 gal (4L) of water.
– A harmless carbon residue may be dispensed with water during
theflushingprocess.
2
Wait for 4minutes before dispensing again.
3
Dispense 1 gal (4L) of water then wait another 4 minutes.
4
Dispense another 1 gal (4L) of water. Your water dispenser is ready for use.
5
Water will continue to drip from the dispenser for a few more days after
installation toclear remaining trapped air in the dispenser. Check the drip tray
regularly and empty when required.
Flushing through ice maker
1
Turn the ice maker on, refer to the user guide supplied with your appliance
fordetails.
2
Press the , and together for 4seconds then close the doors. The ice tray
will flip twice and empty the water into the bin below.
– The ice tray will flip only after the doors are closed.
3
Repeat step 2to remove dust in the ice tray collected during manufacture
andtransport.
4
Empty the water from the ice bin and return it correctly.
5
Once your ice maker is turned on, the first bin of ice may be discolored, this is
not harmful and normal during the flushing process. Discard the first full bin of
ice made. Yourice maker is ready for use. The performance of your water filter
will improve with continued use.
For Ice & Water only models:
The water filter will reach optimum performance after two to three full bins of ice.
For Ice only models:
The water filter will reach optimum performance after four to five full bins of ice.
Resetting the filter indicator
Use the water filter as soon as possible after installation. Areplacement
indicator on the control panel and/or external display illuminates when you
need to replace the filter. Reset the indicator only after replacing the filter.
To reset indicator
 Press and together for 4 seconds.
 The on the control panel will turn off when reset.
 The filter change indicator icon on the control panel and/or external display
will turn off when reset.
IMPORTANT!
 We recommend the water filter to be used from the time of installation.
 Do not reset indicator before filter is changed or filter monitoring will be
inaccurate.
4 WATER FILTER FLUSHING INSTRUCTIONS (ALL MODELS)
