Fisher Homesteader Personal Plow User manual

November 15, 2007
Lit. No. 27567, Rev. 07
This manual supersedes all editions with an earlier date.
FISHER ENGINEERING, 50 GORDON DRIVE, ROCKLAND, ME 04841-2139 • www.fisherplows.com
A SUBSIDIARY OF DOUGLAS DYNAMICS, L.L.C.
Personal Plow
OWNER'S MANUAL
This snowplow is for personal/homeowner use only.
CAUTION
Read this document before operating or
servicing snowplow.

SNOWPLOW OWNER DATA SHEET
Owner Name:
Date Purchased:
Outlet Name: Phone:
Outlet Address:
Vehicle Model/Year:
Snowplow Model:
Snowplow Type/Size: Weight: lb/kg
Ballast: No Yes Amount lb/kg
Hydraulic Unit Serial Number (located on hydraulic reservoir):
Blade Serial Number (located on back of blade):
Register your snowplow online at www.fisherplows.com

Lit. No. 27567, Rev. 07 November 15, 2007
This manual has been prepared to acquaint you with
the safety information, operation and maintenance of
your new snowplow. Please read this manual carefully
and follow all recommendations.
Before installing a snowplow, make sure your vehicle is
equipped with our recommended options for plowing
snow. This will help ensure trouble-free operation of
your snowplow. Keep this manual accessible. It is a
handy reference in case minor service is required.
When service is necessary, bring your snowplow to
your local outlet. They know your snowplow best and
are interested in your complete satisfaction.
The illustrations found in this manual represent typical
components. They may not match your exact
installation.
PREFACE
SNOWPLOW USAGE CHECKLIST
Before Plowing
FHave you taken all safety precautions? ............... pg. 1
FIs the snowplow attached properly? .................... pg. 4
FDo you have proper rear ballast? ........................ pg. 5
FDo snowplow controls operate properly? ............ pg. 6
FDo snowplow lights operate? .............................. pg. 8
While Plowing
FTransporting plow vehicle ................................... pg. 9
FDriving and plowing on snow and ice .................. pg. 9
FPlowing snow ...................................................... pg. 9
FClearing driveways ............................................ pg. 10
FParking plow vehicle ......................................... pg. 10
After Plowing
FTransporting plow vehicle .................................. pg. 11
FParking plow vehicle .......................................... pg. 11
FChecking hydraulic fluid ..................................... pg. 11
FDetaching snowplow ......................................... pg. 12

Lit. No. 27567, Rev. 07 November 15, 2007

Lit. No. 27567, Rev. 07 November 15, 2007
Before Plowing ......................................................... 1
Safety Definitions ................................................. 1
Warning/Caution and Instruction Labels ............... 1
Safety Precautions ............................................... 2
Personal Safety .................................................... 2
Fire and Explosion ............................................... 2
Ventilation ............................................................ 2
Hydraulic Safety ................................................... 3
Battery Safety ....................................................... 3
Fuses ................................................................... 3
Noise .................................................................... 3
Attaching Snowplow ............................................. 4
Vehicle Application Recommendations ................. 5
Ballast Requirements ........................................... 5

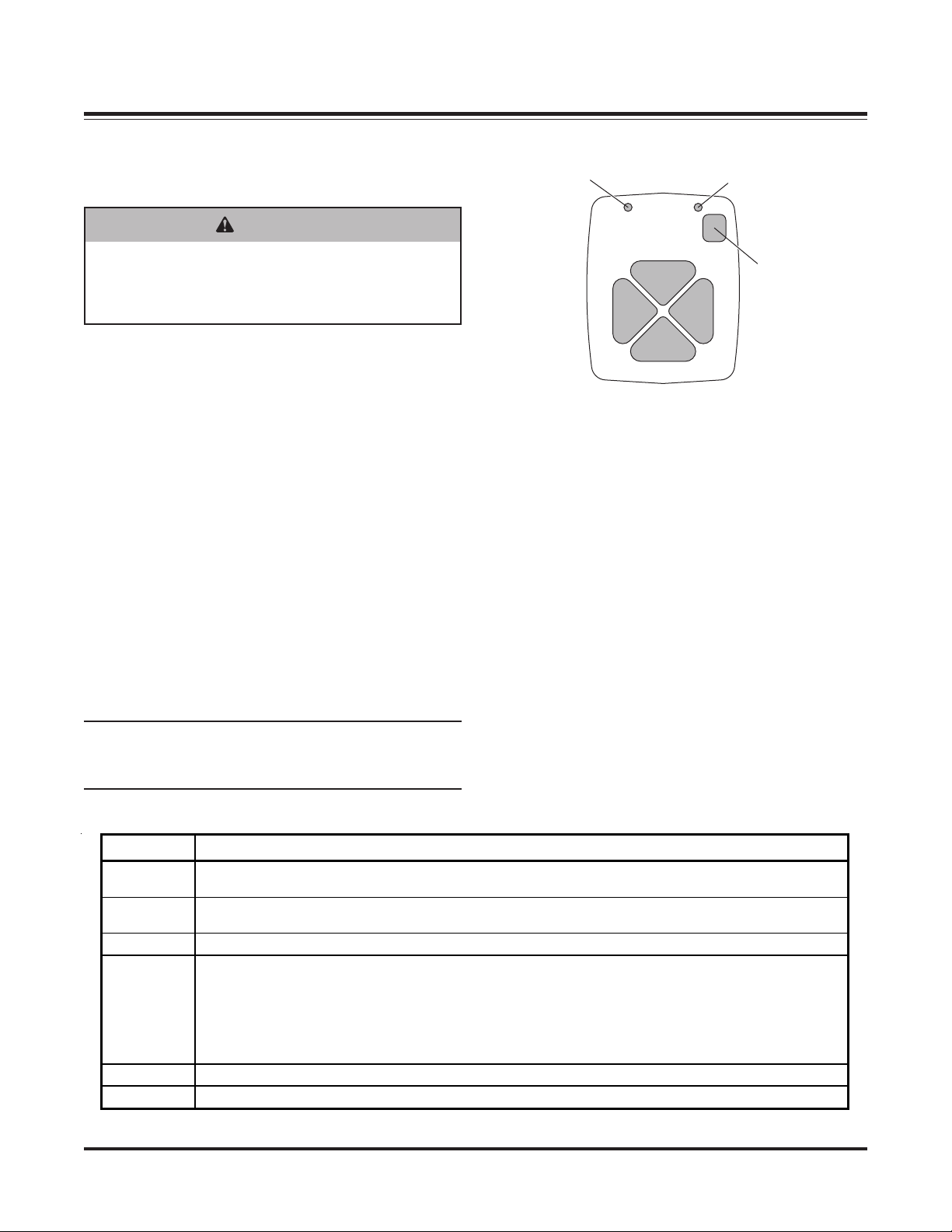

Joystick Solenoid Control ..................................... 6
Hand-Held Control ............................................... 7
Snowplow Headlamp Check ................................ 8
While Plowing ........................................................... 9
Transporting Snowplow ........................................ 9
Driving and Plowing on Snow and Ice .................. 9
Plowing Snow ....................................................... 9
Parking with Snowplow Attached ........................ 10
Towing Disabled or Stuck Vehicles ..................... 10
TABLE OF CONTENTS
After Plowing .......................................................... 11
Transporting Snowplow ...................................... 11
Parking with Snowplow Attached ........................ 11
Towing Disabled or Stuck Vehicles ..................... 11
Checking Hydraulic Fluid .................................... 11
Detaching Snowplow .......................................... 12
Miscellaneous ......................................................... 13

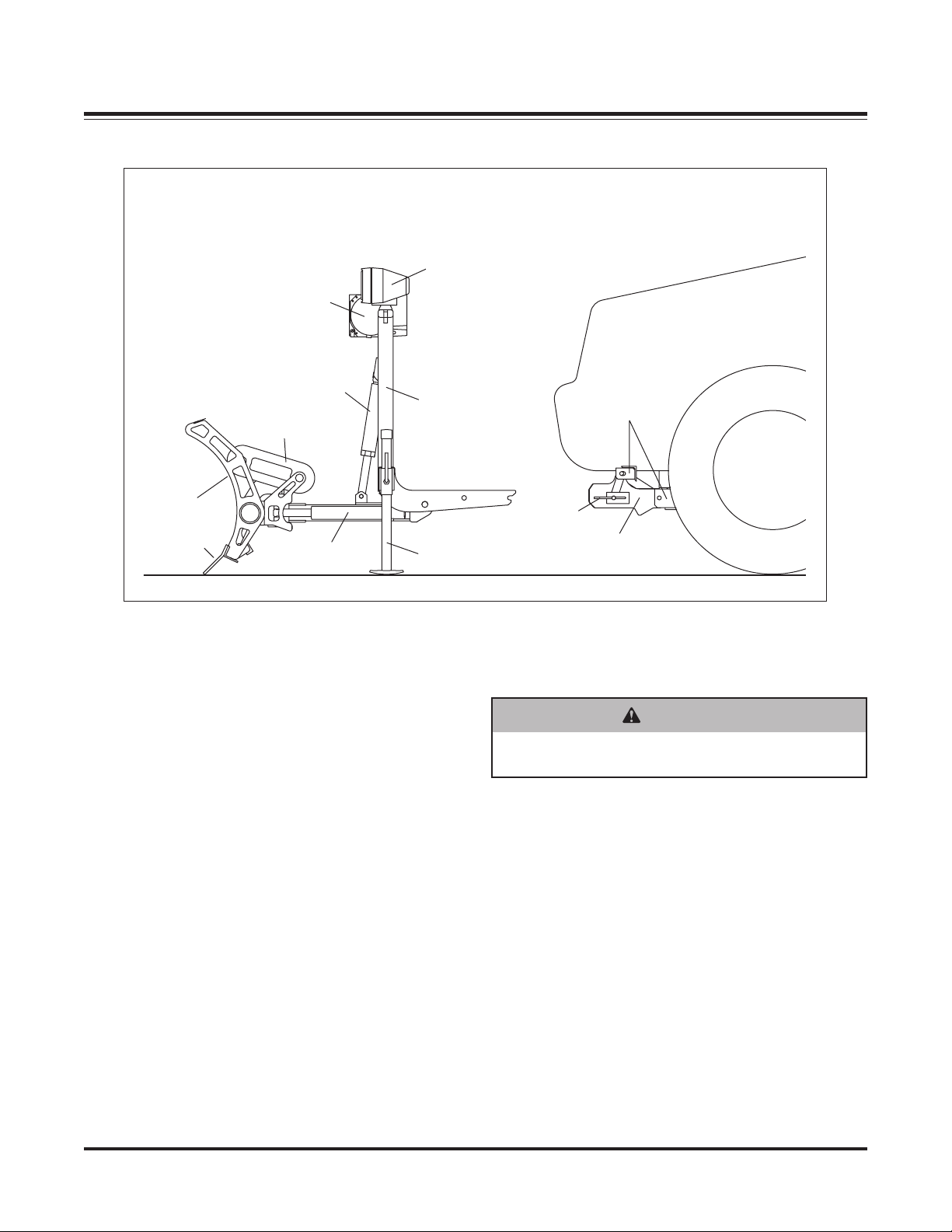

Snowplow Components ...................................... 13
Truck Mount Kit .................................................. 13
Snowplow Headlamps ........................................ 13
Aiming Headlamp Beams ................................... 14
Hydraulic Unit ..................................................... 15
Controls ............................................................. 15
Preseason Check ............................................... 16
Postseason Maintenance ................................... 16
Maintenance and Adjustment ............................. 16
Lifting ................................................................. 16
Hydraulic System ............................................... 17
Vehicle ............................................................... 19
Recycle .............................................................. 19
Emergency Parts / Tools .................................... 19
Troubleshooting Guide ....................................... 20

Lit. No. 27567, Rev. 07 November 15, 2007

Lit. No. 27567, Rev. 07 1 November 15, 2007
SAFETY DEFINITIONS
NOTE: Indicates a situation or action that can lead
to damage to your snowplow and vehicle or other
property. Other useful information can also be
described.
WARNING/CAUTION AND INSTRUCTION
LABELS
Become familiar with and inform users about the
warning and instruction labels on the back of the blade.
NOTE: If labels are missing or cannot be read, see
your sales outlet.
Instruction Label
Warning/Caution Label
BEFORE PLOWING
U.S. Patents 4,999,935; 5,420,480; 6,253,470; 6,941,685; RE 35,700; CAN Patent 2,060,425; and other patents pending.
Read Owner's Manual for Complete Instructions
4. Loosen one jack handle and
slide jack sleeve down below
jack retainer. Remove jack and
retighten jack handle. Repeat
for other jack and store them.
5. Connect all electrical cables from
vehicle to snowplow.

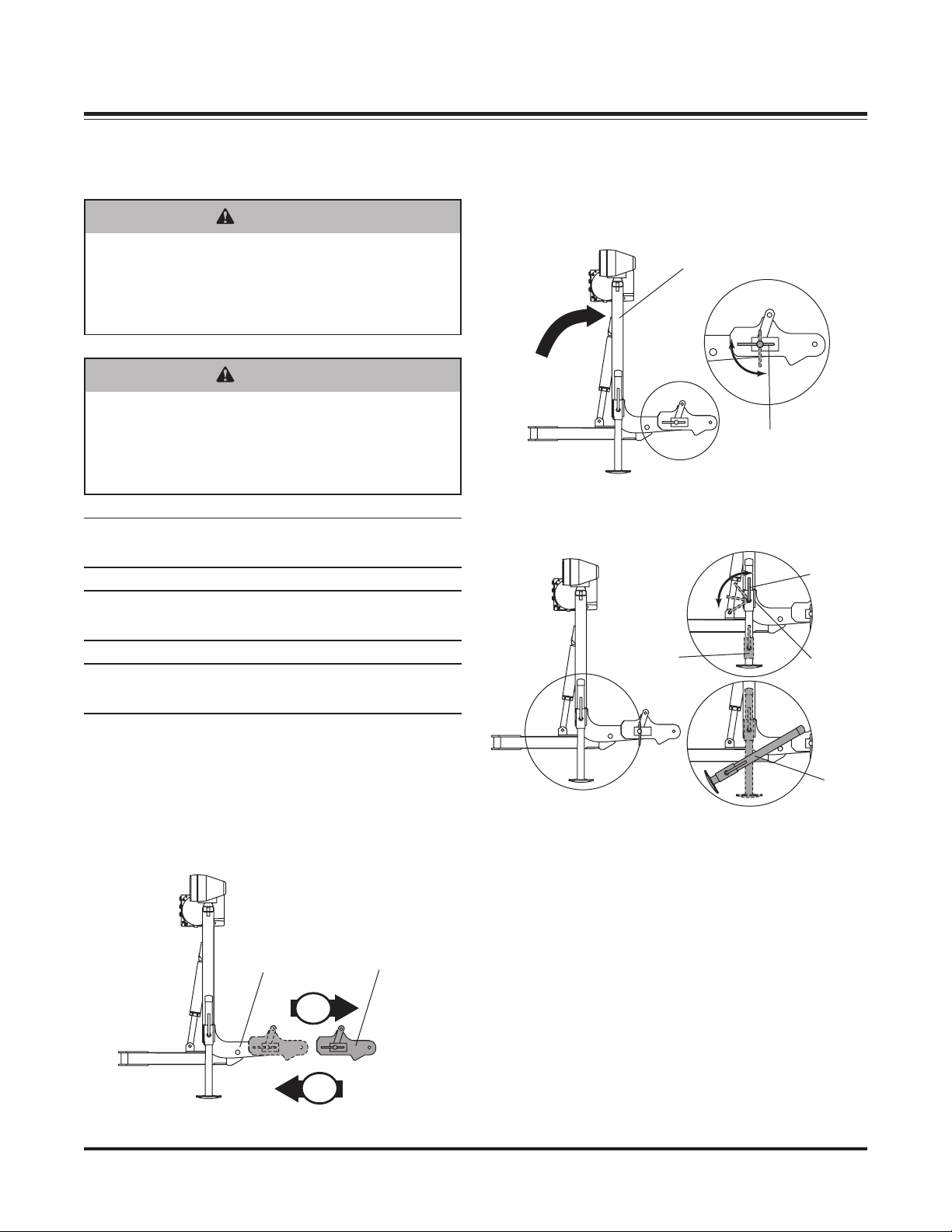

1. Make certain both connecting
pins are fully retracted.
2. Drive vehicle slowly to completely
insert attachment arms into
receiver assembly slots.
3. Twist both connecting pins to
release spring tension, then
push plow gear toward vehicle
so connecting pins fully
engage holes in attachment
arms.
ATTACH
INSTRUCTIONS
3. While pushing plow gear toward
vehicle to release connecting pin
tension, pull connecting pin out
on one side and twist pin handle to
keep pin retracted. Repeat
procedure for other connecting
pin.
4. Disconnect all electrical cables.
DETACH
INSTRUCTIONS
1. Put blade on ground using LOWER/
FLOAT on snowplow control. Leave
control ON and in FLOAT.
2. Attach jacks. Loosen jack handle,
put jack on ground, and raise jack
sleeve until fully engaging jack
retainer. Tighten jack handle.
Repeat for other jack.
5. Back vehicle away from
snowplow.
6. See Owner's Manual for proper
snowplow storage.
27155
This snowplow is for personal/homeowner use only.
This snowplow is for personal/homeowner use only.
This snowplow is for personal/homeowner use only.
ON
OFF
Connecting
Pin
Jack
Retainer
Jack
Sleeve
Jack
Jack
Handle
Plow Gear
Receiver
Assembly
Attachment
Arm
WARNING
Indicates a potentially hazardous situation
that, if not avoided, could result in death or
serious personal injury.
CAUTION
Indicates a potentially hazardous situation
that, if not avoided, may result in minor or
moderate injury. It may also be used to alert
against unsafe practices.

Lit. No. 27567, Rev. 07 2 November 15, 2007
SAFETY PRECAUTIONS
Improper installation and operation could cause
personal injury, and/or equipment and property
damage. Read and understand labels and the Owner's
Manual before installing, operating or making
adjustments. PERSONAL SAFETY
• Remove ignition key and put the vehicle in park or in
gear to prevent others from starting the vehicle
during installation or service..
• Wear only snug-fitting clothing while working on
your vehicle or snowplow.
• Do not wear jewelry or a necktie, and secure long
hair.
• Wear safety goggles to protect your eyes from
battery acid, gasoline, dirt and dust.
• Avoid touching hot surfaces such as the engine,
radiator, hoses and exhaust pipes.
• Always have a fire extinguisher rated BC handy, for
flammable liquids and electrical fires.
HYDRAULIC SAFETY
• Always inspect hydraulic components and hoses
before using. Replace any damaged or worn parts
immediately.
• If you suspect a hose leak, DO NOT use your hand
to locate it. Use a piece of cardboard or wood.
FUSES
The FISHER® electrical and hydraulic systems contain
several blade-style automotive fuses. If a problem
should occur and fuse replacement is necessary, the
replacement fuse must be of the same type and
amperage rating as the original. Installing a fuse with a
higher rating can damage the system and could start a
fire. Fuse Replacement, including fuse ratings and
locations, is located in the Maintenance Section of this
Owner's Manual.
BEFORE PLOWING
WARNING
Lower blade when vehicle is parked.
Temperature changes could change hydraulic
pressure, causing the blade to drop
unexpectedly or damaging hydraulic
components. Failure to do this could result in
serious personal injury.
WARNING
Remove blade assembly before placing vehicle
on hoist.
WARNING
Do not exceed GVWR or GAWR including the
blade and ballast. The rating label is found on
the driver-side vehicle door cornerpost.
CAUTION
Read Owner's Manual before operating or
servicing snowplow.
CAUTION
Plowing speed should not exceed 10 mph.
CAUTION
See your sales outlet for application
recommendations.
CAUTION
Transport speed should not exceed 45 mph.
Further reduce speed under adverse travel
conditions.
WARNING
Hydraulic fluid under pressure can cause skin
injection injury. If you are injured by hydraulic
fluid, get medical attention immediately.
WARNING
To prevent accidental movement of the blade,
always turn the ON/OFF switch to OFF
whenever the snowplow is not in use. The
control indicator light will turn off.

Lit. No. 27567, Rev. 07 3 November 15, 2007
BEFORE PLOWING
CAUTION
Batteries normally produce explosive gases
which can cause personal injury. Therefore, do
not allow flames, sparks or lit tobacco to come
near the battery. When charging or working
near a battery, always cover your face and
protect your eyes, and also provide ventilation.
Batteries contain sulfuric acid which burns
skin, eyes and clothing.
Disconnect the battery before removing or
replacing any electrical components.
FIRE AND EXPLOSION
Be careful when using gasoline. Do not use gasoline to
clean parts. Store only in approved containers away
from sources of heat or flame.
VENTILATION
WARNING
Gasoline is highly flammable and gasoline
vapor is explosive. Never smoke while working
on vehicle. Keep all open flames away from
gasoline tank and lines. Wipe up any spilled
gasoline immediately.
WARNING
Vehicle exhaust contains lethal fumes.
Breathing these fumes, even in low
concentrations, can cause death. Never
operate a vehicle in an enclosed area without
venting exhaust to the outside.
BATTERY SAFETY
NOISE
Airborne noise emission during use is below 70 dB(A)
for the snowplow operator.

Lit. No. 27567, Rev. 07 4 November 15, 2007
BEFORE PLOWING
ATTACHING SNOWPLOW
NOTE: The blade must be in the straight position
when attaching or detaching the snowplow.
NOTE: Use dielectric grease to prevent corrosion
on all connections.
WARNING
Inspect snowplow components and fasteners
for wear or damage whenever attaching or
detaching the snowplow. Worn or damaged
components could allow the snowplow to drop
unexpectedly.
Attaching Steps:
1. Make certain both connecting pins are fully
retracted.
2. Drive vehicle slowly to completely insert
attachment arms into receiver assembly slots.
NOTE: Use lubricant on connecting pins to ensure
ease of attach/detach.
Jack
Retainer
Jack
Sleeve
Jack
Jack
Handle
Connecting
Pin
Plow Gear
ON
OFF
Receiver
Assembly
Attachment
Arm
3. Twist both connecting pins to release spring
tension, then push plow gear toward vehicle so
connecting pins fully engage holes in attachment
arms.
4. Loosen one jack handle and slide jack sleeve down
below jack retainer. Remove jack and retighten
handle. Repeat for other jack and store them.
5. Connect all electrical cables from vehicle to
snowplow.
WARNING
Keep 8' clear of the blade drop zone when it is
being raised, lowered or angled. Do not stand
between the vehicle and blade or directly in
front of blade. If the blade hits you or drops on
you, you could be seriously injured.
