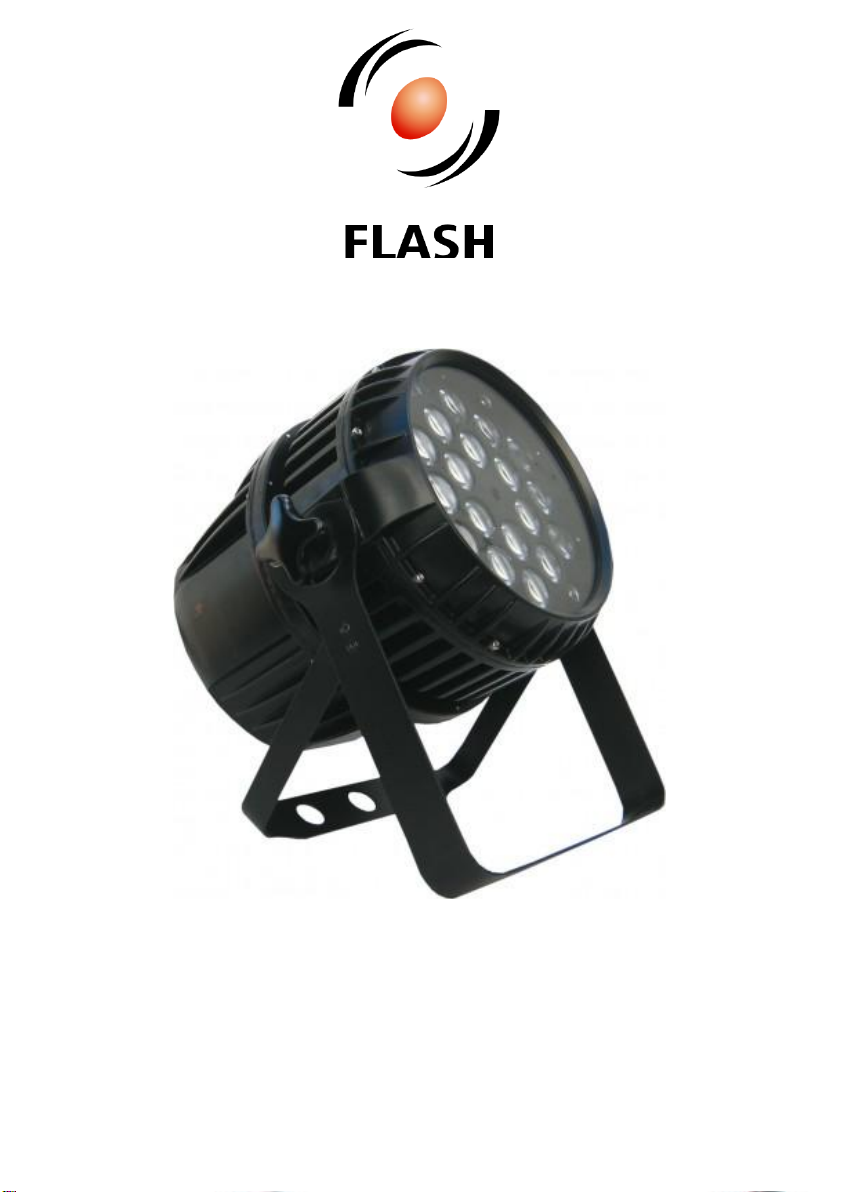

Flash LED PAR 64 18x10W RGBW 4in1 IP65 OUTDOOR User manual

USER MANUAL / INSTRUKCJA OBSŁUGI
LED PAR 64 18x10W RGBW 4in1 IP65
OUTDOOR
F7100249

LED PAR 64 18x10W RGBW 4in1 IP65 OUTDOOR F7100249
www.flash-butrym.pl
1
Table of contents
1Introduction......................................................................................................................................................2
2Safety information ...........................................................................................................................................2
2.1 Specification................................................................................................................................................2
3Installation........................................................................................................................................................3
4Connections......................................................................................................................................................3
4.1 Connecting DMX signal.............................................................................................................................3
4.2 Voltage specification.................................................................................................................................. 3
4.3 Connecting power supply........................................................................................................................3
5Operation manual............................................................................................................................................3
5.1 Control panel ..............................................................................................................................................3
5.2 Menu............................................................................................................................................................4
5.3 DMX channel list ........................................................................................................................................4

www.flash-butrym.pl
2
1INTRODUCTION
Thank you for purchasing LED PAR 64 18x10W RGBW 4in1 IP65 OUTDOOR. For safety reasons and to
ensure the trouble-free operation, carefully read the instructions.
2SAFETY INFORMATION
1. Installation should be done by qualified personnel in order to minimize the risk of
accidental electric shock
2. Disconnect the power supply before installation.
3. Before connecting the unit to the mains, make sure it is not damaged mechanically. If you
notice any signs of damage you should contact your dealer immediately. Do not connect
the device to the mains.
4. Do not use the device in high humidity conditions and at temperatures above 40° C
5. The device must be installed on stable structures
2.1 Specification
Power consumption: 256W
Power supply voltage: 95 - 240V
Voltage frequency: 50/60Hz
Diode type: 4in1
Number of diodes: 18
Diode power: 10W
Display: LED - 4 characters
Color: RGBW
Dimming: Linear: 0 - 100%
Number of DMX channels: 4/8
DMX standard: DMX 512
Control interface: 4 buttons
Operating modes: DMX, Master/Slave, Sound control, Auto mode
AC IN: dedicated IP65 power plug (Unischuko adapter included)
AC OUT: dedicated IP65 power plug
DMX IN: XLR - dedicated IP65 DMX plug (3-pin XLR adapter included)
DMX OUT: dedicated IP65 DMX plug
IP Rating: IP65
Housing made: Aluminium
Cooling: Passive
Height [cm]: 33
Width [cm]: 34
Depth [cm]: 24
Weight [kg]: 6,8
Weight with packaging [kg]: 10
Set includes: dedicated IP65 power plug to Unischuko adapter, dedicated IP65 DMX plug to
3-pin XLR (male) adapter

LED PAR 64 18x10W RGBW 4in1 IP65 OUTDOOR F7100249
www.flash-butrym.pl
3
3INSTALLATION
After removing the packaging, check if the device was not damaged during transport. Before connecting to
the mains, make sure that the device is securely mounted. The manufacturer is not responsible for damage
caused by unstable mounting.
Ensure proper connection to the mains and proper grounding. Make sure that the electrical parameters are
consistent with device requirements. All activities, including connecting the device to the mains must be
performed by qualified personnel.
4CONNECTIONS
The device is equipped with the following interfaces:
1. DMX (in/out): XLR 3-pin
2. Power (in/out): integrated power cord/dedicated IP65 plug
4.1 Connecting DMX signal
The connection is performed using cable with XLR-female -> XLR-Male plugs.
4.2 Voltage specification
Input Voltage
Total Power
Frequency
95~240V
160W
50/60Hz
4.3 Connecting power supply
The connection is performed using integrated power cord (included).
The device must be operated by qualified personnel. Make sure that the power grid supply parameters are
consistent with device parameters and limitations are not exceeded.
CAUTION! In the case of cable damage do not attempt to repair. Replacement or repair can be made only
on the manufacturer or by a person with appropriate permissions.
5OPERATION MANUAL
5.1 Control panel
The control panel is equipped with LED - 4 characters display and 4 control buttons with the following
functions:
1. MENU –enter to main menu, go back from the selected options, cancel changes
2. DOWN –choose option, edit parameter
3. UP –choose option, edit parameter
4. ENTER edit selected option, confirm changes

www.flash-butrym.pl
4
5.2 Menu
Menu diagram:
d001-A512
set DMX address
CHnd
4 or 8CH mode select
Auxx
Au01 –Au8
St00
Strobe slow to Fast
SP00- SP16
Au9 –Au10
R000-R255
Red dimmer
G000-G000
Green dimmer
B000-B255
Blue dimmer
W000-W000
White dimmer
5.3 DMX channel list
8CH mode
Channel
Function
Effect
CH 1
Dimmer
0-255: 0-100%
CH 2
Red
0-255: 0-100%
CH 3
Green
0-255: 0-100%
CH 4
Blue
0-255: 0-100%
CH 5
White
0-255: 0-100%
CH 6
Strobe
0-3: No function
4-255: Strobe slow to fast
CH 7
Macro channel
0-3: No function
4-127: Fixed color
128-169: Auto run1
170-210: Auto run2
211-229: Sound1
230-255: Sound2
CH 8
Macro Speed
0-255: Slow to Fast
4CH mode
Channel
Function
Effect
CH 1
Red
0-255: 0-100%
CH 2
Green
0-255: 0-100%
CH 3
Blue
0-255: 0-100%
CH 4
White
0-255: 0-100%
