Fleetwood LI-Cocktail User manual

UG0002- JUL./2009
Instruction Manual
PROFESSIONAL BLENDER
Model
LI-Cocktail
LI-Cocktail
ONE YEAR LIMITED WARRANTY
The original registered owner of this product
should contact SKYFOOD EQUIPMENT LLC at 305-868-1603 for any
warranty problems or service. SKYFOOD EQUIPMENT LLC will repair
or replace parts at our option for period of one year if unit fails to perform due
to defects in material or workmanship. Freight if required is at owner's
expense. Warranty does not include misuse or damage due to abuse as
determined by SKYFOOD EQUIPMENT LLC inspection. Units that are
70 lbs., or less are considered carry in and should be taken to an authorized
service facility.
Please read all safety instructions.
SERIAL #______________MODEL_______________
DETACH AND KEEP TOP PORTION
-------------------------------------------------------------------------------------
LIMITED WARRANTY REGISTRATION
OWNERS NAME
BUSINESS
ADDRESS
MODEL # SERIAL #
PURCHASED FROM
FILL OUT ABOVE INFORMATION AND MAIL OR FAX TO
SKYFOOD EQUIPMENT LLC:
Office: PO BOX 416702, Miami Beach, FL 33141-3230 –
Phone: [phone]– Fax: [phone]
Sales & Warehouse: 71 Bloomfield Ave, Newark, NJ 07104 –
Phone: [phone] – Fax: [phone]
–
TOLL FREE 800 445 6601
[email protected] www.skyfood.us

1.2 Main Components
1. Introduction
01
1.1 Safety
01
02
2. Installation and Pre-Operation
2.1 Installation
02
02
4. General Safety Rules
4.1 Basic Operation Practices
4.4 Operation
4.2 Cautions to Observe before turning the machine on
4.5 After finishing the work
4.3 Routine Inspection
4.6 Maintenance
4.7 Warnings
04
05
05
06
06
07
07
07
5. Problems Analysis and Resolutions
5.1 Problems, Causes and Solutions
07
5.2 Electric Diagram Model LI-0,5 (110V/220V)
08
07
3. Operation
3.1 Starting
3.2 Feeding Procedures
03
03
04
SUMMARY
2.2 What to do and what not to do with your Professional Blender
03
3.3 Cleaning
04
1.3 Technical Characteristics
02

01
1. INTRODUCTION
1.1 Safety
When using this equipment, keep in mind some basic safety
precautions:
1.1.1 Read all the instructions.
1.1.2 In order to avoid the risk of electric shocks and damage to the
machine, never install equipment on a wet or humid surface nor dip it in water
or any other liquid.
1.1.3 The use of the equipment must be supervised when used next
to children.
1.1.4 Before cleaning and when not in use or before to insert or
remove accessories, disconnect the machine from power source.
1.1.5 Avoid the contact with moving parts of the machine.
1.1.6 Do not use the equipment if cord or plug are damaged. Do not
use the equipment if it is not working properly. In case that happens, take the
equipment to Technical Assistance Service.
1.1.7 The use of not original spare parts may cause personal hurt.
1.1.8 Keep your hands or any tool out of the machine while operating
to avoid personal hurt or any damage to the equipment. If it would be
necessary to make a mixture, turn it off, unplug and use a rubber spatula.
1.1.9 The blades are very sharp. Handle with care.
1.1.10 When working hot liquids, remove the transparent cover from
the cup lid and keep your hands away from it, avoiding possible burns.
1.1.11 Do not use this machine on the open air.
1.1.12 Do not leave the cord hanging out from the table or counter or
lying on hot surfaces
1.1.13 Do not leave unattended while operating.
1.1.14 Before cleaning or maintenance disconnect machine from
power source.
1.1.15 Never use tools not belonging to machine to help operation.
1.1.16 Never throw water or other liquid substances directly to the
machine.
1.1.17 Never connect power source with wet feet or wet clothes.
ON/OFF Switch
Motor
110 ou 220
Volts

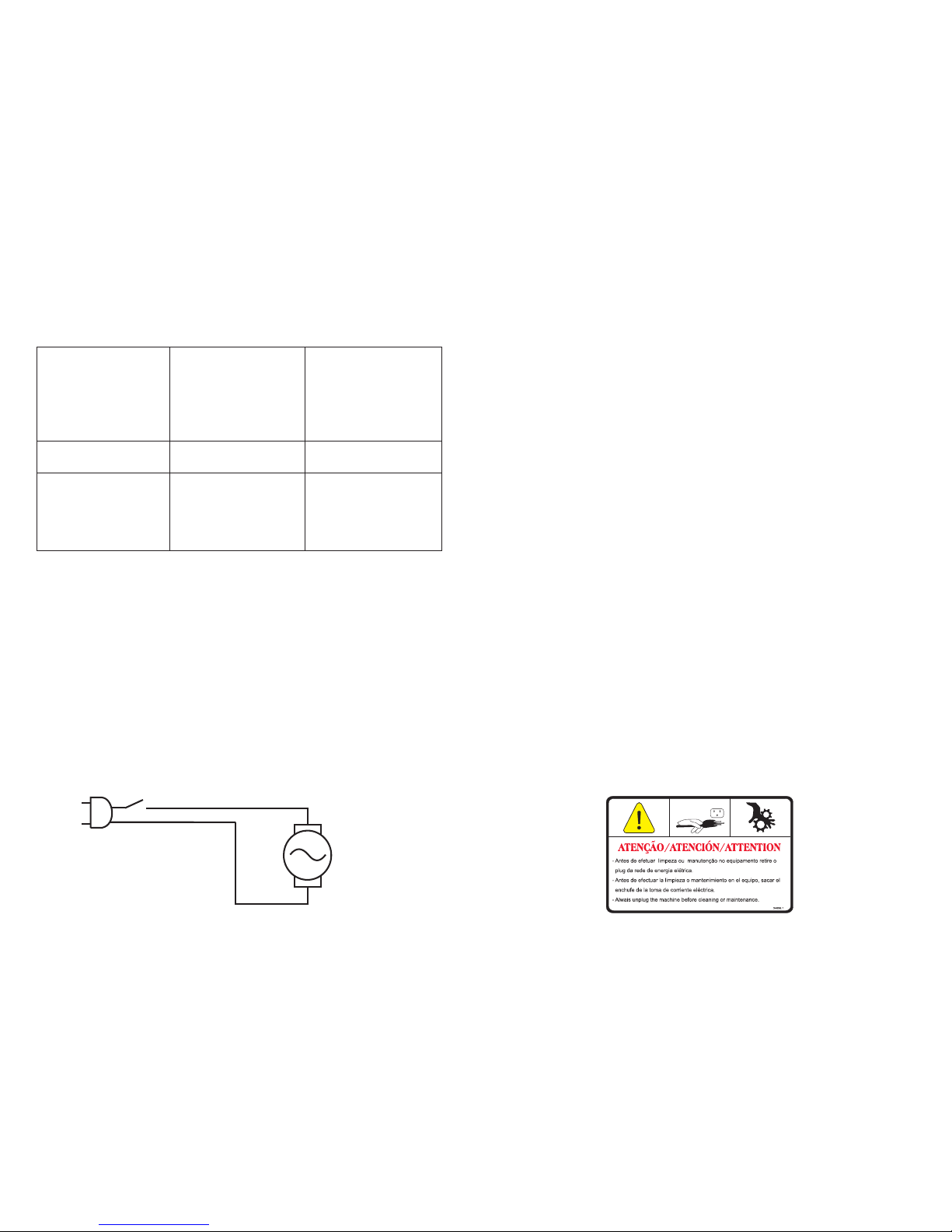

5.2- Electric Diagram Model LI-0,5 (110V/220V)
PROBLEMS CAUSES SOLUTIONS
Machine does not turn
ON
Electricity shortage or
machine is unplugged
Problem in the machine
electrical circuit internal
or external
Check if plug is connect
to power source
Call Technical
Assistance
Cup leakage Problem with the seal Call Technical
Assistance
The product does not
grind
Product is too big for
blades size.
Knife blades are blunt.
Cut the product into
smaller pieces –
approximately 2,0cm
Call Technical
Assistance
Tabela-02
08

02
07
4.5 After Finishing The Work
4.5.1 Precautions
Always TURN THE MACHINE OFF by removing the plug from the socket
before cleaning the machine. Never clean the machine unless it has come to a
complete stop. Put all components back to their functional positions before turning
it ON again. Check level of oil. DO NOT place your fingers in between belts and
pulleys nor chains and gears.
4.6 Maintenance
4.6.1 Danger
Any maintenance with the machine in working situation is dangerous.
TURN IT OFF BY PULLING THE PLUG OFF THE SOCKET DURING
MAINTENANCE.
IMPORTANT
Always unplug the machine when emergency cases arise.
4.7 Advice
Electrical or mechanical maintenance must be done by qualified personal
for such operation.
Person in charge has to be sure that the machine is under TOTAL SAFETY
conditions when working.
5 - Problems analysis and solutions
5.1 causes and solutions
The LI-0,5 Professional Blender was designed to need very little
maintenance. However, some irregularities may occur due to the natural wearing.
If you face any kind of problem with your equipment, please refer to the
chart -02 where you will find some possible recommended solutions.
02
01
PIC.01
03
04

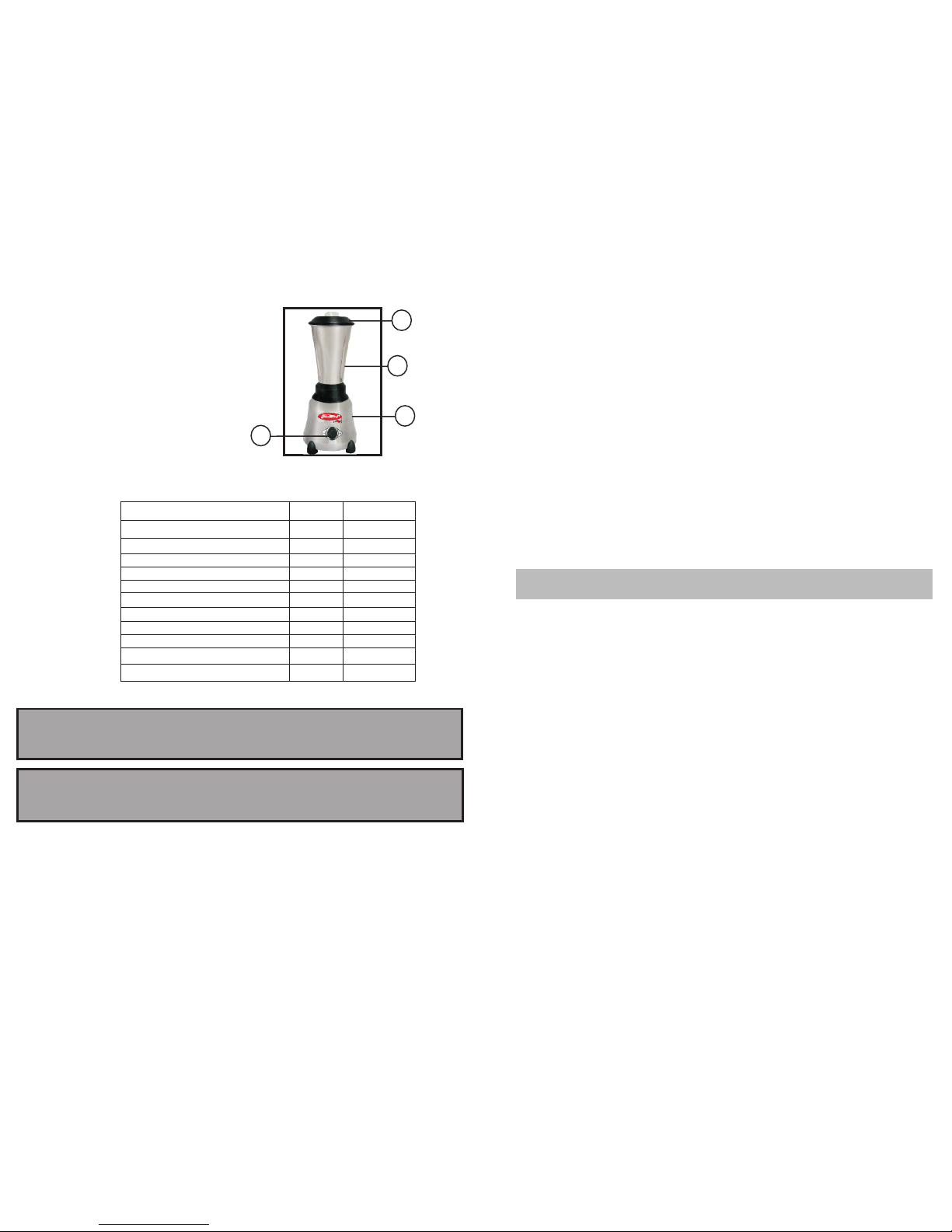

1.2 Main Components
01- Motor Housing
02- Cup
03- Lid
04- ON/OFF/PULSE
Switch
*Motor voltage shall be only one.
IMPORTANT
** The maximum capacity permitted is 0,5 (half liter) although the cup
volume is bigger. Such bigger volume is to avoid overflow.
IMPORTANT
Metalúrgica Siemsen is not responsible for any damage caused
when using not original spare parts.
2. INSTALLATION and PRE-OPERATION
2.1 Installation
The blender must be installed on a leveled surface with a
recommended height of 850mm. The voltage of the unit must be the same
as the power source, check the label of the cord.
1.3 Technical Characteristics
TABLE – 01
DATE U.M.
LI-Cocktail
110 ou 220 *
50 ou 60 *
250
315
157
157
2,3
Voltage
Frequency
Rating
Height
Width
Depth
Net Weight
Gross Weight
[V]
[Hz]
[W]
[mm]
[mm]
[mm]
[kg]
[kg] 2,6
Cup Maximum Capacity
Rotation
[L]
[ rpm]
0,5 (**)
23000
0,25
Consumption [kW/h]

03
06
4.2.1 Danger
An electric cable or electric wire with damaged jacket or bad insulation
could cause electrical shocks as well as electrical leak. Before use, check conditions of
all wires and cables.
4.2.2 Advices
Be sure ALL INSTRUCTIONS in this manual have been thoroughly
understood. Every function and operational procedure have to be very clear to the
operator. Contact your nearest Dealer for further questions.
Any manual command (switch, button or lever) shall be given only
after being sure it is the correct one.
4.2.3 Precautions
The electric cable has to be compatible with the power required by the
machine. Cables touching the floor or close to the machine need to be protected
against short circuits.
Oil reservoir has to be full up to the required level as indicated. Check
4.3 Routine Inspection
4.3.1 Advice
When checking the tension of the belts or chains, DO NOT
introduce your fingers between the belts and the pulleys and nor between the chain
4.3.2 Precautions
Check if motors and sliding or turning parts of the machine produce
abnormal noises.
Check the tension of the belts and chains and replace the set when
belt or chain show signs of being worn out.
When checking tensions of belts or chain DO NOT introduce your
fingers between belts and pulleys, nor between the chains and gears.
Check protections and safety devices to make sure they are working properly.
4.4 Operation
4.4.1 Advice
Be sure your hair is not loose in order to avoid getting caught by turning
parts which could lead to a serious accident. Tie your hair well up and/or cover your
head with a scarf.
The operation performed by not trained or skilled personnel shall be
forbidden.
Never touch turning parts with your hands or in any other way.
NEVER operate machine without all original safety devices under perfect
2.2 What to do and what not to do with your Professional Blender
.
You have to:
2.2.1 – The voltage must be the same as the one specified on the
motor housing of the blender.
2.2.2 – The supporting surface must be clean and dry to avoid
strange substances or water within the motor.
2.2.3 – Put liquid ingredients inside the cup first, then put the solid
ingredients, unless the receipt tells you otherwise.
2.3.4 – Cut all fruits, vegetables, meat, fish and any other hard
ingredient in pieces of up to 2 cm. Cut cheese in pieces of up to 1,5 cm.
2.2.5 – Use a rubber spatula to push ingredients inside liquids
ONLY with the machine turned off.
2.2.6 – Place the lid firmly to the cup before turning the machine on
and keep your hand over the lid while machine is operating.
2.2.7 Remove sauces, butter, mayonnaise and similar consistent
products taking the cup off and pushing the product through the cup
lower open side.
You should not:
… expect your blender to replace any other kitchen appliance. It is not
supposed to make mashed potatoes, it does not blend egg white or any
other cream for covering, it does not grind raw meat, it does not blend
dough and not extract pulp from fruits and vegetables.
… process the mixtures for too long. Remember that the blender works in
seconds and not in minutes. Therefore, never let your blender working for
more than one minute. It is better to turn it off and check the mixture
consistency after a few seconds to avoid too much blending, then run the
motor again using the pulse function .
… overload the motor with too big or heavy portions as it will make the
blender´s life shorter. If motor stops, turn it off immediately, unplug and
remove part of the load before start operating again.
3 - OPERATION
3,1 – To start machine
Start machine by turning ON/OFF PULSE Switch No. 04 (Pic. 01) to
position ON, the Switch is located on the motor housing. Nº 01 (Pic. 01)

04
05
4.1.2 Warnings
The operator has to be well familiar with the position of ON/OFF
Switch to make sure the Switch is easy to be reached when necessary. Before any
kind of maintenance, physically remove plug from the socket.
Provide space for a comfortable operation thus avoiding accidents.
Water or oil spilled on the floor will turn it slippery and dangerous.
Make sure the floor is clean and dry.
Before giving any manual command (switch, buttons, turn keys or
lever) be sure the command is the correct one. Check this manual for further details if
necessary.
Never use a manual command (switch, buttons, lever) unadvisedly.
If any work is to be made by two or more persons, coordination signs will have to be
given for each operation step. Every step of the operation shall be taken only if the
sign has been made and responded.
4.1.3 Advices
In case of power shortage, immediately turn the machine OFF.
Use recommended or equivalent lubricants, oils or greases.
Avoid mechanical shocks as they may cause failures or malfunction.
Avoid penetration of water, dirt or dust into mechanical or electrical
components of the machine.
DO NOT modify original characteristics of the machine.
DO NOT remove, tear off or maculate any labels stuck on the
machine. If any label has been removed or is no longer legible, contact your nearest
dealer for replacement.
READ CAREFULLY AND WITH ATTENTION THE SAFETY OR
OPERATION INSTRUCTIONS LABELS DISPLAYED ON THE MACHINE, AS WELL
AS THE INSTRUCTION MANUAL AND THE TECHNICAL CHARACTERISTICS
4.1.1 Dangerous parts
Some parts of the electric devices are connected to high voltage
points. These parts when touched may cause severe electrical shocks or even be
fatal.
Never touch commands such as buttons, switches and knobs with
wet hands , wet clothes and/or shoes. By not following these instructions operator
4.1 Basic Operation Practices
4.2 Safety Procedures and Notes Before Switching Machine ON
IMPORTANT
Carefully read ALL INSTRUCTIONS of this manual before turning the
machine ON. Be sure to be familiar with the instructions and that you have
well understood all information contained in this manual. If you have any
question contact your supervisor or your nearest Dealer.
IMPORTANT
This equipment is not recommended to process hard mixtures.
Never turn the machine on if it is empty as irreparable damages may occur.
3.2 – Feeding Procedures
The blenders are machines working at high speed (approximately 23.000
rpm).
In order to feed it, proceed as below:
Cut the product in small pieces of approximately 2,0cm. This process helps
in the blending time, specially for frozen products. It is recommended to add a little
water when grinding ice.
Take the lid off Nº 03 (Pic. 01)
Place food product inside the cup Nº 02 (Pic 01) with the machine turned
OFF.
Place the lid back Nº 03 (Pic 01) and start the machine.
3.3 CLEANING
The cup parts are resistant to corrosion, are hygienic and easily cleaned.
Before using them for the first time and after each use, separate them and clean
them with warm water and soap, wipe and dry them well. DO NOT WASH THEM IN
THE DISH WASHER MACHINE.
Revise the parts frequently before assembling them again. If the blades are
jammed or turn badly, DO NOT TURN THE BLENDER ON. Make a revision by
carefully turning the blades into the anti-clock wise direction (the opposite edges
are sharp). The blades must turn easily.
Use only original SIEMSEN spare parts which are available at your
Technical Assistant. The usage of damaged or not recommend spare parts may
cause serious personal hurts or damages to your blender. Never dip the motor
housing in water or any other liquid.
Disconnect the blender and clean the external part with a wet cloth. The
motor has permanent lubrication and does not need additional lubrication. EVERY
MAINTENANCE WORK MUST BE DONE BY SIEMSEN AUTHORIZED
TECHNICALASSISTANT.
4. General Safety Practices
The following safety instructions are addressed to both the operator of the
machine as well as the person in charge of maintenance.
The machine has to be delivered to the operator in perfect conditions of
use by the Distributor to the user. The user shall operate the machine only after being well
acquainted with the safety procedures described in the present manual. READ THIS
MANUAL WITH ATTENTION.
