Fleetwood DB-06 User manual

35928.9-janeiro/2014
Instructions Manual
Potato Peeler
Model: DB-06

Summary
01 Main Precautions
0 2 Main Components
03 Installation
04 Technical Data
05 Pre Operation
06 Operation
07 Cleaning
08 Electrical Diagram
09 GeneralAdvices
1
1
2
2
3
3
4
4
4

1
NOTICE TO OWNERS AND OPERATORS
The DB-06 potato peelers are designed to peel food products safely and
efficiently. Unless the operator is properly trained and supervised, however,
there is the possibility of a serious injury. It is the responsability of the owner to
assure that this machine is used properly and safely, strictly following the
instructions contained in this Manual and any requirements of local law.
The DB-06 must be used and handled with care.
BEFORE cleaning disconnect machine from power source.
NEVER use tools not belonging to machine to help operation.
NEVER lift lid before being sure abrasive plate No.08 (Picture-01) is
completely still.
The abrasive plate must be perfectly fitted onto central shaft pin No.02
(Picture-02).
BE CAREFUL when handling the abrasive plate, it is heavy and may hurt if
dropped.
DO NOT put your hands inside machine during operation.
NEVER connect power source with wet hands nor wet clothes.
NEVER spray water or other liquid substances directly at motor, power switch or
any other electrical components.
ALWAYS install equipment in working area with adequate light and space away
from children and visitors.
NEVER operate without all warning labels attached and owner/operator manual
available to operator.
NEVER leave unattended while operating.
ALWAYS ground machine properly.
DO NOT process frozen foods or other products other than potatoes and
carrots.
2 Main Components
1 Main Precautions
Picture - 01
01 - Niple - Water Inlet.
02 - Door Base.
03 - Switch ON/OFF.
04 - Base.
05 - Lid.
06 - Bolt.
07 - Abrasive Disc.
08 - Door.
09 - Outlet Waste.
Abrasive Disc
07
01
02
03
04
05
06
08
09

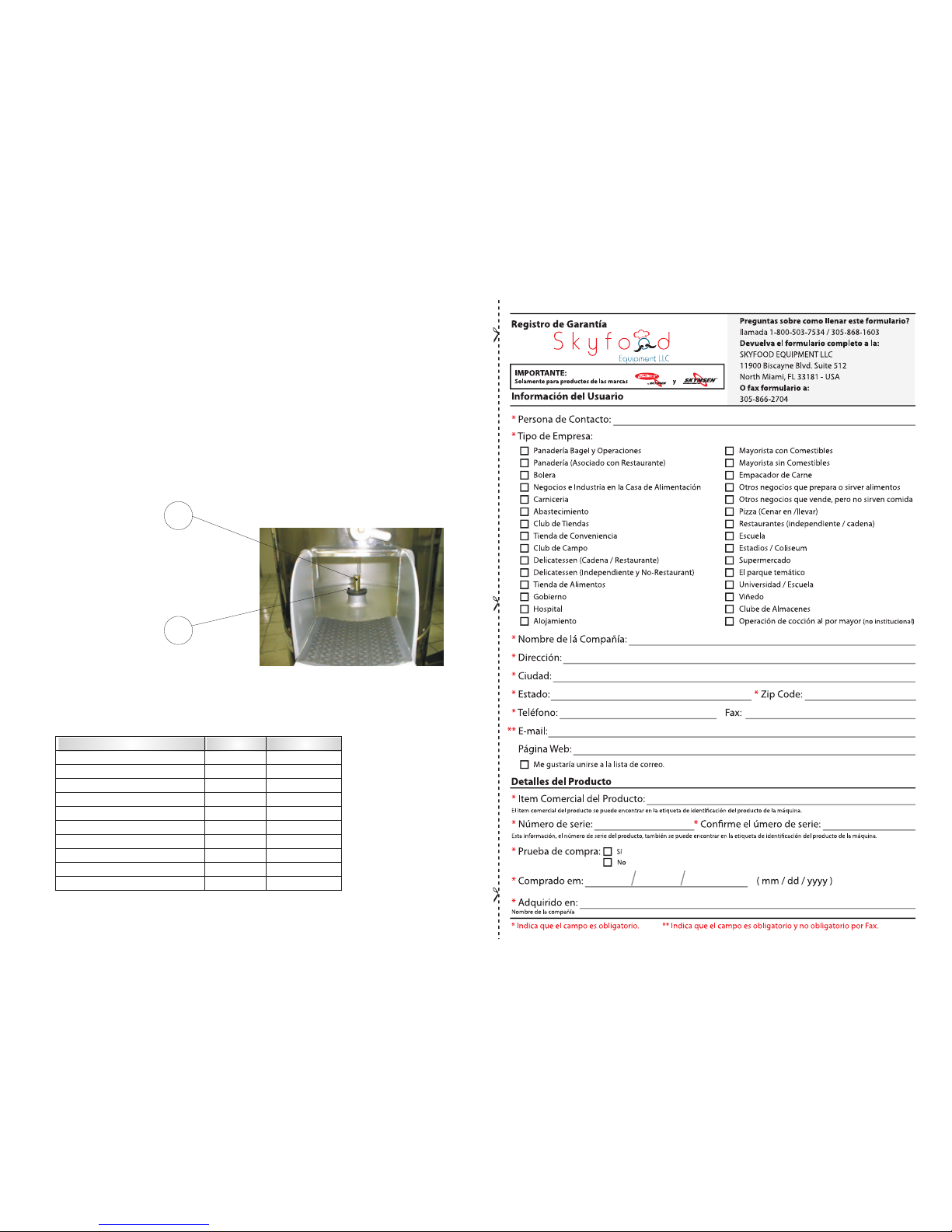

Picture - 02
2
01 - Central Shaft.
02 - Central Shaft Pin.
01
02
4 Technical Data
Table - 01
110 / 220 (*)
50 or 60
535
340
440
14,0
16,0
100
0,25
0,20
[V]
[Hz]
[Hp]
[kW/h]
[mm]
[mm]
[mm]
[kg]
[kg]
[kg/h]
Voltage
Rating
Frequency
Consumption
Height
Width
Depth
Net Weight
Gross Weight
Average Production
Technical Data Units DB-06
3 Installation
The peeler must be installed on a level, non-skid work surface. During peeling
operation food product must be wet . By means of a 3/4” pipe bring water to feeding
nipple No.01 (picture 01). As an alternative it is possible to place the machine below a
3/4” water faucet and let the water flow in during the operation.
It is recommended to place the machine near by a water sink to allow wastes to flow out.
A drainage pipe may be connected to outlet waste No.10 (picture 01) to flow the wastes
out to the nearest sink.
(*) All machines are wired for the voltage as ordered

3
5 Pre operation
6 Operation
Check voltage of the machine. The voltage must be the same as the power source
voltage.
Grounding wire must always be connected.
Check if the machine is firm in its position. Be sure the water inlet pipe and the
drainage pipe are installed properly as indicated below (picture 03):
IMPORTANT: BE SURE THE ABRASIVE PLATE IS FIRMLY FITTED ONTO
CENTRAL SHAFT PIN.
First of all check if the lid No. 06 (picture 01) is duly fitted on the top of the
machine. To start machine turn toggle switch No. 03 (picture 01) to ON position. Let
water flow into the chamber and load it with food product. Water shall then flow out
through the waste outlet. Each load shall not exceed 10 Kg in the EL-10 and 06 kg in the
DB-06. The peeling time is from 3 to 5 minutes it depends on the hardness of the food
product, its size and irregularity.
Check if products are peeled looking through the opening of the top lid. To
remove peeled product from inside the chamber close faucet, place a container under
the discharge door No. 09 (picture 01) and open it, so that the peeled potatoes are
discharged from the chamber under the action of centrifugal force applied by the peeling
disc.
IMPORTANT - UNDER NO CIRCUMSTANCES PUT YOUR HANDS ON THE
ABRASIVE PLATE DURING OPERATION OR TRY TO DISCHARGE PEELED
Picture - 03
W a t e r I n l e t b y
means of a 3/4"
pipe.
Connect a drainage
p i p e t o f l o w t h e
wastes.
Niple
Outlet Waste
Feeding Opening
SKYFO OD sea para l a Compañía de Servicio. Distancia o tiempo de viaje NO serán
pagados. SKYFOOD ofrece una garantía limitada en sito para productos que estén
solamente en instalaciones comerciales con peso neto supe rior a setenta (70 ) libras,
siempre que estén instalados en una dirección dentro de un rayo de treinta (30) millas de
una Compañía de Servicio. Usuarios finales son responsables por todos los costos
extra de viaje y costo por milla. En este caso servicios de garantía serán provenidos
durante las horas de trabajo comerciales.
Este producto sera sustituido o reparado bajo la garantia, por un periodo de un (1)
año desde la fecha de compra por el comprador original/usuario (“Usuario Final”), ó
diez ocho (18) meses a partir de la fecha de envío desde el almacén de SKYFOOD
cual sea la fecha que expire primero.
Accesorios serán remplazados ó reparados bajo la g arantía por u n p eriodo de (30) d ías a
partir de la fecha de compra por el comprador/usuario (“Usuario Final”), ó diez ocho (18)
meses a partir de la fecha de envío d esde el almacén de SKYFOOD cual sea la fecha que
expire primero.
La garantía no será ap licable hasta que un formulario de REGISTRO DE GARANTÍA sea
recibido por SKYFOOD EQUIPMENT, LLC, dentro de treinta (30) días de la feche de la
compra. El REGISTRO DE GARANTÍA sea en el Manual de Instrucción de cada producto
ó en el sito de SKYFOOD: www.skyfood.us. El Usuario Final debe llenar el formulario de
REGISTRO DE GARANTÍA y ma ndarlo para SKYFOOD de acuerdo con las instrucciones
indicadas en el referido sito. Sin el cumplimiento de esta condición la garantía NO será
valida.
La garantía no se extiende para productos de terceros. No existen otras garantías ó
condiciones expresas otras que aquellas ofrecidas por cada fabricante de
productos vendidos por SKYFOOD que no sean bajo la marca FLEETWOOD by
SKYMSEN y S KYMSEN.
Para preguntas ó asistencia, no devuelva el producto ó accesorios para la tienda, por favor
llame a Toll Free 1-800-503-7534, ó visite la sección Servicio al Cliente en
www.skyfood.us. Para un servicio mas rápido tenga disponible el nombre del modelo, el
numero de serie y la prueba de compra para q ue el operador le asista.
SKYFOOD se reserva el derecho de cambiar los términos de la Garantía Limitada a
cualquier momento sin previo aviso. También se reserva el derecho de cambiar el
proyecto y las especificaciones de sus equipos ó cualquier otra documentación a
cualquier momento. El usuario final no tendrá derecho a compensaciones
resultantes de éstos cambios.
Actualización :
Estes Terminos y Condiciones fueran por ultimo actualizadas en 14 de Enero 2014.

4
7 Cleaning
a - Turn OFF the machine and disconnect it from power source.
b - Wait until the abrasive plate is completely still.
c - To lift the abrasive plate out of the cylinder, hold it and pull it up.
d - Wash the machine and the plate with water and neutral soap.
c - To reassemble plate proceed inversely being sure of placing it back on the central
shaft pin correctly.
For a fast cleaning, just turn the machine ON without load and let it work with running
water.

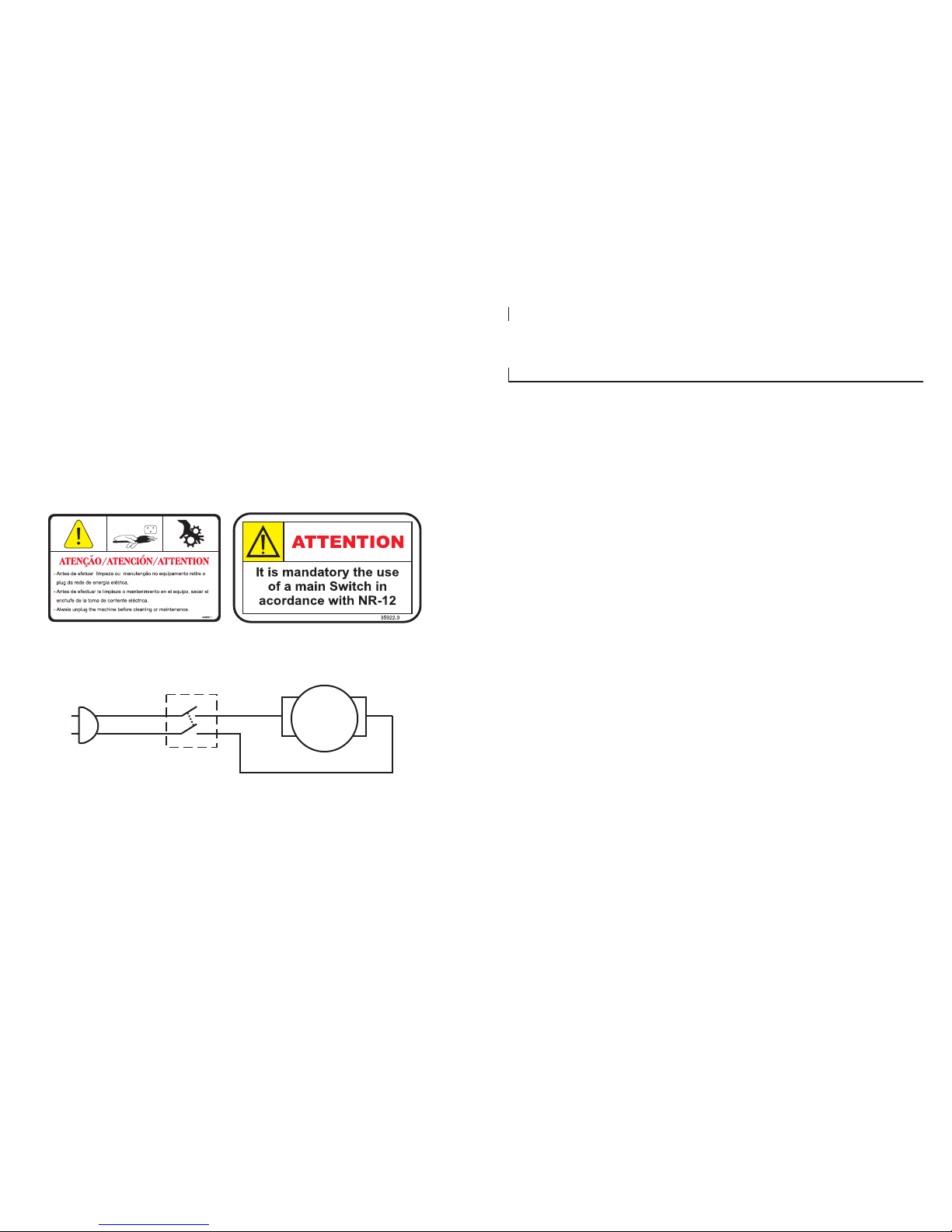

8 Diagram Mod. DB-06Electrical
M
Switch ON/OFF
9 General Advices
ALWAYS turn machine off before cleaning and maintenance.
PROVIDE enough space around machine to avoid breakings.
ALWAYS keep the floor dry. Wet floors may cause slippings.
ALWAYS turn machine off in case of power supply lack.
NEVER let dust or water to get into electrical and mechanical components
of the machine.
DO NOT modify original features of the machine.
DO NOT take out nor tear off any safety or identification label.
