Index
Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Information for these operating instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Copyright. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Safety. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Basic Safety Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Items supplied . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Connection elements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Preparing for assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Required assembly material. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Commissioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Cleaning and Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Appendix. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Service. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Importer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

2
Introduction
FRG 45 A1
GB
IE
Introduction
Information for these operating instructions
These operating instructions are a component of the Round Barbecue FRG 45 A1
(hereafter designated as the barbecue) and they supply you with important
information about the intended use, safety and assembly as well as operation
of the appliance.
These operating instructions must constantly be kept available close to the appliance.
They are to be read and applied by everyone occupied with operating the appliance.
Retain these operating instructions and pass them on, with the appliance, to any
future owner.
Copyright
This documentation is copyright protected.
All reproductions or duplications, also as extracts, as well as representations
of the illustrations, even in an altered state, are only permitted with the written
approval of the manufacturer.
Intended use
This round barbecue is intended exclusively for the preparation of grilled foods.
It is suitable only for use outdoors. This round barbecue is intended for use only
in domestic environments, not for commercial applications. No liability will be
accepted for damage resulting from incorrect or improper usage, the application
of force or unauthorised modifications.
WARNING
Risks from unintended use!
Risks can be engendered if the appliance is used for unintended purposes
and/or other types of use.
Use the appliance exclusively for its intended purposes.►
Observe the procedures described in these operating instructions.►
The manufacturer assumes no responsibility for damage caused by improper use,
inappropriate repairs, making unauthorised changes or for using unapproved
replacement parts.
The user alone bears liability.

3
Safety
FRG 45 A1
GB
IE
Safety
In this chapter you will receive important safety information regarding the handling
of the appliance.
This appliance complies with the statutory safety regulations.
Incorrect usage can lead to personal injury and property damage.
Basic Safety Instructions
WARNING
Warnings about burns!
1. During use, place the grill on a secure, level and firm surface, otherwise it
could tip over.
2. CAUTION! For igniting and reigniting, do NOT use spiritus oder benzine!
Use only ignition aids complying with EN 1860-3. The deflagration could
cause an uncontrollable development of heat.
3. ATTENTION! During use the grill will become very hot and therefore may
not be moved, otherwise it could tip over.
4. ATTENTION! Keep children and pets well away from it!
5. When grilling, wear appropriate grilling gloves and use grilling tongs.
6. NEVER leave a heated up grill unsupervised.
7. Allow the grill to cool down completely before cleaning it..
8. NEVER use water to extinguish the glowing charcoal.
WARNING
Warning in regard to suffocation!!
Use the grill ONLY outdoors!►
Do NOT operate the grill in enclosed spaces or roofed-over areas.►

4

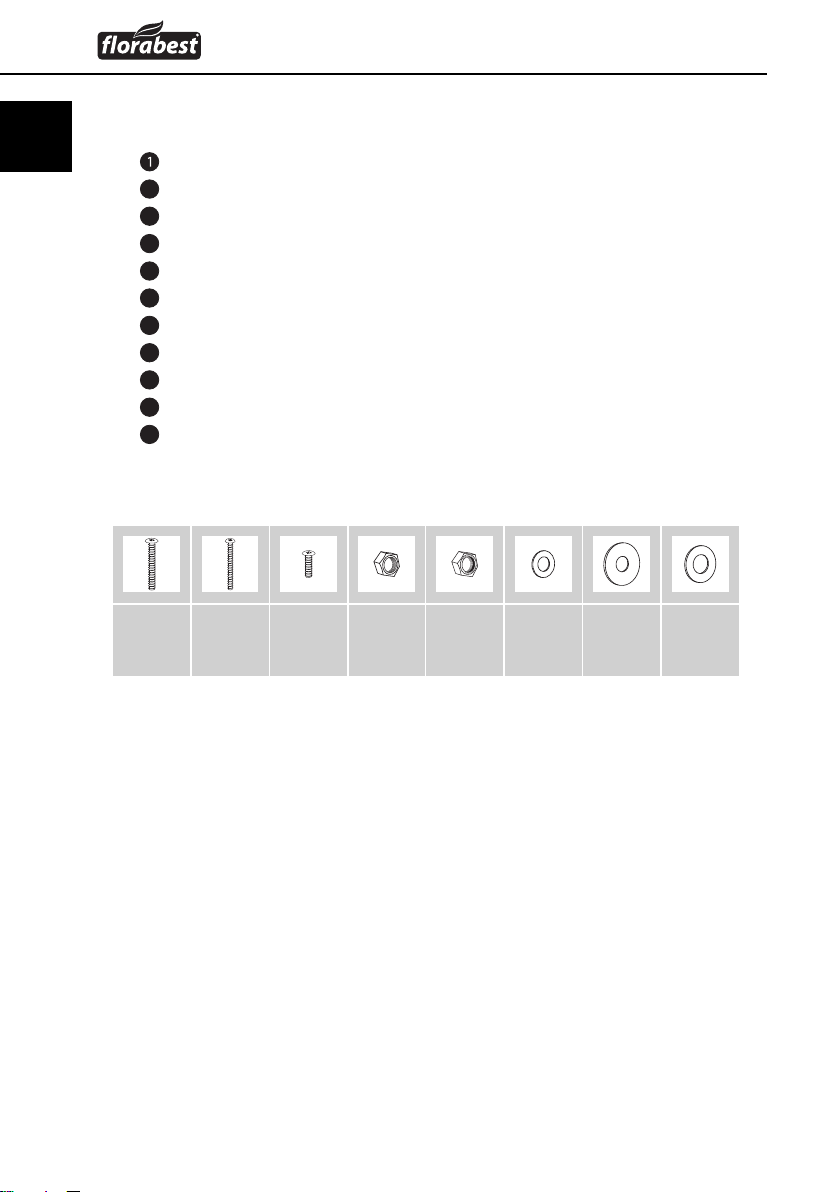

Items supplied/Assembly
FRG 45 A1
GB
IE

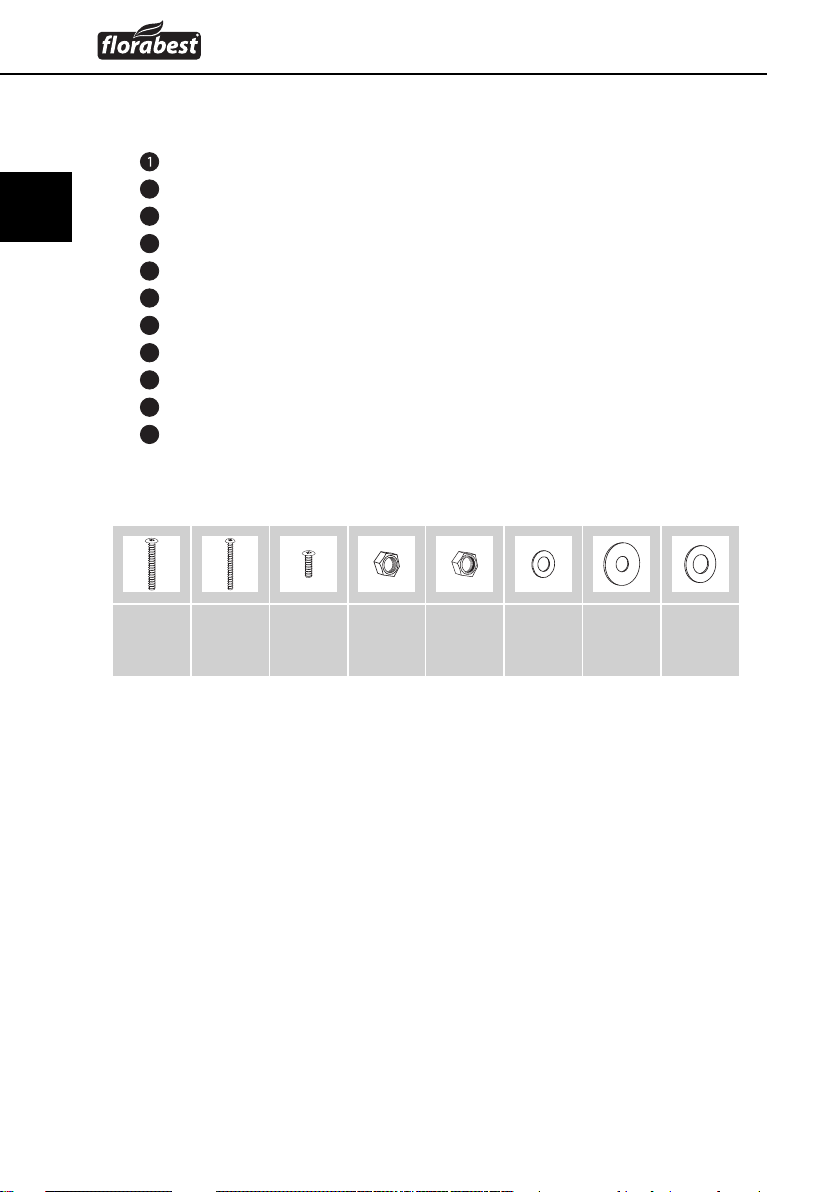

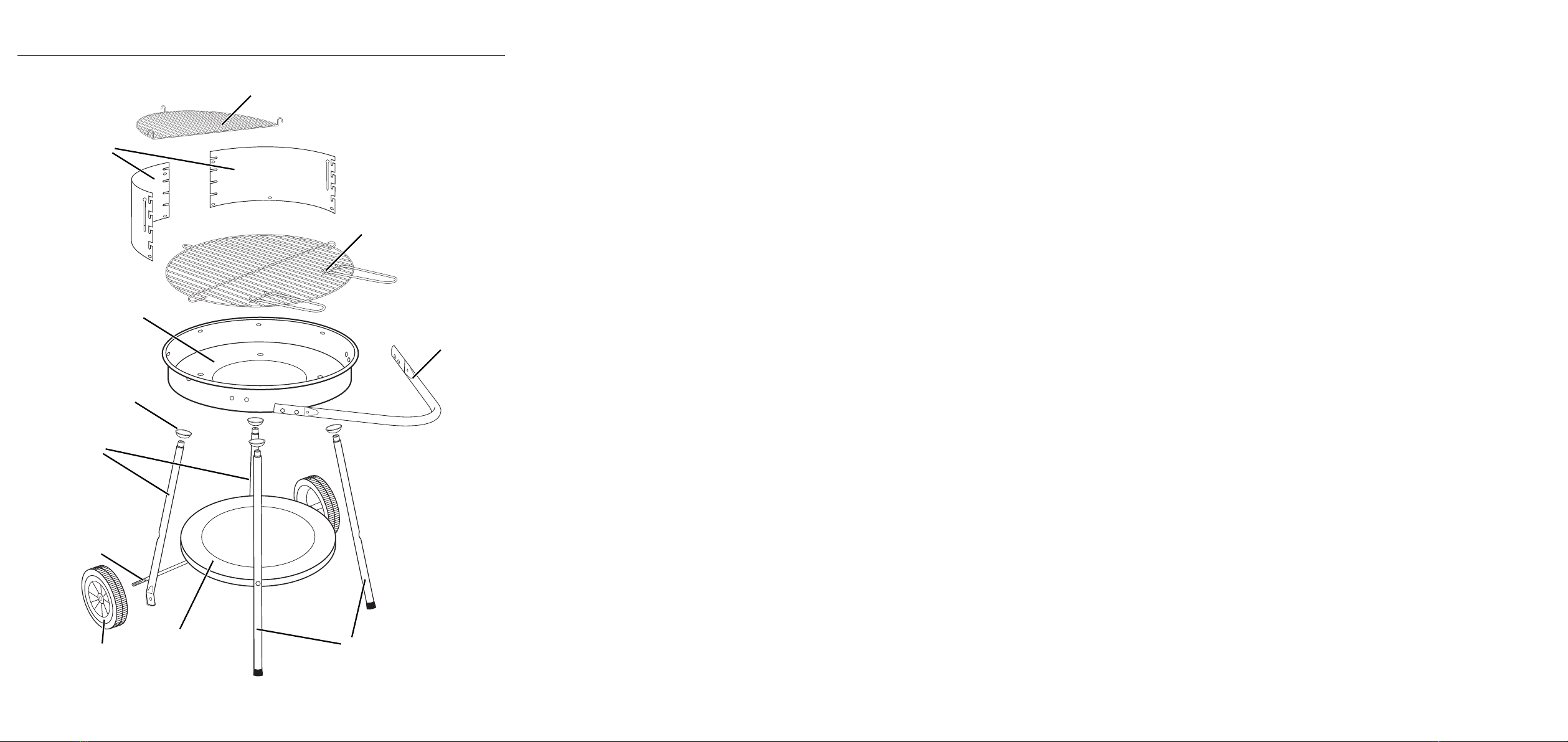

Items supplied
2 x Wind protector sheets
21 x Keep-warm grate
31 x Grill grate (including 2 handles)
41 x Handle
52 x Legs (long)
61 x Bottom shelf
72 x Wheels
81 x Axle
92 x Legs (short)
10 4 x Leg Caps
11 1 x Firebowl
Connection elements
M6x30
4x
M5x30
4x
M5x12
10x
M5
14x
M8
2x
Ø6
10x
Ø6
4x
Ø8
2x
Assembly
Preparing for assembly
Allow yourself plenty of time for the assembly of the round barbecue. Secure a
level workplace of about two to three square meters. Remove all individual items
from the packaging and place them where they are conveniently handy. Check
the items to ensure that that they are all present and without any damage.

5
Assembly
FRG 45 A1
GB
IE
Required assembly material
Pliers
Philips head screwdriver
Open-jawed spanner 8 mm/ 13 mm
IMPORTANT
To avoid possible injury, the screw heads should always face outwards.►
First tighten all screw connections down when the assembly is complete,
this will help avoid undesirable material tensions.

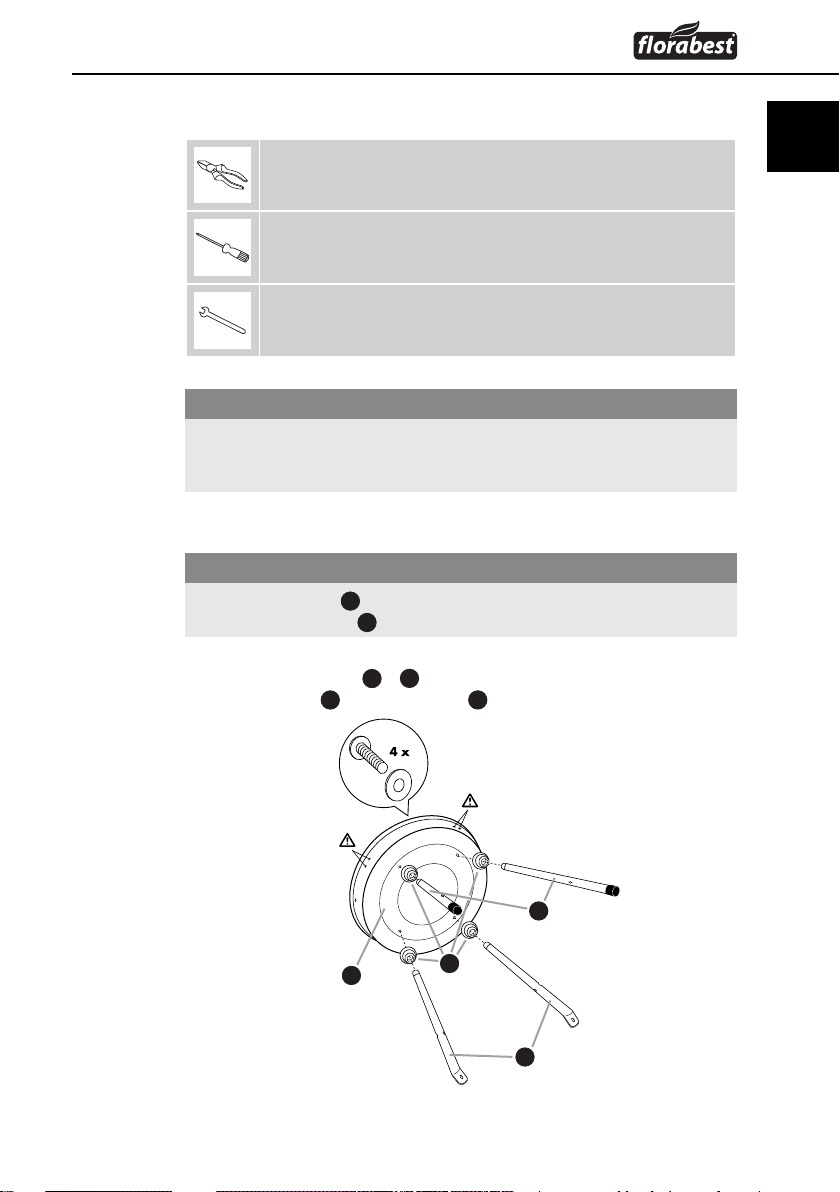

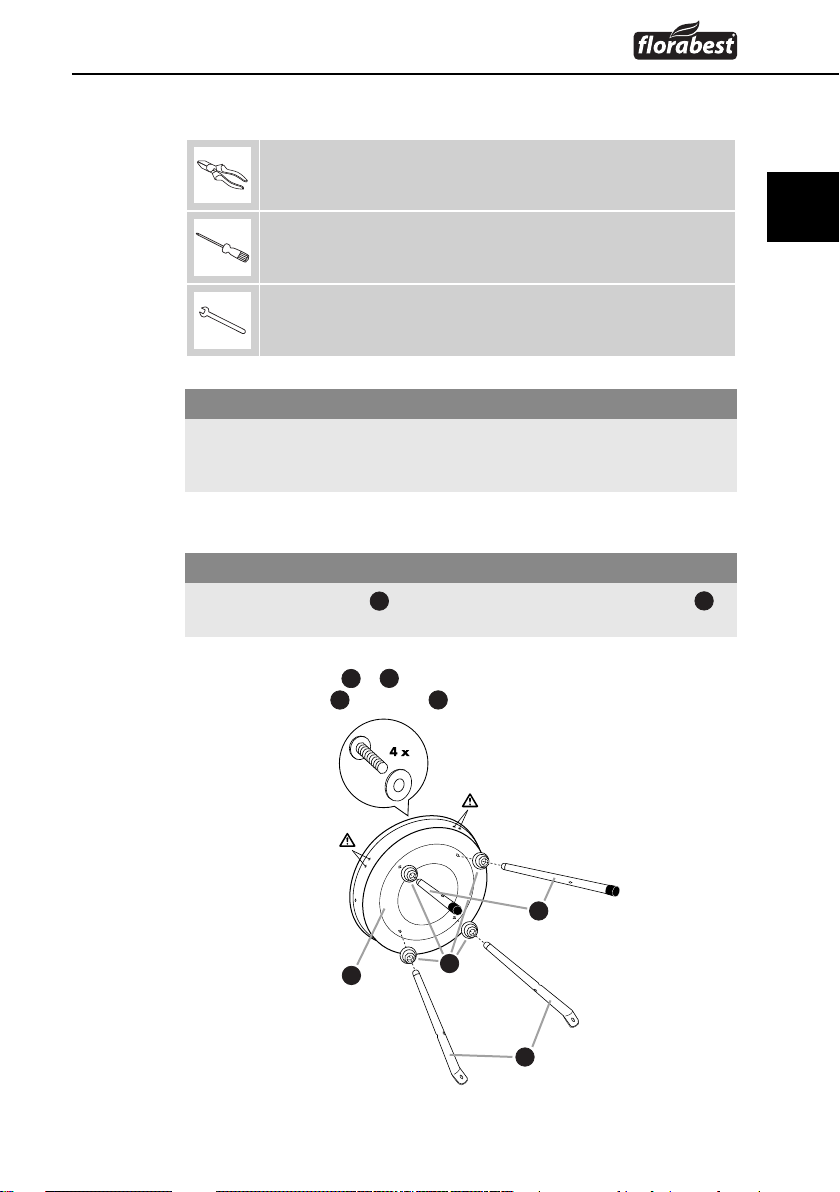

Step 1
IMPORTANT
The two long legs► 5must be assembled on the side where the double
holes in the firebowl 11 are located.
Assemble the 4 legs (♦ 5+ 9), each with 1 screw M6 x 30, a washer Ø 6
and a leg cap 10 , onto the firebowl 11 .
5
9
10
11

6
Assembly
FRG 45 A1
GB
IE

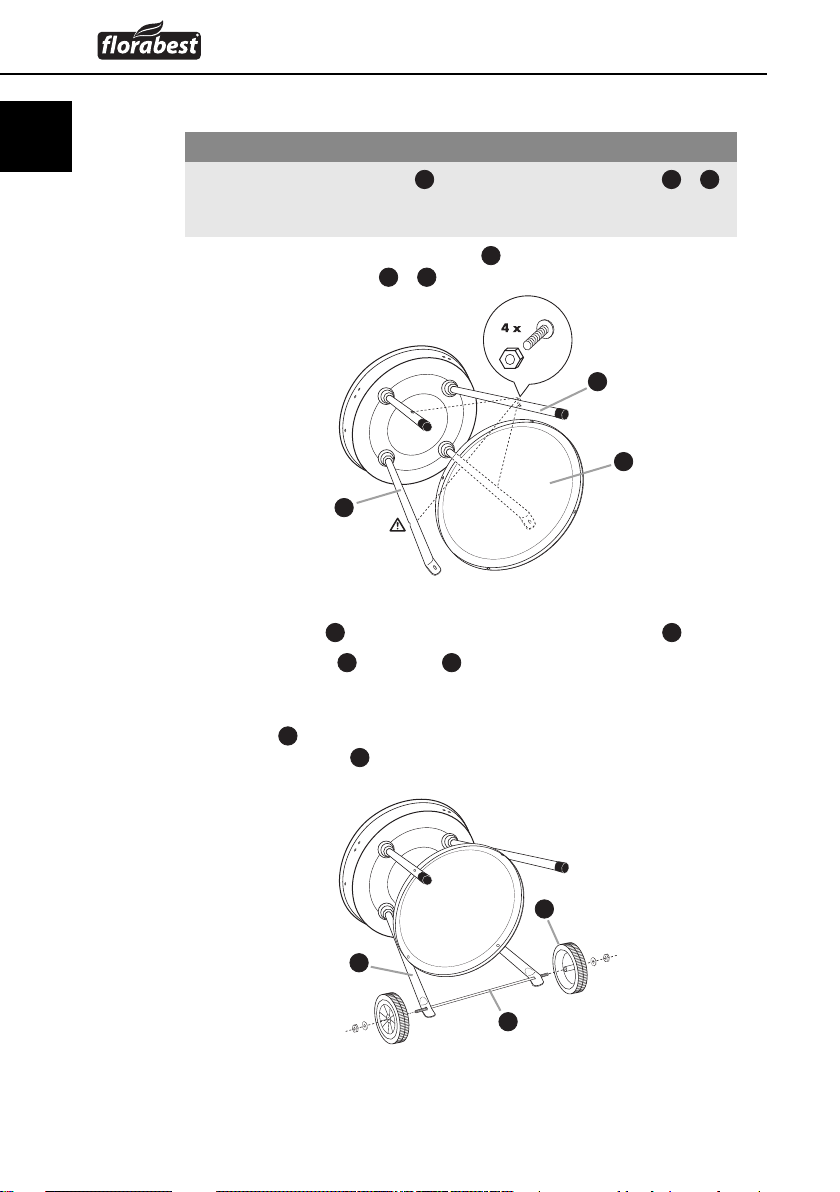

Step 2
IMPORTANT
The edge of the bottom shelf► 6must face downwards. The legs ( 5+ 9)
must be rotated such that the indentations of the boreholes face outwards,
thereby enabling the screwheads to be accommodated within them.
Assemble and secure the bottom shelf♦ 6, using 4 M5 x 30 screws plus
M5 nuts, to the 4 legs ( 5+ 9).
Step 3
Guide the axle♦ 8through the lower boreholes on the short legs 9.
Place the wheels♦ 7on the axle 8and secure both of them, each with a
Ø 8 washer and an M8 self-securing nut.
Tighten the nuts with an 13 mm open-jawed spanner. If necessary, hold♦
the axle 8with the pliers. To prevent scratches, place a cloth between the
pliers and the axle 8.
6
5
9
8
7
9

7
Assembly
FRG 45 A1
GB
IE
Step 4
Assemble and secure the handle♦ 4, using 4 M5 x 12 screws,
4 Ø 6 washers and 4 M5 nuts, to the firebowl 11 .

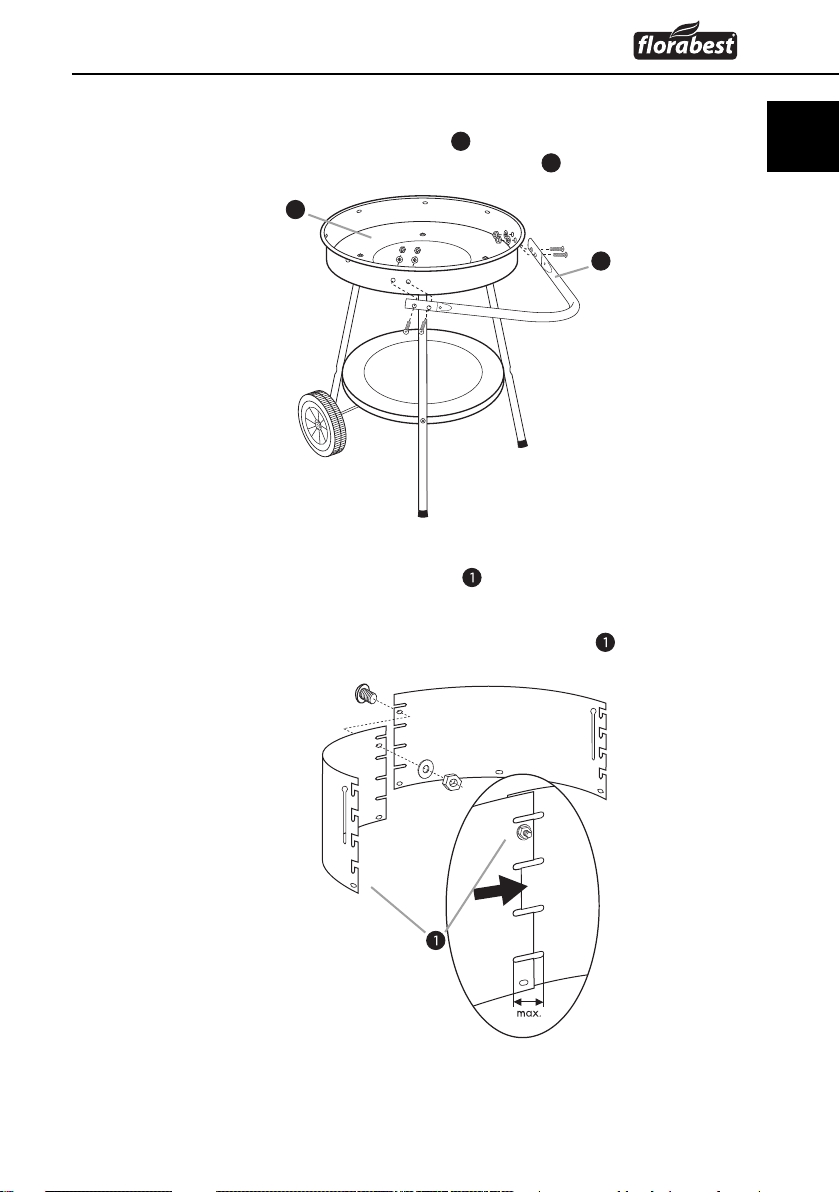

Step 5
Align the two wind-protector sheets♦ with each other and fasten them
together using an M5 x 12 screw, a Ø 6 washer and an M5 nut. Thereby,
make use of the maximum distance between the sheets, so that the grill
grate fits between the slots of the wind-protector sheets .
4
11

8
Assembly
FRG 45 A1
GB
IE
Step 6
Firmly secure the wind protector sheets♦ , using 5 M5 x 12 screws,
5 Ø 6 washer and 5 M5 nuts, to the firebowl 11 .

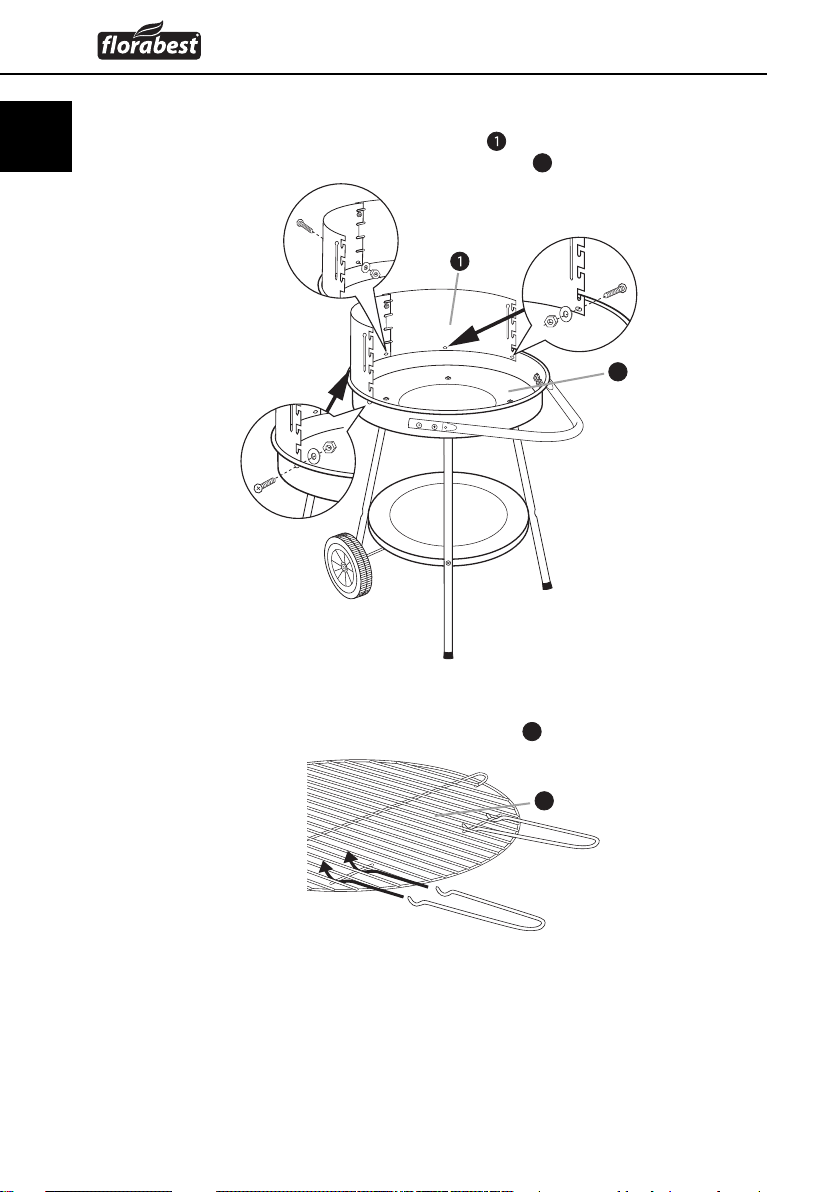

Step 7
Hook the two handles onto the cooking grill♦ 3.
11
3
