FLORABEST FGW 84 A1 User manual

GRILLWAGEN
Trolley Barbecue FGW 84 A1
KOMPERNASS GMBH · BURGSTRASSE 21 · D - 44867 BOCHUM
www.kompernass.com
ID-Nr.: FGW 84 A1-10/11-V2
IAN: 70649
7
Trolley Barbecue
Assembly and Operating Instructions
Roštilj s kotačima
Upute za montažu i rukovanje
Grătar pe roti
Instrucţiuni de utilizare
R
Гρил на колела
Ръководство за експлоатация
Grillwagen
Montage- und Bedienungsanleitung
Tño÷Þëáôç øçóôañéÜ
Οδηγίες συναρμολόγησης και χειρισμού
‚
®
CV_70649_FGW84A1_LB7.indd 1-3CV_70649_FGW84A1_LB7.indd 1-3 16.11.2011 16:37:25 Uhr16.11.2011 16:37:25 Uhr

FGW 84 A1
1
u
z
t
e
r
w
q
0
9
6
5
4
8
7
3
2
CV_70649_FGW84A1_LB7.indd 4-6CV_70649_FGW84A1_LB7.indd 4-6 16.11.2011 16:37:31 Uhr16.11.2011 16:37:31 Uhr

1
FGW 84 A1
GB
CY
Index
Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Information for these operating instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Copyright. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Safety. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Basic Safety Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Items supplied . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Connection elements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Preparing for assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Required assembly material. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Assembly procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Initial use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Cleaning and Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Appendix. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Service. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Importer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

2
Introduction
FGW 84 A1
GB
CY
Introduction
Information for these operating instructions
These operating instructions are a component of the Trolley Barbeque FGW 84 A1
(hereafter referred to as the appliance or grill) and they supply you with impor-
tant information about the intended use, safety and assembly as well as operation
of the appliance.
The operating instructions must constantly be kept available close to the appliance.
They are to be read and applied by everyone occupied with operating the
appliance.
Retain these operating instructions and pass them on, with the appliance, to any
future owner.
Copyright
This documentation is copyright protected.
All reproductions or duplications, also as extracts, as well as representations of
the illustrations, even in an altered state, are only permitted with the written
approval of the manufacturer.
Intended use
This trolley barbecue is intended exclusively for the preparation of grilled foods.
It is suitable only for use outdoors. This trolley barbecue is intended for use only
in domestic environments, not for commercial applications.
No liability will be accepted for damage resulting from incorrect or improper
usage, the application of force or unauthorised modifications.
WARNING
Risks from unintended use!
Risks can arise if the appliance is used for unintended purposes and/or other
types of use.
Use the appliance exclusively for its intended purposes.►
Observe the procedures described in these operating instructions.►
The manufacturer assumes no responsibility for damage caused by improper use,
inappropriate repairs, making unauthorised changes or for using unapproved
replacement parts.
The operator alone bears liability.

3
Safety
FGW 84 A1
GB
CY
Safety
In this chapter you will receive important safety information regarding handling
of the appliance.
This appliance complies with the statutory safety regulations.
Incorrect usage can lead to personal injury and property damage.
Basic Safety Instructions
WARNING
Warnings about burns!
1. During use, place the grill on a secure, level and firm surface, otherwise it
could tip over.
2. CAUTION! For igniting and reigniting, do not use spiritus or benzine! Use
only ignition aids complying with EN 1860-3. Otherwise, the deflagration
could cause an uncontrollable development of heat.
3. ATTENTION! During use the grill will become very hot and therefore may
not be moved, otherwise it could tip over.
4. ATTENTION! Keep children and pets well away from it!
5. When grilling, wear appropriate grilling gloves and use grilling tongs.
6. NEVER leave a heated up grill unsupervised.
7. Allow the grill to cool down completely before cleaning it.
8. NEVER use water to extinguish the glowing charcoal.
WARNING
Warning in regard to suffocation!
Use the grill ONLY outdoors!►
Do NOT operate the grill in enclosed spaces or roofed-over areas.►

4
Items supplied
FGW 84 A1
GB
CY

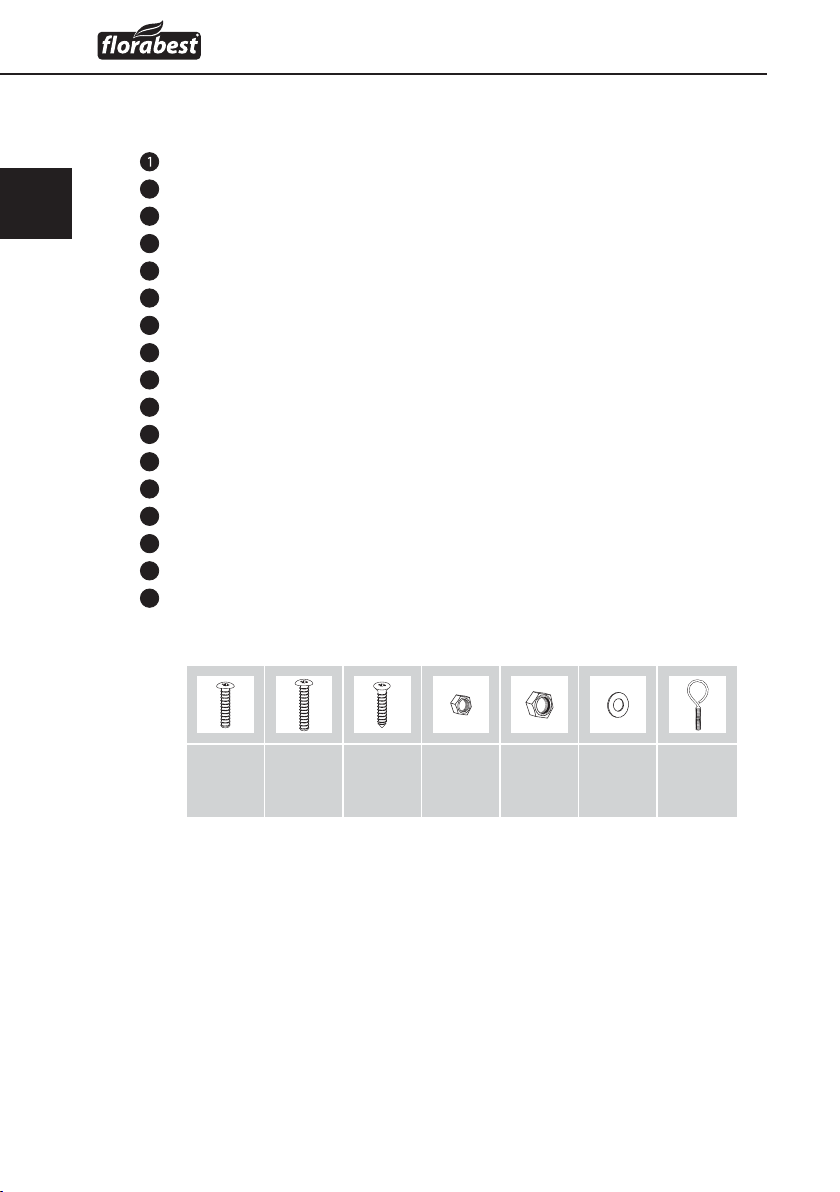

Items supplied
1 x Barbecue skewer (incl. 2 x barbecue racks and 1 x wooden handle)
21 x Wind protector, left
31 x Wind protector, middle
41 x Wind protector, right
51 x Grill grate (including 2 handles)
61 x Firebowl
71 x Handle
82 x Handle holder, short
92 x Stand braces
10 2 x Cross braces
11 5 x Storage slats, long
12 2 x Wheels
13 1 x Axle
14 2 x Wheel brace
15 2 x Storage holder, long
16 2 x Reinforcing braces
17 3 x Storage slats, short
Connection elements
M5x10
25x
M5x12
22x
Ø4x10
2x
M5
47x
M8
2x
Ø5.4
47x
M4x10
2x

5
Assembly
FGW 84 A1
GB
CY
Assembly
Preparing for assembly
Allow yourself plenty of time for the assembly of the trolley barbecue. Secure a
level workplace of about two to three square meters. Remove all individual items
from the packaging and place them where they are conveniently handy. Check
the items to ensure that that they are all present and without any damage.
Required assembly material
Hammer
Philips-type screwdriver
Open-ended spanners SW 8 mm, SW 13 mm
WARNING
Warning about physical injuries!
To avoid possible injury, the screw heads should always face outwards.►
IMPORTANT
First tighten all screw connections down when the assembly is complete,►
this will help avoid undesirable material tensions.

6
Assembly
FGW 84 A1
GB
CY

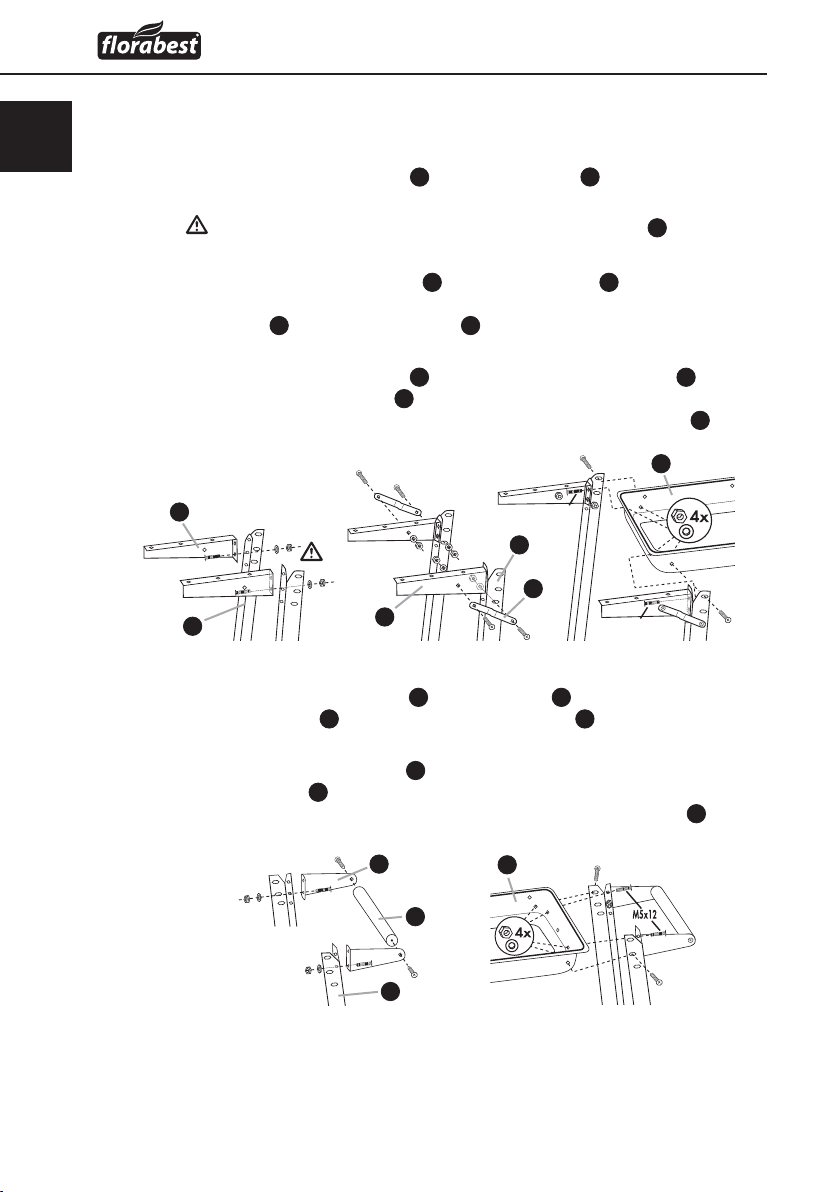

Assembly procedure
Step 1
Connect the storage holder♦ 15 with the wheel brace 14 by means of the
washers Ø 5.4, M5 x 10 screws and nuts M5.
Please take note that only the lower hole of the storage holder 15 is to be
used for the screws.
Secure the reinforcing braces♦ 16 with the wheel braces 14 by means of
the washers Ø 5.4, M5 x 10 screws and nuts M5. Secure the reinforcing
braces 16 with the storage holders 15 by means of the washers Ø 5.4,
M5 x 10 screws and nuts M5.
Assemble the wheel braces♦ 14 , with the assembled storage holder 15 ,
to the left of the fire bowl 6by means of the washers Ø 5.4, 2 M5x12
screws and nuts M5. For this, use the upper hole in the wheel braces 14 .
M5x10
M5x10
M5x12
M5x12
Step 2
Assemble the handle holder♦ 8and stand braces 9as described in step 1.
Fix the handle 7between the short handle holders 8and then secure
them by means of the wood screws Ø 4 x 10.
Assemble the stand braces♦ 9, with the assembled handle, to the right of
the fire bowl 6by means of M5 x 12 screws, washers Ø 5.4, M5x10
screws and nuts M5. For this, use the upper hole in the stand braces 9.
M5x10
M5x10
15
15
14
14
16
6
8
7
9
6

7
Assembly
FGW 84 A1
GB
CY
Step 3
Place the cross braces♦ 10 , with the 5 holes upwards, between the wheel
braces 14 and the stand braces 9. Screw these together by means of the
washers Ø 5.4, M5 x 10 screws and nuts M5.
Fix the five storage slats♦ 11 to the cross braces 10 . Screw these together by
means of the washers Ø 5.4, M5x12 screws and nuts M5.
Step 4
Assemble the three storage slats♦ 17 on the storage holder 15 by means of
the washers Ø 5.4, M5x12 screws and nuts M5.
10
14
11
9
17
15

8
Assembly
FGW 84 A1
GB
CY
Step 5
Guide the axle♦ 13 through the lower boreholes on the wheel braces 14
and secure the placed-on wheels 12 with the self-securing nuts M8.
Step 6
Secure the wind protector elements♦ 234with 2 M5x10 screws,
washers Ø 5.4 and nuts M5 (only at the top). When done, screw the wind
protector elements 234from inside onto the firebowl 6by means of
the washers Ø 5.4, 2 M5 x 12 screws, 3 M5 x 10 screws and nuts M5.
5x
M5x10
M5x10
M5x10
M5x10
M5x10
12
13
14
2
3
4
6

9
Assembly
FGW 84 A1
GB
CY
Step 7
Secure the wooden grip onto the rear part of the skewer (straight edge)♦
with light hammer blows. Slide the barbecue racks onto the skewer.
Secure the barbeque racks with the eye screws M4 x 10.
Assemble the two handles onto the grill grate♦ 5.
Step 8
Place the grill grate♦ 5and the skewer garniture into the wind
protector 234.
To finish the assembly, tighten all screw connections firmly.♦
5
5
2
34

10
Initial use
FGW 84 A1
GB
CY
Initial use
NOTICE
Before the first use, the grill must be warmed up for at least 30 minutes.►
WARNING
Warnings about burns!
During use, place the grill on a secure, level and firm surface, otherwise it►
could tip over.
Warning! For igniting and reigniting, do NOT use spiritus or benzine!►
Use only ignition aids complying with EN 1860-3. The deflagration could
cause an uncontrollable development of heat.
Build up a small pile of charcoal in the firebowl.■
Place one or two solid firelighters on the existing layer of charcoal and ignite■
the solid firelighters with a match or lighter.
Allow the fi
relighters to burn for 2 to 4 minutes. Then slowly start filling the■
firebowl with charcoal.
After about 20 minutes the charcoal will display a white coating of ash.■
The optimal burning temperature has now been reached.
Distribute the charcoal, using a suitable metallic implement, evenly in the■
firebowl.
Insert the grill grate and start the barbecue.■

11
Cleaning and Care/Disposal/Appendix
FGW 84 A1
GB
CY
Cleaning and Care
WARNING
Warnings about burns!
Before cleaning it or putting it into storage, allow the trolley barbecue to cool►
down completely. NEVER use water to extinguish the glowing charcoal.
IMPORTANT
Do not use abrasive or aggressive cleaning agents, they can damage the►
enamelled pieces..
For normal cleaning, use a cloth and water with standard detergent.
For heavy soiling on the enamelled parts, use a standard commercial enamel
cleaner. Pay heed to the instructions supplied by the manufacturer of the cleaning
agent being employed. Clean the grill grate with detergent and a household sponge.
Disposal
Dispose of flammable materials carefully and with regard to the
environment. Fundamentally dispose of remaining waste ONLY into
containers made of metal and intended for this purpose or made of
non-flammable materials.
Dispose of the Trolley Barbecue through an approved waste disposal centre or
at your community waste facility. Observe the currently applicable regulations.
In case of doubt, please contact your waste disposal centre.
Dispose of all packaging materials in an environmentally friendly manner.
Appendix
Technical data
Dimensions (assembled) approx. 83 x 86.5 x 43.5 cm
Grill grate approx. 48.3 x 283 cm
Weight approx. 7 kg
Fuel Charcoal
Firebowl capacity max. 1 kg

12
Appendix
FGW 84 A1
GB
CY
Warranty
The warranty for this appliance is for 3 years from the date of purchase. The
appliance has been manufactured with care and meticulously examined before
delivery.
Please retain your receipt as proof of purchase. In the case of a warranty claim,
please make contact by telephone with our Customer Service Department. Only
in this way can a post-free despatch for your goods be assured.
NOTICE
The warranty covers only claims for material and manufacturing defects,►
not for transport damages, wearing parts or for damage to fragile compo-
nents, e.g. switches.
This product is for domestic use only and is not intended for commercial use. The
warranty is void in the case of abusive and improper handling, use of force and
internal tampering not carried out by our authorised service branch.
Your statutory rights are not restricted in any way by this warranty. The warranty
period is not extended by repairs made under the warranty. This applies also to
replaced and repaired parts.
Damages and defects extant at the time of purchase must be reported immedi-
ately after unpacking, resp. no later than two days after the date of purchase.
Repairs made after the lapse of the warranty period are subject to charge.
Service
Service Great Britain
Tel.: [phone] (£ 0.10/Min.)
E-Mail: [email protected]
IAN 70649
Service Ireland
Tel.: [phone]
(0,08 EUR/Min., (peak))
(0,06 EUR/Min., (off peak))
E-Mail: [email protected]
IAN 70649
CY Service Cyprus
Tel.: [phone]
E-Mail: [email protected]
IAN 70649
Importer
KOMPERNASS GMBH
BURGSTRASSE 21
44867 BOCHUM, GERMANY
www.kompernass.com

13
FGW 84 A1
HR
Sadržaj
Uvod. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Informacije u vezi sa ovim uputama za rukovanje . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Autorsko pravo . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Uporaba u skladu sa namjenom . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Sigurnost . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Opće sigurnosne napomene . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Obim isporuke . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Spojni elementi . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Montaža . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Priprema montaže . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Potreban materijal za montažu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Koraci za montažu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Puštanje u rad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Čišćenje i održavanje . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Odstranitev . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Prilog . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Tehnički podaci . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Jamstvo . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Servis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Uvoznik . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

14
Uvod
FGW 84 A1
HR
Uvod
Informacije u vezi sa ovim uputama za rukovanje
Ove upute za rukovanje predstavljaju sastavni dio pokretnog roštilja FGW 84 A1
(u nastavku označen kao uređaj ili roštilj) i daju Vam važne napomene za namjen-
sku uporabu, sigurnost, postavljanje i posluživanje uređaja.
Upute za rukovanje moraju stalni stajati na raspolaganju u blizini uređaja. Mora
ih pročitati i primijeniti svaka osoba zadužena za rukovanje sa ovim uređajem.
Sačuvajte ove upute za rukovanje i zajedno sa uređajem ih predajte slijedećem
vlasniku.
Autorsko pravo
Ova dokumentacija je zaštićena autorskim pravima.
Svako umnožavanje, odnosno svako tiskanje, čak i djelomičnog, kao i repro-
dukcija slika - i u promijenjenom obliku - dopušteno je isključivo uz pismeno
dopuštenje proizvođača.
Uporaba u skladu sa namjenom
Pokretni roštilj je namijenjen isključivo za pripravljanje namirnica prikladnih za
roštiljanje. Prikladan je isključivo za uporabu vani. Ovaj pokretni roštilj je namije-
njen isključivo za privatnu uporabu, a ne za komercijalne svrhe.
Za štete, koje proizlaze iz zloupotrebnog ili nenamjenskog korištenja, primjene
sile ili neovlaštene modifikacije uređaja proizvođač ne preuzima nikakvu odgo-
vornost.
UPOZORENJE
Opasnost uslijed nenamjenske uporabe!
Od ovog uređaja u slučaju nenamjenske uporabe i/ili drugih vrsti korištenja
mogu polaziti opasnosti.
Uređaj koristite isključivo u skladu sa njegovom uporabnom namjenom.►
Poštujte postupke opisane u ovim uputama za rukovanje.►
Potraživanja svake vrste koja proizlaze iz oštećenja uslijed nenamjenske uporabe,
nestručno izvedenih popravaka, neovlašteno izvršenih preinaka i korištenja nedo-
puštenih zamjenskih dijelova su isključena.
Rizik nosi isključivo korisnik.

15
Sigurnost
FGW 84 A1
HR
Sigurnost
U ovom poglavlju možete pronaći važne sigurnosne napomene u vezi sa poslu-
živanjem uređaja.
Ovaj uređaj odgovara propisanim sigurnosnim odredbama.
Nestručna uporaba može dovesti do ozljeda osoba i do nastanka predmetne štete.
Opće sigurnosne napomene
UPOZORENJE
Upozorenje od opeklina!
1. Roštilj za vrijeme rada postavite na sigurnu, ravnu i čvrstu podlogu, jer u
protivnom može doći do prevrtanja.
2. PAŽNJA! Za potpaljivanje ili ponovno paljenje ne koristite špirit ili benzin!
Koristite isključivo pomoćna sredstva za potpaljivanje shodno normi EN 1860-3.
U protivnom može doći do naglog isparavanja i do nekontroliranog razvoja
topline.
3. PAŽNJA! Roštilj se jako zagrijava i za vrijeme rada ne smije biti pomaknut,
jer se u protivnom može prevrnuti.
4. PAŽNJA! Djecu i domaće životinje držite podalje!
5. Prilikom roštiljanja nosite odgovarajuće rukavice i koristite kliješta za grill.
6. Zagrijan uređaj ne smije ostati bez nadzora.
7. Roštilj prije čišćenja ostavite da se sasvim ohladi.
8. Nikada ne koristite vodu za gašenje drvenog uglja.
UPOZORENJE
Upozorenje na opasnost od gušenja!
Roštilj koristite isključivo vani!►
Sa roštiljem ne rukujte u zatvorenim prostorijama ili na natkrovljenim►
površinama.

16
Obim isporuke
FGW 84 A1
HR
Obim isporuke
1 x Garnitura bodeža (uklj. 2 x stezaljke za meso i 1 x drveni rukohvat)
21 x Vjetrobran lijevi
31 x Vjetrobran srednji
41 x Vjetrobran desni
51 x Rešetka za roštiljanje (uklj. 2x rukohvata)
61 x Zdjela za ugalj
71 x Rukohvat
82 x Držač rukohvata, kratki
92 x Stajaći potpornjak
10 2 x Poprečni potpornjak
11 5 x Daska za odlaganje, duga
12 2 x Kotača
13 1 x Osovina
14 2 x Potpornjak kotača
15 2 x Držač daske za odlaganje, dugi
16 2 x Potpornjak za stabilnije učvršćenje
17 3 x Daska za odlaganje, kratka
Spojni elementi
M5x10
25x
M5x12
22x
Ø4x10
2x
M5
47x
M8
2x
Ø5.4
47x
M4x10
2x

17
Montaža
FGW 84 A1
HR
Montaža
Priprema montaže
Uzmite si dovoljno vremena za sastavljanje pokretnog roštilja. Stvorite si ravnu
radnu površinu od približno dva do tri četvorna metra. Izvadite pojedine dijelove
pakiranja i postavite ih na dohvatu ruke u pripravnosti. Provjerite kompletnost
obima isporuke i da li postoje oštećenja.
Potreban materijal za montažu
Čekić
Križni odvijač
Vilasti ključ veličine 8 mm i veličine 13 mm
UPOZORENJE
Upozorenje na moguće ozljede!
Glave vijaka radi Vaše sigurnosti uvijek trebaju biti usmjerene prema vani,►
kako bi bile izbjegnute ozljede.
PAŽNJA
Nakon završetka montaže čvrsto zategnite sve vijčane spojeve, kako ne bi►
došlo do neželjenih zategnosti materijala.

18
Montaža
FGW 84 A1
HR
Koraci za montažu
Korak 1
Povežite držač daske za odlaganje♦ 15 sa potpornjakom kotača 14 uz
pomoć podložnih pločica Ø5.4, M5x10 vijaka i matica M5.
Molimo uzmite u obzir, da samo donji otvor držača daske za odlaganje 15
koristite za vijčano spajanje.
Povežite potpornjake za učvršćavanje♦ 16 sa potpornjacima kotača 14
uz pomoć podložnih pločica Ø5.4, M5x10 vijaka i matica M5. Povežite
potpornjake za učvršćavanje 16 sa potpornjacima daske za odlaganje 15
uz pomoć podložnih pločica Ø5.4, M5x10 vijaka i matica M5.
Montirajte potpornjake kotača♦ 14 sa postavljenim držačima daske 15
na lijevoj strani zdjele za ugalj 6uz pomoć podložnih pločica Ø5.4,
2 M5x12 vijka, 2 M5x10 vijka i matica M5. U tu svrhu potreban je gornji
otvor potpornjaka kotača 14 .
M5x10
M5x10
M5x12
M5x12
Korak 2
Montirajte držače rukohvata♦ 8i stajaće potpornjake 9na način opisan u
koraku 1. Fiksirajte rukohvat 7među držačima 8i učvrstite ga uz pomoć
vijaka za drvo Ø4x10.
Montirajte stajaće potpornjake♦ 9sa montiranim rukohvatom desno na
zdjelu za ugalj 6uz pomoć vijaka M5 x 12, podložnih pločica Ø5.4,
M5 x 10 vijaka i matica M5. U tu svrhu je potreban gornji otvor stajaćih
potpornjaka 9.
M5x10
M5x10
15
15
14
14
16
6
8
7
9
6
