FLORABEST FHL 900 E5 User manual

LONG-REACH HEDGE TRIMMER FHL 900 E5
IAN 285176
LANGSTIEL-HECKENSCHERE
Originalbetriebsanleitung
LONG-REACH HEDGE TRIMMER
Translation of the original instructions
ΜΠΟΡΝΤΟΥΡΟΨΑΛΙΔΟ ΜΕ
ΜΑΚΡΥ ΚΟΝΤΑΡΙ
Μετάφραση των αυθεντικών οδηγιών λειτουργίας
®
285176_flo_Langstiel-Heckenschere_cover_GB_IE_NI_CY.indd 2 24.03.17 07:49

GB / IE / NI / CY Translation of the original instructions Page
GR / CY Μετάφραση των αυθεντικών οδηγιών λειτουργίας Σελίδα
DE / AT / CH Originalbetriebsanleitung Seite
Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the
device.
Πριν ξεκινήσετε την ανάγνωση, ανοίξτε τη σελίδα με τις εικόνες και εξοικειωθείτε με όλες τις λειτουργίες της
συσκευής.
Klappen Sie vor dem Lesen die Seite mit den Abbildungen aus und machen Sie sich anschließend mit allen
Funktionen des Gerätes vertraut.
285176_flo_Langstiel-Heckenschere_cover_GB_IE_NI_CY.indd 3 24.03.17 07:49
5
20
38

3
AB
1
2
3
3
4
5
6
6
7
6
4
5
6
28
11
12 12
12
13
14
7
10
24 11
24
1
2223
96/9
10
9
9
8
15
16
17
18
20
21



4

5
CY
NI
IEGB
Content
Introduction .................................5
Intended Use................................5
General Description......................6
Extent of delivery .............................6
Overview........................................6
Function Description .........................6
Technical Data..............................7
Notes on Safety ...........................7
Symbols in the manual......................7
Symbols on the Equipment ................7
General Notes on Safety...................8
General safety instructions
for power tools ................................8
Hedge trimmer safety ....................11
warnings.......................................11
Assembling the Long-Handled
Hedge Trimmer ..........................12
Operating the Hedge Trimmer....13
Swivelling Out the Blade Beam........13
Attach the shoulder strap ................13
Switching On and Off ....................14
Working with the Electric
Hedge Trimmer ..............................14
Swivelling the Arm .........................14
Cutting Techniques .........................15
Working Safely..........................15
Maintenance/Cleaning ...............15
Storage......................................16
Transport ...................................16
Waste Disposal
and Environmental Protection.....16
Spare Parts/Accessories .............17
Trouble Shooting........................17
Guarantee .................................18
Repair Service............................19
Service-Center............................19
Importer ....................................19
Introduction
Congratulations on the purchase of your
new device. With it, you have chosen a
high quality product.
During production, this equipment has
been checked for quality and subjected
to a nal inspection. The functionality of
your equipment is therefore guaranteed.
It cannot be ruled out that residual quanti-
ties of lubricants will remain on or in the
equipment in isolated cases. This is not a
fault or defect and it represents no cause
for concern.
The operating instructions constitute
part of this product. They contain
important information on safety, use
and disposal.
Before using the product, familiarise
yourself with all of the operating
and safety instructions. Use the
product only as described and for
the applications specied.
Keep this manual safely and in the
event that the product is passed on,
hand over all documents to the third
party.
Intended Use
The equipment is specied for use only for
the cutting and trimming of hedges, bushes
and ornamental shrubs in the domestic
environment. Any other use that is not ex-
plicitly approved in these instructions may
result in damage to the equipment and rep-
resent a serious danger to the user.
The equipment is designed for use by
adults. Adolescents over the age of 16
may use the device only under supervision.
Local regulations may specify an age limit
for the user. Do not use the hedge trimmer
in the rain or on wet hedges.
Translation of the original
EC declaration of conformity ......57
Exploded Drawing .....................61

6
GB IE NI CY
The operator or user is responsible for ac-
cidents or damage to other people or their
property.
The manufacturer is not liable for damages
caused by unspecied use or incorrect
operation.
Before use, check that the blades
are sharp. Ensure that the blades
are sharpened whenever blunt, in
order to avoid overstressing of the
machine. Damages caused by cut-
ting with blunt blades are not cov-
ered by the guarantee.
General Description
The illustration of the principal
functioning parts can be found on
the front and back foldout pages.
Extent of delivery
- Long-handled hedge trimmer (three-part)
- Blade protection
- Leg protection
- Shoulder strap
- Round handle
- Protective goggles
- Allen wrench (in the leg protection)
- Mounting material
- Instruction manual

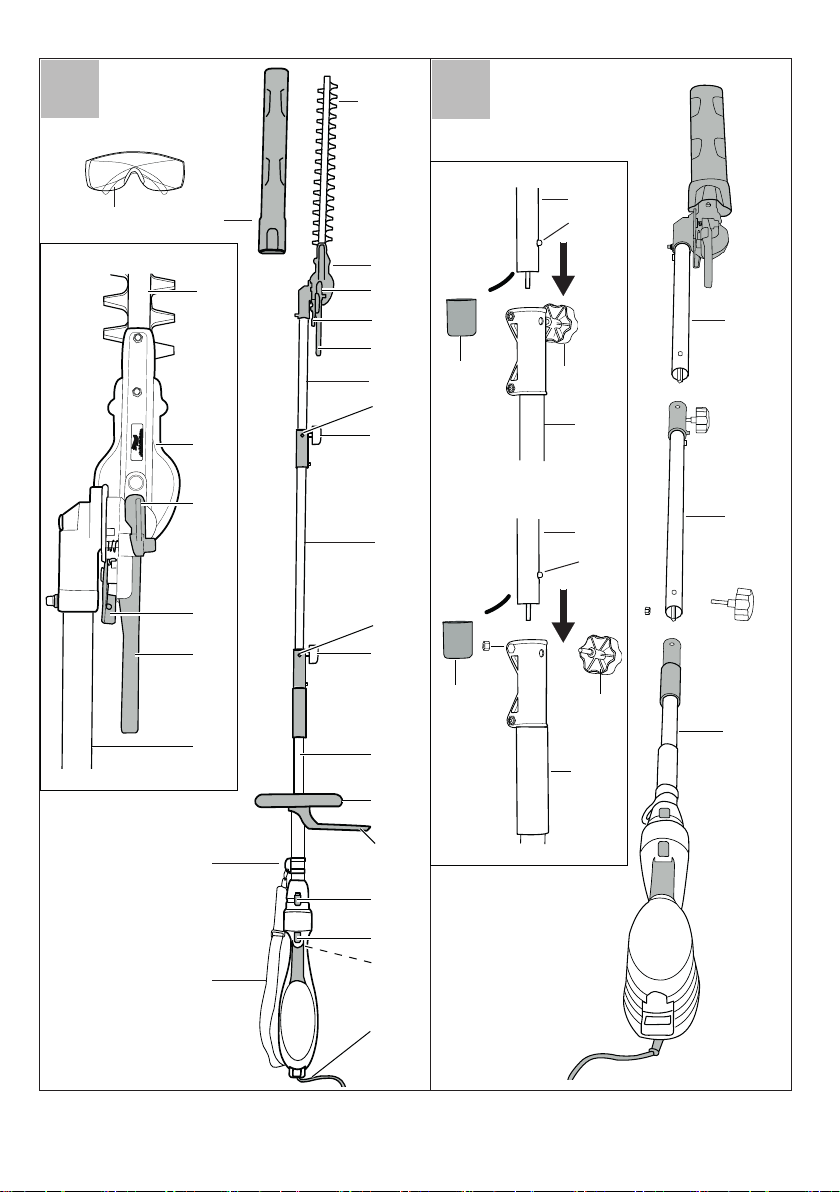

Overview
A
1 Safety blade
2 Gearbox
6 Safety lever
4 Stop lever
7 Handle for adjusting
the blade beam
6 Front tubular shaft
7 Safety button, front arm
8 Pivotal centre, front arm
9 Middle tubular shaft
10 Safety button, extension tube
11 Pivotal centre, extension tube
12 Tubular shaft on the appliance
housing
13 Round handle, front handle
14 Leg protection
15 Safety slide
16 Deadman switch
17 On/off switch (not visible)
18 Mains cable
20 Shoulder strap
21 Eye (for shoulder strap)
22 Blade protection
23 Protective goggles
K L M N O P Q R S T
U V W X Y Z
AB C D E F G H I J
24 Covering cap
C
25 Assembly block (leg protection)
26 Screws
27 Washers, round handle
28 Allen key
29 Counter-holder
30 Washer (pivotal centre
round handle)
31 Pivotal centre (round handle)
Function Description
The electric hedge trimmer is driven by an
electronic motor. The equipment is double-
insulated for safety and does not require
earthing.
The hedge trimmer is equipped with a dou-
ble-sided safety cutter bar. When cutting,
the blades move backwards and forwards
in linear motion.
The unit can only be operated with the
deadman switch depressed, in order to
protect the operator. In addition, the hand
guard protects against branches and briars.
Please note the following descriptions for
the function of the operating components.

7
CY
NI
IEGB
Technical Data
Long-Reach Hedge Trimmer..... FHL 900 E5
Input voltage rating ...230-240 V~, 50 Hz
Input power................................900 W
Safety class .................................... II
Degree of protection........................ IPX0
Weight (incl. accessories)..approx. 6.2 kg
Cutting length........................... 410 mm
Cutting capacity.......................... 20 mm
Acoustic pressure level
(LpA)..................84.5 dB(A); KpA = 3 dB
Sound power level (LWA)
measured......... 95.6 dB(A); KWA = 3 dB
guaranteed .......................... 99 dB(A)
Vibration (ah) at
at the handle .....................2.083 m/s2
at the round handle............3.132 m/s2
.......................................K=1.5 m/s2
Noise and vibration values have been
determined according to the standards and
regulations mentioned in the declaration of
conformity.
The stated vibration emission value was
measured in accordance with a standard
testing procedure and may be used to com-
pare one power tool to another.
The stated vibration emission value may
also be used for a preliminary exposure
assessment.
Warning: The vibration emission value
may differ during actual use of the power
tool from the stated value depending on the
manner in which the power tool is used.
Safety precautions aimed at protecting the
user should be based on estimated expo-
sure under actual usage conditions (all parts
of the operating cycle are to be considered,
including, for example, times during which
the power tool is turned off and times when
the tool is turned on but is running idle).
Notes on Safety
This section deals with the basic safety
regulations to be observed when working
with the electric hedge trimmer.
Symbols in the manual
Warning symbols with in-
formation on damage and
injury prevention.
Hazard symbol with infor-
mation on the prevention of
personal injury caused by
electric shock.
Instruction symbols with information
on preventing damage.
Always remove the mains plug be-
fore working on the appliance.
Help symbols with information on
improving tool handling.
Symbols on the Equipment
Caution!
Read through the instruction manual
carefully.
Wear personal protective equip-
ment. Basically, wear protective
goggles or, even better, face protec-
tion, ear protection, safety helmet,
cut-protection working clothes.
Wear cut-resistant gloves.
Wear anti-slip safety shoes.

8
GB IE NI CY
Keep the equipment away from
nearby people.
Do not use the hedge trimmer in the
rain or on wet hedges.
10 m
Danger of death by electrocution!
Keep at least 10m away from
power lines.
Caution! Falling objects. Particularly
when cutting overhead.
Caution! Risk of injury from blades
in operation.
Pull out the power plug immediately if
the cable is damaged, has been bad-
ly twisted or is completely cut through
and in the event that the device is
left unattended for a short time.
Caution! Hot surface.
Risk of burns.
dB
L
WA
Information of the acoustic power
level LWA in dB.
Machines are not to be place with
domestic waste.
Safety class II
410 mm
Cutting length
General Notes on Safety
Before working with the equip-
ment, familiarise yourself with all
operating components. Practice
handling the equipment and have
the function, operation and working
methods explained to you by an ex-
perienced user or specialist. Ensure
that you can shut off the equipment
immediately in an emergency. Inap-
propriate use of the device may
result in serious injury.
If an accident or fault occurs during opera-
tion, immediately switch off the device and
disconnect at the plug. Treat injuries ap-
propriately or consult a doctor. For the cor-
rection of faults, read the “Troubleshooting”
chapter or contact our service centre.
RESIDUAL RISKS
Even if properly operating and handling
this electric tool, some residual risks will
remain. Due to its construction and build,
this electric tool may present the following
hazards:
a) Cuts
b) Ear damage if working without ear
protection.
c) Damage to your health caused by
swinging your hands and arms when
operating the appliance for longer pe-
riods of time or if the unit is not held or
maintained properly.
General safety instructions
for power tools
WARNING! Read all safety
directions and instructions.
Omissions in the compliance with
safety directions and instructions
can cause electrical shock,  re
and/or severe injuries.
Retain all safety directions and in-
structions for future use.
The term “Power Tools” used in the safety
instructions refers to mains-operated power
tools (with power cord) and to battery-op-
erated power tools (without power cord).

9
CY
NI
IEGB
Work area safety
• Keep work area clean and well
lit. Cluttered or dark areas invite ac-
cidents.
• Do not operate power tools in
explosive atmospheres, such as
in the presence of ammable
Iiquids, gases or dust. Power tools
create sparks which may ignite the
dust or fumes.
• Keep children and bystanders
away while operating a power
tool. Distractions can cause you to
lose control.
• Children must never use the hedge
trimmer.
Electrical safety
Caution: This is how to avoid ac-
cidents and injuries by an electric
shock:
• Power tool plugs must match
the outlet. Never modify the
plug in any way. Do not use
any adapter plugs with earthed
(grounded) power tools. Unmodi-
ed plugs and matching outlets will
reduce risk of electric shock
• Avoid body contact with
earthed or grounded surfaces,
such as pipes, radiators, ranges
and refrigerators. There is an in-
creased risk of electric shock if your
body is earthed or grounded.
• Do not expose power tools to
rain or wet conditions. Water
entering a power tool will increase the
risk of electric shock.
• Do not abuse the cord. Never
use the cord for carrying, pull-
ing or unplugging the power
tool. Keep cord away from
heat, oil, sharp edges or mov-
ing parts. Damaged or entangled
cords increase the risk of electric
shock.
• When operating a power tool
outdoors, use an extension cord
suitable for outdoor use. Use of a
cord suitable for outdoor use reduces
the risk of electric shock.
• If operating a power tool in a
damp location is unavoidable,
use a residual current device
(RCD) protected supply. Use of an
RCD reduces the risk of electric shock.
• Where possible, connect the equip-
ment only to a plug socket with a leak-
age-current-operated circuit breaker
(FI switch), with a rated current of not
more than 30 mA.
• If the power cable for this equipment is
damaged, it must be replaced by the
manufacturer, a customer service agent
of the same or a similarly qualied per-
son in order to prevent hazards.
Personal safety
Caution: This is how to avoid acci-
dents and injuries:
• Stay alert, watch what you are
doing and use common sense
when operating a power tool.
Do not use a power tool while
you are tired or under the inu-
ence of drugs, alcohol or medi-
cation. A moment of inattention white
operating power tools may result in
serious personal injury.
• Use personal protective equip-
ment. Always wear eye protec-
tion. Protective equipment such as
dust mask, non-skid safety shoes, hard

10
GB IE NI CY
hat, or hearing protection used for
appropriate conditions will reduce per-
sonal injuries.
• Prevent unintentional starting.
Ensure the switch is in the off-
position before connecting to
power source and/or battery
pack, picking up or carrying
the tool. Carrying power tools with
your nger on the switch or energising
power tools that have the switch on
invites accidents.
• Remove any adjusting key or
wrench before turning the pow-
er tool on. A wrench or a key left at-
tached to a rotating part of the power
tool may result in personal injury.
• Do not overreach. Keep proper
footing and balance at all times.
This enables better control of the pow-
er tool in unexpected situations.
• Dress properly. Do not wear
loose clothing or jewellery.
Keep your hair, clothing and
gloves away from moving
parts. Loose clothes, jewellery or long
hair can be caught in moving parts.
• Hold the power tool by insulated grip-
ping surfaces only, because the cutter
blade may contact hidden wiring or its
own cord.
Power tool use and care
• Do not force the power tool. Use
the correct power tool for your
application. The correct power tool
will do the job better and safer at the
rate for which it was designed.
• Do not use the power tool if the
switch does not turn it on and
off. Any power tool that cannot be
controlled with the switch is dangerous
and must be repaired.
• Disconnect the plug from the
power source and/or the bat-
tery pack from the power tool
before making any adjust
-ments, changing accessories, or
storing power tools. Such preven-
tive safety measures reduce the risk of
starting the power tool accidentaIly.
• Store idle power tools out of the
reach of children and do not al-
low persons unfamiliar with the
power tool or these instructions
to operate the power tool. Power
tools are dangerous in the hands of
untrained users.
• Maintain power tools. Check
for misalignment or binding
of moving parts, breakage of
parts and any other condition
that may affect the power tool’s
operation. If damaged, have
the power tool repaired before
use. Many accidents are caused by
poorly maintained power tools.
• Keep cutting tools sharp and
clean. Properly maintained cutting
tools with sharp cutting edges are less
Iikely to bind and are easier to control.
• Use the power tool, accessories
and tool bits etc. in accordance
with these instructions, taking
into account the working condi-
tions and the work to be per-
formed. Use of the power tool for op-
erations different from those intended
could result in a hazardous situation. •
Carefully inspect the area to be cut
and remove all wires or other foreign
bodies.
• Carefully inspect the surface to be cut,
and remove all wires and other foreign
bodies.
• Check the appliance before each use
for obvious defects such as loose, worn

11
CY
NI
IEGB
or damaged parts. Check the appli-
ance for signicant damage or defects
if it is dropped.
Service
• Have your power tool serviced
by a qualied repair person us-
ing only identical replacement
parts. This will ensure that the safety
of the power tool is maintained.
Hedge trimmer safety
warnings
Preparation
• THIS HEDGE TRIMMER CAN CAUSE
SERIOUS INJURIES! Read the instruc-
tions carefully regarding the correct
handling, preparation and mainte-
nance, for starting and stopping the
hedge trimmer. Familiarise with all con-
trols and the proper use of the hedge
trimmer.
• Caution! Notice overhead power lines.
• Use of the hedge trimmer should be
avoided when people, especially child-
ren, are nearby.
• If the cutting unit contacts a foreign
body or if the operating noises increa-
se or the hedge trimmer vibrates with
unusually high force, turn off the motor
and let the hedge trimmer come to a
standstill. Pull the mains plug and take
the following measures:
- check for damages;
- check for loose parts and fasten all
loose parts;
- replace damaged parts with equiva-
lent parts or have them repaired.
Operation
• Switch the appliance off and remove
the mains plug, before:
- cleaning or removing a blockage;
- inspection, servicing or work on the
hedge trimmer;
- adjusting the working position of the
cutting unit;
- leaving the hedge trimmer unatten-
ded.
• Always ensure that the hedge trimmer
is properly placed in one of the indica-
ted working positions before the motor
is started.
• Do not use the hedge trimmer with a
defective or strongly worn-out cutting
unit.
• To avoid the risk of re, ensure that the
motor is free from deposits and leaves.
• Always ensure that all handles and
safety devices are mounted when you
use the hedge trimmer. Never try to
use an incomplete hedge trimmer or a
hedge trimmer with impermissible mo-
dications.
• Always use both hands when the
hedge trimmer is equipped with two
handles.
• Always familiarise with your surroun-
dings and pay attention to potential
dangers that you cannot hear because
of the noise the hedge trimmer makes.
• Keep cable away from cutting area.
During operation the cable may be
hidden in shrubs and can be acciden-
tally cut by the blade.
• Keep all parts of the body away from
the cutter blade. Do not remove cut
material or hold material to be cut
when blades are moving. Make sure
the switch is off when clearing jammed
material. A moment of inattention
while operating the hedge trimmer
may result in serious personal injury.

12
GB IE NI CY
Maintenance and storage
• If the hedge trimmer is taken out of
operation for purposes of mainte-
nance, inspection or storage, turn off
the motor, pull the mains plug and
make sure that all rotating parts have
come to a standstill, and let the ma-
chine cool down before you check or
adjust it, etc.
• Carry the hedge trimmer by the handle
with the cutter blade stopped. When
transporting or storing the hedge trim-
mer always t the cutting device cover.
Proper handling of the hedge trimmer
will reduce possible personal injury
from the cutter blades.
Assembling the
Long-Handled Hedge
Trimmer
Pull out the power plug before car-
rying out any work on the equip-
ment.
Use only original parts.
The long-shaft hedge trimmer can
be used optionally with or without
the middle tubular shaft ( 9).
1. Unpack the device and check it
for completeness.
Assembly of the middle tubular
shaft ( 9) (optional):
B
2. Remove the cap (24) from the
middle tubular shaft (9).
Slide the middle tubular shaft (9)
onto the tubular shaft on the ap-
pliance housing (12) in a slight
rotating movement.
When doing so, the retaining
knob (10) locks into place. Fix
the two tubular elements in place
with the rotary knob (11). To
do this, unscrew the nut of the
threaded rod of the rotary knob
(11) and insert it sideways into
the retainer of the tubular shaft.
Insert the threaded rod of the ro-
tary knob (11) through the tubu-
lar shaft and screw on the rotary
knob (11) with the nut.
Only tighten the rotary knob
(11) by hand! The use of maxi-
mum manual force will damage the
tubular shaft.
Assembly of the front
tubular shaft ( 6):
3. Remove the cap (24) on the front
tubular shaft (6). Slide the front
tubular shaft (6) optionally onto
the middle tubular shaft (9) or
onto the tubular shaft (12) on
the appliance housing in a slight
rotating movement. The safety
button (7) locks into place. Fix
the two tubular elements in place
with the rotary knob (8/11).
Only tighten the rotary knob
(8/11) by hand! The use of ma-
ximum manual force will damage
the tubular shaft.
C
4. Assemble the leg protection (14)
for right-handed users in variant
a). For left-handed users, as-
semble the leg protection (14)
rotated in variant b) as per the
illustration.
Move the barrier bracket either
to position a) or b) on the moun-

13
CY
NI
IEGB
ting block (25). Insert the screws
(26), each together with a
washer (27), through the aligned
holes and screw the barrier
bracket using the Allen key (28)
supplied to the round handle
(13) until it lies at against this.
Place the round handle (13) on
the tube. Fold on the counter-
holder (29) of the round handle
and screw it on together with the
large washer (30) with the rotary
knob (31).
The dismantling takes place in reverse order.
Make sure when mounting the round
handle (13) on the correct position of the
leg protection (14) for right-handed/vari-
ant a) or left-handed/variant b).
See Figure
C
.
Operating the Hedge
Trimmer
Do not use the equipment
without the hand guard.
Wear suitable clothing and
work gloves when working
with the equipment.
Ensure that the equipment
is functional before each
use. The On/Off switch and
the safety switch must not
be held closed. They must
switch off the motor when on
is released. Should a switch
be damaged, stop working
with the equipment. Ensure
that the mains voltage value
matches the label on the
equipment.
Note noise protection and local
specications. The use of the equip-
ment on certain days (e.g. Sundays
and national holidays), at certain
times of day (lunch times, night time
quiet periods) or in special areas
(e.g. health resorts, clinics etc.) is
restricted or forbidden.
Swivelling Out the Blade
Beam
D
1. Hold the safety blade beam
(
A
1) on the handle to adjust
the blade beam (5).
2. Unlock the safety lever (3) and
keep it pressed.
3. By simultaneously exerting pres-
sure on the lock lever (4), you
will loosen the xation of the
cutter bar (
A
1).
4. The safety blade beam (
A
1)
can now be swivelled out. Use
the stop stages and allow the
stop lever (4) to click back in.
You can choose 9 stop stages.
5. Then, release the safety lever (3)
again and ensure that it latches
back into its initial position.
Attach the shoulder strap
Attach the shoulder strap spring clip
(
A
20) to the carrying eyelet (
A
21) on
the tubular shank of the device. Set the
strap length such that the spring clip on the
shoulder strap is roughly at the height of
your hip.

14
GB IE NI CY
Switching On and Off
Ensure that you are standing in a
 rm position with both hands grip-
ping the hedge trimmer away from
the body. Ensure that the trimmer
is in contact with no other objects
before switching on.
1.
Connect the device to the mains voltage.
2. To switch on, hold the safety
switch (
A
16) depressed and simulta-
neously press the on/off
switch (
A
17). The hedge trimmer will
be run at maximum speed. You can re-
lease the safety switch (
A
16) again.
3. The equipment will switch off again when
you release on/off switch (
A
17).
Working with the Electric
Hedge Trimmer
During cutting work, ensure that no
contact is made with objects, e.g.
such as wire fencing or main plant
stems. This may result in damage to
the cutter bar.
• To avoid eye injuries, always wear the
supplied safety goggles while working
with the hedge trimmer (
A
23).
• Ensure that the barrier bar (leg protec-
tion) (
A
14) is installed before use.
• Always hold the equipment  rmly in
both hands, with one hand on the rear
handle and the other on the front han-
dle (
A
13). Thumbs and  ngers must
be  rmly around the handles.
• Check the shoulder strap (
A
20) on a
pleasant position, which makes it ea-
sier for you to hold the hedge trimmer.
• Switch off the equipment immedi-
ately in the event that the blades are
blocked by solid objects, pull out the
power plug then remove the object.
• Always work away from the mains
power outlet. Set the cutting direction
before starting work. Ensure that the
power cable is kept well away from
the working area. Never lay the cable
over the hedge, where it could easily
be caught up in the trimmer blades.
• Avoid overstraining the equipment dur-
ing work.
Pull out the power plug im-
mediately if the cable is dam-
aged, badly twisted or has
been completely cut through.
Putting down the device
• Place the device on the ground with
the motor housing  rst.
• The safety cutter bar (
A
1) must be
placed on the ground without being
subjected to any pressure.
• Do not apply any static pressure
whatsoever to the cutter bar (
A
1).
Swivelling the Arm
Caution!
The gear box (
A
2) becomes
hot during operation. There is
hot during operation. There is
a risk of burns. Do not touch
the gearbox housing (
A
2) or
the connecting point to the
front tubular shaft (
A
6).
E
1. Release the indexing by pushing
the safety slide (15) forward.
2. The tubular shank can now op-
tionally be turned 45° / 90° to
the right or the left (see the scale
on the device).

15
CY
NI
IEGB
Cutting Techniques
• Cut thick branches beforehand using a
branch clippers.
• The double-sided cutter bar enables cut-
ting in both directions or, with a swing-
ing action, from one side to the other.
• In case of vertical cutting, move the
hedge trimmer uniformly forward or
up and down in an arc movement.
• In case of horizontal cutting, move
the hedge trimmer in a sickle-shaped
movement to the edge of the hedge,
so that cut branches fall to the ground.
• In order to achieve long straight lines,
the placing of tensioned guiding cords
is recommended.
Cutting Shaped Hedges:
It is recommended that hedges be cut in
a trapezoidal shape, in order to prevent
stripping off of the lower branches. This
corresponds to the natural plant growth and
allows the hedge to thrive optimally. During
cutting, only the new annual growths are
reduced and thus a dense branching and
a good screen will develop.
1. Cut the sides of a hedge rst. To do
this, move the hedge trimmer in the di-
rection of growth from bottom to top. If
you cut down from the top, the thinner
branches will move out, which may
result in some areas having sparse
growth or holes.
2. Cut the top edge, according to taste,
in a at shape, roof shape or rounded
shape
3. Trim young plants to the required
shape. The main growth should re-
main undamaged until the hedge has
reached the planned height. All other
shoots are lopped off to half size.
Care of Free-Growing Hedges:
Free-growing hedges are not shaped when
cut, although they must be regularly main-
tained so the hedge does not become too
high.
Working Safely
• Do not use the high pruning saw when
standing on a ladder or in an unsafe
position.
• Do not be tempted to make unconsid-
ered cuts. Doing so may endanger
both yourself and others.
• Children must be supervised to ensure
that they do not play with the equip-
ment.
• Long use of the equipment can result in
vibration-related circulatory disorders
in the hands. However, the length of
use can be extended by using suitable
gloves or taking regular breaks. Note
that a personal tendency for poor cir-
culation, low outdoor temperatures, or
high gripping forces during work will
reduce the length of use.
Maintenance/
Cleaning
Repair and servicing work not
described in this manual should
always be carried by our Service
Centre. Use only original parts.
Pull out the power plug before carry-
ing out any work on the equipment.
Wear gloves while handling the
blades.
Carry out the following maintenance and
cleaning work regularly. This will guaran-
tee a long and reliable service life.

16
GB IE NI CY
• Before each use, check the hedge trim-
mer for obvious defects such as loose,
worn or damaged parts. Check the se-
cure seating of the bolts in the cutter bar.
• Do not use the unit if the blades are
blunt or worn. This will overstress the
motor and gearbox of the machine.
• Check coverings and safety devices for
damage and correct seating. Replace
these where necessary.
• Keep the ventilation slots and motor
housing of the device clean. Use a
damp cloth or a brush to do this. Do
not wash down the equipment with wa-
ter, or submerge it in water.
• Do not use any cleaning agents or
solvents. These could cause irreparable
damage to the equipment. Chemical
substances can attack the plastic parts
of the equipment.
• Clean the cutter bar carefully after
each use.
Wipe it off with an
oily cloth or spray it
with a metal protec-
tive spray.
• Keep the hedge trim-
mer dry and covered with the blade
protection supplied and out of reach of
children.
• The gears is maintenance free
Storage
• Keep the trimmer in the blade guard
supplied, in a dry place and out of
reach of children. Store the appliance
in horizontal position or secured
against toppling over.
• Hang up the advice on the handle for
adjusting the blade beam (
A
5) for
storage.
Transport
Never transport your appli-
ance while the appliance is
turned on! Risk of injury!
• For transport, always use the blade
guard (
A
22).
• Always carry the appliance with both
hands, with one hand on the back
handle and the other hand on the front
round handle (
A
13).
Waste Disposal
and Environmental
Protection
Be environmentally friendly. Return the
tool, accessories and packaging to a recy-
cling centre when you have nished with
them.
Electrical machines do not belong
in domestic waste.
Take the equipment to a waste disposal
site. The plastic and metal parts that are
used can be separated out into pure
grade, which allows recycling. Ask our
Service Centre for details.

17
CY
NI
IEGB
Spare Parts/Accessories
Spare parts and accessories can be obtained at
www.grizzly-service.eu
If you do not have internet access, please contact the Service Centre via telephone
(see “Service-Center” page 19). Please have the order number mentioned below ready.
Pos. exploded Description Order No.
drawing
74+75 Handle with screws for adjusting the blade beam 91096590
178-185 Round handle 91102876
176+177+66 Leg protection 91096595
151-153 Carbon brush 91102871
Trouble Shooting
Problem Possible cause Fault correction
Device does not start
Mains voltage not on
Check plug socket, cable, line
and plug, where appropriate,
have repaired through electrical
specialist
On/Off switch (
A
17)
defective Repair by Service Centre
Worn carbon brushes
Defective motor
Device runs with inter-
ruptions
Power cable is damaged Check the cable and have it changed by the Service Centre if
necessary
Internal loose electrical
connection Repair by Service Centre
On/Off switch (
A
17)
defective
Blades become hot
Blades (
A
1) are blunt Have the blades (
A
1) sharpened
or replaced (Service Centre)
Blades (
A
1) are notched Have the blades (
A
1) checked
or replaced (Service Centre)
Too much friction due to lack
of lubrication Oil the blades (
A
1)

18
GB IE NI CY
Guarantee
Dear Customer,
This equipment is provided with a 3-year
guarantee from the date of purchase.
In case of defects, you have statutory rights
against the seller of the product. These
statutory rights are not restricted by our
guarantee presented below.
Terms of Guarantee
The term of the guarantee begins on the
date of purchase. Please retain the original
receipt. This document is required as proof
of purchase.
If a material or manufacturing defect
occurs within three years of the date of
purchase of this product, we will repair or
replace – at our choice – the product for
you free of charge. This guarantee requires
the defective equipment and proof of pur-
chase to be presented within the three-year
period with a brief written description of
what constitutes the defect and when it oc-
curred.
If the defect is covered by our guarantee,
you will receive either the repaired product
or a new product. No new guarantee pe-
riod begins on repair or replacement of the
product.
Guarantee Period and Statutory
Claims for Defects
The guarantee period is not extended by
the guarantee service. This also applies for
replaced or repaired parts. Any damages
and defects already present at the time of
purchase must be reported immediately af-
ter unpacking. Repairs arising after expiry
of the guarantee period are chargeable.
Guarantee Cover
The equipment has been carefully pro-
duced in accordance with strict quality
guidelines and conscientiously checked
prior to delivery.
The guarantee applies for all material and
manufacturing defects. This guarantee
does not extend to cover product parts that
are subject to normal wear and may there-
fore be considered as wearing parts (e.g.
blades) or to cover damage to breakable
parts (e.g. switches).
This guarantee shall be invalid if the prod-
uct has been damaged, used incorrectly or
not maintained. Precise adherence to all of
the instructions specied in the operating
manual is required for proper use of the
product. Intended uses and actions against
which the operating manual advises or
warns must be categorically avoided.
The product is designed only for private
and not commercial use. The guarantee
will be invalidated in case of misuse or
improper handling, use of force, or inter-
ventions not undertaken by our authorised
service branch.
Processing in Case of Guarantee
To ensure efcient handling of your query,
please follow the directions below:
• Please have the receipt and item num-
ber (IAN 285176) ready as proof of
purchase for all enquiries.
• Please nd the item number on the rat-
ing plate.
• Should functional errors or other de-
fects occur, please initially contact the
service department specied below by
telephone or by e-mail. You will then
receive further information on the pro-
cessing of your complaint.
• After consultation with our customer

19
CY
NI
IEGB
service, a product recorded as defec-
tive can be sent postage paid to the
service address communicated to you,
with the proof of purchase (receipt)
and specication of what constitutes
the defect and when it occurred. In or-
der to avoid acceptance problems and
additional costs, please be sure to use
only the address communicated to you.
Ensure that the consignment is not sent
carriage forward or by bulky goods,
express or other special freight. Please
send the equipment inc. all accessories
supplied at the time of purchase and
ensure adequate, safe transport pack-
aging.
Repair Service
For a charge, repairs not covered by the
guarantee can be carried out by our ser-
vice branch, which will be happy to issue
a cost estimate for you.
We can handle only equipment that has
been sent with adequate packaging and
postage.
Attention: Please send your equipment to
our service branch in clean condition and
with an indication of the defect.
Equipment sent carriage forward or by
bulky goods, express or other special
freight will not be accepted.
We will dispose of your defective devices
free of charge when you send them to us.
Service-Center
GB Service Great Britain
Tel.: [phone]
(£ 0.10/Min.)
E-Mail: [email protected]
IAN 285176
IE Service Ireland
NI Service Northern Ireland
Tel.: [phone]
(0,08 EUR/Min., (peak))
(0,06 EUR/Min., (off peak))
E-Mail: [email protected]
IAN 285176
CY Service Cyprus
Tel.: [phone]
E-Mail: [email protected]
IAN 285176
Importer
Please note that the following address is
not a service address. Please initially con-
tact the service centre specied above.
Grizzly Tools GmbH & Co. KG
Stockstädter Straße 20
63762 Großostheim
Germany
www.grizzly-service.eu

20
GR CY














-
-
-


-

-

-




      
   , 
     
.   , 
     
 ,  
     
    .
     
. 



59
61

20
20
21
 21
21
22
22
 22
22
 23
23
23

24

27
28
 30
30
30

 30
31
31
32
  ...........................32
33
33
34
34

34
35
35
36
37
Service-Center37
37
