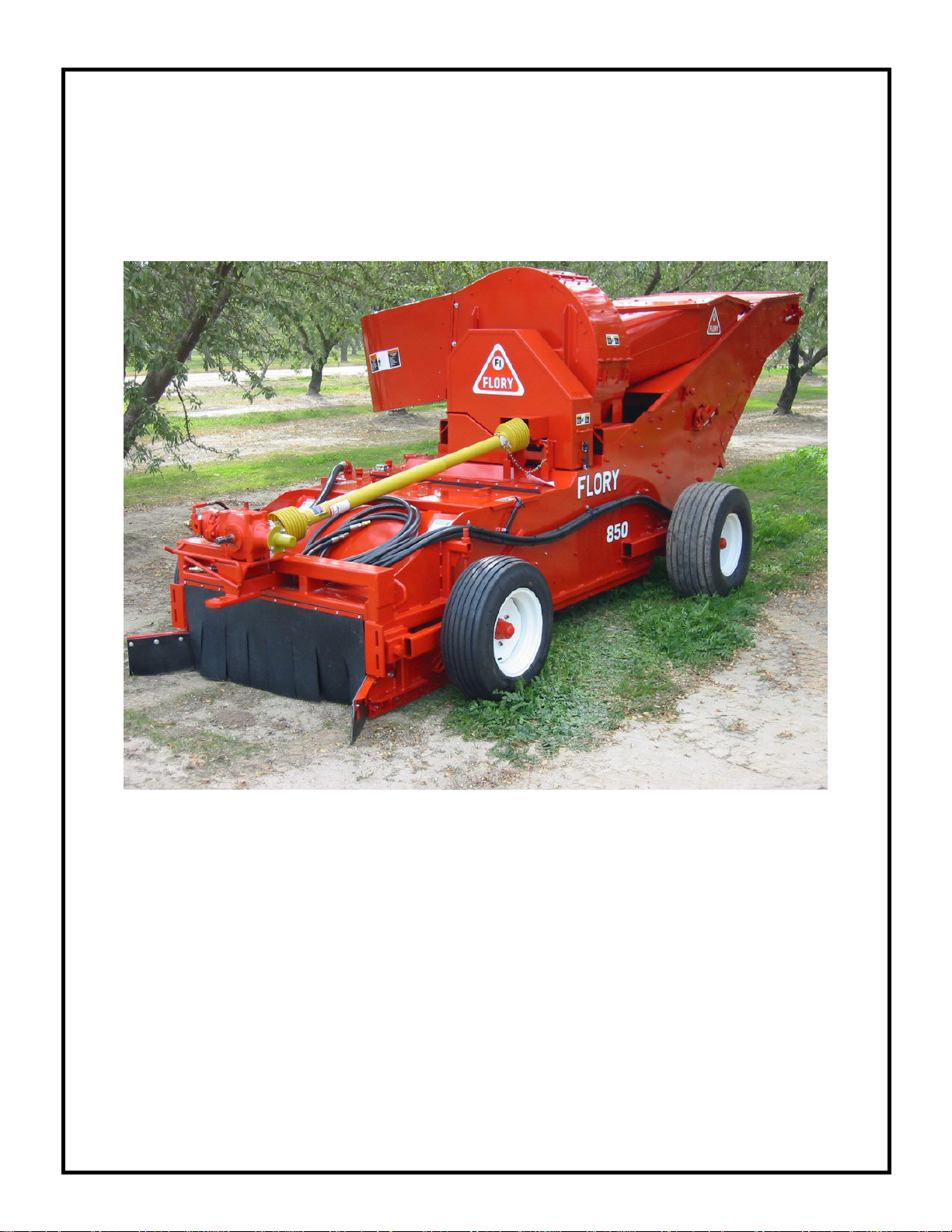

Flory 860 User manual

PARTS CATALOG
FLORY
TRACTOR POWERED
HARVESTER
MODEL
850-860
As much as possible, parts are arranged in groups of related parts. Parts are
illustrated and identified by reference numbers that correspond to the parts list.
UAR in “Quantity” column indicates that this part is “Used As Required.” NSS in
“Part No.” column indicates that this part is “Not Sold Separately.” Serial Number
breaks are noted by “~”. (I.E. “s/n 101~” indicates “serial number 101 and after.”)
TERMS “RIGHT-HAND” AND “LEFT-HAND”
“Right-hand” and “Left-hand” sides of this machine are determined by
standing at the rear of the unit and facing the direction of forward travel.
ORDERS
Orders should plainly specify correct part number, full description, quantity
requested machine model and serial number.
PHONE [phone] FAX [phone]
FLORY INDUSTRIES, INC. 4737 TOOMES RD PO BOX 908 SALIDA CA 95368
Revised 6/29/16

850-860 HARVESTER
SERIAL
NUMBER:_____________________
DATE OF PURCHASE: _________________

850-860 PARTS MANUAL
TABLE OF CONTENTS
FRONT HITCH AND PTO DRIVESHAFT 4-5
ROTARY TRAP AND PICKUP BELT 6-9
SUCTION FAN DRIVE 10-13
SUCTION FAN AND INLET TUBE 14-17
PRIMARY SEALS AND DRIVES 18-23
REAR LIGHTS 24-25
ELEVATOR SEALS AND DRIVES 26-29
CLEANING CHAINS 30-33
SHIELDS 34-35
HYDRAULIC TANK 36-37
TIRES, WHEELS AND HUBS 38-39
GEARBOX BREAKDOWN 40-41
OPTIONAL MUD BRUSH AND AUGER DRIVE KIT 42-43
OPTIONAL TWIN-ROD CLEANING CHAINS 44-47
OPTIONAL TWIN-ROD & BAR-CHAIN PICK-UP CHAINS 48-49
OPTIONAL PADDLE SWEEP KIT 50-51
OPTIONAL POWER PAK KIT 52-55
OPTIONAL LUNETTE EYE AND TOW HITCH KIT 56-57
OPTIONAL HERBST CART KIT 58-59
HYDRAULIC SCHEMATIC 60-70
ELECTRICAL SCHEMATIC 71-75
Click on a section to jump to that page

4
Back To The Table Of Contents

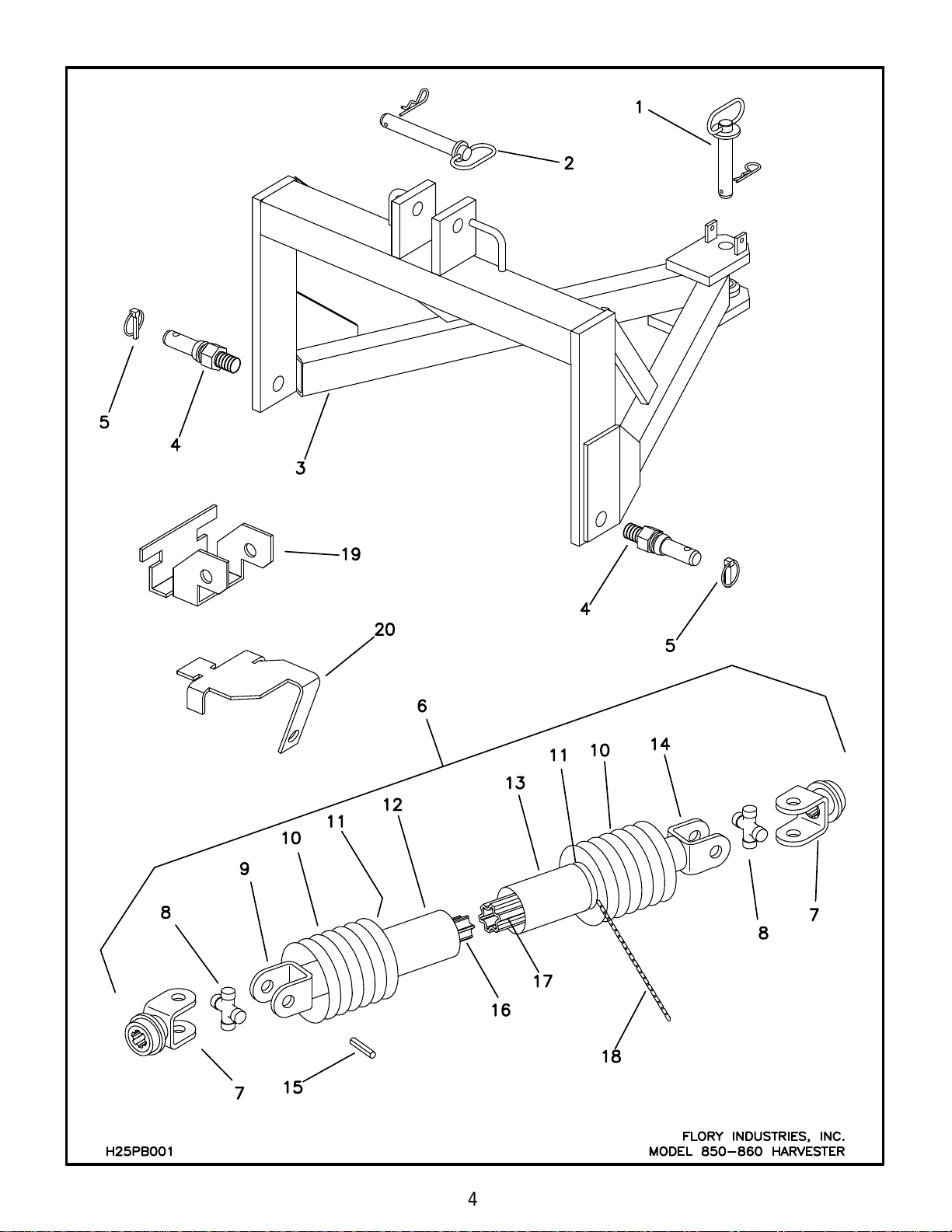

REF.
NO. PART NO. DESCRIPTION QTY.
1A PN6019 PIN-hitch 1
1B PN3005 PIN-hair (5/32”)(included with PN6019) 1
2A 12687 PIN-hitch 1
2B PN3005 PIN-hair (5/32”)(included with 12687) 1
3 F69198 ADAPTER-hitch 1
4 12695 PIN-lift 2
5 12623 PIN-linch 2
6 DS2021 DRIVESHAFT-pto (complete) 1
7 YK2011 YOKE 2
8 CK5010 CROSS KIT-yoke 2
9 YK2012 YOKE-inboard 1
10 SH1011 CONE-shield 2
11 087276 RING-bearing 2
12 SH2017 SHIELD-outer 1
13 SH2016 SHIELD-inner 1
14 YK2013 YOKE-inboard 1
15 PN1012 PIN-yoke 2
16 DS8014 PROFILE-inner 1
17 DS9014 PROFILE-outer 1
18 044321 CHAIN-safety 1
19 L69305 BRACKET-hitch mount upper 1
20 L69315 BRACKET-hitch mount lower 1
H25PB001 FLORY INDUSTRIES, INC.
MODEL 850-860 HARVESTER
5
Back To The Table Of Contents

6
Back To The Table Of Contents

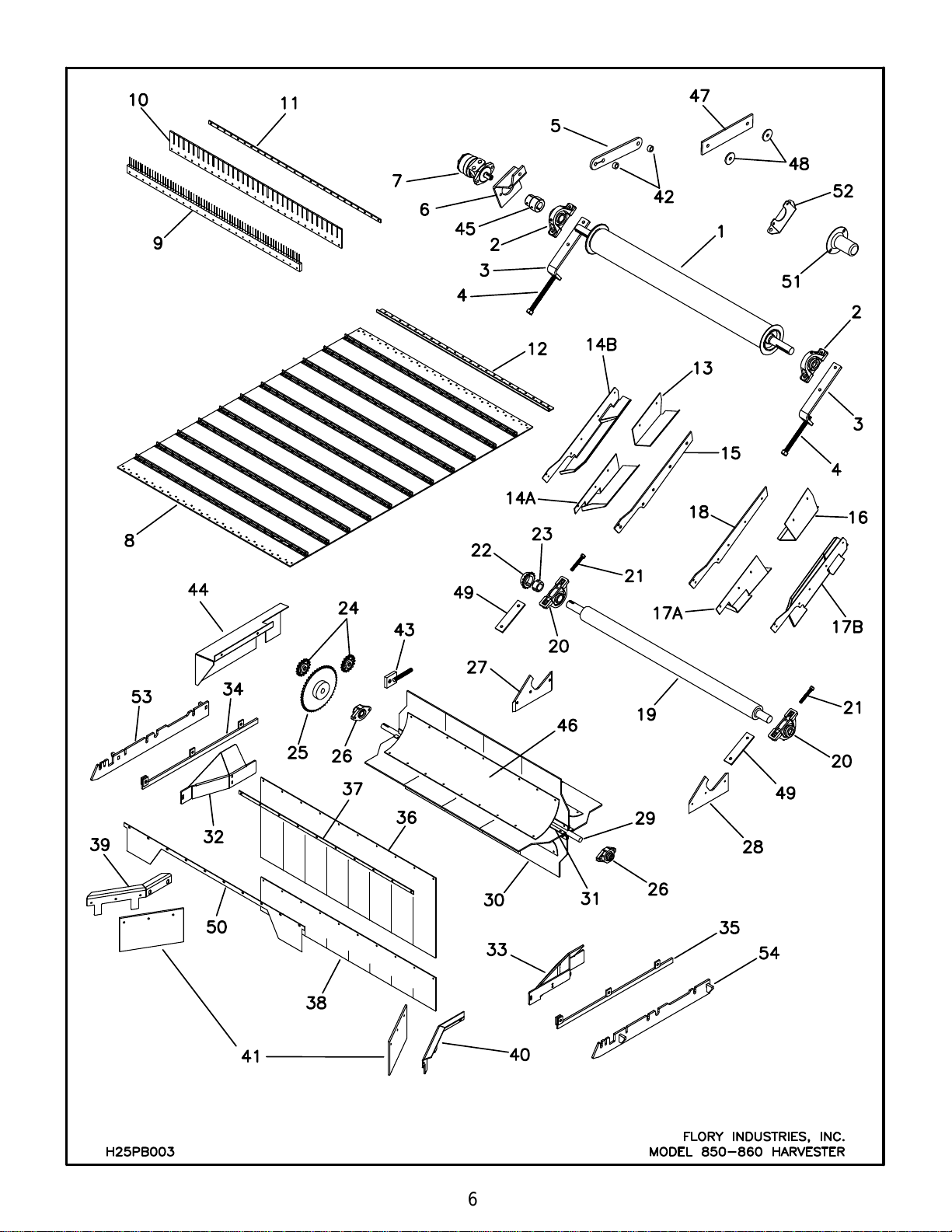

REF.
NO. PART NO. DESCRIPTION QTY.
1 F5012 SHAFT-pickup belt (upper) (s/n ~1633) 1
F5012-R SHAFT-rubberized pickup belt (upper) (s/n 1634~) 1
NOTE: F5012 is replaced by F5012-R
2 PBC2108 BEARING-pickup belt shaft (upper) 2
3 F61348 PAD-bearing take up 2
4 F10728 REDI BOLT-bearing take up 2
5 L66010 ARM-torque (inc. 2 of L13015 bushings for s/n ~1246) 1
L66010 (s/n ~1709) Replaced by L30505
6 L67400 MOUNT-pickup belt motor 1
7A HM1149 MOTOR-p/u belt (Eaton) (s/n ~1246) (may use HM2149) 1
HM2149 MOTOR-p/u belt (Danfoss) (s/n 1247~1794) 1
HM3149 MOTOR-p/u belt (Danfoss) (s/n 1795~) 1
7B HM1149-K SEAL KIT-motor (HM1149) 1
HM2149-K SEAL KIT-motor (HM2149) 1
HM3149K SEAL KIT-motor (HM3149) 1
8 F4012 BELT-pickup (complete) 1
F4024 BELT-pickup (without teeth and flaps) 1
9 F3024 TEETH-pickup belt 11
10 F3036 FLAP-pickup belt 11
11 F6036 CLAMPSTRIP-pickup belt 11
12 F6024 CLAMPSTRIP-pickup belt 2
13 F61258 TROUGH-dirt (upper Rt)(s/n ~1633) Replaced by F61268 1
14A F61268 TROUGH-dirt (lower right) (s/n ~1633) 1
14B F61268 TROUGH-dirt (upper & lower right) (s/n 1634-1794) 1
F61468 TROUGH-dirt (upper & lower right) (s/n 1795~) 1
15 F60608 GUIDE-pickup belt (right) (s/n ~1794) 1
F60718 GUIDE-pickup belt (1/4" thick) (right) (s/n 1795~) 1
16 F61278 TROUGH-dirt (upper Lt)(s/n ~1633) Replaced by F61288 1
17A F61288 TROUGH-dirt (lower left) (s/n ~1633) 1
17B F61288 TROUGH-dirt (upper & lower left) (s/n 1634-1794) 1
F61488 TROUGH-dirt (upper & lower left) (s/n 1795~) 1
18 F60488 GUIDE-pickup belt (left) (s/n ~1794) 1
F60738 GUIDE-pickup belt (1/4" thick) (left) (s/n 1795~) 1
19 F50248 SHAFT-pickup belt (lower) (s/n ~1794) 1
F59258 SHAFT-pickup belt (lower) (s/n 1795~) 1
20 PBC2103 BEARING-pickup belt (lower) (s/n ~1794) 2
PBC2108 BEARING-pickup belt (lower) (s/n 1795~) 2
21 F1048 REDI BOLT-bearing take up 2
22 50JA12 SPROCKET-rotary trap (drive) (s/n ~1794) 1
50BTL16H SPROCKET-rotary trap (drive) (s/n 1795~) 1
H25PB003 FLORY INDUSTRIES, INC.
MODEL 850-860 HARVESTER
7
Back To The Table Of Contents

8
Back To The Table Of Contents

REF.
NO. PART NO. DESCRIPTION QTY.
23 JA103 BUSHING-sprocket (s/n ~1794) 1
1610108 BUSHING-sprocket (s/n 1795~) 1
24 AG2416 IDLER-sprocket 2
25 50BS48100 SPROCKET-rotary trap (driven) 1
26 FLC2100 BEARING-rotary trap 2
27 F6084 WEARSTRIP-pickup belt (lower right) (s/n ~1794) 1
F60748 WEARSTRIP-pickup belt (lower right) (s/n 1795~2026) 1
L60746 WEARSTRIP-pickup belt (lower right) (s/n 2027~) 1
28 F6072 WEARSTRIP-pickup belt (lower left) (s/n ~1794) 1
F60768 WEARSTRIP-pickup belt (lower left) (s/n 1795~2026) 1
L60766 WEARSTRIP-pickup belt (lower left) (s/n 2027~) 1
29 F5072 SHAFT-rotary trap 1
30 L30480 FLAP-rotary trap 4
31 F6096 CLAMPSTRIP-rotary trap flap 4
32 F6120 DEFLECTOR-rotary trap (right) 1
33 F6108 DEFLECTOR-rotary trap (left) 1
34 K6288 WEAR STRIP-side plate (right) (s/n ~2026) 1
L62880 WEAR STRIP-side plate
(right) (pec./wal.) (s/n ~2026)
1
35 K6276 WEAR STRIP-side plate (left) 1
L62760 WEAR STRIP-side plate (left) (pecans/walnuts) 1
36 L30120 CURTAIN-windrow (almonds & walnuts) 1
37 F6012 CLAMPSTRIP-windrow curtain 1
38 L30130 CURTAIN-windrow (pecans) 1
39 K6171 BRACKET-wing (right)(almonds / walnuts / hazelnuts) 1
40 K6172 BRACKET-wing (left)(almonds / walnuts / hazelnuts) 1
41 K3173 SEAL-wing (almonds / walnuts / hazelnuts) 2
42 L13015 BUSHING-torque arm (s/n 1247~1709) 2
43 F11338 BRACKET-bearing take up 1
44 L22100 SHIELD-rotary trap drive 1
45 CP9118 COUPLER-motor to shaft (s/n ~1794) 1
CP9125 COUPLER-motor to shaft (s/n 1795~) 1
46 L30485 FLAP-rotary pickup (s/n 1664-1986) 4
47 L30505 ARM-torque (rubber)(s/n 1720~) Requires Qty 2 1
L14015 when replacing L66010
48 L14015 WASHER-clamp (steel) 2
49 F14238 SPACER-bearing (s/n 1795~) 2
50 L69915 CLAMPSTRIP-windrow curtain (pecan) 1
51 MC1011 CAP-shaft end 1
52 L22006 SHIELD-shaft end 1
53 L62968 WEAR STRIP-side plate (right) (s/n 2027~) 1
54 L62988 WEAR STRIP-side plate (left) (s/n 2027~) 1
H25PB003
FLORY INDUSTRIES, INC.
MODEL 850-860 HARVESTER
9
Back To The Table Of Contents

10
Back To The Table Of Contents

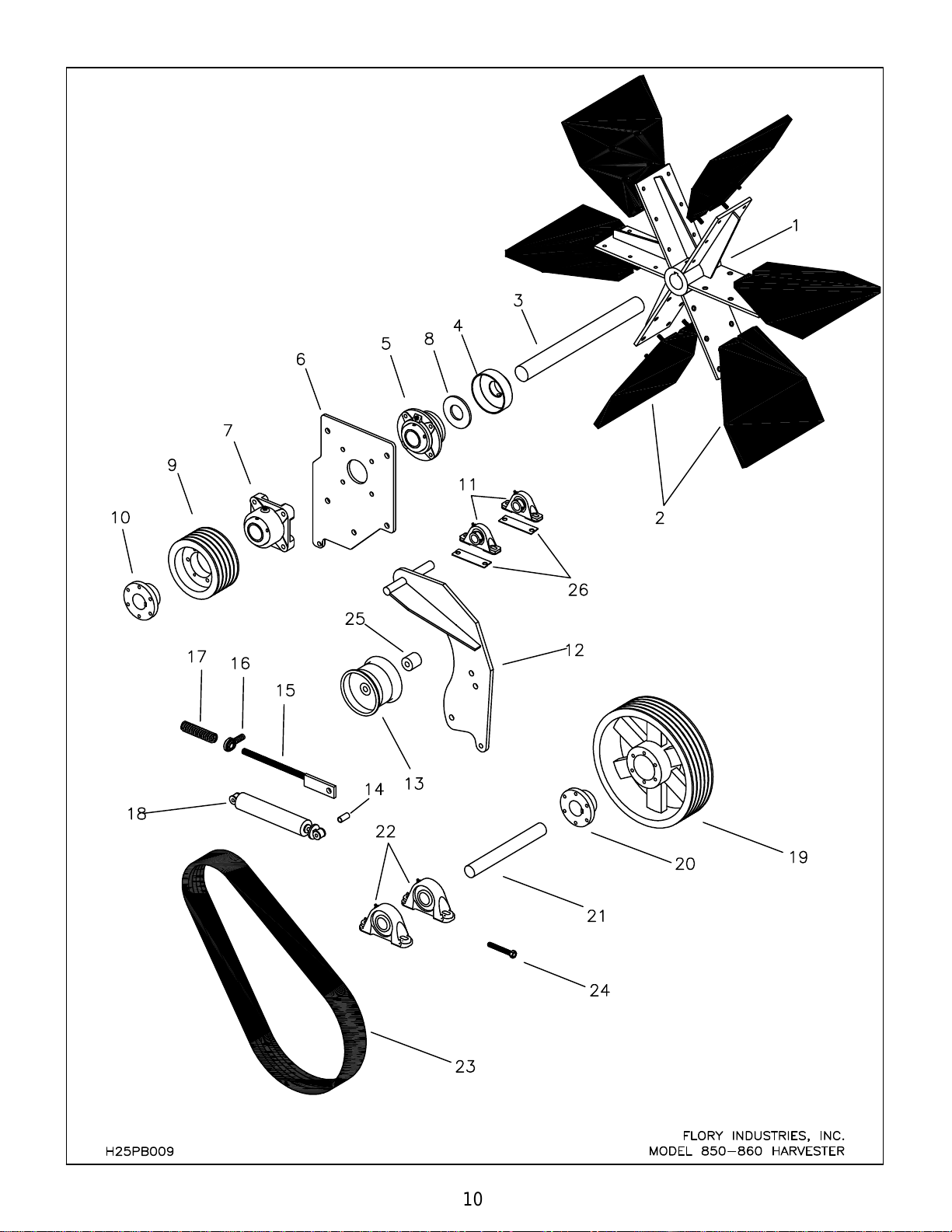

REF.
NO. PART NO. DESCRIPTION QTY.
1 L63940 SPIDER-suction fan (std, UHMW blades only) 1
L63940-S SPIDER-suction fan (opt, Poly or Steel blades only) 1
2 L34955 SET-suction fan blade (UHMW) (**See note below**) 1
L35950 SET-suction fan blade (poly-urethane) (**See note**) 1
L63950 SET-suction fan blade (steel) (**See note below**) 1
3 L52630 SHAFT-suction fan 1
4 L14085 SLINGER-dirt 1
5 FLC4115 BEARING-suction fan (s/n ~1238) 1
FCC4115 BEARING-suction fan (s/n 1247~1283)(NLA use FLC4115) 1
FCE4115 BEARING-suction fan (s/n 1292~) 1
6 L67105 MOUNT-suction fan bearing 1
7 FLC4115 BEARING-suction fan (s/n ~1238 & s/n 1292-1448) 1
FCC4115 BEARING-suction fan (s/n 1247~1283)(NLA use FBE4115) 1
FBE4115 BEARING-suction fan (s/n 1464~) 1
8 L38005 SEAL-dirt slinger 1
9 S55VQ750 SHEAVE-suction fan (driven)(almonds) 1
(ALM. only s/n ~1881) (all crops s/n 1882~)
S55VQ670 SHEAVE-suction fan (driven) 1
(WAL./HAZ./GA PEC. s/n~1794)
S55VQ710 SHEAVE-suction fan (driven) 1
(PEC.-Western States s/n~1794)
S55VQ590 SHEAVE-suction fan (driven) 1
(WAL./PEC./HAZ./MAC. s/n 1795-1881)
10 SF115 BUSHING-sheave (S55VQ750, 670 & 710) 1
SK0115 BUSHING-sheave (S55VQ590) 1
11 PBC2100 BEARING-idler 2
12 L64020 ARM-suction fan idler (s/n ~1881) 1
L64026 ARM-suction fan idler (s/n 1882~) 1
13 FS-PL3292 IDLER-suction fan belt 1
14 F13018 BUSHING-gas spring 1
15 L67050 TENSIONER-fan belt 1
16 SPM10 ROD END-tensioner 1
17 815 SPRING-tensioner 1
18 SG4008 SPRING-gas 1
19 S55VQ1500 SHEAVE-suction fan (drive) 1
(all crops s/n ~1881) (ALM. Only s/n 1882~)
S55VL1870 SHEAVE-suction fan (drive) 1
(WAL./PEC./HAZ./MAC. s/n 1882~)
20 E108 BUSHING-sheave (S55VQ1500) 1
3535108 BUSHING-sheave (S55VL1870) 1
21 L53000 SHAFT-counter 1
H25PB009 FLORY INDUSTRIES, INC.
MODEL 850-860 HARVESTER
11
Back To The Table Of Contents

12
Back To The Table Of Contents

REF.
NO. PART NO. DESCRIPTION QTY.
22 PBC2108 BEARING-counter shaft 2
23 PB55VX750* BELT-suction fan (almonds) (s/n ~1881) 1
PB55VX730* BELT-suction fan (other crops) (s/n ~1881) 1
PB55VX710 BELT-suction fan (almonds) (s/n 1882~) 1
B5VX780 BELT-suction fan (other crops) (s/n 1882~) 5
* Was single belts on s/n ~1238 and is replaced by banded belts.
24 F1048 REDI BOLT-bearing take up 1
25 L14035 SPACER-fan idler 1
26 L10236 SHIM, bearing 2
Recommended Use:
UHMW Blades - All crops
NOTE: It is very important to install the same type of blades on the fan that
were originally removed from the fan in order to maintain the balance of the
fan assembly. If another type of blade is used, (either lighter or heavier) the fan
assembly may need to be re-balanced to avoid vibration.
H25PB009
FLORY INDUSTRIES, INC.
MODEL 850-860 HARVESTER
13
Back To The Table Of Contents

14
Back To The Table Of Contents

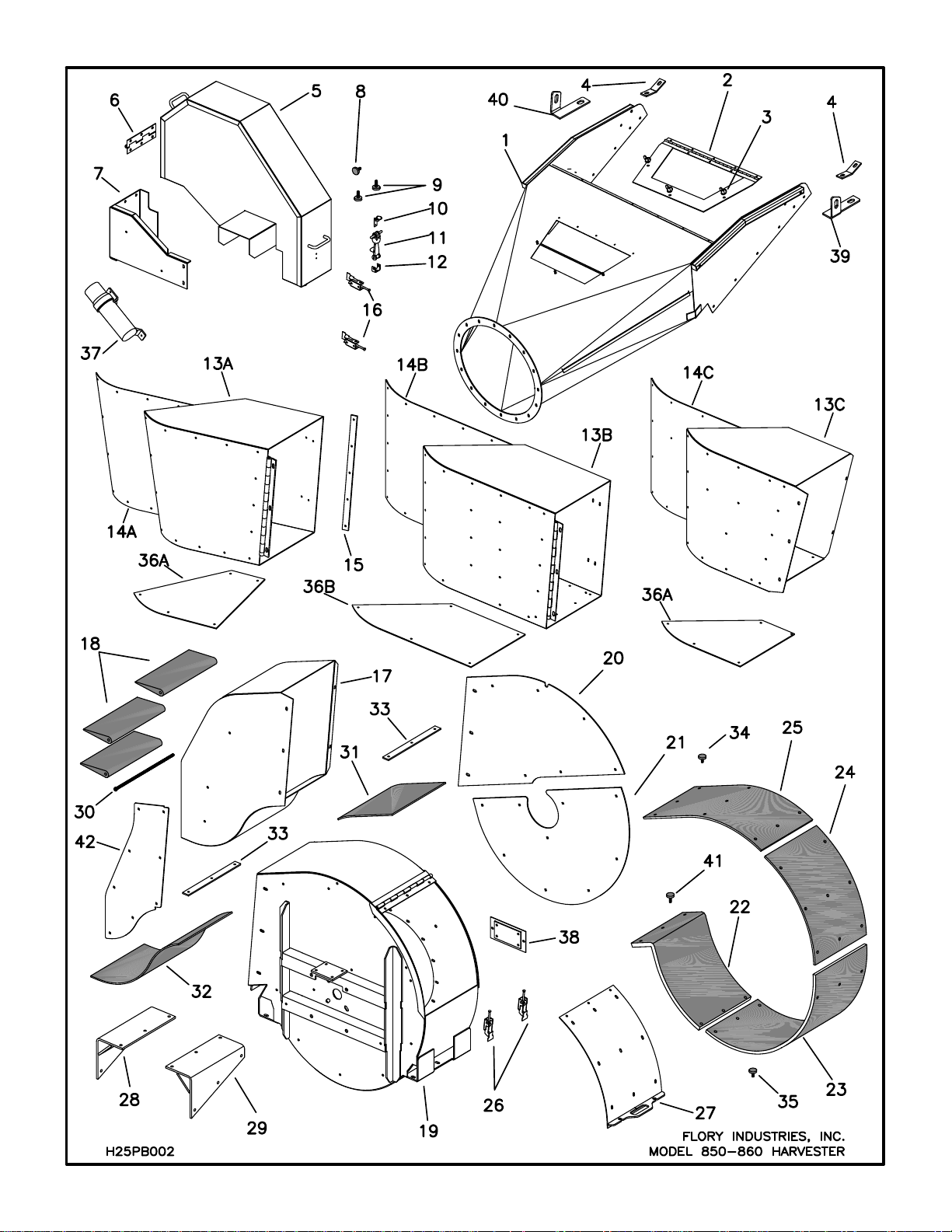

REF.
NO. PART NO. DESCRIPTION QTY.
1 L68155 TUBE-air inlet 1
2 L27060 DOOR-air inlet tube 1
3 5/16TN-C THUMB NUT-door (5/16”) 3
4 L60325 ANCHOR-air inlet tube (s/n ~1986) 2
5 L22050 SHIELD-suction fan drive (upper)(s/n ~1881) 1
L22056 SHIELD-suction fan drive (upper)(s/n 1882~) 1
6 L27020 HINGE-suction fan drive shield 1
7 L22060 SHIELD-suction fan drive (lower) 1
8 P6373B POLY BOLT-shield stop (short) 1
9 P6372B POLY BOLT-shield stop (medium) 2
10 28A382 LATCH-rubber hook 1
11 68D842 HOOK-rubber 1
12 277A80 ANCHOR-rubber hook 1
13A L63840R DEFLECTOR-suction fan (other crops)(s/n ~1433) 1
13B L63855 DEFLECTOR-suction fan 1
(pecan s/n 2185~) (wal./haz. - option)
13C L63845 DEFLECTOR-suction fan 1
(pecan s/n 1434-2169) (wal./haz. s/n 1434~)
14A L34020 LINER-side (L63840R) 1
14B L63755 LINER-side (L63855) 1
14C L34025 LINER-side (L63845) 1
15 L64890 CLAMPSTRIP-wear plate 1
16 701 LATCH-deflector (other crops) 2
17 L63860 DEFLECTOR-suction fan (almonds) 1
18 L65900 VANE-suction fan deflector (steel) 3
L35905 VANE-suction fan deflector (poly-urethane) 3
19 L68140R HOUSING-suction fan (s/n ~1291) 1
L68145 HOUSING-suction fan (s/n 1292~) 1
20 L63700 LINER-suction fan housing (upper front) 1
21 L63710 LINER-suction fan housing (lower front) 1
22 L35720 LINER-end cap 1
23 L35740 LINER-lower suction fan 1
24 L35750 LINER-suction fan door 1
25 L35760 LINER-upper suction fan 1
26 701 LATCH-suction fan door 2
27 L27050 DOOR-suction fan 1
28 L67010 MOUNT-suction fan (right) 1
29 L67030 MOUNT-suction fan (left) 1
30 L10905 REDI BOLT-vane 3
31 L34210 LINER-suction fan deflector (upper)(almonds)(s/n 1247~) 1
32 L34220 LINER-suction fan deflector (lower)(almonds)(s/n 1247~) 1
H25PB002 FLORY INDUSTRIES, INC.
MODEL 850-860 HARVESTER
15
Back To The Table Of Contents

16
Back To The Table Of Contents

REF.
NO. PART NO. DESCRIPTION QTY.
33 L64870 CLAMPSTRIP-suction fan deflector liner (almonds) 2
34 P6373B POLY BOLT - (short)(9 for L35750, 9 for L35760) 18
35 P6372B POLY BOLT - (medium)(for L35740) 9
36A L63735 LINER-deflector (L63840R & L63845) 1
36B L63745 LINER-deflector (L63855) 1
37 MM3000 TUBE-document (s/n 1624~) 1
38 L27255 DOOR-suction fan cleanout (s/n 1770~) 1
39 L60436 ANCHOR - air inlet tube (Left) (s/n 1987~) 1
40 L60416 ANCHOR - air inlet tube (Right) (s/n 1987~) 1
41 P6380B POLY BOLT - (long)(for L35720) 6
42 L63716* LINER-suction fan deflector (side)(almonds)(s/n 2283~) 1
*This liner can be used for s/n ~2274 if holes are drilled in the fan
deflector (L63860) to fit liner.
H25PB002 FLORY INDUSTRIES, INC.
MODEL 850-860 HARVESTER
17
Back To The Table Of Contents

18
Back To The Table Of Contents

REF.
NO. PART NO. DESCRIPTION QTY.
1 L65970 BRACKET, primary seal
(right) (pecs, wal s/n 1882~)
1
L65990 BRACKET, primary seal
(left) (pec, wal s/n 1882~)
1
2 L31825 SEAL, primary
(pec, wal s/n 1882~)
4
3 L64985 CLAMP STRIP, primary seal
(pec, wal s/n 1882~)
2
4 L65960 BRACKET,
primary seal
(right) (alm, wal s/n ~1881, hzl.)
1
L65980 BRACKET,
primary seal
(left) (alm, wal s/n ~1881, hzl.)
1
5 L31830 SEAL, primary
(alm, wal s/n ~1881, hzl.)
2
6 L64550 CLAMP STRIP,
primary seal
(alm, wal s/n ~1881, hzl.)
2
7 L64980 CLAMPSTRIP-primary seal (lower)(all crops) 2
8 L64540 CLAMPSTRIP-primary seal (lower)(all crops) 2
9 310DB CYLINDER-telescoping hitch (includes pins & clips) 1
10 1544 PIN-cylinder 2
11 H82802 HOSE-hydraulic (280”)(telescoping hitch) 1
12 H82692 HOSE-hydraulic (269”)(telescoping hitch) 1
13A 12687 PIN-hydraulic hitch 1
13B PN3004 PIN-hair (1/8”)(included with 12687) 1
14 L64450 CLAMPSTRIP-hydraulic hitch wiper 2
15 L31250 WIPER-hydraulic hitch 2
16 L32000 GUIDE-hydraulic hitch telescoping 2
17 L61940 HITCH-telescoping 1
18 DS2020 DRIVESHAFT-complete 1
19 YK1010 YOKE-bearing shaft 1
20 CK5010 CROSS KIT-yoke 2
21 SH1011 CONE-shield 2
22 YK2013 YOKE-inboard 1
23 087276 BEARING-nylon 2
24 DS9014 PROFILE-outer 1
25 DS8014 PROFILE-inner 1
26 SH2016 SHIELD-inner 1
27 SH2017 SHIELD-outer 1
28 YK2012 YOKE-inboard 1
29 YK2011 YOKE-gearbox 1
30 GB1131 GEARBOX (see gearbox page for parts breakdown) 1
31A HP3233 PUMP-systems hydraulic (single / standard) 1
HP4233 PUMP-auxiliary hydraulic (double / optional) 1
31B HP2155-K SEAL KIT-pump (HP3233) 1
HP4233-K SEAL KIT-pump (HP4233) 1
32 L67420 MOUNT-pump 1
33 L50900 SHAFT-bounce roller (wire chain) 3
34 RL4052 ROLLER-support bounce (wire chain) 6
35 FLC2103 BEARING (wire chain) 6

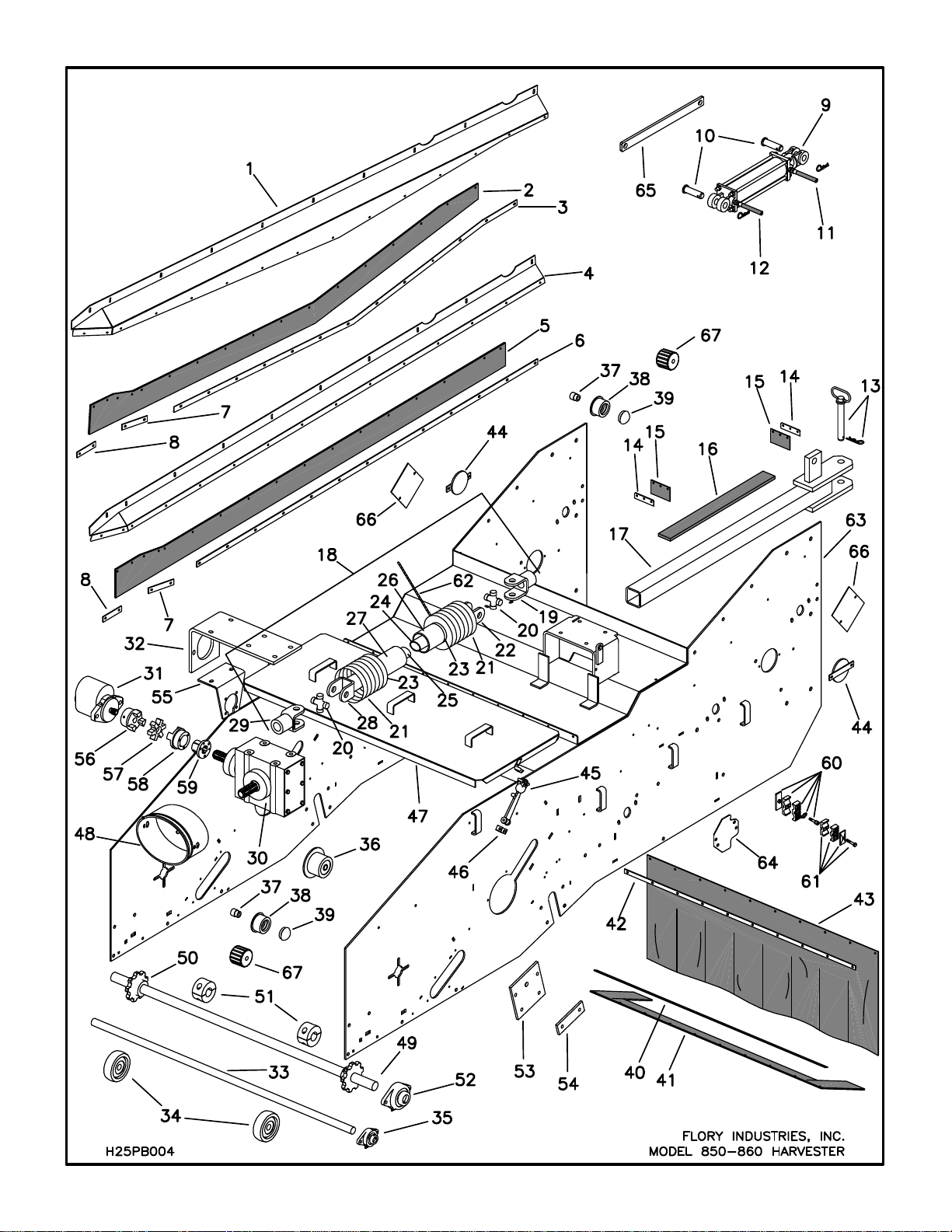

H25PB004
FLORY INDUSTRIES, INC.
MODEL 850-860 HARVESTER
19
Back To The Table Of Contents

20
Back To The Table Of Contents
