Fluke 7009 User manual

7009____ugeng0000
7009
Calibration Bath
User’s Guide
Via Acquanera, 29 22100 Como
tel. 031.526.566 (r.a.) fax 031.507.984
[e-mail] www.calpower.it

Limited Warranty & Limitation of Liability
Each product from Fluke Corporation (“Fluke”) is warranted to be free from defects in material and
workmanship under normal use and service. The warranty period is one year for the Calibration Bath.
The warranty period begins on the date of the shipment. Parts, product repairs, and services are warranted
for 90 days. The warranty extends only to the original buyer or end-user customer of a Fluke authorized
reseller, and does not apply to fuses, disposable batteries or to any other product, which in Fluke’s opin-
ion, has been misused, altered, neglected, or damaged by accident or abnormal conditions of operation or
handling. Fluke warrants that software will operate substantially in accordance with its functional speci-
fications for 90 days and that it has been properly recorded on non-defective media. Fluke does not war-
rant that software will be error free or operate without interruption. Fluke does not warrant calibrations
on the Calibration Bath.
Fluke authorized resellers shall extend this warranty on new and unused products to end-user customers
only but have no authority to extend a greater or different warranty on behalf of Fluke. Warranty support
is available if product is purchased through a Fluke authorized sales outlet or Buyer has paid the applica-
ble international price. Fluke reserves the right to invoice Buyer for importation costs of repairs/replace-
ment parts when product purchased in one country is submitted for repair in another country.
Fluke’s warranty obligation is limited, at Fluke’s option, to refund of the purchase price, free of charge
repair, or replacement of a defective product which is returned to a Fluke authorized service center within
the warranty period.
To obtain warranty service, contact your nearest Fluke authorized service center or send the product, with
a description of the difficulty, postage, and insurance prepaid (FOB Destination), to the nearest Fluke au-
thorized service center. Fluke assumes no risk for damage in transit. Following warranty repair, the prod-
uct will be returned to Buyer, transportation prepaid (FOB Destination). If Fluke determines that the
failure was caused by misuse, alteration, accident or abnormal condition or operation or handling, Fluke
will provide an estimate or repair costs and obtain authorization before commencing the work. Following
repair, the product will be returned to the Buyer transportation prepaid and the Buyer will be billed for
the repair and return transportation charges (FOB Shipping Point).
THIS WARRANTY IS BUYER’S SOLE AND EXCLUSIVE REMEDY AND IS IN LIEU OF ALL
OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO ANY IM-
PLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
Fluke SHALL NOT BE LIABLE FOR ANY SPECIAL, INDIRECT, INCIDENTAL. OR CONSE-
QUENTIAL DAMAGES OR LOSSES, INCLUDING LOSS OF DATA, WHETHER ARISING FROM
BREACH OF WARRANTY OR BASED ON CONTRACT, TORT, RELIANCE OR ANY OTHER
THEORY.
Since some countries or states do not allow limitation of the term of an implied warranty, or exclusion or
limitation of incidental or consequential damages, the limitations and exclusions of this warranty may not
apply to every buyer. If any provision of this Warranty is held invalid or unenforceable by a court of com-
petent jurisdiction, such holding will not affect the validity or enforceability of any other provision.
Fluke Corporation
799 E. Utah Valley Drive • American Fork, UT 84003-9775 • USA
Phone: [phone] • Telefax: +1.801.763.1010
E-mail: [email protected]
Subject to change without notice. • Copyright © 2010• Printed in USA

Table of Contents
1 Before You Start . . . . . . . . . . . . . . . . . . . . . . 1
1.1 Symbols Used . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
1.2 Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . 2
1.2.1 Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
1.2.2 Cautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.3 Fluke Authorized Service Centers . . . . . . . . . . . . . . . . . . 5
2 Introduction. . . . . . . . . . . . . . . . . . . . . . . . . 7
3 Specifications and Environmental Conditions . . . . . . 9
3.1 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
3.2 Environmental Conditions . . . . . . . . . . . . . . . . . . . . . . 9
4 Quick Start. . . . . . . . . . . . . . . . . . . . . . . . . 11
4.1 Set Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
4.2 Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
4.3 Setting the Temperature . . . . . . . . . . . . . . . . . . . . . . . 11
5 Installation. . . . . . . . . . . . . . . . . . . . . . . . . 13
5.1 Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
5.2 Bath Environment . . . . . . . . . . . . . . . . . . . . . . . . . . 13
5.3 Bath Preparation and Filling . . . . . . . . . . . . . . . . . . . . 13
5.4 Probe . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
5.5 Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
6 Bath Use . . . . . . . . . . . . . . . . . . . . . . . . . . 15
6.1 General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
6.2 Comparison Calibration . . . . . . . . . . . . . . . . . . . . . . . 15
6.3 Calibration of Multiple Probes . . . . . . . . . . . . . . . . . . . 16
7 Parts and Controls . . . . . . . . . . . . . . . . . . . . 17
7.1 Front Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . 17
7.2 Side Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
7.3 Back Panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
8 General Operation. . . . . . . . . . . . . . . . . . . . . 21
i

8.1 Bath Fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
8.1.1 Temperature Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
8.1.2 Viscosity. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
8.1.3 Specific Heat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
8.1.4 Thermal Conductivity. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
8.1.5 Thermal Expansion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
8.1.6 Electrical Conductivity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
8.1.7 Fluid lifetime . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
8.1.8 Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
8.1.9 Cost . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
8.1.10 Commonly Used Fluids. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
8.1.10.1 Water . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
8.1.10.2 Ethylene Glycol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
8.1.10.3 Methanol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
8.1.10.4 Mineral Oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
8.1.10.5 Silicone Oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
8.2 Stirring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
8.3 Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
8.4 Heater . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
8.5 Cooling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
8.6 Temperature Controller . . . . . . . . . . . . . . . . . . . . . . . 27
9 Controller Operation . . . . . . . . . . . . . . . . . . . 29
9.1 Bath Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . 29
9.2 Reset Cutout . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
9.3 Temperature Set-point . . . . . . . . . . . . . . . . . . . . . . . . 31
9.3.1 Programmable Set-points . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
9.3.2 Set-point Value . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
9.3.3 Set-point vernier . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
9.4 Temperature Scale Units . . . . . . . . . . . . . . . . . . . . . . 33
9.5 Secondary Menu. . . . . . . . . . . . . . . . . . . . . . . . . . . 33
9.6 Heater Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
9.7 Proportional Band . . . . . . . . . . . . . . . . . . . . . . . . . . 34
9.8 Cutout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
9.9 Controller Configuration . . . . . . . . . . . . . . . . . . . . . . 37
9.10 Probe Parameters Menu . . . . . . . . . . . . . . . . . . . . . . . 37
9.10.1 DO. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
9.10.2 DG. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
9.11 Operating Parameters . . . . . . . . . . . . . . . . . . . . . . . . 38
9.11.1 Cutout Reset Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
9.12 Serial Interface Parameters . . . . . . . . . . . . . . . . . . . . . 39
9.12.1 BAUD Rate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
9.12.2 Sample Period . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
9.12.3 Duplex Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
9.12.4 Linefeed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
ii

9.13 IEEE-488 Parameters Menu. . . . . . . . . . . . . . . . . . . . . 41
9.13.1 IEEE-488 Address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
9.14 Calibration Parameters . . . . . . . . . . . . . . . . . . . . . . . 41
9.14.1 CTO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
9.14.2 H and L . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
9.15 Command Summary. . . . . . . . . . . . . . . . . . . . . . . . . 42
10 Digital Communication Interface . . . . . . . . . . . . . 43
10.1 Serial communications . . . . . . . . . . . . . . . . . . . . . . . 43
10.1.1 Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
10.1.2 Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
10.1.2.1 Baud Rate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
10.1.2.2 Sample Period. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
10.1.2.3 Duplex Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
10.1.2.4 Linefeed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
10.1.3 Serial Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
10.2 IEEE-488 communication (optional) . . . . . . . . . . . . . . . . 45
10.2.1 Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
10.2.1.1 IEEE-488 Interface Address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
10.2.2 IEEE-488 Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
10.3 Interface Commands . . . . . . . . . . . . . . . . . . . . . . . . 45
10.4 Power Control Functions . . . . . . . . . . . . . . . . . . . . . . 48
10.4.1 Heater Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
10.4.2 Cooling Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
11 Bath Calibration . . . . . . . . . . . . . . . . . . . . . . 51
11.1 Calibration Points . . . . . . . . . . . . . . . . . . . . . . . . . . 51
11.2 Measuring the Set-point Error. . . . . . . . . . . . . . . . . . . . 51
11.3 Computing D0 and DG . . . . . . . . . . . . . . . . . . . . . . . 51
11.4 Calibration Example. . . . . . . . . . . . . . . . . . . . . . . . . 52
12 Maintenance . . . . . . . . . . . . . . . . . . . . . . . . 55
12.1 Draining the Bath . . . . . . . . . . . . . . . . . . . . . . . . . . 56
13 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . 57
13.1 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
iii

iv
Figures
Figure 1 Bath Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Figure 2 Front Controller Panel . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Figure 3 Side panel controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Figure 4 Back Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Figure 5 Chart of various bath fluids and their properties. . . . . . . . . . . . . 24
Figure 6 Flowchart showing the various menu options. . . . . . . . . . . . . . . 30
Figure 7 Bath temperature fluctuation at various proportional band settings. . . . 35
Figure 8 Serial Communications Cable Wiiring. . . . . . . . . . . . . . . . . . 43
Figure 9 Sample calibration computations . . . . . . . . . . . . . . . . . . . . 53

v
Tables

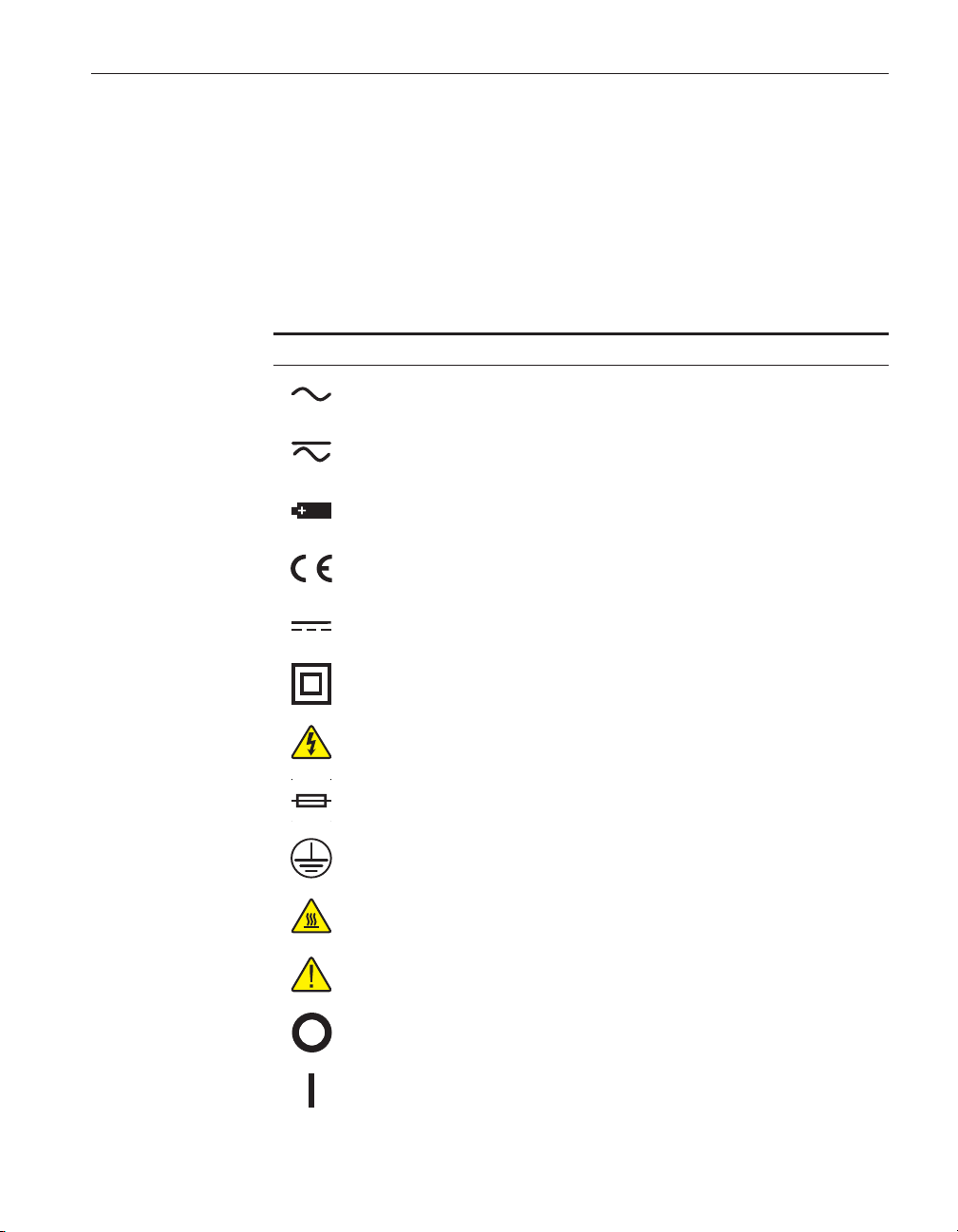

Table 1 International Electrical Symbols . . . . . . . . . . . . . . . . . . . . . 1
Table 2 Table of various fluids and their properties. . . . . . . . . . . . . . . . 25
Table 3 Proportional Band — Fluid Table. . . . . . . . . . . . . . . . . . . . . 35
Table 4 Interface Command Summary.. . . . . . . . . . . . . . . . . . . . . . 46
Table 4 Interface Command Summary continued. . . . . . . . . . . . . . . . . 47
Table 5 Temperature Range Control Functions. . . . . . . . . . . . . . . . . . 49
Table 6 Serial Power Control Functions . . . . . . . . . . . . . . . . . . . . . 49

1 Before You Start
1.1 Symbols Used
Table 1 lists the International Electrical Symbols. Some or all of these symbols
may be used on the instrument or in this manual.
Symbol Description
AC (Alternating Current)
AC-DC
Battery
CE Complies with European Union Directives
DC
Double Insulated
Electric Shock
Fuse
PE Ground
Hot Surface (Burn Hazard)
Read the User’s Manual (Important Information)
Off
On
1
Before You Start
Table 1 International Electrical Symbols

Symbol Description
Canadian Standards Association
OVERVOLTAGE (Installation) CATEGORY II, Pollution Degree 2 per IEC1010-1 re-
fers to the level of Impulse Withstand Voltage protection provided. Equipment of
OVERVOLTAGE CATEGORY II is energy-consuming equipment to be supplied from
the fixed installation. Examples include household, office, and laboratory appliances.
C-TIC Australian EMC Mark
The European Waste Electrical and Electronic Equipment (WEEE) Directive
(2002/96/EC) mark.
1.2 Safety Information
Use this instrument only as specified in this manual. Otherwise, the protection
provided by the instrument may be impaired.
The following definitions apply to the terms “Warning” and “Caution”.
•“Warning” identifies conditions and actions that may pose hazards to the
user.
•“Caution” identifies conditions and actions that may damage the instru-
ment being used.
1.2.1 Warnings
To avoid personal injury, follow these guidelines.
GENERAL
•DO NOT use the instrument for any application other than calibration
work. The instrument was designed for temperature calibration. Any other
use of the instrument may cause unknown hazards to the user.
•DO NOT use the instrument in environments other than those listed in
the user’s guide.
•DO NOT overfill the bath. Overflowing extremely cold or hot fluid may
be harmful to the operator. See Section 5.3, Bath Preparation and Filling,
for specific instructions.
•Follow all safety guidelines listed in the user’s manual.
•Calibration Equipment should only be used by Trained Personnel.
•If this equipment is used in a manner not specified by the manufacturer,
the protection provided by the equipment may be impaired.
•Before initial use, or after transport, or after storage in humid or semi-hu-
mid environments, or anytime the instrument has not been energized for
User’s Guide
2

more than 10 days, the instrument needs to be energized for a "dry-out"
period of 2 hours before it can be assumed to meet all of the safety re-
quirements of the IEC 1010-1. If the product is wet or has been in a wet
environment, take necessary measures to remove moisture prior to apply-
ing power such as storage in a low humidity temperature chamber operat-
ing at 50°C for 4 hours or more.
•Overhead clearance is required. Do not place the instrument under a cabi-
net or other structure. Always leave enough clearance to allow for safe
and easy insertion and removal of probes.
•The instrument is intended for indoor use only.
•The bath is a precision instrument. Although it has been designed for op-
timum durability and trouble free operation, it must be handled with care.
Position the bath before the tank is filled with fluid by rolling it into
place. DO NOT attempt to lift the bath. DO NOT move a bath filled
with fluid.
BURN HAZARD
•Extremely cold temperatures may be present in this equipment. Freezer
burns and frostbite may result if personnel fail to observe safety precau-
tions.
•High temperatures may be present in this equipment. Fires and severe
burns may result if personnel fail to observe safety precautions.
ELECTRICAL HAZARD
•These guidelines must be followed to ensure that the safety mechanisms
in this instrument will operate properly. This instrument must be plugged
into a 230V AC electric outlet of the appropriate frequency. The power
cord of the instrument is equipped with a three-pronged grounding plug
for your protection against electrical shock hazards. It must be plugged
directly into a properly grounded three-prong receptacle. The receptacle
must be installed in accordance with local codes and ordinances. Consult
a qualified electrician. DO NOT use an extension cord or adapter plug.
•DO use a ground fault interrupt device. This instrument contains a fluid.
A ground fault device is advised in case fluid is present in the electrical
system and could cause an electrical shock.
•Always replace the power cord with an approved cord of the correct rat-
ing and type. If you have questions, contact a Fluke Fluke Calibration Au-
thorized Service Center (see Section 1.3).
•High voltage is used in the operation of this equipment. Severe injury or
death may result if personnel fail to observe the safety precautions. Before
working inside the equipment, turn off the power and disconnect the
power cord.
3
Before You Start

BATH FLUIDS
•Fluids used in this bath may produce noxious or toxic fumes under certain
circumstances. Consult the fluid manufacturer’s MSDS (Material Safety
Data Sheet). Proper ventilation and safety precautions must be observed.
•The instrument is equipped with a soft cutout (user settable firmware) and
a hard cutout (set at the factory). Check the flash point, boiling point, or
other fluid characteristic applicable to the circumstances of the bath oper-
ation. Ensure that the soft cutout is adjusted to the fluid characteristics of
the application. As a guideline, the soft cutout should be set 10°C to 15°C
below the flash point of the bath fluid. See Section 8.1, Heat Transfer
Fluid, for specific information on bath fluids and Section 9.8, Cutout.
1.2.2 Cautions
To avoid possible damage to the instrument, follow these guidelines.
•Always operate this instrument at room temperature between 41°F and
122°F (5°C to 50°C). Allow sufficient air circulation by leaving at least 6
inches (15 cm) of clearance around the instrument.
•When filling the tank, ensure the immersion coils are completely covered.
•DO NOT overfill the bath. Overflowing fluid may damage the electrical
system. See Section 5.3, Bath Preparation and Filling, for specific instruc-
tions.
•Read Section 6, Bath Use, before placing the bath into service.
•DO NOT turn the bath on without fluid in the tank and the heating coils
fully immersed.
•DO NOT change the values of the bath calibration constants from the fac-
tory set values. The correct setting of these parameters is important to the
safety and proper operation of the bath.
•The refrigeration may be damaged or the lifetime shortened if the
set-point temperature is set above 60°C for more than one hour with the
refrigeration manually on. Ensure that the refrigeration is off when the
bath is used above 60°C.
•The Factory Reset Sequence should be performed only by authorized
personnel if no other action is successful in correcting a malfunction. You
must have a copy of the most recent Report of Test to restore the test pa-
rameters.
•DO NOT operate this instrument in an excessively wet, oily, dusty, or
dirty environment.
•Most probes have handle temperature limits. Be sure that the probe handle
temperature limit is not exceeded in the air above the instrument.
•The instrument and any thermometer probes used with it are sensitive in-
struments that can be easily damaged. Always handle these devices with
care. Do not allow them to be dropped, struck, stressed, or overheated.
User’s Guide
4

COLD BATHS
•Refrigerated baths require that the condensing coil be cleaned periodi-
cally. Accumulation of dust and dirt on the condenser will result in pre-
mature failure of the compressor.
•This bath has been equipped with a brownout and over voltage protection
device as a safety feature to protect the system components.
•Mode of Operation: This bath needs to be plugged into the line voltage
for at least 2 minutes before operation. This is only necessary for the first
time the bath is energized or when it is moved from one location to an-
other. Turning the bath ON or OFF does not trigger the delay.
•If a High/Low voltage condition exists for longer than 5 seconds, the bath
de-energizes. An amber indicator on the back panel lights when this con-
dition exists.
•Re-energization is automatic upon correction of the fault condition and af-
ter a delay cycle of about 2 minutes. If a fault condition exists upon appli-
cation of power, the bath will not energize.
•Under and Over Voltage Protection at 230 VAC
♦Voltage Cutout: ±12.5% (203 - 257 VAC)
♦Voltage Cut In: ±7.5% (213 - 247 VAC)
1.3 Fluke Authorized Service Centers
Please contact one of the following authorized Service Centers to coordinate
service on your Fluke product:
Fluke Calibration
799 E. Utah Valley Drive
American Fork, UT 84003-9775
USA
Phone: [phone]
Telefax: +1.801.763.1010
E-mail: [email protected]
Fluke Nederland B.V.
Customer Support Services
Science Park Eindhoven 5108
5692 EC Son
NETHERLANDS
5
Before You Start

Phone: [phone]
Telefax: [phone]
E-mail: [email protected]
Fluke Int'l Corporation
Service Center - Instrimpex
Room 2301 Sciteck Tower
22 Jianguomenwai Dajie
Chao Yang District
Beijing 100004, PRC
CHINA
Phone: [phone]
Telefax: [phone]
E-mail: [email protected]
Fluke South East Asia Pte Ltd.
Fluke ASEAN Regional Office
Service Center
60 Alexandra Terrace #03-16
The Comtech (Lobby D)
118502
SINGAPORE
Phone: [phone]
Telefax: [phone]
E-mail: [email protected]
When contacting these Service Centers for support, please have the following
information available:
•Model Number
•Serial Number
•Voltage
•Complete description of the problem
User’s Guide
6

2 Introduction
The Fluke Calibration 7009 is a very precise constant temperature bath. An in-
novative state of the art solid-state temperature controller has been incorporated
which maintains the bath temperature with extreme stability. The controller
uses a microcontroller to execute the many operating functions.
User interface is provided by the 8-digit LED display and four key-switches.
Digital remote communications is optionally available with a RS-232 or
IEEE-488 interface.
The tank for the 7009 is stainless steel and holds 157 liters.
7
Introduction
SET
HEATER
MODE
DOWN UP EXIT
HIGH
LOW
POWERCOOLING
HEATING
O
I
O
I
7009
HIGH PRECISION BATH
Figure 1 Bath Assembly

3 Specifications and Environmental
Conditions
3.1 Specifications
Range 0°C to 110°C (32°F to 230°F)
Soft cutout
†
50°C
Stability at 25°C ±0.0007°C (water)
±0.001°C (mineral oil 5011)
Temperature Setting Digital display with push-button data entry
Set-point Resolution 0.002°C; high-resolution mode, 0.00003°C
Display Resolution 0.01°C
Digital Setting Accuracy ±1°C
Digital Setting Repeatability ±0.01°C
Heaters 500 and 1000 Watts
Cooling Capacity 100-200 Watts
Refrigeration 1/3 Hp
Access Opening 69.9 cm X 55.9 cm (27.5” X 22”)
Bath Chamber Dimensions
(unobstructed space)
55.9 cm H X 69.9 cm W X 33.0 cm D
(22” X 27.5” X 13”)
Depth 33.1 cm (13”)
Wetted Parts 304 stainless steel
Safety Cutout Factory-set high temperature
Power 230 VAC (±10%), 60 Hz, 12 amps, single phase (50 Hz optional)
Volume 167 liters (44 gallons)
Weight 150 kg (330 lb.)
Size 109.2 cm H X 113 cm W X 86.4 cm D
(43” X 44.5” X 34”)
Safety OVERVOLTAGE (Installation) CATEGORY II, Pollution Degree 2 per
IEC1010-1
†
The soft cutout of the instrument has been set at the factory to 50°C to protect standard resistors placed
in the bath. In order to use the bath for other calibration purposes, the user should insure that the soft
cutout is adjusted appropriately for the application.
3.2 Environmental Conditions
Although the instrument has been designed for optimum durability and trou-
ble-free operation, it must be handled with care. The instrument should not be
operated in an excessively dusty or dirty environment. Maintenance and clean-
ing recommendations can be found in the Maintenance Section of this manual.
The instrument operates safely under the following conditions:
•Ambient temperature range: 5 - 50°C (41 - 122°F)
9
Specifications and Environmental Conditions

•ambient relative humidity: maximum 80% for temperature <31°C, de-
creasing linearly to 50% at 40°C
•pressure: 75kPa - 106kPa
•mains voltage within ± 10% of nominal
•vibrations in the calibration environment should be minimized
•altitude less than 2,000 meters
•indoor use only
User’s Guide
10

4 Quick Start
This chapter gives a brief summary of the steps required to set up and operate
the 7009 bath. This should be used as a general overview and reference and not
as a substitute for the remainder of the manual. Please read Section 8 carefully
before operating the bath.
4.1 Set Up
Set up of the bath requires careful unpacking and placement of the bath, filling
the bath with fluid, installing the probe and connecting power. Consult Chapter
4 for detailed instructions for proper installation of the bath. Be sure to place
the bath in a safe, clean and level location.
Fill the bath tank with an appropriate liquid. For operation at moderate bath
temperatures, clean distilled water works well. Carefully pour the fluid into the
bath tank through the large rectangular access hole above the tank avoiding
spilling any fluid. The fluid must not exceed a height of 1/2 inch below the bath
lid.
The control probe must be inserted through the lid into the bath and plugged
into the socket at the back of the bath.
4.2 Power
Plug the bath power cord into a mains outlet of the proper voltage, frequency,
and current capability. See Section 3.1, Specifications for power details. Set the
“HEATER” switch on the front panel to position “LOW” and turn the bath on
using the front panel “POWER” switch. The bath will turn on and begin to heat
or cool to reach the previously programmed temperature setpoint. The front
panel LED display will indicate the actual bath temperature.
4.3 Setting the Temperature
In the following discussion a solid box around the word SET, UP, EXIT or
DOWN indicates the panel button while the dotted box indicates the display
reading. Explanation of the button or display reading are to the right of each
button or display value.
To view or set the bath temperature set-point proceed as follows. The front
panel LED display normally shows the actual bath temperature.
24.68 C Bath temperature display
When “SET” is pressed the display will show the set-point memory that is cur-
rently being used and its value. Eight set-point memories are available.
11
Quick Start

SAccess set-point selection
1. 25.0 Set-point 1, 25.0°C currently used
Press “SET” to select this memory and access the set-point value.
SAccess set-point value
C 25.00 Current value of set-point 1, 25.00°C
Press “UP” or “DOWN” to change the set-point value.
UIncrement display
C 30.00 New set-point value
Press SET to accept the new value and display the vernier value. The bath be-
gins heating or cooling to the new set-point.
Store new set-point, access vernier
0.00000 Current vernier value
Press “EXIT” and the bath temperature will be displayed again.
Return to the temperature display
24.73 C Bath temperature display
The bath will heat or cool until it reaches the new set-point temperature. Set the
heater switch to position “HIGH” to allow the bath to more quickly reach a
higher temperature. The “HIGH” setting may be necessary to reach higher tem-
peratures and control at high temperatures.
When setting the set-point temperature be careful not to exceed the temperature
limit of the bath fluid. The over-temperature cutout should be correctly set to
prevent this from happening. See Section 8.8.
If operating the bath below 45 °C set the COOLING power switch to ON. The
cooling temperature may require adjustment to provide the proper amount of
cooling. See section 8.5.
To obtain optimum control stability adjust the proportional band as discussed in
Section 9.7.
User’s Guide
12

5 Installation
5.1 Unpacking
Unpack the bath carefully and inspect it for any damage that may have oc-
curred during shipment. If there is shipping damage, notify the carrier
immediately.
Verify that all components are present:
•The 7009 Bath
•Access Hole Cover
•Controller Probe
•User’s Guide
•Drain Elbow
•Report of Test
If you are missing any item, please contact a Fluke Calibration Authorized Ser-
vice Center (see Section 1.3).
5.2 Bath Environment
The 7009 Bath is a precision instrument which should be located in an appro-
priate environment. The location should be free of drafts, extreme temperatures
and temperature changes, dirt, etc. The surface where the bath is placed must
be level.
If used at higher temperatures where fluid vaporization is significant, use of a
fume hood is recommended.
5.3 Bath Preparation and Filling
The 7009 bath is designed for use with standard resistors, therefore, the soft
cutout of the instrument has been set at the factory to 50°C to protect standard
resistors placed in the bath. In order to use the bath for other calibration pur-
poses, the user should insure that the soft cutout is adjusted appropriately for
the application.
The 7009 Bath is not provided with a fluid. Various fluids are available from
Fluke Calibration and other sources. Depending on the desired temperature
range, any of the following fluids, as well as others, may be used in the bath:
•Water
•Ethylene Glycol/Water
•Methanol
•Mineral oil
13
Installation

•Silicone oil
Fluids are discussed in detail in Section 8.1.
Remove any access hole cover from the bath and check the tank for foreign
matter (dirt, remnant packing material, etc.). Use clean unpolluted fluid. Care-
fully fill the bath through the large square access hole to a level that will allow
for stirring and thermal expansion. The fluid should never exceed a height of
1/2" below the top of the tank. Carefully monitor the bath fluid level as the bath
temperature rises to prevent overflow or splashing. Remove excess fluid if nec-
essary and with caution if the fluid is hot.
Be careful to prevent bath fluid from spilling on the stirring motor while filling.
Note that underfilling may reduce bath performance and may possibly damage
the bath heater.
5.4 Probe
Inspect the bath controller probe. It should not be bent or damaged in any way.
Reasonable caution should be used in handling this probe as it contains a preci-
sion platinum sensor and is mechanically shock sensitive. Dropping, striking,
or other physical shock may cause a shift in resistance in the probe resulting in
diminished bath accuracy. If damaged, the probe can be replaced. Contact a
Fluke Calibration Authorized Service Center for assistance.
Insert the probe into the 1/4 inch probe hole at the top left side of the bath lid.
The tip of the probe must be well immersed in the fluid. The probe connector is
plugged into the rear of the bath into the socket labelled “PROBE”.
5.5 Power
With the bath power switch off, plug the bath into an AC mains outlet of the
appropriate voltage, frequency, and current capacity. See Section 3.1, Specifica-
tions for power details.
Be sure the stirring motor power cord is plugged into the “STIRRER” socket at
the back of the bath.
User’s Guide
14
