14 MPa and 1.4 MPa PPC4E Demo Kits
P/N 3934699 and P/N 3934702
Instruction Sheet
14 MPa Demo kit (P/N 3934699) contents:
DESCRIPTION QTY PART NO.
Demo Kit Transit Case 1 3984452
PPC4 Transit Case 1 3338097
SPLT, self purging liquid trap, for PPC 1 3069823
2000 psi digital pressure gauge 1 3984160
30 psi analog pressure gauge 1 3984201
Cable assembly, DB9M x F 1 2758335
36 in. test hose assembly, 2500 psi 1 3984857
72 in. supply hose assembly, 2500 psi 1 3984869
Swivel adaptor, 1/4 in x 1/8 in.
NPT female 1 3984825
Reducer, 1/4 in. to 1/8 in. NPT 1 1811842
Adaptor, 1/4 in. NPT male x 1/4 in. tube 1 3863458
Elbow, 1/4 in. tube 1 3867817
The 14 MPa PPC4E demo kit includes UUT (unit
under test) pressure gauges with ranges selected for
use with PPC4EX 14M pressure controller/calibrator.
The demo kit connections and gauges should be
installed with the controller/calibrator and pressure
supply as illustrated below.
Pneumatic connections that will be frequently
disconnected are o-ring type quick connectors which
can be connected without thread tape, sealant or
tools. The traditional pipe thread and tube fittings in
the kit can remain connected during transport, so that
all of the connections required for a demonstration
can be quickly connected by hand. Separate adaptors
may be needed to connect to local pressure supply.
Warning
Flexible pressure hoses in this kit have
maximum operating pressure of 17 MPa
(2500 psi).
Figure 1: 14 MPa PPC4E Demo Kit Assembly

Fluke. Keeping your world up and running.®
Fluke Calibration
PO Box 9090
Everett, WA 98206 U.S.A.
Fluke Europe B.V.
PO Box 1186, 5602 BD
Eindhoven, The Netherlands
For more information call:
In the U.S.A. [phone] or
Fax [phone]
In Europe/M-East/Africa [phone] or
Fax [phone]
In Canada (800)-36-FLUKE or
Fax [phone]
From other countries: [phone] or
Fax [phone]
Web access: http://www.fluke.com
©2011 Fluke Corporation.
Specifications subject to change without notice.
Printed in U.S.A. 3/2011 3986408A D-EN-N
Modification of this document is not permitted
without written permission from Fluke Corporation.
1.4 MPa Demo Kit (P/N 3934702) contents:
DESCRIPTION QTY PART NO.
Demo Kit Transit Case 1 3984452
PPC4 Transit Case 1 3338097
SPLT, self purging liquid trap, for PPC 1 3069823
200 psi digital pressure gauge 1 3984172
5 psi analog pressure gauge 1 3984220
Cable assembly, DB9 M x F 1 2758335
36 in. test hose assembly, 2500 psi 1 3984857
72 in. supply hose assembly, 2500 psi 1 3984869
Swivel adaptor, 1/4 in. x 1/8 in.
NPT female 1 3984825
Reducer,1/4 in. to 1/8 in. NPT 1 1811842
Adaptor,1/4 in. NPT male x 1/4 in. tube 1 3863458
Elbow, 1/4 in. tube 1 3867817
1/4 in. NPT male hex nipple 1 3132779
The 1.4 MPa PPC4E demo kit includes UUT (unit
under test) pressure gauges with ranges selected for
use with PPC4EX 1.4M pressure controller/calibrator.
The demo kit connections and gauges should be
installed with the controller/calibrator and pressure
supply as illustrated below.
Pneumatic connections that will be frequently
disconnected are o-ring type quick connectors which
can be connected without thread tape, sealant or
tools. The traditional pipe thread and tube fittings in
the kit can remain connected during transport, so that
all of the connections required for a demonstration
can be quickly connected by hand. Separate adaptors
may be needed to connect to local pressure supply.
Warning
Flexible pressure hoses in this kit have
maximum operating pressure of 17 MPa
(2500 psi).

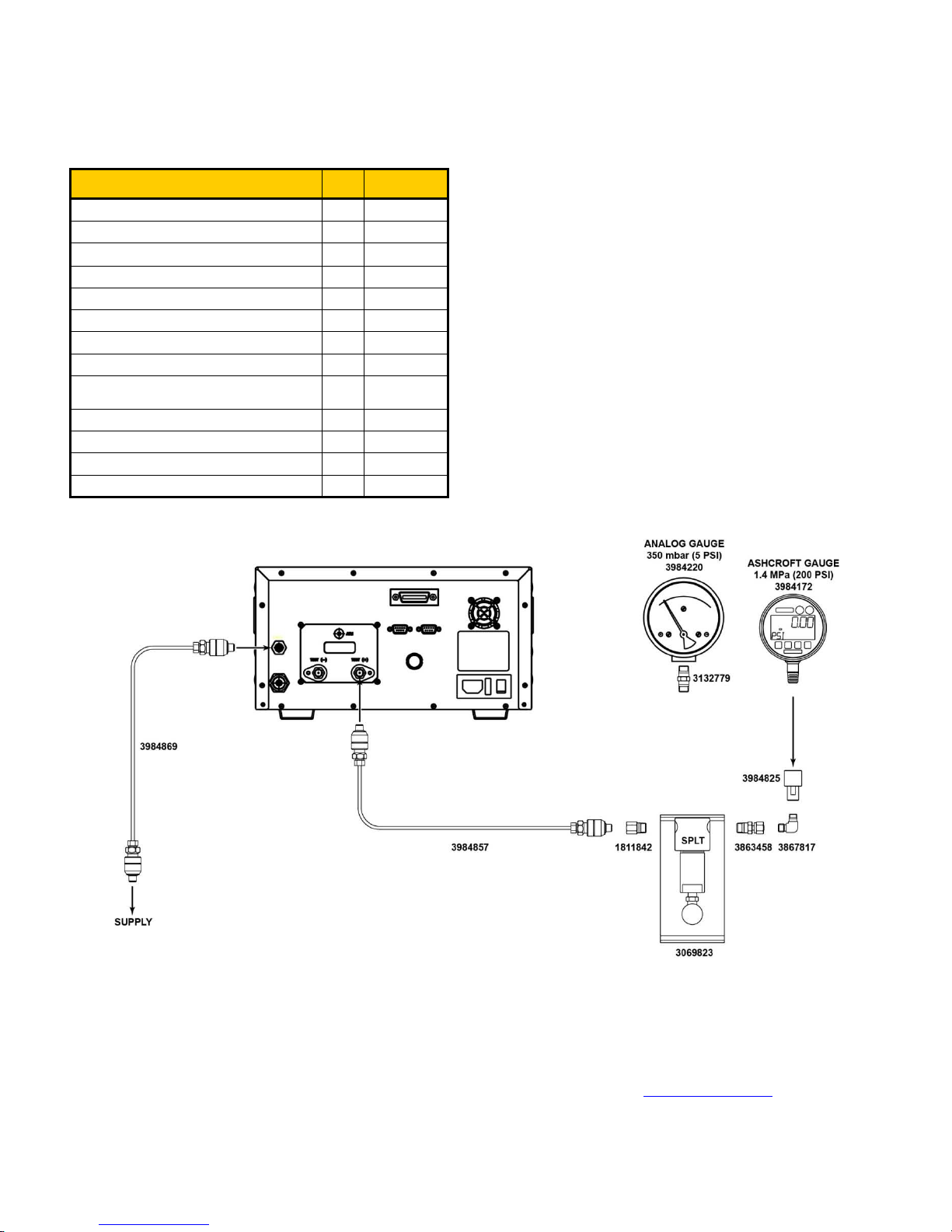

Figure 2: 1.4 MPa PPC4E Demo Kit Assembly
