1
Electrical Safety Analyzer
Introduction
The Fluke Biomedical ESA609 Electrical Safety Analyzer
(the Analyzer) is a full-featured, compact, portable
analyzer that verifies the electrical safety of medical
devices. The Analyzer tests to domestic (ANSI/AAMI ES1,
NFPA 99) and international (and parts of IEC 62353 and
IEC 60601-1) electrical-safety standards. The integrated
ANSI/AAMI ES1 and IEC 60601-1 patient loads are easy
to select.
The Analyzer does the following tests:
•Line (Mains) voltage
•Ground Wire (or Protective Earth) Resistance
•Equipment current
•Ground Wire (Earth) leakage
•Chassis (Enclosure) leakage
•Direct equipment leakage
•Point to point leakage and resistance
Intended Use
The Product is an electronic signal source and
measurement device for verifying the electrical safety of
medical devices.
The intended user is a trained biomedical equipment
technician who performs periodic preventative
maintenance checks on medical equipment in service.
Users can be associated with hospitals, clinics, original
equipment manufacturers and independent service
companies that repair and service medical equipment. The
end user is an individual, trained in medical
instrumentation technology.
This Product is intended to be used in the laboratory
environment, outside of the patient care area, and is not
intended for use on patients, or to test devices while
connected to patients. This Product is not intended to be
used to calibrate medical equipment. It is intended for
over-the-counter use.

ESA609
Users Manual
2
Safety Information
In this manual, a Warning identifies hazardous conditions
and actions that could cause bodily harm or death. A
Caution identifies conditions and actions that could
damage the Analyzer, the equipment under test, or cause
permanent loss of data.
Table 1 is a list of symbols used on the product and in this
manual.
Table 1. Symbols
Symbol Description
Risk of Danger. Important information.
See Manual.
Hazardous voltage. Risk of electric
shock.
Fuse
Conforms to relevant North American
Safety Standards.
Conforms to European Union directives
Conforms to relevant Australian EMC
standards
Table 1. Symbols (cont.)
Symbol Description
Conforms to relevant South Korean EMC
Standards.

This product complies with the WEEE
Directive (2002/96/EC) marking
requirements. The affixed label indicates
that you must not discard this
electrical/electronic product in domestic
household waste. Product Category:
With reference to the equipment types in
the WEEE Directive Annex I, this product
is classed as category 9 "Monitoring and
Control Instrumentation" product. Do not
dispose of this product as unsorted
municipal waste. Go to Fluke’s website
for recycling information.

Electrical Safety Analyzer
Safety Information
3
 Warning
To prevent possible electrical shock, fire, or
personal injury, follow these guidelines:
•Read all safety information before you use
the Product.
•Use the Product only as specified, or the
protection supplied by the Product can be
compromised.
•Do not connect to live output terminals.
The Product can supply voltages that can
cause death. Standby mode is not
sufficient to prevent electrical shock.
•Do not apply more than the rated voltage,
between the terminals or between each
terminal and earth ground.
•Limit operation to the specified
measurement category, voltage, or
amperage ratings.
•Use Product-approved measurement
category (CAT), voltage, and amperage
rated accessories (probes, test leads, and
adapters) for all measurements.
•Measure a known voltage first to make
sure that the Product operates correctly.
•Use the correct terminals, function, and
range for measurements.
•Do not touch voltages > 30 V ac rms, 42 V
ac peak, or 60 V dc.
•Do not use the Product around explosive
gas, vapor, or in damp or wet
environments.
•Do not use the Product if it is damaged.
•Disable the Product if it is damaged, by
removing the power cord and fuses.
•Do not use the Product if it operates
incorrectly.
•Examine the case before you use the
Product. Look for cracks or missing
plastic. Carefully look at the insulation
around the terminals.
•Do not use test leads if they are damaged.
Examine the test leads for damaged
insulation, exposed metal, or if the wear
indicator shows. Check test lead
continuity.
•Use this Product indoors only.

ESA609
Users Manual
4
•Use only the mains power cord and
connector approved for the voltage and
plug configuration in your country and
rated for the Product.
•Make sure the ground conductor in the
mains power cord is connected to a
protective earth ground. Disruption of the
protective earth could put voltage on the
chassis that could cause death.
•Replace the mains power cord if the
insulation is damaged or if the insulation
shows signs of wear.
•Connect the common test lead before the
live test lead and remove the live test lead
before the common test lead.
•Keep fingers behind the finger guards on
the probes.
•Do not use test leads if they are damaged.
Examine the test leads for damaged
insulation and measure a known voltage.
•Do not use a current measurement as an
indication that a circuit is safe to touch. A
voltage measurement is necessary to know
if a circuit is hazardous.
Unpacking the Analyzer
Carefully unpack all items from the box and check that you
have the following items:
•ESA609
•Safety Sheet
•Users Manual CD
•Carrying case
•Power cord
•ESA USA Accessory Kit (USA, Australia, and Israel
only)
•ESA EUR Accessory Kit
•Null Post Adapter

Electrical Safety Analyzer
Instrument Familiarization
5
Instrument Familiarization
Front Panel

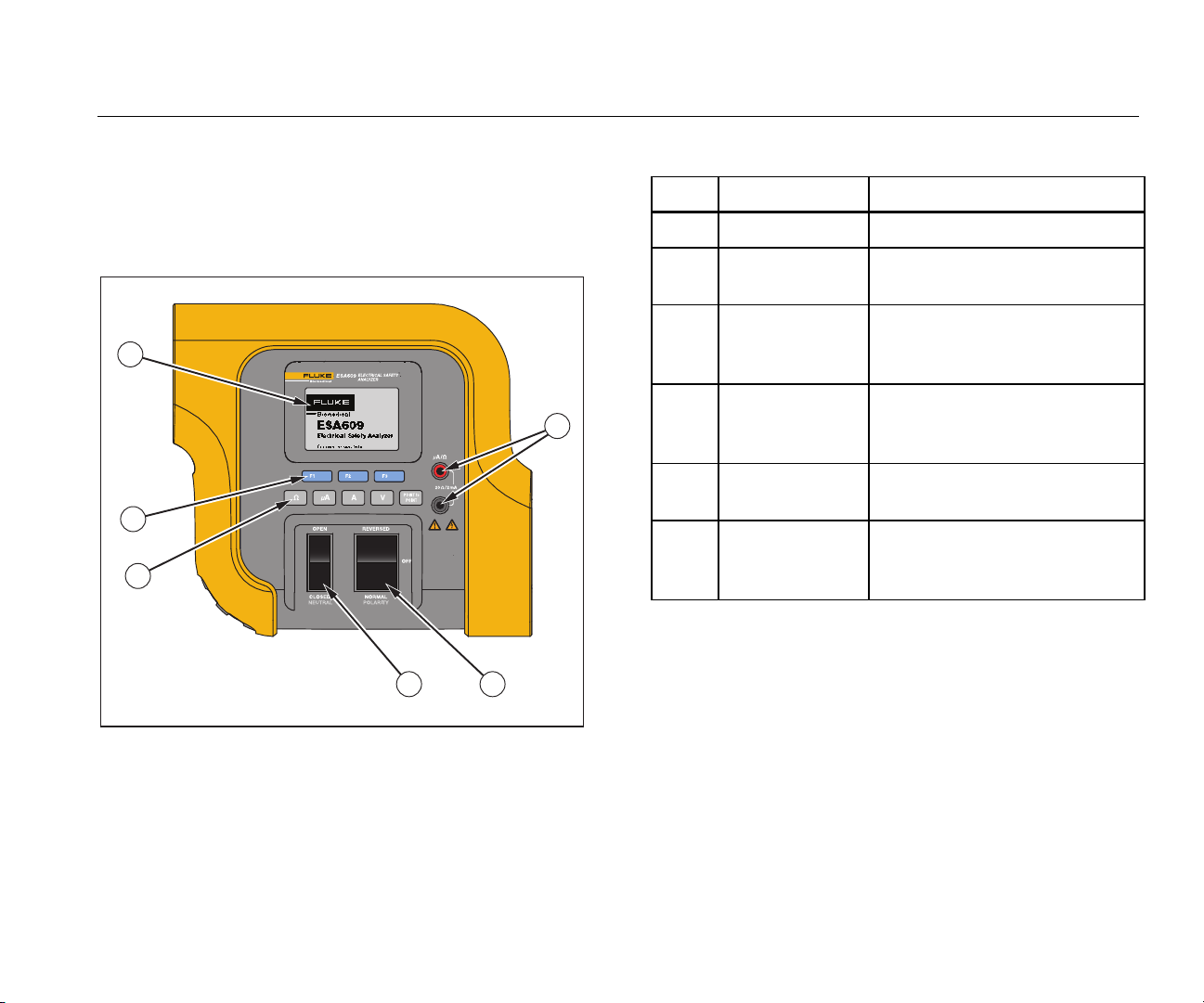

Figure 1 and Table 2 describe the front-panel controls and
connections of the Analyzer.
2
5
6
1
4 3
hpf116.eps
Figure 1. Front-Panel Controls and Connections
Table 2. Front-Panel Controls and Connections
Item Name Description
Display The LCD display.
Input Jacks Test lead connectors, these
provide the DUT connections.
Polarity Rocker
Switch
Changes the polarity of the
equipment outlet connections
between normal and reversed.
Neutral Rocker
Switch
Changes the configuration of
the neutral connection between
open and closed
Test Function
Buttons
Selects the various Analyzer
test functions.
Function
Softkeys
Selects from the options that
appear in the LCD display
above each function softkey.

ESA609
Users Manual
6
Side Panels

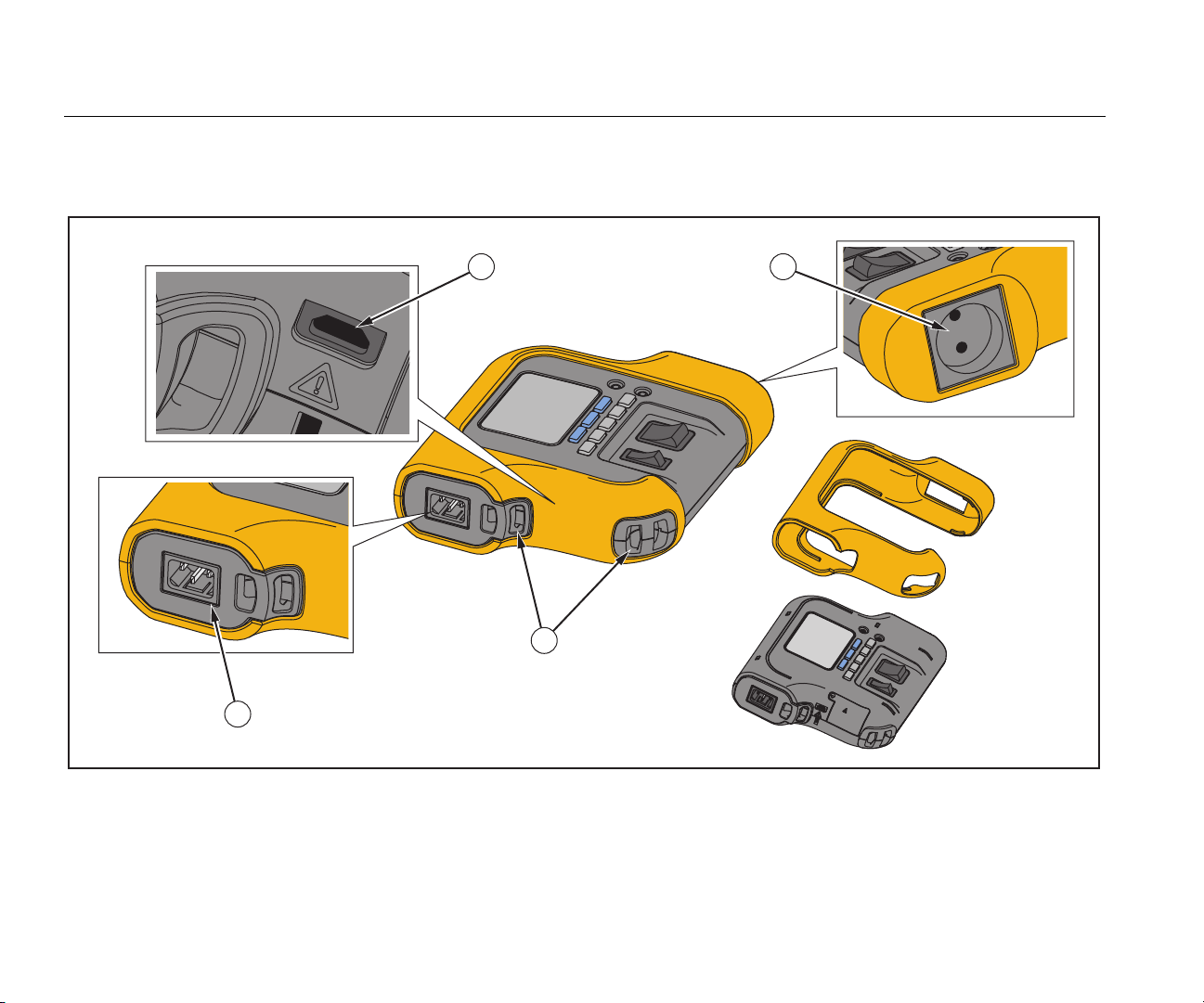

Figure 2 and Table 3 describe the side-panel connections of the Analyzer.
2
3
1 4
hpf110.eps
Figure 2. Side-Panel Connections

Electrical Safety Analyzer
Instrument Familiarization
7
Table 3. Side-Panel Connections
Item Name Description
Calibration Port Port for calibrating the instrument. (Located under the holster.) For use by
authorized service center only.
Power Input Connector A grounded male three-prong (IEC 60320 C19 or C13) connector that accepts
the line-power cord.
Handstrap Location The slots used to attach the handstrap to the analyzer, see Figure 3.
Equipment Outlet Equipment outlet, specific to the version of the Analyzer, which provides a DUT
connection.

ESA609
Users Manual
8
Product Handstrap
Use the handstrap to carry the Analyzer, see Figure 3.
hpf122.eps
Figure 3. Product Handstrap
Connect the Analyzer to Line Power
Warning
To prevent possible electrical shock, fire, or
personal injury, do not use an extension cord
or adapter plug.
Connect the Analyzer to a properly grounded three-prong
outlet. The Analyzer will not properly test a DUT when the
ground lead is open.
The Analyzer is intended for use with single-phase,
grounded power. It is not intended for dual, split-phase or
three-phase power configurations. But it can be used with
any power system that supplies the correct voltages for
single-phase and is grounded.
