Flushmate 503 Series User manual

Trouble Shooting Guide for 503, 503-H
and 504 Series
Important: Do not return to store where purchased.
Please read the entire manual before attempting to
make any adjustments or repairs.
WARNING:
• When replacing components on the FLUSHMATE®Flushometer-
Tank System, make certain that the water supply valve is turned
off and the toilet has been flushed to relieve pressure in the
FLUSHMATE®tank.
• USE OF PETROLEUM-BASED LUBRICANTS OR CORROSIVE
CLEANING PRODUCTS CONTAINING CHLORINE, SUCH AS
HOUSEHOLD BLEACH, DROP-IN BLOCKS OR TABLETS, OR
DISINFECTANTS, THAT ARE APPLIED INSIDE THE CHINA HOLDING
TANK WILL VOID YOUR FLUSHMATE®WARRANTY. The exterior
of the tank and the entire bowl can be cleaned following the
manufacturer’s recommendations or in the same fashion as any
other toilet.
• FLUSHMATE®Flushometer-Tank Systems are designed to be used
with a cold potable water system only and use of non-potable water
supply or a tempered or hot water supply will void your warranty.
WARNING
To Prevent Injury:
Read Installation Manual
Read entire manual before performing any tasks.
Safety Precautions
Care should be taken when working on the Flushmate System. Surfaces
can become wet, which may create a slip / fall hazard. Exposed tank bolts
have sharp threads and may cause injury – avoid contact. Lifting the toilet
tank (up to 45 lbs./20.4 kgs) is required. If you are unable to lift the toilet
tank contact Flushmate: 1.800.533.3460
Vessel Under Pressure
Prior to servicing the Flushmate System, first completely CLOSE water
supply stop and then flush toilet to release pressure from the Flushmate
vessel. Failure to do so can result in injury or damage to the toilet tank and
bowl.
NOTICE
Use of petroleum based lubricants or cleaning products containing chlorine
(household bleach, drop-in blocks or tablets, disinfectants) that are applied
or inserted into the toilet tank and/or Flushmate vessel will void your
Flushmate Limited Warranty. When cleaning the exterior of the toilet, follow
manufacturer’s recommendations.
Install according to applicable plumbing code.
Owner’s Operation
and Installation Guide
for 503, 503-H and 504
Series
Guía de instalación
y operación del
propietario para las
series 503, 503-H y 504
Guide d’installation
et de fonctionnement
des séries 503, 503-H
et 504
Important: Do not return to store where
purchased. Please read the entire manual before
attempting to make any adjustments or repairs.
WARNING:
• When replacing components on the FLUSHMATE
®
Flushometer-Tank System, make certain that the water
supply valve is turned off and the toilet has been
flushed to relieve pressure in the FLUSHMATE
®
tank.
• USE OF PETROLEUM-BASED LUBRICANTS OR
CORROSIVE CLEANING PRODUCTS CONTAINING
CHLORINE, SUCH AS HOUSEHOLD BLEACH, DROP-IN
BLOCKS OR TABLETS, OR DISINFECTANTS, THAT ARE
APPLIED INSIDE THE CHINA HOLDING TANK WILL
VOID YOUR FLUSHMATE
®
WARRANTY. The exterior of
the tank and the entire bowl can be cleaned following
the manufacturer’s recommendations or in the same
fashion as any other toilet.
• FLUSHMATE
®
Flushometer-Tank Systems are
designed to be used with a cold potable water system
only and use of non-potable water supply or a
tempered or hot water supply will void your warranty.
Importante: No lo devuelva a la tienda donde lo
adquirió. Lea todo el manual antes de intentar
realizar cualquier ajuste o reparación.
ADVERTENCIA:
• Al reemplazar componentes del sistema de
flujómetro-tanque FLUSHMATE
®
, asegúrese de que la
válvula de suministro de aire esté cerrada y el
excusado se haya descargado para liberar la presión
del tanque FLUSHMATE
®
.
• EL USO DE LUBRICANTES CON BASE DE PETRÓLEO
O PRODUCTOS DE LIMPIEZA CORROSIVOS QUE
CONTENGAN CLORO, TALES COMO EL
BLANQUEADOR CASERO, BLOQUES O TABLETAS
PARA EL AGUA O DESINFECTANTES QUE SE
APLIQUEN DENTRO DEL TANQUE DE DEPÓSITO DE
PORCELANA, ANULARÁN LA GARANTÍA DE SU
FLUSHMATE
®
. La parte exterior del tanque y toda la
taza se pueden limpiar siguiendo las
recomendaciones del fabricante o del mismo modo
que cualquier otro excusado.
• Los sistemas de flujómetro y tanque de FLUSHMATE
®
están diseñados para usarse únicamente con un
suministro de agua potable fría, y el uso de un
suministro de agua no potable o de agua templada o
caliente anulará su garantía.
Important : Ne pas retourner le produit au
magasin où vous l’avez acheté. Veuillez lire le
manuel en entier avant de tenter de faire des
réglages ou des réparations.
AVERTISSEMENT:
• Lors du remplacement de composants du système
de réservoir à robinet de chasse FLUSHMATE
®
,
assurez-vous d’abord de fermer le robinet
d’alimentation et de déclencher ensuite la
chasse afin d'atténuer la pression dans le
réservoir FLUSHMATE
®
.
• L’UTILISATION, À L’INTÉRIEUR DU RÉSERVOIR DE
RÉTENTION EN PORCELAINE, DE LUBRIFIANTS À
BASE DE PÉTROLE OU DE PRODUITS NETTOYANTS
CORROSIFS QUI CONTIENNENT DU CHLORE,
COMME LES JAVELLISANTS DOMESTIQUES, LES
PASTILLES ET BLOCS NETTOYANTS OU LES
DÉSINFECTANTS, ANNULERA VOTRE GARANTIE
FLUSHMATE
®
. Vous pouvez nettoyer l’extérieur du
réservoir et la cuvette entière selon les
recommandations du fabricant ou de la même
façon que vous nettoyez toute autre toilette.
• Les systèmes de réservoir à robinet de chasse
FLUSHMATE
®
sont conçus pour être utilisés
uniquement avec une alimentation en eau froide et
potable. L’utilisation d’une alimentation en eau non
potable ou tiède ou chaude annulera votre garantie.
503
503-H
504
MADE IN U.S.A.
30075 Research Drive, New Hudson, MI 48165
www.flushmate.com
❶
(A)
(B) (C)
- 5 -
(F)
❸
❹(D)
(E)
(I)
(G)
❷
(H)
Minimum Operating Pressure By Series
503 503-H 504
20 psi* 20 psi* 25 psi*
*Minimum operating pressure by series for FLUSHMATE unit only.
Max 80 psi

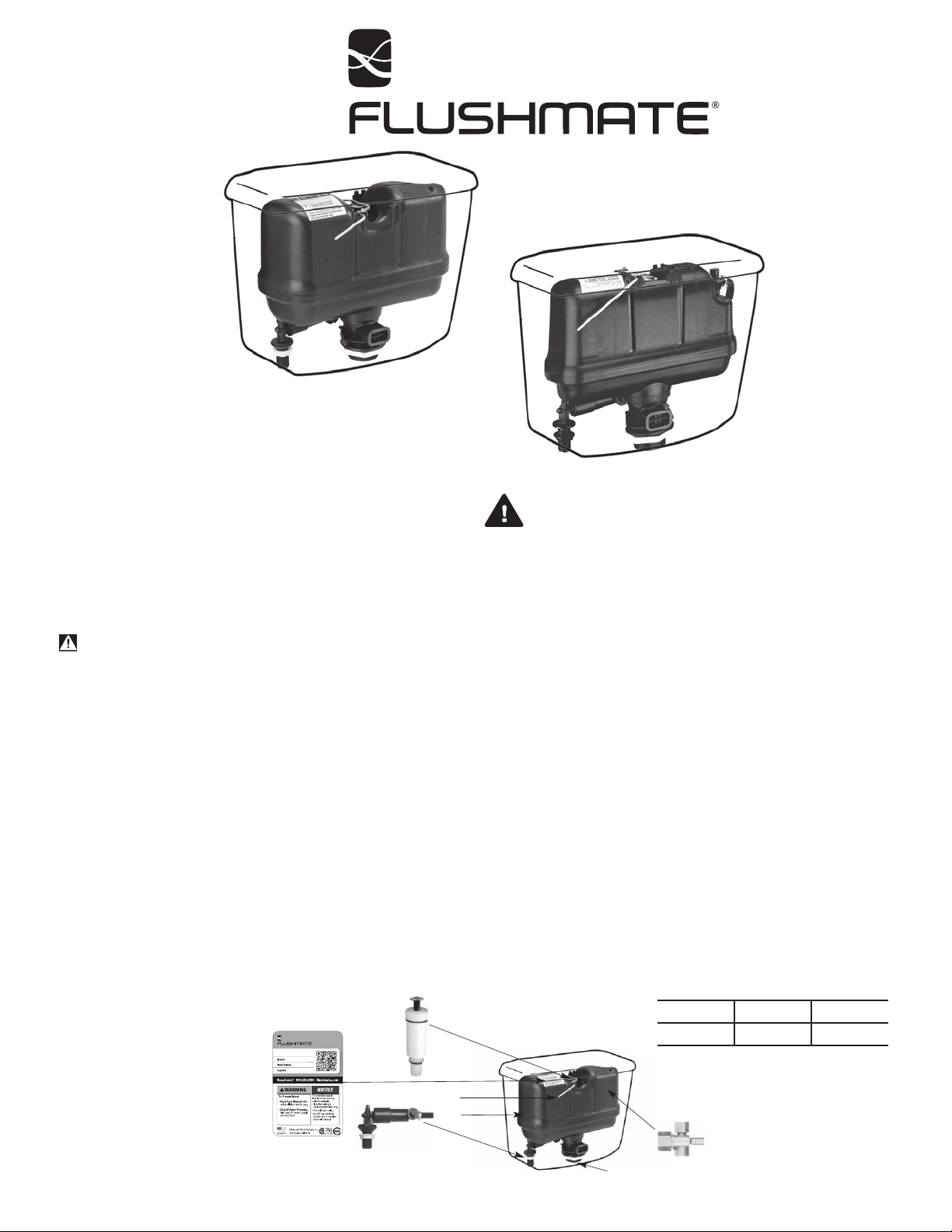

List of Components for 503, 503-H and 504 Series:
1. Lower Supply Group w/Hose BL100504-3
(A) Supply Shank w/inlet screen
(B) Pressure Regulator w/Back Check
(C) Relief Valve
2. Upper Supply Group BU100505
(D) Air Inducer Cap w/duckbill
(E) Vacuum Breaker
3. Flush Valve Cartridge Assembly
(F) Actuator w/setscrew
4.
FLUSHMATE
®Tank
(G) Discharge Extension w/Drain
(H) Name Plate w/Serial Number
(I) Flush Rod
Presión mínima de operación por serie
503 503-H 504
20 psi* 20 psi* 25 psi*
*Presión mínima de operación por serie sólo para unidades
FLUSHMATE . Máx. 80 psi
Lista de componentes para las series 503, 503-H
y 504:
1. Grupo inferior de suministro con manguera
BL100504-3
(A) Vástago de suministro con pantalla de admisión
(B) Regulador de presión con supresión trasera
(C) Válvula de seguridad
2. Grupo de suministro superior BU100505
(D) Tapa inductora de aire con pico de pato
(E) Divisor de vacío
3. Conjunto del cartucho de la válvula de
descarga
(F) Accionador con tornillo de fijación
4. Tanque
FLUSHMATE
®
(G) Extensión de descarga con drenaje
(H) Placa de nombre con número de serie
(I) Varilla de descarga
Pression minimum de fonctionnement pour
chaque série
503 503-H 504
20 psi* 20 psi* 25 psi*
*Pression minimum de fonctionnement par série pour les appareils
sanitaires
FLUSHMATE seulement. Max 80 psi
Liste des composants des séries 503, 503-H
et 504 :
1. Groupe d’alimentation inférieur avec flexible
BL100504-3
(A) Tige d’alimentation avec grille d’entrée
(B) Régulateur de pression avec dispositif
antirefoulement
(C) Soupape de décharge
2. Groupe d’alimentation supérieur BU100505
(D) Soupape d’entrée d’air avec bec de canard
(E) Casse-vide
3. Cartouche du robinet de chasse
(F) Actionneur avec vis de pression
4. Réservoir
FLUSHMATE
®
(G) Rallonge d’évacuation avec drain
(H) Plaque d’identification avec numéro de série
(I) Levier de déclenchement
Installation
Please follow the toilet manufacturer’s installations
instruction for installing the fixture. Note that the toilet
requires a minimum water supply line pressure. See or
refer to manufacturers’ specifications for minimum
operating pressure for the fixture. Before attaching, you
should always flush the water supply lines.
After completing the installation, you are required to
adjust the Cartridge Actuator (F). To adjust, make sure
the water is turned on and the vessel is completely
charged. The Actuator needs to be set at the proper
clearance, 1/8” from either the Flush Rod or push
button. To make this adjustment, hold the Actuator
while loosening the Phillips setscrew in the center of
the Actuator, and rotate the Actuator up
(counterclockwise) or down (clockwise) until the proper
clearance is obtained. See Figure 4 for clearance
required for flush-handle fixture. Tighten setscrew after
adjusting the Actuator.
Additional notes:
• Water supply requirement: cold water, potable
water system.
• You may be required to initially flush the toilet a few
times to properly charge the system.
• Should your fixture develop a leak between the tank
and bowl, please refer to the fixture manufacturer’s
installation instructions.
• Steps for Run-On Condition:
1. Recheck the actuator adjustment described above
2. Clean the Shank Inlet Screen ❶(A) and check
your water supply pressure – See Step 6
3. Remove/Rinse/Reinstall the Flush Cartridge ❸–
See Step 2 for Cartridge Removal/Installation.
Instalación
Siga las instrucciones de instalación del fabricante del
excusado para instalar el accesorio. Tenga presente que
el excusado requiere de una presión mínima de la línea
de suministro de agua. Vea o consulte las
especificaciones del fabricante sobre la presión mínima
de operación para el accesorio. Antes de fijarlo, siempre
debe purgar las líneas de suministro de agua.
Después de finalizar la instalación, debe de ajustar el
Accionador del Cartucho (F). Para ajustarlo, asegúrese
de que el agua esté activada y la vasija esté totalmente
cargada. El accionador tiene que ajustarse al huelgo
correspondiente, a 1/8” de la varilla de descarga o del
botón. Para hacer este ajuste, sostenga el accionador
mientras afloja el tornillo de fijación de cruz del centro
del accionador y gire el accionador hacia arriba (en
sentido contrario al de las manecillas del reloj) o hacia
abajo (en el sentido de las manecillas del reloj) hasta
obtener el huelgo correcto. Véase la Figura 4 para
conocer el huelgo necesario para el dispositivo de
manija de descarga. Apriete el tornillo de fijación
después de ajustar el accionador.
Notas adicionales:
• Requisito de abastecimiento de agua: agua fría,
sistema de agua potable.
• Es posible que sea necesario que primero descargue
el excusado varias veces para cargar adecuadamente
el sistema.
• Si su dispositivo desarrolla una fuga entre el tanque y
la taza, consulte las instrucciones de instalación del
fabricante del dispositivo.
• Pasos para la condición de ejecución activa:
1. Compruebe de nuevo el ajuste del actuador
descrito arriba
2. Limpie la pantalla de admisión del vástago
❶
(A) y
compruebe su presión de suministro de agua; vea
el paso 6
3. Quite, enjuague y vuelva a instalar el cartucho de
enjuagado
❸
Vea el paso 2 para conocer cómo
quitar e instalar el cartucho.
Installation
Veuillez suivre les instructions d’installation du
fabricant pour installer l’appareil sanitaire. Prenez
note que l’appareil sanitaire nécessite un minimum
de pression en eau dans le tuyau d’alimentation. Voir
ou se reporter aux spécifications du fabricant
concernant la pression minimum nécessaire pour
assurer le fonctionnement de l’appareil sanitaire.
Toujours évacuer l’eau des tuyaux d’alimentation en
eau avant de les raccorder.
Une fois l’installation terminée, vous devrez régler
l'actionneur de la cartouche (F). Pour le régler,
assurez-vous d’avoir ouvert l'alimentation en eau et
vérifiez que le récipient est complètement rempli.
Pour que l’actionneur soit correctement réglé,
l’espacement entre celui-ci et le levier de
déclenchement ou le bouton-poussoir doit être de
1/8 po. Pour effectuer ce réglage, tenez l’actionneur
tout en desserrant la vis de pression Phillips au
centre de l’actionneur, puis faites pivoter l’actionneur
vers le haut (sens antihoraire) ou vers le bas (sens
horaire) pour obtenir l’espacement adéquat. La figure
4 montre l’espacement nécessaire pour les appareils
à manette de chasse. Serrez la vis de pression une
fois le réglage de l’actionneur terminé.
Autres remarques:
• Exigence en matière d’alimentation en eau:
système d’eau froide et potable.
• Initialement, il est possible que vous deviez
déclencher la chasse de la toilette à plusieurs
reprises afin de remplir correctement le système.
• En cas de fuite entre le réservoir et la cuvette,
veuillez consulter les instructions d’installation du
fabricant de l’appareil sanitaire.
• Étapes à suivre si la chasse d’eau ne s’arrête pas
de couler:
1. Vérifiez à nouveau le réglage de l’actionneur
décrit plus haut
2. Nettoyez la grille d’entrée de la tige
d’alimentation ❶(A) et vérifiez la pression de
l’alimentation en eau – Voir étape 6
3. Retirez/Rincez/Réinstallez la cartouche de
chasse ❸– Voir étape 2 pour le
retrait/l’installation de la cartouche.
prior to servicing.
system
inside the toilet tank.
Minimum Operating Pressure By Series
503 503-H 504
20 psi* 20 psi* 25 psi*
*Minimum operating pressure by series for
FLUSHMATE unit only. Max 80 psi
List of Components for 503, 503-H and 504 Series:
1. Lower Supply Group w/Hose BL100504-3
(A) Supply Shank w/inlet screen
(B) Pressure Regulator w/Back Check
(C) Relief Valve
2. Upper Supply Group BU100505
(D) Air Inducer Cap w/duckbill
(E) Vacuum Breaker
3. Flush Valve Cartridge Assembly
(F) Actuator w/setscrew
4. FLUSHMATE® Tank
(G) Discharge Extension w/Drain
(H) Name Plate w/Serial Number

Step 1. Check Flush Cartridge 3
A. Turn off water supply and flush toilet.
B. Pour water onto top of cartridge (Fig. 1) and turn on water.
C. Watch for air bubbles. Consistent flow of bubbles indicates cartridge needs to
be replaced. No bubbles visible, move on to Step 4.
Step 2. Flush Cartridge 3Installation
A. Turn off water and flush the toilet.
B. Use the handle end of pliers (Fig. 2) to unscrew the cartridge from the
vessel.
C. Drop in new cartridge and screw in until one female thread (Fig. 3) of vessel
is showing.
D. Turn on water. Continue to screw in cartridge slowly, 1/8 to 1/4 turn
increments until water stops running into the bowl and tank pressurizes.
Step 3. Actuator 3(F) Adjustment
A. Start by loosening the setscrew in the center of the actuator. Adjust the
height of the actuator by screwing it up or down. There should be a gap
(Fig. 4) (about the thickness of a penny) between the rod and actuator when
gently lifting the rod. When accomplished tighten the setscrew in the center
of the actuator.
Step 4. Check Air Inducer 2(D)
A. Place several drops of water over hole on top of air inducer and flush toilet
(Fig. 5). If drop is vacuumed in, move onto step 6. If not, air inducer needs
to be cleaned.
Step 5. Clean Air Inducer 2(D)
A. Turn off water and flush toilet. Unscrew the cap of the air inducer (the
smaller of the two caps) (Fig. 6).
B. Pull the duckbill out from the cap and clean it by gently squeezing it (Fig. 7)
between your fingers under a flow of water. Inspect the lips of the duckbill.
If they are deformed, the duckbill needs to be replaced.
C. Reassemble, insert the duckbill into the housing (Fig. 8) body and reinstall
the cap finger tight.
Step 6. Clean Inlet Screen 1(A)
A. Clean the inlet screen by turning off the water supply, disconnecting the
water supply line from the supply shank and removing the screen with a
paper clip (Fig. 9).
B. Clean screen (Fig. 10) and replace.
Other Points to Remember
1. Pressure-assist toilets get their energy from the water supply.
2. Refer to the toilet manufacturers’ specifications for minimum operating
pressure for the fixture.
3. A blocked bowl or drain will affect the fixture’s performance. To check for
this, pour 2 to 3 gallons of water into the bowl. If the bowl accumulates
water in it, this would indicate that something is blocking the bowl/drain. If
you need additional help, please contact the manufacturer of the flushing
system, or do a word search on “pressure-assist toilets” on the web.
Fig. 1 Fig. 2 Fig. 3 Fig. 4 Fig. 5
Fig. 6 Fig. 7 Fig. 8 Fig. 9 Fig. 10
Operation
All pressure-assist toilets get their energy from the water supply line. It is important to have sufficient pressure at the supply. Refer to the toilet manufacturers’
specifications for minimum operating pressure for the fixture.
Winterizing
1. Turn off the water supply valve and flush the toilet to relieve the pressure.
2. Place a bucket under the lower Supply Shank (A) and disconnect the water supply line, allowing the water to drain into the bucket.
3. Push down on the Actuator and pull it up momentarily to allow air into the vessel.
4. Follow the fixture manufacturer’s instructions for winterizing the bowl.
5. Do not put antifreeze or any other chemical agents in the china holding tank or in the FLUSHMATE®Tank.
Points to Remember
• When replacing components on the FLUSHMATE®Flushometer-Tank System, make certain that the water supply valve is turned off and the toilet has been flushed
to relieve pressure in the FLUSHMATE®tank.
• Water supply requirement: cold water, potable water system.
• The Flush Valve Cartridge can be removed by inserting the handles of a pair of pliers into the top of the Flush Valve Cartridge and turning counterclockwise.
• With each flush, a small amount of water may be emitted from the upper supply group. A drain at the base of the FLUSHMATE®system will eliminate most of this
water. Depending on usage, you may see some residual water (less than 1”) in the china holding tank. This is a normal occurrence.
• Your water pressure is adequate if your water supply line will yield one or more gallons of water within thirty (30) seconds.
• Replacement parts are readily available by contacting Consumer Services at 800-533-3460 or by visiting the “Where to Buy” section of our website, www.
flushmate.com, or purchase online at www.eflushmate.com.
If you would like additional information or require technical assistance, please contact FLUSHMATE®Consumer Services at 800-533-3460, or visit our website,
www.flushmate.com. For faster service, please be prepared to provide the serial number and date of installation of your FLUSHMATE®system.
For support outside the United States, visit our local contact website at www.flushmate.com/localcontact.
FLU-eMKT8015EN 0616
