FLUXWERX nLight VN1 Configuration guide

install
instruction
PAGE 1 of 3
Install-Controls-Recessed | 2020-03
All rights reserved. © Fluxwerx Illumination 2020 604.549.9379 | fluxwerx.com
Due to continuous product improvements, specifications and dimensions are subject to change without notice. Certain options have
limited compatibility with some other product selections. Consult www.fluxwerx.com for most current technical information.

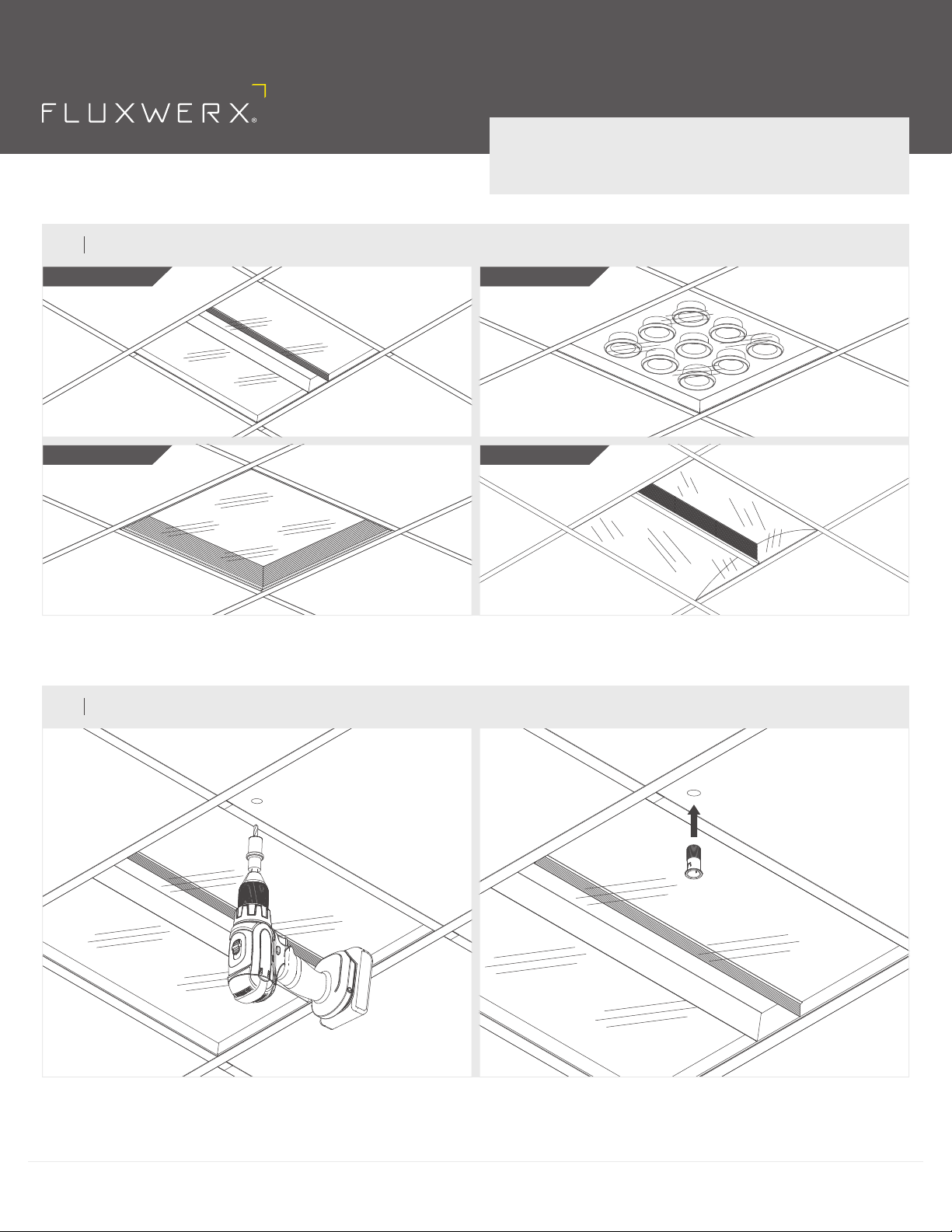

1. Determine sensor location per site design instructions and/or
Enlighted design instructions. Note that the sensor cable overall
length is approximately 5 feet.
2PREPARE SENSOR LOCATION
2. Drill a 13/16" diameter hole in the ceiling tile at the desired location.
3. Insert the sensor tile mount base into the ceiling tile hole.
1. Uncoil sensor cable from top of fixture.
2. Install the fixture per standard installation instructions.
1UNCOIL CABLE + INSTALL FIXTURE
INBOX
LOOP RECESSEDRAILS
TRANSOM
RECESSED CONTROLS:
REMOTE ENLIGHTED SENSOR (RE1)

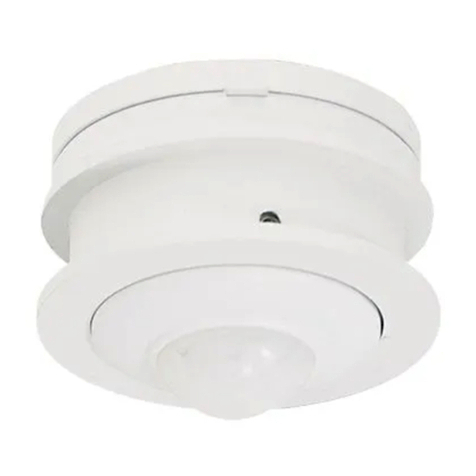

Enlighted Micro Sensor SU-5E-CL

installation
PAGE 2 of 3
Install-Controls-Recessed | 2020-03
All rights reserved. © Fluxwerx Illumination 2020 604.549.9379 | fluxwerx.com
Due to continuous product improvements, specifications and dimensions are subject to change without notice. Certain options have
limited compatibility with some other product selections. Consult www.fluxwerx.com for most current technical information.
1. Install the tile mount nut.
2. Feed sensor cable assembly through the tile mount.
3. Snap the sensor into the tile mount.
3INSTALL SENSOR
1. Connect the sensor cable to the fixture cable coupler.
2. See Enlighted setup and commissioning documentation for further
instructions.
4CONNECT SENSOR TO FIXTURE
INBOX
LOOP RECESSEDRAILS
TRANSOM
recessed controls:
remote enlighted sensor (re1)

install
instruction
PAGE 3 of 3
Install-Controls-Recessed | 2020-03
All rights reserved. © Fluxwerx Illumination 2020 604.549.9379 | fluxwerx.com
Due to continuous product improvements, specifications and dimensions are subject to change without notice. Certain options have
limited compatibility with some other product selections. Consult www.fluxwerx.com for most current technical information.
Install the fixture per standard installation instructions.
1INSTALL FIXTURE
INBOX
LOOP RECESSEDRAILS
TRANSOM
Connect nLIGHT network control cable (by others) to nLIGHT module.
See Acuity network installation, setup and commissioning documentation
for further instructions.
2CONNECT TO NLIGHT NETWORK
INBOX
LOOP RECESSEDRAILS
TRANSOM
RECESSED CONTROLS:
nLIGHT MODULE (VN1)
Acuity nLight Controller nPS-80-EZ or nPS-80-EZ-ER
