D-Link DHP-348AV User manual

WALL-TO-WALL HOME NETWORKING
NO CONFIGURATION NEEDED, JUST PLUG IN AND YOU’RE CONNECTED
Turn any electrical outlet into a home network connection. The PowerLine AV 4-Port Switch Mini Kit includes one PowerLine AV 4-Port Switch (DHP-346AV) and one
PowerLine AV Mini Adapter (DHP-310AV). This powerful combination uses the electrical wiring that’s already in your house to provide fast, reliable speed of up to
200Mbps¹ to any room in the house.
Simply connect the PowerLine AV Mini Adapter into an existing electrical outlet, connect it to your existing home network router, and plug the PowerLine AV 4-Port
Switch into any other outlet in your house to get instant shared network connections. With 4 ports, you can connect an entire entertainment center or home office and
get blazing speeds without tripping over tangled, messy wires. It’s so convenient.
HD MOVIES AND MORE STREAMED THROUGHOUT YOUR HOUSE
The PowerLine AV 4-Port Switch Mini Kit is ideal for high-bandwidth network-ready devices such as the Boxee Box by D-Link, Blu-Ray players, or gaming consoles
such as the Playstation 3®. By using the port-based Quality-of-Service (QoS) you can ensure your gaming or HD movies are always top priority by organizing your
traffic flow using the color-coded ports.
COMPACT DESIGN
With the PowerLine AV Mini Adapter’s compact size, you can plug it into any electrical outlet with an existing PowerLine network to get a connection anywhere in your
home2. The compact size only takes up one plug in an outlet, enabling you to plug in more devices.
SECURITY AT THE TOUCH OF A BUTTON
Setting up a secure connection is quick and easy. Once the adapters are plugged in, press the button on each device to sync up with the other to establish a safe,
secure network connection. The adapter uses 128-bit AES data encryption to protect the network from unauthorized wire tapping. With hassle-free plug and play
installation, the PowerLine AV 4-Port Switch Mini Kit is an ideal solution to create a wall-to-wall home network.
DHP-348AV
Create a PowerLine network to power
an entertainment system
Easily connect and secure your
network with push button security
Super fast speeds – up to 200Mbps¹
for streaming HD video and lag-free gaming
POWERLINE AV 4-PORT SWITCH MINI KIT

FEATURES
Create a PowerLine Network right out of the box
Uses your home’s existing electrical wiring by
plugging into existing power outlets²
Compact elegant design
Speeds up to 200Mbps¹
Power Saving Mode
Push and Secure encryption button
Supports 128-bit AES encryption for network security
Port-based QoS support helps prioritize internet
traffic (DHP-346AV)
Plug & Play Installation
24/7 Basic Installation Support³
1-Year Limited Warranty4
THINK GREEN
D-Link Green™ devices are about providing
eco-friendly alternatives without compromising
performance. They are designed to help conserve
energy, protect our environment from harmful
substances, and reduce waste by using recyclable
packaging. To learn more, visit www.dlinkgreen.com.
D-LINK GREEN™ TECHNOLOGY
+ Goes into power saving mode when no data link
is detected after 5 minutes
PROTECTING THE ENVIRONMENT
+ Complies with the European Union’s RoH
directive that restricts the use of certain
hazardous materials
+ Uses soy ink and recyclable packaging to help
reduce waste that goes into the environment
TECHNICAL SPECIFICATIONS
STANDARDS
+ IEEE 802.3
+ IEEE 802.3u
+ HomePlug AV
ETHERNET INTERFACE
+ 10/100Base-TX Ethernet Port with
Auto MDI/MDIX
+ RJ-45 Connector
MAXIMUM DATA RATE
+ 200Mbps
POWERLINE FREQUENCY BAND
+ 2Mhz to 30Mhz
POWERLINE MODULATION SCHEME
+ OFDM Symbol Modulation
SECURITY
+ 128-bit AES Data encryption
LEDS
+ Power
+ Powerline
+ Ethernet
POWER SAVING
+ Power saving mode supported
OPERATING TEMPERATURE
+ 30º to 104º F (0º to 40º C)
OPERATING HUMIDITY
+ 10% to 95% non-condensing
POWER SUPPLY
+ 110~240VAC, 50/60Hz
EMC CERTIFICATION
+ CE EMC Class B
+ FCC Part 15 Class B
SAFETY CERTIFICATION
+ UL
+ CE LVD
DIMENSIONS (L x W x H)
+ DHP-346AV: 4” x 5.75” x 1.25”
+ DHP-310AV: 2.68” x 2.43” x 1.64”
WEIGHT
+ DHP-346AV: 0.5lbs
+ DHP-310AV: 0.28lbs
WARRANTY
+ 1-Year Warranty
4
WALL-TO-WALL HOME NETWORKING
1 Maximum throughput based on theoretical transmission PHY rate. Actual data throughput will vary. Network conditions and environmental factors, including
volume of traffic and network overhead, may lower actual data throughput rate. Interference from devices that emit electrical noise, such as vacuum
cleaners and hair dryers, may adversely affect the performance of this product. This product may interfere with devices such as lighting systems that have a
dimmer switch, short wave radios, or other powerline devices that do not follow the HomePlug Powerline Alliance standard.
2 Power outlets and electrical wiring must all be part of the same electrical system. Certain electrical conditions in your home, such as wiring conditions
and configuration may affect the performance of this product. A minimum of two D-Link PowerLine AV Network Adapters are required to create a network.
Connecting this product to a power strip with a surge protector may adversely affect the performance of this product. For best results, plug adapter directly
into a power outlet.
3 24/7 Basic Installation Support is available only in the USA for the first 30 days from date of original purchase.
4 1-Year Limited Warranty available only in the USA and Canada.
5 Latest Software and Documentation available at http://support.dlink.com.
6 Computer must adhere to Microsoft’s recommended System Requirements.
Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted on the package.
See inside package for warranty details. D-Link PowerLine AV Network Adapters (DHP-306AV, DHP-W306AV, DHP-307AV), PowerLine AV 4-Port Switch
(DHP-346AV), PowerLine AV Wireless N Extender (DHP-W306AV), PowerLine AV 500 Adapter (DHP-500AV), and Wireless N PowerLine Router (DHP-1320)
may coexist but are not compatible or interoperable with D-Link PowerLine HD Ethernet Adapters (DHP-302, DHP-303) or D-Link PowerLine HD Network
Starter Kit (DHP-303). This product is designed for use in the USA and Canada. Use of this product in other countries might violate local laws.
©2011 D-Link Corporation/D-Link Systems, Inc. All rights reserved. D-Link and the D-Link logo are registered trademarks of D-Link Corporation or its
subsidiaries in the United States and/or other countries. Other trademarks or registered trademarks are the property of their respective owners.
DHP-348AV

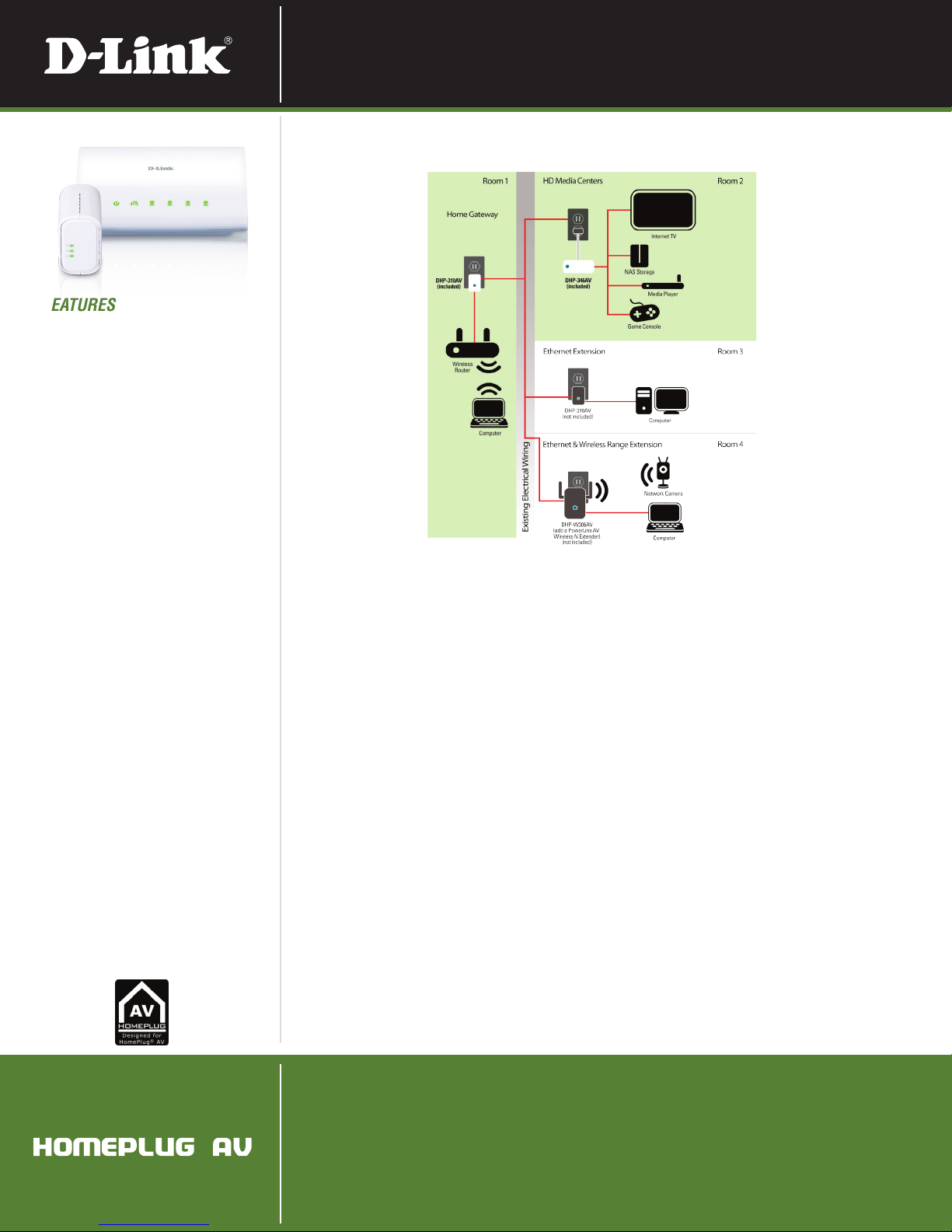

NETWORK DIAGRAM
PACKAGE CONTENTS
+ 1 PowerLine AV 4-Port Switch (DHP-346AV)
+ 1 PowerLine AV Mini Adapter (DHP-310AV)
+ 2 Ethernet Cable
+ CD-ROM8with:
- PowerLine AV Utility
- Product Documentation
MINIMUM REQUIREMENTS
+ Windows®76, Windows Vista®6 or
Windows®XP SP36
For Configuration Utility, Computer with:
+ 233MHz Processor
+ 10MB Disk Space
+ 64MB RAM
+ CD-ROM Drive
+ Network Interface Card
Power Supply:
+ 110~240VAC, 50/60Hz
For Internet Access:
+ Cable or DSL Modem
+ Router
+ Subscription with an Internet Service Provider (ISP)
For Network:
+ Two or more PowerLine AV Devices
