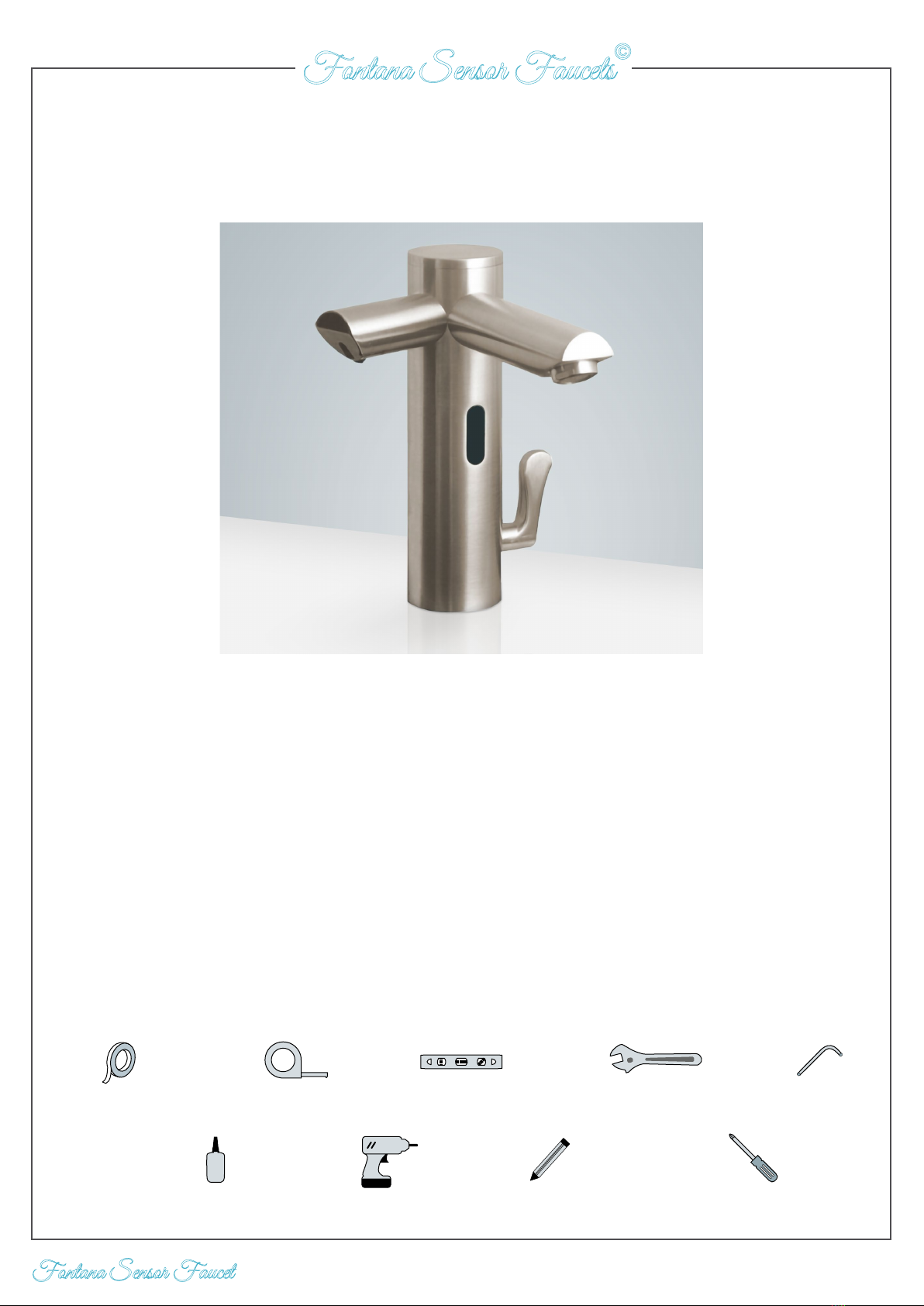

Fontana Showers LIMA FST571 User manual

Fontana Sensor Faucets©
Fontana Sensor Faucet Customer Service: 800-684-4489
fontanasensorfaucets.com
1
Plumbers Tape Tape Measure Adjustable Wrench
Screwdriver
Drill
Hex Wrench
Level
Pencil or Marker
Thread Sealant
*not included
POSSIBLE TOOLS REQUIRED*
Please read installation instructions below. All plumbing should be
installed in accordance with applicable building codes and regulations.
Unpack and inspect the items for any shipping damages. If you find
damages, do not install.
All products must be installed by a professional and certified plumber
otherwise warranty may be voided.
PRIOR TO INSTALLATION
LIMA COMMERCIAL DUAL AUTOMATIC SENSOR FAUCET
WITH SENSOR SOAP DISPENSER INSTALLATION
INSTRUCTIONS
Product code: FST571

Fontana Sensor Faucets©
Fontana Sensor Faucet Customer Service: 800-684-4489
fontanasensorfaucets.com
2
All dimensions and specifications are nominal and may vary. Use actual products for accuracy in critical situations.
Technical Information
Power: DC:6V(4AA alkaline battery)
AC:220V-240V; 50/60HZ
Water Consumption: 0.05Mpa-0.6Mpa
Detection Zone: 16-32 cm or adjustable
Motor valve lifespan: up to 500000 flushes
Battery lifespan: 100000 cycles
Static Power Consumption: 0.36mw
Working Power consumption: 0.5mw
Inductive Opening Time: < 1 second
Inductive Closing Time: < 2 second
Dia.of inlet / outlet pipe: G1/2"
Flux: ≥0.07L/S

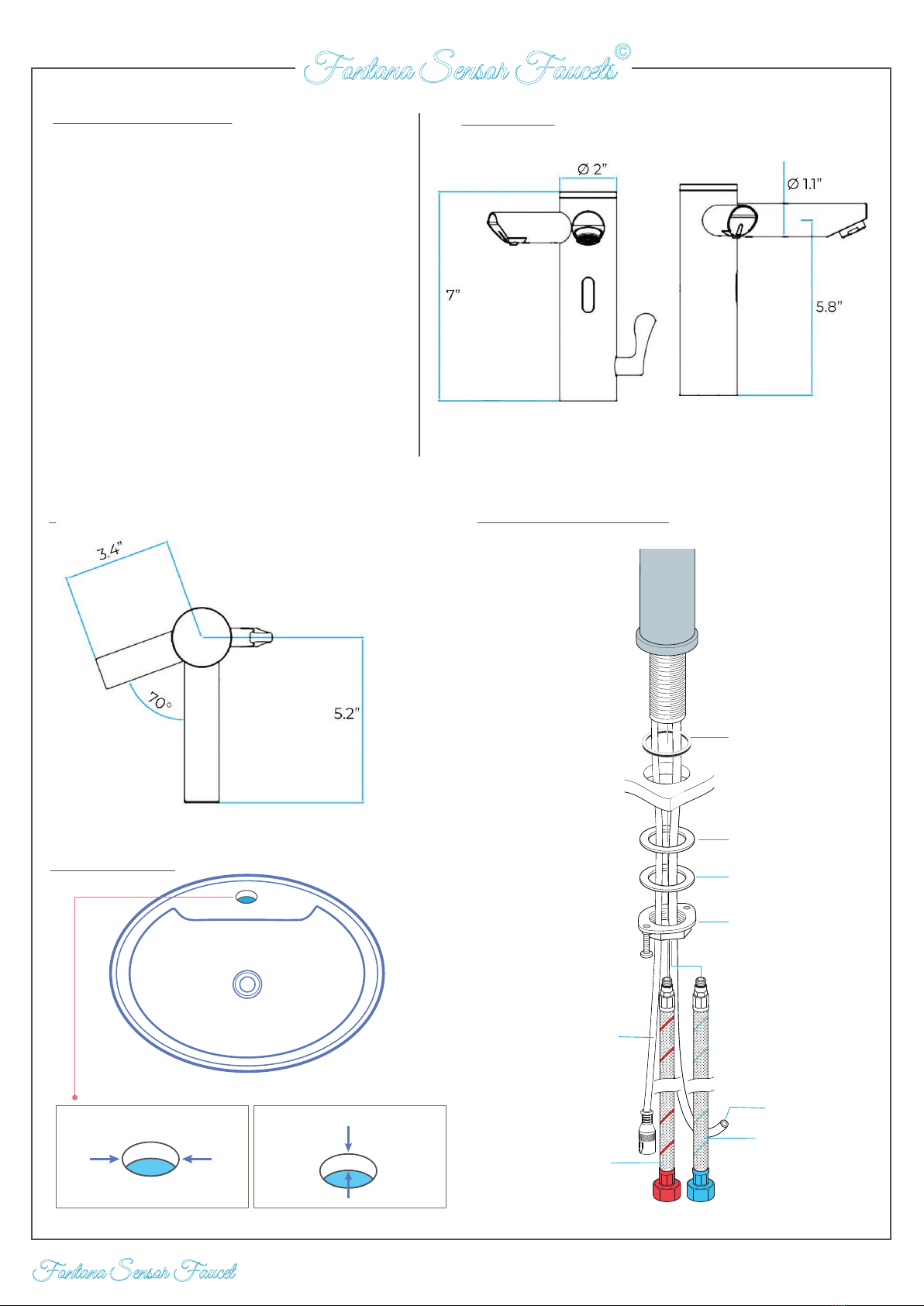

Faucet Size
Max counter top thickness without
deck plate:
1.38”/35mm
Pre-drilled hole size requirements:
Min: 1.26”/32mm - Max: 1.38”/35mm
Hole Size Chart
Size: Water Pipe Connection
Washer
Rubber
Washer
Nut and
locking bolts
Cold Water
flexible pipe
Hot Water
flexible pipe
Sensor Cable
Soap Tube
O ring

Fontana Sensor Faucets©
Fontana Sensor Faucet Customer Service: 800-684-4489
fontanasensorfaucets.com
3

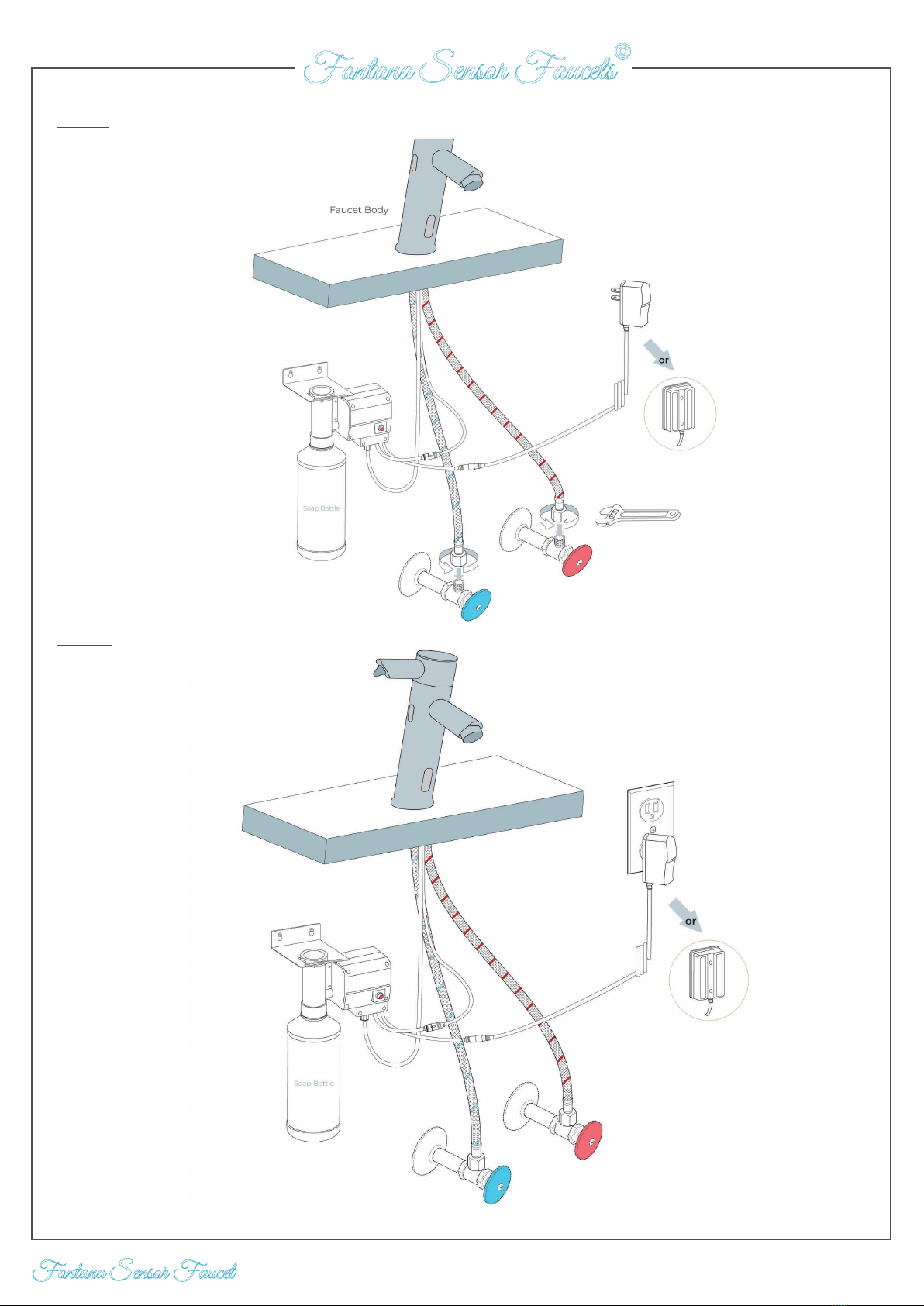

Step 1:
Step 2:

Fontana Sensor Faucets©
Fontana Sensor Faucet Customer Service: 800-684-4489
fontanasensorfaucets.com
4
Step 3:

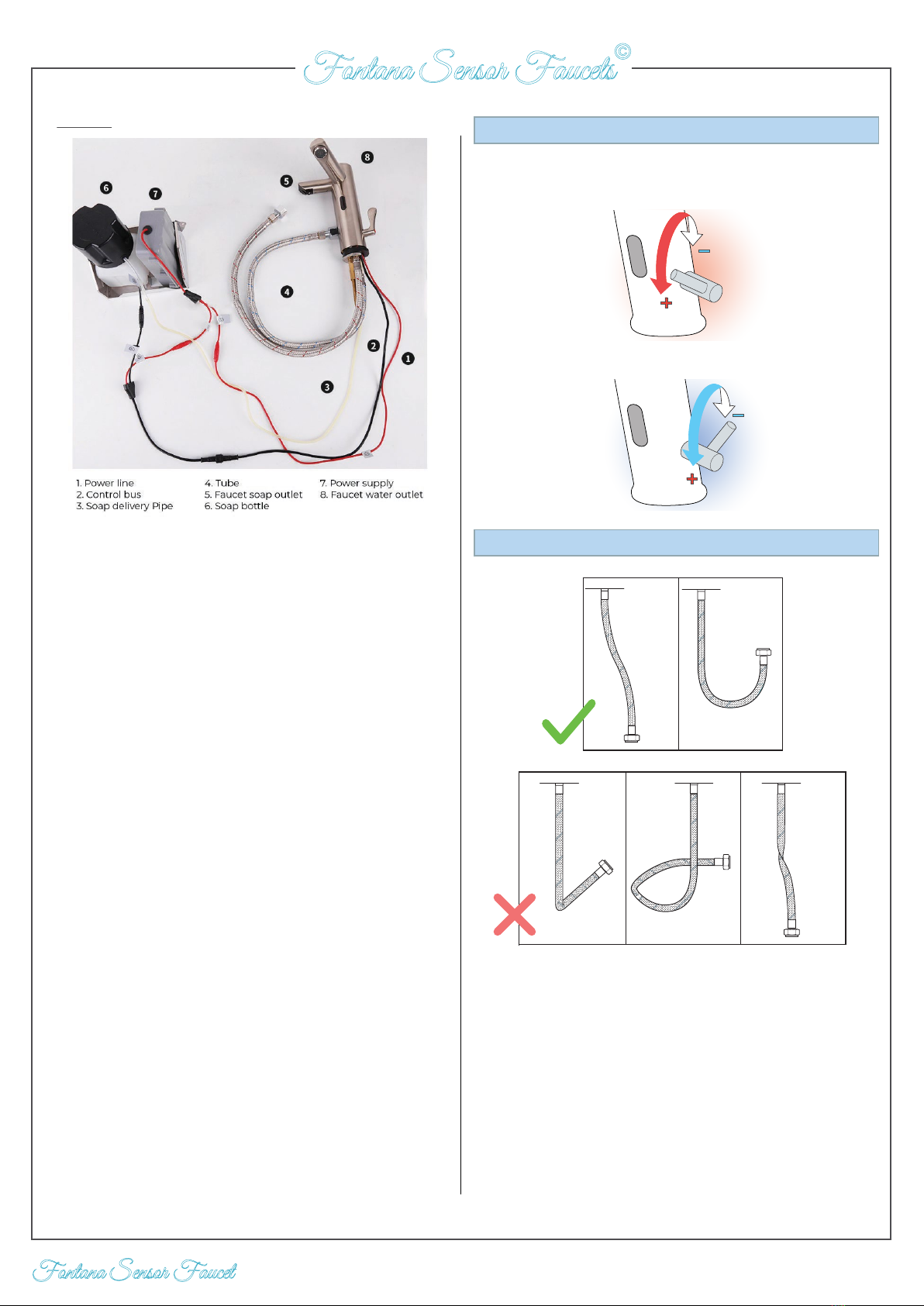

Waterpipe Instructions
Kink Curved
round Twists
Slight
bend Sweeping
bend
Temperature Control
Manual temperature control handle allows users to
set preferred temperature.
Flexible Connecting Hose
Care must be taken when connecting the
flexible connection hose from the power
supply box to the spout to ensure it does not
bend sharply and kink or twist.
See above for recommended ways to fit the
flexible connecting hose.
Important: Failure to follow these guidelines
may result in poor performance and damage
to the flexible connection hose.
1. Screw the hose into the corresponding
screw-hole of the faucet body. Fix the o-ring into
the bottom groove of the faucet body.
2. Insert hose, threaded pipe and data cable
through the drilled hole of the countertop. Put
rubber washer and metal washer onto the
threaded pipe, screwing in mounting nut.
Adjust the faucet body correctly and tighten the
mounting nut with screws.
3. Install the control box to the faucet.
4. Then connect the battery cable to the control
box.
5. Make Connections to water supplies. Turn on
the water supply and flush water lines into a
container for one minute.
Important: This flushes away any debris that
could cause damage to internal parts.
6. Connect waterlines to angle stops. Turn on
the angle stops and check for leaks (DO NOT
TURN FAUCET ON).
7. Turn the faucet on for 1 minute to flush any
debris.

Fontana Sensor Faucets©
Fontana Sensor Faucet Customer Service: 800-684-4489
fontanasensorfaucets.com
5
Important: Failure to follow these guidelines may result in poor performance and damage to the
flexible connection hose.
Installation: Deck mounted
Power Supply Options:
∙ IP67 Dual power input box with a 9V battery (battery not included)
∙ IP67 Dual power input box with a 9V transformer
Operating pressure: 0.5 - 8.0 bar (7 - 116 PSI). With a pressure over 8 bar, use a pressure reducing
valve.
Minimum Sensor Range: 30 mm / 1.18"
Maximum Sensor Range: 120 mm / 4.72"
Water supply: Cold or premixed water
Water-Saving options: 4 LPM / 1.0 GPM - PCA spray
Water temperature: 70°C Maximum
Security Time: Auto shutoff after 90 seconds
Features:
More Hygienic
The proximity sensor removes the need to touch the spout, reducing the spread of germs and
reducing the chance of cross-infection.
Battery Override
Your infrared soap dispenser is supplied with a backup battery pack. In the event of a power
failure, the product will automatically switch to battery-operated mode to ensure the spout
continues to function.
Low Battery Warning
When the batteries run low and the power falls below 3.9V the sensor light will flicker to indicate
the batteries are running low and need replacing.
When the batteries are exhausted the sensor light will not light up.
Installation
1. Fit The Spout
Fit the spout to the sink/basin ensuring the dispensing cable and sensor cable are threaded
through the hole in the sink/basin.
2. Secure Spout to Sink / Basin
Screw the metal back nut onto the thread of the spout upto the underside of the sink/basin.
Tighten backnut using a suitable spanner.
3. Fit Wall Brackets
Position the brackets onto the wall surface and mark the position of the fixing holes.
Remove the brackets and drill suitable holes for the wall plugs supplied.
Before drilling into walls, check that there are no hidden electrical wires, cables or water supply
pipes. This can be checked with the aid of an electrical detector:
If power tools are used do not forget to:
- Wear eye protection
- Unplug equipment after use
Fit the wall plugs and position the brackets into position and secure using the screws provided.
4. Attach Pump to Bottle
Ensure the dispenser tube is located inside the bottle and push the pump down firmly onto the
bottle until a loud ‘click’ is heard.
To remove the pump from the bottle press the release button in on the side of the pump and pull
the pump from the bottle.

Fontana Sensor Faucets©
Fontana Sensor Faucet Customer Service: 800-684-4489
fontanasensorfaucets.com
6
5. Connect Sensor Cable and Dispenser Cable
Connect the sensor cable from the spout to the sensor cable on the pump. Push the two
connections together and tighten the connecting ring to ensure the two connections are locked
together.
Connect the dispensing cable from the spout into the top connection on the pump.
Push the threaded connection of the dispensing cable into the connection on the pump and
tighten the nut ensuring it is fully tightened.
A suitable spanner may be used to tighten the nut.
6. Place Pump into Bracket
The pump has a cut-out section which the wall bracket slots into.
7. Connect Power Supply Cable
Before starting any electrical work ensure the power supply is isolated.
Wire the electrical power cable into a switched fused spur off the ring main.
Important: The power lead must be permanently connected to the fixed wiring of the mains
supply using the factory supplied power cable.
Plug the power cable into the power cable on the pump.
8. Inserting Batteries
Remove the battery cover by loosening the screw in the top of the cover.
Insert 4 batteries into the battery box ensuring they are inserted the correct way.
Replace the battery box cover and tighten the screw. Insert the battery box into the holder.
Push the holder into the battery box wall bracket.
Commissioning
Commissioning Sequence
Before using the soap dispenser for the first time the following sequence must be carried out.
Fill the bottle full of liquid soap.
Locate the dispense button on the side of the pump. Press and hold the button until soap is
dispensed from the spout. This will ensure the dispenser tube and cable are full of liquid soap.
Selecting Volume Adjustment
The soap dispenser has four dispense volume adjustment settings. Each adjustment setting
dispenses a different volume of liquid soap.
To adjust the volume of soap dispensed follow the steps below.
Locate the volume adjustment switches under the rubber cover.
Set the switches to the required position for the desired volume adjustment setting.
Refer to the switch position diagrams.
Operation
Using the Automatic Soap Dispenser
Place the users hands under the spout within the sensing range.
Once the users hands have been detected a small amout of liquid soap will be dispensed from
the spout into the users hands.

Fontana Sensor Faucets©
Fontana Sensor Faucet Customer Service: 800-684-4489
fontanasensorfaucets.com
7

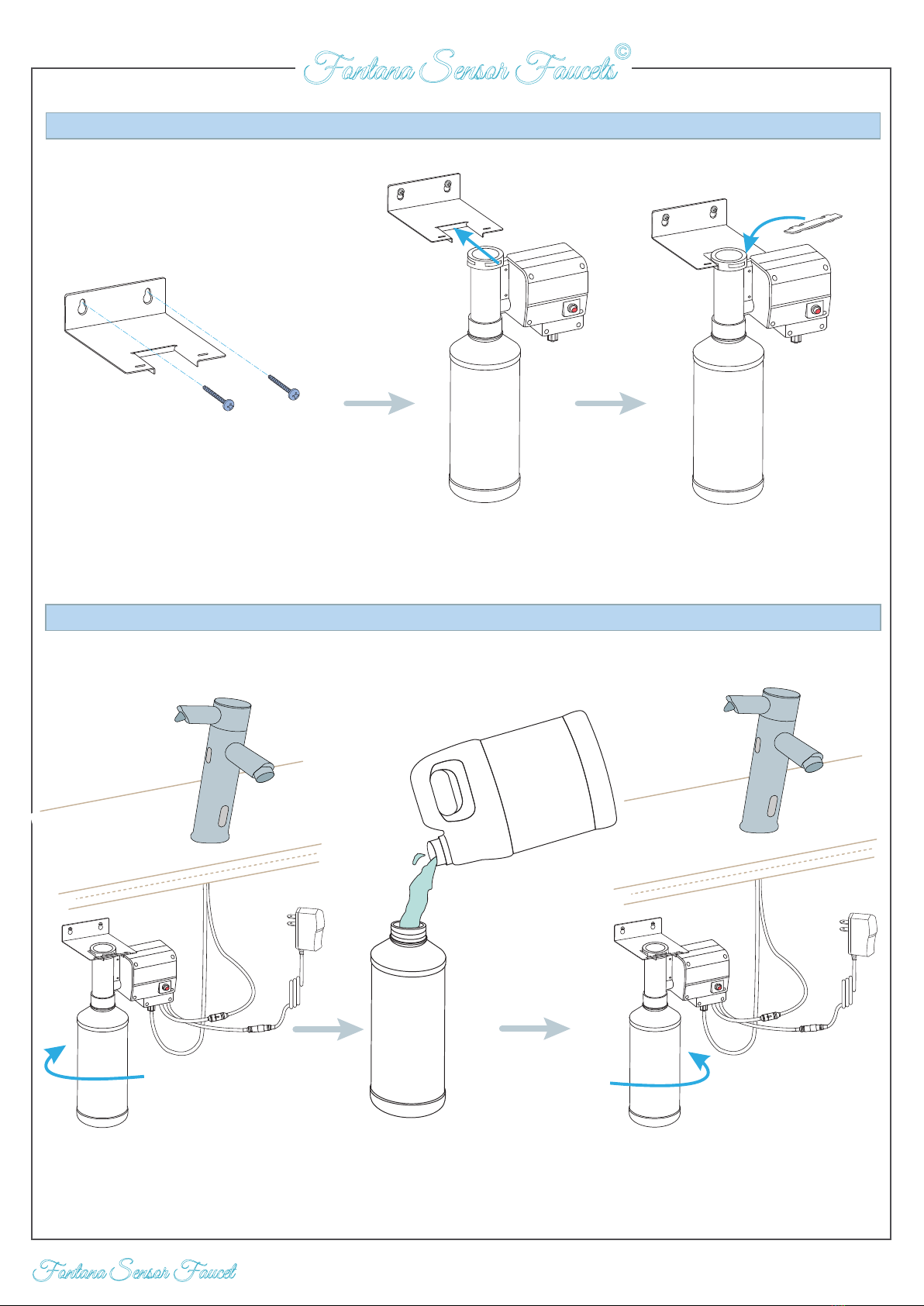

Installation of Soap Bottle
Insert the locking
plate into bracket
Insert the pump
onto the bracket
Install the bracket
on the wall
Soap Refill Process
Affix the bottle with
full soap onto the pump,
and do not over tighten.
Add soap into
the empty bottle.
SO AP
Unscrew the
empty bottle.

Fontana Sensor Faucets©
Fontana Sensor Faucet Customer Service: 800-684-4489
fontanasensorfaucets.com
8

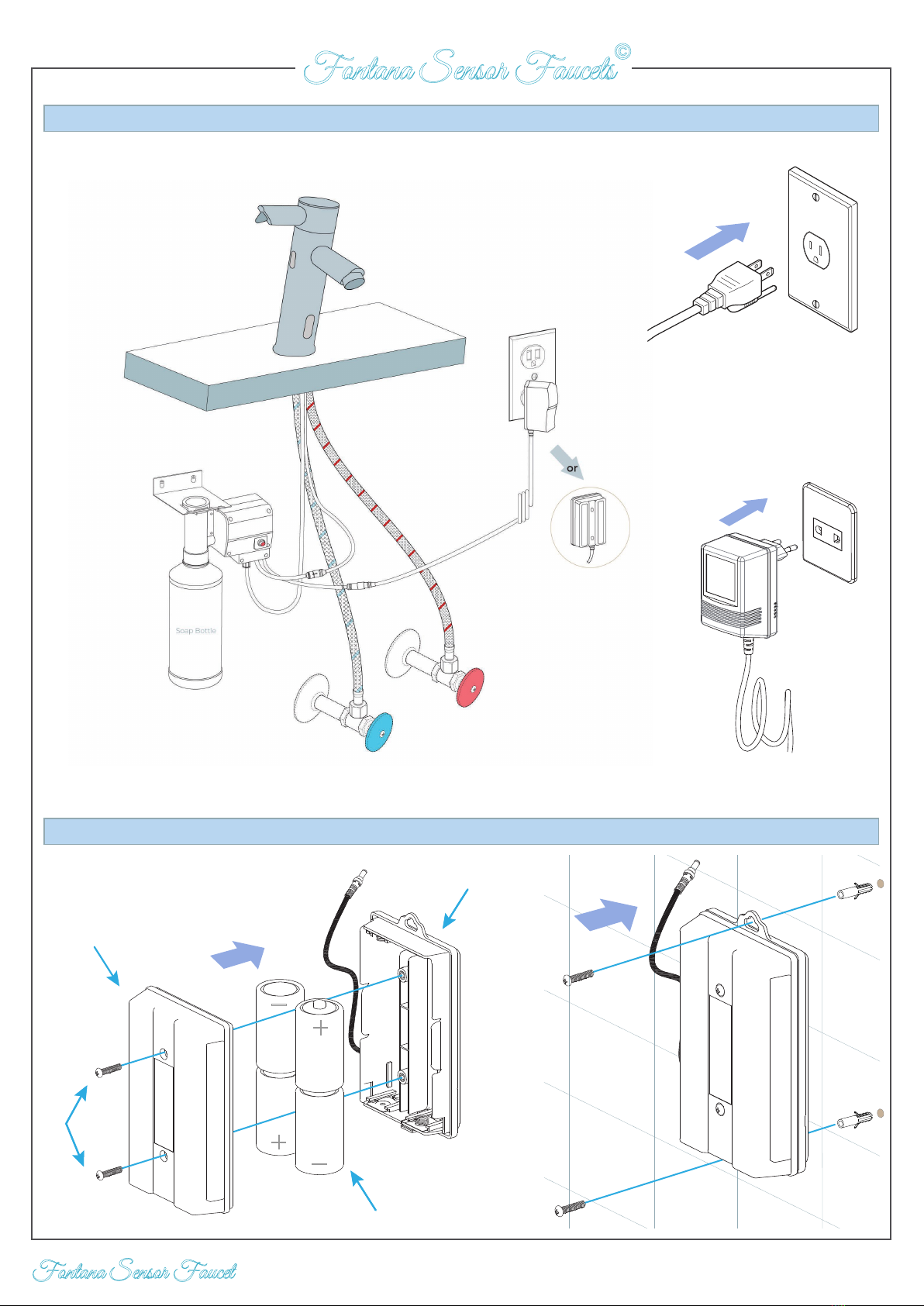

Battery Box
Deck Mounted Faucet
or
－
＋
Screws
Batteries
Battery
case cover
Battery
case
＋
－

Fontana Sensor Faucets©
Fontana Sensor Faucet Customer Service: 800-684-4489
fontanasensorfaucets.com
9

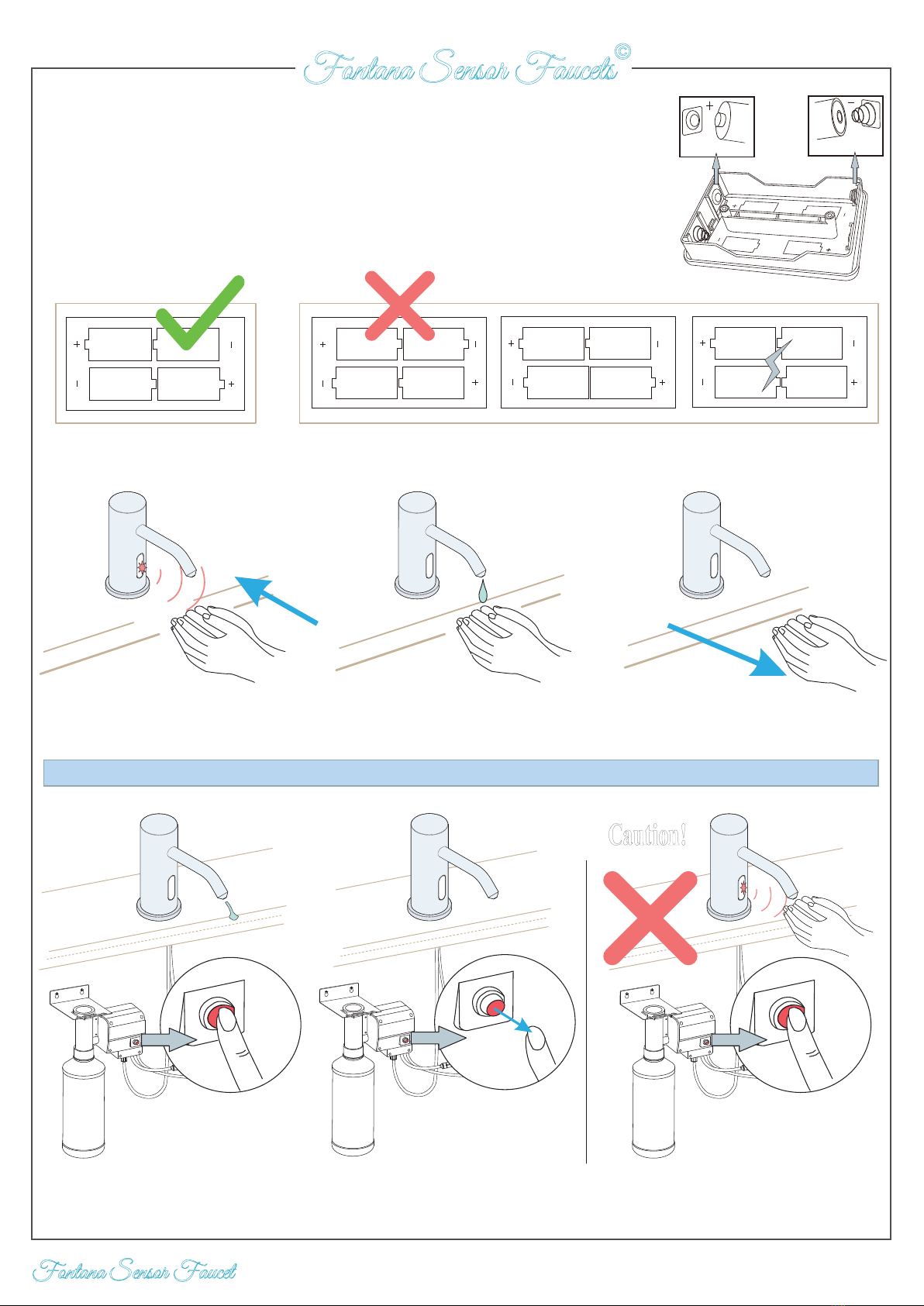

PUSH!
Caution!
PUSH!
When the soap bottle is
filled with soap, press the button
till soap dispenses out of nozzle.
Do not use the sensor when the button is pressed,
because they cannot be used at the same time,
as it might lead to the damage to the machine.
Usage of Button
Place hands immediately
under soap spout.
Predetermined amount
of soap will dispense
If more soap is needed,
remove hands & repeat.
1. Remove cover of battery case.
2. Install four (4) D size alkaline batteries.
Note: Make sure the batteries are installed in correct orientation (polarity).
3. Replace battery case cover.
4. Tighten screws.
- The standard life cycle time is 2 years, based on average use 2000 times/month.
Anode Cathode

Fontana Sensor Faucets©
Fontana Sensor Faucet Customer Service: 800-684-4489
fontanasensorfaucets.com
10
Commissioning Sequence
Before using the soap dispenser for the first time,
the following sequence must be carried out.
- Fill the bottle full of soap.
- Locate the dispense button on the side of the
pump. Press and hold the button until soap is
dispensed from the spout. This will ensure the
dispenser tube and cable are full of soap.
Operation
Place your hand under the spout within the sensing
range.
Once the your hand is detected, a small amount of
soap will be dispensed from the spout into your'
hand.
General Information
Our sensor spouts have a non-touch control which
uses infrared sensing technology to detect human
presence. Once detected, the spout instantly
dispenses water and automatically stops once the
user moves their hands away to eliminate
unnecessary water wastage, whilst creating a more
hygienic washroom solution.
All products manufactured and supplied by Fontana
are safe and comply to legislative requirements.
Providing they are installed correctly and receive
regular maintenance in accordance with these
instructions your user experience will not be
affected.
Incorrect Placement
Keep sensor range adjustment
within 4 inches away from center
of spout. This can only be done
with optional remote control.
Installing electronic soap dispenser
& faucet with intersecting centerline
might lead to accidental activation
of either or both.
Faucet FaucetSoap
Dispenser
Soap
Dispenser
Correct Placement
Keep sensor ranges
factory preset.
Keep soap spout & faucet
centerlin parallel.
Faucet Faucet
Soap
Dispenser
Soap
Dispenser
Sensor Faucet & Soap Dispneser Installation
Care & Cleaning
• Always wipe your fixture down with a soft cloth
after each use to prevent mineral build-up and
water-spotting. Should spotting occur, remove
water spots with warm water and a soft, damp cloth.
• Wipe away any debris adhering to the spout or
sensor.
• Wipe away debris with a damp cloth containing a
suitable amount of a neutral, dishwashing
detergent. Then wipe clean with a damp cloth.
• When cleaning around the sensor, please be
careful not to scratch the surface of the sensor
window.
• Do not use detergent that might damage the
surface of spout. These include:
- Detergents containing acid, chlorine bleach or
alkali.
- Detergents that are coarse granules in nature,
such as polishing powder.
- Solvents such as paint thinner or benzene.
- Abrasive aids such as nylon scrubbers/brushes,
steel wool, etc.
Hygienic
The proximity sensor faucet removes the need to
touch the faucet body, reducing the spread of
germs and the chance of cross-contamination.
