Forcepoint S4016 Installation instructions

Sidewinder
Hardware Guide
Models S4016, 1402-C3, S5032,
S6032, S7032
Revision F

2
Table of contents
Preface...................................................................................................................................... 3
Find product documentation.......................................................................................................................... 3
1 Introducing the appliances................................................................................................................................. 4
Models and features...................................................................................................................................... 4
Supported software........................................................................................................................................ 6
Network ports................................................................................................................................................. 7
Types of Management ports..........................................................................................................................9
Types of replaceable hardware components.............................................................................................. 11
Regulatory information................................................................................................................................. 11
2 Installing hardware components......................................................................................................................13
Verifying compatibility...................................................................................................................................13
Install or replace the network module......................................................................................................... 14
Install or remove fiber transceivers............................................................................................................. 15
Replace the hard drive................................................................................................................................ 16
Replace the power supply........................................................................................................................... 17
Replace the RAID battery............................................................................................................................17
3 Configuring the management ports.................................................................................................................19
Configure a dedicated management port.................................................................................................... 19
Configure the Remote Management Module.............................................................................................. 19
4 Re-imaging an appliance.................................................................................................................................. 22
Re-imaging without external media............................................................................................................. 22
Update the eUSB device............................................................................................................................. 22
Re-image the appliance............................................................................................................................... 23
5 Diagnosing hardware problems....................................................................................................................... 25
Run hardware diagnostics........................................................................................................................... 25
View the system event log.......................................................................................................................... 25
Status indicator lights................................................................................................................................. 27

Preface | 3
Preface
This guide provides the information you need to configure, use, and maintain your product.
Find product documentation
On the Forcepoint support website, you can find information about a released product, including product
documentation, technical articles, and more.
You can get additional information and support for your product on the Forcepoint support website at https://
support.forcepoint.com. There, you can access product documentation, Knowledge Base articles, downloads,
cases, and contact information.

Introducing the appliances | 4
Introducing the appliances
The features and capabilities of models S4016, 1402-C3, S5032, S6032, and S7032 allow you to plan and
configure an appliance.
Models and features
Forcepoint™ Sidewinder® models S4016, 1402-C3, S5032, S6032, and S7032 include these features.
• Network module bays that support interchangeable network modules
• Redundant hard drives
• Hardware-based remote management capabilities
• Redundant power supplies
The following table provides an overview of the models.
Table 1: Model features
Model Rack
height
Network
module bays
Maximum
network ports
Hard drives Power supplies
S4016 (similar to
1100F)
1U 2 16 2 2
1402-C3 1U 2 16 1 2
S5032 (similar to
2150F)
2U 4 32 4 2
S6032 (similar to
4150F)
2U 4 32 4 2
S7032 (similar to
2150F VX)
2U 4 32 4 2
Model S4016

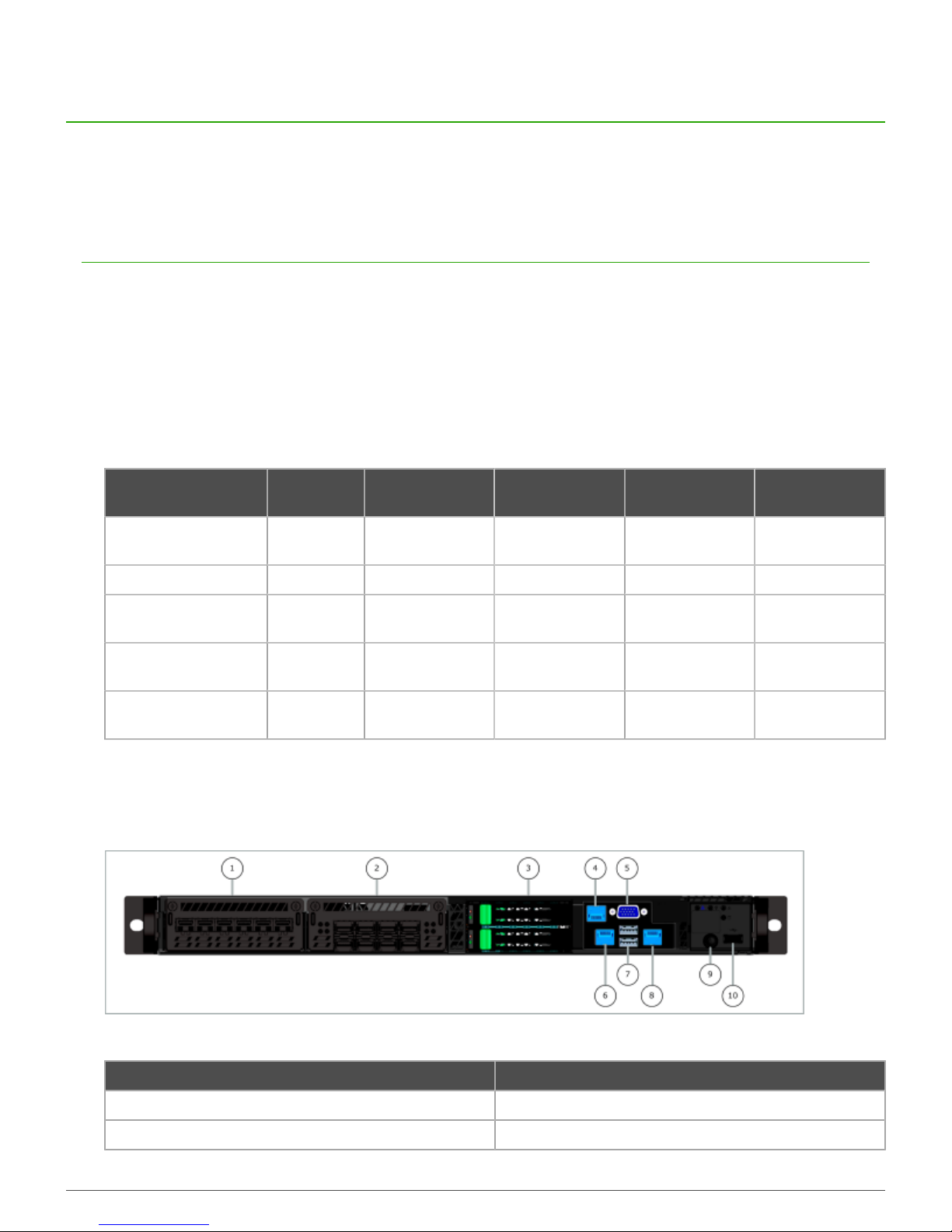

This figure shows the attributes of model S4016.
Figure 1: Model S4016 front panel
Number Description
1 Network module bay 1
2 Network module bay 2

Introducing the appliances | 5
Number Description
3 Hard drive bays
4 Remote Management Module Ethernet port
5 VGA port
6 Dedicated management port
7 USB ports
8 RS-232 serial port
9 Power button
10 USB port
Model 1402-C3

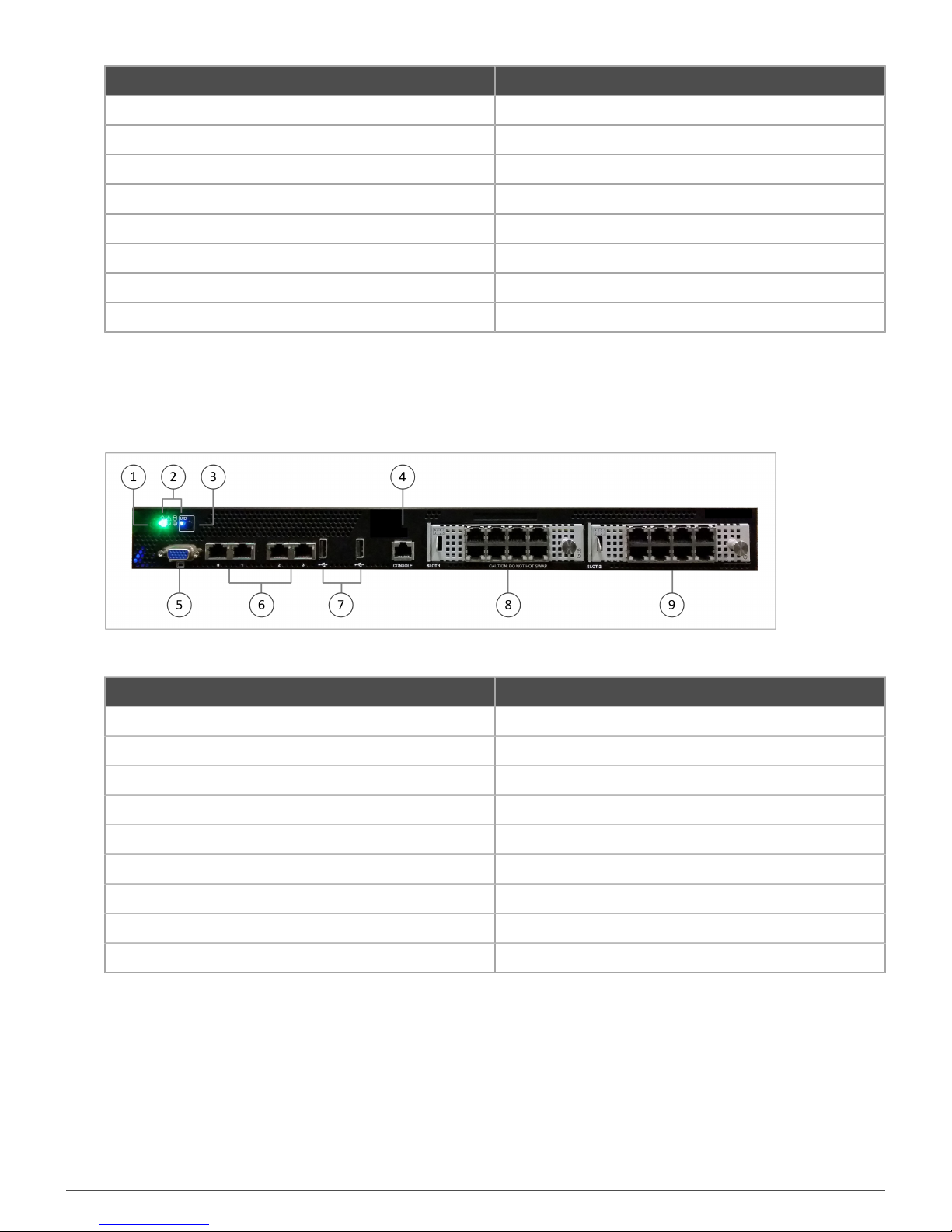

This figure shows the attributes of model 1402-C3
Figure 2: Model 1402-C3 front panel
Number Descriptions
1 Power button
2 Indicator lights
3 UID button
4 Console port (RS-232 serial port)
5 VGA port
6 Fixed Ethernet ports
7 USB ports
8 Network module bay 1
9 Network module bay 2

Introducing the appliances | 6
Models S5032, S6032, and S7032

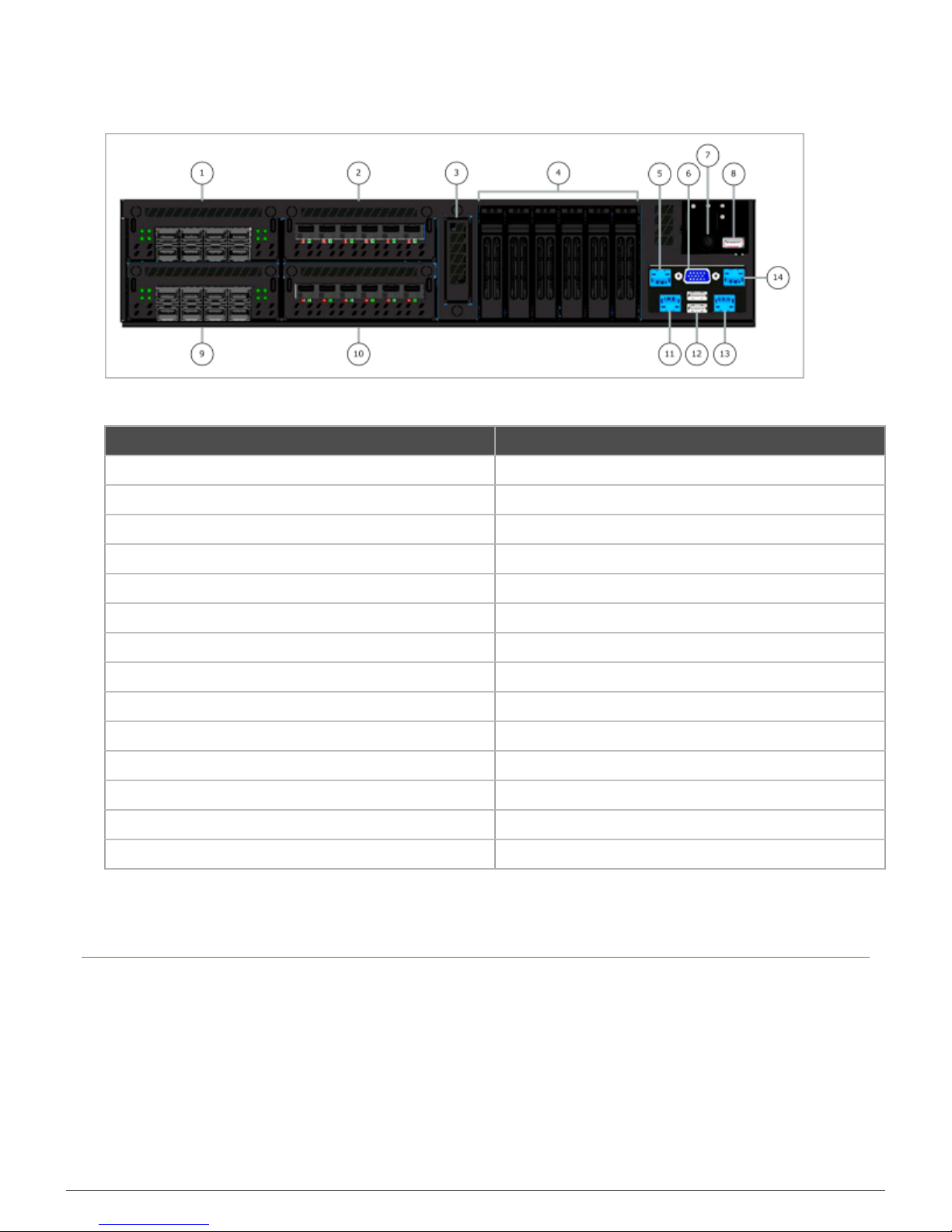

This figure shows the attributes of models S5032, S6032, and S7032.
Figure 3: Models S5032, S6032, and S7032 front panel
Number Description
1 Network module bay 1
2 Network module bay 3
3 RAID battery module
4 Hard drive bays
5 Remote Management Module Ethernet port
6 VGA port
7 Power button
8 USB port
9 Network module bay 2
10 Network module bay 4
11 Dedicated management port 1
12 USB ports
13 RS-232 serial port
14 Dedicated management port 2
Supported software
These software versions are supported.
•Models S4016, S5032, and S6032 — Sidewinder software:
•Version 7 — 7.0.1.02.HW04 and later
•Version 8 — 8.1.1HW04 and later
•Model 1402-C3 — Sidewinder software:
•Version 7 — 7.0.1.03.H14 and later
•Version 8 — 8.3.2HW01 and later
•Model S7032 — VMware ESXi version 4.1 and later

Introducing the appliances | 7
Network ports
Sidewinder models S4016, 1402-C3, S5032, S6032, and S7032 have network module bays that accept
interchangeable network modules.
Network modules are available for different types of Ethernet, so you can select the network modules that are
appropriate for your needs. Fiber network modules require the compatible transceiver modules.
Network modules
Network modules contain NICs that connect the appliance to protected networks. Each network module type is
interchangeable with all network module bays and can be installed in any combination.
Network modules are available for these types of Ethernet:
• 1 gigabit RJ45 copper
• 1 gigabit SFP fiber
• 10 gigabit SFP+ fiber
The following table summarizes the features of each network module.
Note: By default, model S4016, S5032, and S6032 appliances include a single SC8-UTP network
module, and model S7032 appliances include a single S8-UTP network module. For model 1402-
C3 appliances, network modules must be ordered separately.
Table 2: Network modules for S models
Model Type Ports Integrated SSL
Accelerator
Compatible
appliances
SC8-UTP 1 gigabit RJ45
copper
8 Yes — The
accelerator works
with all other
installed network
modules
• S4016
• S5032
• S6032
S8-UTP 1 gigabit RJ45
copper
8 No • S4016
• S5032
• S6032
• S7032
S8-SFP 1 gigabit SFP fiber 8 No • S4016
• S5032
• S6032
• S7032
S6-SFP+ 10 gigabit SFP+
fiber
6 No • S4016
• S5032
• S6032
• S7032

Introducing the appliances | 8
Table 3: Network modules for model 1402-C3
Model Type Ports
MOD-EM1-GE-4 (GE4) 1 gigabit RJ45 copper 4
MOD-EM1-GE-8 (GE8) 1 gigabit RJ45 copper 8
MOD-EM1-GE-SFP-4 (GE4SFP) 1 gigabit SFP fiber 4
MOD-EM1-10G-SFP-2 (10GSFP2) 10 gigabit SFP+ fiber 2
MOD-EM1-10G-SFP-4 (10GSFP2) 10 gigabit SFP+ fiber 4
Fiber transceivers
These types of fiber transceivers are available.
SFP transceivers
These small form-factor pluggable (SFP) transceivers are compatible with the S8-SFP network module.
Table 4: SFP transceivers
Model Ethernet type Wavelength Distance Ethernet speed Connector type
MT9101A (black
handle)
1000BASE-SX 850 nm • Up to 550
meters on
50/125 µm
multi-mode
fiber
• Up to 300m
on 62.5/125
µm multi-
mode fiber
1 gigabit LC
MT9102A (blue
handle)
1000BASE-LX 1310 nm Up to 10
kilometers on
9/125 µm single-
mode fiber
1 gigabit LC
SFP+ transceivers
These enhanced small form-factor pluggable (SFP+) transceivers are compatible with the S6-SFP+ network
module.
Table 5: SFP+ transceivers
Model Ethernet type Wavelength Distance Ethernet speed Connector type
MT9107 (black
handle)
10GBASE-SR 850 nm Up to 300 meters
on OM3 multi-
mode fiber
10 gigabit LC
MT9108 (blue
handle)
10GBASE-LR 1310 nm Up to 10
kilometers on
single-mode
fiber
10 gigabit LC

Introducing the appliances | 9
Identifying network ports
The following sections describe how physical network ports correlate with software interface names.
Models S4016, 1402-C3, S5032, and S6032
The Ethernet ports on network modules are physically labeled. These port labels, combined with network module
location, correspond to Sidewinder NIC names for software version 8.1.1 and later.
Software NIC names for network ports are derived from a combination of two factors:
• Ethernet port number (labeled on the network module)
• Network module bay number where the Ethernet port is installed
This information is combined to create the NIC name as follows:
<module bay number>-<Ethernet port number>
For example, port 3 in network module bay 2 is named 2–3. The following table shows the NIC names for an
example S5032 configuration.
Table 6: Example S5032 configuration
Network module bay Module type Software NIC names
1 SC8-UTP (8 ports) 1–0 to 1–7
2 S6-SFP+ (6 ports) 2–0 to 2–5
3 S8-UTP (8 ports) 3–0 to 3–7
4 S8-SFP (8 ports) 4–0 to 4–7
Note: The module bay naming system described above is used on all supported software
versions for the 1402-C3. The NIC names for the fixed Ethernet ports on the 1402-C3 are mgr1–
mgr4. These fixed Ethernet ports can be used for management or general traffic purposes.
Model S7032
You will need to determine which ESXi network adapter corresponds to a given network port.
1. Connect the network port to an active network.
2. In the VMware vSphere client, view the network adapters.
3. Find the network adapter that corresponds to the network port you connected in Step 1. Use the following
columns to identify the correct network adapter:
• Speed
• Observed IP ranges
Types of Management ports
Sidewinder models S4016, S5032, S6032, and S7032 have dedicated management ports and a Remote
Management Module (RMM) port.
Note: Model 1402-C3 does not have an RMM. Use any of the fixed Ethernet ports as a
management port.

Introducing the appliances | 10
Dedicated management ports
Dedicated management ports are 10/100/1000 RJ45 copper ports that provide additional network connection
options for management traffic.
Supported types of network traffic
Dedicated management ports can be used for these types of network traffic.
• Firewall administration, including:
• Sidewinder Admin Console
•Forcepoint™ Sidewinder® Control Center
• Secure Shell
• Logging to remote Syslog servers.
• High Availability heartbeat
Note: Network ports on the network modules can also be used for these types of traffic.
Identifying management ports and NICs
The following table shows the dedicated management ports and corresponding NIC names.
Table 7: Dedicated management ports
Model Management ports NIC names
S4016 1 mgr1
S5032 2 • mgr1
• mgr2
S6032 2 • mgr1
• mgr2
S7032 2 • mgr1
• mgr2
Remote Management Module port
The Remote Management port is a 10/100 RJ45 copper port that provides system management features
independent from the Sidewinder operating system.
Note: The Remote Management Module port cannot be used by Sidewinder and the port does
not appear in the list of firewall interfaces.
Features
You can use the Remote Management Module web interface to furnish these tasks.
• View system information
• View system health, including:
• Sensor readings
• Event log

Introducing the appliances | 11
• Control the appliance remotely using console redirection
• Turn the appliance on or off
Types of replaceable hardware components
There are two types of replaceable hardware components: hot-swap capable and non-hot-swap capable.
Hot-swap capable components
Components that are hot-swap capable can be installed or uninstalled while the appliance is operating. These
components are the hot-swap capable.
• SFP and SFP+ transceivers
• Power supplies
• Hard drives
CAUTION: The hard drive in the 1402-C3 model is not hot-swap capable and should only be
serviced by a qualified technician.
Non-hot-swap capable components
Components that are not hot-swap capable must be installed or uninstalled when the appliance is turned off and
disconnected from the power source. These are the non-hot-swap capable components.
• Network modules
• RAID batteries
Regulatory information
In compliance with Federal Communications Commission (FCC) regulations, this section provides information
about the appliance models and contact information.
Model information
This regulatory information applies to Sidewinder S4016, 1402-C3, S5032, S6032, and S7032 models.
Table 8: Regulatory model information
Sidewinder model Regulatory model
S4016 SR1602
1402-C3 Series 1400
S5032 SR2604
S6032 SR2604
S7032 SR2604

Introducing the appliances | 12
Contact information
Use the following information to contact us.
Forcepoint LLC
10900-A Stonelake Blvd
Quarry Oaks 1, Ste 350
Austin, TX 78759
USA
[phone]

Installing hardware components | 13
Installing hardware components
Install compatible hardware components like network modules, fiber transceivers for an appliance. Use this
section to replace or remove hardware components.
Verifying compatibility
Before you install a hardware component, make sure it is compatible with the appliance. If you are installing fiber
transceivers, make sure they are compatible with the network module(s).
Network modules and fiber transceivers
The table shows network module compatibility with fiber transceivers and appliance models.
Table 9: Network module compatibility
Network module Compatible fiber transceivers Compatible appliances
SC8-UTP N/A • S4016
• S5032
• S6032
S8-UTP N/A • S4016
• S5032
• S6032
• S7032
S8-SFP • MT9101A (1000BASE-SX)
• MT9102A (1000BASE-LX)
• S4016
• S5032
• S6032
• S7032
S6-SFP+ • MT9107 (10GBASE-SR)
• MT9108 (10GBASE-LR)
• S4016
• S5032
• S6032
• S7032
MOD-EM1-GE-SFP-4 (GE4SFP) • MT9101A (1000BASE-SX)
• MT9102A (1000BASE-LX)
1402-C3
MOD-EM1-10G-SFP-2 (10GSFP2) • MT9107 (10GBASE-SR)
• MT9108 (10GBASE-LR)
1402-C3

Installing hardware components | 14
Other hardware components
The table shows hardware component compatibility with appliance models.
Table 10: Hardware component compatibility
Appliance modelsHardware
component S4016 1402-C3 S5032 S6032 S7032
1U Power supply X
1402-C3 power
supply
X
2U Power supply X X X
146 GB hard
drive
X X X
600 GB hard
drive
X
RAID battery X X X
Install or replace the network module
You must install an interface module or a placeholder module in each slot before making the appliance
operational.
CAUTION: Network modules are not hot-swap capable. Always turn off the appliance and
disconnect both power cable before installing or uninstalling network modules.
• If the appliance is deployed in a production environment, schedule a maintenance interval to perform the
installation procedure.
• Gather the following items:
• Number 2 Phillips screwdriver
• Anti-static wrist strap
Note: A disposable anti-static wrist strap is included with the new network module.
• Verify hardware compatibility:
• Make sure that the network module is compatible with your appliance model.
• If you are installing a new fiber module, make sure that you have compatible fiber transceivers.
• If you are installing a replacement network module, identify which network module bay contains the failing
module.
CAUTION: Electrostatic discharge (ESD) can damage electronic components. Always take ESD
precautions when handling hardware components. We recommend that you perform all steps at
an ESD workstation. If an ESD workstation is not available, provide protection by wearing an anti-
static wrist strap attached to the chassis ground (any unpainted metal surface on the appliance).
1. Turn off the appliance and disconnect the power cables.

Installing hardware components | 15
CAUTION: The power button does not completely turn off power to the appliance. Make sure
that both power cables are unplugged before you begin working on the appliance.
2. Put on the anti-static wrist strap and attach the other end to the appliance chassis.
3. Prepare the network module bay.
1. If needed, use a number 2 Phillips screwdriver to loosen the screws on the installed network module or
network module bay cover.
2. Pull on the installed network module or network module bay cover to remove it.
4. Remove the new network module from the anti-static packaging.
5. Slide the new module into the empty network module bay.
6. If needed, secure the network module by tightening the fasteners with the screwdriver.
7. If you removed a network module from the appliance, place it into the anti-static packaging that came with
the new module.
8. Reconnect the power cables, then turn on the appliance.
Related concepts
Verifying compatibility on page 13
Before you install a hardware component, make sure it is compatible with the appliance. If you are installing fiber
transceivers, make sure they are compatible with the network module(s).
Install or remove fiber transceivers
This section describes how to install or remove fiber transceivers.
Verify that the fiber transceivers are compatible with the network module.
Related concepts
Verifying compatibility on page 13
Before you install a hardware component, make sure it is compatible with the appliance. If you are installing fiber
transceivers, make sure they are compatible with the network module(s).
Install a fiber transceiver
Perform these steps to install a fiber transceiver into a compatible network module.
1. Clear the SFP socket where the transceiver will be installed.
• If the socket is empty, remove the cover and keep it for future use.
• If the socket is populated with a failed transceiver, remove it.
2. Remove the SFP transceiver from the protective packaging.
3. Slide the SFP transceiver into the SFP socket on the network module until it snaps into place.
•S6-SFP+ network module — Insert the transceiver with the label down.
•S8-SFP network module:
• If the SFP socket is located in the top row, insert the transceiver with the label up.
• If the SFP socket is located in the bottom row, insert the transceiver with the label down.
Note: The SFP transceiver will not snap into place if it is inserted upside down.
4. [Optional] Connect a fiber cable to the SFP transceiver.
1. Remove the protective plug and keep it for future use.
2. Insert the fiber cable into the SFP transceiver.

Installing hardware components | 16
Remove a fiber transceiver
Perform these steps to remove a fiber transceiver from a network module.
1. If a fiber cable is connected to the transceiver, disconnect the cable, then place dust caps over the exposed
ends of the cable.
2. Release the latch on the SFP transceiver by rotating it to the horizontal position.
3. Gently pull the latch straight out to remove the SFP transceiver from the network module.
4. Rotate the latch back to normal position.
5. Place a protective plug over the exposed optics on the SFP transceiver, if one is not already present.
6. Place an SFP cover over the empty SFP socket on the network module.
Replace the hard drive
Each model S4016, S5032, S6032, or S7032 appliance uses hot-swap hard drives connected to a RAID
controller. The RAID controller allows the system to continue operating in the event that a single disk drive fails. A
single failed hard drive can be replaced while the system is still operational.
To replace a hard drive, make sure these prerequisites are met:
• The appliance must have no more than one failed hard drive.
Note: If two or more hard drives have failed, contact technical support for assistance with re-
creating the RAID array and restoring the firewall image.
• The replacement hard drive must be the same size or larger than the failed drive.
1. Identify the failed hard drive.
Tip: A failed hard drive typically has an amber indicator light.
2. Remove the failed hard drive from the appliance.
1. Press the aqua latch on the failed hard drive to release the spring-loaded black handle.
2. Remove the failed hard drive from the appliance by pulling on the black handle.
3. Prepare the replacement hard drive.
1. Remove the replacement hard drive from the protective packaging.
2. Compare the replacement hard drive to the failed hard drive to make sure the replacement hard drive
has similar or greater capacity.
Note: A smaller hard drive will not work. Contact technical support if you received a
replacement hard drive that is smaller than the failed hard drive.
3. Press the aqua latch to release the spring-loaded black handle.
4. Insert the replacement hard drive into the appliance.
1. Slide the drive into the empty hard drive bay until it is fully seated.
2. Press the black handle until it latches.
3. If the appliance is turned off, turn it on.
After the drive is inserted, the RAID controller begins the rebuild operation. When the rebuild operation
begins, each hard drive shows activity. You can monitor the rebuild process:
•Models S4016, S5032, and S6032 — RAID messages appear on the system console.
•Model S7032 — The VMware vSphere Client shows RAID status.
CAUTION: Do not turn off the appliance until the rebuild operation is complete.

Installing hardware components | 17
Note: Performance is reduced while the rebuild operation takes place.
5. Place the failed hard drive in the packaging materials from the replacement hard drive.
Related concepts
Verifying compatibility on page 13
Before you install a hardware component, make sure it is compatible with the appliance. If you are installing fiber
transceivers, make sure they are compatible with the network module(s).
Replace the power supply
In the event of a failure, replace the power supply.
• Verify that the replacement power supply is compatible with your appliance model.
• Identify the failed power supply.
Each model has dual supplies that allow the appliance to continue operating if one power supply fails. The power
supplies are hot-swappable, so a single power supply can be replaced while the system is still operating.
Note: We recommend using both power supplies in normal operation so that two power supplies
share the load.
A power supply can be replaced while the appliance is turned on and running or when the appliance is turned off.
1. Disconnect the power cable from the failed power supply.
2. Remove the failed power supply.
1. Unlatch the failed power supply.
•Model S4016 — Press the aqua handle down.
•Model 1402-C3 — Press the black handle sideways.
•Model S5032, S6032, and S7032 — Press the aqua handle sideways toward the black handle.
2. Continue pressing the handle and remove the power supply, holding the handle if needed.
3. Remove the replacement power supply from the protective packaging.
4. Slide the replacement power supply into the appliance until it is fully seated and the latch has engaged.
5. Connect the power cable to the replacement power supply.
Related concepts
Verifying compatibility on page 13
Before you install a hardware component, make sure it is compatible with the appliance. If you are installing fiber
transceivers, make sure they are compatible with the network module(s).
Replace the RAID battery
This section describes how to replace a RAID battery in a model S5032, S6032, or S7032 appliance. The battery
provides power to the cache memory of the RAID controller in the event of sudden power loss.
CAUTION: RAID batteries are not hot-swap capable. Always turn off the appliance and
disconnect both power cords before installing or uninstalling a RAID battery. Never operate the
appliance without the RAID battery installed.
Perform these tasks before replacing a RAID battery.

Installing hardware components | 18
• If the appliance is deployed in a production environment, schedule a maintenance interval to perform the
replacement procedure.
• Gather the following items:
• Number 2 Phillips screwdriver
• Anti-static wrist strap
Note: A disposable anti-static wrist strap is included with the new RAID battery.
1. Turn off the appliance and disconnect the power cables.
CAUTION: The power button does not completely turn off power to the appliance. Make sure
that both power cords are unplugged before you begin working on the appliance.
2. Put on the anti-static wrist strap and attach the other end to the appliance chassis.
3. Remove the old battery and tray from the appliance.
1. Find the battery tray, which is located between the network module bays and the hard drive bays.
2. Use a number 2 Phillips screwdriver to loosen the screws on the battery tray.
3. Pull the battery tray out of the appliance.
Note: The battery is connected to the appliance by a cable, which is long enough to
allow you to remove the tray from the appliance.
4. Gently unplug the cable from the battery.
4. Remove the old battery from the tray.
1. Completely unscrew all three screws on the underside of the tray. Do not discard.
2. Disconnect the circuit board from the battery by pressing the small clip and sliding it out.
3. Gently disconnect the wire harness from the circuit board.
5. Attach the new battery to the old tray.
1. Connect the wire harness from the battery to the circuit board.
2. Seat the circuit board on the battery sliding it in and then press the small clip to secure it in place.
6. Install the replacement battery and tray into the appliance.
1. Connect the three screws and standoffs on the underside of the tray.
2. Gently plug the cable into the new battery.
3. Slide the battery tray into the appliance.
4. Use a number 2 Phillips screwdriver to tighten the screws on the battery tray.
7. Reconnect the power cords, then turn on the appliance.
8. Place the old battery in the packaging materials from the replacement battery.

Configuring the management ports | 19
Configuring the management ports
You must enable the dedicated management ports, Remote Management Module, and connect to the Remote
Management Module web interface to manage network traffic.
Note: Model 1402-C3 does not have a RMM. Use any of the fixed Ethernet ports as a
management port.
Configure a dedicated management port
The dedicated management ports are disabled by default. To configure and enable a dedicated management
port, perform these steps.
1. Create a zone for the management network.
2. Configure the NIC that corresponds to the dedicated management port and assign it to the management
zone.
3. Create or modify access control rules to allow the appropriate management traffic.
Related concepts
Dedicated management ports on page 10
Dedicated management ports are 10/100/1000 RJ45 copper ports that provide additional network connection
options for management traffic.
Configure the Remote Management Module
The Remote Management Module is disabled by default. Perform these tasks to configure and use the Remote
Management Module port.
If the appliance is deployed in a production environment, schedule a maintenance interval to enable the Remote
Management Module.
Related concepts
Remote Management Module port on page 10
The Remote Management port is a 10/100 RJ45 copper port that provides system management features
independent from the Sidewinder operating system.
Connect the Remote Management Module port
To use the Remote Management Module, connect the Remote Management Module port to a network.
CAUTION: We recommend connecting the Remote Management Module port to a dedicated
management network that meets the security needs of your organization.
Enable the Remote Management Module
Perform these steps to configure and enable the Remote Management Module.
1. Enter the appliance BIOS menu.
1. Restart or turn on the appliance.

Configuring the management ports | 20
2. Press F2 to enter the BIOS menu.
3. Navigate to the Server Management tab.
4. Select BMC LAN Configuration.
2. Configure the following options:
• IP address
• Subnet mask
• Gateway IP address
3. In the User configuration area, specify at least one user that will be allowed to access the appliance from a
remote host.
1. In the User ID field, select the user ID that you want to configure.
Tip: The appliance has five user IDs for user information: anonymous, root, User3,
User4, and User5. Each user ID can be enabled or disabled and assigned a privilege.
2. Configure the following options:
• Privilege
• User name
• User password
3. In the User status field, select Enable to activate the user ID.
4. Press F10 to exit the BIOS and save the changes.
Connect to the Remote Management Module web
interface
Perform these steps to connect to the Remote Management Module web interface from a remote computer.
1. In a web browser, go to https://<IP of Remote Management Module>. The first time you connect,
accept the SSL certificate.
2. Specify a user name and password, then click Login. The homepage appears.
3. Click the tab that corresponds to the task you want to perform.
Tip: For option descriptions, click Help.
Table 11: Web interface tabs
Tab Task
System Information View appliance information
Server Health • View sensor readings
• View the event log
Configuration • Configure Remote Management Module network
settings
• Manage Remote Management Module users
• Upload a new SSL certificate
• Configure LDAP (Lightweight Directory Access
Protocol)
Remote Control • Access the appliance console
• Turn the appliance on or off
