Formax Cut-True 29H User manual

Cut-True 29H
Hydraulic Guillotine Paper Cutter
OPERATOR MANUAL
Second Edition
1/2019

Page 2/ 62
Contents
1.1 Purpose of use .................................................................................................................. 4
1.2 Documentation .................................................................................................................. 4
2. SAFETY ................................................................................................................................. 4
2.1 Symbols: meaning and application .................................................................................... 5
2.2 Operator qualifications ...................................................................................................... 6
2.3 Requirements for the operator's workplace. ...................................................................... 6
2.3.1 Personal protection equipment ....................................................................... ........6
2.3.2 Permissible environmental and operational conditions ............................................ 6
2.4 Avoiding risks when operating the cutter ........................................................................... 7
2.5 Possible risks of operation and evaluation of residual risk ................................................ 7
2.6 Safety systems used in the cutter ..................................................................................... 7
2.7 Safety covers and protective devices ................................................................................ 8
2.8 Safety Checks ..................................................................................................................10

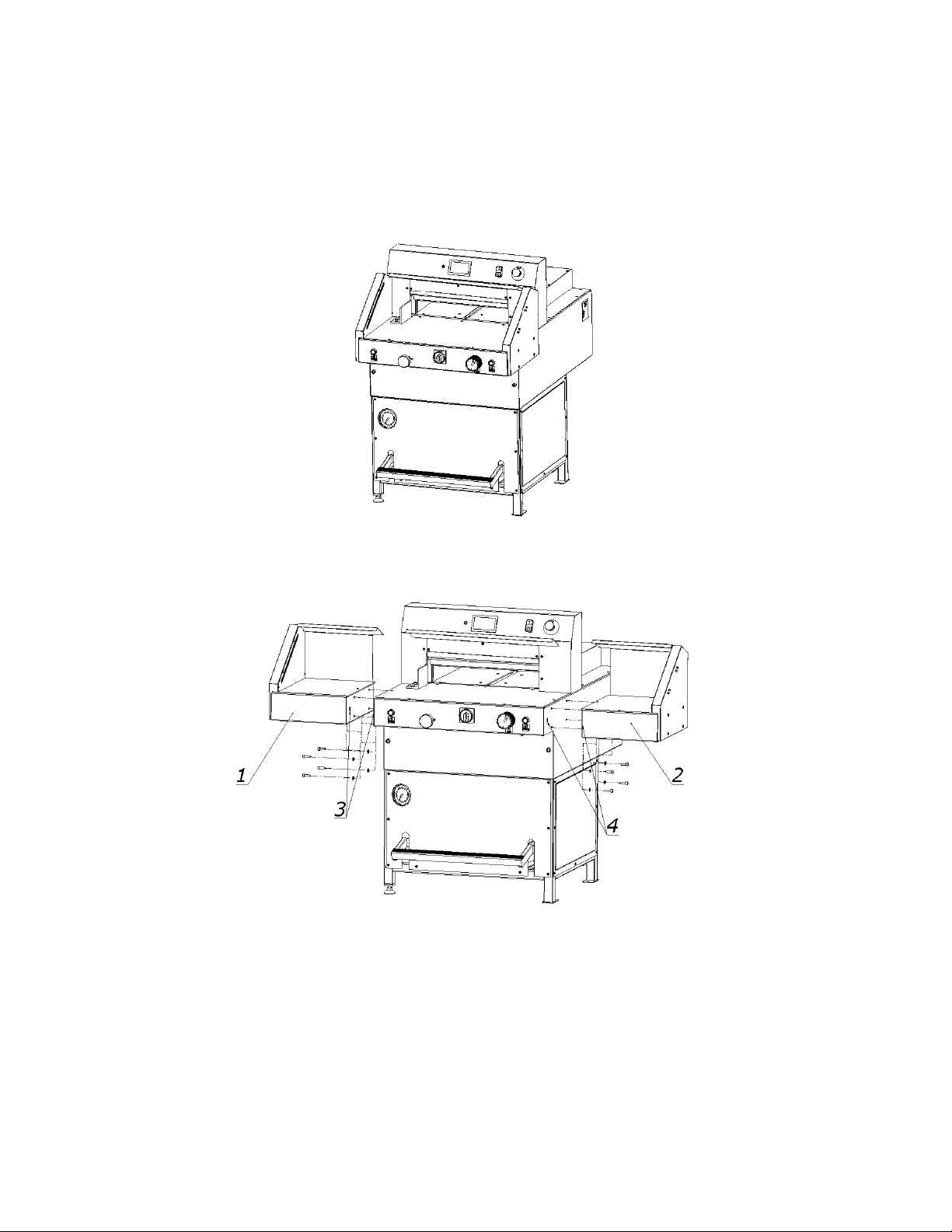

3.2 Delivery and installation of optional side tables ................................................................12
3.4 Leveling the cutter ............................................................................................................13
3.5 Work area ........................................................................................................................13
4. SPECIFICATIONS...................................................................................................................15
4.1 Primary Use .....................................................................................................................15
4.2 Basic parameters .............................................................................................................15
4.2.1 Technical data ...................................................................................................... 15
4.2.2 Technical data - electrical system ......................................................................... 16
4.2.3 Technical data - hydraulic system ........................................................................ 16

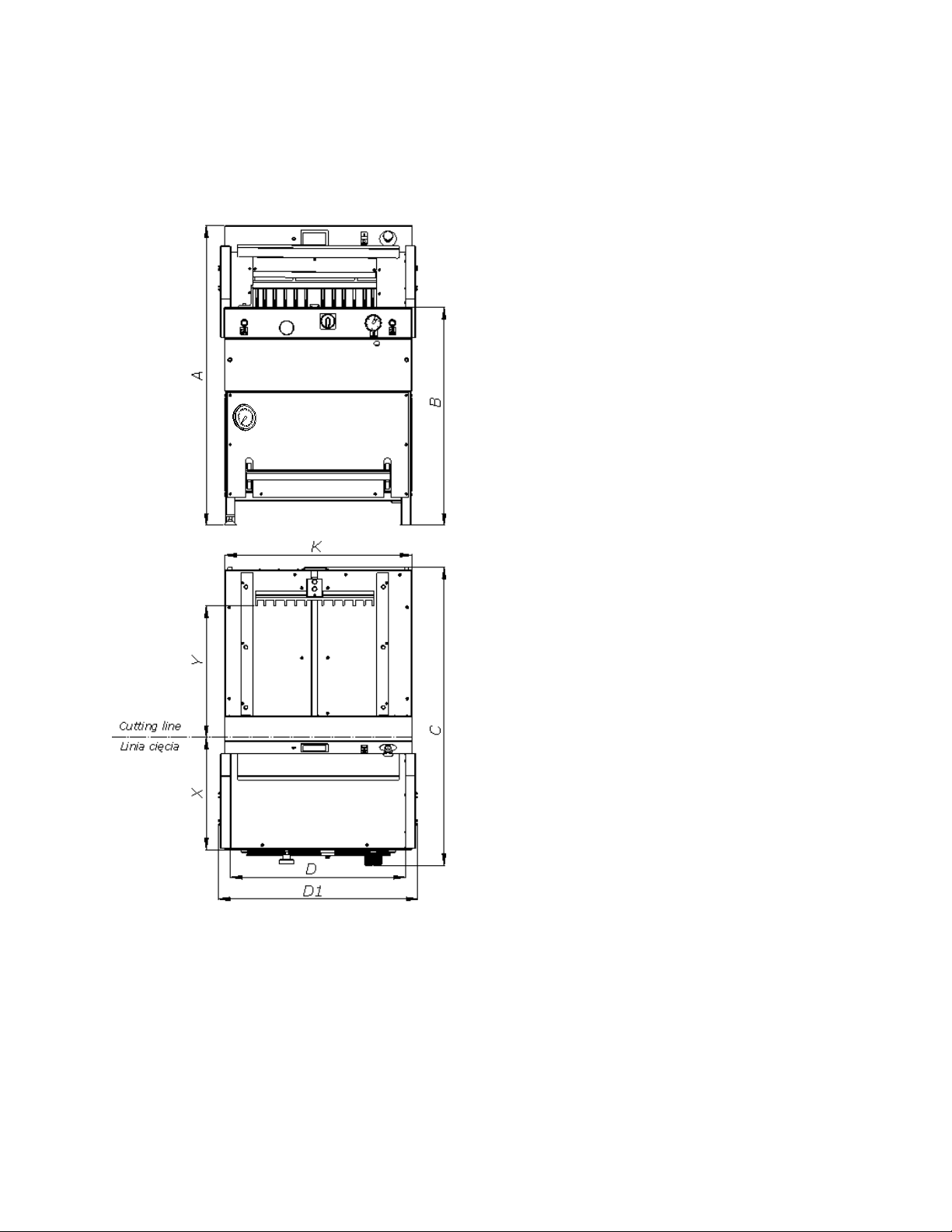

4.2.4 External dimensions ............................................................................................. 17
5. OPERATION .........................................................................................................................19
5.1 Operating safety ..............................................................................................................19
5.1.1 Safety instructions ................................................................................................ 19
5.1.2 Warning about special hazards ............................................................................. 19

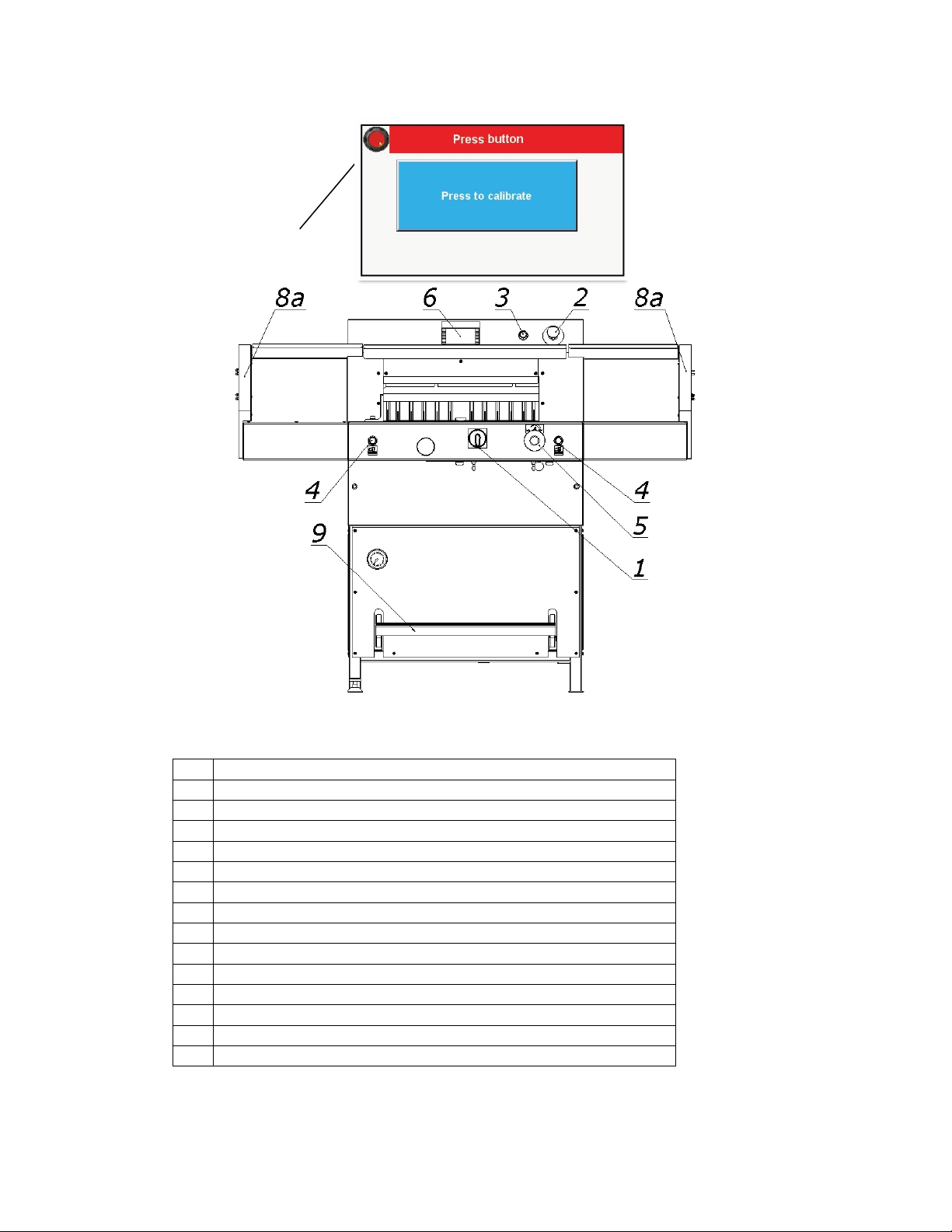

5.2 Control system .................................................................................................................19
5.3 Electrical apparatus .........................................................................................................24
6. POWER SUPPLY .................................................................................................................25
7. USING THE CUTTER ...........................................................................................................26
7.1 Danger zones in the cutter ...............................................................................................26
7.3 Starting the cutter .............................................................................................................26
7.3.1 Powering on .......................................................................................................... 26
7.3.2 Diagnostics of the safety curtain after switching on the power supply. .................. 27

Page 3/ 62
7.3.3 Emergency stop of the cutter ................................................................................ 28
7.3.4 Starting the cutter after emergency stop ............................................................... 28
7.4 Determining the position of the back gauge .....................................................................28
7.4.1 Changing the position of the back gauge with the hand wheel .............................. 29
7.5 Using the paper clamp .....................................................................................................29
7.5.1 Clamping the material without cutting (determination of the cutting line) ............... 29
7.5.2 Change of clamping force ..................................................................................... 30
7.5.3 Rules for selecting the contact pressure. .............................................................. 31
7.6 LED cutting line indicator .................................................................................................31
7.7 Cutting (pressing and cutting) ..........................................................................................31
8. OPERATIONAL ACTIVITIES ................................................................................................33
8.1 Replacing the knife ..........................................................................................................33
8.1.1 Removing the knife ............................................................................................... 34
8.1.2 Installing a knife .................................................................................................... 40
8.2 Reversing or replacing the cutting stick ............................................................................45
8.3 False clamp .....................................................................................................................47
8.4 Adjusting the parallelism of back gauge ...........................................................................50
9. MAINTENANCE ....................................................................................................................52
9.1 Daily maintenance ...........................................................................................................52
9.2 Treatments that should be performed periodically ............................................................52
9.3 Lubrication .......................................................................................................................52
9.4 Hydraulic system..............................................................................................................57
9.4.1 Working conditions of the aggregate ..................................................................... 57
9.5 Inspections.......................................................................................................................60
9.5.1 General recommendations .................................................................................... 60
9.5.2 Checking hydraulic hoses ..................................................................................... 60
9.5.3 Knife sharpening ................................................................................................... 60
10. FAILURES ..........................................................................................................................61
10.1 Determining the causes of the fault ................................................................................61
10.2 Basic procedures for removing various types of defects .................................................61

Page 4/ 62
1. GENERAL INFORMATION
1.1 Purpose of use
The Cut-True 29H Guillotine Cutter is designed to cut paper and cardboard. It is mainly used by
printing houses, print finishing specialists, copy shops and offices.
The machine must be used according to operator manual and conditions as assemble,
disassemble, reassemble, installation, controlling and maintenance should be respected.
1.2 Documentation
 This operator manual is provided with the machine
 The manual should be always stored near the machine
 Operators should be familiar with the manual before starting to use the machine.
2. SAFETY
The cutter is designed with a variety of safety features. Operators should not make any alterations
to these features, which could cause personal injury, equipment damage, and invalidate the
manufacturer’s warranty. This requirement is also applicable to the spare parts used during the
repairs.
Any repairs should be made only by authorized technicians trained by the manufacturer. Repairs
made by unauthorized technician(s) will invalidate the warranty given by manufacturer, and
manufacturer is no longer responsible for any damages.
 Warranty is terminated if the machine is modified by user without permission of
manufacturer
 Modification by user removes all responsibility from the manufacturer for any
damages
Despite all precautions, untrained operators may cause the risk of injury or damage.
Possible effects of incorrect usage:
 risk of life
 risk of body damage
 risk of machine damage
 risk of deterioration of technical condition of machine

Page 5/ 62
2.1 Symbols: meaning and application
Table 1. Symbols meaning
 Read operator manual
 Respect operator manual
 INFORMATION
 WARNING!
 Risk of machine damage
 CAUTION! DANGER!
 Danger to life
 Danger of bodily harm
 Dangerous electrical voltage!
 Children must not operate the device!
 Do not put hands underneath the knife!
 Do not leave knives unattended
 Do not remove or transport knives without covers!
 Risk of injury!
• Do not cut hard materials or materials, which may be splintered

Page 6/ 62
2.2 Operator qualifications
 The cutter can only be operated by qualified staff who have been properly trained.
 The cutter should be used only by trained adults, and not by children.
INFO
Before operating the cutter the operator must read the operating instructions.
2.3 Requirements for the operator's workplace.
The cutter should be located on a dry, stable surface to reduce the chance of the operator slipping
or falling. Power cables should also be routed to avoid a trip hazard.
2.3.1 Personal protection equipment
If necessary or if it results from the regulations in force, use the following personal protective
equipment:
 Wear safety shoes
 Wear safety goggles - eg when cutting fragile material
 Use hearing protection - eg when cutting hard material
2.3.2 Permissible environmental and operational conditions
 Operation of the machine is permitted in closed rooms
 Humidity: 35% - 95% (non-condensed)
 Ambient air temperature: + 5 ° C - + 30 ° C

Page 7/ 62
2.4 Avoiding risks when operating the cutter
DANGER!
Operator must only use the machine in good technical condition.
At the beginning of each work shift and after each knife replacement, check the operation of the
safety devices. Interference in security or bypassing them (e.g. safety light curtains, two-handed
controls) creates a danger to life or injury!
2.5 Possible risks of operation and evaluation of residual risk
The Cut-True 29H is manufactured to the highest standards for use, and operator safety. Risks
remain, due to the failure of operator to follow proper use instructions.
 Failure to follow the safety rules described in the operating instructions
 Using the cutter for other purposes than those described in the user's manual
 Allowing unauthorized persons, especially children, to use the cutter
 Unauthorized machine alterations
 Cleaning and lubrication of the cutter during operation
 Working with dismantled or defective covers
 Manipulation within the drive units and moving parts of the cutter during
operation
 Checking the cutter's technical condition and performing servicing or repairs
with the cutting machine
 Checking transmission gears during operation
2.6 Safety systems used in the cutter
• Two-handed operation buttons – blade is engaged using a two-handed start system, which
keeps operator’s hands out of the cutting area
• LED Safety Curtain – cutter will not operate if the safety curtain is not functioning

Page 8/ 62
2.7 Safety covers and protective devices
Figure 3. Arrangement of covers and protective elements

Page 9/ 62
Table 3. Safety devices in Figure 3
Possible Danger Locations
Safety Feature
Identification
MECHANICAL
1.
The lever assembly mechanism of the
pressure beam drive
 fixed cover
 Emergency stop
1,2,3,4,10,1
1
9
2.
Hydraulic system
 fixed cover
 front table
 Emergency stop
2,3,4,10,
11
8
9
3.
The belt drive for the drive mechanism of
the back gauge beam
 fixed cover
 front table
 emergency switch
2,3,4,
8
9
4.
The screw mechanism of the back
gauge drive
 cutter body
 fixed cover
2
6
5.
Motor, lever mechanism of the knife
drive mechanism
 fixed cover
 front table
 Emergency stop
1.2,3,4,10
11
8
9
6.
Approach move of the knife beam
- fixed cover
 electro sensitive
protective device
(photocell)
 two-handed device
 Emergency stop
1
7
5
9
7.
Approach move of clamp beam
- fixed cover
 electro sensitive
protective device
(photocell)
 two-handed device
 Emergency stop
1
7
5
9
8.
Approach move of back gauge
- fixed cover
 Emergency stop
1,6
9
9.
Manipulation with a knife during its
replacement
- transport handles
- special protective
packaging
10.
Sharp edges and corners of the cutter
elements
- refraction, dullness,
rounding

Page 10/ 62
11.
Uneven or rough surfaces
- precise workpiece
machining
- paint coatings
II
ELECTRICAL
1.
Direct contact of active elements
- closed housing
- partially reduced voltage
supply to the control
system up to 24V AC/DC.
2,12
2
Indirect touch
- protection against indirect
contact according to PN-
EN 60204-1
- continuity of the
protective conductor
2.8 Safety Checks
Periodic safety checks should be performed:
 check the correct position of the knife
 control of the power supply of the cutter linear indicator
 operation of the safety curtain
 operation of the two-hand control function
 protection against continuous knife movement.

Page 11/ 62

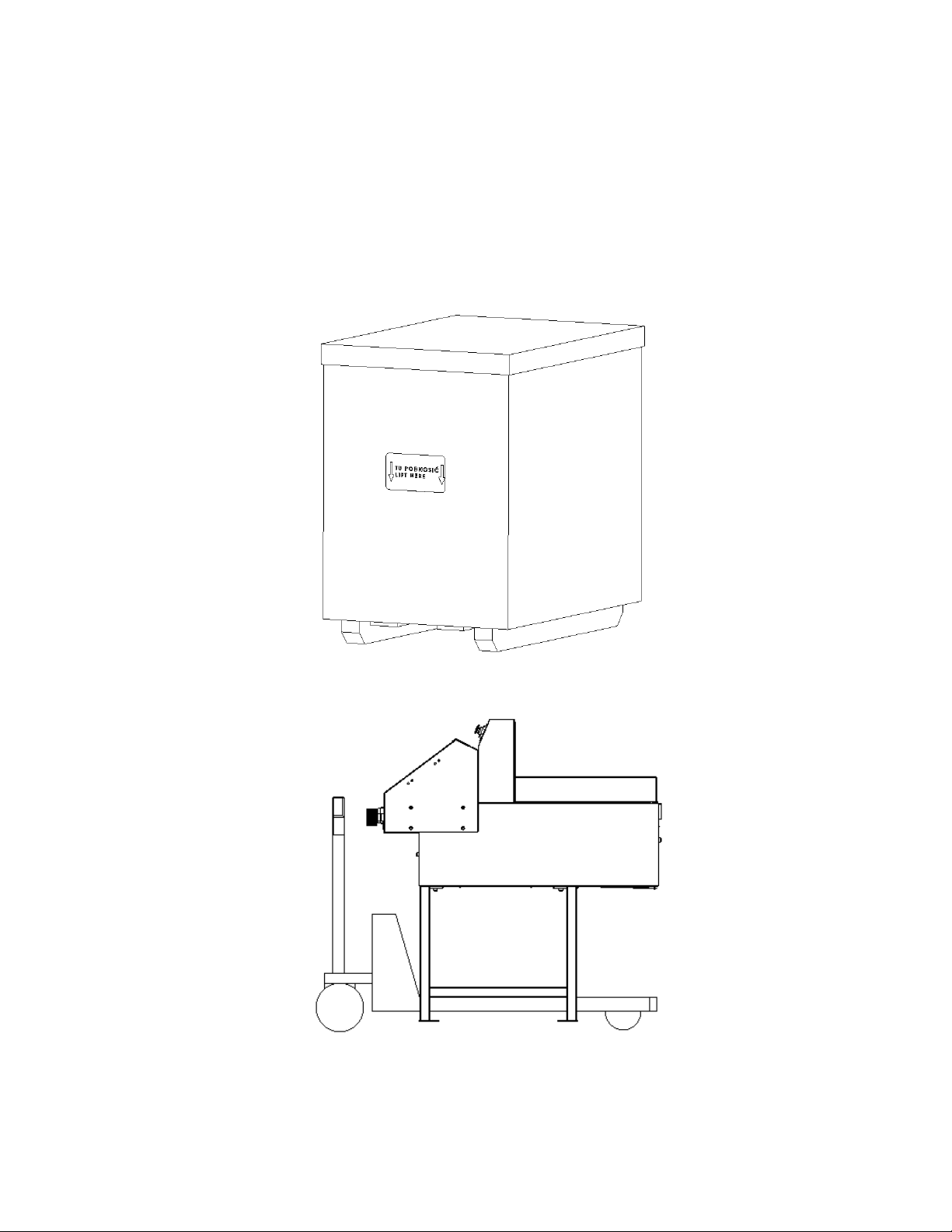

3.TRANSPORT AND STORAGE
3.1 Transport
The box with the machine should be transported in accordance with the markings on it (fig.4).
When using a forklift, make sure that the fork length is suitable so that you can grasp the entire
depth of the box.
Figure 4. Cutter in a transport crate,
Figure 5. Transporting cutters with a pallet truck

Page 12/ 62
3.2 Delivery and installation of optional side tables
The cutter may be delivered:
• completely assembled and ready for use (Fig. 6a).
• with disassembled optional side tables, assemble of tables according to Figure 6b.
Figure 6a. Cutter without side tables
Figure 6b. Installation of the side tables
1. Left side table + M8x25 screw (4 pieces) + washer 8 (4 pieces)
2. Right side table + M8x25 screw (4 pcs.) + 8 washer (4 pcs.)
3. The place of guiding the curtain of the left table
4. The location of the right side curtain cable conduit

Page 13/ 62
3.4 Leveling the cutter
Figure 7. Adjusting the cutter setting.
The cutter does not need to be attached to the ground. The correct and safe setting is to level
it using the adjustable foot, shown in Figure 7.
3.5 Work area
In order to easily access the cutter's mechanisms during adjustment, maintenance or
servicing activities, it is recommended to keep a free space of about 0.5 m around the device.
(Fig.8)

Page 14/ 62
Figure. 8

Page 15/ 62
4. SPECIFICATIONS
4.1 Primary Use
The cutter is intended for trimming stacks of paper or cardboard. It is mainly used in printing
houses, bookbinding shops and offices.
4.2 Basic parameters
4.2.1 Technical data
Table 4.
PARAMETER
CUT-TRUE 29H
Maximum stack width (mm)
520
Maximum stack height (mm)
Without false clamp
80
With false clamp
76
Cutting depth (mm)
520
Front table lenght (mm)
466
Narrow cut (mm)
Without false clamp
22
With false clamp
40
Sound power level (dB)
74,6
Backguage speed (mm/s)
58
Side table load (kg)
15
Weight (kg)
Without side table
350
With side tables
387
Static load
substrates (daN / m2)
Without side table
343
With side tables
310

Page 16/ 62
4.2.2 Technical data - electrical system
Table 5.
Parameter
Cut-True 29H
Maximum power
2 kW
Voltage / frequency
230/50 Hz
Fuse
20A
Motor power of back gauge drive (kW)
0,18
4.2.3 Technical data - hydraulic system
4.2.3.1 Technical data - hydraulic power supply
Table 6.
Parameter
Cut-True 29H
Motor (kW)
1,5
Voltage / frequency
(V/Hz)
3x400/50
1x230/50
Control of executive elements (VDC)
24
Tank capacity (l)
10,5
4.2.3.2 Technical data - hydraulic oil
Table 7.
Parameter
Cut-True 29H
Oil type
HV 46
Quality norm
ISO 11158 - HV
Viscosity
ISO VG 46
DIN norm
51524, 46 mm2
(cST).
Kinematic viscosity temp. (40°C)
47,2 mm²

Page 17/ 62
4.2.4 External dimensions
The dimensions of cutters in different equipment versions are shown in figure 9a, 9b and table 8.
Figure 9a. External dimensions of the cutter without side tables.

Page 18/ 62
Figure 9b. External dimensions of the cutter with side tables
Table 8.
Dimension
VALUE (mm)
A
1244
F
400
B
904
H
1430
C
1230
H1
1533
D
730
K
785
D1
833
X
466
K
785
Y
520

Page 19/ 62
5. OPERATION
5.1 Operating safety
5.1.1 Safety instructions
• Before use, operators should check to be sure all safety components are functioning properly.
• The cutter can only be operated if all safety components and safeguards such as detachable
covers, emergency stop switches are installed and fully functional.
• In the event of a malfunction, stop using the cutter immediately.
• All defects must be resolved immediately.
5.1.2 Warning about special hazards
Operators should refrain from performing any actions that risk their personal safety.
• DO NOT place hands into the blade/clamp area.
• Exercise extreme caution when handling the knife! Use transport handles when installing /
removing / carrying the knife.
• Use only undamaged and sharp knives!
• The knife should only be changed by trained personnel.
• When cutting on the work table, there must be no objects (such as keys, screwdrivers, tools)
5.2 Control system
Danger!
Danger!
The cutter cannot be operated with defective photocells forming the safety curtain!

Page 20/ 62
7
Figure 10. Elements of the Cut-True 29H cutting machine operation and signaling
1.
Main power switch
2.
Emergency stop button
3.
Button that activates the control system.
4.
Buttons enabling the cutting cycle (two-hand cutting system)
5.
Clamp pressure adjustment knob
- turn to the right - increases the pressure
- turn to the left - reduces the clamping force
6.
Touchscreen control panel
7.
Two-color signal lamp, displayed on the touchscreen.
- red, signals the power supply to the control system
- green, signals the activation of the control system
8.
LED safety curtain (non-contact protection device)
8a.
LED safety curtain - Transmitter
8b.
LED safety curtain -Receiver
9.
Foot clamp pedal (mechanical preview of the cutting line)
