Formax FD 3300 User manual

FD 3300
Tabletop Air Feed Folder
1/2020
OPERATION MANUAL

Introduction
Thank you for purchasing a Formax product.
Be sure to read this manual and "Safety Guide A" supplied with this product before use.“Safety Guide A”
contains information for correct and safe use of this product.
After reading, leave the manual and“Safety Guide A” at the site of use for easy reference whenever questions
related to the product arise in the future.
Symbols
In this manual, several symbols are used to indicate important warnings. Please make sure to read
instructions accompanied by these symbols. These symbols have the following meanings.
Describes instructions which must be followed in use.
Be sure to read the instructions to avoid problems due to incorrect operations.
Indicates supplementary or useful information.
Describes names of related items and supplementary instructions.
Trademark
The product name and company name used in this manual are trademarks or registered trademarks of the
respective companies.
Copyrights
Reproduction or reprinting of this document in part or in whole without permission is prohibited.

i
Safety Precautions
SafetyPrecautions
Power supply
• Makesurethepowersupplyusedisalwayswithinthefollowingrange.
Power supply : 100 to 240 V AC, 50/60 Hz
• WhenyoupowerotherappliancesfromthesameACoutlet,makesurethatthecombinedpower
consumption does not exceed the power supply capacity.
Rated power: 190 W
Rated current: 1.9 to 0.8 A
Operating environment
Operate this unit in the following environment.
• wherethetemperaturerangeisbetween5and35°C/41and95°F(–10to50°C/14to122°Finstorage)
• wherethehumidityrangeisbetween20and80%RH(10to90%RHinstorage,howevernocondensation)
• whichisnotsubjecttodirectsunlight
• wheretheoutsidelightdoesnotexceed1,500lx
• whichissubjecttolittleornovibration
• wheretheunitiskeptawayfromair-bornesalt
• wheretheunitiskeptawayfromharmfulchemicals
• wheretheunitisnotexposedtowater

ii
Safety Precautions

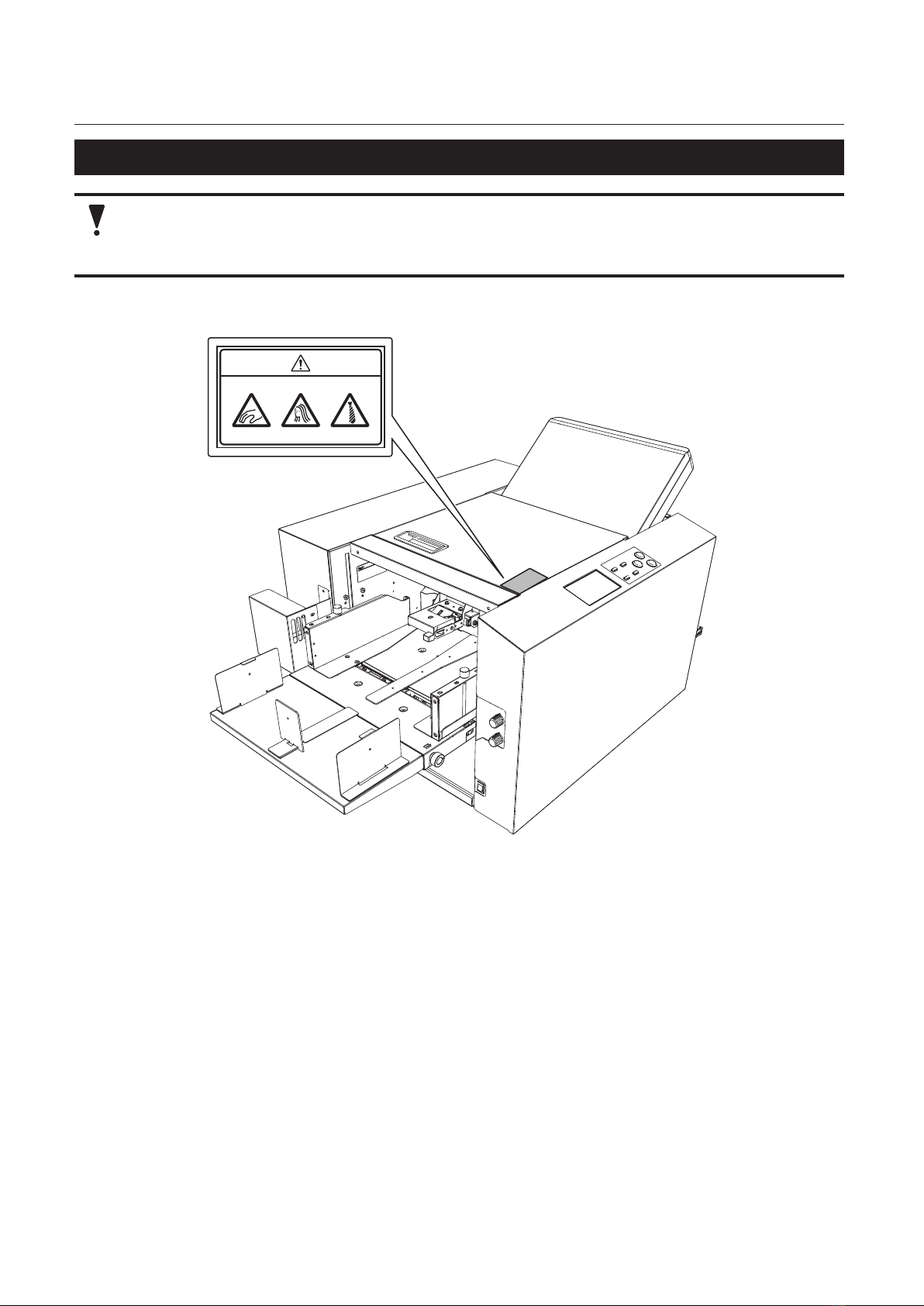

WARNING/CAUTION labels
"WARNING" and "CAUTION" labels are pasted on the machine to ensure user safety.
Do not remove or change them.
When the labels become dirty or are lost, be sure to contact your dealer for a new one.
For EU

iii
Safety Precautions
For North America

iv
Safety Precautions
Memo

1
Contents
Contents
Safety Precautions .............................................i
Power supply.................................................................................i
Operating environment............................................................i
WARNING/CAUTIONlabels .....................................................ii
Chapter 1
Before Operation
1. Features.......................................................3
2. Names and Functions of Components .....4
2-1. Externalparts ................................................................ 4
2-2. Internalparts(paperfeedsection)....................... 5

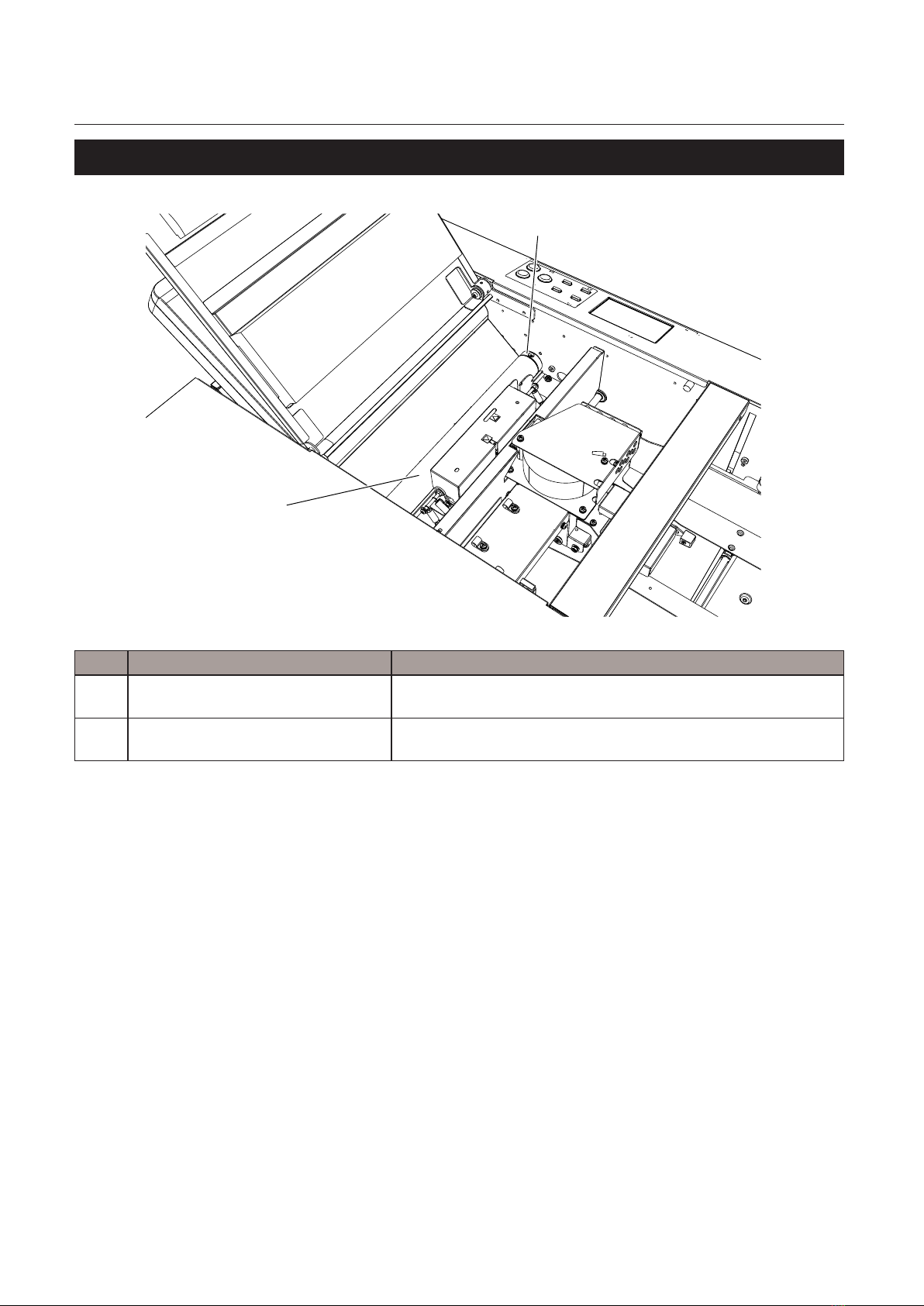

2-3. Internalparts(topcoversection).......................... 6

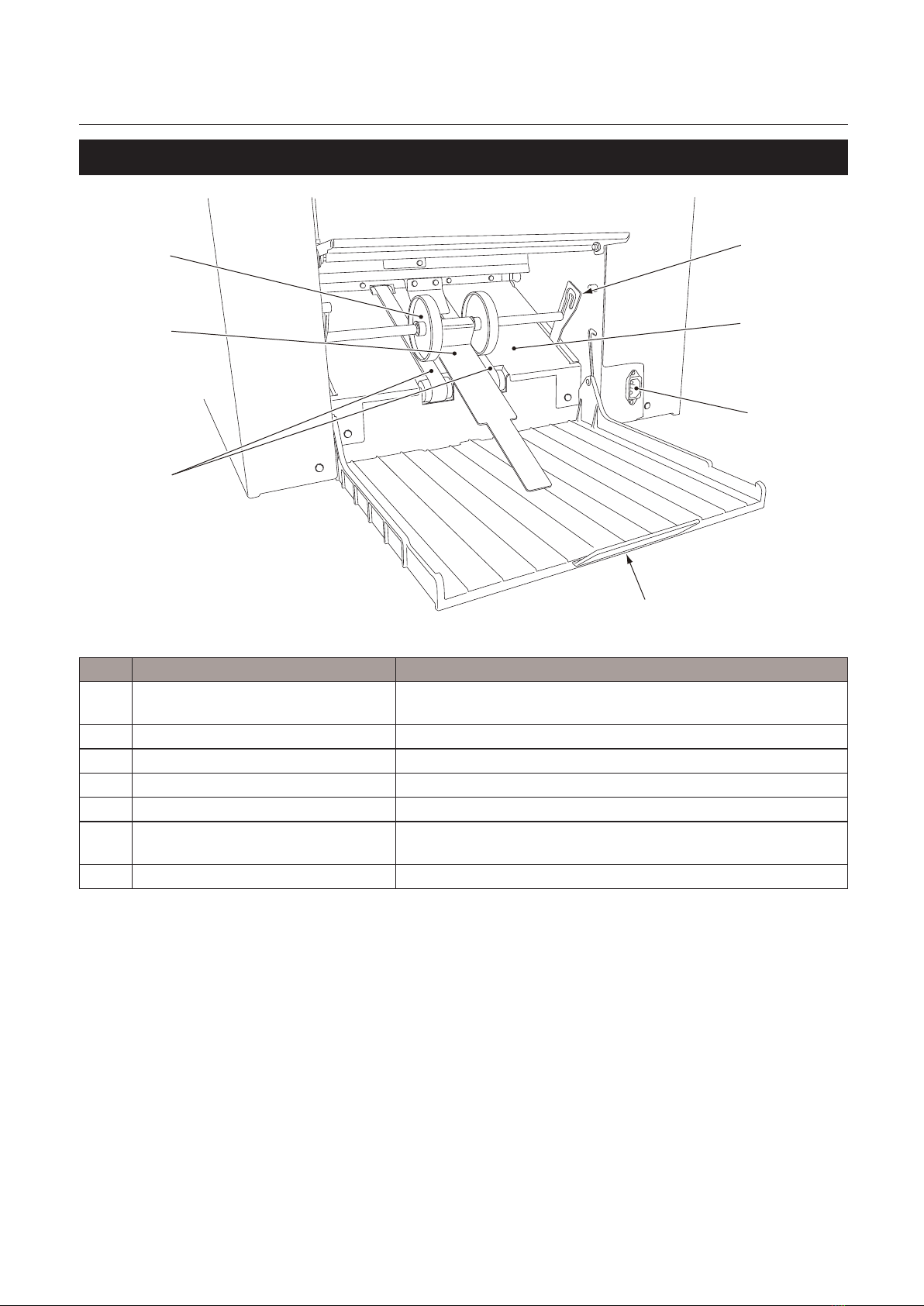

2-4. Internalparts(paperejectingsection) ............... 7
2-5. Accessories..................................................................... 8
3. Names of Control Panel .............................9
4. LCD Touch Panel ...................................... 10
5. Screen Conguration .............................. 10

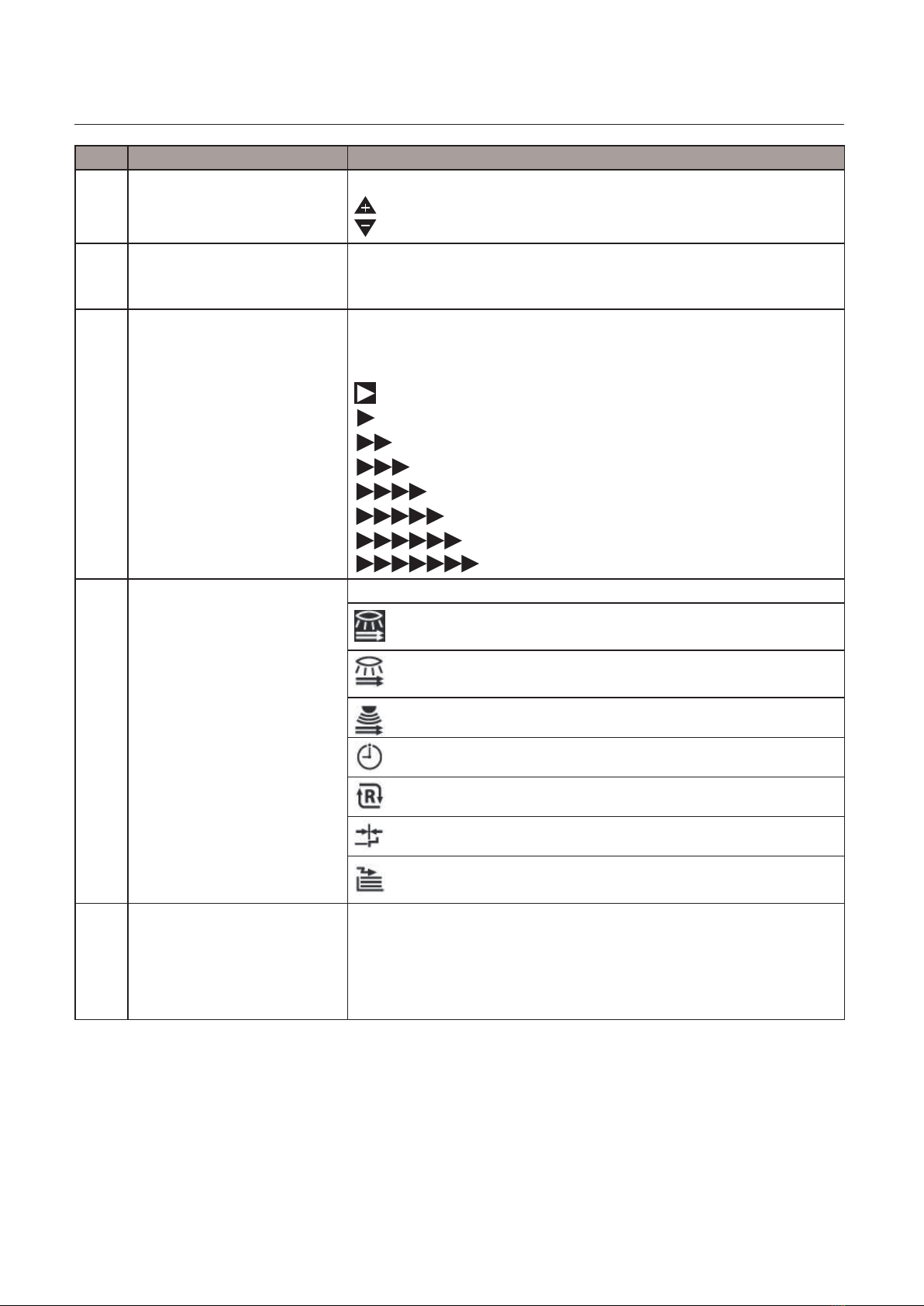

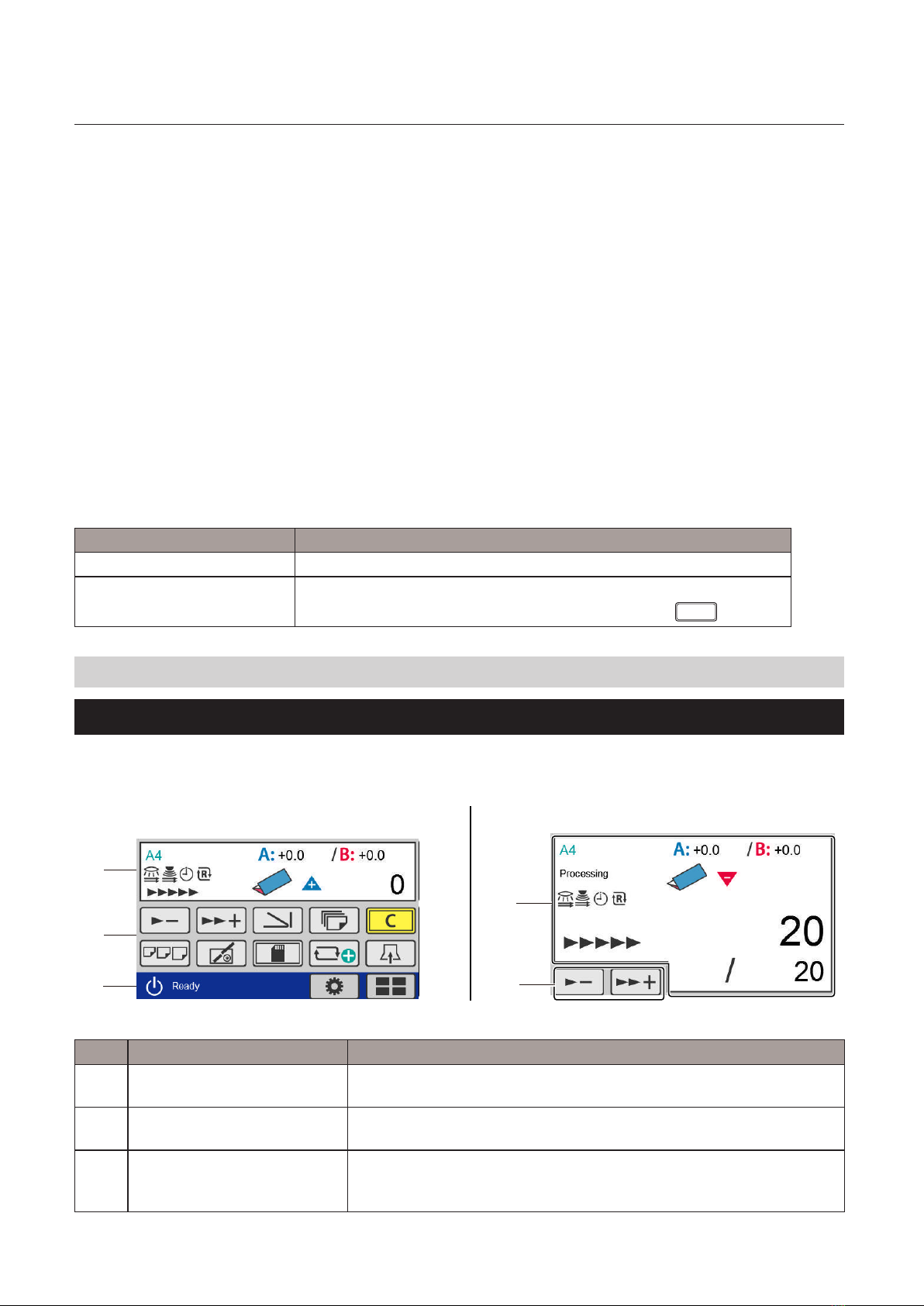

5-1. [Ready]screen/[Processing]screen ...................10

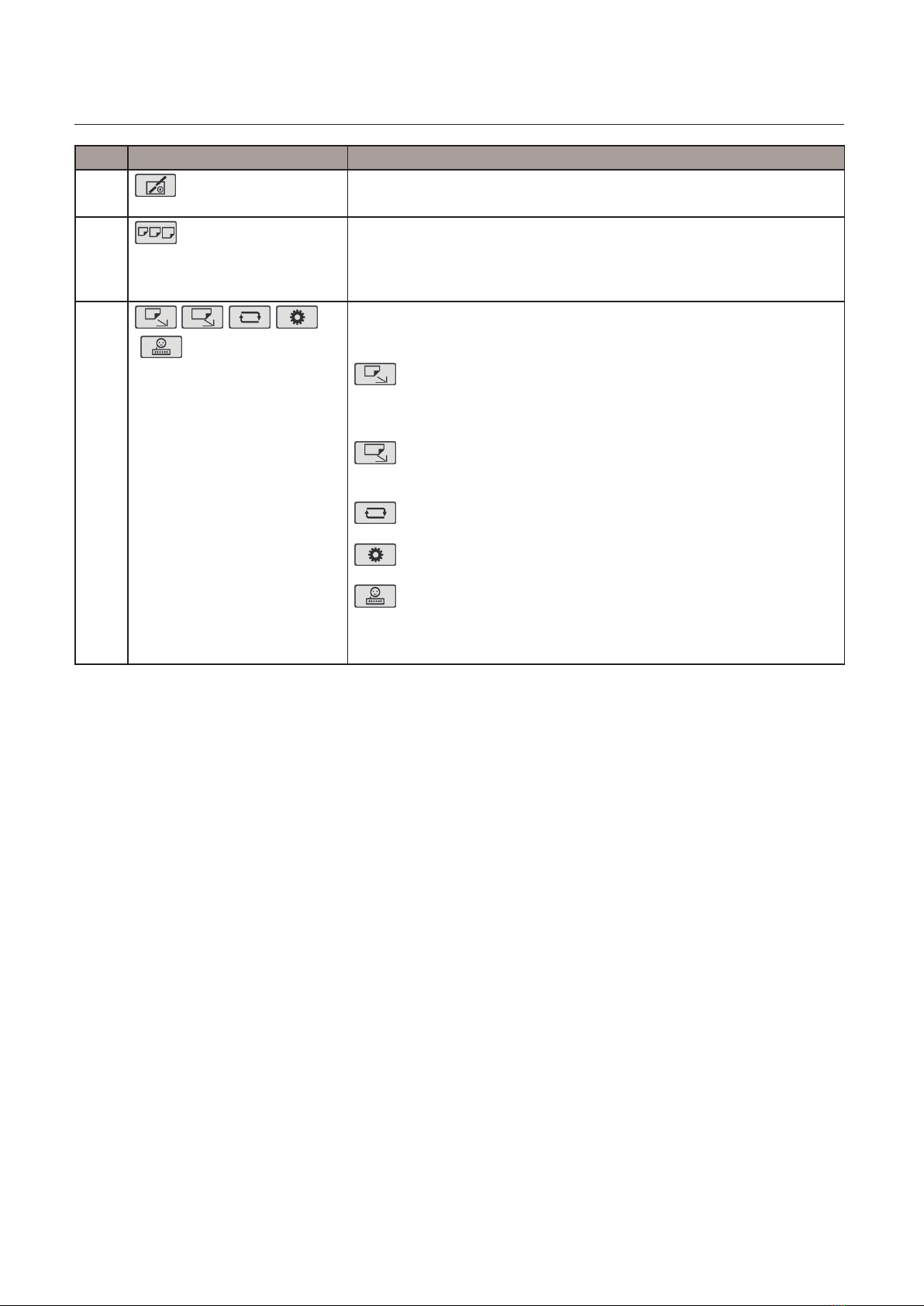

5-2. [BasicSettings]screen.............................................15
5-3. [StandardSize]selectscreen ................................15
5-4. [PaperLength]inputscreen(non-standardpa-
per) ..................................................................................16
5-5. [FoldingMode]selectscreen................................16
5-6. [No.ofSheet]inputscreen ....................................17
5-7. [FoldPosition]screen...............................................18
5-8. [StackerRoller]screen .............................................19
5-9. [CustomFold]screen ...............................................20
5-10. FoldingA/FoldingBinputscreen.......................23
5-11. FunctionSettingscreen..........................................24
5-12. Classicationofbuzzersounds............................26
6. Paper Types and Sizes............................. 26
Paper that cannot be used with this machine.............26
7. Handling Paper........................................ 27
7-1. Paperused....................................................................27
7-2. Precautionsonstackingpaper ............................27
8. Workow .................................................. 28
Chapter 2
Basic Operation
1. Turning On/O Power............................. 29
1-1. Installingpowercord...............................................29
1-2. Turningonpower......................................................29
1-3. Turningopower......................................................29
2. Stacking the Paper .................................. 30
2-1. Beforestackingpaper..............................................30
2-2. Stackingpaper............................................................30
3. Standard Folding of Standard Paper..... 33
4. Storage of Machine ................................ 40
Chapter3
Advanced Operation
1. Correcting Folding Misalignment.......... 42
1-1. Adjustingfoldingmisalignmentinrightand
left direction ................................................................42
1-2. Adjustingfoldingmisalignmentinupand
down direction...........................................................4 4
1-3. Deformedfolding......................................................46
2. Standard Folding of Non-Standard
Paper......................................................... 46
3. Custom Folding........................................ 47
3-1. Operation......................................................................48
3-2. Editingsaveddata.....................................................49
3-3. Usingsaveddata........................................................49
3-4. Lockingsaveddata...................................................50
3-5. Deletingsaveddata..................................................50
3-6. Directlysavingfoldingvalueunder
processing ....................................................................50
4. Cross Fold ................................................. 51
4-1. Crossfoldofstandardpaper.................................51
4-2. Crossfoldofnon-standardpaper.......................54
4-3. Crossfoldpaperatdesiredfolding
position..........................................................................54
5. Stacker Roller Adjustment...................... 55
5-1. Changingstackerrollerheight ............................55
5-2. Adjustingstackerrollerposition .........................55
6. Stacking Folded Paper............................ 57
7. Adjusting Spring Pressure...................... 58
8. Function Settings .................................... 59
8-1. Thinpapermode.......................................................59
8-2. Intervalfunction ........................................................59
8-3. Double-feeddetection............................................61
8-4. Detection......................................................................62
8-5. Paperfeedintervaltime .........................................63
8-6. Beltconveyancevolume ........................................63
8-7. Idling...............................................................................64
8-8. Traydescendamount..............................................65
8-9. Tone.................................................................................66
8-10. LCDbright ....................................................................66
8-11. Numberoftestsheets .............................................67
8-12. Language......................................................................67

2
Contents
8-13. Powersaving ...............................................................68
8-14. Alarm ..............................................................................69
8-15. Operationmodewhenturnedon......................70
8-16. Initialscreen.................................................................71
8-17. Customscreen............................................................72
8-18. mm/inch........................................................................73
Chapter4
MaintainingtheMachine
1. Cleaning folding roller and conveyance
roller................................................................................74
2. Cleaning LCD...............................................................75
3. Cleaningbelts.............................................................75
4. Cleaningsensors........................................................76
Chapter5
Trouble Guide
1. Error Code ................................................ 79
1-1. Warningerror..............................................................79
1-2. Motorerror...................................................................80
1-3. Paperjamerror...........................................................80
1-4. Othererrors..................................................................81
1-5. Errorsrequiringservicecall ...................................81
2. Paper Jam................................................. 82
2-1. Paperfeedsection.....................................................82
2-2. Foldingplate................................................................82
2-3. Foldingroller ...............................................................86
2-4. Ejectingsection..........................................................87
3. Troubleshooting...................................... 87
Chapter 6
Appendix
1. Specications........................................... 92

3
Chapter 1 Before Operation
Chapter1 BeforeOperation
1. Features
• Thismachineisadesktoppaperfolder.Standardfoldingofstandardpapercanbeeasilycontrolledand
operated from the control panel.

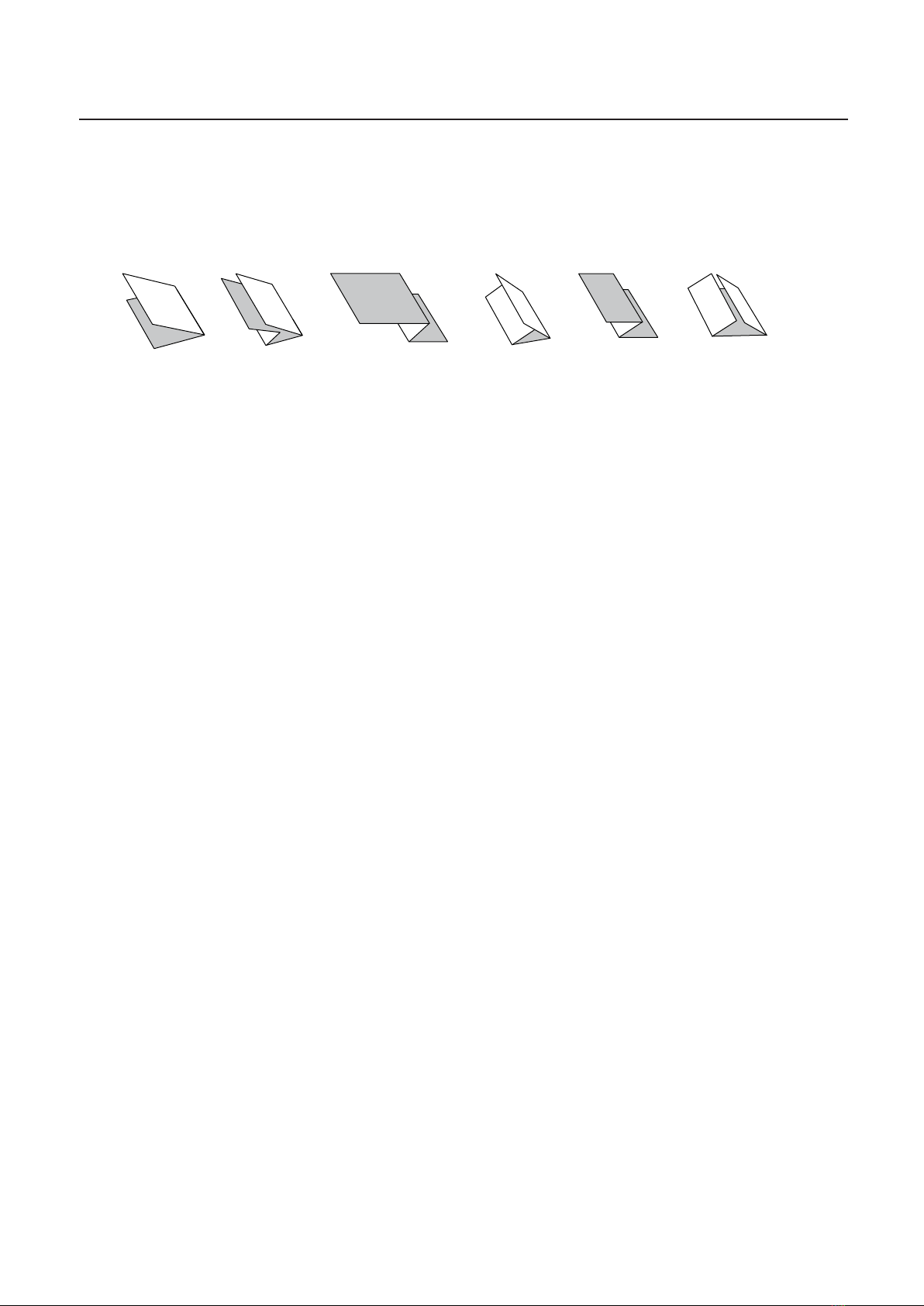

• Thismachineisdesignedtofoldpaperintosixpopularfoldingmodes.
Single fold Double fold Irregular
accordion fold-out
Letter fold Accordion-fold Gate fold
• Singlefoldedpapercanbefoldedfurtherintootherfoldingmodes.(Crossfold)

4
Chapter 1 Before Operation
2. NamesandFunctionsofComponents
2-1. External parts
[1]
[2]
[3]
[4]
[5]
[6]
[7]
[8]
[9]
[10]
[11]
[15]
[7]
[12]
[13]
[14]
No. Name Function
[1] Folding plate 1 Guide plate for deciding the paper folding position.
[2] Control panel Use this panel to enter information to operate the machine
(p.9)
.
[3] Separatingairadjustment Foradjustingtheseparatingairamount.
[4] Separatoradjustment Foradjustingtheheightoftheseparator.
[5] Power switch
”1. Turning On/O Power” (p.29)
[6] Skew correction knob Use this knob to correct the folding misalignment in both directions.
[7] Side guide unit Usethisguidetoholdbothsidesofpaperwhenstackinglongsize
paper.
[8] Plate unit Use this unit to send separating air toward the rear end of paper
when stacking long sheets of paper.
[9] Trail edge guide unit Holdsthebackedgeofpaperstackedonthepaperfeedtray.
[10] Auxiliary paper feed tray For stacking paper on the paper feed tray in a stable condition. Do
not lean on the auxiliary paper feed tray or hold on to it to lift up the
machine.
[11] Paper feed tray For stacking the paper to be folded. Do not lean on the paper feed
tray or hold on to it to lift up the machine.
[12] Paper feed guide Holdsbothsidesofpaperwhenthepaperisstackedonthepaper
feed tray.
[13] Guidexingscrew For securing the paper feed guide.
[14] Top cover Safety cover to prevent the user from touching the moving parts.
[15] Side air Makespaperseparationbetterandpaperfeedingsmoother.

5
Chapter 1 Before Operation
2-2. Internal parts (paper feed section)
[1]
[2]
[2]
[3]
[4]
[5]
[6]
[7]
[8]
No. Name Function
[1] Stackheightsensoradjustment Foradjustingthedistancebetweenthepaperandsuctionbelt.
[2] Suction belt Sucks and conveys paper.
[3] Separating-airduct Blows out air for separating paper stacked on the paper feed tray.
[4] Separator Preventsdouble-feed.
[5] Shutter Adjuststheamountofseparatingairblownout.Usetheseparating
airadjustingknobtoadjusttheamount.
[6] Folding plate 2 Guide plate for deciding the paper folding position.
[7] Safety lever Thisleverpreventsngersfromgettingcaughtwhenthepapertray
is lowered.
[8] Knob screw This screw secures the auxiliary paper feed tray in place.

6
Chapter 1 Before Operation
2-3. Internal parts (top cover section)
[1]
[2]
No. Name Function
[1] Jam correction knob Forrotatingthefoldingrollerswhenpaperhasjammedinsidethe
unit or when cleaning the unit.
[2] Folding roller These rollers are used to fold paper. This machine is equipped with
four rollers to make six types of folding.

7
Chapter 1 Before Operation
2-4. Internal parts (paper ejecting section)
[1]
[3]
[4]
[2]
[5]
[6]
[7]
No. Name Function
[1] Stacker roller lever This is the lever that supports the stacker roller. The height of the
rollercanbeadjusted.
[2] Ejectingsection Forreceivingfoldedpaperejectedout.
[3] Power inlet Connector for the power cord.
[4] Paper receiving tray Forstackingejectedpaper.
[5] Stacker belt Forejectingfoldedpaper.
[6] Auxiliarypaperejectionguide Holdstheejectedpaperfromthetopandpreventthe
mis-alignmentofpaperstackedonthepaperfeedtray.
[7] Stacker roller Holdsdowntheejectedpaperandsupportsconveyanceofpaper.

8
Chapter 1 Before Operation
2-5. Accessories
[1] [2] [3] [4]
[5] [6] [7] [8] [9] [10]
[12][11]
No. Name QTY Function
[1] Folding plate 1 1
[2] Folding plate 2 1
[3] Auxiliarypaperejectionguide 1
[4] Auxiliary paper feed tray 1
[5] Trail edge guide unit 1
[6] Side guide unit 2
[7] Plate unit 1
[8] Scale label 1
[9] Instruction manual 1 This manual
[10] Safety Guide A 1 Contains information for correct and safe use of this machine.
[11] Power cord 1 For EU
[12] Power cord 1 For North America

9
Chapter 1 Before Operation
3. NamesofControlPanel
[3][2]
[1] [4] [5]
[6]
[8] [7]
[9]
No. Name Function
[1] LCD touch panel Displays the menus or error messages.
Touch to operate.
[2] Paper feed tray up key Whilepressingthekey,thepaperfeedtraygoesup.
[3] (foldingplatepaper
ejection)key
Pressandholdtoforciblyejectpaperfrominsidethefoldingplate.
[4] Lamp Whenthemachineisinthepowersavingmode,thelampblinksslowly.When
a message requiring service personnel is displayed, the lamp blinks faster.
[5] Start key Press to start paper folding.
[6] Stop key Press to stop paper folding.
[7] Test key Press to test fold.
Paper thickness can be stored by test folding.
[8] (paperejection)key Pressandholdtoforciblyejectpaperfrominsidethemachine.
[9] Paper feed tray down key Whilepressingthekey,thepaperfeedtraygoesdown.

10
Chapter 1 Before Operation
4. LCDTouchPanel
Cautions in using the touch panel
• Thetouchpanelisdesignedtotouchlightlywithangerorapen(itstipradiusis0.8orsmaller).
Donotpressthepanelstronglywithangerorpushitwithanysharpobjects(suchasangernail,ball-
pointpen,andpin).
• Ifyouperformthefollowingoperations,thetouchpanelmaynotworkeventhoughyouaretouchingit.
Additionally, note that such operations may cause malfunction of the machine.
- Operationwiththetipofanail
- Operationwithaforeignobjectplacedonthetouchpanel
- Operationwithaprotectivesheetorstickerappliedonthetouchpanel
- Operationwiththetouchpanelbeingwet
- Operationwithangerwetwithsweatorwater
The following terms are used when explaining screen operation in this document.
Terms Description
Touch Lightlytouchinganitemsuchasakeyoncewithyournger.
Press and hold Pressing an item such as a key for more than 1 second.
Thepress-and-holdkeyissurroundedbyadoubleframe( ).
5. ScreenConfiguration
5-1. [Ready] screen/[Processing] screen
Thefollowingaretherstscreendisplayedwhenthepoweristurnedon,andtheprocessingscreen.
When[Initial]issettootherthan[Ready],thescreenthatyousetisdisplayed.
[1]
[2]
[3]
[1]
[2]
[Processing] screen[Ready] screen
No. Name Function
[1] Touch panel display Iconsandnumericalvaluesofthespeciedpapersize,foldingmode,etc.
are displayed
(p.11)
[2] Touch panel operation section Contains keys to change settings such as processing speed and folding
mode.
(p.13)
[3] Page name The name of the displayed page. The name is displayed on all the screens
exceptthescreenwhenanerroroccursandtheprocessingscreen.[Ready]
is displayed on the top screen.

11
Chapter 1 Before Operation
5-1-1. Touch panel display
[10]
[1] [4] [5]
[6]
[7][8] [8]
[9]
[Ready] screen
[1]
[2] [3]
[4] [5]
[6]
[7]
[9]
[10]
[Ready] screen (Custom fold)
[1] [1]
[4] [4]
[5] [5]
[6] [6]
[7] [7]
[8] [8]
[9] [9]
[10]
[11]
[10]
[11]
[2][3]
[Processing] screen [Processing] screen (Custom fold)
No. Name Function
[1] Papersize Displaysthedetectedstandardpapersize.
A3/B4/A4/B5/A5/B6(ForEU)
LGR(doubleletter)/LGL(legal)/LTR(letter)/STMT(statement)/INV(invoice)
(ForNorthAmerica)
Whennon-standardpaperorcustomfoldingisset,thepaperlengthis
displayed.
[2] Memorynumberofcustom
folding
Displays the memory number currently used.
Whendataisnewlycreatedbutnotsaved,[00]isdisplayed.
Availablememorynumber:01to30
[3] Memorylock Displayed when saved custom folding data is locked.
[4] Folding plate A position
adjustment
DisplaysthepositionadjustmentvalueofthefoldingplateA.
Whenincustomfoldingorstopperxedmode,foldingdimensionAis
displayed.
Settingrange:-5.0to+5.0mm/-0.197to+0.197inch
[5] Folding plate B position
adjustment
DisplaysthepositionadjustmentvalueofthefoldingplateB.
Whenincustomfoldingorstopperxedmode,foldingdimensionBis
displayed.
Settingrange:-5.0to+5.0mm/-0.197to+0.197inch
[6] Counter Displays current counter.
Settingrange:0to99999(sheets)

12
Chapter 1 Before Operation
No. Name Function
[7] Count mode Displayscountermode(additionorsubtraction).
Count up
Count down
[8] Folding mode Displays the folding mode currently set.
Whenincustomfoldingorstopperxedmode,displaysaroughshapeof
the folding form.
[9] Processing speed Displays processing speed currently set.
Theprocessingspeedisnotdisplayedduring[EjectingPaper].
Settingrange:1-to7(speed)
(1-)
(1)
(2)
(3)
(4)
(5)
(6)
(7)
[10] Special function display Displays special functions currently set.
Double-feeddetectionisset.(opticalsensor)
State where the test folding is not performed.
Double-feeddetectionisset.(opticalsensor)
State where the test folding is performed.
Double-feeddetectionisset.(ultrasonicsensor)
[Interval]on
[LastFold]on
[StopperFixed]on
[BeltConveyVol][Large]
[11] Processing display Displays the current machine status.
Testing
Processing
Idling
 EjectingPaper

13
Chapter 1 Before Operation
5-1-2. Touch panel operation section
[6]
[7]
[9]
[10]
[11]
[1] [2] [3] [4] [5]
[1] [2]
[8]
[Processing] screen[Ready] screen
[12]
No. Name Function
[1] (Processingspeeddown)
key
The processing speed is slowed each time the key is touched.
Whenprocessingspeedissetto“1-”,thekeyisgrayedoutandcannotbe
operated.
Adjustablerange:1-to7
[2] (Processingspeedup)
key
The processing speed is sped up each time the key is touched.
Whenprocessingspeedissetto[7],thekeyisgrayedoutandcannotbe
operated.
Adjustablerange:1-to7
[3] (Foldingmodeselection)
key
Whenthekeyistouched,the[FoldingMode]screenisdisplayed.
Whenthemachineissetincustomfoldingmode,youcanswitchthe
foldingmodetostandardfoldingofnon-standardpaperbyusingthiskey.
[4] (No.ofsheetsetting)key The[No.ofSheet]screenisdisplayedwhenthekeyistouched.
[5] (Clear)key Press and hold to clear the counter.
Whenanumericalvalueisentered,thevalueissettotheinitialvalue.
[6] (Airadjustment)key Touchingthekeydisplaysthe[AirAdjust]screen.
[7] (Basicsettings)key/
(Functionsettings)key
Whenthemachineissettothemodeotherthanthestopperxed
mode, this icon is displayed.
The[BasicSettings]screenisdisplayedwhenthekeyistouched.
Selecteitherstandardfolding,standardfoldingfornon-standardsize,or
custom folding.
Whenthemachineissettothestopperxedmode,thisiconis
displayed.
The[FunctionSettings]screenisdisplayedwhenthekeyistouched.
Makesettingsforadetectionfunctionsuchasdouble-feedandpaper
existence,feedintervalandon/oofthebuzzer.
[8] (Customfolding) The[PaperLength]inputscreenof[CustomFold]isdisplayed.
However,itisnotdisplayedwhenthestopperxedmodeisselected.
[9] (Save)key Settingscanbesavedsuchaspositionadjustmentofstandardfold,
positionofstackerroller,newnon-standardpapersettingandfolding
setting of custom fold.
However,whenadjustmentvaluesarenotchanged,thekeyisgrayedout
and cannot be operated.
Itisnotdisplayedwhenstopperxedmodeisselected.

14
Chapter 1 Before Operation
No. Name Function
[10] (Adjustment)key Touchingthekeydisplaysthe[FoldPosition]screen.
Lockedcustomfoldandstopperxedmodecanalsobeadjusted
[11] (Papersize)key Touchingthekeydisplaysthescreentoselectapapersize.
Whenthestandardfolding(withpapersizedetectionsettoo)isselected,
the[StandardSize]screenisdisplayed.Whenthestandardfoldingornon-
standardpaperisselected,the[PaperLength]screenisdisplayed.
[12] ///
/ (Customscreen)key
Displays icons set in the custom screen. The set screen is displayed when
thekeyistouched.However,itisnotdisplayedwhenstopperxedmode
is selected.
(Standardfolding)
The[FoldingMode]screenof[StandardFold]isdisplayed.However,
whenautomaticpapersizedetectionisturnedo,the[StandardSize]
screen is displayed.
(Standardfoldingofnon-standardpaper).
The[PaperLength]inputscreenof[STDFoldforNon-STDSize]is
displayed.
(Customfolding)
Thesaveddataselectionscreenof[CustomFold]isdisplayed.
(Functionsettings)
The[FunctionSettings]screenisdisplayed.
(Languagesetting)
The[Language]settingscreenisdisplayed,andyoucanchangethe
languagedisplayedonthetouchpanel.When[Language]issetonthe
customscreen,thecustomkeyisdisplayedinthestopperxedmode.
