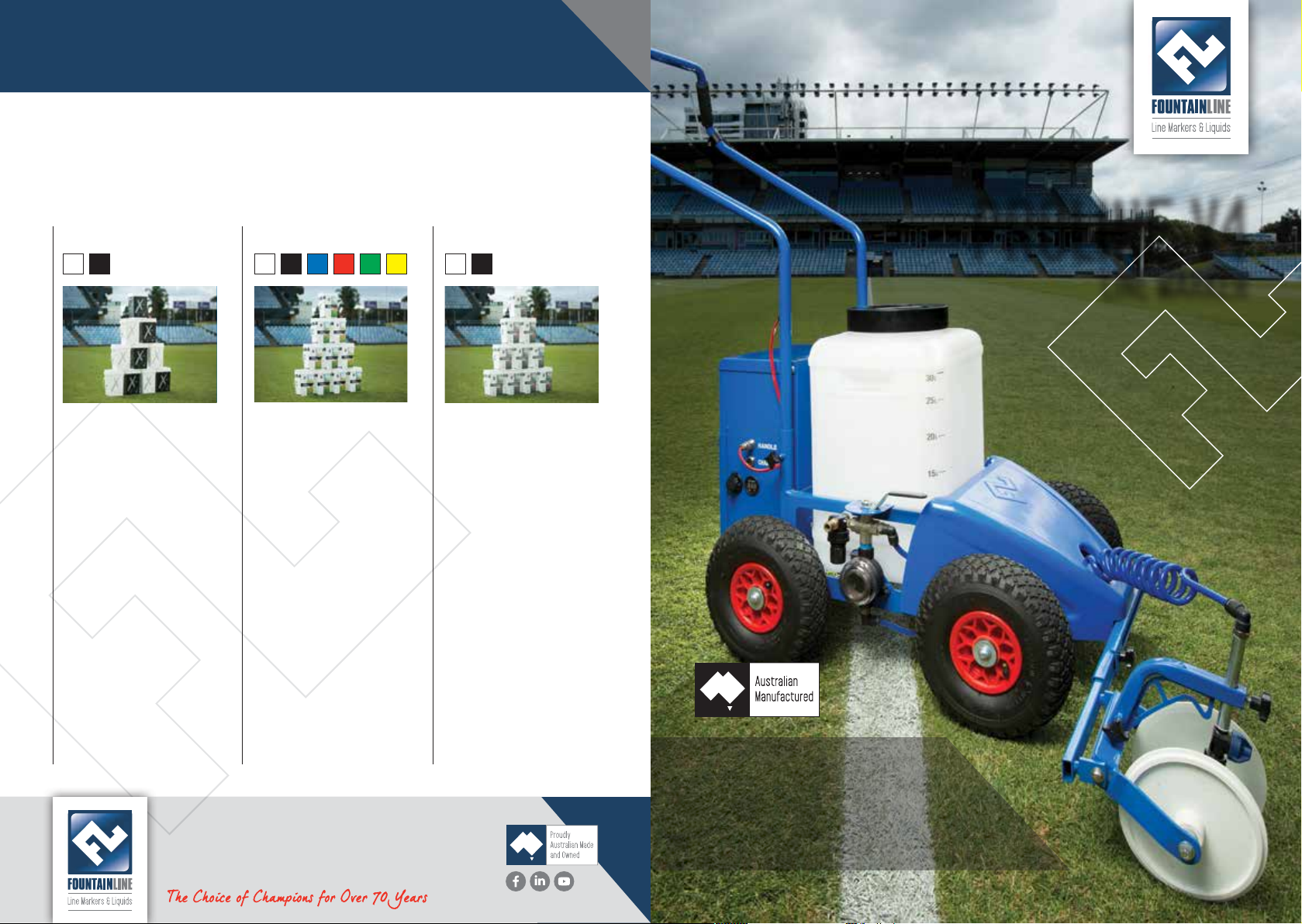

FOUNTAINLINE PROLINE V4 User manual

FountainLine Line Marking Liquids
PROLINE V4
LINE MARKER
The ProLine V4 is the most advanced,
easy to use line marker on the market,
producing even sharper, brighter lines
than ever before!
Perfect for any line marking machine, FountainLine’s range of paints guarantee a bright, crisp, durable line —
every time! And when used with our ProLine V4 line marking machine, we will guarantee the machine for 10 years!
Our space-saving, 10 litre qube, makes storage a breeze, and the square corners of the pail ensure no-mess
pouring. With three grades of paint to choose from, FountainLine has you covered!
DILUTION RATES & COVERAGE
• Initial Marking: 1:6
(makes approx. 70L of liquid)
• Over Marking: 1:15
(makes approx. 160L of liquid)
• Fields Per Bucket*:
Football: 7.5
Rugby League: 6
Rugby Union: 6
Athletics Track: 3
FEATURES
• HydroPhobic formula for
rain fastness
• High pigment concentration for
brighter and longer lasting lines
• Non-settling formula for longer
storage life
• Lasts up to 6 weeks*
DILUTION RATES & COVERAGE
• Initial Marking: 1:4
(makes approx. 50L of liquid)
• Over Marking: 1:8
(makes approx. 90L of liquid)
• Fields Per Bucket*:
Football: 4
Rugby League: 3.2
Rugby Union: 3.2
Athletics Track: 1.6
FEATURES
• Enhanced brightness for bright,
crisp lines
• Durable, weather resistant
formula
• Environmentally friendly and
easy to apply
• Lasts up to 4 weeks*
DILUTION RATES & COVERAGE
• Initial Marking: 1:2
(makes approx. 30L of liquid)
• Over Marking: 1:4
(makes approx. 50L of liquid)
• Fields Per Bucket*:
Football: 2
Rugby League: 1.6
Rugby Union: 1.6
Athletics Track: 0.8
FEATURES
• ISO Certified and VOC, APEO and
solvent free
• Long storage life
• Economical
• Lasts up to 2 weeks*
XTREME ULTRA ECO
* When over marking
A division of Machine Technology Pty Ltd ABN 79 003 244 942
3 Production Ave, Kogarah NSW 2217 Australia
Phone: [phone] Fax: [phone] Email: [email protected]
fountainline.com.au

PART NAME Check Valve FastClean™ Filter Pump DuraFlow Nozzle Switch
ORDER CODE LLM4-301 LLM4-16 LLM4-30 LLM4-244 LLM4-41
Congratulations!
FountainLine would like to congratulate you on your
decision to purchase Australia’s most recognised and
trusted brand of sports field line marker. We trust that
you will be completely satisfied with your new ProLine
V4 and its advanced design features, making it the
most versatile, reliable and easiest line marker you
will ever use!
Unpacking and Setting Up
1. Loosen off handle locking screws and slide handle
into vertical handle support tubes, set to desired
height and lock screws into position.
2. Remove from tank the marking disc assembly
and slide into position on the front of the marker,
locking the screw in the desired position.
3. Using the allen key provided with the marker, set
the marking discs to the appropriate width and lock
screws with key.
4. Fit the nozzle assembly onto the spigot on the
marking disc frame and lock screw. Set nozzle to
correct height to achieve the desired line width.
5. Lift the front cover and pass the spiral hose
through the hole. Insert the end of the hose into the
elbow located at the top of the nozzle assembly.
6. Ensure the battery is completely charged
by plugging in the charger located in the
battery compartment.
Directions For Use
1. Check the FastClean™ valve is turned to ‘Spray’.
2. Lift out the tank filter and pour in the required
amount of water followed by the required amount
of paint. Stir thoroughly ensuring all paint and water
is mixed. Ensure a minimum of 15 litres is mixed
for first use as this is required for initial priming
of the pump.
3. Place tank filter back into container and secure
the lid.
4. Switch the line marker on for approximately
45 seconds to allow the paint solution to pump
through the entire delivery system (for first use
and after dry running).
5. After line marking is completed, clean the delivery
system by plugging a standard garden hose into the
quick connect fitting of the FastClean™ system and
turn handle on the FastClean™ valve to ‘Flush’.
6. Turn on hose and switch on the pump until
clean water is spraying out of the nozzle
(approx. 1-2 minutes).
7. Turn off the pump and disconnect garden hose.
Pack away for next use.
IMPORTANT NOTE: Please ensure the FastClean™ lever
is left on ‘Flush’ after cleaning to avoid paint entering
the discharge system, causing possible damage to
the pump.
Recommendations
1. The battery is a deep cycle battery and needs to be
charging at all times when not in use.
2. Clean paint tank out if line marking not required for
more than 1 week.
3. Use genuine FountainLine marking liquids — this will
prolong the life of the line marker and maintain your
10 year warranty.
4. Always use FountainLine spare parts to maintain
warranty.
5. Remove FastClean™ filter and rinse with hot
water monthly.
6. Clean the nozzle with a soft bristle tooth brush
when required. DO NOT use metal or sharp objects.
PROBLEM CAUSE SOLUTION
ProLine V4 line marker is
not switching on
Flat battery Charge battery and check lights appear
on the charger
Blown fuse Replace fuse
Damaged ‘On/Off’ switch Replace switch
Loose wiring terminals at pump, switch
or inside battery box
Check and secure loose terminals
Worn pump Replace pump unit
The line width is not
achievable
Battery charge low Charge battery
Nozzle tip worn or damaged Replace nozzle tip
Liquid dilution too thick — incorrect
paint
Ensure dilution at recommended rates.
Use FountainLine paint.
Blocked delivery line system Ensure cleaned and flushed correctly
Low pressure Replace check valve in pump
Low pressure using Athletic Boom Ensure Hi-Flo pump is installed
ProLine V4 line marker
turns on but there is no or
low liquid flow
FastClean™ valve set to ‘Flush’ Set FastClean™ valve to ‘Spray’
Low battery charge Recharge battery
Blocked nozzle Clean nozzle with soft brush and water
Liquid in tank too low Refill tank with diluted liquid
FastClean™ Filter located on side of
machine blocked
Ensure filter is clean
Air in system Loosen diaphragm cap and allow air to
bleed out (be careful not to lose seal)
Blockage in line Remove the nozzle, connect to hose,
set to ‘Flush’ and turn on
Key Spare Parts
Your New FountainLine ProLine V4 Line Marker Troubleshooting and Maintenance Guide
