Four-Faith F-IPC110 User manual

F-IPC110 Industrial
Computer User Manual
Document Version
Page
V2.0.0
Product Name: F-IPC110
Total: 26
F-IPC110 Industrial Computer
User Manual
the user manual is suitable fort and the following model:
Xiamen Four-Faith Communication Technology Co., Ltd.
Add：Floor 11, Area A06, No 370, chengyi street, Jimei, Xiamen
Tel：[phone] Fax:[phone]
Web:en.four-faith.com
Model
Product Type
F-IPC110
Industrial Computer

F-IPC110 Industrial Computer USER MANUAL
Xiamen Four-Faith Communication Technology Co.,Ltd. Page 2 of 26
Add：Floor 11, Area A06, No 370, chengyi street, Jimei, Xiamen.China
http://en.four-faith.com Tel：[phone] Fax：[phone]
Files Revised Record
Date
Version
Remark
Author
2016-1-21
V1.0.0
CYB/WZQ
2017-5-22
V1.1.0
Add accessibility and system update
XGF
2017-07-12
V1.1.1
Update hardware functions
Harven
2017-10-10
V2.0.0
Change of company address
LXP

F-IPC110 Industrial Computer USER MANUAL
Xiamen Four-Faith Communication Technology Co.,Ltd. Page 3 of 26
Add：Floor 11, Area A06, No 370, chengyi street, Jimei, Xiamen.China
http://en.four-faith.com Tel：[phone] Fax：[phone]
Copyright Notice
All contents in the files are protected by copyright law, and all copyrights are reserved by
Xiamen Four-Faith Communication Technology Co., Ltd. Without written permission, all
commercial use of the files from Four-Faith are forbidden, such as copy, distribute,
reproduce the files, etc., but non-commercial purpose, downloaded or printed by
individual (all files shall be not revised, and the copyright and other proprietorship notice
shall be reserved) are welcome.
Trademark Notice
Four-Faith、四信、 、 、 are all registered trademarks of Xiamen
Four-Faith Communication Technology Co., Ltd., illegal use of the name of Four-Faith,
trademarks and other marks of Four-Faith is forbidden, unless written permission is
authorized in advance.

F-IPC110 Industrial Computer USER MANUAL
Xiamen Four-Faith Communication Technology Co.,Ltd. Page 4 of 26
Add：Floor 11, Area A06, No 370, chengyi street, Jimei, Xiamen.China
http://en.four-faith.com Tel：[phone] Fax：[phone]
Product appearance

F-IPC110 Industrial Computer USER MANUAL
Xiamen Four-Faith Communication Technology Co.,Ltd. Page 5 of 26
Add：Floor 11, Area A06, No 370, chengyi street, Jimei, Xiamen.China
http://en.four-faith.com Tel：[phone] Fax：[phone]
Contents
Contents
Contents
Contents.............................................................................................................................................5
Chapter 1 Brief Introduction of Product........................................................................................ 7
1.1 General.................................................................................................................................. 7
1.2 Features and Benefits............................................................................................................8
1.3 Product Specification.......................................................................................................... 10
1.3.1Cellular Specification............................................................................................... 10
1.3.2 Hardware System..................................................................................................... 10
1.3.3Hardware Specification.............................................................................................11
Chapter 2 Installation Introduction................................................................................................... 13
2.1 Overview.............................................................................................................................13
2.2 Encasement List.................................................................................................................. 13
2.3 Installation and Cable Connection...................................................................................13
Chapter 3 Hardware Functions......................................................................................................... 15
3.1 External Interface................................................................................................................15
3.1.1 Front view................................................................................................................ 15
3.1.2 Back view.................................................................................................................15
3.2 The front panel I/O connector.............................................................................................15
3.2.1 Audio Port(Speak-out, Mic-in)................................................................................ 15
3.2.2 LED Lights...............................................................................................................16
3.2.3 Serial（COM1-COM6）........................................................................................ 16
3.2.4 USB Interface...........................................................................................................17
3.2.5 Ethernet Interface（LAN/WAN）.......................................................................... 18
3.2.6 Display Interface(HDMI&VGA).............................................................................18
3.2.7 Power Interface........................................................................................................ 19
3.3 Internal interface specifications..........................................................................................19
3.3.1 SSD Interface(mSATA&J23)...................................................................................19
3.3.2 Display Interface (LVDS&CN3)............................................................................. 20
3.3.4 Mricro SD cards lot..................................................................................................20
3.3.5 SIM card slot............................................................................................................21
Chapter 4 Software Functions...........................................................................................................22
4.1 Android System...................................................................................................................22
4.1.1Display Interface.......................................................................................................22
4.1.2 USB..........................................................................................................................22
4.1.3 COM.........................................................................................................................22
4.1.4 TF Card.................................................................................................................... 22
4.1.5 Hard Disk................................................................................................................. 22
4.1.6 WIFI......................................................................................................................... 23
4.1.7 Ethernet.................................................................................................................... 23
4.1.8 Network Auto Switch...............................................................................................23
4.1.9 USB Camera............................................................................................................ 24
4.1.10 Voice.......................................................................................................................24
4.1.11 Hide navigation......................................................................................................24

F-IPC110 Industrial Computer USER MANUAL
Xiamen Four-Faith Communication Technology Co.,Ltd. Page 6 of 26
Add：Floor 11, Area A06, No 370, chengyi street, Jimei, Xiamen.China
http://en.four-faith.com Tel：[phone] Fax：[phone]
4.1.12 Display Interface Setting....................................................................................... 24
4.1.13 Accessibility...........................................................................................................24
4.1.14 System update........................................................................................................ 25

F-IPC110 Industrial Computer USER MANUAL
Xiamen Four-Faith Communication Technology Co.,Ltd. Page 7 of 26
Add：Floor 11, Area A06, No 370, chengyi street, Jimei, Xiamen.China
http://en.four-faith.com Tel：[phone] Fax：[phone]
Chapter 1 Brief Introduction of Product
1.1 General
IPC (Industrial Personal Computer, IPC) is industrial control computer, a bus
structure of the production process, electrical and mechanical equipment, process
equipment tools collectively performed to detect and control. IPC has important attributes
and characteristics of a computer, such as a computer having a CPU, hard drive, memory,
peripherals and interfaces, and operating system, network and protocol control,
computing power, user-friendly interface. Industrial products and technologies industry is
very special, are intermediate products, to provide reliable, embedded, intelligent
industrial computers for various other industries.
F-IPC110 ARM architecture processors combine Android operating system, and
device manufacturers emphasize video image processing effects to bring new solutions.
F-IPC110 integrates Freescale Cortex™-A9 i.MX6, support the Android operating system,
device manufacturers rely on conventional X86 architecture computing platform,
especially advertising media playback device manufacturers to bring lower power
consumption less heat s solution.
F-IPC110 is a function of the transmission belt 3G/4G ARM IPC, support 3G / 4G
dial-up Internet access, support for firewall, VPN, QOS, port mapping, DDNS, system log
storage, remote device management and other functions, support for open secondary
customer development, support BS media distribution system architecture graphics, 2D /
3D accelerator Open VG™1.1 for 2D; Open GLES2.0 for 3D video codecs: H.264 HP,
MPEG4 ASP, MPEG2 MP image processing BMP, JPG, PNG, GIF, temperature sensor
measuring industrial machine operating temperature to provide API, support for USB
infrared touch screen, supports USB camera, USB mouse, keyboard encryption lamp,
support HDMI, support for VGA, 1 Ethernet port, support for 3G / 4G networks, WIFI, 4
USB, 6 RS232, 2 RS485, solid state drives(SSD), SD external interface, supports OTG

F-IPC110 Industrial Computer USER MANUAL
Xiamen Four-Faith Communication Technology Co.,Ltd. Page 8 of 26
Add：Floor 11, Area A06, No 370, chengyi street, Jimei, Xiamen.China
http://en.four-faith.com Tel：[phone] Fax：[phone]
interface.
F-IPC110 support DC 5-36V DC wide input voltage and wide temperature properties
are industrial applications, offers a variety of API, easy to read hardware information
equipment manufacturers to achieve more development.
1.2 Features and Benefits
Design for Industrial Application
High-powered industrial cellular module
Freescale Cortex™-A9 i.MX6 processor
Professional power supply design, with undervoltage, overvoltage, overcurrent,
reverse polarity, short circuit, surge protection function
Power range: DC 5~36V
Temperature（-35℃~75℃）
Air power connector, tightening does not fall off
Metal casing, heat resistance, impact resistance
Machine fanless design
TF, SIM card with anti-theft design
Built-in Android, LINUX (optional) Operating System
Stability and Reliability
Support hardware and software WDT
Support auto recovery mechanism, including online detect, auto redial when
offline to make Machine always online
SSD storage (optional)，High-speed data read and write and to ensure security
and stability
Ethernet port: 1.5KV magnetic isolation
RS232port: 15KV ESD protection
SIM/UIM port: 15KV ESD protection
Antenna port: lightning protection(optional)
Standard and Convenience

F-IPC110 Industrial Computer USER MANUAL
Xiamen Four-Faith Communication Technology Co.,Ltd. Page 9 of 26
Add：Floor 11, Area A06, No 370, chengyi street, Jimei, Xiamen.China
http://en.four-faith.com Tel：[phone] Fax：[phone]
Enter into work state automatically when powered
Support 10/100/1000Mbps Ethernet
Support for multiple standard USB2.0 interface
Support for multiple interfaces RS232 DB9
Support for audio input and output interfaces
High-performance
Support 1080P video codecs and 3D acceleration
Local storage support SSD (optional), TF card (optional)
Open Android environment, self-development and installation of application
Support HDMI, VGA, LVDS (optional) external display device such as a touch
screen
Support for 802.11 b / g / n WIFI network, and provide a variety of encryption
Support rich external interfaces to meet customer application requirements
Support 3G / 4G dial-up Internet access
Support APN / VPDN dial private network
Smart online support to maintain, and even dropped weight, abnormal recovery
Optional dual-card backup, dual-mode dual-link backup
Support for PPTP, L2TP, IPSEC, GRE, OPENVPN VPN capabilities
Providing PWR, SYS, WIFI, ONLINE, use and maintenance easier
Support NTP, RTC embedded.Schedule Reboot, Schedule Online and Offline,
etc.
Support equipment management platform for remote status monitoring,
configuration, updates and other functions
Support multiple LAN/ WAN access methods, including static IP, DHCP,3G/4G
Support double link backup between 3G/4G and LAN/WAN (optional)

F-IPC110 Industrial Computer USER MANUAL
Xiamen Four-Faith Communication Technology Co.,Ltd. Page 10 of 26
Add：Floor 11, Area A06, No 370, chengyi street, Jimei, Xiamen.China
http://en.four-faith.com Tel：[phone] Fax：[phone]
1.3 Product Specification
1.3.1Cellular Specification
Item
Content
Cellular Module
Industrial cellular module（Single module, dual module or no module）
Standard and Band
TDD-LTE/FDD-LTE/EVDO/WCDMA/TD-SCDMA/CDMA1X/GPRS/EDGE
Optional single mode, multimode or full Netcom
Bandwidth
FDD LTE(Download speed:100Mbps，upload speed:50Mbps)
EVDO Rev A ((Download speed:3.1Mbps，upload speed:1.8Mbps)
WCDMA((Download speed:42Mbps，upload speed:5.76Mbps)
TX power
<24dBm
RX sensitivity
<-109dBm
WIFI Specification
Item
Content
Standard
IEEE802.11b/g/n，2.4G
Bandwidth
IEEE802.11b：11Mbps (max)
IEEE802.11g：54Mbps (max)
IEEE802.11n：150Mbps (max)
Security
WEP, WPA, WPA2, etc.
TX power
15dBm（max）
RX sensitivity
<-70dBm@54Mpbs
1.3.2 Hardware System
Item
Content
CPU
CPU
Freescale i.MX6 Cortex-A9
DRAM
On-board DDR3 2GB
Flash
4 GB-32GB（Optiona）eMMC
mSATA
128GB -2TB（Optiona）
Software
Support
operating
system
Android 4.4.2
Application
Compatible Android system rich applications
BS architecture supports media distribution system
Graphic
processing
2D/3D
accelerator
Open VG™1.1 for 2D; Open GLES2.0 for 3D
Video Codec
H.264 HP, MPEG4 ASP, MPEG2 MP
BMP,JPG, PNG, GIF

F-IPC110 Industrial Computer USER MANUAL
Xiamen Four-Faith Communication Technology Co.,Ltd. Page 11 of 26
Add：Floor 11, Area A06, No 370, chengyi street, Jimei, Xiamen.China
http://en.four-faith.com Tel：[phone] Fax：[phone]
Processing
HDMI
1920x1080，1366x768，1280x720，1024x768 etc.
VGA
1920x1080，1366x768，1280x720，1024x768 etc.
3G/4G network
support
LTE, FDD-LTE, WCDMA (HSPA+) etc.
Security function
support
VPN PPTP, IPSEC VPN
Wi-Fi
support
802.11b/g/n, Client/AP mode
Hardware
monitor
WDT
support
Schedule
Reboot
support
Schedule Reboot
USB devices
support
USB infrared touch screen
USB camera
USB mouse, etc.
1.3.3Hardware Specification
Item
Content
Interfaces
Ethernet
interface
1*10/100/1000Mbps ,LAN/WAN
Serial
6 RS232 / 2 RS485, DB9 male
USB Interface
4*USB2.0 Host & 1*OTG
SIM card
1 SIM card slot
Power Interface
DC-input, 5~36V DC，4-pin power connector for the
aviation head interface
Headphone jack
Binaural, 24bit, 108dB, THD+N>95dB, 192kHZ(max)
MIC
1 MIC input interface
Mricro SD
1 Mricro SD slot
mSATA
1
Antenna
connector
3G/4G: 2*SMA & Wi-Fi: 1*RP-SMA
Wi-Fi
802.11b/g/n
HDMI
1920x1080, 1366x768, 1280x720, 1024x768
VGA
1920x1080, 1366x768, 1280x720, 1024x768
Physical
Characteristi
cs
Dimensions
（mm）
180x150x45
Housing
Iron
Protection class
IP40
cooling method
Fanless cooling
Weight
0.9kg
Power
Standard Power
DC 12V/1.5A
Power range
DC 5~36V

F-IPC110 Industrial Computer USER MANUAL
Xiamen Four-Faith Communication Technology Co.,Ltd. Page 12 of 26
Add：Floor 11, Area A06, No 370, chengyi street, Jimei, Xiamen.China
http://en.four-faith.com Tel：[phone] Fax：[phone]
Environmenta
l Limits
Operating
Temperature
-35~+75ºC（-31~+167℉）
Storage
Temperature
-40~+85ºC (-40~+185℉)
Operating
Humidity
95% ( unfreezing)
Lights
PWR
Power Lights
SYS
System Lights
ONLINE
Module on-line indicator
WIFI
WIFI working lights
EMC
indicators
Static electricity
EN61000-4-2,level 3 (Contact 6 kv, 8 kv air discharge)

F-IPC110 Industrial Computer USER MANUAL
Xiamen Four-Faith Communication Technology Co.,Ltd. Page 13 of 26
Add：Floor 11, Area A06, No 370, chengyi street, Jimei, Xiamen.China
http://en.four-faith.com Tel：[phone] Fax：[phone]
Chapter 2 Installation Introduction
2.1 Overview
F-IPC110 must be installed correctly before they achieve the design features, the
device must be installed in a generally recognized by the Company under the guidance of
a qualified engineer.
2.2 Encasement List
For safe transport, usually we need a reasonable package, when you are out of the
box, please take good care of packing materials for use in future transport needs.It
includes the following elements:
It includes the following elements:
1 User's guide CD
2 Wireless cellular antenna (SMA male head)
1 Power line
Product certification
Warranty Card
2.3 Installation and Cable Connection
Stator and IPC equipment of screw specification for: M3 * 5 mm countersunk head screws
(black)
Dimension (unit: mm)

F-IPC110 Industrial Computer USER MANUAL
Xiamen Four-Faith Communication Technology Co.,Ltd. Page 14 of 26
Add：Floor 11, Area A06, No 370, chengyi street, Jimei, Xiamen.China
http://en.four-faith.com Tel：[phone] Fax：[phone]
Fixed Size
IPC Size

F-IPC110 Industrial Computer USER MANUAL
Xiamen Four-Faith Communication Technology Co.,Ltd. Page 15 of 26
Add：Floor 11, Area A06, No 370, chengyi street, Jimei, Xiamen.China
http://en.four-faith.com Tel：[phone] Fax：[phone]
Chapter 3 Hardware Functions
3.1 External Interface
3.1.1 Front view.
3.1.2 Back view
3.2 The front panel I/O connector
3.2.1 Audio Port(Speak-out, Mic-in)
MB-F-IPC110 uses SGTL5000XNAA3 audio controller chip. Green is the audio
output interface (Speak-out), the pink microphone input interface (MIC-in).

F-IPC110 Industrial Computer USER MANUAL
Xiamen Four-Faith Communication Technology Co.,Ltd. Page 16 of 26
Add：Floor 11, Area A06, No 370, chengyi street, Jimei, Xiamen.China
http://en.four-faith.com Tel：[phone] Fax：[phone]
3.2.2 LED Lights
From the bottom indicates: PWR system power indicator lights, SYS system running lights,
the online module line indicator lights, WIFI working indicator light.
3.2.3 Serial（COM1-COM6）
Provide 6 DB9 serial ports
COM1-COM4 Pin definitions：
Pin
Signal Name
Signal Description
1
CD
Carrier Detect
2
TXD
Transfer data

F-IPC110 Industrial Computer USER MANUAL
Xiamen Four-Faith Communication Technology Co.,Ltd. Page 17 of 26
Add：Floor 11, Area A06, No 370, chengyi street, Jimei, Xiamen.China
http://en.four-faith.com Tel：[phone] Fax：[phone]
3
RXD
Receive data
4
DTR
Data communication
ready
5
GND
Ground
6
DSR
Communications
equipment ready
7
RTS
Request to Send
8
CTS
Allowed to send
9
RI
Ring Indicator
COM5-COM6 Pin definitions：
Pin
Signal Name
Signal Description
1
NC
2
TXD
transfer data
3
RXD
Receive data
4
NC
5
GND
GND
6
RS485-A
RS485 data+
7
RTS
Request to Send
8
CTS
Allowed to send
9
RS485-B
RS485 data-
3.2.4 USB Interface
MB-F-IPC110 offers 4 standard USB2.0 interface, 1 OTG interface, support plug and play.
USB Pin definitions：
Pin
Signal Name
1.5
5V
2.6
D-
3.7
D+
4.8
GND

F-IPC110 Industrial Computer USER MANUAL
Xiamen Four-Faith Communication Technology Co.,Ltd. Page 18 of 26
Add：Floor 11, Area A06, No 370, chengyi street, Jimei, Xiamen.China
http://en.four-faith.com Tel：[phone] Fax：[phone]

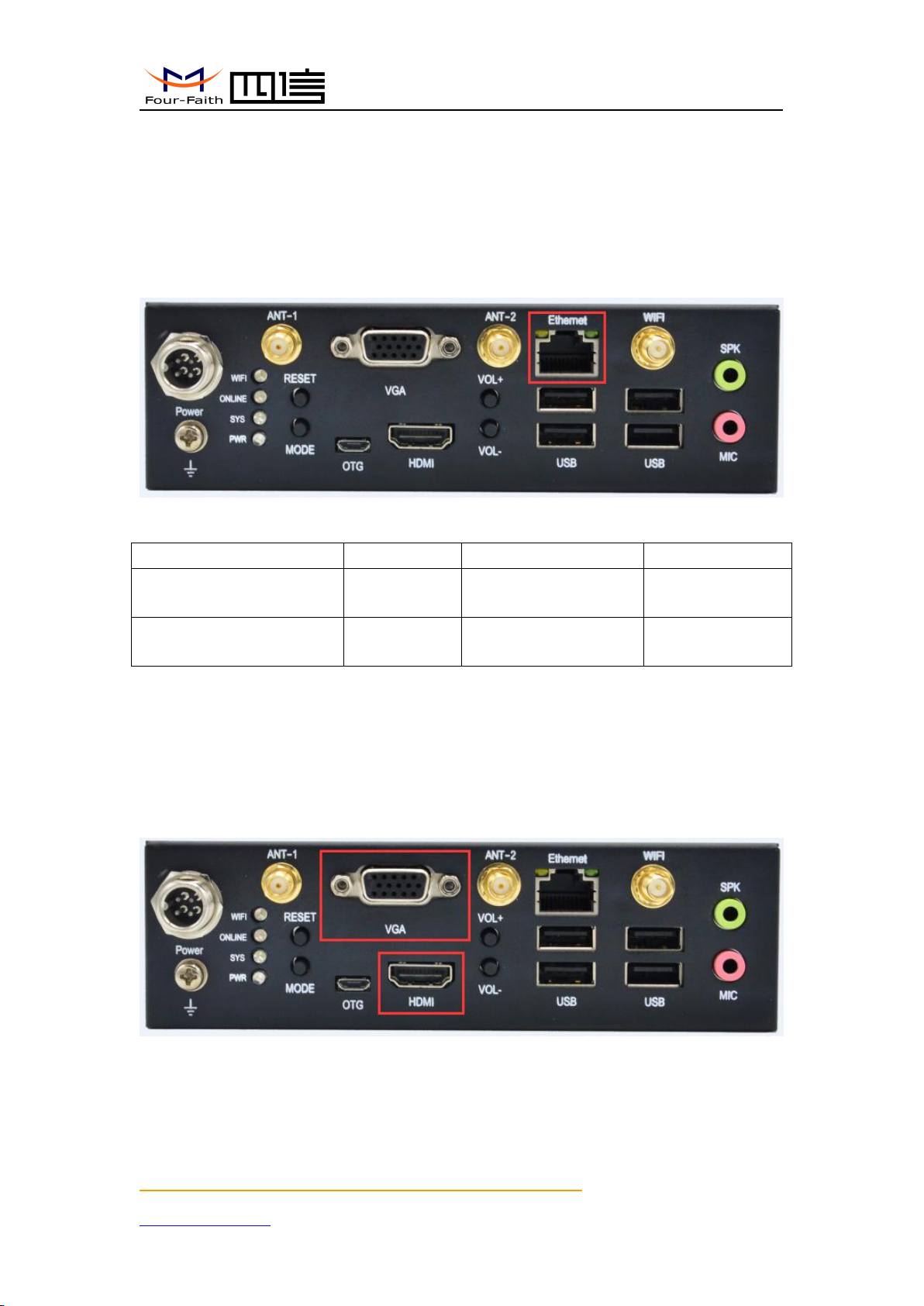

3.2.5 Ethernet Interface（LAN/WAN）
MB-F-IPC110 offers 1 * 10/100/1000Mbps Fast Ethernet ports, LAN or WAN, given
below its pin definitions, LILED and ACTLED Ethernet interfaces on both sides of the
green and yellow LED display them with the active LAN.
RJ45 LAN LED Status Description：
ACT LED (yellow) Status
Function
LED (green) Status
Function
Bright
Data
transmission
Flash
Effective link
off
Data transfer
is stopped
off
Invalid connection
on or off
3.2.6 Display Interface(HDMI&VGA)
Provide 1 high-definition HDMI display interface,1 VGA interface, dual-channel LVDS
interface.

F-IPC110 Industrial Computer USER MANUAL
Xiamen Four-Faith Communication Technology Co.,Ltd. Page 19 of 26
Add：Floor 11, Area A06, No 370, chengyi street, Jimei, Xiamen.China
http://en.four-faith.com Tel：[phone] Fax：[phone]
3.2.7 Power Interface
DC-input, 5-36 VDC, power connector aviation head interface, the machine
automatically when a call starts, you can set whether the power-on self start.
3.3 Internal interface specifications
Please carefully read when connecting external connector of the present manual, in order to
avoid damage to the motherboard.
3.3.1 SSD Interface(mSATA&J23)
mSATA (mini PCI-e) interface.
m SATA interface definition：
Pin
Signal Name
4.9.15.18.21.26.34.35.37.40.43.50
GND
23
RX+
25
RX-
27.29
GND
31
TX-
33
TX+
2.24.39.41.52
VCC3V3
1.3.5.6.7.8.10.11.12.13.14.16.17.
19.20.28.30.32.36.38.42.45.46.47.
48.49.50.51
NC
44
LED

F-IPC110 Industrial Computer USER MANUAL
Xiamen Four-Faith Communication Technology Co.,Ltd. Page 20 of 26
Add：Floor 11, Area A06, No 370, chengyi street, Jimei, Xiamen.China
http://en.four-faith.com Tel：[phone] Fax：[phone]
3.3.2 Display Interface (LVDS&CN3)
LCDS-socket interface pin definitions：
Signal Name
Pin
Pin
Signal Name
LVDS0_TX3_3P
1
2
VCC3V3/5V/12V
LVDS0_TX3_3M
3
4
VCC3V3/5V/12V
LVDS0_CLKP
5
6
VCC3V3/5V/12V
LVDS0_CLKN
7
8
VCC3V3/5V/12V
LVDS0_TX2_2P
9
10
VCC3V3/5V/12V
LVDS0_TX2_2M
11
12
3V3
LVDS0_TX1_1P
13
14
3V3
LVDS0_TX1_1M
15
16
3V3
LVDS0_TX0_0P
17
18
3V3
LVDS0_TX0_0M
19
20
GND
LVDS1_TX3_3P
21
22
GND
LVDS1_TX3_3M
23
24
GND
LVDS1_CLKP
25
26
GND
LVDS1_CLKN
27
28
GND
LVDS1_TX2_2P
29
30
GND
LVDS1_TX2_2M
31
32
CSO
LVDS1_TX1_1P
33
34
DISP_PWR_EN
LVDS1_TX1_1M
35
36
CONTRAST
LVDS1_TX0_0P
37
38
LR
LVDS1_TX0_0M
39
40
UD
3.3.4 Mricro SD cards lot
MB-F-IPC110 supports external expansion Microsd slot, maximum support 32G
expansion.
