Fovno Rack n-power User manual

全电动吸盘车顶架 N-Power 说明书

FOVNO Electric Sucker Bike Rack N-Power Instructions

Please read these instructions carefully before using this product. The instructions contain important information

which will help you get the best out of the product and ensure safe and proper installation, use and maintenance.

· Do not squeeze or impact the product forcibly.

· Do not disassemble or modify this product.

· Children should be supervised to ensure that they do not use this product as a toy to avoid unnecessary accidents.

· This product needs to be used with the attached alarm, which serves as a reminder during the use of the roof rack. If, when in use, the alarm continues to sound please stop your

vehicle and check our troubleshooting guide. If you are unable to solve the issue, please refrain from using the product until you have contacted customer service.

· In normal use of this product, the suction cup will slowly leak air. When the air pressure inside the leaking suction cup reaches the set minimum pressure value, the N-Power

control box will pump the air automatically, and the alarm will sound. The alarm will stop after a few seconds. The time it takes the N-Power control box to create a vacuum

depends on the hose length and other system settings. Normal operating time is between 2 - 15 minutes and during this time it is normal for the alarm to sound.

· It is normal for the suction cup to leak slowly during use. If the control box starts frequently within 2 minutes(while the alarm keeps buzzing), It is considered to be air leaking too

fast. Frequent start of the control box will cause the internal motor to overheat and not function properly. If similar situations occur, please check whether the suction cup is

damaged, whether the suction part is ﬂat and smooth or whether the hose and quick connector are damaged immediately. If the above problems are removed, but the frequent

start-up phenomenon still occurs, it could mean something is a problem with the product. Please contact customer service immediately. Some products have a particularly

good sealing performance and when the adsorption surface is particularly smooth, it may cause the control box to work automatically at an interval of more than 20 minutes.

If the buzzing alarm doesn't go oﬀ for a long time, please open the suction cup, in which way, you will ﬁnd out if the control box is working normally. If the control box is working

normally, there is no need to worry.

· Before use, please check the battery charge level in the N-Power control box and charge if needed. Do not use with a low battery.

· Before use, please check whether the roof rack control box is working normally with suﬃcient power. Press the main body of the roof frame on a smooth surface, turn on the

power switch, and press the main body of the roof frame vertically with your hand. After all the suction cups seal to the surface, open any of the suction cups, the control box

should start to work and this suction cup should re-adsorb the surface immediately, this is what we consider normal operation (Meanwhile, connect to the power of the alarm.

The alarm should start to buzz with the control box starts to work, and stop when the suction cup adsorbed completely).

· Before use, make sure that the ﬁlter sponge at the suction port on the bottom of the suction cup is in good condition. The ﬁlter sponge has a great protective eﬀect on the

adsorption of the suction cup. It prevents dust or other items from entering the suction pipe and guarantees the airtightness of the air valve in the suction cup.

Terms and Conditions

· Before use, please clean the roof area and the bottom surface of the suction cup to be installed with water and dry with a microﬁbre cloth. The suction cup can be installed after

ensuring that the area is free of dust and water.

· When using, please install the roof rack on a ﬂat and smooth part on the roof. The surface where the suction cups are placed must not have cracks. Do not install the roof rack in

places where there vinyl stickers or where there are joins between panels, glass or plastic.

· While driving, check whether the control box is working normally every 4 hours using the method above, and check whether all the suction cups are functioning.

· When using this product, please pay attention to the following items: the highway speed should not exceed 120km/h, and the ordinary road should not exceed the speed limit

sign. Be aware of road conditions and drive slowly on uneven or bumpy conditions.

· There is a lithium battery in the control box of this product. The temperature will aﬀect its eﬃciency. It is recommended to use in an environment at a temperature between

-20°C and +40°C.

· During use, if the control box cannot work normally due to force majeure, please do not panic. Each suction cup of this product is equipped with an air check valve. Even if the

control box is not working normally, the suction cup can still be ﬁrmly adsorbed for at least 1 hour. Please get oﬀ the car in a safe place to check and troubleshoot the problem.

If the control box still does not work normally, please stop using it immediately and contact our company's customer service for repair as soon as possible.

· When the roof rack is not in use, please plug the air pipe quick interface on the control box and the main suction cup with a rubber plug to prevent foreign objects from entering

and aﬀecting the normal operation of the roof rack..

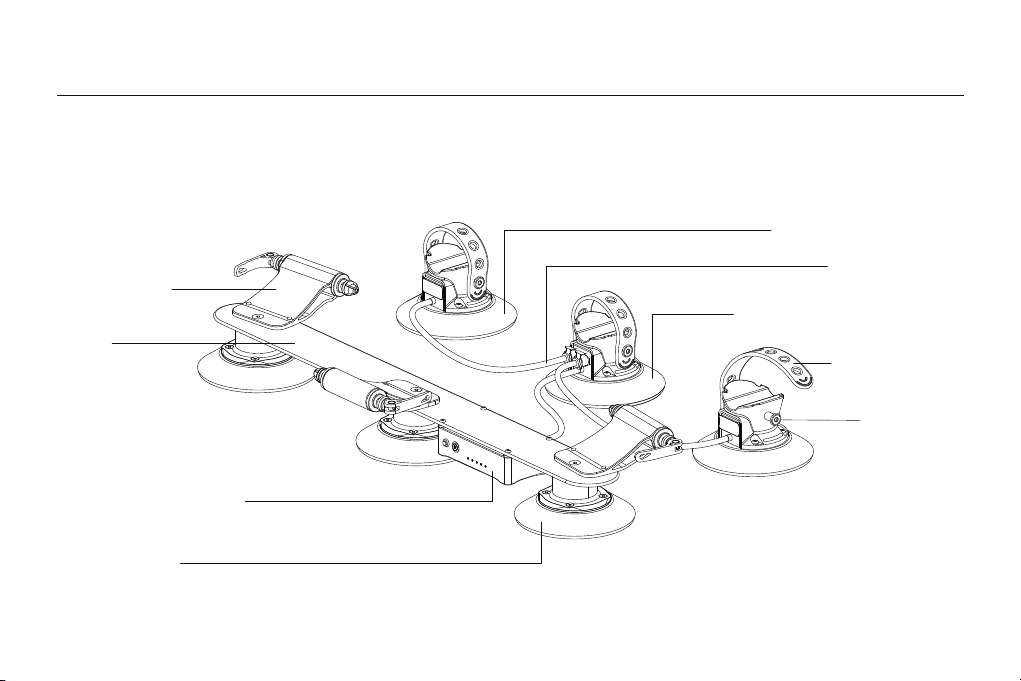

FOVNO Electric Sucker Bike Rack N-Power

Pneumatic hose

Fork Clamp

Rear wheel suction foot

Adjustable strap

Strap buckle

Suction Foot

Text

N-Power Control Box

Main rear wheel suction foot

Introduction

Learn about your new Fovno Bike rack

Introduction

Alarm

Alarm System Instructions

a. Your bike rack is ﬁtted with a safety alarm which will alert you if the back loses its connection with the vehicle. The alarm

will sound if a suction foot leaks. In the even of this happening the N-Power system will automatically attempt to create a

vacuum seal using the built in pump.

b. The alarm module is ﬁtted with a standard USB which can be connected to your vehicle either via the vehicles own USB, a

USB adaptor or USB port on a sound system. The alarm will connect to the N-Powerbox wirelessly and will alert you in the

even of a pressure error. Double sided toe on the underside of the alarm can be used to hold it in place.

C. PLEASE NOTE: If you are using more than one Fovno bike rack system on your vehicle the alarm system may not operate

correctly due to a shared signal. While the alarm may not operate the N-Power box will still function as normal.

N-Power control box functions

· Charging: Charging the N-Power box is easy and thanks to the USB C connector you can charge from a phone charger, power

band or a USB charger. Simply remove the waterproof / dust cover and charge with the included USB C wire.

· The N-Power control box features USB lights that tell you the level of charge in the battery. An orange light indicates the system

needs charging, blue means full and a red lightindicate the system is being charged. To check the battery level press the button

on the N-Power control box.

N-Power Control Box

Dust / water seal

Quick release air hose connection

USB Type C connector Power button

Battery health check button

(Red light on charge,

blue light on full charge）

（The blue light is normal, and the red

and orange are charged immediately）

red orange blue blue blue

(Dust cover: When the rack is not in use

please replace the coverto protector

the pneumatic connections.)

The underside of the alarm

A button for the pairing switch

Pairing method of alarm and control box

1. Clear data: There is a small hole on the back of the

alarm that is a button for the pairing switch. After the

alarm is connected to the power supply, press the

switch button in the small hole for about 10 seconds

When the indicator light of the alarm is oﬀ, it means

that the original data is cleared.

2. Use the same method to press the switch button

in thes mall hole of the alarm for about 3-5 seconds

After the alarm indicator lights up, start the control

box, and then stop pressing the pairing switch. At

this time, the alarm buzzes tocomplete the pairing.

Introduction

Suction ﬁlter

Base of foot

Warning: Ensure the suction foot ﬁlter is clean

and in good condition.

Press in hose

Remove the dust / water seal

(please keep it in a safe place)

Hose Connection

Hose Disconnection

① ②

Replace the dust / water

seal when not in use

b.While pressing the lever,

carefully pull the hose loose

a.Press the lever to release

the locking interface

① ②

Installation of your Fovno rack

The system allows for the angle of the fork clamp to be adjusted,

The system is suitable for all lengths of handlebar,

Please prevent handlebars for making contact when in use,

Test ﬁt the system before tightening bolts to ensure the set-up is accurate,

Ensure all boils are fully tightened and secure before use.

Loosen both M6 bolts beneath

the clamp.

Loosen the M6 bolt on the top

of the clamp.

Adjust the angle.

What's in the box

Introduction

Name Main rack frame

FOVNO Electric

Sucker Bike

Rack N-Power

Rear main suction foot

×1 ×2

Secondary rear suction foot Accessories Spares

3 x wheel straps 3 x crank straps

1 x alarm

1 x USB Type C cable 1 x Allen key

1 x microﬁbre cleaning cloth 4 x seals

4 suction cup ﬁlters

4 x dust / water seal

Speciﬁcation

Model Number ES-03B3

Size 805×112mm

System weight 4.3kg

Carry capacity 3 vehicles

(maximum mass 20kg/vehicle)

IP Rating

Our products have acquired the CE-RED,FCC-RED,ROHS,UKCA,UN38.3,MSDS,EN62133 Certiﬁcation.

IP65

Battery capacity 3400mAh

Input DC5V

Power 13W

Maximum negative pressure -65KP

Wireless transmission frequency 433.92MHZ

Introduction

The Fovno bike rack comes ﬁtted adaptors to suite quick release type hubs, but the system includes additional

adaptors for other fork and axle standardsr (to be purchased separately).

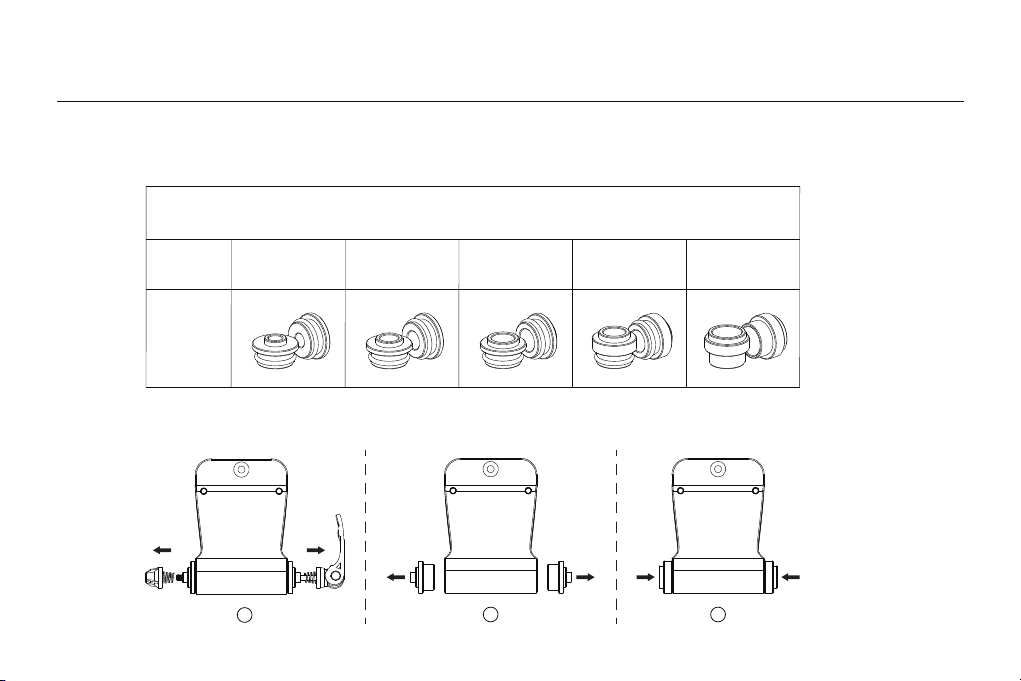

How to change axle adaptors

Alternative axle adaptors

Size 9*100mm 12*100mm 15*100mm 15*110mm 20*110mm

Model

1. Connect the alarm to a suitable USB power supply (vehicle USB, powerbank etc). If working normally a red LED light will be shown.

2. Place the bike rack on your vehicle in the desired location. Turn on the N-Power control box. At this time the alarm should ring and the automatic vacuum pump should be

operating. Press the rack down on the surface of your vehicle while the pump runs. The system will create a vacuum to fasten the rack in place and will automatically stop once

the pressure is correct. With the pressure correct and the rack ﬁrmly in position the alarm will automatically shut oﬀ.

3. With the front portion of the rack installed you can now ﬁt your bike. Remove the front wheel of your bike and carefully lift it into position. Use the appropriate axle adaptors to

clamp your fork in place. Warning! Please ensure all boils are fully tightened to prevent accident, damage and unwanted vibration.

4. With your bike in place you will now be able to choose the perfect location for the rear suction foot and wheel locator. Press the suction foot in place by hand then connect the

pneumatic air hose to the N-Power control box. The alarm will once again sound, but will stop once the correct pressure is achieved. If you plan to carry additional bikes, follow

this stem again but connect additional hoses to the main suction foot.

5. With the rear suction foot in place sit the rear wheel into position and use the buckle to secure in place.

6. We recommend that you use a strap to keep your crank arm in place while driving. This will prevent the crank moving and causing damage in transit.

7. Once your bike/s are in position give the entire system a ﬁnal check. Ensure that all suction cups are secure and that there are no leaks, Also ensure that the fork axle is secure,

the bike isn't moving. Also strap your wheels and crank to prevent movement.

8. To remove the rack ﬁrst remove your bike. Switch the N-Power control box oﬀ then lift the edges of the suction foot to break the air seal to your vehicle. The rack will then easily

lift away from your vehicle.

9. When not in use store the rack in a clean box and ensure that the suction cups are not damaged or deformed.

Instructions

Installation

Correct Wrong

Trouble Shooting

Problem Possible Issue Solution

Check the USB connection. Please check USB connection

and power source.

Alarm is damaged.

Low power in battery.

Contact customer service.

Fully charge and retry.

Battery is damaged. Contact customer service.

Loose connectoin. Check wires are connected properly.

System is in sleep mode. Use as normal.

Not the above and still not working. Contact customer service.

Damaged suction cups. Contact customer service.

Poor seal due to uneven/cracked surface. Move system.

Replace ﬁlter.

Replace Hose.

Lost ﬂiter.

Damage to hose.

Alarm isn't functioning

Control box isn't functioning

Control box lights not

functioning when charging

Suction cups not functioning

Warranty

The after sales service of this Fovno Electric Sucker Bike Rack N-Power controller is strictly based on the be “Consumer Rights Protection of the People's Republic of China” and

“The Product Low of the People's Republic of China”.

Warranty Period

1、If the product fails to perform within 7 days of purchase, it should be tested by the manufacturers after sales service centre to determine if there is a fault.

2、Within 8-15 days from the next day after you sign for the product, if the product has performance failures listed in the "FOVNO Electric Sucker Bike Rack N-Power Product

Performance Failure Table", it can be determined by the manufacturer's after-sales service centre. Enjoy free replacement or repair services.

3、Within 12 months from the day after you sign for the product, if the product has performance failures listed in the "FOVNO Electric Sucker Bike Rack N-Power Product

Performance Failure Table", it has been tested and determined by the manufacturer's after-sales service centre, and you can enjoy it for free Maintenance service.

Issues not covered by this warranty

1、Unauthorised maintenance, misuse, collision, negligence, liquid ingress, accident, altercation, incorrect use of this product and its accessories, remove or altering labels or

anti-counterfeiting marks.

2、The validity period of the warranty has expired.

3、Damage caused by force majeure.

4、Issues not met in the performance failures listing.

5、Human error.

List of product performance failures

1、Control box not functioning.

2、Control box is not charging.

3、Alarm is not functioning.

4、Suction cups are not creating a vacuum with no visible damage.

FOVNO Electric Sucker Bike Rack N-Power

Name Performance failure

Maintenance

The pneumatic air hoses and interlocking interfaces should be coated with a silicone based oil to ensure sealing performance. If a suitable lubricant cannot be found, an edible oil

can be used as a substitute.

When the roof rack is not in use please disconnect pneumatic air hoses and replace the dust / water seals to prevent dirt or debris from entering the system.

After use please ensure the battery in the control box is fully charged and check the battery level every 3 months. Recharge when necessary.

warranty card

User name

Address

Telephone number

Product name and model

Purchase date

Maintenance record

Number Date Issues and service Service Center Service engineer
